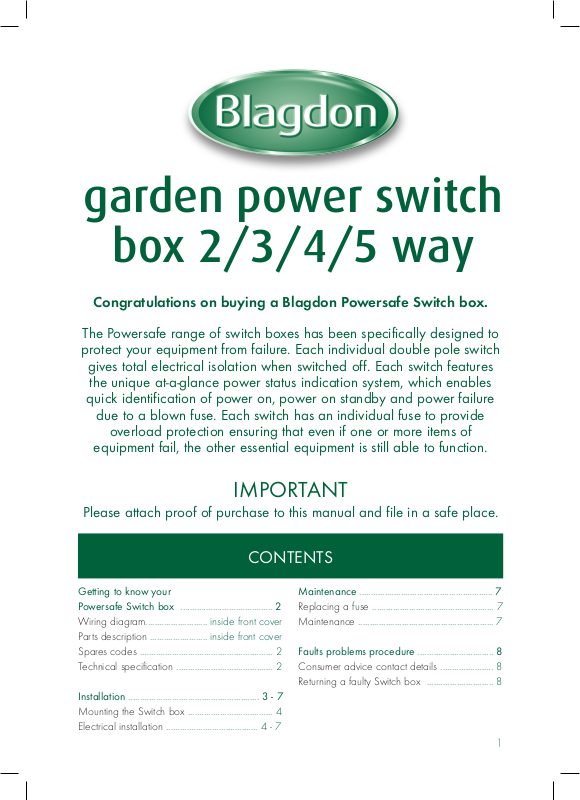

garden power switch
box 2/3/4/5 way
Congratulations on buying a Blagdon Powersafe Switch box.
The Powersafe range of switch boxes has been specifically designed to
protect your equipment from failure. Each individual double pole switch
gives total electrical isolation when switched off. Each switch features
the unique at-a-glance power status indication system, which enables
quick identification of power on, power on standby and power failure
due to a blown fuse. Each switch has an individual fuse to provide
overload protection ensuring that even if one or more items of
equipment fail, the other essential equipment is still able to function.
IMPORTANT
Please attach proof of purchase to this manual and file in a safe place.
CONTENTS
Getting to know your
Powersafe Switch box ........................................ 2
Wiring diagram........................... inside front cover
Parts description ......................... inside front cover
Spares codes .......................................................... 2
Technical specification .......................................... 2
Installation ......................................................... 3 - 7
Mounting the Switch box ..................................... 4
Electrical installation ........................................ 4 - 7
Maintenance .......................................................... 7
Replacing a fuse ..................................................... 7
Maintenance ........................................................... 7
Faults problems procedure ................................. 8
Consumer advice contact details ....................... 8
Returning a faulty Switch box ............................. 8
1

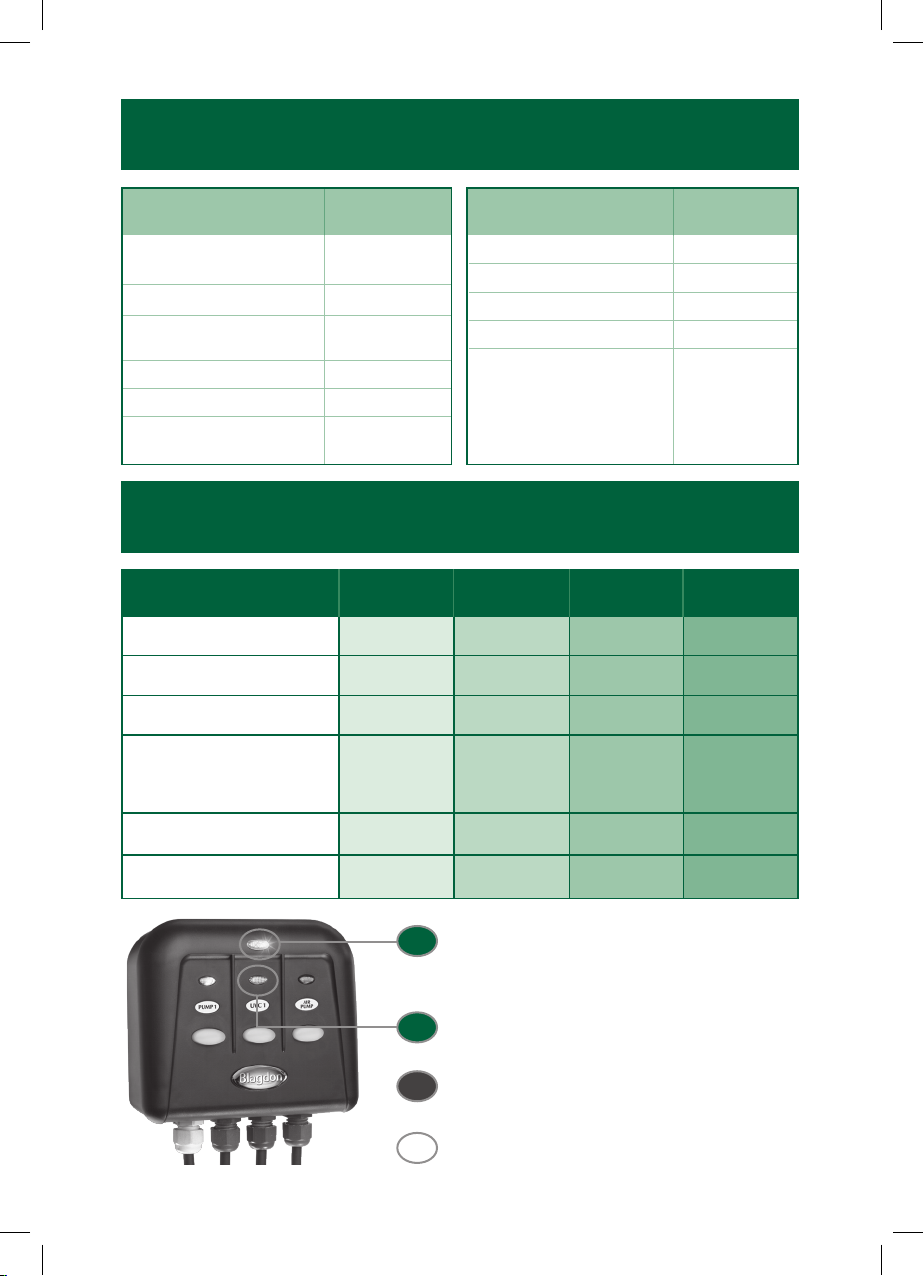

GETTING TO KNOW YOUR GARDEN POWER SWITCH BOX
Part Description Spare Code
Cover locating screws
(set of four) 1040372
Fixing bracket 1040389
Fixing bracket screws
and plugs set 1040396
2/3 switch cover seal 1040402
4/5 switch cover seal 1040419
Cable gland rubber
seal and plug 1040426
Part Description Spare Code
5 AMP fuse 1040433
1.5 AMP fuse 1040440
Cable clamp and screws 1040457
Central PCB locating screw 1040464
Rubber switch cover button 1040471
TECHNICAL SPECIFICATION CHART
SWITCH BOX 2 WAY 3 WAY 4 WAY 5 WAY
Voltage 220/240V 220/240V 220/240V 220/240V
Hertz 50/60 50/60 50/60 50/60
Safety rating IP56 IP56 IP56 IP56
Maximum cable size
External diameter
(3 core 1.5 flex) 9mm 9mm 9mm 9mm
Maximum power output 1 1000W 1000W 1000W 1000W
Maximum power outputs 2-5 1x300W 2x300W 3x300W 4x300W
Power Supply Status
GREEN LIGHT
Switch box mains supply on
Individual switch power outlets
GREEN LIGHT
Switch on, power supply on
RED LIGHT
Switch off, power supply on standby
NO LIGHT
2
Switch on or off. Fuse has blown, no power.

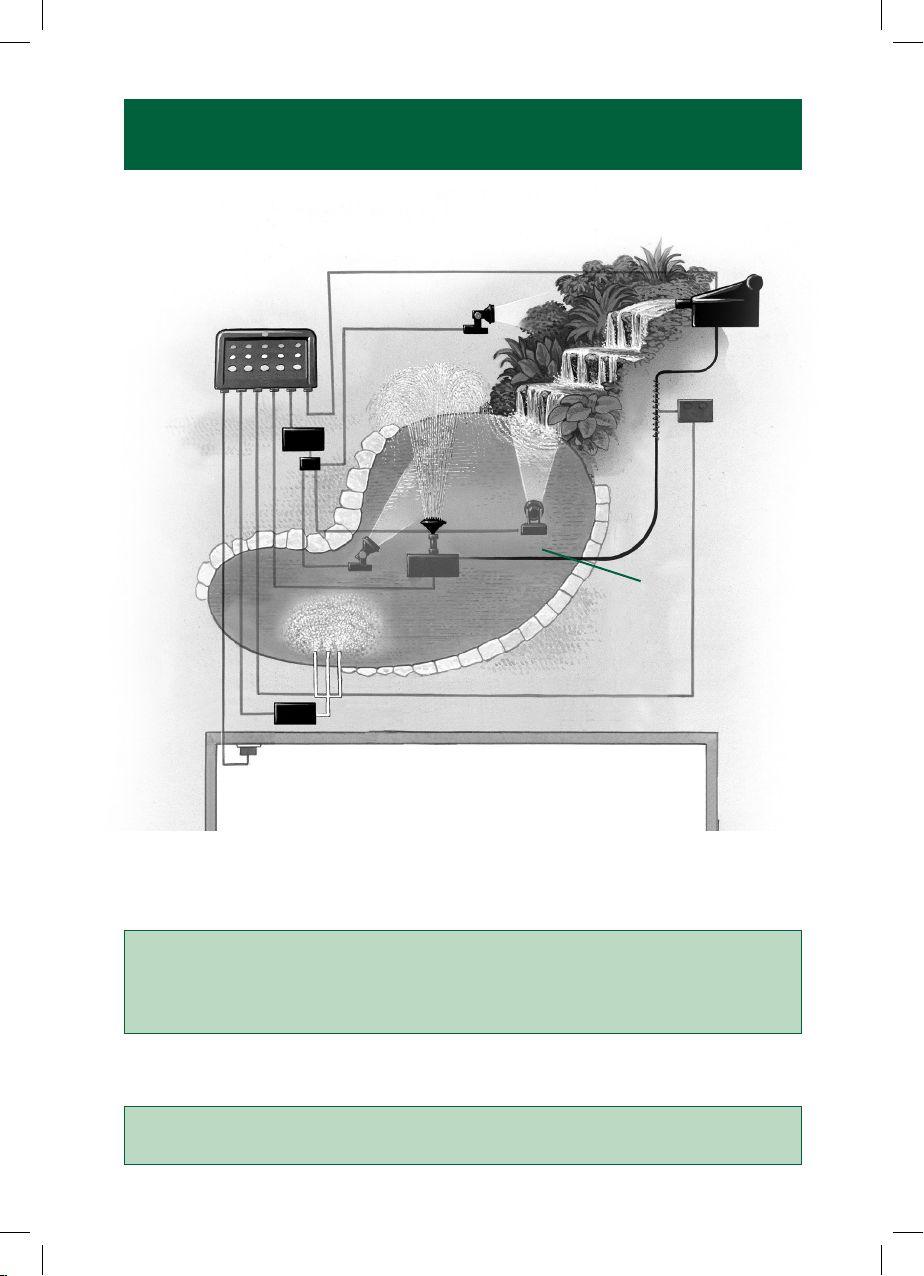

INSTALLATION
UVC FILTER
5 WAY
SWITCH BOX
RCD SOCKET OR PLUG
(HOUSE, SHED or GARAGE)
GARDEN
LIGHTING
AIR PUMP
POND PUMP FOR WATERFALLS,
FILTERS AND FOUNTAINS
HOSE
ELECTRONIC
BLANKET WEED
CONTROLLER
INPOOL
LIGHTING
Example shown is 5 way Garden Power Switch box
IMPORTANT: This outlet box is intended to be used with either a weatherproof cable connector
or permanently connected to the fixed wiring of the mains system other than by means of a plug
and socket. A Residual Current Device (RCD), also known as Residual Current Circuit Breaker
(RCCB), having a tripping current not exceeding 30mA must be installed in the supply circuit.
This unit should be connected to a mains supply that is fused with a 13 amp fuse or 15 amp circuit
breaker.
IMPORTANT: Do not drill or modify the product in any way! Do not use the product if it
is damaged.
3
INSTALLATION
IMPORTANT: Please note all electrical work on garden lighting and power installations must
comply with part P of the building regulations. Failure to comply is a criminal offence. If the
installation of this product is not carried out by a competent electrician who is registered under the
Part P self-certification scheme then you must notify the local building control department before
work begins. For further information and guidance on this matter and other electrical installations
in your home that might be covered by the relevant legislation, contact your local authorities
building control department.
Switch Box Mounting
The Switch box should be situated in a
site that is protected from:
• Flooding
• Extreme heat
• Physical damage
• Tampering by adults children or pets

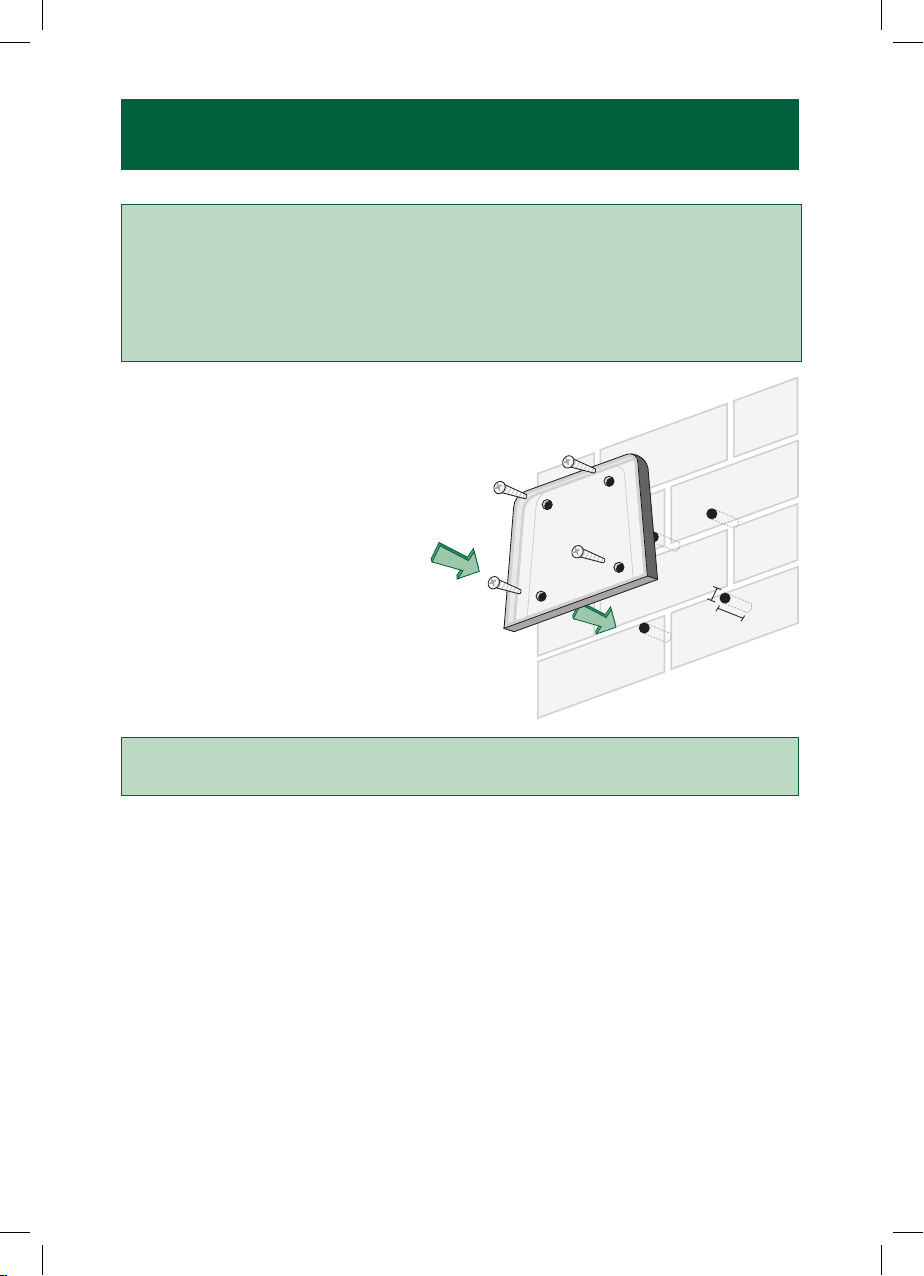

Installation step by step
FIXING PLATE
HOLE FOR WALL PLUG WALL
POST OR WALL
6mm
28mm
IMPORTANT: Before removing the cover for wiring or adding additional appliances to the Switch
box always ensure that the mains power supply is off and isolated.
Remove the Switch box from the mounting bracket.
Unscrew the four screws at the back of the box to remove the Switch box cover.
Place in a safe location.
4
INSTALLATION

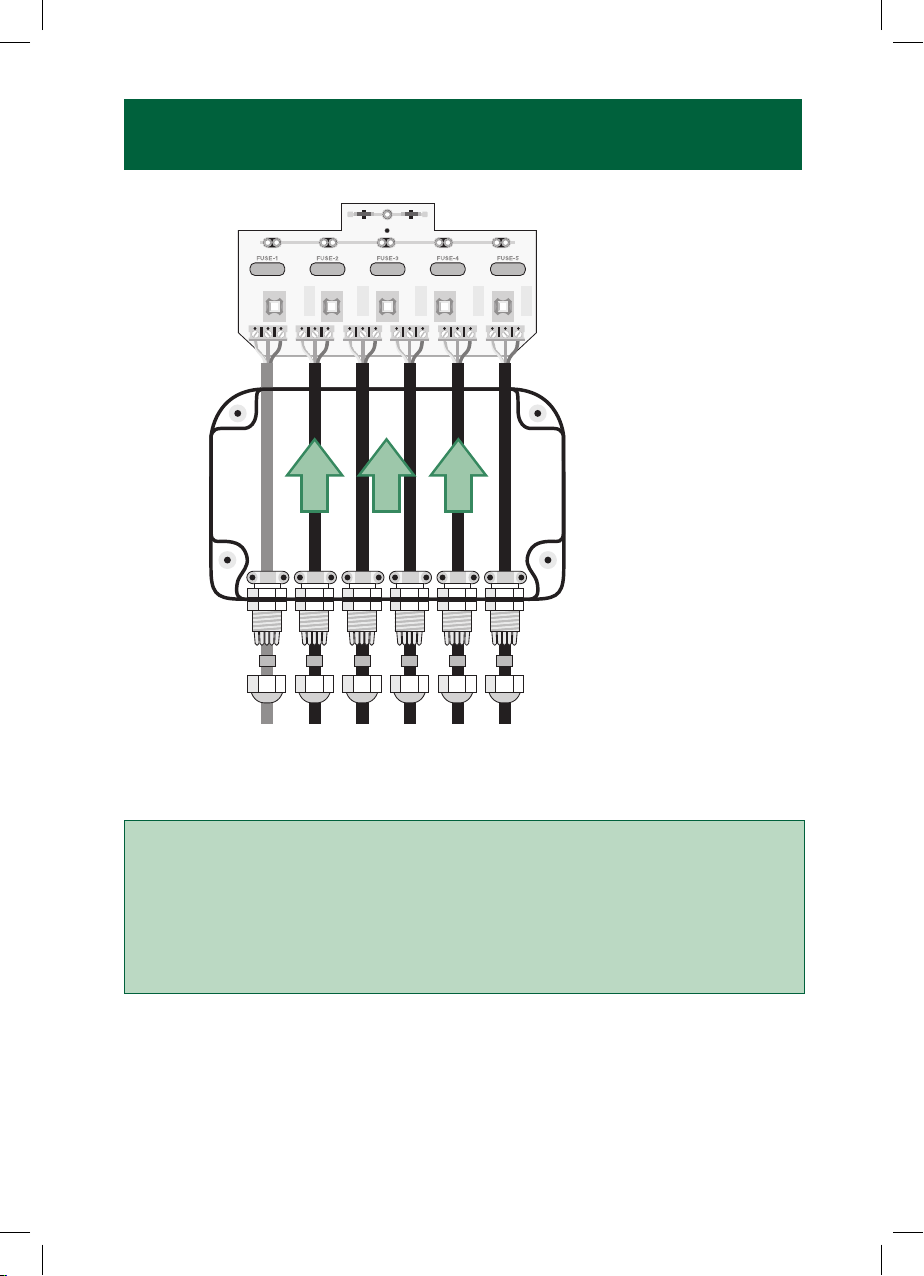

Circuit Board Removal
Remove the circuit board by
unscrewing the locating screw
and wire each appliance
before replacing and locating
into the box.
1. Prepare the cable (see cable preparation diagram - inside front cover).
A maximum external cable diameter of 9mm is permitted.
IMPORTANT: Please note that the mains input must be connected to the green power input
cable block only.
Switch one has a maximum loading of 1000w 1.0KW.
Switch two and subsequent switches are rated to a maximum wattage of 300w 0.3 KW.
These ratings must not be exceeded by the maximum wattage stated on the appliance to be
fitted to each switch.
2. Remove the cable gland cover and thread it over the cable of the appliance to be fitted.
(see gland detail diagram on colour Switch box wiring diagram - inside front cover).
Note: The cable glands have a plug that should be retained if the gland is not being
used for a application. This should be inserted to maintain a weatherproof seal.
5
INSTALLATION
3. Remove the rubber seal from the cable gland and thread it over the cable of the appliance to
be fitted. At this stage leave the gland cover and rubber seal loose on the cable.
4. Remove the central circuit board locating screw that locates the circuit board and store in a
safe place.
5. Unclip and remove the circuit board, placing it on a clean dry surface.
6. Undo (slacken) the two screws that locate the cable clamp and insert the cable through the
cable clamp. At this stage leave the cable clamp loose.
7. Undo (slacken) the three screws on the cable block to be connected.
8. IMPORTANT: Please also see diagram cable preparation for correct identification of earth,
neutral and live cables.
• Insert the Yellow/green (E) Earth cable and secure with the cable block screw.
• Insert the Blue (N) Neutral cable and secure with the cable block screw.
• Insert the Brown (L) Live cable and secure with the cable block screw.
• Double insulated appliances do not have a earth cable.
Now repeat this process for all the appliances to be connected at this time.
9. When the mains input and ALL the appliances to be connected have been connected and are
in place, replace the circuit board into the Switch box (gently pulling the cables through the
gland) and secure with the central circuit board locating screw.
10. The cable clamps can now be secured with the two screws to ensure there is no wiring
movement.
11. Insert the rubber seal that was previously threaded onto the cable into the seal grip on the cable
gland. (see cable gland sealing diagram)
12. Screw and hand tighten the cable gland cover that was previously threaded onto the cable to
the cable gland.
Now repeat this process for all the appliances to be fitted at this time.
13. Ensuring that the recessed Switch box cover seal is located, place the cover onto the box and
secure with the four screws at the back of the box.
14. Identify the appliances installed with the labels provided in the recess above the relevant switch
to enable clear identification when the box is in use.
15. The unit can now be placed on the fixing bracket provided by sliding the box vertically down
onto the bracket.
See power status indicator lights diagram page 2 for status of the Switch box when the
power is supplied to the unit.
6
INSTALLATION
Switch Box Mounting
See power status indicator lights diagram page 2 for status of the Switch box fuses. If one of the
fuses fails the power indicator will not light on the switch that has failed. Please note that if the power
supply to the switch box has been switched off or interrupted due to the RCD circuit breaker or fuse
from the mains supply isolating the box none of the indicator lights will illuminate. Before replacing
the fuse please check the manufacturer’s manual of the appliance that has caused the fuse to blow.
The product may be faulty and in need of replacement or servicing by the manufacturer.
(1 x 5 AMP and 1 x 1.5 AMP spare fuses are located for your convenience on the circuit
board.)
IMPORTANT: Always switch off the mains power and isolate the Switch box before removing
the cover.
3. Remove the Switch box from its mounting bracket by lifting in a vertical action.
2. Remove the four cover locating screws from the back of the box.
3. Having identified which switch fuse has blown (5 amp for switch 1 or 1.5 amp for subsequent
switches), remove the blue fuse cover and gently remove the fuse with an electrical screwdriver.
4. Gently push the new fuse into place and replace the fuse cover (see page 2 for replacement
fuse codes)
5. Replace the box cover ensuring that the cover seal is in place with the four screws at the back of
the box.
6. Slide the Switch box vertically down onto the locating bracket.
Maintenance
It is recommended that once a season the cover seal and rubber buttons are checked for wear and
damage to ensure that a safe weatherproof seal is maintained.
If signs of wear are shown, remove and replace the parts (spares codes and descriptions page 2).
These should be readily available from your retailer.
7
IMPORTANT
FAULTS - PROBLEMS PROCEDURE
Before returning your Blagdon pump to your dealer or contacting our Consumer Advice Department,
please carry out the following steps. These will solve most problems quickly and easily:
1. Ensure electrical procedure has been followed fully. Check fuses and any cable connectors or
switch boxes.
2. Follow the maintenance steps from page 8, follow the troubleshooting options from page12
3. Return pump to point of purchase for inspection and advice (proof of purchase may be required)
CONSUMER ADVICE CONTACT DETAILS
Interpet (Blagdon) Consumer Advice Department
Vincent Lane, Dorking, Surrey RH4 3YX
E-mail: customercare@interpet.co.uk
www.blagdonwatergardening.co.uk
www.pondaquariumproblemsolver.co.uk/blagdon
GUARANTEE
This product is guaranteed against defects in material and workmanship for 3 years from the date
of purchase, under normal usage. The guarantee DOES NOT APPLY in case of improper use,
negligence, lack of maintenance or accidental damage to the Switch box. If the Switch box fails
due to a manufacturing fault within this period it will be either repaired or replaced free of charge.
Liability is limited to replacement of the faulty product only; no other costs will be reimbursed.
This guarantee is not transferable and does not affect your statutory rights. This guarantee does not
confer any rights other than those expressly set out above. Excludes rubber buttons and fuses, which
may require replacing annually. If any parts need replacing, spares are available from your retailer.
