Powered Personal Transportation
GAS POWER BOARD
Product Handbook
`
FOR THE BLADEZ MOBY XS
GAS POWER BOARD
Models: PB-SE823
PB-SE825
PB-SE825PF
PB-SE826
PB-SE830PF
PLEASE BE SAFE WHEN RIDING
ALWAYS WEAR A HELMET AND OBEY ALL LAWS!
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 0
IMPORTANT
THIS IS A 2-CYCLE ENGINE
IT REQUIRES A MIXTURE OF GAS AND 2-STROKE
ENGINE OIL
1. You must
WILL VOID YOUR WARRANTY!
2. Use 50:1 Gas / Oil Mixture. 2.6 oz of oil for every gallon of HighOctane Gasoline.
3. Tanaka Perfect Mix or similar high quality 2-Cycle Engine Oil
recommended. Oil can be purchased from your local Bladez
Dealer, Outdoor Power Equipment Dealer, Power Sports Dealer or
on the web at www.ebladez.com
4. High-Octane Fuel Recommended. (90 octane or higher)
This PRODUCT IS NOT
OFF-ROAD Use! Please take care of your POWER BOARD!
always use a gas oil mixture. FAILURE TO DO SO
.
Failure to follow these INSTRUCTIONS will
VOID YOUR WARRANTY!
INTENDED FOR EXTREME or
DO NOT JUMP or ABUSE THIS PRODUCT!
DO NOT RIDE IN WET/ICY CONDITIONS!
Failure to follow these instructions will
If you have any questions, please contact Bladez customer service
(866) 325-2339 or visit us on the web at www.ebladez.com
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
VOID YOUR WARRANTY!
Page 1
IMPORTANT
PLEASE READ THIS BEFORE USING THIS PRODUCT
READ THIS FIRST!
WARNING
This product does not conform to Federal Motor Vehicle Standards and is not
intended for operation on public streets, roads or highways. Serious injury can
result from the unsafe operations of this product. Operator can minimize these
risks by using certain safety equipment such as: safety helmet, goggles,
gloves, elbow and kneepads and appropriate footwear.
DO NOT operate this product in traffic, on wet, frozen, oily or unpaved
surfaces or under the influence of drugs and/or alcohol. Avoid uneven
surfaces, potholes, surface cracks and obstacles.
DO NOT use a water hose to clean this product. See Product Handbook for
more information.
This product is recommended for riders 16 YEARS OF AGE and older.
SAFETY
This product should not be used by persons without excellent vision,
balance, coordination, reflex, muscle and bone strength and good
decision-making capabilities.
This product should not be used by minors without adult supervision.
This product should not be used by persons unwilling or unable to take
responsibility for their own actions.
The user of this product assumes ALL risks associated with its use. To
minimize these RISKS, the user must wear safety helmet, goggles, gloves,
elbow and knee pads and appropriate footwear.
Never start the engine inside a closed room or building. Breathing exhaust
fumes can be fatal.
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 2
BLADEZ POWER BOARD BACK
DO NOT TAKE YOUR
TO THE STORE!
CONTACT US FIRST
IF YOU HAVE ANY QUESTIONS OR NEED
ASSISTANCE,
PLEASE CALL BLADEZ, TOLL FREE AT:
(866) EBLADEZ
(866) 325-2339
MONDAY thru FRIDAY, 8am to 5pm PST
or visit us on the web at:
www.ebladez.com
GROWING NETWORK OF SERVICING DEALERS
FOR ALL YOUR POWER BOARD NEEDS
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 3
QUICK REFERENCE
SAFETY GUIDE
Fuel Safety
Mix and pour fuel outdoors away from sparks or flames.
Only use a container approved for fuel.
Smoking is prohibited near the Power Board while working on the engine, or
while the engine is running.
Wipe up and clean all fuel spills before starting the engine.
Move at least 10 feet away from your fuel station before starting engine.
Stop engine before removing the fuel cap.
It is recommended that you empty the fuel tank prior to shipping or storage to
prevent fuel leaks.
Do not store your Power Board near open flames, furnaces, electric motors or
switches.
Maintenance
Maintain your Power Board as recommended in this Product Handbook.
Disconnect the spark plug cap before performing any engine maintenance,
except for carburetor adjustments.
Keep others away while making carburetor adjustments.
Use only quality replacement parts as recommended by the manufacturer.
Transportation and Storage
Carry your Power Board by the handlebar tube with the engine off and the
muffler away from your body.
Allow the engine to cool, empty the fuel tank and fold the Power Board before
carrying or storage.
It is necessary for you to empty the fuel tank prior to shipping or storage to
prevent fuel leaks.
Clean the Power Board carefully and store in a cool, dry place.
Product Safety
Keep hands and feet away from moving parts.
Inspect the entire product prior to each use. Replace damaged parts. Check
for fuel leaks and make sure all fasteners are in place and securely fastened.
Replace all parts that are cracked, chipped or damaged before use.
Use only parts and accessories that are recommended by the manufacturer.
If a situation arises that is not covered in the manual,
proceed with caution and use good judgment.
Contact your dealer or Bladez (
if you need further assistance
www.ebladez.com)
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 4
TABLE OF CONTENTS
GETTING TO KNOW YOUR BLADEZ POWER BOARD...........................................6
PACKAGE CONTENTS...............................................................................................7
GETTING STARTED ...................................................................................................7
Unfolding................................................................................................................................ 7
Attaching The Handlebars .................................................................................................... 7
Fueling.................................................................................................................................... 8
Starting................................................................................................................................... 8
Riding .....................................................................................................................................9
Braking................................................................................................................................... 9
FOLDING AND STORAGE .........................................................................................9
OPERATING PROCEDURES ...................................................................................10
Fuel....................................................................................................................................... 10
Fueling.................................................................................................................................. 10
Starting................................................................................................................................. 10
Stopping............................................................................................................................... 10
MAINTENANCE.........................................................................................................11
Recommended Tools .......................................................................................................... 11
Carburator Adjustment ....................................................................................................... 11
Idle Speed Adjustment........................................................................................................ 11
Tires And Wheels ................................................................................................................12
Chain Adjustment................................................................................................................12
MAINTENANCE SCHEDULE....................................................................................13
OTHER QUESTIONS.................................................................................................13
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 5
GETTING TO KNOW YOUR BLADEZ POWER BOARD
Before operating your BLADEZ Power Board, please get acquainted with all of the
features.
Power Board Features
1. Throttle Lever 8. Engine
2. Handlebar Tube 9. Billet Handlebar Stem
3. Front Forks 10. Brake Lever
4. Front Brakes 11. Kill Switch
5. Kick Stand 12. Handlebar Hook
6. Folding Handle 13. Rear Sprocket
7. Wood Deck 14. Rear Axle Tension Screw
15. Foot Brake
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 6
PACKAGE CONTENTS
Your Bladez MOBY XS comes with the following items in the box. Please locate all
of the following:
1. The Bladez MOBY XS Power Board
2. Allen Wrench
3. Spark Plug wrench
4. Product Handbook
GETTING STARTED
Please read and understand these instructions and the OPERATING
PROCEDURES section, prior to starting or riding your Power Board.
Unfolding
1. Carefully remove the MOBY XS from the
2. To unfold the MOBY XS, begin by
3. Fully extend the handlebars to their
Attaching The Handlebars
1. When you take the MOBY XS out of the box,
you will need to attach the handlebar to the
scooter. Remove the billet stem cap using
the Allen wrench provided. Place the
handlebar into the groove by lining up the
hole with the screw in the billet stem. (Fig. 3)
2. Replace the billet stem cap and tighten down
the bolts to secure the handlebar. (Fig. 4)
box.
pulling up on the FOLDING HANDLE
with one hand (Fig. 1), while gently
pulling up on the handlebars with the
other.
upright position until you feel the
mechanism lock into place. (Fig.2)
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 7
Fueling
This is a two-stroke engine. Only run the engine using a mixture of gasoline
and 2-cycle engine oil.
PLEASE READ OPERATING PROCEDURES BEFORE FUELING!
1. Mix fuel (minimum 90 octane) and 2-cycle engine oil in a separate container. Use
high quality 50:1 2-cycle oil. 2.6 oz of oil for every gallon of High-Octane Gasoline.
Make sure the fuel is well mixed by shaking the container.
2. Make sure that the engine is off!
3. Slowly open the GAS CAP, so that possible over-pressure disappears.
4. Clean the tank cap area to make sure that it is free from excess dirt and debris.
* Make sure that no dirt falls into the gas tank.
5. Pour pre-mixed Gas/Oil mixture into the GAS TANK. * Do not overfill.
6. After fueling, replace the GAS CAP and tighten.
Starting
Move at least 10 feet away from where
you fill up with gas.
1. Depress clear, plastic primer bulb (on
carburetor), several times briskly until it
fills with fuel.

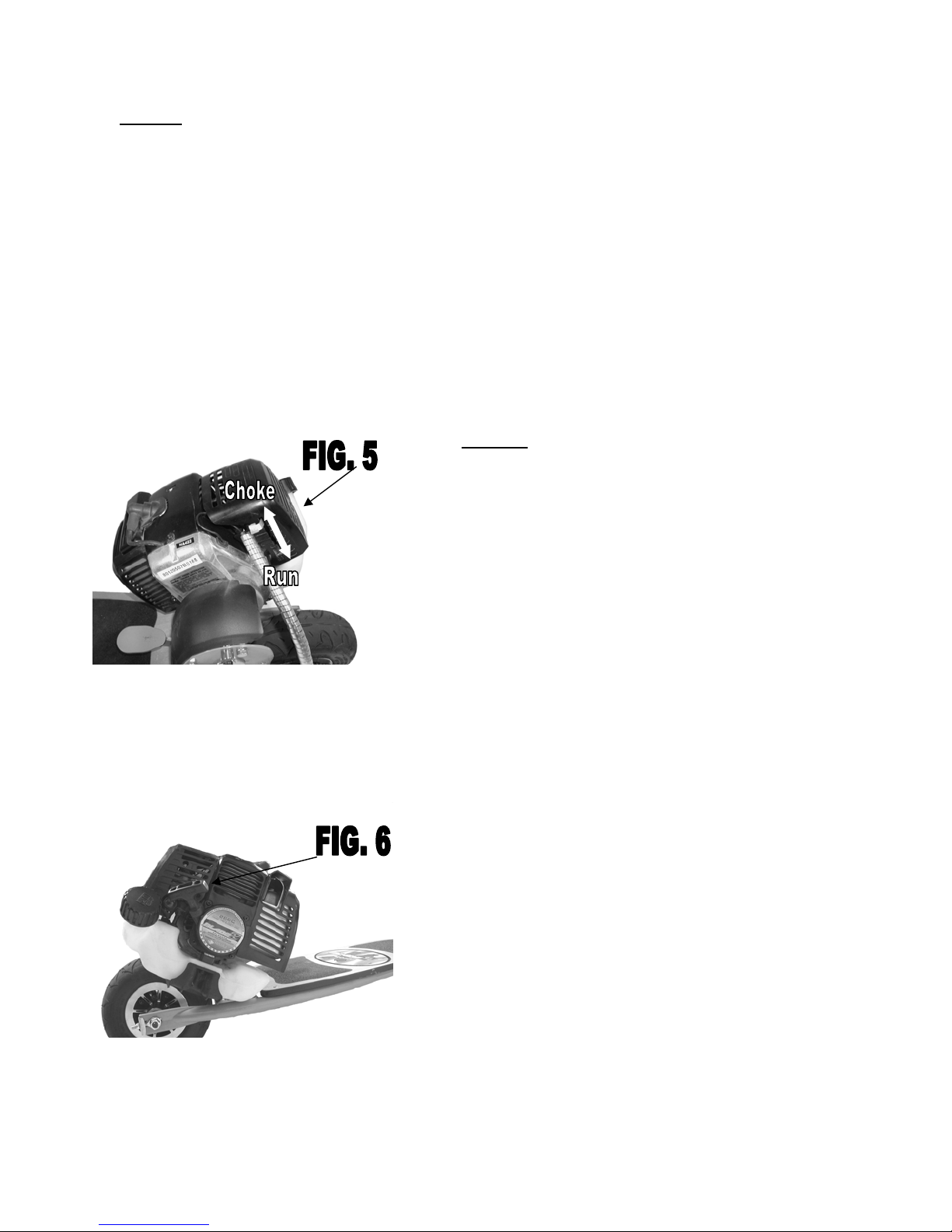

2. Set the CHOKE LEVER to the CHOKED
(UP) position. (Fig. 5)
3. Pull the RECOIL STARTER briskly,
making sure to hold the handle in your
grasp. (Fig. 6) * Note: Do not allow it to
snap back, let it back slowly. You may
want to give it a little throttle by gently
squeezing the GAS LEVER.
4. It may be necessary to repeat step 3
several times until the motor starts.
When starting the MOBY XS for the first
time, it may be necessary to pull the
starter handle multiple times until it
starts.
*This is because the gas needs to be drawn
into the carburetor.
5. Once the engine has started, quickly
move the CHOKE LEVER into the RUN
(DOWN) position. (Fig. 5)
6. After the engine is started, let it warm up
for 2-3 minutes before riding.
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 8
IF THE MOTOR KEEPS STALLING AT
IDLE SPEED, IT MAY BE NECESSARY
TO ADJUST THE IDLE SPEED ON THE
CARBURETOR. (Fig. 7)
Please refer to Carburetor Adjustment
Maintenance section on page 11 for
instructions on how to adjust idle speed.
Riding
1. Make sure that all of the exposed bolts
2. Raise the kickstand to its upright
3. Make sure the engine is running.
4. Put one foot on the deck of the MOBY
5. Control your speed by pressing and
Braking
1. To brake, release the THROTTLE
2. Gradually decrease the engine speed to
and screws are tightened.
position.
XS. While pushing off with the other foot,
gently depress the THROTTLE LEVER,
on the right side of the handlebars. The
MOBY XS will begin to move on its own
power.
releasing the accelerator lever. The
harder you squeeze, the faster you will
go.
LEVER and depress the BRAKE LEVER
(on the left side of the handlebars). You
can also use the rear foot brake. (Fig. 8)
idle and press the kill switch button on
the handlebar tube. (Fig. 9) This will turn
the engine OFF.
in the
FOLDING AND STORAGE
When you are done riding the MOBY XS you can fold it down for compact storage,
carrying and transportation. To fold down the MOBY XS, use one hand to pull up on
the folding handle while gently pulling down on the handlebars. BE CAREFUL NOT
TO HIT YOUR HEAD WITH THE HANDLEBAR. Use the hook to secure the
handlebars when in the folded position. You can now carry the MOBY XS by the
handlebar tube.
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 9
OPERATING PROCEDURES
Fuel
WARNING!
This is a two-stroke engine. Only run the engine on fuel, which is properly
mixed with 2-cycle engine oil.
Provide good ventilation when fueling or handling fuel.
Always use gas with a minimum octane number of 90.
Use 2-stroke engine oil only. Mix 50:1 gas / oil mixture.
Never use multi-grade (10W/30) or waste oil.
Always mix fuel and oil in a separate clean, gas safe container. Always
start by adding half the amount of fuel which is to be used. Then add the
whole amount of 2-cycle oil. Mix (shake) the fuel container. Add the
remaining amount of fuel. Mix (shake) the fuel-oil thoroughly before filling
the fuel tank.
Fueling
Starting
Stopping
WARNING!
Always shut the engine off before you refuel.
Slowly open the fuel tank, so that possible over-pressure disappears.
Before fueling, clean the tank cap area carefully, to insure that no dirt falls
into the tank. Make sure that the fuel is well mixed by shaking the
container.
Tighten the fuel cap carefully, after fueling.
Always move the unit at least 10 feet from the fueling area before starting.
Set the CHOKE LEVER to the CLOSED (UP) position.
Pull the recoil starter handle briskly, making sure to keep the handle in
your grasp, and not allowing it to snap back.
Once the engine is running, move the CHOKE LEVER to the RUN
(DOWN) position.
Note!
At this stage, if the engine does not start, repeat the starting procedure.
After starting the engine, allow the engine 2-3 minutes to warm up prior to
riding.
Gradually decrease the engine speed to an idle speed and press the kill-
switch on the handlebar tube.
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 10
MAINTENANCE
Recommended Tools
To adjust and service the Bladez MOBY XS Power Board you will need the following
tools:
Allen Wrenches: 3 / 4 / 5 / 6 mm.
Wrenches: 10 / 13 / 16 mm open and ring combination.
Short reach Spark Plug Socket
Large Adjustable Crescent Wrench
Spark Plug Sockets
Philips Head Screwdrivers
Oil, Grease or Lubricant (such as WD-40)
Carburetor Adjustment
WARNING!
Never start the engine without the complete clutch cover assembled!
Otherwise the clutch can come loose and cause personal injuries.
In the carburetor, fuel is mixed with air. When the engine is test run at
the factory, the carburetor is basically adjusted. A further adjustment
may be required from time to time, depending on climate and altitude.
The carburetor has only one possible adjustment:
T= idle speed adjustment screw
Idle Speed Adjustment
When the idle speed is adjusted properly, the engine will run smoothly,
without pressing the THROTTLE LEVER. (Fig. 10)
If Adjustment Is Required:
1. Start the engine.
2. Using a long, Philips head screwdriver
gently close (clockwise) the T-screw
until the MOBY XS starts to move
forward.
3. Then open (counter-clockwise) the
screw until the MOBY XS stops.
4. You have reached the correct idle speed
when the engine runs smoothly below
the RPM when the MOBY XS starts to
move.
Note: Standard idle RPM is about 25003000 RPM.
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 11
WARNING!
When the engine is idling, under no circumstances should your MOBY
XS be moving.
If the MOBY XS continues to move after idle speed adjustment, contact
Bladez or your local Bladez service center.
Tires And Wheels
The Bladez MOBY XS uses an identical rim and tire assembly on the front and rear
wheel, which means that the tires can be rotated. The wheels are actually two wheel
halves (split rim) bolted together to make it easier to remove and replace the tire and
tube.
Tire wear will differ based on rider weight, riding conditions and care. Replacement
tires can be obtained at your local Bladez dealer, through motorcycle shops, or from
the Bladez website at www.ebladez.com
.
Tire Pressure
The tire must be inflated to a maximum of 60 P.S.I. It is also recommended to
use a tube additive like Slime
available from any motorcycle shop, to avoid
inconvenient punctures.
WARNING!
Empty all air from the tire
, prior to loosening the bolt to split the rim.
Chain Adjustment
The chain will come adjusted from the factory. However, it may be necessary to
adjust the chain from time to time.
How Tight Should The Chain Be?
If the chain is skipping or jumping on the sprocket teeth, it is too loose and
should be adjusted.
The chain should be tight enough not to skip, but have a little bit of play.

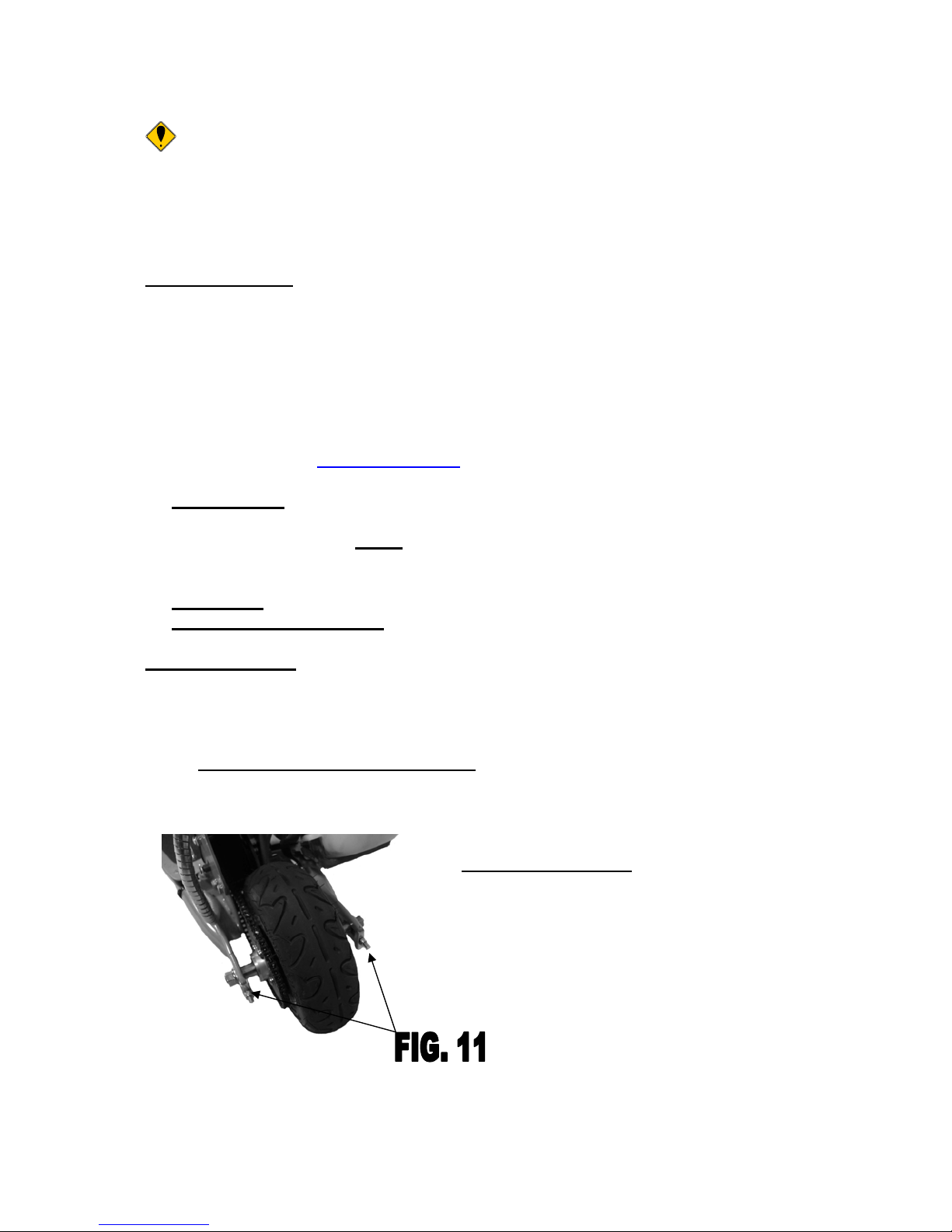

Adjusting The Chain
1. Loosen the rear axle bolt but do not
remove the axle.
2. Tighten or loosen the rear axle tension
screws until you find the proper chain
tension. (Fig. 11) (About 1/8 of an inch
of play will be the proper tension for your
chain)
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 12
MAINTENANCE SCHEDULE
Proper care of your Power Board will insure optimal performance and longer life
span. The following are a few maintenance suggestions that will keep your Power
Board running in top condition:
Daily Maintenance
Perform each time you ride your MOBY XS.
Clean the exterior of the unit with a soft, damp rag.
Check that all nuts and bolts are securely tightened.
Weekly/Monthly Maintenance
Check the starter, especially the cord and return spring.
Remove the spark plug and check the electrode gap. Adjust it to .024”, or
change the spark plug.
Clean the cooling fins on the cylinder head and check that the air intake at
the starter is not clogged.
Clean the air filter.
OTHER QUESTIONS
Where can I get accessories and replacement parts?
• From your local Servicing Dealer
• By telephone: (949) 206-0330 or (866) 325-2339
• On the web at: www.ebladez.com
For additional questions, service instructions, further information and important
phone numbers; please go to the Bladez website at www.ebladez.com
Bladez Customer Service at (866) 325-2339.
Thank you for purchasing a Bladez Power Board and please tell your friends about
how much fun you have on your Bladez Power Board.
or contact
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 13
www.ebladez.com
BLADEZ, CORP
20155 Ellipse
Foothill Ranch, CA
92610
(949) 206-0330 voice
(949) 206-0350 fax
Bladez Corp. • 20155 Ellipse • Foothill Ranch, CA 92610 • (866) 325-2339 • www.ebladez.com
Page 14
Loading...
