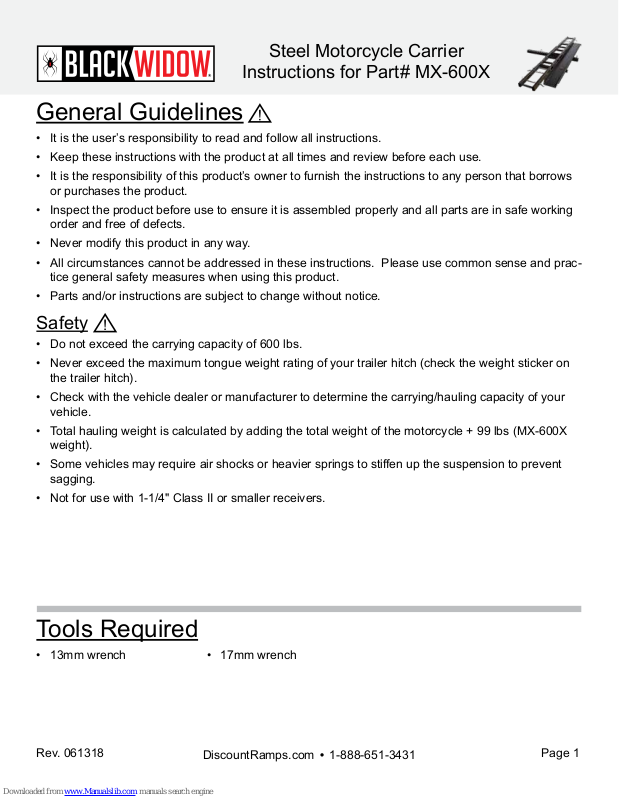

Steel Motorcycle Carrier
Instructions for Part# MX-600X
General Guidelines
• It is the user’s responsibility to read and follow all instructions.
• Keep these instructions with the product at all times and review before each use.
• It is the responsibility of this product’s owner to furnish the instructions to any person that borrows
or purchases the product.
• Inspect the product before use to ensure it is assembled properly and all parts are in safe working
order and free of defects.
• Never modify this product in any way.
• All circumstances cannot be addressed in these instructions. Please use common sense and practice general safety measures when using this product.
• Parts and/or instructions are subject to change without notice.
Safety
• Do not exceed the carrying capacity of 600 lbs.
• Never exceed the maximum tongue weight rating of your trailer hitch (check the weight sticker on
the trailer hitch).
• Check with the vehicle dealer or manufacturer to determine the carrying/hauling capacity of your
vehicle.
• Total hauling weight is calculated by adding the total weight of the motorcycle + 99 lbs (MX-600X
weight).
• Some vehicles may require air shocks or heavier springs to stien up the suspension to prevent
sagging.
• Not for use with 1-1/4" Class II or smaller receivers.
Tools Required
• 13mm wrench • 17mm wrench
DiscountRamps.com • 1-888-651-3431
Page 1Rev. 061318
Page 2
Parts
A
B C
D E
G H I J K L M N O P
Q
Part Description Quantity
A Main Hitch Tube 1
B Ramp Holder Bracket 1
C Carrier Support Bracket 2
D Ramp 1
E Carrier Track 1
F Reector Sticker 2
G M10x70 Bolt 2
H M8x45 Bolt 4
I M8x20 Bolt 8
Part Description Quantity
J M10 Eye Bolt 2
K Wing Nut 2
L M10 Nut 2
M M8 Nut 12
N Anti-Tilt Bracket 1
O Pinch Bolt 1
P Long Pin with Spring Clip 6
Q Hitch Pin 1
F
Assembly
Step 1. Place the main hitch tube (A) on cardboard to protect the
paint. Secure the carrier support brackets (C) to the hitch tube with
four M8x20 bolts (I) and M8 nuts (M), keeping them loose.
Step 2. Slide the carrier track (E) between the
carrier support brackets and secure it using
four M8x45 bolts (H) and M8 nuts (M). Tighten
all bolts until secure. Do not overtighten.
Step 3. Secure the ramp holder bracket (B) to
the carrier track with two M10x70 (G) bolts and
M10 nuts (L), keeping them loose.
DiscountRamps.com • 1-888-651-3431
Page 2Rev. 061318
Page 3
Step 4. Place the ramp (D) onto the main
hitch tube and ramp holder bracket and secure it using three wing nuts (K). Tighten the
two bolts on the ramp holder bracket.
Step 5. Slide the long pins (P) into the sides
of the carrier track and secure them with
spring clips. Install the two eye bolts (J) into
the main hitch tube.
Step 6. From here there are two methods for stabilizing the carrier. Both methods may be used, but
at least one is recommended.

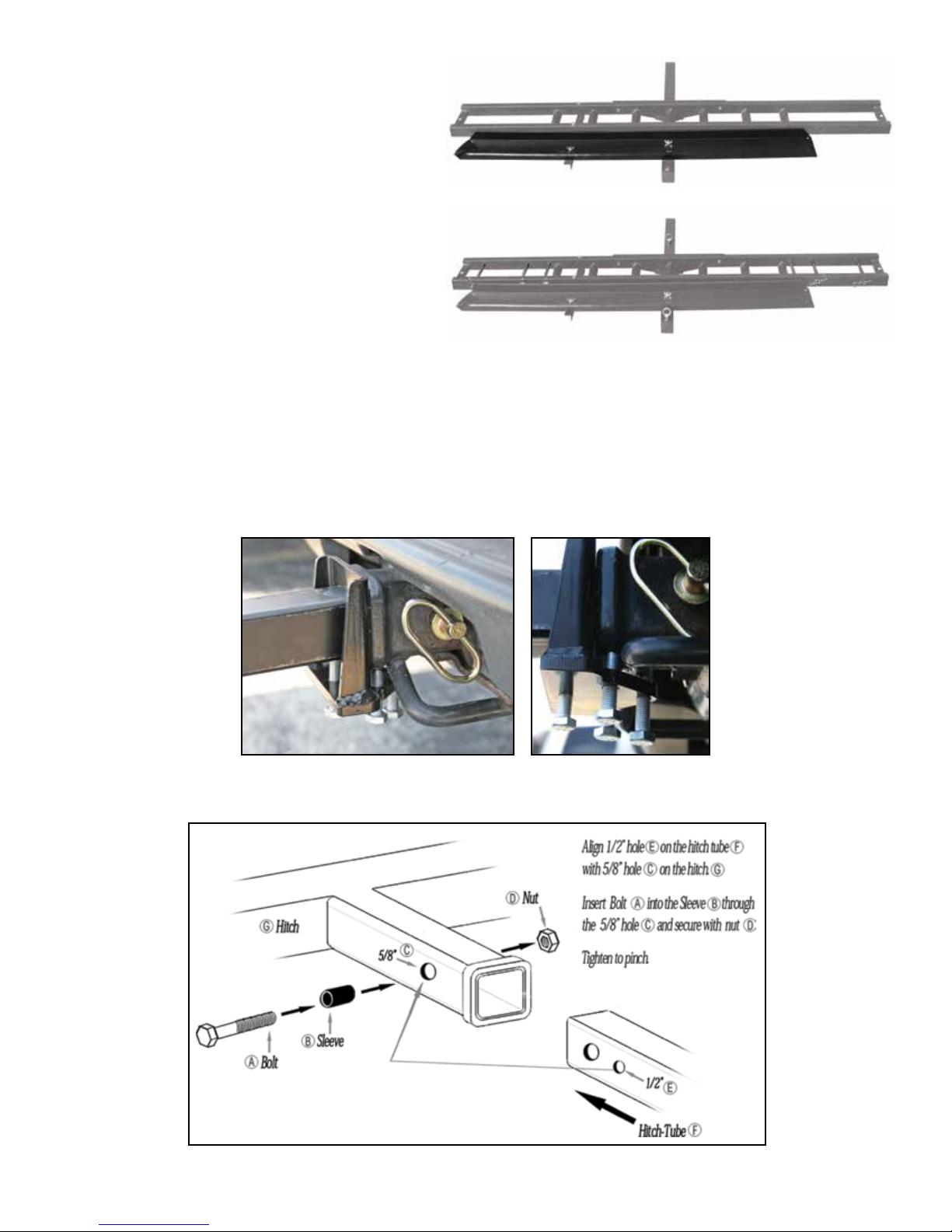

Option 1 - Hitch Pin and Anti-Tilt Bracket
Slide the anti-tilt bracket onto the main tube with the single bolt pointing toward the carrier track. Slide
the carrier main tube into the hitch receiver, lining up the larger 5/8” hole in the main tube with the
hitch pin hole. Insert the hitch pin and install the hitch pin clip. Slide the anti-tilt bracket forward toward
the vehicle hitch until it is ush against the hitch. Tighten the four bolts on the anti-tilt bracket.
Option 2 - Pinch Bolt and Anti-Tilt Bracket
Install the anti-tilt bracket as described in Option 1. See diagram below for pinch bolt installation.
DiscountRamps.com • 1-888-651-3431
Page 3Rev. 061318
Page 4
