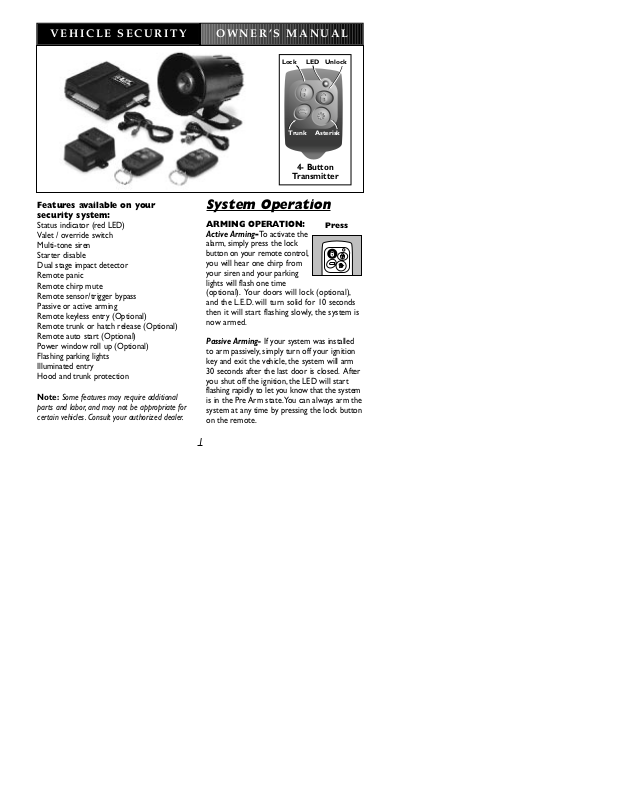

Page 1
Features available on your
security system:
Status indicator (red LED)
Valet / override switch
Multi-tone siren
Starter disable
Dual stage impact detector
Remote panic
Remote chirp mute
Remote sensor/trigger bypass
Passive or active arming
Remote keyless entry (Optional)
Remote trunk or hatch release (Optional)
Remote auto start (Optional)
Power window roll up (Optional)
Flashing parking lights
Illuminated entry
Hood and trunk protection
Note: Some features may require additional
parts and labor, and may not be appropriate for
certain vehicles. Consult your authorized dealer.
System Operation
ARMING OPERATION:
Active Arming-To activate the
alarm, simply press the lock
button on your remote control,
you will hear one chirp from
your siren and your parking
lights will flash one time
(optional). Your doors will lock (optional),
and the L.E.D. will turn solid for 10 seconds
then it will start flashing slowly, the system is
now armed.
Passive Arming- If your system was installed
to arm passively, simply turn off your ignition
key and exit the vehicle, the system will arm
30 seconds after the last door is closed. After
you shut off the ignition, the LED will start
flashing rapidly to let you know that the system
is in the Pre Arm state.You can always arm the
system at any time by pressing the lock button
on the remote.
1
OWNER’S MANUAL
VEHICLE SECURITY
4- Button
Transmitter
Press
Lock
Trunk
UnlockLED
Asterisk
Page 2
DISARMING OPERATION:
To deactivate the alarm, press
the unlock button on your
remote, the siren will chirp
twice and your parking lights
will flash twice (optional),
then stay on for 30 seconds
or until you either turn the
ignition on or rearm the system (optional car
location feature).The LED will stop flashing,
the doors will unlock (optional), your system
is disarmed. If you have the (optional) illuminated entry system installed the interior light
will flash twice then stay on for 30 seconds or
until you turn the ignition on or rearm the
system.
VALET MODE:
Valet
mode will
keep your
alarm system from
passive arming (if programmed to be passive
arming), if you need to have your vehicle serviced, or run it through the car wash, etc. To
put your system in Valet Mode,disarm system,
turn the ignition key on and press and hold
your valet/override switch in for approximately 3 seconds, the LED will turn solid, and siren
will chirp once. Your vehicle’s system is in
Valet Mode. If you have the keyless entry
option, the remote will still lock and unlock
the vehicle while in Valet Mode.To exit Valet
Mode: Ignition Key on, press and hold
valet/override switch for approx. 3 seconds,
LED will turn off and siren will chirp 2 times.
EMERGENCY OVERRIDE:
If you
lose your
transmitter, or it
fails to
operate
the system, unlock door and enter vehicle.
The siren will sound, insert your ignition key
and turn the ignition to the ON position.
Then press the Valet/Override Switch, the system will be overridden and allow you to start
the vehicle.The system will automatically go
into valet, so it will not passively rearm. (See
Valet operation to take system out of Valet
mode.)
REMOTE PANIC:
For your personal safety you
may activate the siren by
pressing the asterisk on your
remote for 3 seconds.This
will trigger the system into the
Panic mode. The siren will
sound and the parking lights
will flash (optional). The panic mode will run
for 45 seconds, or until you press the lock or
unlock button on your remote again. This feature will not operate when the ignition is on.
ENTRY VIOLATION MEMORY:
In the event that your system is triggered and
runs an entire cycle, when you return to disarm it instead of the usual 2 chirps you will
hear 3 chirps, this is to indicate that the your
system was set off., parking lights will flash 3
times as well (optional).
2
+
ON
Press
+
Hold
+
ON
Press
Press for
3 sec.
Press
Page 3
3
SILENT ARM/DISARM:
If you wish to arm or disarm your alarm, but
do not want the siren to chirp simply press
the trunk button on the remote control, temporarily deleting the arm or disarm chirps.
TEMPORARY REMOTE
TRIGGER BYPASS:
If you would like to arm the
system but need to either
leave a door or trunk open
(hood/ trunk optional), you
can temporarily arm the
system so that the door and
hood /trunk triggers are not monitored. Press
the lock button to arm, then within 5 seconds
press the unlock button. You will hear a second confirmation chirp to let you know that
the system will NOT monitor the doors. The
Shock Sensor will still be monitored.
TEMPORARY REMOTE TRIGGER
AND SENSOR BYPASS:
If you would like to arm the
system but want to have it not
monitor the shock sensor,
(leaving a child or pet in the
car). Press the lock button to
arm, then within 5 seconds
press the trunk button. You will hear a second
chirp to confirm that the sensor will be
bypassed.
NOTE:Once you disarm and rearm the system,
the door/hood trigger and sensor inputs will be
monitored.
REPLACING STOLEN OR LOST
REMOTE CONTROLS:
Your authorized Dealer can program in more
remote controls, and erase the codes for
stolen or lost transmitters at the same time,
so that they will not operate the system.
LED STATUS INDICATORS
Off= System off in Active mode
Slow Flashing= System Armed
Rapid Flashing= Passive Pre Arm State
Rapid Flashing (after disarm)= System
was triggered while away.
On Solid= In Valet Mode.
On Solid(After Active Arming)= Pre Arm
State,usually approximately 10 seconds.
On Solid (when disarmed, and not in
Valet)
= Door/Hood is open.
CHIRP INDICATIONS:
One Chirp= Armed
Two Chirps= Disarmed
Three Chirps= Disarmed, but system was
triggered while away.
Four Chirps= 8 seconds after arming, indicates faulty sensor or trigger.
Five Rapid Chirps= Warn away triggered
Press
Press
Page 4
4
© David Levy Company, Inc., Rev. 1 (4100),February 2000 • Cerritos, Ca 90703
Trunk
Lock
Asterisk
UnlockLED
4- Button
Transmitter
REMOTE CONTROL OPERATION FEATURES (4 BUTTON TRANSMITTER)
4-Button TRX Duration Function
LOCK SHORT ARM
UNLOCK SHORT DISARM
ASTERISK SHORT REMOTE PANIC
TRUNK SHORT SILENT ARM/DISARM
TRUNK LONG (3 SEC.) 2ND CHANNEL (TRUNK)
LOCK & UNLOCK SHORT/SHORT TEMP. TRIGGER BYPASS
LOCK & TRUNK SHORT/SHORT TEMP. SENSOR BYPASS
LOCK LONG AUX. 3RD CH. OUTPUT
