Blacksys CW-100 User Manual

User’s Manual

Notice

 This product helps you to use the recorded video as a reference in case of car accident.

The recorded video by this product carries no legal binding force. CammSys will not be responsible for any legal conict and damage caused by recorded or non-recorded video.

f For the safety, do not operate the product during driving or stare at the product. Such action may result a car accident.

f On an accident with the impact lower than certain degree of acceleration, please be aware that the event data may

not be recorded in the product.(however it is recorded as a Normal le)

f Recording may not be executed in case the product is defect caused by car accident or other reason.

f Recording can be distorted under the condition where brightness suddenly changes like passing through a tunnel,

Direct sunlight reection during the day time or where light is not available at night time.

f All right to hardware, software and relevant data are reserved by CammSys Corp. and protected under copyright

Law. In case of illegal copy and process, not only civil compensation but criminal punishment based on protection of intellectual property rights can be engaged.

f Do not use the product for other purpose rather than Car Black box. CammSys will not be held responsible for

damage caused by negligence, careless and improper management of user.

Recommended System for PC Viewer

● OS: Window XP(32bit), Windows Vista(32bit), Windows7(32/64bit)

● CPU: Pentium 4/ 2,8Ghz or higher

● Memory: RAM 1G or higher

● HDD: 4GB / Directx 9.0 or higher

● Microsoft Intenet Explorer 7 or higher

Notice

Caution

 Before use the product, check if operation and video recording goes well.

Installation and Management

f Keep clean the camera lens by preventing dust or foreign substance from getting in the lens part. Otherwise, it

may result in video distortion. If another object is placed around, it can be reected from the window. So do not put

another object around the installed product.

f If installation location of the product is changed, it may not record properly even if it worked after initial installation.

Therefore, install the product rmly and do not give an excessive shock or force to move the product.

f Long time use of product or in case of severe vibration by driving unpaved road, changed angle or location of

product may cause malfunctioning. Correct the angle or location of product properly in a at road after pull over to

the side of the road.

f Do not disassemble or remodel this product as it can cause an accident due to malfunctioning and such action will

Result in the product being unt for use and void all warranty/service provisions.

f Do not use chemicals or detergents to clean the product. This can result in malfunctioning of the product.

f Never give an excessive shock to or inject a foreign substance into the product. Give an excessive force or shock or

injecting a foreign substance into this product can cause a trouble.

Caution

SD Card Use

Power

 Be sure to turn OFF the power and LED is OFF before removing or

inserting the SD card. Removing the SD card while product is in use, it can cause malfunctioning.

f Use the authorized SD card which a manufacturer/

distributor provided. If authorized SD card is not used,

it can cause malfunctioning and loss of recorded Data.

f Do not disassemble or remodel this product. It can

cause malfunctioning and service is not available.

f SD card is expendable supply. After long period of use,

it may not able to record data correctly. Please change the SD card To the new one.

f Back up the important data in other storage devices

such as HDD,CD, USB. Data can be lost and damaged if data is kept in SD card for a long time.

f Check the recorded data of SD card in a regular basis

to make sure the recording is working well.

Caution

f This product is designed to use cigar jack power. In

case of using the power from the vehicle, consult it with dealer in shop and any damage caused by the user’s misuse, be noted that it’s user’s fault and manufacturer is not responsible for any case.

f Use the authorized cigar cable contained in the product

box. Avoid connection of power supply without knowledge and experience. Any damage caused by user’s misuse, be noted that it’s user’s fault and manufacturer is not responsible for any case

f Do not remove or insert SD card while power is turned

on, it can cause serious error of the product. Make sure to turn OFF the power and LED is OFF before removing or inserting the SD card. Removing the SD card while product is in use it can cause damage of

video le.

How to format

PC format

Manual format

 Check the virus and format the SD card in a regular basis (twice a

month at least ) to avoid disadvantage caused by storage error such as non-recording and abnormal recording.

How to format

1. Insert or connect SD card to PC.

2. Click [Start] ➝ [My Computer].

3. Place mouse pointer in [Portable USB drive] SD card and

click the right button of mouse. then click the [Format].

4. Once click the [Start] button, format is started.

Notice

● AT16/32 format is required if SD card recognition and record error happen.

● Change SD card if PC doesn’t recognize SD card or format is not able to be completed.

● If SD card contains other data, it can cause malfunctioning. Therefore, please remove it.

Caution

Ú As SD card is expendable supply, manufacturer is not responsible

for any data loss and damage. Also, manufacturer cannot

guarantee the recorded Normal/EVENT data on SD card.

 Manual format is available without PC.

How to format

1. Turn off the power.

2. Press Event [▲] button deeply and turn on the power

simultaneously.

3. Format is started after 5 sec. with buzzer sound and

LED off.

4. Once format is completed, it starts rebutting

automatically.

Caution

Ú Keep press the event button until format is started.

How to format

Table of contents

Notice 2

Caution 3

Installation and Management 3 SD Card Use 4 Power 4

How to format 5

PC format 5 Manual format 5

Details on Video Record 7

Main features 8

Name of the components 9

Main components 9 Optional components 9 Front 10 Rear 10 Left Side 11 Right Side 11

Table of contents

Installation 12

LED and Buzzer 14

Function 14 Error 15

PC Viewer Installation 16

How to install PC Viewer 16 How to uninstall PC Viewer 17 PC Viewer Layout 18 PC Viewer Conguration 20

How to update rmware 21

Technical Specication 22

Customer Service 23

Before applying for Service 24

Product Warranty 25

Details on Video Record

Normal Recording

Video Record starts when vehicle power is turned on and recorded data are stored in SD card(“REC” folder).

Last Scene Recording

Though power supply is disconnected caused by accident

or manually, last scene is recorded and stored in EVENT

folder by using built-in super capacity battery.

Parking Mode Recording

f 10 minutes after parking or stopping the car, if no

motion is detected, it converts to Parking mode recording automatically.(In case of product is con-

nected with a car battery or extra power supply)

f If motion is detected consistently and driving is

resuming, it converts Normal recording again.

f When it detects impact during Parking mode, the video

le is stored in “EVENT” folder.(Long period of parking may cause discharge of a car battery.)

EVENT Recording

If Acceleration sensor(G-Sensor) detects impact, sudden unintended acceleration and quick braking or manually pressing the event button during the car runs, it records 20 sec. of video to the “EVENT” folder(10 sec. before and after the EVENT).

Notice

● The less G-Sensor gure, the less shock sensitivity. (Initial settings come with 3 level. 1 is insensitive, 3 is medium,

6 is sensitive)

Caution

Ú If power is disconnected within 2 min. after power is on, recorded le can be broken.

Details on Video Record

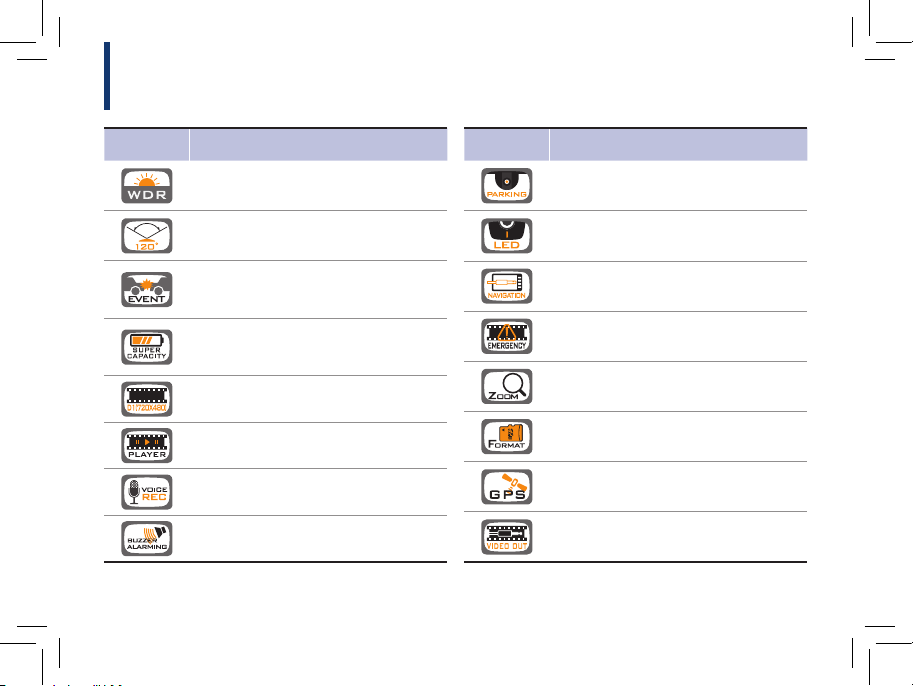

Main features

Icon Features

The feature providing clear images under back light circumstances

Wide angle of view(120°) makes seamless recording(30fps)

Event recording starts when impact

happen and records 10 sec. before and

after impact

Built-in Super Capacitor keeps recording for 5 sec. even when power supply is disconnected

Normal recording(720 x 480 resolution, D1) continues Max 30fps

Playback the video les through PC viewer(for Windows)

Clear voice recording

Buzzer indicates operation status and

alarms an Error

Main features

Icon Features

Parking mode recording

(In case of being powered)

LED Indicator for surveillance

Video review by connecting to navigation

system

Emergency Recording

Zoom in through PC viewer

Manual Format

GPS(option) module

Video out(option) cable

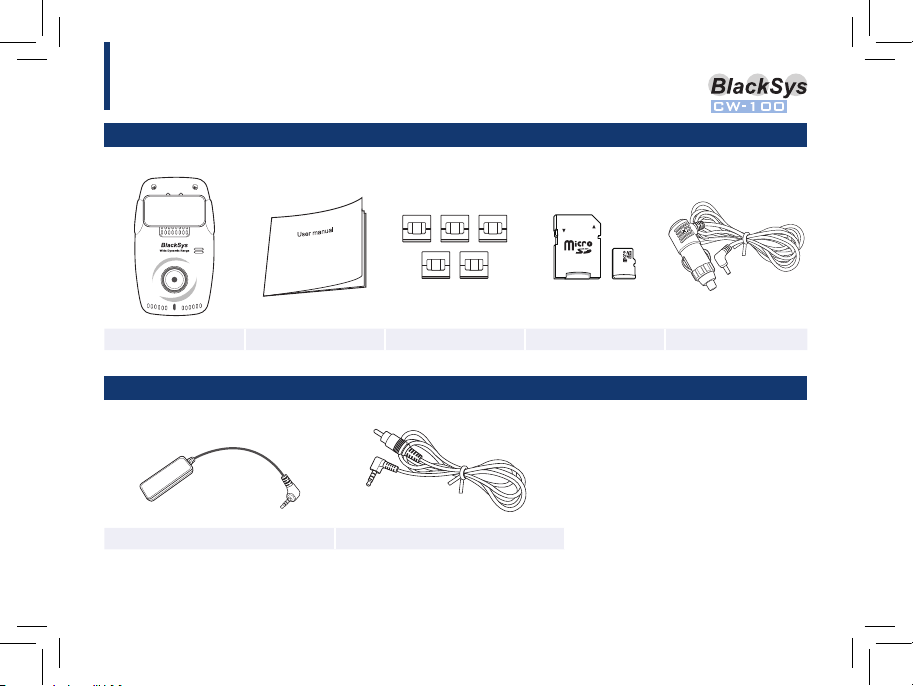

Name of the components

Main components

Lock

Adepter

Main unit User’s manual Cable holder Micro SD Card Cigar jack cable

Optional components

External GPS module A/V Out cable

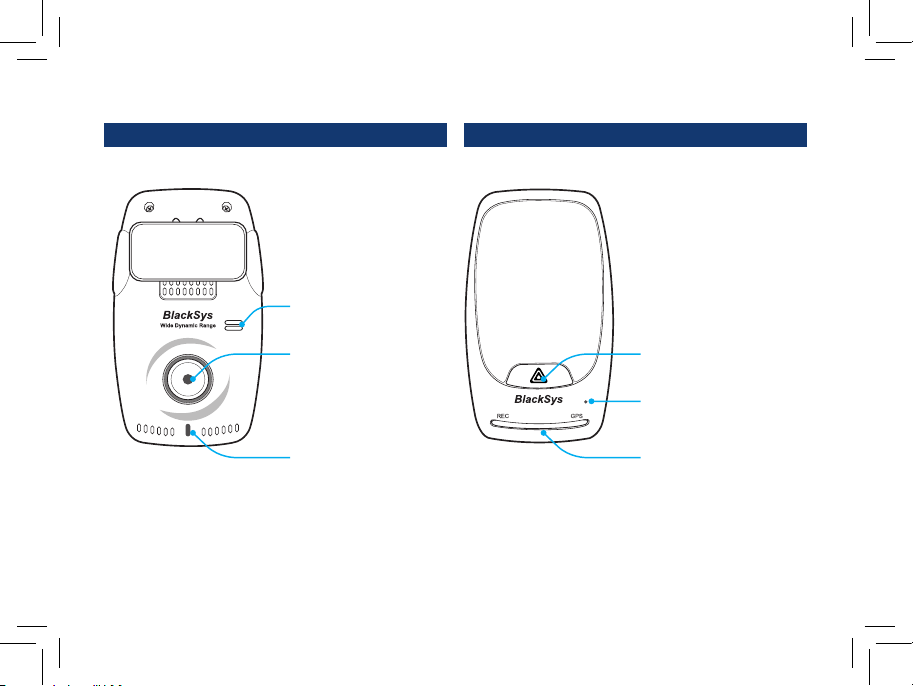

Name of the components

Front

Rear

Buzzer

Name of the components

Camera Lens

For video recording

Surveillance LED

LED indicator for parking or video recording

Event button

For manual recording

MIC

Voice recording

REC, GPS LED

LED indicator for error

or REC/GPS is running

(Refer to page 12~13

regarding LED indicator)

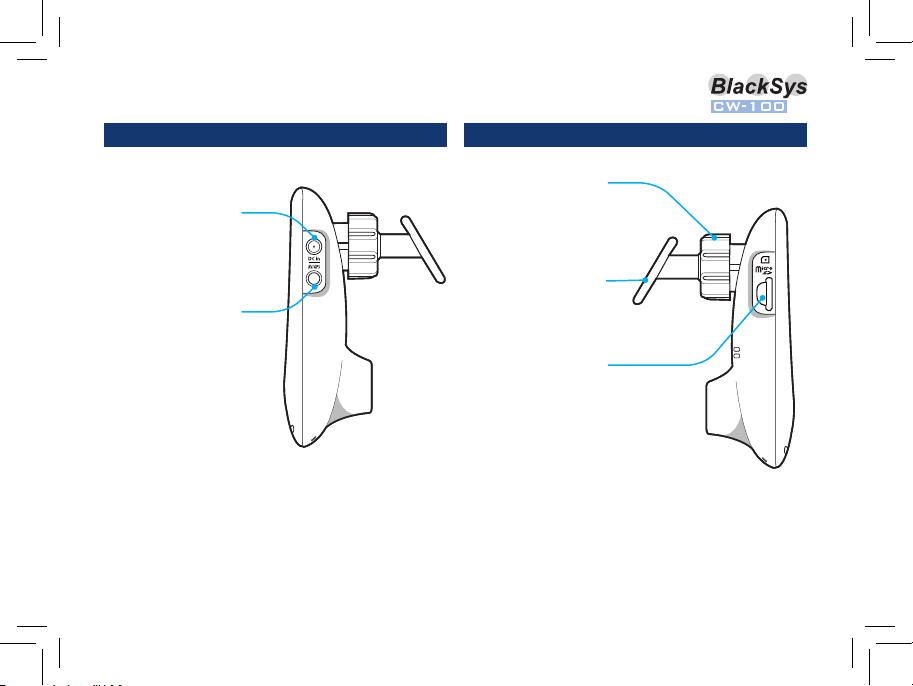

Left Side

Power Terminal

For supplying power to

the main unit

GPS Port

Check the location

and speed of Vehicle

through the PC viewer

A/V Out Port

Video review by

connecting to external

device

Right Side

Clamping lever

For xing the holder to

the unit and available

adjustment on up/

down, left/right side

Holder

For attaching main

unit to windshield

Micro SD Card Slot

Name of the components

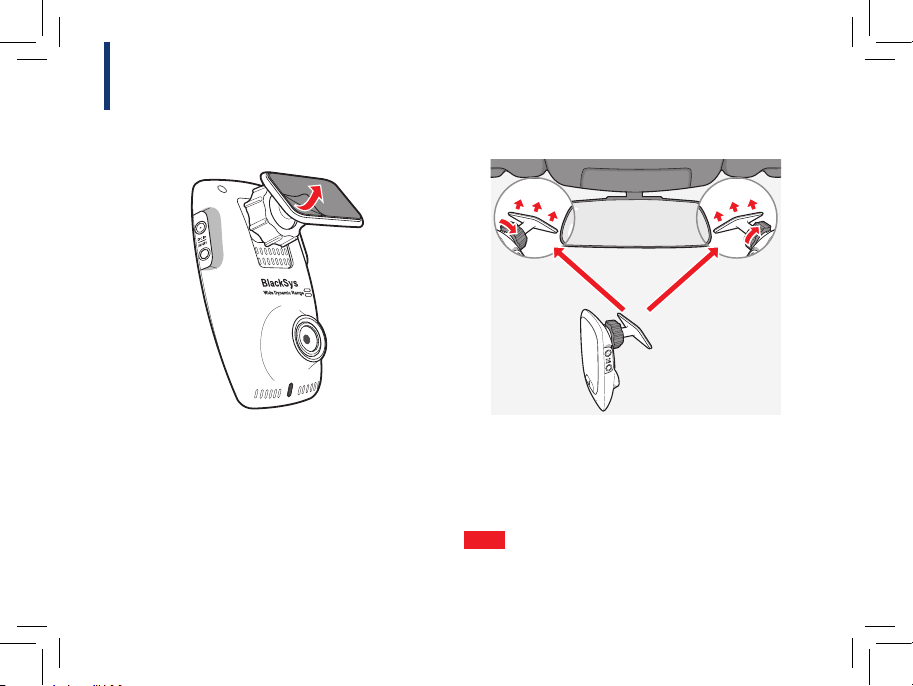

Installation

1. Attaching double-sided adhesive tape

2. Installing unit

Wipe up the foreign matters or moisture completely from the location of installation. Remove the release paper in double sided tape and attach it to the holder and remove the red adhesive protector.

Installation

Installation is recommended on the left/right of room mirror.

Tightly fasten the adhesive of holder to the windshield by pushing it. Adjust the angle of camera to record forward and unit to be vertically installed. Finally, tighten the clamping lever.

Caution

Ú If a video from navigation system or dashboard reect in wind-

shield, it can affect video quality. so avoid it.

3. Power cable arrangement and connection

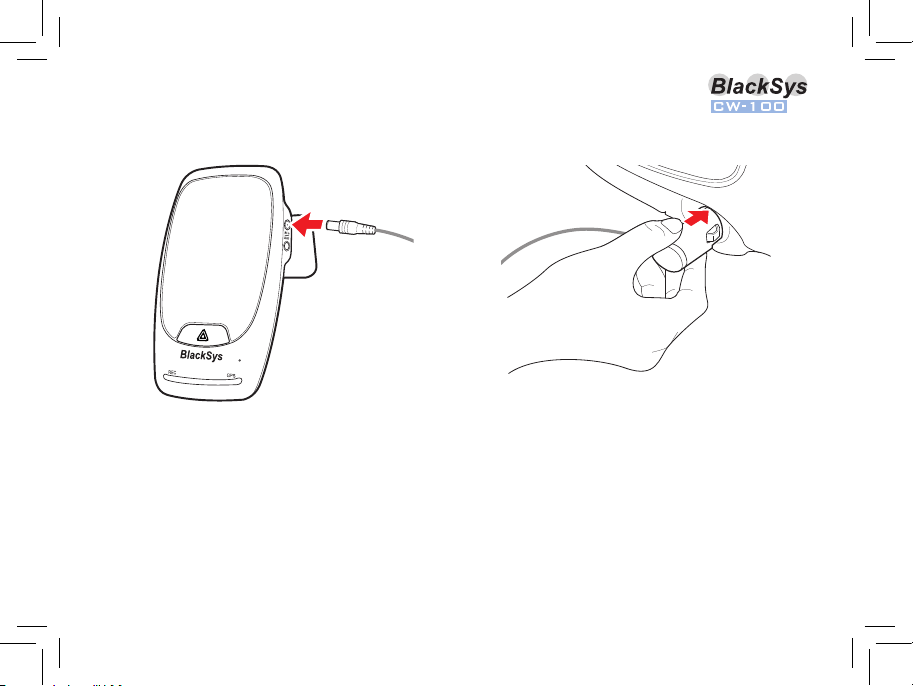

4. Power cable connection and check the LED status

By using the cable holders, arrange the Cigar jack cable

and connect it to the DC IN port(upper hole). If car

navigation system is installed on the car, it is recommended

to connect video out cable(option) to navigation system to

adjust by checking the current view of the camera.

After inserting the Cigar jack cable(Power cable) into cigar

jack, turn on the car ignition. If all LEDs of power status are on, installation is completed.

Installation

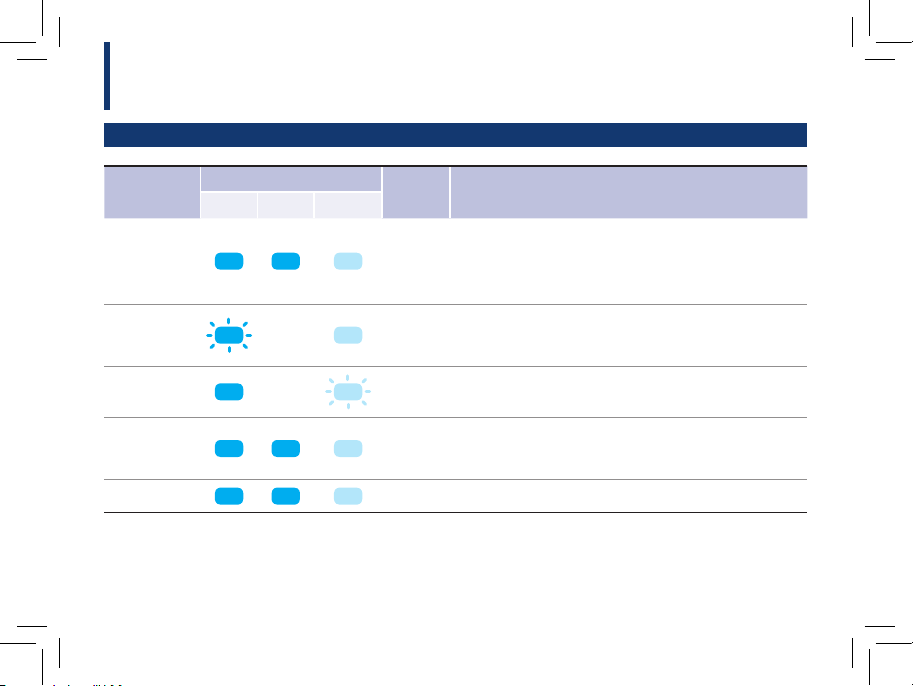

LED and Buzzer

Function

Mode

Initial

Booting

Event Rec.

Parking

Mode

Update

GPS ON

LED and Buzzer

REC GPS Parking

LED

- Beep

- X (10 min. after parking) Front LED ickers per 2 sec.

Buzzer Description

1 time beep sound R EC LED ON, Parking LED ON

Beep

x 2

* With GPS Module GPS LED ON, without GPS Module

GPS LED OFF

1 time per a sec. beep sound

Rear left/right LED 10 times ickers per a sec. (until end of Event)

ALL LED ON when it upgrade, after upgrade completed,

Beep

2 times beep sound and front and rear LED ickers per a

x 2

sec. and rebooting

X GPS LED ON

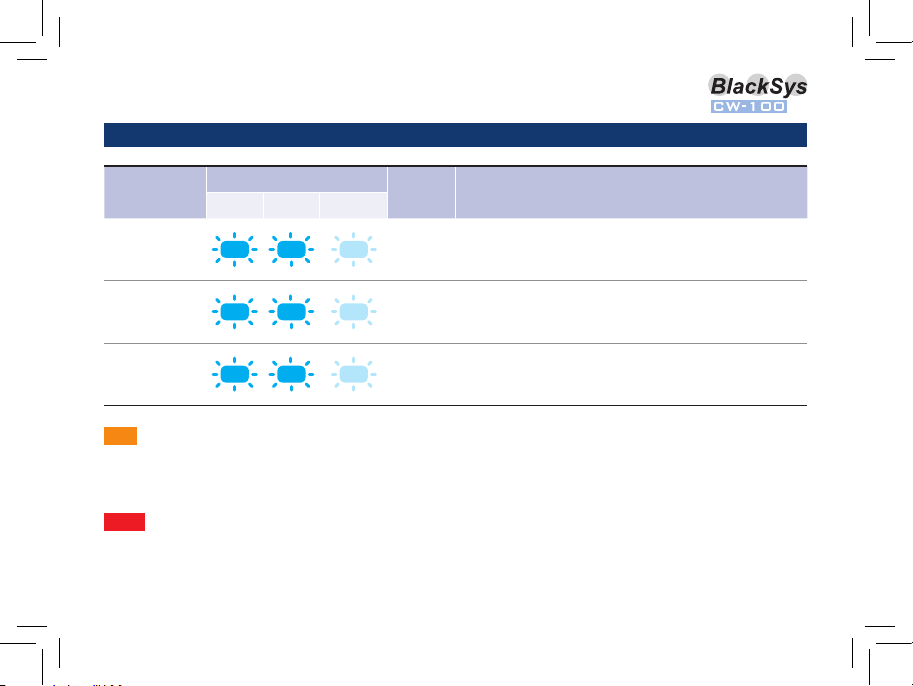

Error

Mode

No SD Card or

Recognition

error

Camera Error

Manual Format

REC GPS Parking

LED

Buzzer Description

Beep

Beep sound per 3 sec.

x 3

Rear left/right LED OFF

Beep sound per a sec.

Beep

Rear left/right LED OFF

Press Event button and then turn on the unit.

Beep

Keep pressing Event for 5 sec. then formatting get

x 2

started automatically.

Notice

● If abnormal status rather than above happen, reconnect power cable to the unit.

● Format the SD care if recognition error or recording error occurred.

● If PC doesn’t recognize SD card or formatting is not running correctly, change the SD card.

Caution

Ú Do not turn on the power while inserting SD card to the unit. (Inserting SD card while power is connected, it can cause an error or fault)

LED and Buzzer

PC Viewer Installation

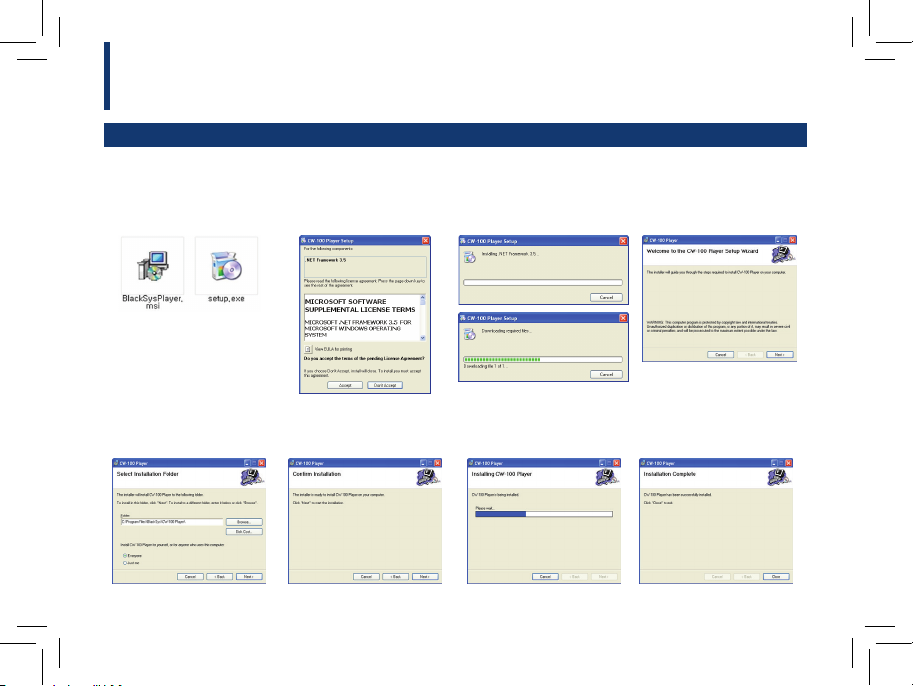

How to install PC Viewer

1. Download and execute

Setup.exe

5. Select folder to install

and execute

PC Viewer Installation

2. Click “Agree” of the

contract for Viewer installation

3. Prepare component for

installation

4. Start installation wizard

6. Installation ready 7. Start installation 8. Installation completion

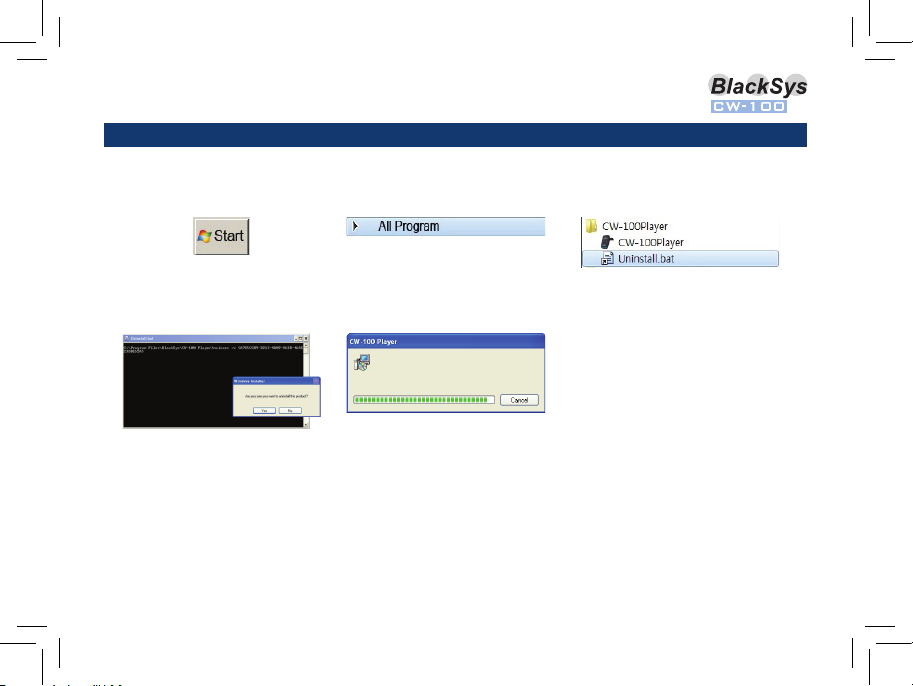

How to uninstall PC Viewer

1. Click the “Start” button. 2. Click the All program and search

CW-100Player.

4. Select [Yes] when window

installer ask Uninstall.

Ú How to uninstall the PC Viewer

Execute C:\Program les (x86)\BlackSys\CW-100 Player\Uninstall.bat

5. Uninstallation is in progress.

3. Select Uninstall in CW-100Player

folder.

PC Viewer Installation

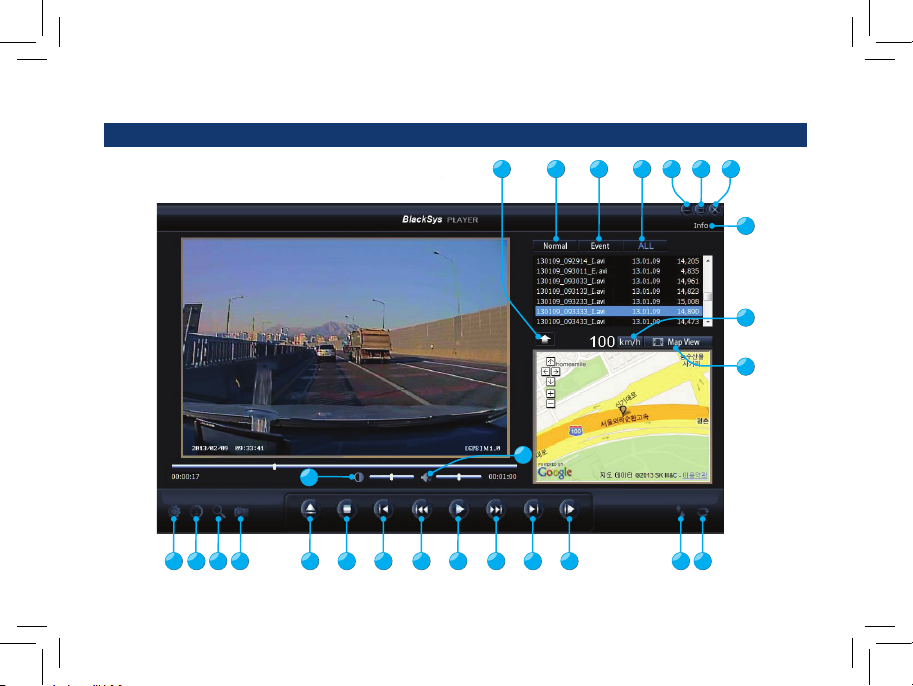

PC Viewer Layout

13 14 15 16 17 18 19 20 21 22 23 24 25 26

PC Viewer Installation

2 3 4 5 6 7

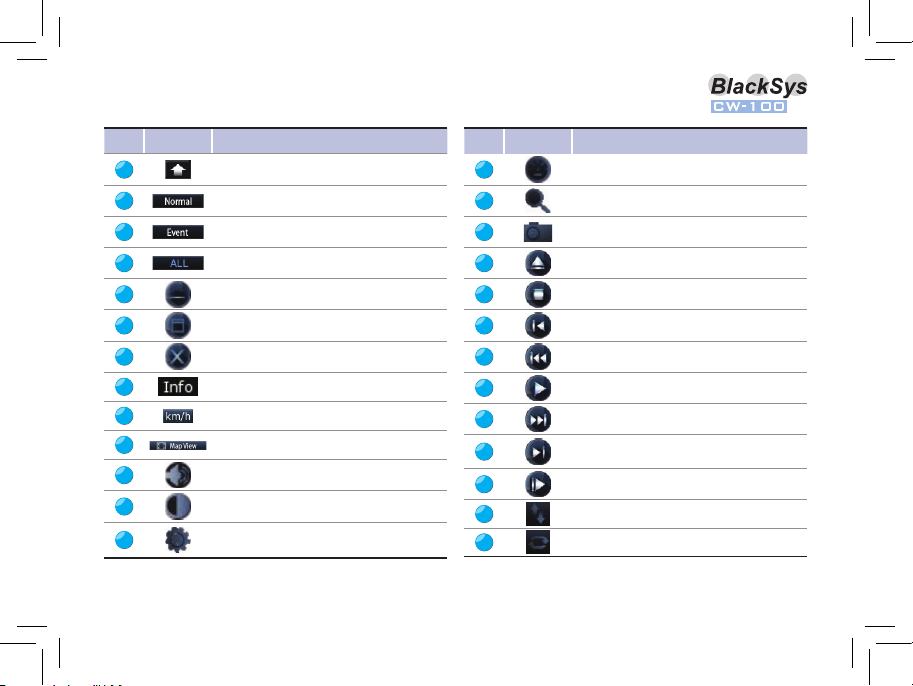

No. Icon Function

File List Update

Normal Recording File List

Event Recording File List

All Recording File List

Screen Minimization

Full Screen

End

Version Information

GPS Speed (Km/h  mph)

Large Screen Map

Volume Control

Image Brightness Control

Con guration

No. Icon Function

G-Sensor Data Review

Enlargement of a part of Screen

Video Screen Capture

Select Drive of SD card

Stop Video Playback

Move to Previous File in the List

Move to 1sec. Before

Playback the Video

Move to 1sec. After

Move to Next File in the List

Move to Next Frame

Screen Horizontal

Screen Vertical

PC Viewer Installation

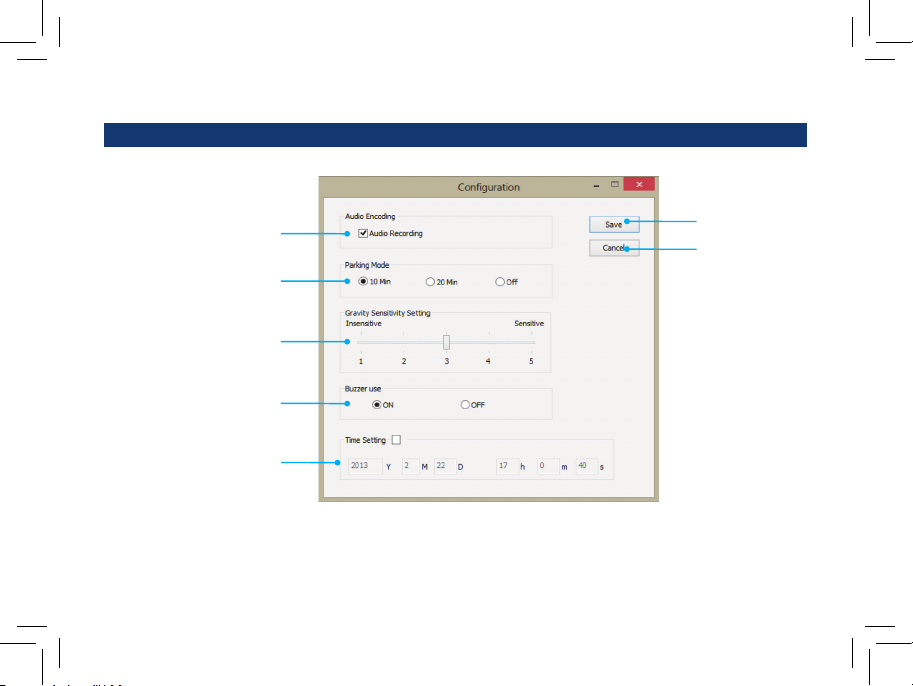

PC Viewer Conguration

Voice Recording

Parking Mode Time

Setting

Conguration

Save

Conguration

Cancel

G-Sensor Sensitivity

The higher gure, the

higher sensitivity to impact.

In case of Time Setting

PC Viewer Installation

Setting

Buzzer

Upgrade SD card

through Car DVR

immediately

How to update rmware

 Please follow the below process in case of updating rmware

1. Remove SD card from the unit.

● Turn off the ignition rst and remove cigar jack cable from the unit.

2. Access Download of our webpage(www.blacksys.co.kr/en) and download the latest update le.

3. Connect SD card to PC and paste downloaded latest update le(UPDATE.BIN) to the UPDATE folder of removable

disk.

4. Insert SD card which contains latest update le to the unit.

● Turn on the ignition and connect cigar jack cable to the unit.

5. All LEDs are on and upgrade gets started and once upgrade is completed, buzzer beeps twice and rebooting goes

on automatically.

● Do not disconnect power cable while update is in process. It can cause malfunctioning.

How to download Software

1. Access Download of our webpage(www.blacksys.co.kr/en) and download the latest software le.

2. Install the software to the PC.

How to update firmware

Technical Specication

Model Name CW-100

Camera

Function

Display

Temperature

Power Operation DC 12V~24V (±0.3V) / CIGA CODE

Ú Technical Specication can be changed without prior notice for product improvement.

Technical Specification

Lens 350K pixels (WDR CMOS Image) Angle of View 120° Sensitivity 1.0 LUX Video Encoding MPEG4

Resolution 720x480 pixel Recording Mode NORMAL (80% of memory space, 1min./ le, 30 frame/s)

Option

Rec. Method In case SD Card is full, it deletes old les in order Voice Recording Built-in microphone records voice and surround sound Format Micro SD Card Format External GPS Option Shock Sensor Tri-axial shock detection G-Sensor Memory Storage Micro SD Card (4G ~ 32G) Rec. Frame Normal/Event/Parking Mode : 30 Frame/sec (1min.) External Video Output Composite Output External Playback PC Media player & PC Viewer Pro

Video Analysis PC Viewer Program

Dimension(mm) 58(W) x 100(L) x 29(H)

Weight 76g

Operation -20°C ~ 70°C Storage -30°C ~ 80°C

EVENT (20% of memory space, 20sec./ le, 30 frame/s) Auto Parking Mode (1min./ le, 30 frame/s)

Customer Service

Type of

Damage

Claim a service for a main part within 10 days after purchase

Claim a service for a main part within 1 month after purchase

Trouble caused in a normal use

condition

Customer’s

negligence or

fault, Functional

defect

* Defect caused by Natural disasters (Fire, Salt, Gas, Earthquake, Flood) * Defect caused by unauthorized technician other than by personnel of repair or

service center * Replacement of fair tear and wear components * Others not product fault itself but customer’s fault

Ú Warranty period is 12 months after purchase. Ú We provide product repair and replacement services within the warranty period in accordance with the consumer

protection regulations(the Korea Fair Trade Commission Directive 2008-3)

Claim a service for a main part within 1 month after unit exchange

Claim a service for faulty unit Free repair Repair at cost

Same defect over 3 times

Lost by service center during repair service

Damaged unit from distribution and installation Replacement Not applicable

Repair is available Repair at cost Repair at cost

Repair is not available

Type of Service Inquiry

Within Warranty

Period

Replacement

Replacement or

Free repair

Replacement or

refund

Replacement

at cost

Repair at cost Repair at cost

After Warranty

Period

Not applicable

Applicable by

bylaw

Applicable by

bylaw

Customer Service

Before applying for Service

We don’t take any responsibility for the data loss during the service. Please back up the date before applying for service.

CammSys Customer Service

6F Daeil B/D, 681-17, Yeoksam-dong, Gangnam-gu, Seoul, 135-081 Korea

Customer Service Tel : +82 70 4680 2599 Email : service@cammsys.net

If you come to customer service center, service personnel will care for the service timely and properly.

For further information regarding customer service, please refer to www.blacksys.co.kr/en

Before applying for Service

Product Warranty

Trade Name or Applicant CammSys

Equipment Name Car Black Box

Basic Model Number CW-100

Certication No. KCC-REM-SYV-CW-100

Manufacturer/Country of

Origin

Data of Manufaturing 2012. 12. 17

Serial Number

Date of Purchasing

Warranty Period

Customer Information

Retail Shop Name Tel.

* The warranty for the product is beneted by the details on the warranty card. * Warranty period is counted from the purchase date. So get the purchase date. * This warranty card is not reproduced.

CammSys Corp.

12 months from the purchase date

(But, if purchase date is not clear, it can be applying 3 months after manufacturing date)

Name Tel.

Address

Product Warranty
