BlackSys CH-100B User manual

USER MANUAL

BlackSys CH-100B

CAMMSYS

※ BlackSys Application may vary in function depending on mobile product and OS version.

Blackbox

Thank you for choosing BlackSys.

This manual is based on the CH-100B model.

The latest firmware & manual can be found at our website

www.blacksys.co.kr/en

■ Please read carefully before using this product.

※ This manual should be reviewed and retained for future reference.
※ CAMMSYS Corp. reserves all rights to this manual in accordance with the copyright law.
※ Content of this manual is subject to change without notice to ensure quality control.
※ Differences in product functionality may differ depending on firmware.
※ This product was designed as an accessory for safe driving. In the event of an accident, all responsibility is borne

by the vehicle operator. Please use this product responsibly.

■ Scope of guarantee and responsibility

※ This product is a vehicle-accessory for recording video image and sound for the simulation of an accident
and recorded data may be used as evidence and reference purposes. We cannot guarantee this product to capture
all accident related video image and sound. Quality may differ due to weather condition(s).

※ We will not be held responsible for any damages and/or data corruptions or loss caused by a malfunction of this product.
※ In general, the memory card lifespan for this product is ~ 6 months and may be subject to data corruption or loss due to static

electricity and/or external voltage. For this reason, we highly recommend the user to copy and save important data to external

(hard disc, CD, portable memory, etc.).

media

※ Memory card may contain corrupt images
due to a decrease in reading/writing speed and other defects. For the best results, please use the authorized SD memory cards
and format periodically.

(Once a month for 16G micro SD memory card)

(image recording omissions, image cuts, frame change and omission, other defect in image recording)

Contents

contents

01 Instruction for Use

1-1. Product Precautions …………………… 04
1-2. Installation caution …………………… 07
1-3. GPS caution …………………… 07
1-4. Memory Card …………………… 08

02 Features …………………… 09

03 Package & Part Names

3-1. Package Guide …………………… 12
3-2. Front & Rear …………………… 13
3-3. Left & Right …………………… 14

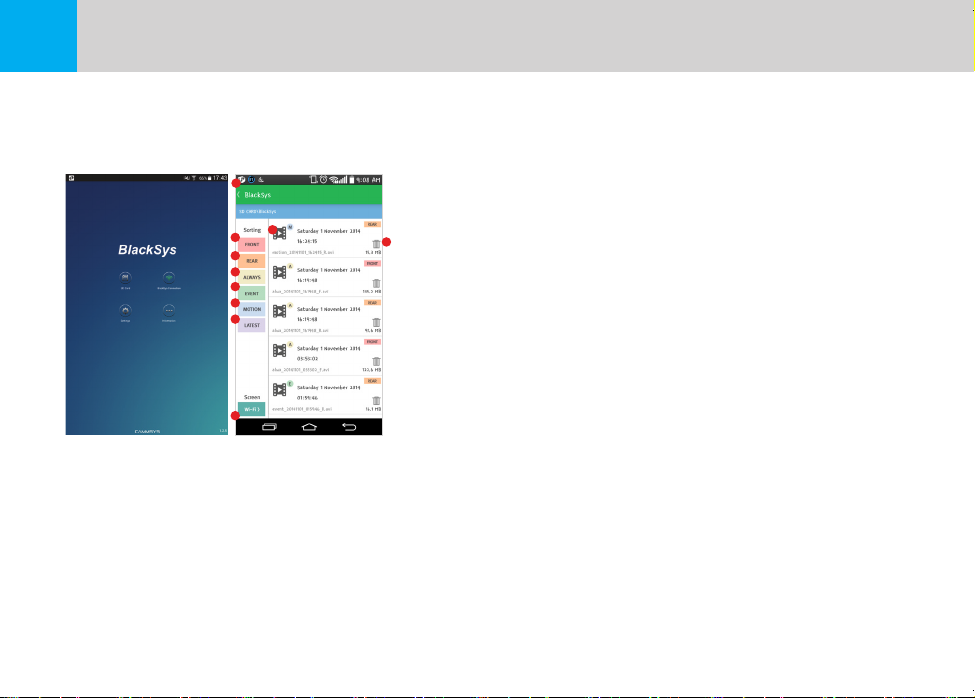

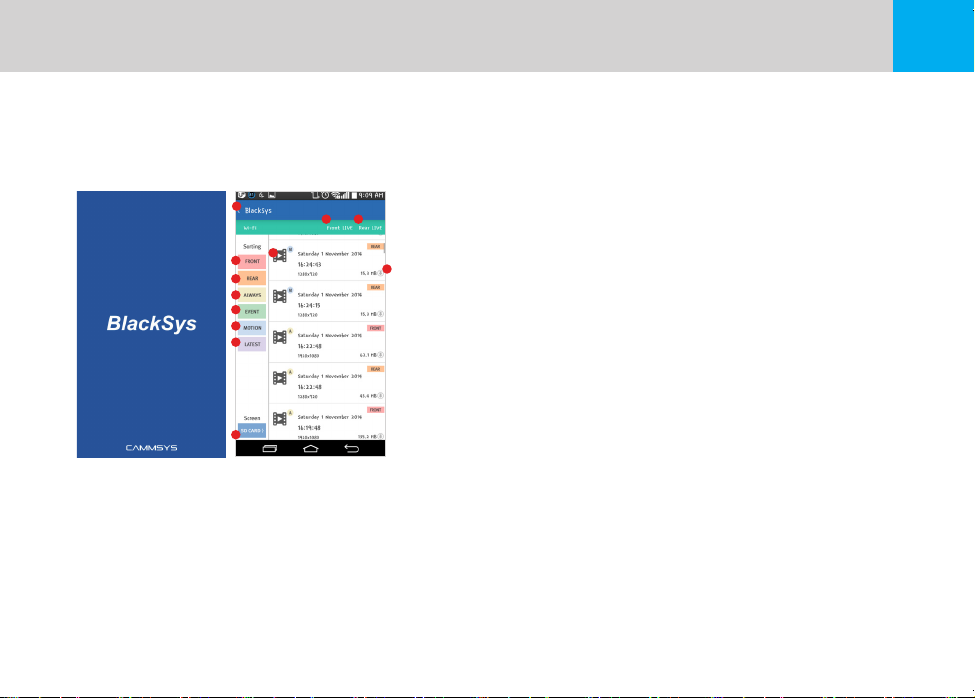

5-4. Connecting to the BlackSys App …… 25
5-5. Upgrading the App Firmware …………… 29

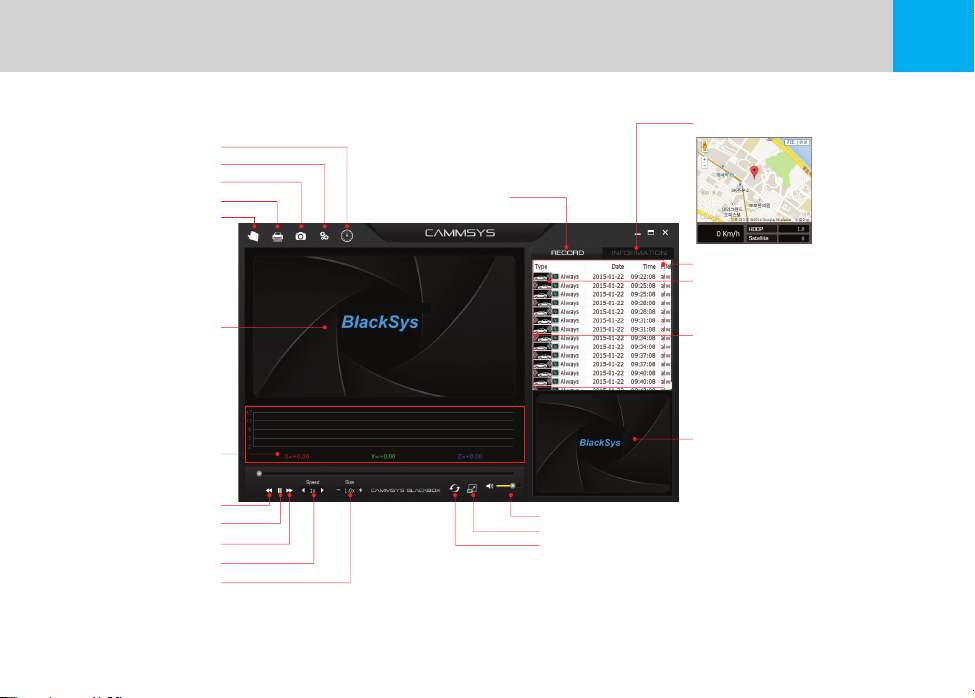

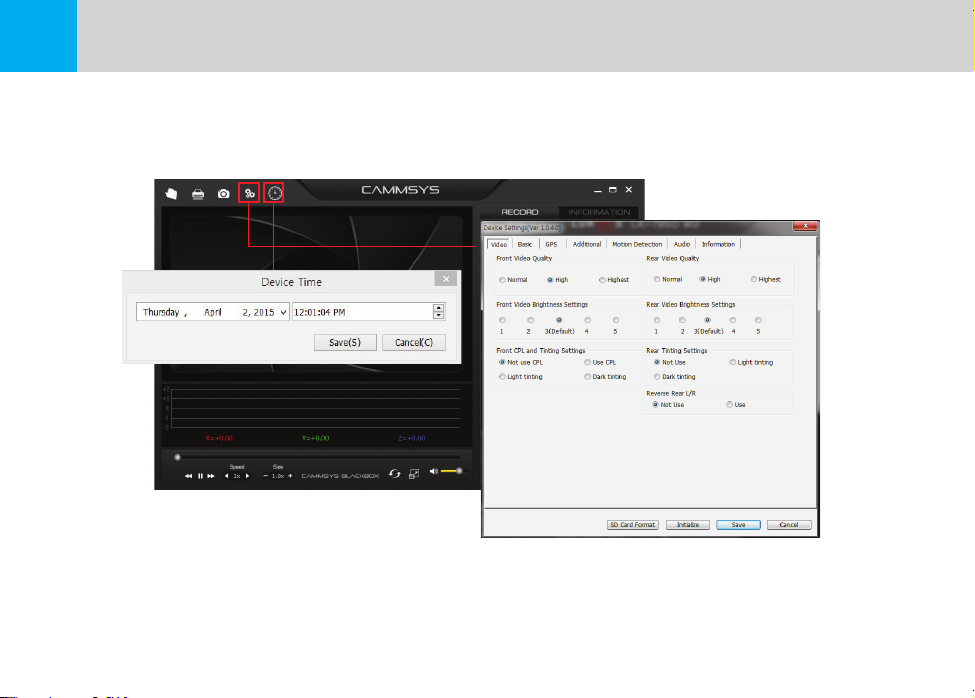

5-6. BlackSys Viewer Program ………………… 30

06 Firmware Update

6-1. Firmware Update …………………… 34
6-2. Download firmware …………………… 34

07 SD Card Format

7-1. SD Card format …………………… 35
7-2. Automatic format …………………… 35

04 Installation

4-1. Front Camera (Main Unit) …………………… 15
4-2. Rear Camera …………………… 17
4-3. Memory Card Usage …………………… 18

05 Product Usage

5-1. Standard Operation Guide ………………… 19
5-2. LED indicator & Voice Guide ……………… 22
5-3. LED indicator & Voice Guide ………… 25

08 Product Specification …………………… 36

09 Customer Service & AS …………………… 37

10 Quality Assurances …………………… 38

11 Product Warranty …………………… 39

01 Product Precaution

1-1 Caution

1. Do not expose product to direct sunlight or cold weather for extended periods of time.

Product exposure to direct sunlight and extreme temperatures may cause damage to the product.

2. Do not dismantle or alter the product.

Do not disassemble, modify, or attempt to repair the product. Any alterations to the product can void the manufacturer’s warranty.
Please contact your local dealer or the C/S Centre for more information.

3. Do not dismantle or alter the product accessories.

Do not disassemble, modify, or attempt to repair any accessories for this product (Cigar Jack Cable, Mount, etc.). This may cause damage
to the vehicle and/or product. Any resulting damage shall be the responsibility of the user and is not covered under manufactures warranty.

4. Do not allow liquid to come into contact with product.

Please note this product is not waterproof and exposure to liquid and foreign substances may cause a product malfunction, short circuit,
and/or fire. Use caution when cleaning the product and clean with a soft and dry cloth.

5. Do not expose the product to heavy impacts.

Excessive impacts to this product can cause a malfunction. Handle the product with care.

6. Only use manufacture approved power cable and accessories.

Any damages or loss to product/vehicle as a result of accessory incompatibility will not be covered under manufactures warranty.

7. Any accessory or peripheral which manufacturer doesn’t supply will not be covered by warranty.

We will not warranty any accessory or peripheral if these are not authorized by us. User will be responsible for the damage caused by using
unauthorized accessory or peripheral.

8. Do not operate the product for extended periods of time while the vehicle is not running.

Excessive use of the product while vehicle is off can cause drainage to the vehicle’s battery

CAMMSYS BLACKBOX

04

9. Video quality may vary depending on extreme lighting conditions.

Quality is subject to alterations in extreme dark/light areas and conditions. Most notability when entering/exiting a tunnel or parking garage.

10. Data may not be recorded if accident impact is lower than a predetermined threshold.

In extreme cases the product may not record data during an accident due to low impact forces. In addition, during a high force impact
accident power may be cut off to the product and data may be lost.

11. Do not disconnect the power source while the product is turned-on.

Disconnecting the power source may cause the product to malfunction. Please use only the recommended voltage for power connection.

12. Some PCs may not support BlackSys Viewer or there may be some disconnections in voice/image depending
on the PC’s specifications.

13. AE operations at night may vary depending on vehicle (black, red) low light reflection.

14. There may be frame omissions due to rapid AE operational changes in low light areas.
Please reset the installation angle of the product if AE operation malfunctions.

15. There may be noise in the video when recording in poor lighting environments.

16. In the event of a sudden frame change or switching between parking & driving modes, there may be a loss of data.

17. Motion detectors may malfunction in the event of an extreme increase/decrease to the surrounding lighting
conditions of the vehicle.

18. The motion detection function may not operate properly in environments with poor lighting conditions
due to noise and vehicle security LED(s).

*AE : Automatic Exposure

USER MANUAL

05

19. The left/right side image quality of this product may vary due to characteristics of the wide-angle lens.

21. Please ensure all accessories are connected to product(s) to avoid data loss.

22. The interworking draft using Wi-Fi between smartphone and product cannot be connected simultaneously,
also when it is connected with product you cannot access internet.

23. Playing video or any other functions may not operate properly on specific kind of smart phone.

24. Using internet is restricted on the status of connecting product.

25. Do not continue to use this product if a malfunction is apparent. Please contact our C/S center
or your local distributor with any questions and/or concerns about this product.

CAMMSYS BLACKBOX

06

1-2 Installation caution

1. Keep product clear of clutter.

Please ensure the surrounding area is clutter free to avoid reflections/vibrations that may reduce the image/audio quality.

2. Ensure camera lens is clean at all times.

Allowing the camera lens to collect dust/oils will reduce the quality of the image.

3. Do not attempt to operate or install the product while driving.

For your safety, do not attempt to operate or install the product while driving to avoid a traffic accident.

4. Please keep the product is securely fixed to mount.

Please check that the product is secured before operating the vehicle. This will ensure the best image quality and avoid distractions
to the driver while in motion.

5. Please avoid excessive window tints, as this may distort image quality.

6. Install this product at the point furthest away from the antenna or receiver as possible.

The electromagnetic waves produced by the product may distort receiving sensitivity.

7. Installing camera on the tinted window is not recommended and be careful on damage of tinted window while
uninstalling camera for service or other reason. We don’t take any responsibility for the damage and so please
be careful while uninstalling camera.

1-3 GPS caution

1. There is an error range of over 15m in a normal commercial GPS. There may be situation where the GPS signals
cannot be received depending on the environment such as buildings, underground, and tress. This can make the
error range bigger.

2. A combination of factors including weather can delay the time to receive the first GPS signal after power is
connected to the product.

USER MANUAL

07

3. External electronic products and window tinting may affect the GPS reception.

4. Vehicle speed accuracy may vary between 1-30km/h depending on the reception area when stopping the car.

5. GPS may be operated when switching off the product.

1-4 Memory Card

1. Do not remove the memory card by force while the product is in recording mode.

Please turn off the product before removing the memory card(s). Removing the memory card(s) while the product is turned on may damage
the video file or cause an internal operational error.

2. Be sure to periodically reformat the memory cards using the BlackSys Viewer or the product itself.

Repetitive data creation and deletion by the product can cause damage to the memory card(s) and their file. 16G micro SD card should be
formatted once a month. The warranty period of a memory card is 6 months, and we are not held responsible for any recording errors due
to prolonged usage of a memory card after the 6 month period.

3. After reformatting a memory card, it can be used without configuration files such as firmware.

The latest set value is contained within the product, and will be automatically applied to the SD card(s).

4. Please use Authorized memory cards to ensure the best quality.

We will not be held responsible for any problems related to the usage of memory cards not provided by us.

5. Handle with care when inserting and removing the memory card(s) to avoid burns.

6. The memory card(s) operate at high temperatures, and we recommend you use caution when inserting and removing.

7. Please backup your recorded videos using an external storage product (PC, HDD, etc.).

8. Be sure to insert the micro SD card into the product.

Without the micro SD card, event recordings are not saved.

CAMMSYS BLACKBOX

08

02 Features

+ Clear image with CMOS Sensor

Front: Full HD Sony CMOS Sensor / Rear: HD Image Sensor

+ Distortion-free recording with Wide-angle lens
Front: 1920x1080p Full HD, 30fps / 16:9 wide screen with 135° angle of view
Rear: 1280x720p HD, 30fps with 130° angle of view

+ Wi-Fi Support (802.11b/g/n (2.4~2/4835FHz))

+ Low Voltage Cut-off function
Under 100uA Leakage current.

+ Supports a variety of recording functions

- Continuous recording : Generates recording files at three-minute or five-minute intervals continuously.

- Event recording : Generates 30sec recording files before and after the event.

- Parking recording : Generates 30sec recording files before and after the motion is detected.

USER MANUAL

09

+ 8GB~128GB Memory Support

+ Multi Language Support

Korean, English, Chinese (Mandarin, Cantonese), Arabic, Russian, French, Spanish (Europe, South America), Japanese,
Thai language, Bahasa Indonesia, Vietnamese, German, Turkish, Italian, Czech, Portuguese, Bahasa Malaysia

+ Security LED Support

+ GPS Dual Band (GPS+GLONASS)

+ Built-in microphone
Product records audio simultaneously with video.

CAMMSYS BLACKBOX

10

+ Direct memory card format

Product formats memory card without connection to PC.

+ Built-in super capacitor
Internal battery replacements are not necessary due to a built-in semi-permanent super capacitor.

When the vehicle is turned off, the product will save all data before terminating.

+ Playing

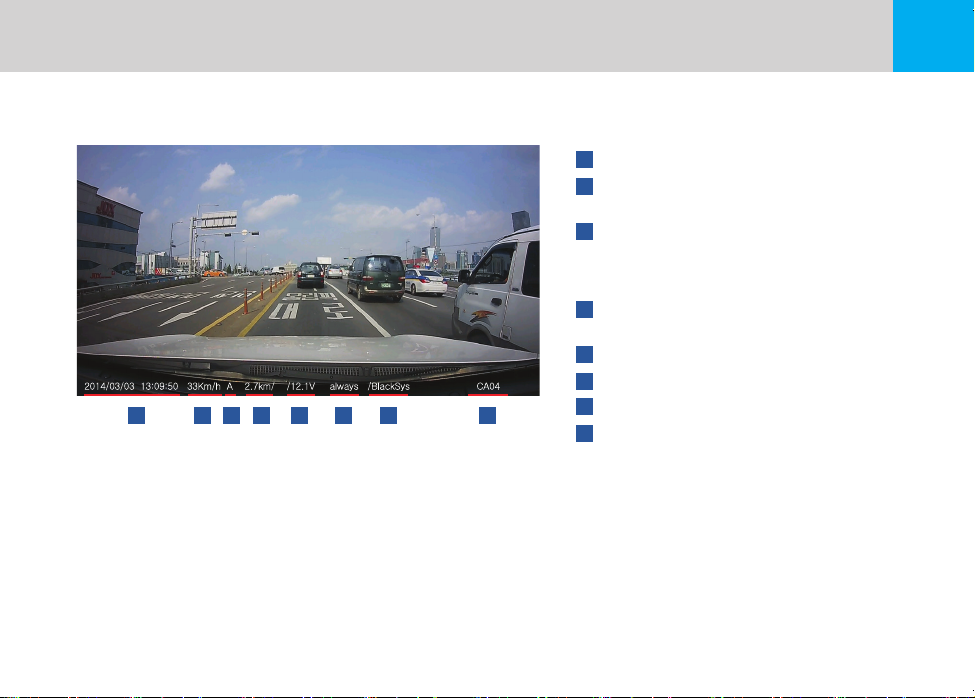

You can check the recorded video and driving information by BlackSys PC viewer and smartphone and

also you can use other video player such as Windows media player.

USER MANUAL

11

03 Package & Part Names

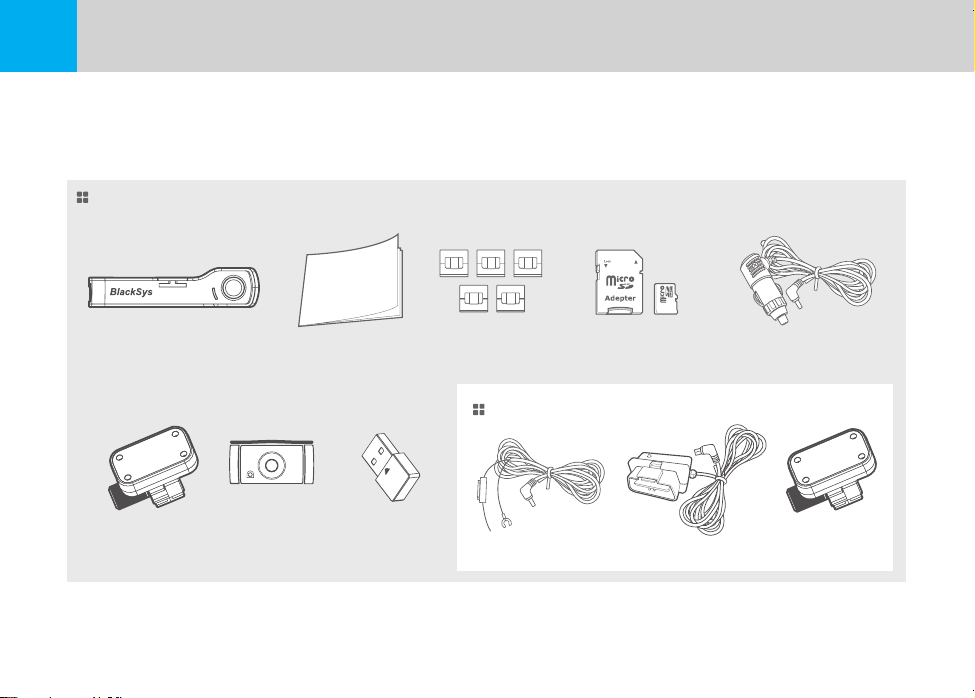

3-1 Package Guide

Standard Components

Main Unit (Product)

User Manual

Cable Holder Micro SD Memory

Option

Wi-Fi DongleRear CameraBracket

※ Actual components may be different from pictures and some components can be changed in case.
If package doesn’t include below components, please contact a retail shop or company where product was sold.

CAMMSYS BLACKBOX

12

DC Fuse Power Cable

OBD Terminal

Cigar Jack Cable

Bracket type GPS

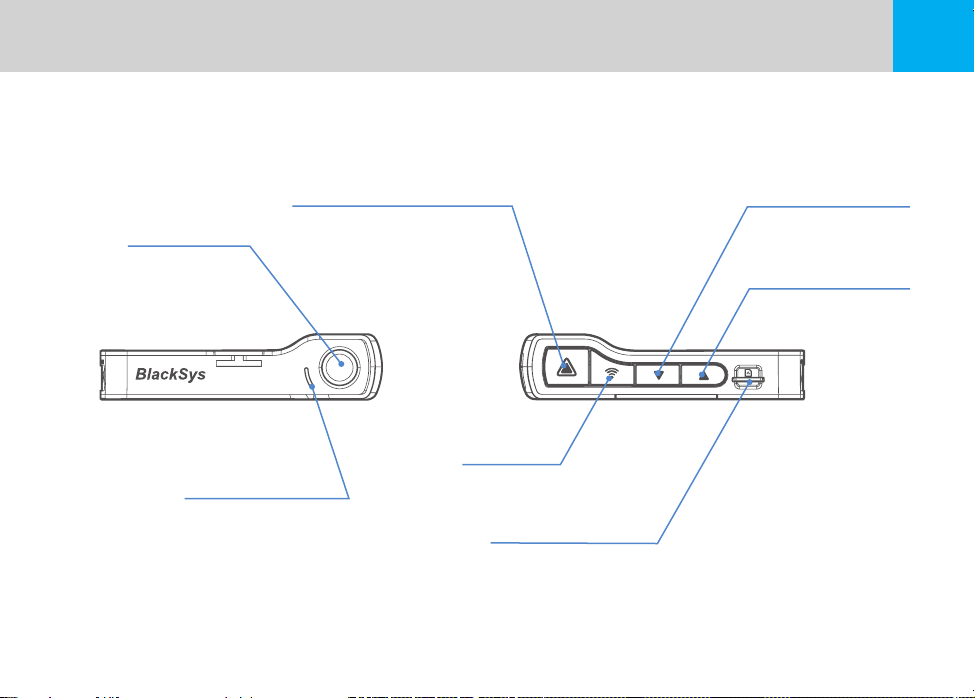

3-2 Front & Rear

Camera Lens

For video recording

LED indicator for parking

Emergency Recording Button

Security LED

or video recording

For manual recording

Wi-Fi ON/OFF

Wi-Fi

Micro SD card slot

External Micro SD card port

Volume Control

Speaker volume control (+)

Volume Control

Speaker volume control (-)

MICRO SD

USER MANUAL

13

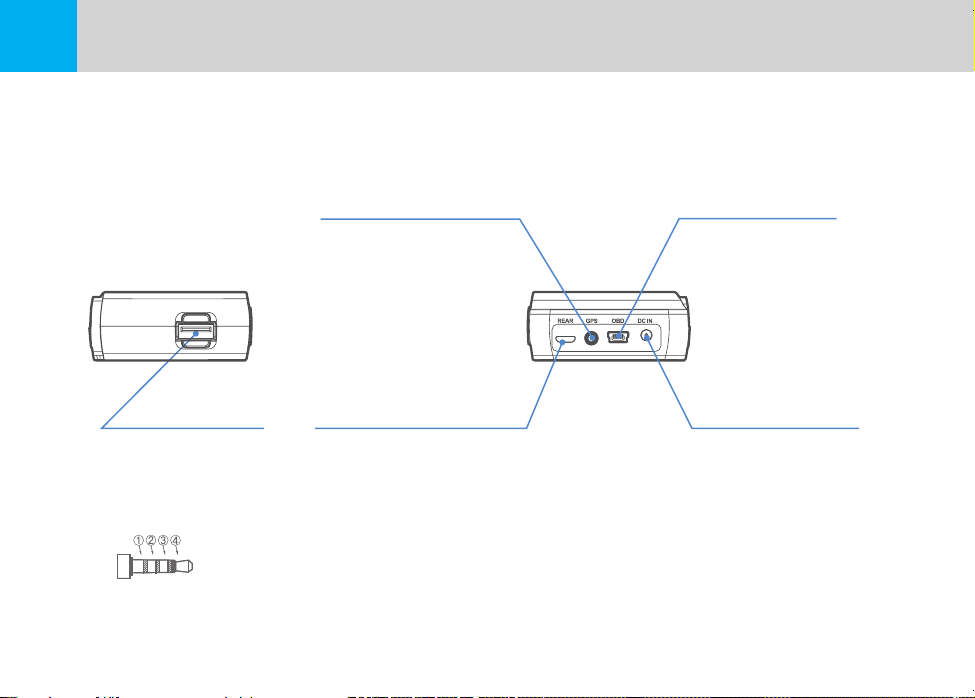

3-3 Left & Right

Wi-Fi Port

Wi-Fi Connecting port

CAMMSYS BLACKBOX

14

① GND
② AV OUT
③ GPS Data
④ Power

GPS Port

Check location

and speed of vehicle

through BlackSys Viewer program

Rear Camera Connecting Port

Connecting HD rear camera

OBD Terminal

Check driving information
by using OBD cable

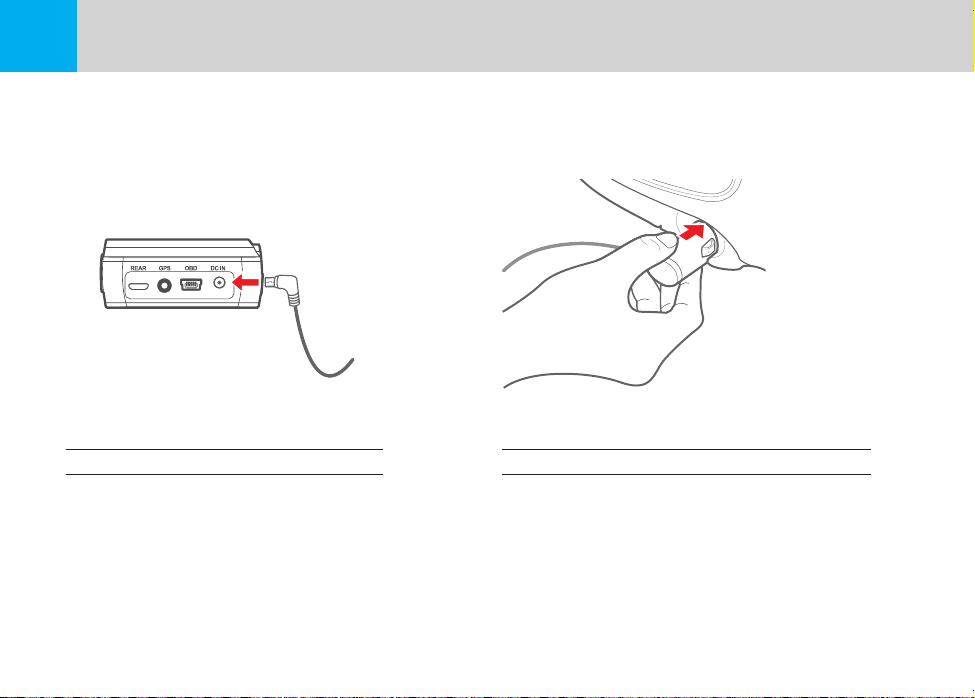

Power cable port

Cigar jack power cable port

04 Installation

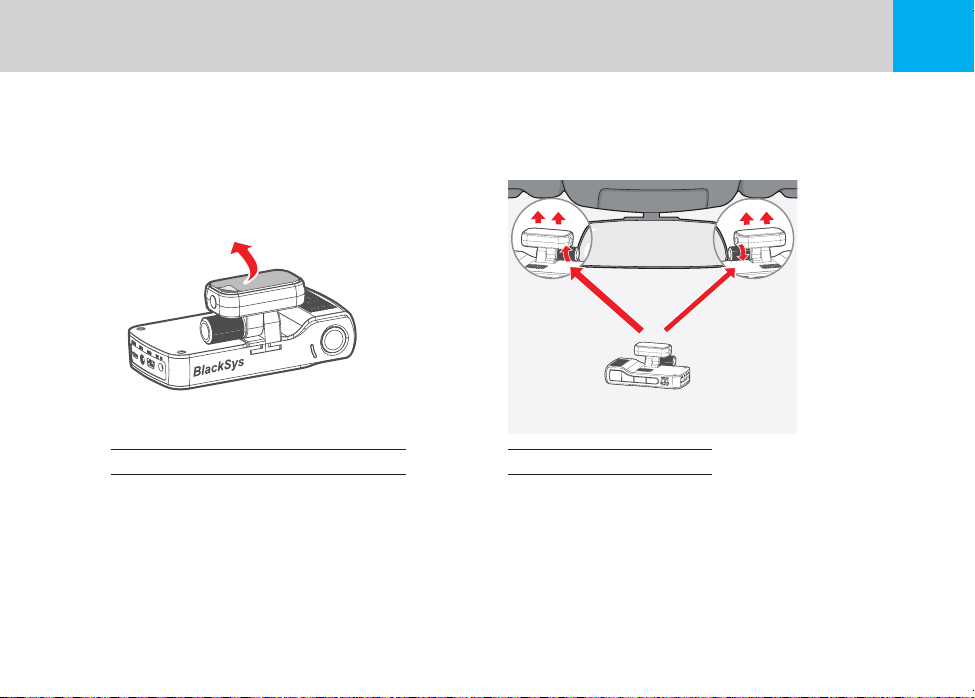

4-1 Front Camera (Main product)

1. Attaching double-sided adhesive tape 2. Installing unit

Wipe up the foreign matters or moisture completely
from the location of installation. Remove the

release paper on double sided tape and attach it

to the cradle part of holder and remove the red
adhesive protector.

Installation is recommended on the left/right of room mirror.
Tightly fasten the adhesive of holder to the windshield by
pushing it. Adjust the angle of camera to record forward and
unit to be vertically installed. Finally, tighten the clamping
lever.

※ If a video from navigation system or dashboard reflect in windshield,

it could affect video quality.

USER MANUAL

15

4-1 Front Camera (Main product)

3. Power cable arrangement and connection 4. Power cable connection and check the LED state

By using the cable holder, arrange the Cigar jack cable
and connect it to the DC IN port.

CAMMSYS BLACKBOX

16

After inserting the Cigar jack cable into cigar jack, turn on the
car ignition. If all LEDs of power status are on, installation is

completed.

4-2 Rear Camera

1. Rear Camera Installation 2. Installation

Connect rear camera to the rear camera connector.
Clean up the cable of rear camera from the location
of installation.

Wipe up the foreign matters or moisture completely from the
location of installation. Remove the red adhesive on double
sided tape and attach it to the rear windshield. Installation is

recommended on the middle of rear windshield.

※ Tinted windows may cause unclear image of video from rear camera.
Avoid tinted window.

USER MANUAL

17

4-3 Memory Card Usage

- Video is recorded in 3 or 5 minute intervals for continuous recording. 30 second intervals for motion and event recording.

- The number of files and usage times below is standard when set at 70% continuous, recording, 20% motion recording and 10% event recording.

1. Micro SD Card Usage Time

SD

8G

16G

32G

64G

128G

※ Front 6M/sec, Rear 4M/sec (High quality standard)
※ The number of files and usage times may be different from actual usage time.
※ Total recording time means sum of front and rear recorded videos. (It saves front and rear videos separately)
※ The number of files and usage times may be changed according to the quality of video.

CAMMSYS BLACKBOX

18

Continuous Motion Event

Front Rear Front Rear Front Rear

22 files 22 files 36 files 36 files 18 files 18 files

66 min (1h 6min) 18 min 9 min

45 files 45 files 76 files 76 files 38 files 38 files

135 min (2h 15min) 78 min (1h 18min) 39 min

91 files 91 files 156 files 156 files 78 files 78 files

273 min (4h 33min) 79 min (1h 18min) 39 min

184 files 184 files 316 files 316 files 158 files 158 files

552 min (9h 12min) 158 min (2h 38min) 79 min (1h 19min)

368 files 368 files 632 files 632 files 316 files 316 files

1104 min (18h 24min) 316 min (6h 16min) 158min (2h 38min)

05 Product Usage

5-1 Standard Operation Guide

1. Recording start and end

- Once connecting power, CH-100B gives voice guide, “Start recording” and then it starts recording.

- Once disconnecting power, CH-100B gives voice guide, “Car DVR is ending”.
※ Please check whether the SD card is inserted into the main unit or not before connecting power.

2. Recording Mode & Time usage

Mode Recording Time Save location

Normal 3/5 min AlwaysMovie folder

Normal Recording

Parking Recording

※ While Event recording and manual recording mode, other event or manual mode will not be operated.

3. Video Playback

- Playback the recorded video: To playback the recorded video, touch “SD Card” or “BLACKSYS” (When connecting Wi-Fi)
of CammSys application. Also you can check the video on BlackSys Viewer on PC with Micro SD card.

Event 10 sec before / 20sec after EventMovie folder

Manual 10 sec before / 20sec after EventMovie folder

Motion 10 sec before / 20sec after MotionMovie folder

Parking 10 sec before / 20sec after EventMovide folder

USER MANUAL

19

4. Normal Recording

- Normal recording : Recording starts when vehicle power is turned on and recorded data are stored in SD card. (“AlwaysMovie” folder)

- Event recording : Recording starts if acceleration sensor(G-sensor) detects impact, sudden unintended acceleration and quick braking,
it records 30 sec. of video to the (“EventMovie” folder)(10 sec. before and 20 sec. after the event)

- Manual recording : Recording starts if user manually pressed the vent button during the car runs, it records 30 sec. of video
to the (“EventMovie” folder).

※ While Event Recording, Manual recording function cannot be operated and during Manual recording, Event recording also cannot be operated.

5. Parking Mode Recording

- Paring mode is active when the product power is ON.

※ Note that recording and the product itself will terminate power if the vehicles’ battery drops below a predetermined voltage.

- Parking Mode Setting : The product can be programed with a set time to initiate the ‘auto conversation to parking mode’ function.
When the product converts to parking mode, a voice segment (“Switched to parking mode”) is announced.

※ Automatic conversation to parking mode can be programed in the Configuration Setting >> Basic Functions of the BlackSys viewer,
or on the BlackSys mobile app : BlackSys Settings >> Basic Function.

※ As recording stops and converts to parking or driving mode, less than 5 seconds of video may be lost.

- Recording in Parking model “Motion LED segment will be displayed on lower part of the screen when saved video playing.

※ When converting from normal, event, or manual recording mode to parking mode, each recorded file is terminate and converted into parking mode.

For this reason, video loss can occur.

- When selecting ‘Use motion detection’ in the configuration settings, video will be recorded for 30 seconds in total when motion is
detected - 10 sec. before / 20 sec. after. Files will be saved in the “MotionMovie” folder.

※ For efficient memory management only the rear/front camera that detects the motion will activate.

CAMMSYS BLACKBOX

20

※ You can set the motion detection function on the BlackSys Viewer : Configuration Settings >> Notion Detection.

Or directly from the BlackSys App : BlackSys Settings >> Motion Detection.

※ White LED will blink while motion recording is active.

※ Motion detection may fail when the vehicle is in extreme lighting conditions.

※ Recording time during parking mode may vary depending on the vehicles’ battery voltage.

※ Motion recording may continue according to changes in the environment, the sensitivity must be set to in accordance with your parking environment.

(E.g. When parking in an alley or underground, frequent movements may interfere with motion recording if set on a high sensitivity.)

6. Driving Information Check

- Configuration setting → GPS function → Driving Information

After you have set the storage intervals for driving information on the configurations settings, the desired data points will then be saved

at every programed interval.

USER MANUAL

21

5-2 LED Indicator and Voice Guide

※ Function can be changed according to product upgrade.

- Sound effect

Function Voice Guide

System start Starting the recording

System OFF

(Disconnecting power)

Start recording None

End recording None

Connecting

/Disconnecting rear camera

GPS satellite positioning None

Remove SD card while operating

Without SD card

Manual SD card format

Proceed SD card format

(Event Key)

Security LED setting None

CAMMSYS BLACKBOX

22

Terminating the system

None (System will be rebooted if you
connect rear camera while operating)

None (System will be rebooted if you
connect rear camera while operating)

There is no SD card (Repeat, Reboot

once insert the SD card)

Formatting is on standby.

Press the left key to format

Formatting the SD card. Do not turn

off the power.

Function Voice Guide

(In case of using Fixed time alarm)

Power OFF with High Temperature

Time signal

Voice recording setting

Convert to parking mode Switching to parking recording mode

Convert to normal mode from

parking mode

Normal recording None

Manual recording Ding-dong, beep sound

Event recording Ding-dong, beep sound

Start Firmware upgrade None

cut-off function

Low voltage cut-off None

Volume (+)(-) Beep sound

Wi-Fi ON Ti-ting~ sound

Wi-Fi OFF Ti-ting! sound

Switching to normal recording mode

1O’clock

Starting the voice recording

Disabling the voice recording

None

- Hardware (H/W) Status LED

LED Red(REC) Green(Rear) Blue(GPS) Yellow(Wi-Fi)

Rear camera

GPS

Wi-Fi

Connect / Disconnect Connecting rear camera while operating / Rebooting when disconnecting

Connection success ON ON(2CH) ON -

Connection failed ON ON(2CH) OFF -

ON ON ON(2CH) - ON

OFF ON ON(2CH) - OFF

- Security Status LED

LED Red(REC) Green(Rear) Blue(GPS) Yellow(Wi-Fi) Security LED

Parking

Mode

Standby ON ON(2CH) ON(Connecting) ON(Connecting) Blink 3sec.

Motion Detection ON ON(2CH) ON(Connecting) ON(Connecting) Blink 1sec.

Parking Event ON ON(2CH) ON(Connecting) ON(Connecting) Blink 1sec.

- Power ON/OFF

Function Voice Guide Operating Status

Power ON

Power OFF

Starting the recording

Terminating the system

USER MANUAL

23

- Operating button (Option Key), Long Key (More than 3 sec.)

Function Key Voice Guide

Event Button Long Key Formatting is on standby. Press the left key to format

SD Card Format

Event Button Short / All key down except Long Key None

Voice Recording

ON/OFF

Event Button Long Key Formatting the SD card. Do not turn off the power.

Press long volume button (+) Starting the voice recording

Press long volume button (-) Disabling the voice recording

- Error Occur

Function Voice Guide

SD Card not inserted Insert SD card (Repeat, Reboot once insert)

SD Card Defective Cannot read the SD card. Please check the SD card

Front camera related failure Recording failure. 1

Rear camera related failure Recording failure. 2

SD card recording related failure Recording failure. 3

CAMMSYS BLACKBOX

24

5-3 Using BlackSys App

1. Start and end recording

※ Download the BlackSys application on your smartphone.
The BlackSys application can be found on the Google Play Store and The App Store for iPhone.

- The BlackSys application can be used with Android 4.2 or later, iOS 5.0 or later.

- The BlackSys App may not be supported depending on the smartphone.

※ Turn the Wi-Fi button located at the bottom of the product.
※ For playback of recorded videos using Wi-Fi, the reception may vary according to

the data transfer rate.

※ The range of Wi-Fi reception may vary.
※ The path of recorded videos may vary depending on the smartphone.
※ Multi-connection is available but for the stability of connection, please connect one device to Wi-Fi.

[Download BlackSys APP from Google play store]

5-4 Connecting the BlackSys App

1. Select the BlackSys Connect button on the
main screen.

※ When the product is connected with your smartphone,
the BlackSys connect icon will turn green.

2. Select ‘BlackSys’ on the Wi-Fi list.

3. Enter in the default password : 11111111.

※ For a stable connection, please remain within close
proximity with your product.
※ Change your password to prevent others
from accessing your product.
※ Configure your product name and password on the

[BlackSys APP]

[BlackSys APP Main] [BlackSys APP Play list]

Blacksys Viewer program.

USER MANUAL

25

5-4-1 Using BlackSys App - SD Card

※ You can view your recorded footage saved on the SD Card right from the BlackSys App.

CAMMSYS BLACKBOX

26

1

1. Navigation : Navigate to the Main Screen

2. Front Camera : Display all footages except Front Camera

8

2

3

4

5

6

7

3. Rear Camera : Display all footages except Rear Camera

9

4. Always Video : Display all footages except Always Recording mode

5. Event Video : Display all footages except Event Recoding mode

6. Motion Detection Video : Display all footages except Motion Detection mode

7. Customize : Arrange order of footage by time sequence (ascending/descending)

8. Play : View footage file

10

9. Delete : Delete footage file

10. Wi-Fi : Navigate to ‘BlackSys Connection’

5-4-2 Using the BlackSys App - BlackSys Connection

※ Connect with your BlackSys product to view captured footage.
※ Green indicates a successful connect on the Main Screen.

1

2

3

4

5

6

7

10

[Disconnect Wi-Fi] [Wi-Fi Connection]

11 12

8

1. Navigation : Navigate to the Main Screen

2. Front Camera : Display footage captured by the Front Camera

3. Rear Camera : Display footage captures by the Rear Camera

9

4. Always Video : Display footage captured in Always Recording mode

5. Event Video : Display footage captured in Event Recoding mode

6. Motion Detection Video : Display footage captured in Motion Detection mode

7. Customize Order : Arrange order of footage by time sequence

(ascending/descending)

8. Play : View footage file

9. Download : Save footage file onto your Smartphone as a movie clip

※ File path may vary depending on Smartphone and OS.

10. SD Card : Navigate to ‘SD Card’

11. Front Camera LIVE : View a live video stream from the Front Camera

12. Rear Camera LIVE : View a live video stream from the Rear Camera

USER MANUAL

27

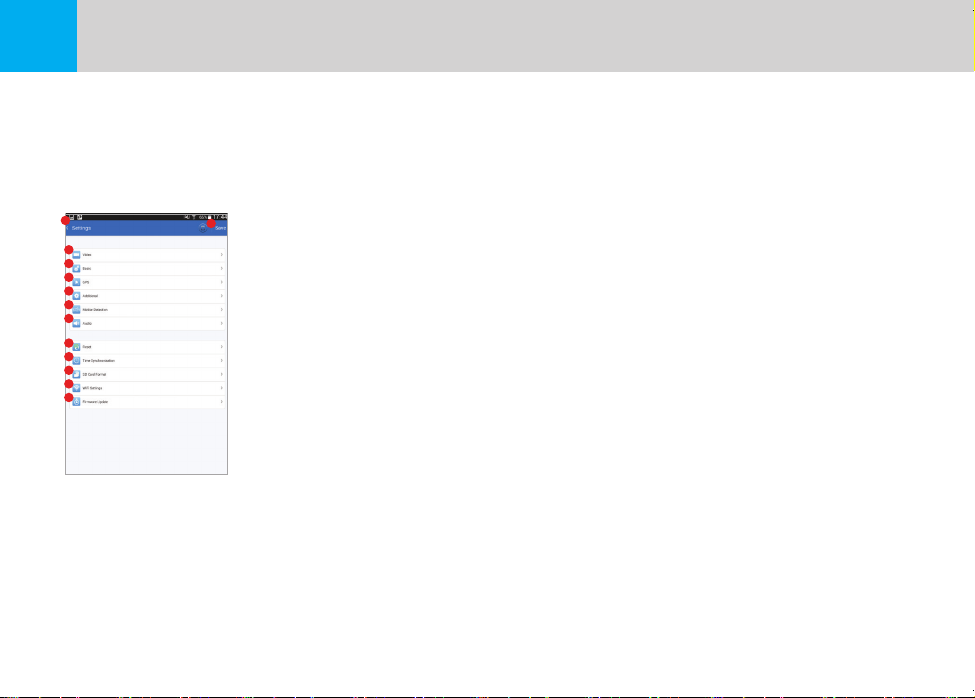

5-4-3 Using the BlackSys App - Configuration

※ Configuration only available when BlackSys product is connected to your Smartphone.
※ Menu items may vary depending on BlackSys model.
※ While saving changed value, either black box and smart phone have to be turned on.

1

3

4

5

6

7

8

9

10

11

12

13

CAMMSYS BLACKBOX

28

1. Navigation : Navigate to the Main Screen

2

2. Save Changes : Changes will be saved and applied

3. Video : Configure video settings

4. Basic : Configure basic settings & functions

5. GPS : Configure GPS settings

6. Additional : Additional settings and functions

7. Motion Detection : Configure setting for Motion Detection

8. Audio : Configure audio quality and settings

9. Reset : Reset all settings applied to product to default factory settings

10. Time Synchronization : Synchronize product time with Smartphone

11. SD Card Format : Format Micro SD

12. Wi-Fi Settings : Verify changes to the Wi-Fi network of the product

13. Firmware Update : Updates available for your product

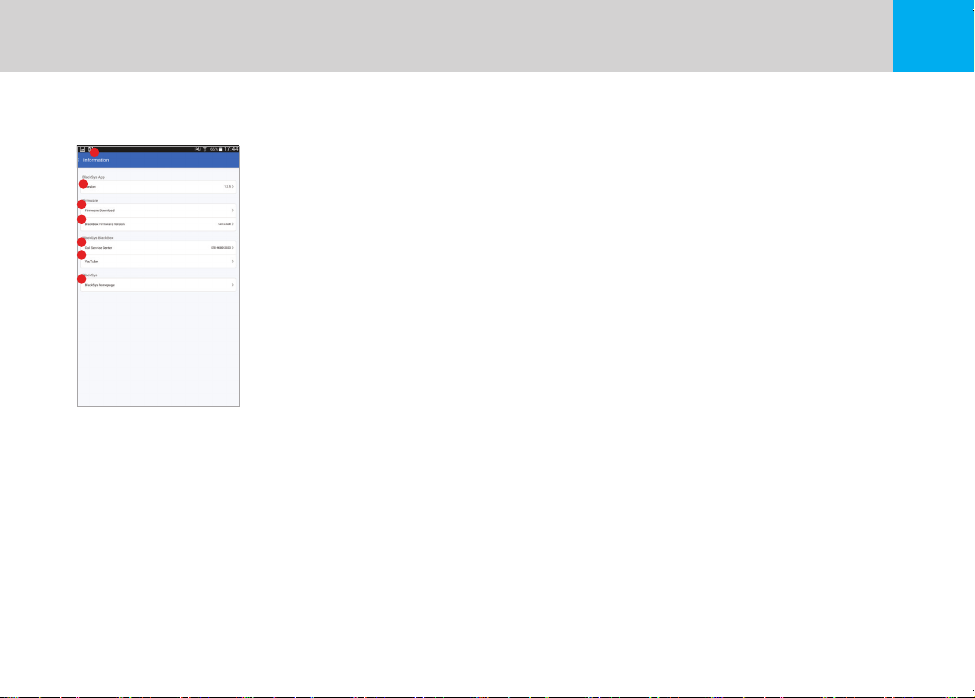

5-4-4 Using the BlackSys App - Miscellaneous

1

2

3

4

5

6

7

1. Navigation : Navigate to the Main Screen

2. Application Version : Displays current mobile app version

3. Firmware Download : Download the latest firmware

4. Firmware Version : Displays current firmware version of your product

5. Call Service Center : Contact BlackSys for more information

6. YouTube : View our YouTube channel

7. BlackSys Homepage : Visit our homepage for more information

5-5 Upgrading Firmware on the BlackSys App

1. Connect to your BlackSys product to view current firmware version.

2. Navigate to Firmware Download (Information → Firmware Download)

3. Download the latest firmware available (Charges may apply depending on carrier).

4. Ensure product and smartphone maintain a stable connection.

5. Upload firmware to your product (BlackSys Configuration → Firmware).

6. Please wait until the product has rebooted.

※ Please do not restart your Smartphone or Product while firmware is being installed.

USER MANUAL

29

5-6 BlackSys Viewer

1. Program Installation

- BlackSys Viewer can be found on the SD card(s) that come with your product.
※ You can download the BlackSys Viewer from our webpage

www.blacksys.co.kr/en > GET SUPPORT > Download and execute.

Once installation is completed, click BlackSys Player and execute it.

CH-100B

Player

2. Uninstallation (Choose one of 3 options)

① Control panel > program uninstallation & change > uninstallation

BlackSys (CH-100B) Player

② Execute C:\Program Files(x86)\BlackSys\BlackSys Player

\Uninstall BlackSys Player

③ Execute Start > All program > BlackSys Player

> Uninstall BlackSys Player

※ Buffering of video and audio, changing in playing speed, and missing files can be happened due to the performance and type of PC.

CAMMSYS BLACKBOX

30

Recommended System for PC viewer

- OS: Windows XP SP3, Vista(32bit), 7(32/64bit)

- MAC: OSX 10.7 over

- H/W: Pentium 4 2.8GHz over / 1G ram over

- Web browser: MS Internet Explorer 8.0 over

- Other: Windows.NET Framework 3.5 over

3. PC Viewer Instructions

Time configuration

Configuration

Save recorded video

Print recorded image

Folder open

Mian Viewer screen

Map View

Play List

Play list and event information
Front view indicator icon

File name of front view video :
alwa_20141112_071532_F.avi

Rear view indicator icon
File name of rear view video :
alwa_20141112_071532_R.avi

G-Sensor Data Review

Move to 10sec. before

Pause

Move to 10sec. after

Video play speed control

Zoom-IN/OUT

File name of rear view video

Volume control
Full screen
Main/Sub viewer screen

※ In case of receiving poor GPS signal or disconnecting internet, map information
of GPS may not be displayed.
※ It is only interlocked automatically with upper version than explorer 7.
※ Use “Full screen” to watch the video in Full HD.

USER MANUAL

31

4. Configuration

- User can change the default setting value such as recording, system, time and more options using “Configuration” on the PC viewer program menu.

CAMMSYS BLACKBOX

32

5. Recording screen

1 2 3 4 5 6 7 8

Date, time

1

2

Speed of vehicle (Only with GPS)

Status of GPS

3

※A: GPS receiving
※ V: GPS not receiving
※ F: GPS is not connected

Driving distance (Only with GPS)

4

Power type

5

Recording mode

6

Plate number (Max 8 digit)

7

Firmware version

8

USER MANUAL

33

06 Firmware Update

6-1 Firmware Update

Please follow the below process in case of updating firmware.

① Remove SD card from the unit.

• Turn off the ignition first and remove cigar jack cable from the unit.

② Access our webpage (www.blacksys.co.kr/en > GET SUPPORT > Download) and download the latest update file.

③ Connect SD card to PC and paste downloaded latest update file (CH100update.zip) to the root of removable disk.

④ Insert SD card which contains latest update file to the unit.

• Turn on the ignition and connect cigar jack cable to the unit.

⑤ All LED is light on and update is initiating. Once finish the update, it starts recording automatically.

• Do not disconnect power cable while update is in process. It can cause malfunctioning.

6-2 Download (Firmware & PC viewer)

• Access our webpage (www.blacksys.co.kr/en > GET SUPPORT > Download) and download the latest update file and PC viewer.

• Complete program installation

※ You must connect internet to download firmware and PC viewer program.

※ Please check notice before update your product to avoid from changing in functions.

CAMMSYS BLACKBOX

34

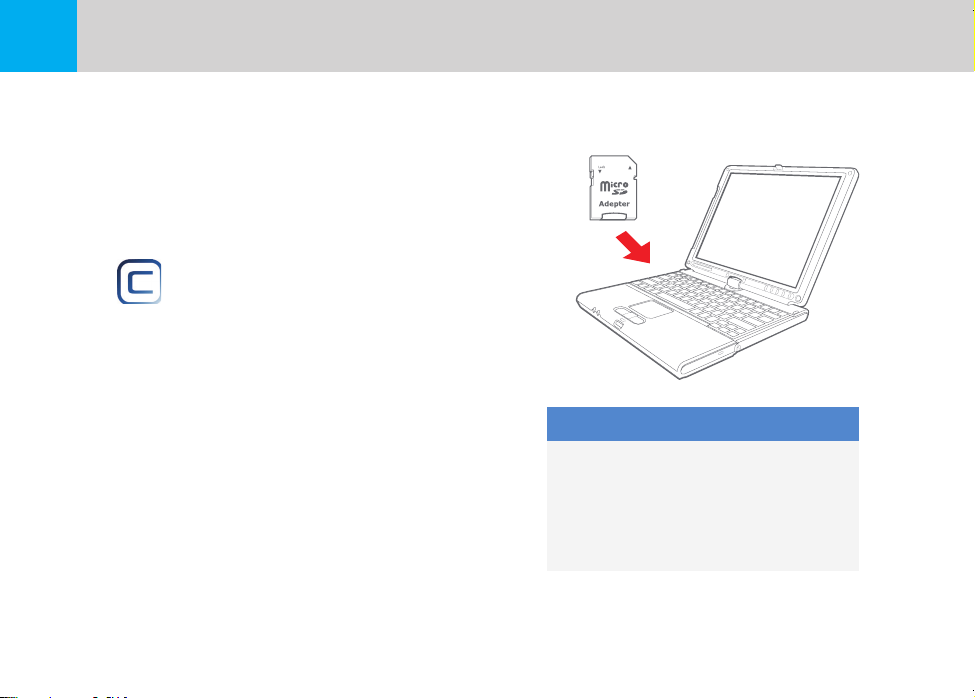

07 How to format SD card

7-1 PC format

1.PC format

※ “How to format?” is provided from PC viewer. We do not recommend to format on “My Computer”.

① Insert or connect SD card to PC.
② Click [Start] → [My Computer]
③ Place mouse pointer on [Portable USB drive] SD card and click the right button of mouse. Then click the [Format]
④ Once click the [Start] button, format is started.

• FAT 32 format is required if SD card recognition and record error happen.

Product will format SD card automatically in case of using 32KB cluster size format.

• Change SD card if PC doesn’t recognize SD card or format is not able to be completed.

• If SD card contains other data, it can cause malfunctioning. Therefore, please remove it.

※ As SD card is expendable supply, manufacturer is not responsible for any data loss and damage.

Also, manufacturer cannot guarantee the recorded data in SD card.

2.Format PC viewer

① Click “Configuration”
② Click “SD card format”. (Refer to P. 30 Configuration)

7-2 Format on product

※ Formatting SD card is also possible on the product.

① Press Event button for 3sec. then it will give voice guide “Formatting is on standby. Press the left key to format”.
② Press Event button again then format will be started with voice guide “Formatting SD card. Do not turn off the power”.
③ It will start recording automatically once the format is done.

USER MANUAL

35

08 Technical Specification

※ Technical Specification can be changed without prior notice for product improvement.

Feature Feature Description

Camera

Angle of View

Bitrate & Frame

Video

& Audio Format

Recording Method

Normal Recording Video is recorded in 3 or 5 minute intervals

Event Recording 10 sec. before and 20 sec. after the event

Shock Detect

Recording

Motion Recording 10 sec. before and 20 sec. after the motion is detected

Format Function PC, APP, Product

CAMMSYS BLACKBOX

36

Front: Full HD 2.1M Pixels Sony CMOS Sensor (1/2.9”)
Rear: HD 1.0M Pixels COMS Sensor (1/2.9”)

Front: 135° / Horizontal(107°), Vertical(55°)
Rear: 130°/ Horizontal(105°), Vertical(54°)

Front: 6Mbps 30fps
Rear: 4Mbps 30fps

H.264(AVI), Codec profile : HIP(High profile)
PCM

In case SD card is full, it deletes the oldest files
(automatically) in order

10 sec. before and 20 sec. after the shock is detected

Feature Feature Description

Shock Sensor Tri-axial shock detection G-Sensor

GPS Dual GPS Module

Memory
Storage

Video Playing Normal / BlackSys PC Viewer program

Audio Built-in speaker and MIC

Power and

Power

consumption

Permanent

Power

Operation

and Storage

temperature

Dimension

& Weight

Micro SD card: SDHC/SDXC memory card

Input Voltage: DC 9V ~ 24V
Voltage consumption: 380mA (13.4V)
WIFI OFF

Cut-off voltage (12.4V~11.8V, 0.2V interval)
Cut-off time (12, 24, 36, 48 Hour)
Possible to use both functions at the same time

Operation temperature : -20℃ ~ 70℃
Storage temperature : -30℃ ~ 80℃

Front : 58x100x34(mm), 98g
Rear : 50x26x31(mm), 25g

09 Customer Service

※ We don’t take any responsibility for the data loss during the service. Please back up the date before applying for service.

CammSys Customer Service

- Address: 3F Daeil B/D, 681-17, Yeoksam-dong, Gangnam-gu, Seoul, 135-081, Korea

- Opening hour: 09:00 ~ 18:00 (Mon. ~ Fri.)

-Closed: Saturday, Sunday and Public Holiday

If you come to customer service center, service personnel will care for the service timely and properly.
For further information regarding customer service, please refer to www.blacksys.co.kr

USER MANUAL

37

10 Quality Assurances

1. Warranty period

• Product(main unit) : 12 months from the purchase date (But, if purchase date is not clear, it can be applying 3 months warranty after manufacturing date)

• Accessory(expendable supply) : 6 months including SD card.(In case of using DC fuse power cable, memory card life can be shorter than general use)

• Service parts holding period : 5 years after stopping sales

Type of Damage

Claim a service for a main part within 10 days after purchase Replacement or refund Not applicable
Claim a service for a main part within 1 month after purchase Replacement or Free repair Not applicable

Claim a service for trouble

caused in a normal use

condition

Claim a service for not

holding service parts

within service parts

holding period

Damaged unit from distribution Replacement Not applicable

Damaged unit from installation Replacement Not applicable

※ Warranty period is 12 months after purchase.
※ We provide product repair and replacement services within the warranty period in accordance with the consumer protection regulations.
(the Korea Fair Trade Commission Directive 2008-3)

CAMMSYS BLACKBOX

38

Claim a service for faulty unit Free repair Repair at cost
Repair is not available Replacement or refund Replacement or refund after depreciation
Replacement is not available Refund at cost Applicable by bylaw
Claim a service for a main part within 1 month after unit exchange Refund at cost Applicable by bylaw
Same defect over 3 times Replacement or refund Not applicable
Multi defect over 5 times Replacement or refund Not applicable
Lost by service center during repair service Replacement or refund Applicable by by law
Trouble caused in a normal use condition Replacement or refund

Customer’s negligence or fault, functional defect Repair at cost

Within Warranty Period After Warranty Period

Compensation standard

Not applicable

11 Product Warrarnty

Model Name CH-100B

Manufacturer Cammsys Co.,Ltd

Serial No.

Purchase Date

Warranty Period

Customer Information

Assembler information Shop name Tel.

※ The warranty for the product is benefited by the details on the warranty card.
※ Warranty period is counted from the purchase date. So get the purchase date.
※ This warranty card is not reproduced.

12 months from the purchase date
(But, if purchase date is not clear, it can be applying 3 months after manufacturing date)

Name Tel.

Address

USER MANUAL

39

Daeil Bldg 3F, 681-17, Yeoksam-dong, Gangnam-gu, Seoul, Korea
Tel. [phone] / Fax. [phone] / www.cammsys.net / www.blacksys.co.kr/en / www.mycar365.net

m.0.1.0e
