USER MANUAL
BlackSys CH-100B
Blackbox
CAMMSYS
※ BlackSys Application may vary in function depending on mobile product and OS version.
Thank you for choosing BlackSys.
This manual is based on the CH-100B model.
The latest firmware & manual can be found at our website
www.blacksys.co.kr/en
■ Please read carefully before using this product.
※ This manual should be reviewed and retained for future reference.
※ CAMMSYS Corp. reserves all rights to this manual in accordance with the copyright law.
※ Content of this manual is subject to change without notice to ensure quality control.
※ Differences in product functionality may differ depending on firmware.
※ This product was designed as an accessory for safe driving. In the event of an accident, all responsibility is borne
by the vehicle operator. Please use this product responsibly.
■ Scope of guarantee and responsibility
※ This product is a vehicle-accessory for recording video image and sound for the simulation of an accident
and recorded data may be used as evidence and reference purposes. We cannot guarantee this product to capture
all accident related video image and sound. Quality may differ due to weather condition(s).
※ We will not be held responsible for any damages and/or data corruptions or loss caused by a malfunction of this product.
※ In general, the memory card lifespan for this product is ~ 6 months and may be subject to data corruption or loss due to static
electricity and/or external voltage. For this reason, we highly recommend the user to copy and save important data to external
media
(hard disc, CD, portable memory, etc.).
※ Memory card may contain corrupt images
(image recording omissions, image cuts, frame change and omission, other defect in image recording)
due to a decrease in reading/writing speed and other defects. For the best results, please use the authorized SD memory cards
and format periodically.
(Once a month for 16G micro SD memory card)
contents
Contents
01 Instruction for Use
1-1. Product Precautions …………………… 04
1-2. Installation caution …………………… 07
1-3. GPS caution …………………… 07
1-4. Memory Card …………………… 08
02 Features …………………… 09
03 Package & Part Names
3-1. Package Guide …………………… 12
3-2. Front & Rear …………………… 13
3-3. Left & Right …………………… 14
04 Installation
4-1. Front Camera (Main Unit) …………………… 15
4-2. Rear Camera …………………… 17
4-3. Memory Card Usage …………………… 18
05 Product Usage
5-1. Standard Operation Guide ………………… 19
5-2. LED indicator & Voice Guide ……………… 22
5-3. LED indicator & Voice Guide ………… 25

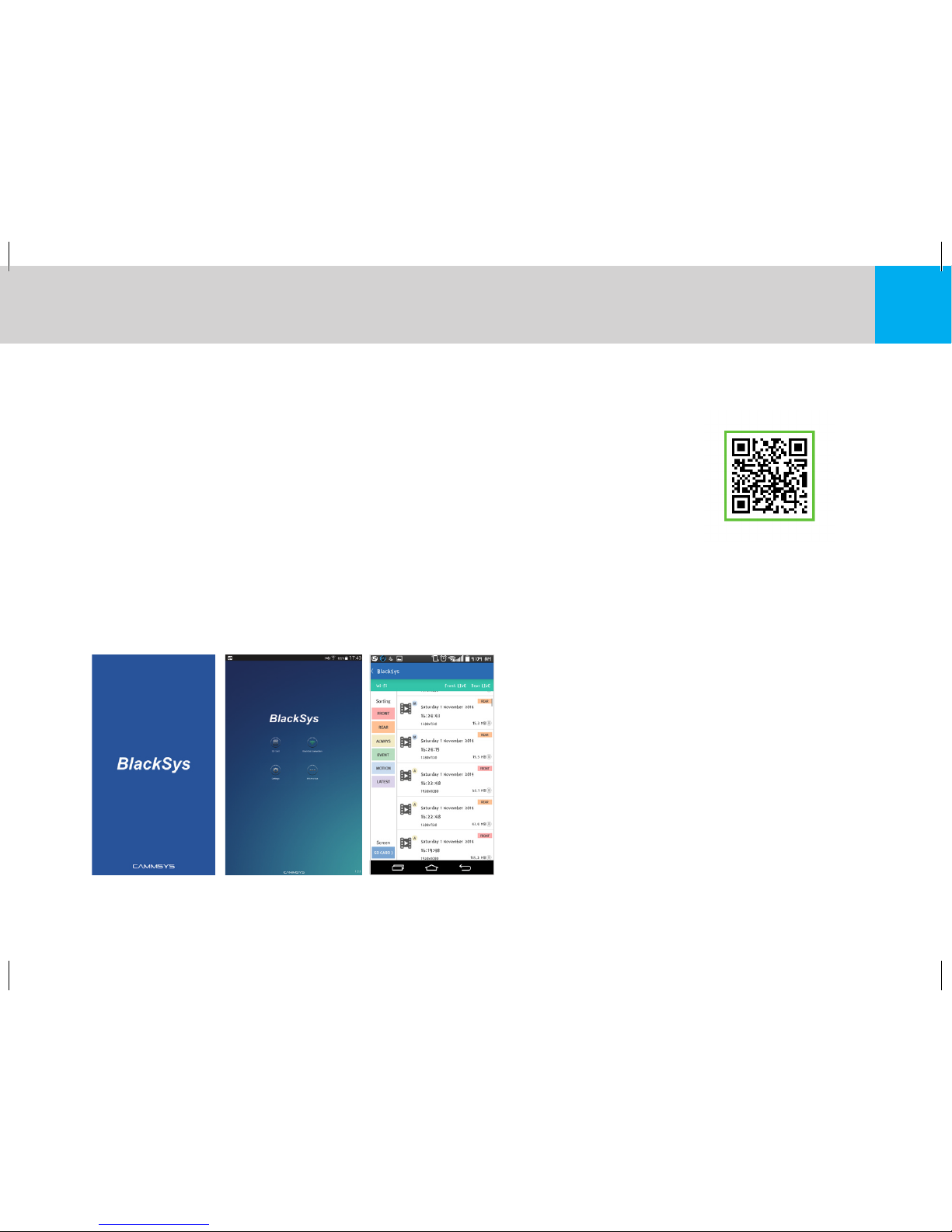

5-4. Connecting to the BlackSys App …… 25
5-5. Upgrading the App Firmware …………… 29

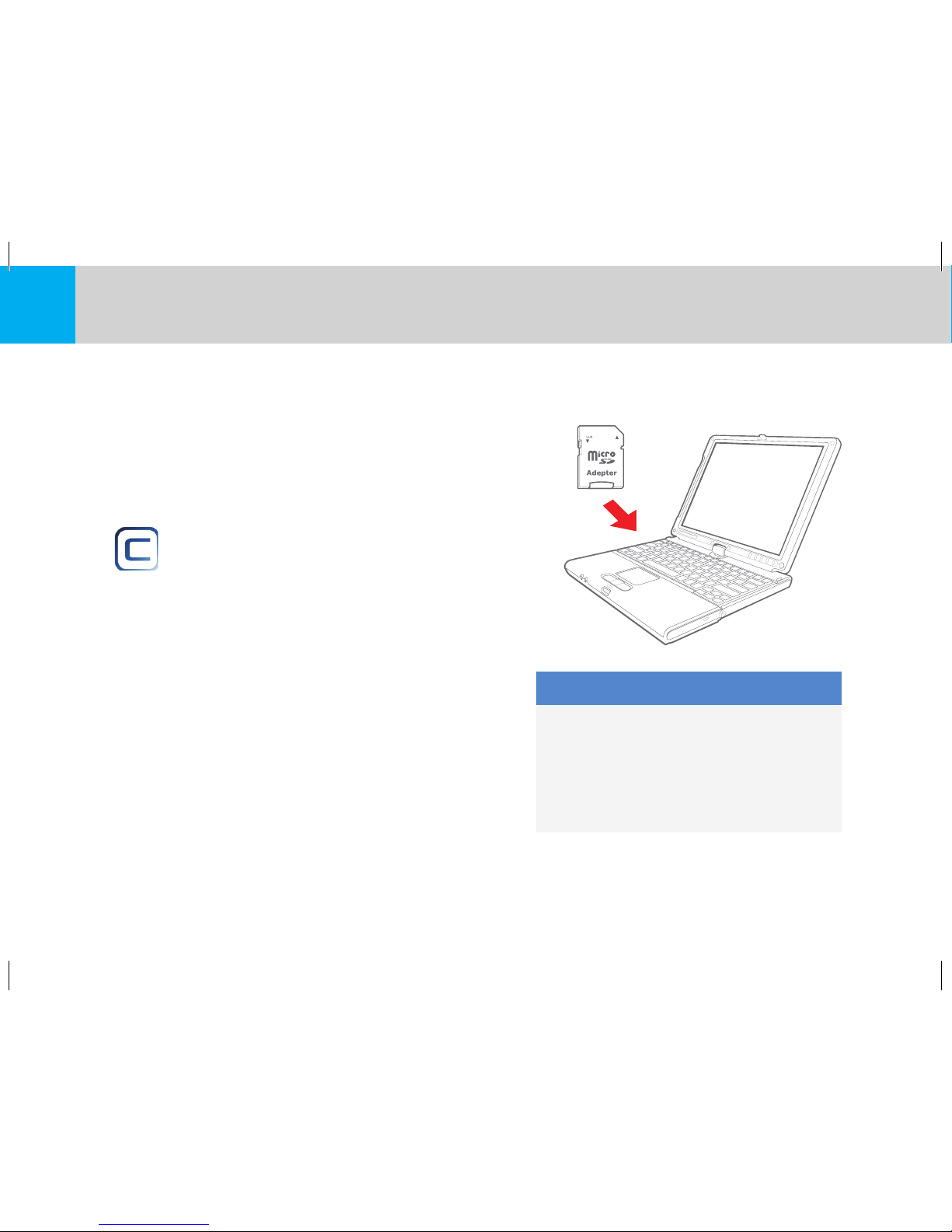

5-6. BlackSys Viewer Program ………………… 30
06 Firmware Update
6-1. Firmware Update …………………… 34
6-2. Download firmware …………………… 34
07 SD Card Format
7-1. SD Card format …………………… 35
7-2. Automatic format …………………… 35
08 Product Specification …………………… 36
09 Customer Service & AS …………………… 37
10 Quality Assurances …………………… 38
11 Product Warranty …………………… 39
04
CAMMSYS BLACKBOX
01 Product Precaution
1-1 Caution
1. Do not expose product to direct sunlight or cold weather for extended periods of time.
Product exposure to direct sunlight and extreme temperatures may cause damage to the product.
2. Do not dismantle or alter the product.
Do not disassemble, modify, or attempt to repair the product. Any alterations to the product can void the manufacturer’s warranty.
Please contact your local dealer or the C/S Centre for more information.
3. Do not dismantle or alter the product accessories.
Do not disassemble, modify, or attempt to repair any accessories for this product (Cigar Jack Cable, Mount, etc.). This may cause damage
to the vehicle and/or product. Any resulting damage shall be the responsibility of the user and is not covered under manufactures warranty.
4. Do not allow liquid to come into contact with product.
Please note this product is not waterproof and exposure to liquid and foreign substances may cause a product malfunction, short circuit,
and/or fire. Use caution when cleaning the product and clean with a soft and dry cloth.
5. Do not expose the product to heavy impacts.
Excessive impacts to this product can cause a malfunction. Handle the product with care.
6. Only use manufacture approved power cable and accessories.
Any damages or loss to product/vehicle as a result of accessory incompatibility will not be covered under manufactures warranty.
7. Any accessory or peripheral which manufacturer doesn’t supply will not be covered by warranty.
We will not warranty any accessory or peripheral if these are not authorized by us. User will be responsible for the damage caused by using
unauthorized accessory or peripheral.
8. Do not operate the product for extended periods of time while the vehicle is not running.
Excessive use of the product while vehicle is off can cause drainage to the vehicle’s battery
05
USER MANUAL
9. Video quality may vary depending on extreme lighting conditions.
Quality is subject to alterations in extreme dark/light areas and conditions. Most notability when entering/exiting a tunnel or parking garage.
10. Data may not be recorded if accident impact is lower than a predetermined threshold.
In extreme cases the product may not record data during an accident due to low impact forces. In addition, during a high force impact
accident power may be cut off to the product and data may be lost.
11. Do not disconnect the power source while the product is turned-on.
Disconnecting the power source may cause the product to malfunction. Please use only the recommended voltage for power connection.
12. Some PCs may not support BlackSys Viewer or there may be some disconnections in voice/image depending
on the PC’s specifications.
13. AE operations at night may vary depending on vehicle (black, red) low light reflection.
14. There may be frame omissions due to rapid AE operational changes in low light areas.
Please reset the installation angle of the product if AE operation malfunctions.
15. There may be noise in the video when recording in poor lighting environments.
16. In the event of a sudden frame change or switching between parking & driving modes, there may be a loss of data.
17. Motion detectors may malfunction in the event of an extreme increase/decrease to the surrounding lighting
conditions of the vehicle.
18. The motion detection function may not operate properly in environments with poor lighting conditions
due to noise and vehicle security LED(s).
*AE : Automatic Exposure
06
CAMMSYS BLACKBOX
19. The left/right side image quality of this product may vary due to characteristics of the wide-angle lens.
21. Please ensure all accessories are connected to product(s) to avoid data loss.
22. The interworking draft using Wi-Fi between smartphone and product cannot be connected simultaneously,
also when it is connected with product you cannot access internet.
23. Playing video or any other functions may not operate properly on specific kind of smart phone.
24. Using internet is restricted on the status of connecting product.
25. Do not continue to use this product if a malfunction is apparent. Please contact our C/S center
or your local distributor with any questions and/or concerns about this product.
07
USER MANUAL
1-2 Installation caution
1. Keep product clear of clutter.
Please ensure the surrounding area is clutter free to avoid reflections/vibrations that may reduce the image/audio quality.
2. Ensure camera lens is clean at all times.
Allowing the camera lens to collect dust/oils will reduce the quality of the image.
3. Do not attempt to operate or install the product while driving.
For your safety, do not attempt to operate or install the product while driving to avoid a traffic accident.
4. Please keep the product is securely fixed to mount.
Please check that the product is secured before operating the vehicle. This will ensure the best image quality and avoid distractions
to the driver while in motion.
5. Please avoid excessive window tints, as this may distort image quality.
6. Install this product at the point furthest away from the antenna or receiver as possible.
The electromagnetic waves produced by the product may distort receiving sensitivity.
7. Installing camera on the tinted window is not recommended and be careful on damage of tinted window while
uninstalling camera for service or other reason. We don’t take any responsibility for the damage and so please
be careful while uninstalling camera.
1-3 GPS caution
1. There is an error range of over 15m in a normal commercial GPS. There may be situation where the GPS signals
cannot be received depending on the environment such as buildings, underground, and tress. This can make the
error range bigger.
2. A combination of factors including weather can delay the time to receive the first GPS signal after power is
connected to the product.
08
CAMMSYS BLACKBOX
1-4 Memory Card
1. Do not remove the memory card by force while the product is in recording mode.
Please turn off the product before removing the memory card(s). Removing the memory card(s) while the product is turned on may damage
the video file or cause an internal operational error.
2. Be sure to periodically reformat the memory cards using the BlackSys Viewer or the product itself.
Repetitive data creation and deletion by the product can cause damage to the memory card(s) and their file. 16G micro SD card should be
formatted once a month. The warranty period of a memory card is 6 months, and we are not held responsible for any recording errors due
to prolonged usage of a memory card after the 6 month period.
3. After reformatting a memory card, it can be used without configuration files such as firmware.
The latest set value is contained within the product, and will be automatically applied to the SD card(s).
4. Please use Authorized memory cards to ensure the best quality.
We will not be held responsible for any problems related to the usage of memory cards not provided by us.
5. Handle with care when inserting and removing the memory card(s) to avoid burns.
6. The memory card(s) operate at high temperatures, and we recommend you use caution when inserting and removing.
7. Please backup your recorded videos using an external storage product (PC, HDD, etc.).
8. Be sure to insert the micro SD card into the product.
Without the micro SD card, event recordings are not saved.
3. External electronic products and window tinting may affect the GPS reception.
4. Vehicle speed accuracy may vary between 1-30km/h depending on the reception area when stopping the car.
5. GPS may be operated when switching off the product.
09
USER MANUAL
02 Features
+ Clear image with CMOS Sensor
Front: Full HD Sony CMOS Sensor / Rear: HD Image Sensor
+ Distortion-free recording with Wide-angle lens
Front: 1920x1080p Full HD, 30fps / 16:9 wide screen with 135° angle of view
Rear: 1280x720p HD, 30fps with 130° angle of view
+ Wi-Fi Support (802.11b/g/n (2.4~2/4835FHz))
+ Low Voltage Cut-off function
Under 100uA Leakage current.
+ Supports a variety of recording functions
- Continuous recording : Generates recording files at three-minute or five-minute intervals continuously.
- Event recording : Generates 30sec recording files before and after the event.
- Parking recording : Generates 30sec recording files before and after the motion is detected.
10
CAMMSYS BLACKBOX
+ 8GB~128GB Memory Support
+ Multi Language Support
Korean, English, Chinese (Mandarin, Cantonese), Arabic, Russian, French, Spanish (Europe, South America), Japanese,
Thai language, Bahasa Indonesia, Vietnamese, German, Turkish, Italian, Czech, Portuguese, Bahasa Malaysia
+ Security LED Support
+ GPS Dual Band (GPS+GLONASS)
+ Built-in microphone
Product records audio simultaneously with video.
11
USER MANUAL
+ Direct memory card format
Product formats memory card without connection to PC.
+ Built-in super capacitor
Internal battery replacements are not necessary due to a built-in semi-permanent super capacitor.
When the vehicle is turned off, the product will save all data before terminating.
+ Playing

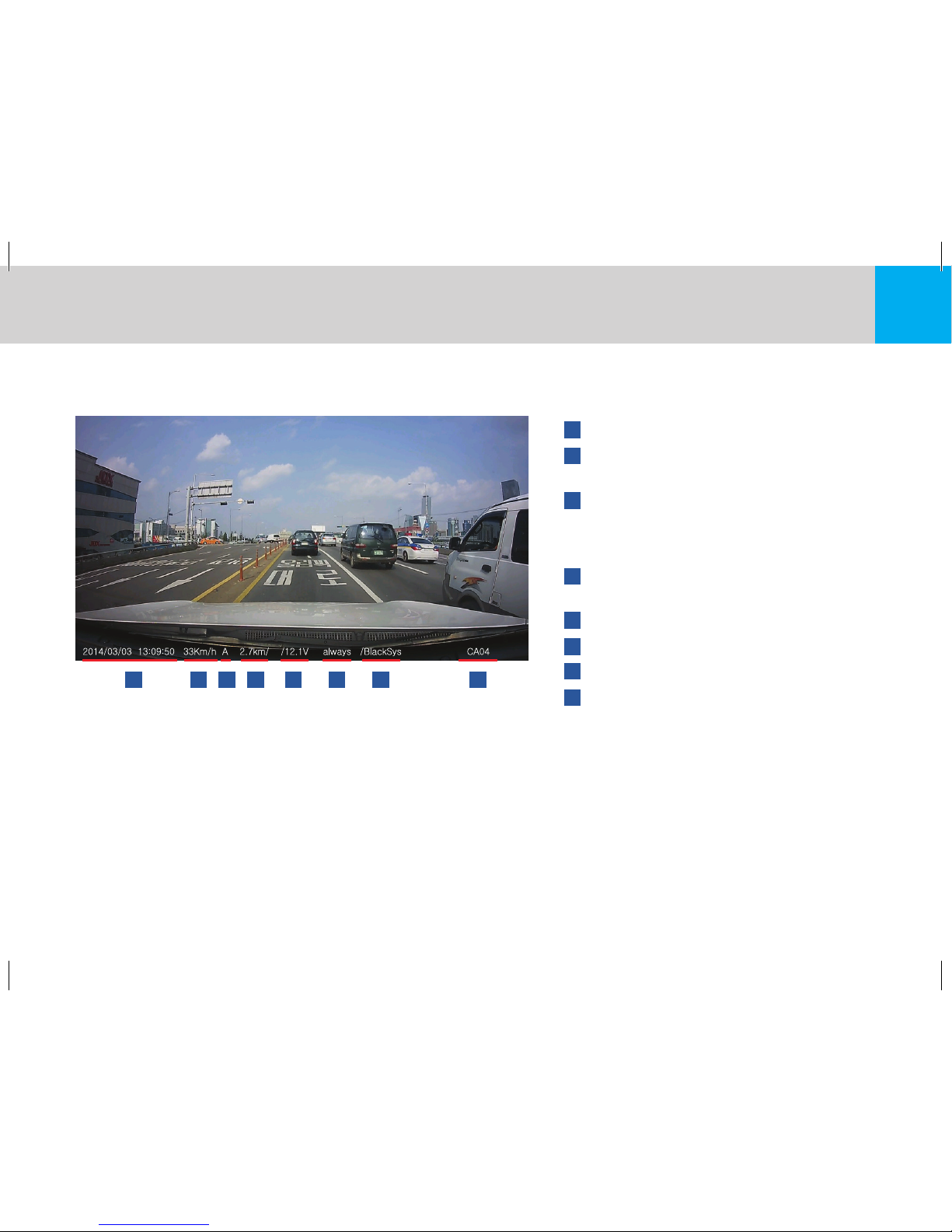

You can check the recorded video and driving information by BlackSys PC viewer and smartphone and
also you can use other video player such as Windows media player.
12
CAMMSYS BLACKBOX
※ Actual components may be different from pictures and some components can be changed in case.
If package doesn’t include below components, please contact a retail shop or company where product was sold.
Standard Components
Main Unit (Product)
DC Fuse Power Cable
Option
Cigar Jack Cable
OBD Terminal
Wi-Fi DongleRear CameraBracket
Bracket type GPS
User Manual
Cable Holder Micro SD Memory

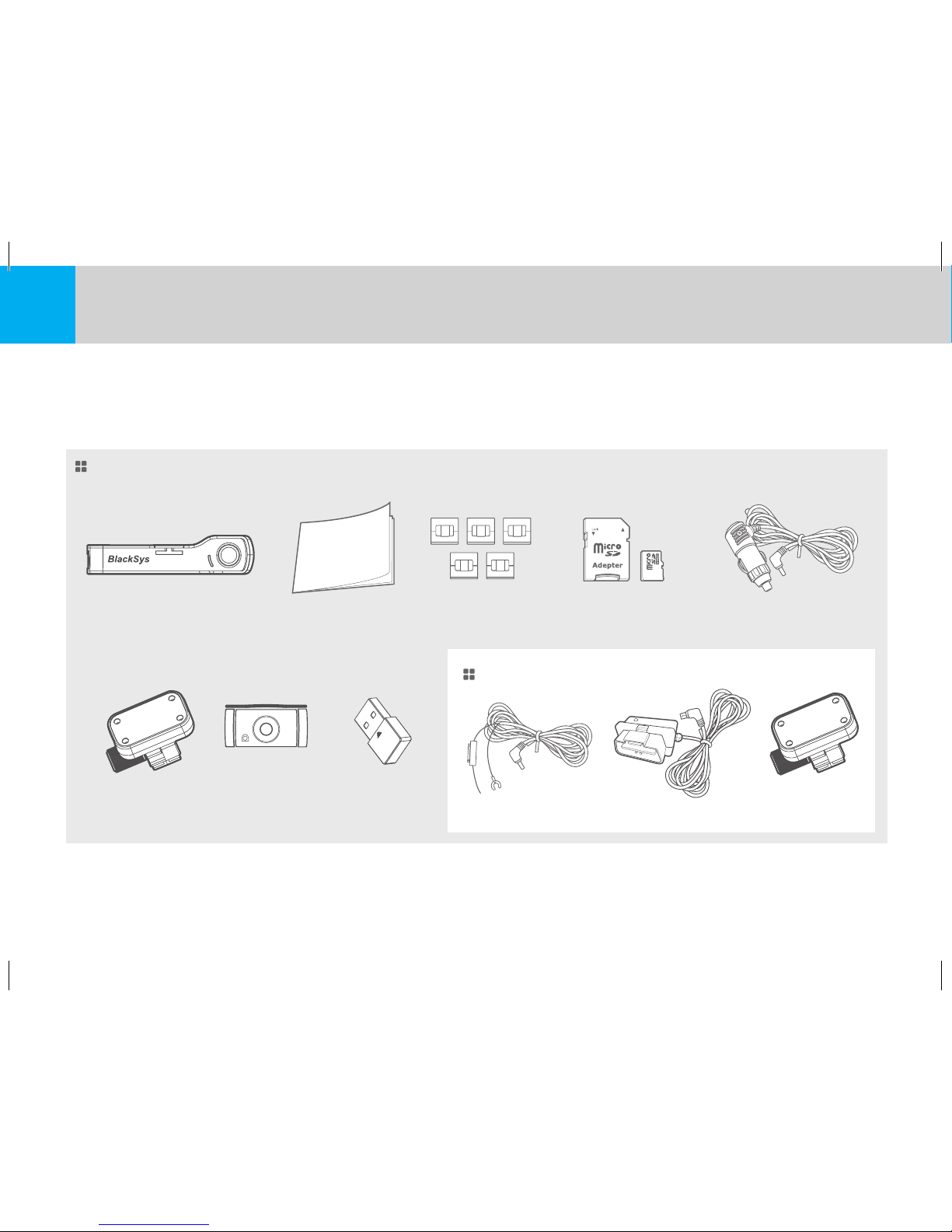

03 Package & Part Names
3-1 Package Guide
13

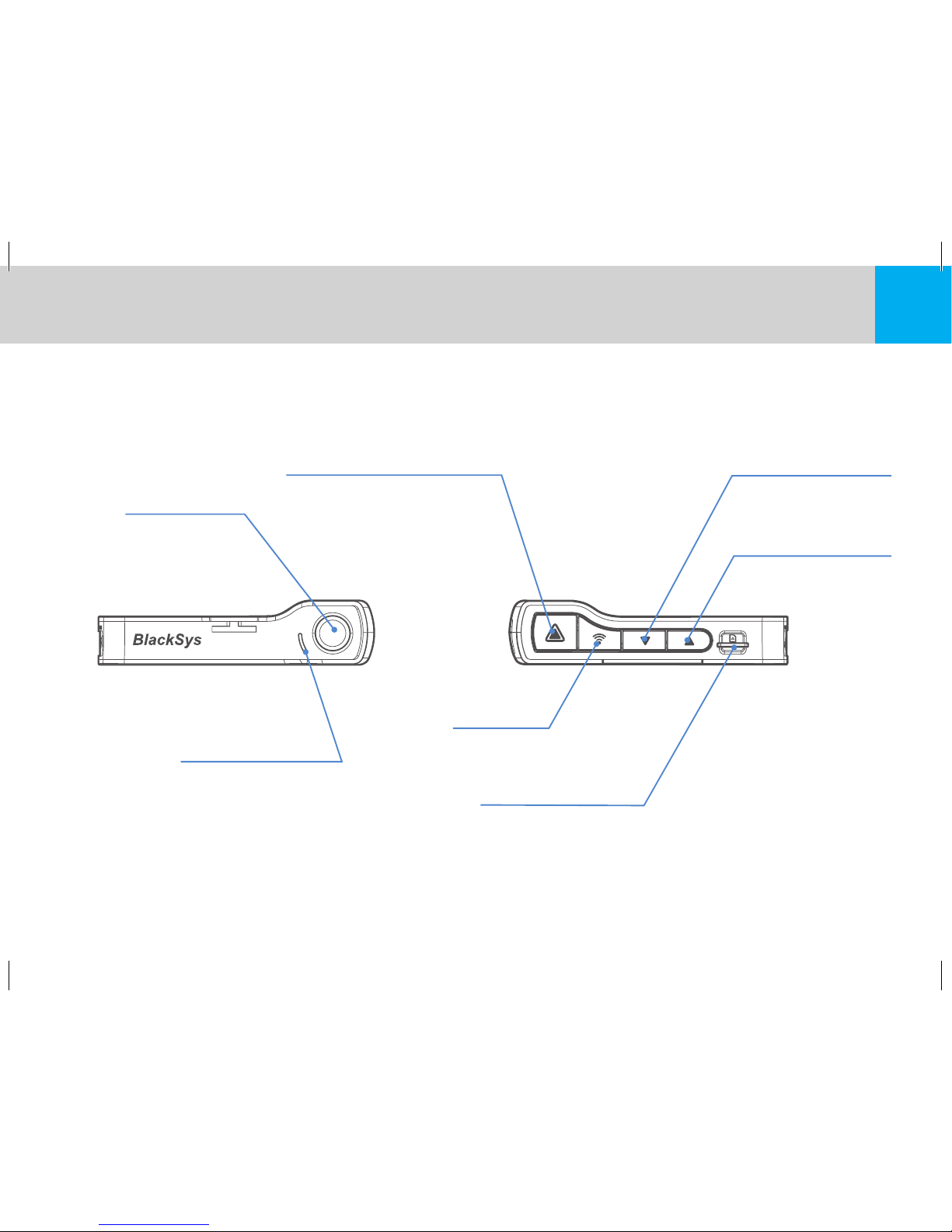

USER MANUAL
MICRO SD
Emergency Recording Button
For manual recording
Wi-Fi
Wi-Fi ON/OFF
Volume Control
Speaker volume control (+)
Volume Control
Speaker volume control (-)
Camera Lens
For video recording
Security LED
LED indicator for parking
or video recording
Micro SD card slot
External Micro SD card port
3-2 Front & Rear
14
CAMMSYS BLACKBOX
Wi-Fi Port
Wi-Fi Connecting port
OBD Terminal
Check driving information
by using OBD cable
Rear Camera Connecting Port
Connecting HD rear camera
Power cable port
Cigar jack power cable port
GPS Port
Check location
and speed of vehicle
through BlackSys Viewer program
① GND
② AV OUT
③ GPS Data
④ Power
3-3 Left & Right
15
USER MANUAL
1. Attaching double-sided adhesive tape 2. Installing unit
Wipe up the foreign matters or moisture completely
from the location of installation. Remove the
release paper on double sided tape and attach it
to the cradle part of holder and remove the red
adhesive protector.
Installation is recommended on the left/right of room mirror.
Tightly fasten the adhesive of holder to the windshield by
pushing it. Adjust the angle of camera to record forward and
unit to be vertically installed. Finally, tighten the clamping
lever.
※ If a video from navigation system or dashboard reflect in windshield,
it could affect video quality.
04 Installation
4-1 Front Camera (Main product)
16
CAMMSYS BLACKBOX
3. Power cable arrangement and connection 4. Power cable connection and check the LED state
By using the cable holder, arrange the Cigar jack cable
and connect it to the DC IN port.
After inserting the Cigar jack cable into cigar jack, turn on the
car ignition. If all LEDs of power status are on, installation is
completed.
4-1 Front Camera (Main product)
17
USER MANUAL

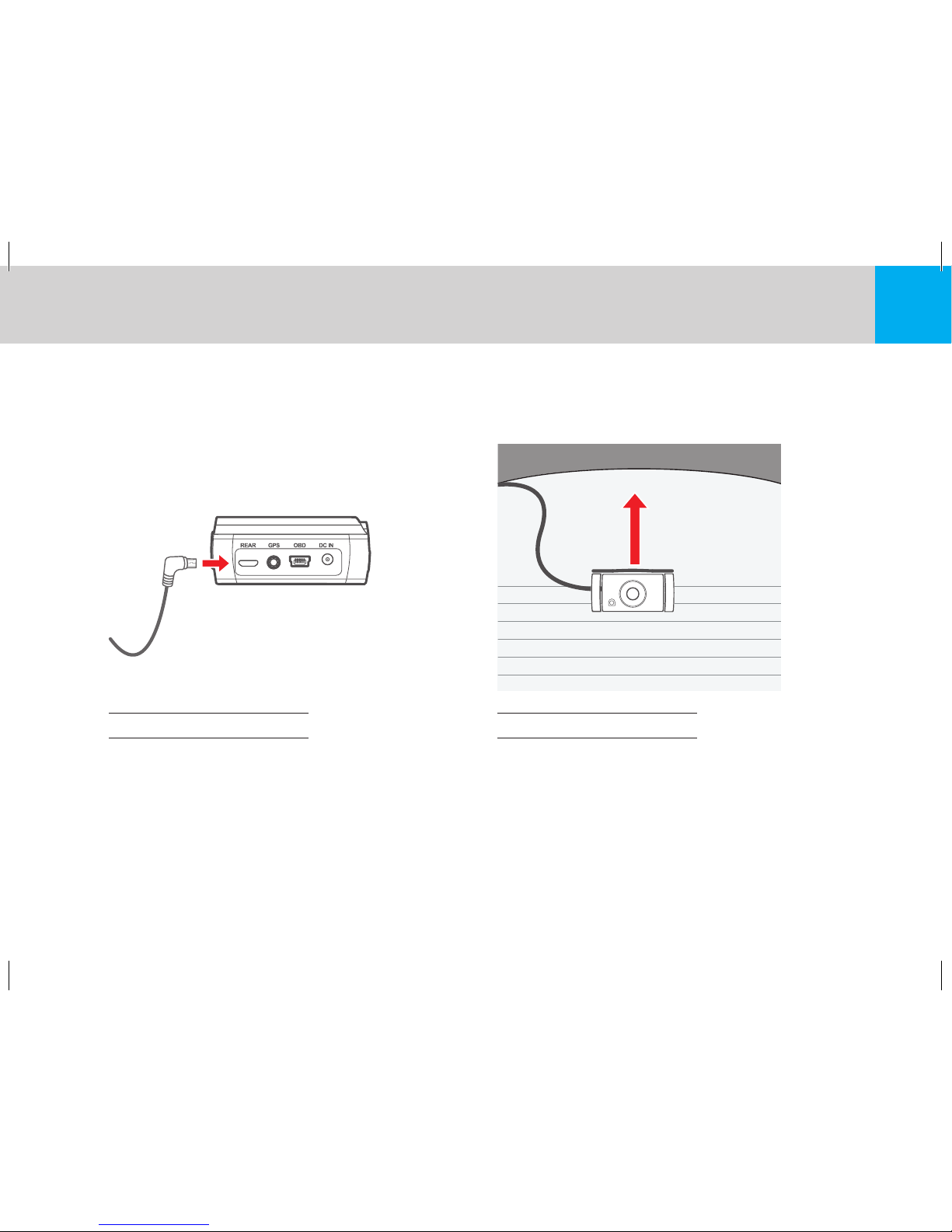

1. Rear Camera Installation 2. Installation
Connect rear camera to the rear camera connector.
Clean up the cable of rear camera from the location
of installation.
Wipe up the foreign matters or moisture completely from the
location of installation. Remove the red adhesive on double
sided tape and attach it to the rear windshield. Installation is
recommended on the middle of rear windshield.
※ Tinted windows may cause unclear image of video from rear camera.
Avoid tinted window.
4-2 Rear Camera
18
CAMMSYS BLACKBOX
4-3 Memory Card Usage
- Video is recorded in 3 or 5 minute intervals for continuous recording. 30 second intervals for motion and event recording.
- The number of files and usage times below is standard when set at 70% continuous, recording, 20% motion recording and 10% event recording.
1. Micro SD Card Usage Time
※ Front 6M/sec, Rear 4M/sec (High quality standard)
※ The number of files and usage times may be different from actual usage time.
※ Total recording time means sum of front and rear recorded videos. (It saves front and rear videos separately)
※ The number of files and usage times may be changed according to the quality of video.
SD
Continuous Motion Event
Front Rear Front Rear Front Rear
8G
22 files 22 files 36 files 36 files 18 files 18 files
66 min (1h 6min) 18 min 9 min
16G
45 files 45 files 76 files 76 files 38 files 38 files
135 min (2h 15min) 78 min (1h 18min) 39 min
32G
91 files 91 files 156 files 156 files 78 files 78 files
273 min (4h 33min) 79 min (1h 18min) 39 min
64G
184 files 184 files 316 files 316 files 158 files 158 files
552 min (9h 12min) 158 min (2h 38min) 79 min (1h 19min)
128G
368 files 368 files 632 files 632 files 316 files 316 files
1104 min (18h 24min) 316 min (6h 16min) 158min (2h 38min)
19
USER MANUAL
05 Product Usage
5-1 Standard Operation Guide
1. Recording start and end
- Once connecting power, CH-100B gives voice guide, “Start recording” and then it starts recording.
- Once disconnecting power, CH-100B gives voice guide, “Car DVR is ending”.
※ Please check whether the SD card is inserted into the main unit or not before connecting power.
2. Recording Mode & Time usage
※ While Event recording and manual recording mode, other event or manual mode will not be operated.
3. Video Playback
- Playback the recorded video: To playback the recorded video, touch “SD Card” or “BLACKSYS” (When connecting Wi-Fi)
of CammSys application. Also you can check the video on BlackSys Viewer on PC with Micro SD card.
Mode Recording Time Save location
Normal Recording
Normal 3/5 min AlwaysMovie folder
Event 10 sec before / 20sec after EventMovie folder
Manual 10 sec before / 20sec after EventMovie folder
Parking Recording
Motion 10 sec before / 20sec after MotionMovie folder
Parking 10 sec before / 20sec after EventMovide folder
20
CAMMSYS BLACKBOX
4. Normal Recording
- Normal recording : Recording starts when vehicle power is turned on and recorded data are stored in SD card. (“AlwaysMovie” folder)
- Event recording : Recording starts if acceleration sensor(G-sensor) detects impact, sudden unintended acceleration and quick braking,
it records 30 sec. of video to the (“EventMovie” folder)(10 sec. before and 20 sec. after the event)
- Manual recording : Recording starts if user manually pressed the vent button during the car runs, it records 30 sec. of video
to the (“EventMovie” folder).
※ While Event Recording, Manual recording function cannot be operated and during Manual recording, Event recording also cannot be operated.
5. Parking Mode Recording
- Paring mode is active when the product power is ON.
※ Note that recording and the product itself will terminate power if the vehicles’ battery drops below a predetermined voltage.
- Parking Mode Setting : The product can be programed with a set time to initiate the ‘auto conversation to parking mode’ function.
When the product converts to parking mode, a voice segment (“Switched to parking mode”) is announced.
※ Automatic conversation to parking mode can be programed in the Configuration Setting >> Basic Functions of the BlackSys viewer,
or on the BlackSys mobile app : BlackSys Settings >> Basic Function.
※ As recording stops and converts to parking or driving mode, less than 5 seconds of video may be lost.
- Recording in Parking model “Motion LED segment will be displayed on lower part of the screen when saved video playing.
※ When converting from normal, event, or manual recording mode to parking mode, each recorded file is terminate and converted into parking mode.
For this reason, video loss can occur.
- When selecting ‘Use motion detection’ in the configuration settings, video will be recorded for 30 seconds in total when motion is
detected - 10 sec. before / 20 sec. after. Files will be saved in the “MotionMovie” folder.
※ For efficient memory management only the rear/front camera that detects the motion will activate.
21
USER MANUAL
※ You can set the motion detection function on the BlackSys Viewer : Configuration Settings >> Notion Detection.
Or directly from the BlackSys App : BlackSys Settings >> Motion Detection.
※ White LED will blink while motion recording is active.
※ Motion detection may fail when the vehicle is in extreme lighting conditions.
※ Recording time during parking mode may vary depending on the vehicles’ battery voltage.
※ Motion recording may continue according to changes in the environment, the sensitivity must be set to in accordance with your parking environment.
(E.g. When parking in an alley or underground, frequent movements may interfere with motion recording if set on a high sensitivity.)
6. Driving Information Check
- Configuration setting → GPS function → Driving Information
After you have set the storage intervals for driving information on the configurations settings, the desired data points will then be saved
at every programed interval.
22
CAMMSYS BLACKBOX
※ Function can be changed according to product upgrade.
5-2 LED Indicator and Voice Guide
- Sound effect
Function Voice Guide
System start Starting the recording
System OFF
(Disconnecting power)
Terminating the system
Start recording None
End recording None
Connecting
/Disconnecting rear camera
None (System will be rebooted if you
connect rear camera while operating)
GPS satellite positioning None
Remove SD card while operating
None (System will be rebooted if you
connect rear camera while operating)
Without SD card
There is no SD card (Repeat, Reboot
once insert the SD card)
Manual SD card format
Formatting is on standby.
Press the left key to format
Proceed SD card format
(Event Key)
Formatting the SD card. Do not turn
off the power.
Security LED setting None
Function Voice Guide
Time signal
(In case of using Fixed time alarm)
1O’clock
Voice recording setting
Starting the voice recording
Disabling the voice recording
Convert to parking mode Switching to parking recording mode
Convert to normal mode from
parking mode
Switching to normal recording mode
Normal recording None
Manual recording Ding-dong, beep sound
Event recording Ding-dong, beep sound
Start Firmware upgrade None
Power OFF with High Temperature
cut-off function
None
Low voltage cut-off None
Volume (+)(-) Beep sound
Wi-Fi ON Ti-ting~ sound
Wi-Fi OFF Ti-ting! sound
23
USER MANUAL
- Hardware (H/W) Status LED
- Security Status LED
- Power ON/OFF
LED Red(REC) Green(Rear) Blue(GPS) Yellow(Wi-Fi)
Rear camera
Connect / Disconnect Connecting rear camera while operating / Rebooting when disconnecting
GPS
Connection success ON ON(2CH) ON -
Connection failed ON ON(2CH) OFF -
Wi-Fi
ON ON ON(2CH) - ON
OFF ON ON(2CH) - OFF
LED Red(REC) Green(Rear) Blue(GPS) Yellow(Wi-Fi) Security LED
Parking
Mode
Standby ON ON(2CH) ON(Connecting) ON(Connecting) Blink 3sec.
Motion Detection ON ON(2CH) ON(Connecting) ON(Connecting) Blink 1sec.
Parking Event ON ON(2CH) ON(Connecting) ON(Connecting) Blink 1sec.
Function Voice Guide Operating Status
Power ON
Starting the recording
Power OFF
Terminating the system
24
CAMMSYS BLACKBOX
Function Key Voice Guide
SD Card Format
Event Button Long Key Formatting is on standby. Press the left key to format
Event Button Long Key Formatting the SD card. Do not turn off the power.
Event Button Short / All key down except Long Key None
Voice Recording
ON/OFF
Press long volume button (+) Starting the voice recording
Press long volume button (-) Disabling the voice recording
Function Voice Guide
SD Card not inserted Insert SD card (Repeat, Reboot once insert)
SD Card Defective Cannot read the SD card. Please check the SD card
Front camera related failure Recording failure. 1
Rear camera related failure Recording failure. 2
SD card recording related failure Recording failure. 3
- Operating button (Option Key), Long Key (More than 3 sec.)
- Error Occur
25
USER MANUAL
5-3 Using BlackSys App
1. Start and end recording
※ Download the BlackSys application on your smartphone.
The BlackSys application can be found on the Google Play Store and The App Store for iPhone.
- The BlackSys application can be used with Android 4.2 or later, iOS 5.0 or later.
- The BlackSys App may not be supported depending on the smartphone.
※ Turn the Wi-Fi button located at the bottom of the product.
※ For playback of recorded videos using Wi-Fi, the reception may vary according to
the data transfer rate.
※ The range of Wi-Fi reception may vary.
※ The path of recorded videos may vary depending on the smartphone.
※ Multi-connection is available but for the stability of connection, please connect one device to Wi-Fi.
1. Select the BlackSys Connect button on the
main screen.
※ When the product is connected with your smartphone,
the BlackSys connect icon will turn green.
2. Select ‘BlackSys’ on the Wi-Fi list.
3. Enter in the default password : 11111111.
※ For a stable connection, please remain within close
proximity with your product.
※ Change your password to prevent others
from accessing your product.
※ Configure your product name and password on the
Blacksys Viewer program.
[BlackSys APP]
[Download BlackSys APP from Google play store]
[BlackSys APP Main] [BlackSys APP Play list]
5-4 Connecting the BlackSys App
26
CAMMSYS BLACKBOX

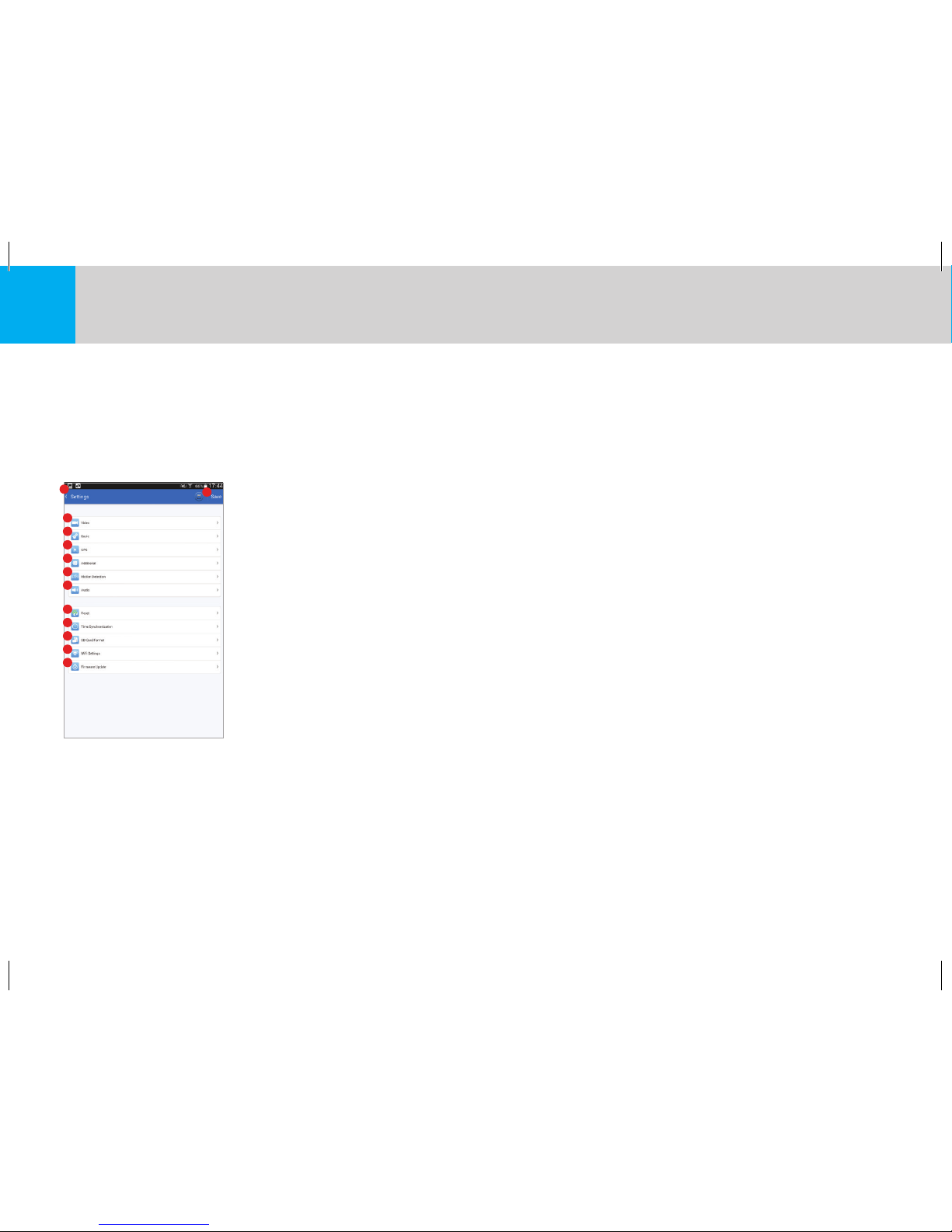

5-4-1 Using BlackSys App - SD Card
※ You can view your recorded footage saved on the SD Card right from the BlackSys App.
1. Navigation : Navigate to the Main Screen
2. Front Camera : Display all footages except Front Camera
3. Rear Camera : Display all footages except Rear Camera
4. Always Video : Display all footages except Always Recording mode
5. Event Video : Display all footages except Event Recoding mode
6. Motion Detection Video : Display all footages except Motion Detection mode
7. Customize : Arrange order of footage by time sequence (ascending/descending)
8. Play : View footage file
9. Delete : Delete footage file
10. Wi-Fi : Navigate to ‘BlackSys Connection’
1
2
3
4
5
6
7
10
8
9
27
USER MANUAL
5-4-2 Using the BlackSys App - BlackSys Connection
※ Connect with your BlackSys product to view captured footage.
※ Green indicates a successful connect on the Main Screen.
1. Navigation : Navigate to the Main Screen
2. Front Camera : Display footage captured by the Front Camera
3. Rear Camera : Display footage captures by the Rear Camera
4. Always Video : Display footage captured in Always Recording mode
5. Event Video : Display footage captured in Event Recoding mode
6. Motion Detection Video : Display footage captured in Motion Detection mode
7. Customize Order : Arrange order of footage by time sequence
(ascending/descending)
8. Play : View footage file
9. Download : Save footage file onto your Smartphone as a movie clip
※ File path may vary depending on Smartphone and OS.
10. SD Card : Navigate to ‘SD Card’
11. Front Camera LIVE : View a live video stream from the Front Camera
12. Rear Camera LIVE : View a live video stream from the Rear Camera
[Disconnect Wi-Fi] [Wi-Fi Connection]
1
2
3
4
5
6
7
10
8
9
11 12
28
CAMMSYS BLACKBOX
5-4-3 Using the BlackSys App - Configuration
※ Configuration only available when BlackSys product is connected to your Smartphone.
※ Menu items may vary depending on BlackSys model.
※ While saving changed value, either black box and smart phone have to be turned on.
1. Navigation : Navigate to the Main Screen
2. Save Changes : Changes will be saved and applied
3. Video : Configure video settings
4. Basic : Configure basic settings & functions
5. GPS : Configure GPS settings
6. Additional : Additional settings and functions
7. Motion Detection : Configure setting for Motion Detection
8. Audio : Configure audio quality and settings
9. Reset : Reset all settings applied to product to default factory settings
10. Time Synchronization : Synchronize product time with Smartphone
11. SD Card Format : Format Micro SD
12. Wi-Fi Settings : Verify changes to the Wi-Fi network of the product
13. Firmware Update : Updates available for your product
3
4
5
6
7
8
9
10
11
1
2
12
13
29
USER MANUAL
5-4-4 Using the BlackSys App - Miscellaneous
1
2
3
4
5
6
7
1. Navigation : Navigate to the Main Screen
2. Application Version : Displays current mobile app version
3. Firmware Download : Download the latest firmware
4. Firmware Version : Displays current firmware version of your product
5. Call Service Center : Contact BlackSys for more information
6. YouTube : View our YouTube channel
7. BlackSys Homepage : Visit our homepage for more information
5-5 Upgrading Firmware on the BlackSys App
1. Connect to your BlackSys product to view current firmware version.
2. Navigate to Firmware Download (Information → Firmware Download)
3. Download the latest firmware available (Charges may apply depending on carrier).
4. Ensure product and smartphone maintain a stable connection.
5. Upload firmware to your product (BlackSys Configuration → Firmware).
6. Please wait until the product has rebooted.
※ Please do not restart your Smartphone or Product while firmware is being installed.
30
CAMMSYS BLACKBOX
CH-100B
Player
Recommended System for PC viewer
- OS: Windows XP SP3, Vista(32bit), 7(32/64bit)
- MAC: OSX 10.7 over
- H/W: Pentium 4 2.8GHz over / 1G ram over
- Web browser: MS Internet Explorer 8.0 over
- Other: Windows.NET Framework 3.5 over
5-6 BlackSys Viewer
1. Program Installation
- BlackSys Viewer can be found on the SD card(s) that come with your product.
※ You can download the BlackSys Viewer from our webpage
www.blacksys.co.kr/en > GET SUPPORT > Download and execute.
Once installation is completed, click BlackSys Player and execute it.
※ Buffering of video and audio, changing in playing speed, and missing files can be happened due to the performance and type of PC.
2. Uninstallation (Choose one of 3 options)
① Control panel > program uninstallation & change > uninstallation
BlackSys (CH-100B) Player
② Execute C:\Program Files(x86)\BlackSys\BlackSys Player
\Uninstall BlackSys Player
③ Execute Start > All program > BlackSys Player
> Uninstall BlackSys Player
31
USER MANUAL
3. PC Viewer Instructions
Time configuration
Configuration
Save recorded video
Print recorded image
Folder open
Mian Viewer screen
G-Sensor Data Review
Move to 10sec. before
Pause
Move to 10sec. after
Video play speed control
Zoom-IN/OUT
Volume control
Full screen
Main/Sub viewer screen
※ In case of receiving poor GPS signal or disconnecting internet, map information
of GPS may not be displayed.
※ It is only interlocked automatically with upper version than explorer 7.
※ Use “Full screen” to watch the video in Full HD.
Play List
Map View
Play list and event information
Front view indicator icon
File name of front view video :
alwa_20141112_071532_F.avi
Rear view indicator icon
File name of rear view video :
alwa_20141112_071532_R.avi
File name of rear view video
32
CAMMSYS BLACKBOX
4. Configuration
- User can change the default setting value such as recording, system, time and more options using “Configuration” on the PC viewer program menu.
33
USER MANUAL
5. Recording screen
1 2 3 4 5 6 7 8
Date, time
Speed of vehicle (Only with GPS)
Status of GPS
※A: GPS receiving
※ V: GPS not receiving
※ F: GPS is not connected
Driving distance (Only with GPS)
Power type
Recording mode
Plate number (Max 8 digit)
Firmware version
1
2
3
4
5
6
7
8
34
CAMMSYS BLACKBOX
06 Firmware Update
6-1 Firmware Update
Please follow the below process in case of updating firmware.
① Remove SD card from the unit.
• Turn off the ignition first and remove cigar jack cable from the unit.
② Access our webpage (www.blacksys.co.kr/en > GET SUPPORT > Download) and download the latest update file.
③ Connect SD card to PC and paste downloaded latest update file (CH100update.zip) to the root of removable disk.
④ Insert SD card which contains latest update file to the unit.
• Turn on the ignition and connect cigar jack cable to the unit.
⑤ All LED is light on and update is initiating. Once finish the update, it starts recording automatically.
• Do not disconnect power cable while update is in process. It can cause malfunctioning.
6-2 Download (Firmware & PC viewer)
• Access our webpage (www.blacksys.co.kr/en > GET SUPPORT > Download) and download the latest update file and PC viewer.
• Complete program installation
※ You must connect internet to download firmware and PC viewer program.
※ Please check notice before update your product to avoid from changing in functions.
35
USER MANUAL
07 How to format SD card
7-1 PC format
1.PC format
※ “How to format?” is provided from PC viewer. We do not recommend to format on “My Computer”.
① Insert or connect SD card to PC.
② Click [Start] → [My Computer]
③ Place mouse pointer on [Portable USB drive] SD card and click the right button of mouse. Then click the [Format]
④ Once click the [Start] button, format is started.
• FAT 32 format is required if SD card recognition and record error happen.
Product will format SD card automatically in case of using 32KB cluster size format.
• Change SD card if PC doesn’t recognize SD card or format is not able to be completed.
• If SD card contains other data, it can cause malfunctioning. Therefore, please remove it.
※ As SD card is expendable supply, manufacturer is not responsible for any data loss and damage.
Also, manufacturer cannot guarantee the recorded data in SD card.
2.Format PC viewer
① Click “Configuration”
② Click “SD card format”. (Refer to P. 30 Configuration)
7-2 Format on product
※ Formatting SD card is also possible on the product.
① Press Event button for 3sec. then it will give voice guide “Formatting is on standby. Press the left key to format”.
② Press Event button again then format will be started with voice guide “Formatting SD card. Do not turn off the power”.
③ It will start recording automatically once the format is done.
36
CAMMSYS BLACKBOX
※ Technical Specification can be changed without prior notice for product improvement.
08 Technical Specification
Feature Feature Description
Camera
Front: Full HD 2.1M Pixels Sony CMOS Sensor (1/2.9”)
Rear: HD 1.0M Pixels COMS Sensor (1/2.9”)
Angle of View
Front: 135° / Horizontal(107°), Vertical(55°)
Rear: 130°/ Horizontal(105°), Vertical(54°)
Bitrate & Frame
Front: 6Mbps 30fps
Rear: 4Mbps 30fps
Video
& Audio Format
H.264(AVI), Codec profile : HIP(High profile)
PCM
Recording Method
In case SD card is full, it deletes the oldest files
(automatically) in order
Normal Recording Video is recorded in 3 or 5 minute intervals
Event Recording 10 sec. before and 20 sec. after the event
Shock Detect
Recording
10 sec. before and 20 sec. after the shock is detected
Motion Recording 10 sec. before and 20 sec. after the motion is detected
Format Function PC, APP, Product
Feature Feature Description
Shock Sensor Tri-axial shock detection G-Sensor
GPS Dual GPS Module
Memory
Storage
Micro SD card: SDHC/SDXC memory card
Video Playing Normal / BlackSys PC Viewer program
Audio Built-in speaker and MIC
Power and
Power
consumption
Input Voltage: DC 9V ~ 24V
Voltage consumption: 380mA (13.4V)
WIFI OFF
Permanent
Power
Cut-off voltage (12.4V~11.8V, 0.2V interval)
Cut-off time (12, 24, 36, 48 Hour)
Possible to use both functions at the same time
Operation
and Storage
temperature
Operation temperature : -20℃ ~ 70℃
Storage temperature : -30℃ ~ 80℃
Dimension
& Weight
Front : 58x100x34(mm), 98g
Rear : 50x26x31(mm), 25g
37
USER MANUAL
※ We don’t take any responsibility for the data loss during the service. Please back up the date before applying for service.
CammSys Customer Service
- Address: 3F Daeil B/D, 681-17, Yeoksam-dong, Gangnam-gu, Seoul, 135-081, Korea
- Opening hour: 09:00 ~ 18:00 (Mon. ~ Fri.)
-Closed: Saturday, Sunday and Public Holiday
If you come to customer service center, service personnel will care for the service timely and properly.
For further information regarding customer service, please refer to www.blacksys.co.kr
09 Customer Service
38
CAMMSYS BLACKBOX
1. Warranty period
• Product(main unit) : 12 months from the purchase date (But, if purchase date is not clear, it can be applying 3 months warranty after manufacturing date)
• Accessory(expendable supply) : 6 months including SD card.(In case of using DC fuse power cable, memory card life can be shorter than general use)
• Service parts holding period : 5 years after stopping sales
※ Warranty period is 12 months after purchase.
※ We provide product repair and replacement services within the warranty period in accordance with the consumer protection regulations.
(the Korea Fair Trade Commission Directive 2008-3)
Claim a service for trouble
caused in a normal use
condition
Type of Damage
Compensation standard
Within Warranty Period After Warranty Period
Claim a service for a main part within 10 days after purchase Replacement or refund Not applicable
Claim a service for a main part within 1 month after purchase Replacement or Free repair Not applicable
Claim a service for faulty unit Free repair Repair at cost
Repair is not available Replacement or refund Replacement or refund after depreciation
Replacement is not available Refund at cost Applicable by bylaw
Claim a service for a main part within 1 month after unit exchange Refund at cost Applicable by bylaw
Same defect over 3 times Replacement or refund Not applicable
Multi defect over 5 times Replacement or refund Not applicable
Lost by service center during repair service Replacement or refund Applicable by by law
Claim a service for not
holding service parts
within service parts
holding period
Trouble caused in a normal use condition Replacement or refund
Not applicable
Customer’s negligence or fault, functional defect Repair at cost
Damaged unit from distribution Replacement Not applicable
Damaged unit from installation Replacement Not applicable
10 Quality Assurances
39
USER MANUAL
※ The warranty for the product is benefited by the details on the warranty card.
※ Warranty period is counted from the purchase date. So get the purchase date.
※ This warranty card is not reproduced.
Model Name CH-100B
Manufacturer Cammsys Co.,Ltd
Serial No.
Purchase Date
Warranty Period
12 months from the purchase date
(But, if purchase date is not clear, it can be applying 3 months after manufacturing date)
Customer Information
Name Tel.
Address
Assembler information Shop name Tel.
11 Product Warrarnty
Daeil Bldg 3F, 681-17, Yeoksam-dong, Gangnam-gu, Seoul, Korea
Tel. 070-4680-2599 / Fax. 070-8668-1161 / www.cammsys.net / www.blacksys.co.kr/en / www.mycar365.net
m.0.1.0e
Loading...
