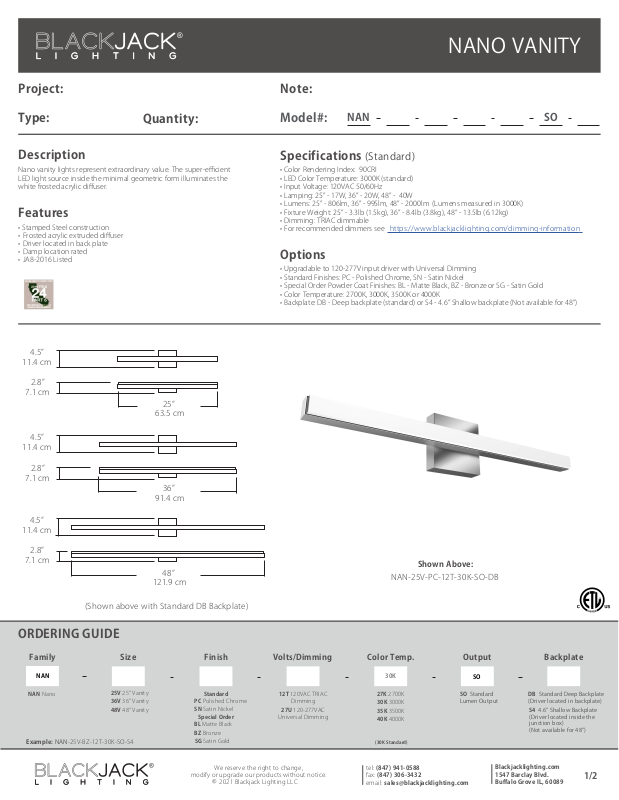

Page 1
VELO PENDANT
NANO VANITY
Project:
Type:
Quantity:
Description
Nano vanity lights represent extraordinary value. The super-ecient
LED light source inside the minimal geometric form illuminates the
white frosted acrylic diuser.
Features
• Stamped Steel construction
• Frosted acrylic extruded diuser
• Driver located in back plate
• Damp location rated
• JA8-2016 Listed
4.5”
11.4 cm
2.8”
7.1 cm
25”
63.5 cm
Note:
Model#:
NAN
SO
Specifications (Standard)
• Color Rendering Index: 90CRI
• LED Color Temperature: 3000K (standard)
• Input Voltage: 120VAC 50/60Hz
• Lamping: 25” - 17W, 36” - 20W, 48” - 40W
• Lumens: 25” - 806lm, 36” - 995lm, 48” - 2000lm (Lumens measured in 3000K)
• Fixture Weight: 25” - 3.3lb (1.5kg), 36” - 8.4lb (3.8kg), 48” - 13.5lb (6.12kg)
• Dimming: TRIAC dimmable
• For recommended dimmers see
https://www.blackjacklighting.com/dimming-information
Options
• Upgradable to 120-277V input driver with Universal Dimming
• Standard Finishes: PC - Polished Chrome, SN - Satin Nickel
• Special Order Powder Coat Finishes: BL - Matte Black, BZ - Bronze or SG - Satin Gold
• Color Temperature: 2700K, 3000K, 3500K or 4000K
• Backplate: DB - Deep backplate (standard) or S4 - 4.6” Shallow backplate (Not available for 48”)
4.5”
11.4 cm
2.8”
7.1 cm
4.5”
11.4 cm
2.8”
7.1 cm
(Shown above with Standard DB Backplate)
ORDERING GUIDE
Family
NAN
NAN Nano
Example: NAN-25V-BZ-12T-30K-SO-S4
25V 25” Vanity
36V 36” Vanity
48V 48” Vanity
36”
91.4 cm
Shown Above:
48”
121.9 cm
Size Finish Output
Standard
PC Polished Chrome
SN Satin Nickel
Special Order
BL Matte Black
BZ Bronze
SG Satin Gold
Volts/Dimming
12T 120VAC TRIAC
Dimming
27U 120-277VAC
Universal Dimming
NAN-25V-PC-12T-30K-SO-DB
Color Temp.
30K
27K 2700K
30K 3000K
35K 3500K
40K 4000K
(30K Standard)
SO
SO Standard
Lumen Output
Backplate
DB Standard Deep Backplate
(Driver located in backplate)
S4 4.6” Shallow Backplate
(Driver located inside the
junction box)
(Not available for 48”)
We reserve the right to change,
modify or upgrade our products without notice.
2021 Blackjack Lighting LLC
c
Blackjacklighting.com
1547 Barclay Blvd.
Buffalo Grove IL, 60089
1/2
Page 2
Finishes
Finish
PC
SN
BL
BZ
SG
Volts/Dimming
Volts/Dimming
PC - Polished Chrome
SN - Satin Nickel
Standard Finishes
12T: Input: 120V , Dimming: TRIAC (Standard)
BL - Matte Black
VANITY OPTIONS
SG - Satin GoldBZ - Bronze
Special Order Powder Coat Finishes
12T
27U
Color Temperature
Color Temp.
27K
30K
35K
40K
Backplates
Backplates
27U: Input: 120-277V , Dimming: TRIAC/ ELV/ 0-10V (Special Order)
27K - 2700K
30K - 3000K (Standard)
35K - 3500K
40K - 4000K
Front Plate Front Plate
1.3”
3.3 cm
4.6”
11.7 cm
.5”
1.27 cm
5”
12.7 cm
DB
S4
DB - Deep Backplate
(4.6” H, 4.6” W, 1.3” D)
Driver loacated inside backplate
Standard Backplate
modify or upgrade our products without notice.
4.6”
11.7 cm
2.8”
7.1 cm
We reserve the right to change,
2021 Blackjack Lighting LLC
c
4.6”
11.7 cm
S4 - 4.6” Shallow Backplate
(4.6” H, 4.6” W, .5” D)
Driver located inside J-box
Special Order Backplate
(Not available for 48” backplate)
4.6”
11.7 cm
2”
5.1 cm
Blackjacklighting.com
1547 Barclay Blvd.
Buffalo Grove IL, 60089
5”
12.7 cm
2/2
