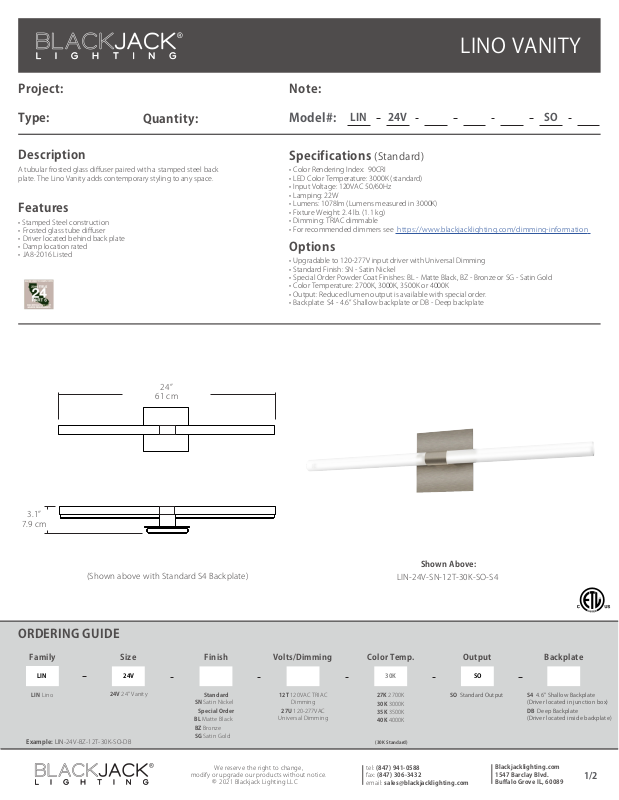

Page 1
VELO PENDANT
LINO VANITY
Project:
Type:
Quantity:
Description
A tubular frosted glass diuser paired with a stamped steel back
plate. The Lino Vanity adds contemporary styling to any space.
Features
• Stamped Steel construction
• Frosted glass tube diuser
• Driver located behind back plate
• Damp location rated
• JA8-2016 Listed
Note:
Model#:
LIN
24V
Specifications (Standard)
• Color Rendering Index: 90CRI
• LED Color Temperature: 3000K (standard)
• Input Voltage: 120VAC 50/60Hz
• Lamping: 22W
• Lumens: 1078lm (Lumens measured in 3000K)
• Fixture Weight: 2.4 lb. (1.1 kg)
• Dimming: TRIAC dimmable
• For recommended dimmers see
https://www.blackjacklighting.com/dimming-information
Options
• Upgradable to 120-277V input driver with Universal Dimming
• Standard Finish: SN - Satin Nickel
• Special Order Powder Coat Finishes: BL - Matte Black, BZ - Bronze or SG - Satin Gold
• Color Temperature: 2700K, 3000K, 3500K or 4000K
• Output: Reduced lumen output is available with special order.
• Backplate: S4 - 4.6” Shallow backplate or DB - Deep backplate
SO
3.1”
7.9 cm
(Shown above with Standard S4 Backplate)
ORDERING GUIDE
Family
LIN
24”
61 cm
Shown Above:
LIN-24V-SN-12T-30K-SO-S4
Size Finish Output
24V
Volts/Dimming
Color Temp.
30K
SO
Backplate
LIN Lino
Example: LIN-24V-BZ-12T-30K-SO-DB
24V 24” Vanity
Standard
SN Satin Nickel
Special Order
BL Matte Black
BZ Bronze
SG Satin Gold
We reserve the right to change,
modify or upgrade our products without notice.
2021 Blackjack Lighting LLC
c
12T 120VAC TRIAC
Dimming
27U 120-277VAC
Universal Dimming
27K 2700K
30K 3000K
35K 3500K
40K 4000K
(30K Standard)
SO Standard Output
S4 4.6” Shallow Backplate
(Driver located in junction box)
DB Deep Backplate
(Driver located inside backplate)
Blackjacklighting.com
1547 Barclay Blvd.
Buffalo Grove IL, 60089
1/2
Page 2
Finishes
Finish
SN
BL
BZ
SG
Volts/Dimming
Volts/Dimming
SN - Satin Nickel
Standard Finish
12T: Input: 120V , Dimming: TRIAC (Standard)
BL - Matte Black
VANITY OPTIONS
SG - Satin GoldBZ - Bronze
Special Order Powder Coat Finishes
12T
27U
Color Temperature
Color Temp.
27K
30K
35K
40K
Backplates
Backplates
27U: Input: 120-277V , Dimming: TRIAC/ ELV/ 0-10V (Special Order)
27K - 2700K
30K - 3000K (Standard)
35K - 3500K
40K - 4000K
Front Plate Front Plate
.5”
1.27 cm
5”
12.7 cm
1.3”
3.3 cm
5”
12.7 cm
S4
DB
S4 - 4.6” Shallow Backplate
(4.6” H, 4.6” W, .5” D)
Driver loacated inside juntion box
Standard Backplate
modify or upgrade our products without notice.
4.6”
11.7 cm
3.1”
7.9 cm
We reserve the right to change,
2021 Blackjack Lighting LLC
c
5”
12.7 cm
DB - Deep Backplate
(4.6” H, 4.6” W, 1.3” D)
Driver located inside backplate
Special Order Backplate
4.6”
11.7 cm
3.9”
9.9 cm
Blackjacklighting.com
1547 Barclay Blvd.
Buffalo Grove IL, 60089
5”
12.7 cm
2/2
