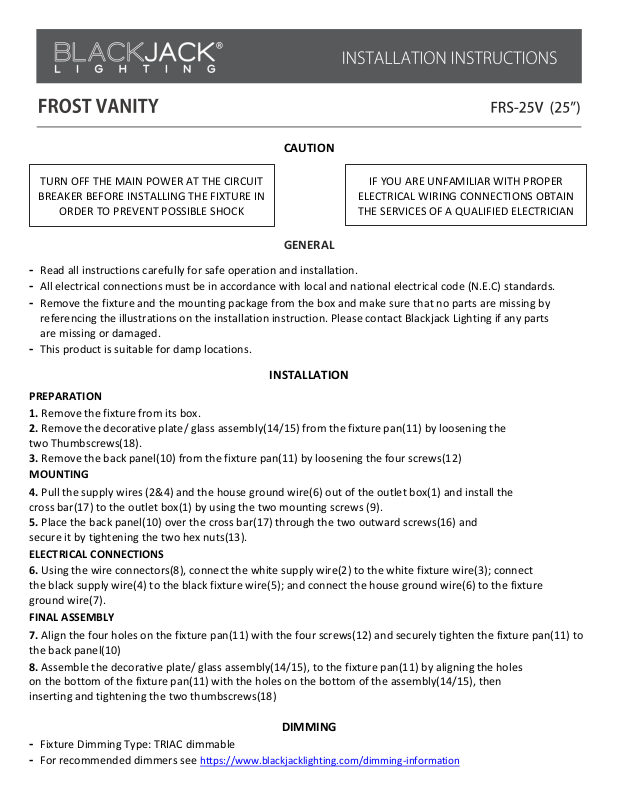

Page 1
CAUTION
GENERAL
- Read all instructions carefully for safe operation and installation.
- All electrical connections must be in accordance with local and national electrical code (N.E.C) standards.
- Remove the fixture and the mounting package from the box and make sure that no parts are missing by
referencing the illustrations on the installation instruction. Please contact Blackjack Lighting if any parts
are missing or damaged.
- This product is suitable for damp locations.
INSTALLATION
PREPARATION
1. Remove the fixture from its box.
2. Remove the decorative plate/ glass assembly(14/15) from the fixture pan(11) by loosening the
two Thumbscrews(18).
3. Remove the back panel(10) from the fixture pan(11) by loosening the four screws(12)
MOUNTING
4. Pull the supply wires (2&4) and the house ground wire(6) out of the outlet box(1) and install the
cross bar(17) to the outlet box(1) by using the two mounting screws (9).
5. Place the back panel(10) over the cross bar(17) through the two outward screws(16) and
secure it by tightening the two hex nuts(13).
ELECTRICAL CONNECTIONS
6. Using the wire connectors(8), connect the white supply wire(2) to the white fixture wire(3); connect
the black supply wire(4) to the black fixture wire(5); and connect the house ground wire(6) to the fixture
ground wire(7).
FINAL ASSEMBLY
7. Align the four holes on the fixture pan(11) with the four screws(12) and securely tighten the fixture pan(11) to
the back panel(10)
8. Assemble the decorative plate/ glass assembly(14/15), to the fixture pan(11) by aligning the holes
on the bottom of the fixture pan(11) with the holes on the bottom of the assembly(14/15), then
inserting and tightening the two thumbscrews(18)
DIMMING
- Fixture Dimming Type: TRIAC dimmable
- For recommended dimmers see https://www.blackjacklighting.com/dimming-information
TURN OFF THE MAIN POWER AT THE CIRCUIT
BREAKER BEFORE INSTALLING THE FIXTURE IN
ORDER TO PREVENT POSSIBLE SHOCK
IF YOU ARE UNFAMILIAR WITH PROPER
ELECTRICAL WIRING CONNECTIONS OBTAIN
THE SERVICES OF A QUALIFIED ELECTRICIAN
Page 2

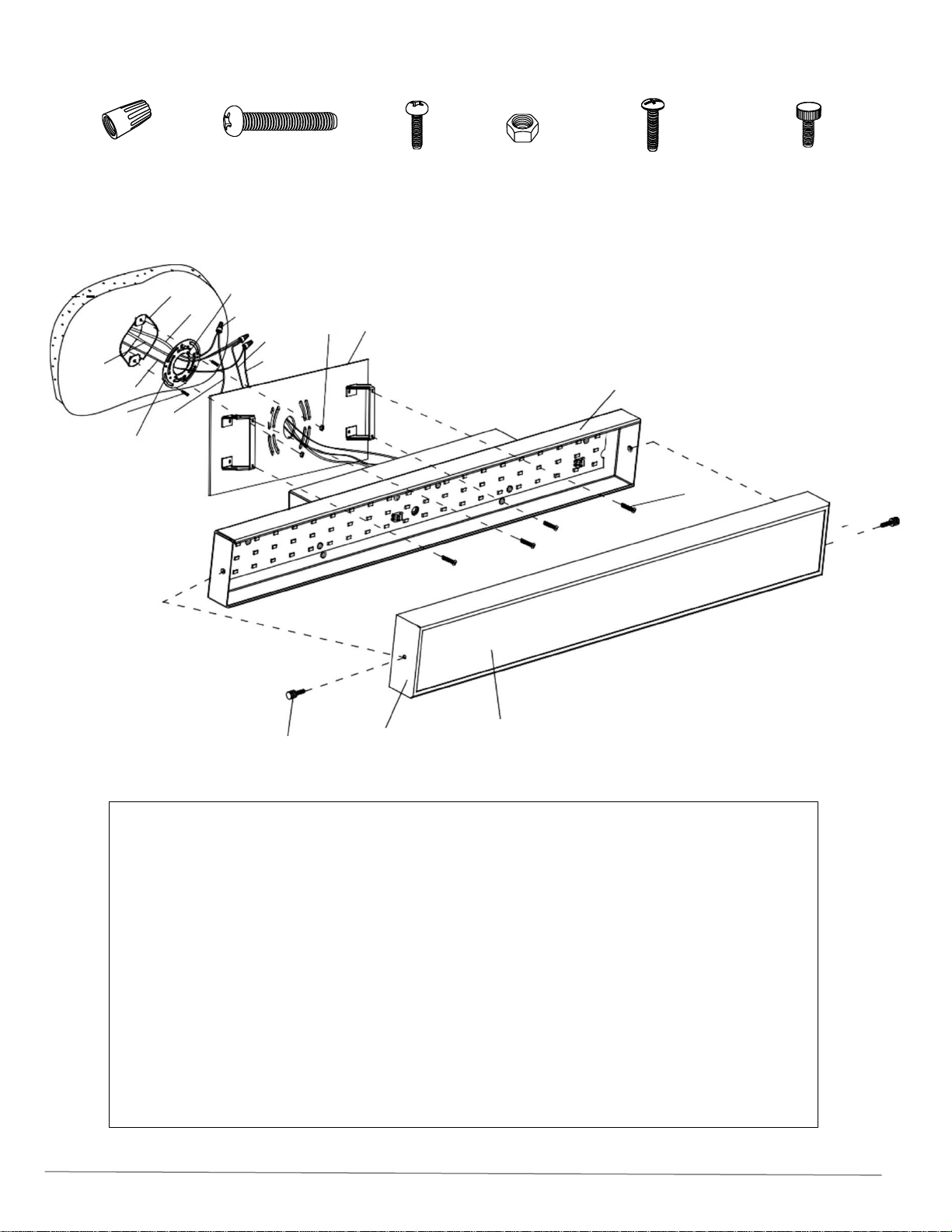

HARDWARE
Wire Connectors(#8) Mounting Screws(#9) Screws(#12) Hex Nut(#13) Outward Screw(#16) Thumbscrews(#18)
[ 3 Included ] [ 2 Included ] [ 4 Included ] [ 2 Included ] [ 2 Included ] [ 2 Included ]
BLACKJACK LIGHTING 1547 Barclay Blvd. Buffalo Grove, IL 60089 Blackjacklighting.com Tel: 847-941-0588
1. OUTLET BOX (by others)
2. WHITE SUPPLY WIRE
3. WHITE FIXTURE WIRE
4. BLACK SUPPLY WIRE
5. BLACK FIXTURE WIRE
6. HOUSE GROUND WIRE
7. FIXTURE GROUND WIRE
8. WIRE CONNECTORS
9. MOUNTING SCREWS
10. BACK PANEL
11. FIXTURE PAN
12. SCREWS
13. HEX NUT
14. DECORATIVE PLATE
15. GLASS
16. OUTWARD SCREW
17. CROSS BAR
18. THUMBSCREWS
(1)
(2)
(16)
(8)
(7)
(5)
(6)
(4)
(9)
(17)
(3)
(10)
(13)
(11)
(12)
(15)
(14)
(18)
