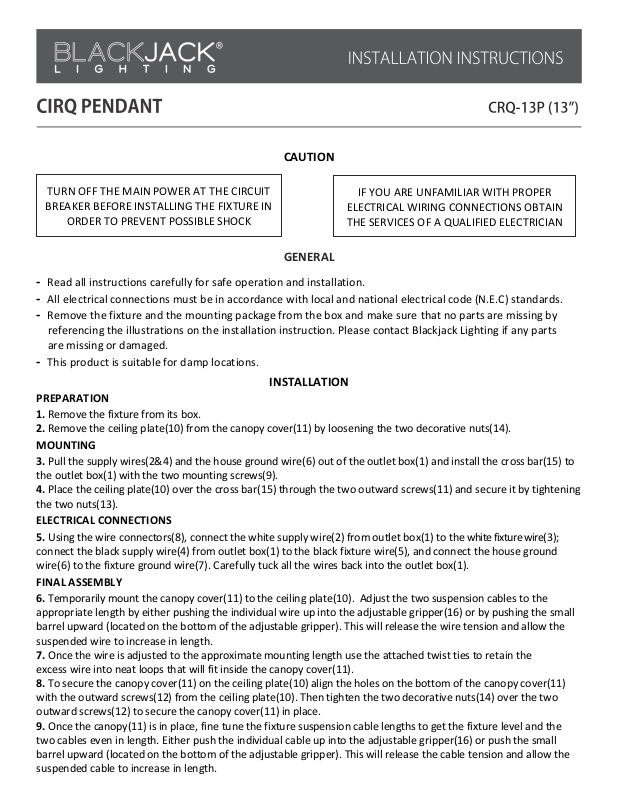

Page 1
CAUTION
GENERAL
- Read all instructions carefully for safe operation and installation.
- All electrical connections must be in accordance with local and national electrical code (N.E.C) standards.
- Remove the fixture and the mounting package from the box and make sure that no parts are missing by
referencing the illustrations on the installation instruction. Please contact Blackjack Lighting if any parts
are missing or damaged.
- This product is suitable for damp locations.
INSTALLATION
PREPARATION
1. Remove the fixture from its box.
2. Remove the ceiling plate(10) from the canopy cover(11) by loosening the two decorative nuts(14).
MOUNTING
3. Pull the supply wires(2&4) and the house ground wire(6) out of the outlet box(1) and install the cross bar(15) to
the outlet box(1) with the two mounting screws(9).
4. Place the ceiling plate(10) over the cross bar(15) through the two outward screws(11) and secure it by tightening
the two nuts(13).
ELECTRICAL CONNECTIONS
5. Using the wire connectors(8), connect the white supply wire(2) from outlet box(1) to the white fixture wire(3);
connect the black supply wire(4) from outlet box(1) to the black fixture wire(5), and connect the house ground
wire(6) to the fixture ground wire(7). Carefully tuck all the wires back into the outlet box(1).
FINAL ASSEMBLY
6. Temporarily mount the canopy cover(11) to the ceiling plate(10). Adjust the two suspension cables to the
appropriate length by either pushing the individual wire up into the adjustable gripper(16) or by pushing the small
barrel upward (located on the bottom of the adjustable gripper). This will release the wire tension and allow the
suspended wire to increase in length.
7. Once the wire is adjusted to the approximate mounting length use the attached twist ties to retain the
excess wire into neat loops that will fit inside the canopy cover(11).
8. To secure the canopy cover(11) on the ceiling plate(10) align the holes on the bottom of the canopy cover(11)
with the outward screws(12) from the ceiling plate(10). Then tighten the two decorative nuts(14) over the two
outward screws(12) to secure the canopy cover(11) in place.
9. Once the canopy(11) is in place, fine tune the fixture suspension cable lengths to get the fixture level and the
two cables even in length. Either push the individual cable up into the adjustable gripper(16) or push the small
barrel upward (located on the bottom of the adjustable gripper). This will release the cable tension and allow the
suspended cable to increase in length.
TURN OFF THE MAIN POWER AT THE CIRCUIT
BREAKER BEFORE INSTALLING THE FIXTURE IN
ORDER TO PREVENT POSSIBLE SHOCK
IF YOU ARE UNFAMILIAR WITH PROPER
ELECTRICAL WIRING CONNECTIONS OBTAIN
THE SERVICES OF A QUALIFIED ELECTRICIAN
Page 2
DIMMING
- Fixture Dimming Type: TRIAC dimmable
- For recommended dimmers see https://www.blackjacklighting.com/dimming-information
HARDWARE
Wire Connectors (#8) Mounting Screws (#9) Outward Screws (#12) Nut (#13) Decorative Nut (#14)
[ 3 Included ] [ 2 Included ] [ 2 Included ] [ 2 Included ] [ 2 Included ]
BLACKJACK LIGHTING 1547 Barclay Blvd. Buffalo Grove, IL 60089 Blackjacklighting.com Tel: 847-941-0588

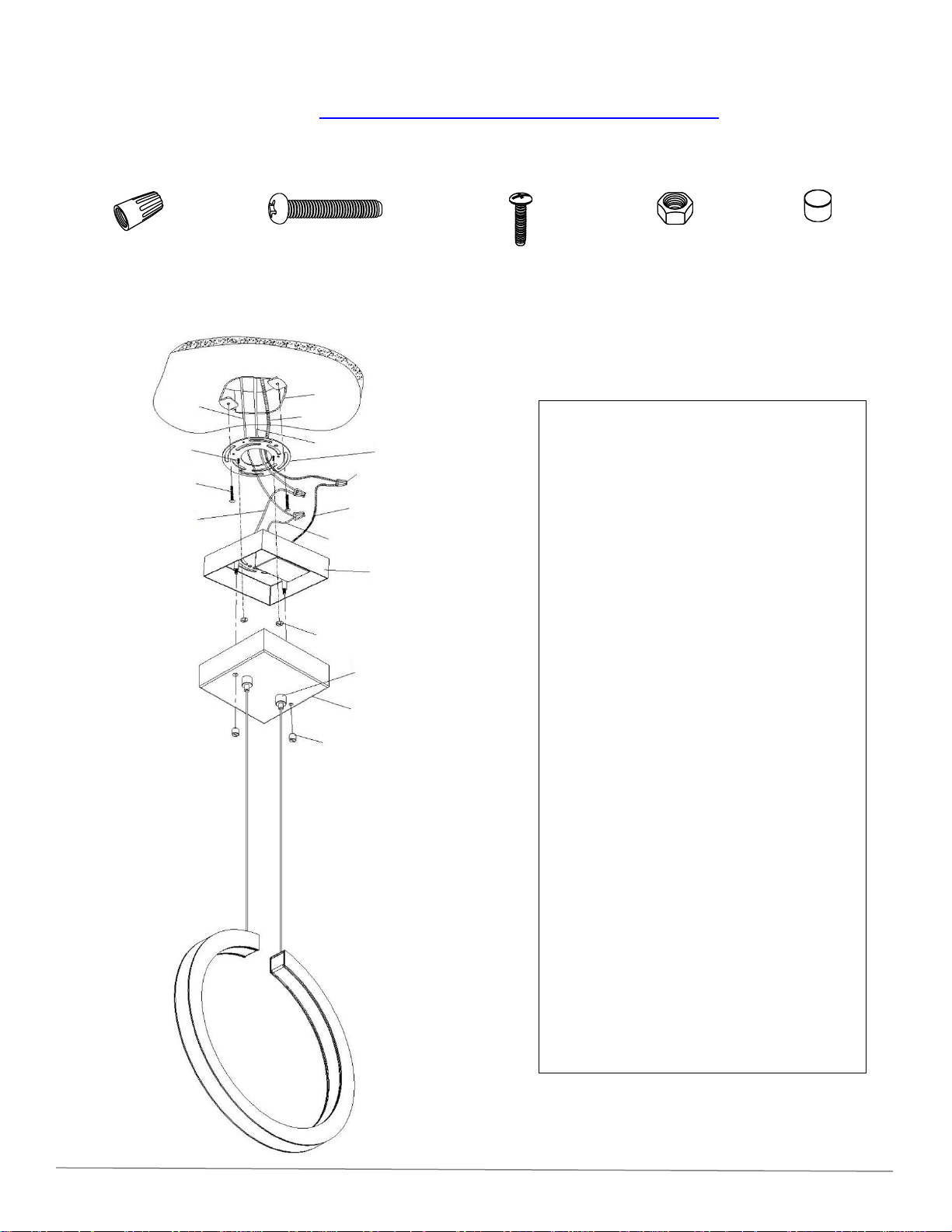

1. OUTLET BOX (by others)
2. WHITE SUPPLY WIRE
3. WHITE FIXTURE WIRE
4. BLACK SUPPLY WIRE
5. BLACK FIXTURE WIRE
6. HOUSE GROUND WIRE
7. FIXTURE GROUND WIRE
8. WIRE CONNECTORS
9. MOUNTING SCREWS
10. CEILING PLATE
11. CANOPY COVER
12. OUTWARD SCREWS
13. NUT
14. DECORATIVE NUT
15. CROSS BAR
16. GRIPPER
(16)
(13)
(14)
(11)
(10)
(7)
(5)
(8)
(3)
(15)
(9)
(12)
(4)
(1)
(2)
(6)
