CATALOG NUMBER WLBFHB

RECHARGEABLE BRIGHT BAR

INSTRUCTION MANUAL

Thank you for choosing Black & Decker!

To register your new product go to

www.BlackandDecker.com/NewOwner

™

PLEASE READ BEFORE RETURNING THIS

RODUCT FOR ANY REASON:

P

If you have a question or experience a problem with your

Black & Decker purchase, go to

HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS

for instant answers 24 hours a day.

If you can’t find the answer or do not have access to the internet,

call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. -- Fri. to speak with an agent.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO
Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE
INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

Please have the catalog number available when you call.

90549415 01 WLBFHB.qxp 6/9/09 2:35 PM Page 1

GENERAL SAFETY WARNINGS AND INSTRUCTIONS FOR ALL
APPLIANCES

READ ALL INSTRUCTIONS

WARNING: Read all instructions before operating product.

Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury.

• AVOID DANGEROUS ENVIRONMENTS. Don’t use appliances
in damp or wet locations. Don’t use appliances in the rain.

• STORE IDLE APPLIANCES INDOORS. When not in use,
appliances should be stored indoors in dry, and high or locked­up place – out of reach of children.

• USE RIGHT APPLIANCE. Do not use the appliance for any
job except that for which it is intended.

• DON’T ABUSE CORD. Never carry appliance by cord or
yank it to disconnect from receptacle. Keep cord from heat,
oil, and sharp edges.

• DON’T OVERREACH. Keep proper footing and balance at
all times.

• DISCONNECT APPLIANCES. Disconnect the appliance
from the power supply when not in use, before servicing, and
when changing accessories such as blades and the like.

• GROUND FAULT CIRCUIT INTERRUPTER (GFCI)

protection should be provided on the circuits or outlets to be
used. Receptacles are available having built in GFCI
protection and may be used for this measure of safety.

• USE OF ACCESSORIES AND ATTACHMENTS. The use
of any accessory or attachment not recommended for use
with this appliance could be hazardous. Note: Refer to the
accessory section of this manual for further details.

• STAY ALERT. Watch what you are doing. Use common
sense. Do not operate tool when you are tired.

1 2

• CHECK DAMAGED PARTS. Before further use of the tool,
a guard or other part that is damaged should be carefully
checked to determine that it will operate properly and
perform its intended function. Check for alignment of moving
parts, binding of moving parts, breakage of parts, mounting,
and any other conditions that may affect its operation. A
guard or other part that is damaged should be properly
repaired or replaced by an authorized service center unless
otherwise indicated elsewhere in this instruction manual.
Have defective switches replaced by authorized service
center. Do not use tool if switch does not turn it on and off.

• DO NOT OPERATE portable electric tools near flammable
liquids or in gaseous or explosive atmospheres. Certain
components in these tools normally spark, and the sparks
might ignite fumes.

• OUTDOOR USE EXTENSION CORDS. When tool is used
outdoors, use only extension cords intended for use outdoors
and so marked.

90549415 01 WLBFHB.qxp 6/9/09 2:35 PM Page 3

• EXTENSION CORDS. Make sure your extension cord is in
good condition. When using an extension cord, be sure to
use one heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. The following
table shows the correct size to use depending on cord length
and nameplate ampere rating. If in doubt, use the next heavier
gage. The smaller the gauge number, the heavier the cord.

Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150

240V 0-50 51-100 101-200 201-300

Ampere Rating

More Not more American Wire Gauge
Than Than
0 - 6 18 16 16 14
6 - 10 18 16 14 12
10 - 12 16 16 14 12
12 - 16 14 12 Not Recommended

Minimum Gauge for Cord Sets

(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)

(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)

SAFETY GUIDELINES / DEFINITIONS

DANGER: Indicates an imminently hazardous situation which, if

not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if

not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicates potentially

hazardous situation which, if not avoided, may result in property
damage.

3

• Never look directly into the light or shine the light into another
person’s eyes.

• DO NOT expose this unit to extremely high temperatures.

• This unit is moisture-resistant, NOT waterproof. Do not

submerge in liquids of any kind.
CAUTION: This unit is intended to be used in a standing or

vertical positon.

RISK OF UNSAFE OPERATION. When using tools or equipment,
basic safety precautions should always be followed to reduce the risk
of personal injury. Improper operation, maintenance or modification of
tools or equipment could result in serious injury and property
damage. There are certain applications for which tools and
equipment are designed. Black & Decker strongly recommends that
this product NOT be modified and/or used for any application other
than for which it was designed. Read and understand all warnings
and operating instructions before using any tool or equipment.

SAFETY WARNINGS AND INSTRUCTIONS - CHARGING

1. This manual contains important safety and operating
instructions.

2. Before using battery charger, read all instructions and
cautionary warnings on battery charger and product using

battery. CAUTION: To reduce the risk of injury, use
charger only with this product. Batteries in other products
may burst causing personal injury or damage.

3. Do not expose charger to rain or snow.

4. Use of an attachment not recommended or sold by Black
& Decker may result in a risk of fire, electric shock, or
injury to persons.

4

90549415 01 WLBFHB.qxp 6/9/09 2:36 PM Page 5

5. To reduce risk of damage to electric plug and cord, pull
by plug rather than cord when disconnecting charger.

6. Make sure cord is located so that it will not be stepped
on, tripped over, or otherwise subjected to damage or stress.

7. Use only the supplied charger when charging your tool.
The use of any other charger could damage the tool or
create a hazardous condition.

8. Use only one charger when charging.

9. Do not attempt to open the charger. There are no
customer serviceable parts inside. Return to any
authorized Black & Decker service center.

10. DO NOT incinerate the tool or batteries even if they are
severely damaged or completely worn out. The batteries
can explode in a fire.

11. A small leakage of liquid from the battery cells may occur
under extreme usage, charging or temperature
conditions. This does not indicate a failure. However, if
the outer seal is broken and this leakage gets on your skin:

a. Wash quickly with soap and water.
b. Neutralize with a mild acid such as lemon juice or vinegar.
c. If the battery liquid gets in your eyes, flush them with

clean water for a minimum of 10 minutes and seek
immediate medical attention.

12. The charger supplied with this product is intended to be
plugged in such that it is correctly orientated in a vertical
or floor mount position.

SAVE THESE INSTRUCTIONS

5 6

THIS MANUAL CONTAINS IMPORTANT SAFETY AND
OPERATING INSTRUCTIONS FOR THE 20 LED BRIGHT BAR

™

MODEL WLBFHB.

WARNING: TO REDUCE THE RISK OF INJURY:

• Follow these instructions and those published by the manufacturer
of any equipment you intend to use with this unit. Review
cautionary markings on these products.

INTRODUCTION

Thank you for purchasing the WLBFHB

Bright Bar™.

Please read
this manual carefully before use to ensure optimum performance and
avoid damage to the unit.

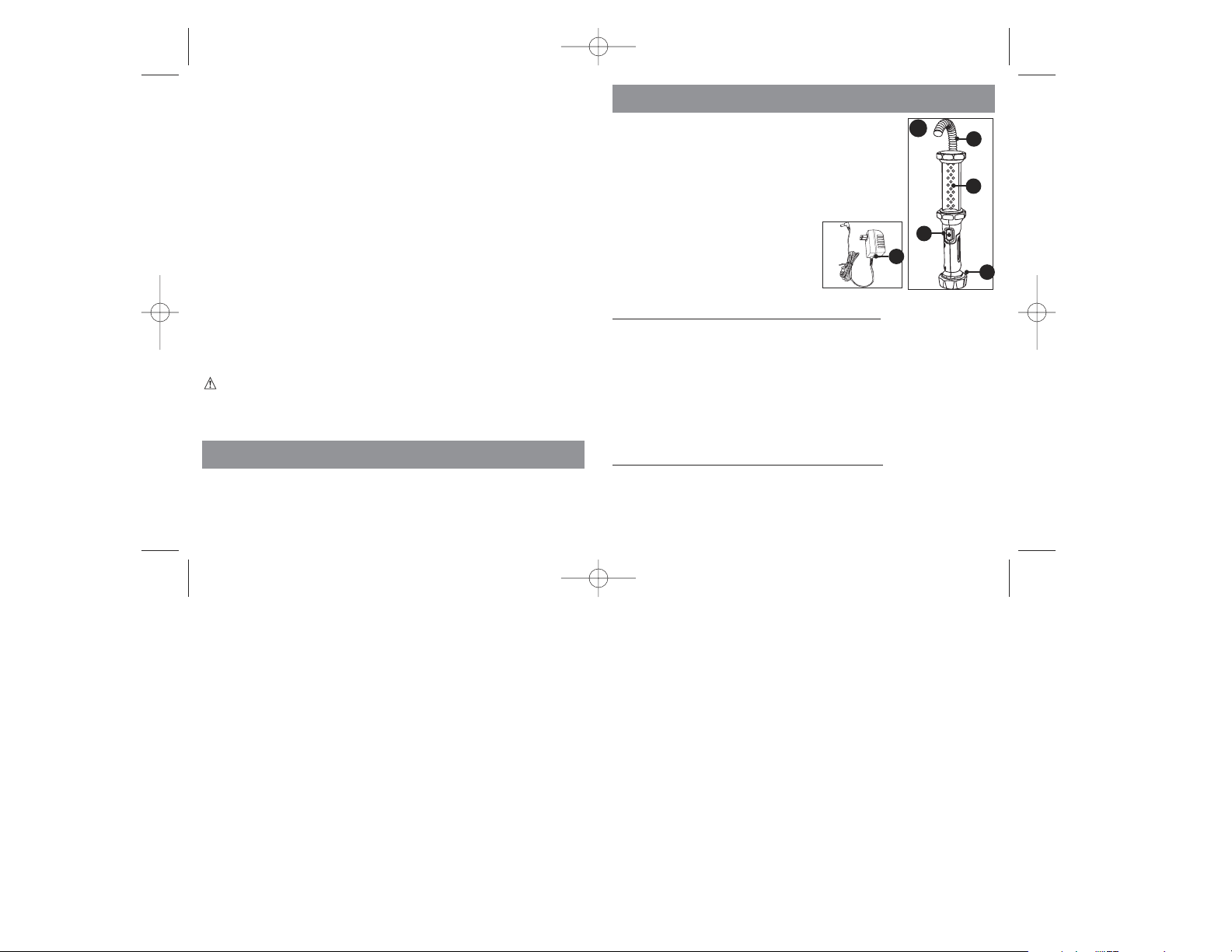

FEATURES - FIGURE A

1.) Flexible Hanging Hook

A

1

2.) 20 high-intensity LED’s

3.) On/Low/High switch

4.) Charging/power port

5.) Charger/Power adapter

3

5

2

4

90549415 01 WLBFHB.qxp 6/9/09 2:36 PM Page 7

OPERA

TING THE UNIT

Position the unit as desired.

•

Press the ON/LOW/HIGH switch one time for high
brightness power saving setting.

• Press the switch a second time for low brightness setting.

• Press the switch a third time to turn light off.

USING THE HANGING HOOK

The flexible hanging hook (1) allows you to position the Bright Bar
for convenient, hands-free operation as shown in figure B and B1

B

B1

™

.

CAUTION: TO REDUCE THE RISK OF PROPERTY DAMAGE:

• When hanging hook is in use, do not shake light.

• When light is hung by the hanging hook, do not shake the light or
object that it is hanging from. Do not hang the light from any
electrical wires or anything that it is not secure.

• Only use the hanging hook for hanging the Bright Bar

™

. The hanging
hook is not intended to support additional weight. Do not attach or
hang anything additional to the light or risk of breakage may occur.

RECHARGING THE UNIT
IMPORTANT: This unit is delivered in a partially charged state. Fully

charge unit for 24 hours before using for the first time.

7

Insert the charging/power adapter plug
into the charging/power port as shown in

C

figure C. Insert the plug end into a
standard 120 Volt 60Hz outlet. The red
Charging Indicator LED (6) will light to
indicate the unit is charging (figure C).

6

CAUTION: When disconnecting the
charger / power adapter from the light,
be sure to unplug the charger from the
outlet first, then disconnect the charger
cord from the light.

Notes: Charge or power this unit ONLY with the originally
supplied Class 2 transformer. Consult manufacturer for
replacement.

Battery Recycling

Battery is not user serviceable. Return this light to a
Black & Decker Authorized Service Center to recycle the battery.

WARNINGS: TO REDUCE THE RISK OF INJURY /

EXPLOSION

• Do not dispose of product in fire as batteries inside
this product may explode or leak.

• Do not expose the unit containing a battery to fire or
intense heat as it may explode.

The RBRC™ Seal

The RBRC™ (Rechargeable Battery Recycling
Corporation) Seal on the nickel-metal hydride
battery (or battery pack) indicates that the costs to recycle the
battery (or battery pack) at the end of its useful life have
already been paid by Black & Decker. In some areas, it is
illegal to place spent nickel-metal hydride batteries in the

8

See ‘Tools-Electric’

– Yellow Pages –

for Service & Sales

90549415 01 WLBFHB.qxp 6/9/09 2:36 PM Page 9

trash or municipal solid waste stream and the RBRC program
provides an environmentally conscious alternative.

RBRC in cooperation with Black & Decker and other battery
users, has established programs in the United States and
Canada to facilitate the collection of spent nickel-metal
hydride batteries. Help protect our environment and conserve
natural resources by returning the spent nickel-metal hydride
battery to an authorized Black & Decker service center or to
your local retailer for recycling. You may also contact your
local recycling center for information on where to drop off the
spent battery, or call 1-800-8-BATTERY.

ACCESSORIES

Recommended accessories for use with your product are available
from your local dealer or authorized service center. If you need
assistance regarding accessories, please call: 1-800-544-6986.

WARNING: The use of any accessory not recommended for use

with this product could be hazardous.

SER

VICE INFORMATION

All Black & Decker Service Centers are staffed with trained personnel
to provide customers with efficient and reliable power tool service.
Whether you need technical advice, repair, or genuine factory
replacement parts, contact the Black & Decker location nearest you.
To find your local service location, refer to the yellow page directory
under "Tools—Electric" or call: 1-800-544-6986 or visit
www.blackanddecker.com

FULL

TWO-YEAR HOME USE WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any
defects in material or workmanship. The defective product will be replaced or
repaired at no charge in either of two ways.

9

The first, which will result in exchanges only, is to return the product to the
retailer from whom it was purchased (provided that the store is a participating
retailer). Returns should be made within the time period of the retailer’s policy
for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be
required. Please check with the retailer for their specific return policy regarding
returns that are beyond the time set for exchanges.

The second option is to take or send the product (prepaid) to a Black & Decker
owned or authorized Service Center for repair or replacement at our option.
Proof of purchase may be required. Black & Decker owned and authorized
Service Centers are listed under "Tools-Electric" in the yellow pages of the phone
directory and on our website www.blackanddecker.com.

This warranty does not apply to accessories. This warranty gives you specific
legal rights and you may have other rights which vary from state to state or
province to province. Should you have any questions, contact the manager of
your nearest Black & Decker Service Center. This product is not intended for
commercial use.

FREE WARNING LABEL REPLACEMENT:

If your warning labels become

illegible or are missing, call 1-800-544-6986 for a free replacement.

SPECIFICA

TIONS

Bulb Life: Up to 10,000 hours
Batteries: Rechargeable 3.6V DC 800 mAh capacity
Runtime: 2 hours on High and 4 hours on Low

Imported by Vector Products Inc.
701 East Joppa Road
Towson, MD 21286

10
