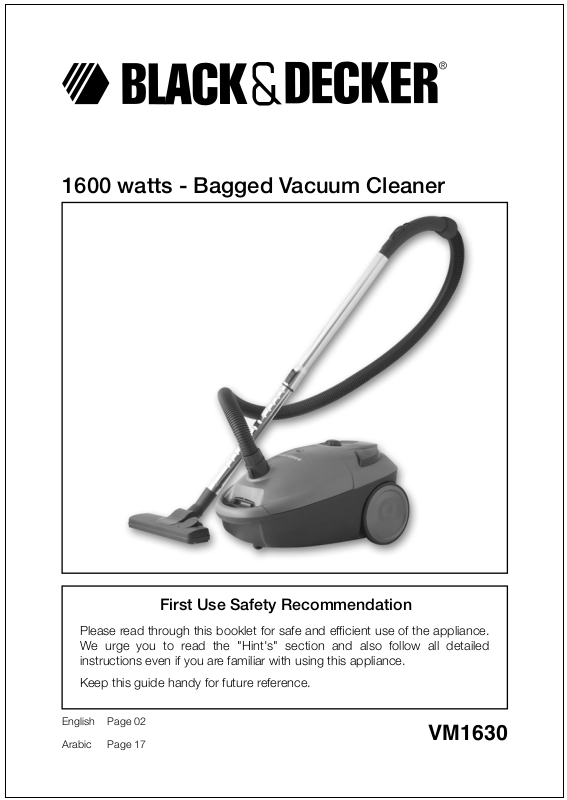

Black & Decker VM1630 User Manual

1600 watts - Bagged Vacuum Cleaner

First Use Safety Recommendation

Please read through this booklet for safe and efﬁcient use of the appliance. We urge you to read the "Hint's" section and also follow all detailed instructions even if you are familiar with using this appliance.

Keep this guide handy for future reference.

English Page 02

Arabic Page 17

VM1630

English

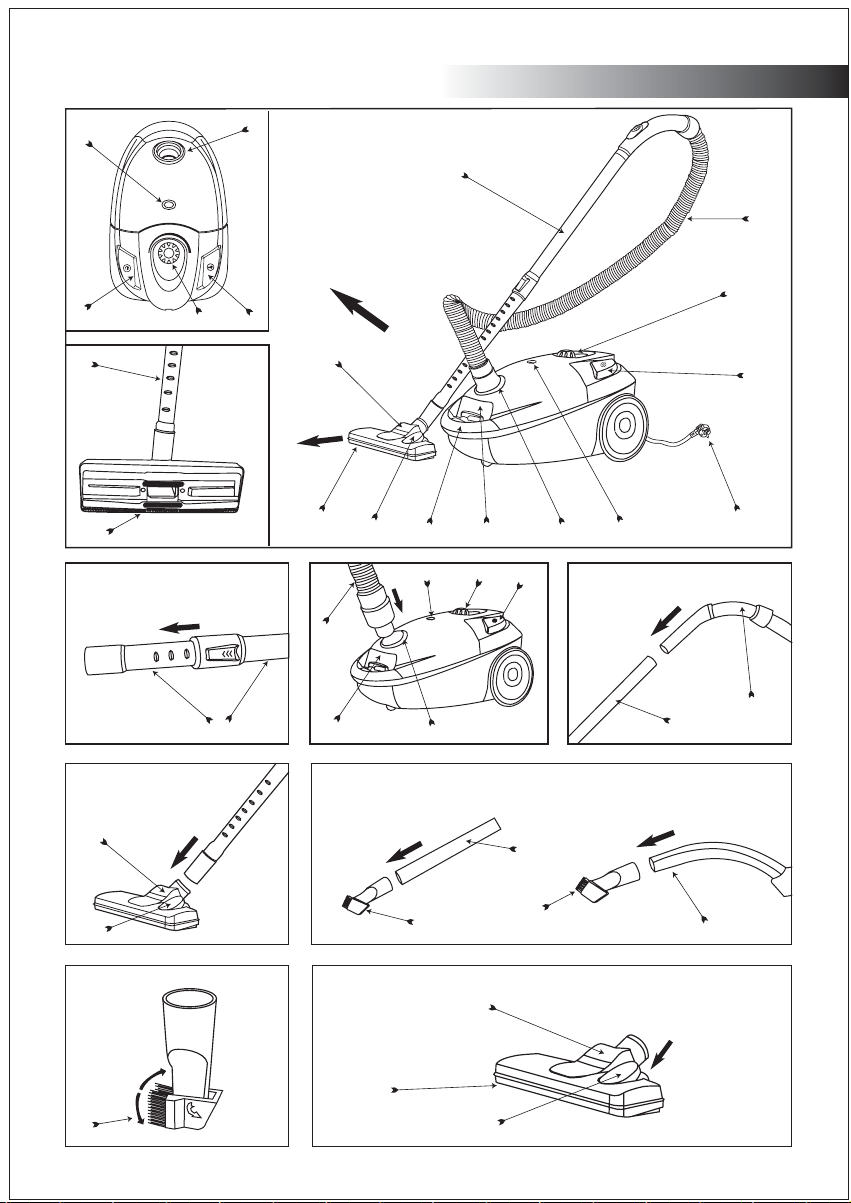

Fig B

Fig A

MAXMIN

Fig D

Fig C

Fig E

Fig G

-2-

Fig F

Fig H

English

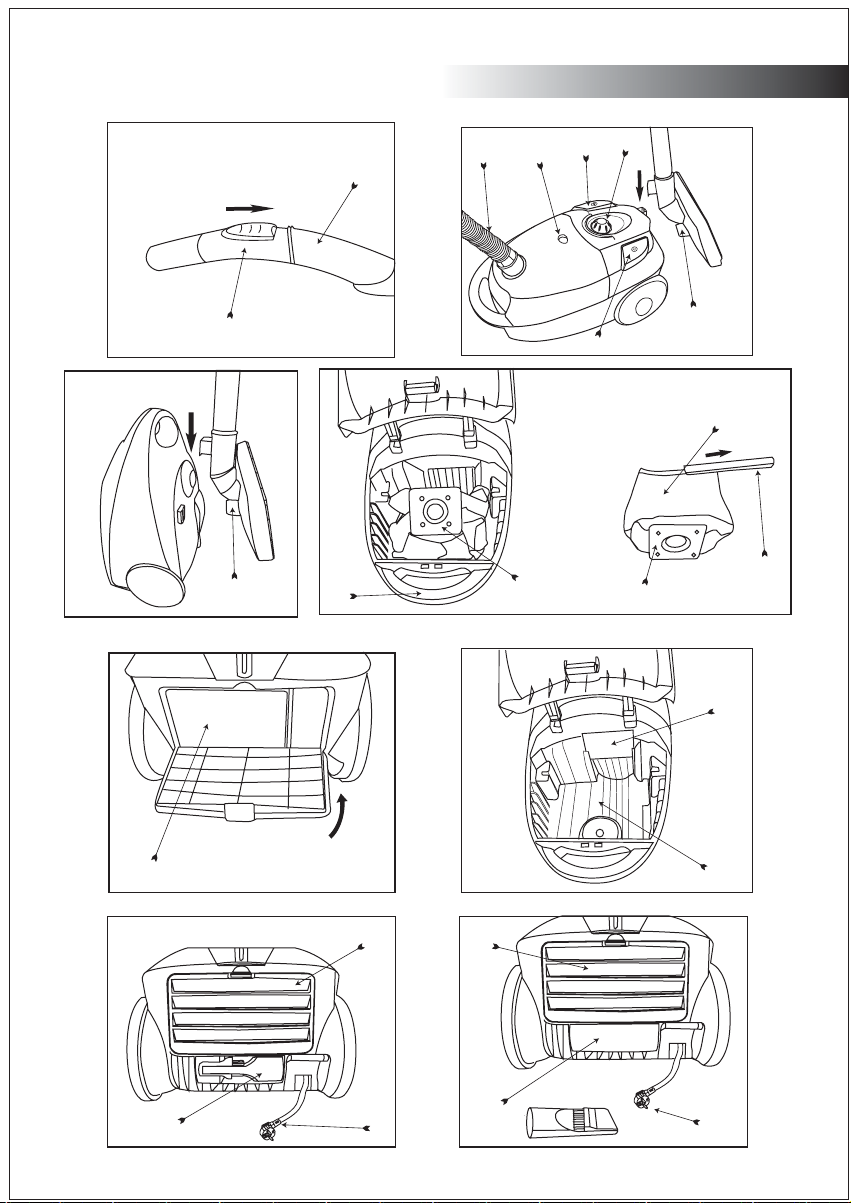

Fig I Fig J

Fig K

Fig L & M

Fig N

-3-

Fig O

English

Parts Identiﬁcation

1. Hose handle

2. Variable suction control

3. On / Off button

4. Cord rewind button

5. Bag full indicator

6. Hose connector

7. Carrying handle

8. Flexible hose

9. Telescopic tube

10. Power cord

11. Floor head

12. Brush actuator

13. Tool storage

14. Tool storage latch

15. Dust bag compartment

16. Dust bag compartment latch

17. Floor brush

18. Brush / Crevice tool

19. Exhaust ﬁlter

20. Cloth bag

21. Cloth bag clip

22. Bag adapter

23. Pre motor ﬁlter

24. Exhaust grill

Product Features:

• 1600W

• Variable suction control

• Permanent cloth bag

• On board tool storage

• Automatic cord rewind

• Bag full indicator

Intended use

Your Black & Decker vacuum cleaner has been designed to vacuum dry substances. This product is intended for household use only.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of ﬁre, electric shock, personal injury and material damage.

Read all of this manual carefully before using the appliance.

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.

• Retain this manual for future reference.

Using your appliance

• Make sure that the appliance is switched off before connecting to or disconnecting from the power supply.

• Always take care when using the appliance.

• Do not use the appliance outdoors.

• Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.

• If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.

• Disconnect the appliance from the power supply when not in use, before ﬁtting or removing parts and before cleaning.

-4-

English

Safety of others

• Do not allow children or any person unfamiliar with these instructions to use the appliance.

• Do not allow children or animals to come near the work area or to touch the appliance or power supply cord. Close supervision is necessary when the appliance is used near children.

• Do not allow the cord set to hang over

bench tops.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure

that they do not play with the appliance.

After use

• Switch off and remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.

• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.

• Do not use the appliance if any part is damaged or defective.

• Have any damaged or defective parts repaired or replaced by an authorised repair agent.

• Before use, check the power supply cord for signs of damage, ageing and wear.

• Do not use the appliance if the power supply cord or mains plug is damaged or defective.

• If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.

• Never attempt to remove or replace any parts other than those speciﬁed in this manual.

Electrical safety

This tool is double insulated;

therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

• If the supply cord is damaged, it must be

replaced by the manufacturer or an authorised Black & Decker Service Centre in order to avoid a hazard.

Additional safety instructions for vacuum cleaners

• Before use, always make sure that the

ﬁlters are correctly seated. Do not use the appliance without all ﬁlters in place.

• Do not use the appliance to pick up

liquids.

• Do not use the appliance to pick up any

materials that could catch ﬁre.

• Do not use the appliance near water. Do

not immerse the appliance in water.

• Keep the motor draught away from your

eyes and face.

-5-

English

• Keep children and animals at a safe distance when using this appliance.

• Always work from bottom up when using the appliance on stairs, and keep the appliance at least a stair below your working position.

• Always be aware of the position of the power cord and hose while using the appliance.

• Do not use the appliance without the suction head or another suitable accessory mounted to the tube.

• After use, fully rewind the power cord and store the appliance in a tidy manner.

• Keep your hair, clothing and gloves away from moving parts.

• Do not use damaged accessories.

• Use only Black & Decker accessories.

Features

This appliance includes some or all of the following features:

1. Hose handle

2. Variable suction control

3. On / Off button

4. Cord rewind button

5. Bag full indicator

6. Hose connector

7. Carrying handle

8. Flexible hose

9. Telescopic tube

10. Power cord

11. Floor Head

12. Brush actuator

13. Tool storage

14. Tool storage latch

15. Dust bag compartment

16. Dust bag compartment latch

17. Floor brush

18. Brush / Crevice tool

19. Exhaust ﬁlter

20. Cloth bag

21. Cloth bag clip

22. Bag adapter

23. Pre motor ﬁlter

24. Exhaust grill

Assembly

Adjusting the length of the tube (Fig B)

• The extension tube can be adjusted as follows.

• Push the button on the tube forward and slide the lower tube out.

• Release the knob.

Connecting the hose (Fig.C)

• Insert the hose (8) into the hose connector (6) of the appliance.

• Push the hose until the release buttons click into place.

• To disconnect the hose, press the release buttons and pull out the hose.

Connecting the tube to the handle (Fig. D)

• Push the hose handle (1) into the ﬂared end of the tube (9).

• To remove the tube, pull the handle out of the tube.

Mounting the ﬂoor head (Fig. E)

The ﬂoor head (11) allows for vacuuming on carpet and hard surfaces (e.g. laminate and tiles).

• Push the tube (9) into the head (11).

• To remove the head, pull the tube out of the head.

-6-
