Black & Decker ST1000 User Manual
Polarized Plug
This product is supplied with a polarized plug (one
blade is wider than the other ). This plug will fit
into a polarized outlet (receptacle) only one way. If
the plug does not fit fully into your outlet, reverse
the plug. If it still does not fit, contact a qualified
electrician to install a proper polarized outlet. Do
not modify or change this plug in any way.
Extension Cords
Make sure your extension cord is in good
condition. When using an extension cord, be sure
to use one heavy enough to carry the current your
product will draw. An undersized extension cord
will cause a drop in line voltage resulting in loss of
power and overheating. The table shows the
correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next
heavier gage. The smaller the gage number, the
heavier the cord.
Assembly Instructions
-Layout sections as shown. (See illustration on page 4)
- Hold middle section at printing while assembling each end.
- Push sections together firmly.
- Install screws and nuts. Screws cannot be tightened if parts are assembled incorrectly.
How To Use Your Black & Decker Yard Trimmer
CLIP-TO-LOCK CORD RETAINER: (UNPLUG EXTENSION CORD AT TRIMMER)
An extension cord retainer is built into the switch handle that prevents the extension cord from
pulling out of the handle. To use the retainer , double the extension cord, as shown in Figure 1,
about a foot from the female end. Depress the retainer latch, shown in the figure, and insert the
cord as far as it will go. Holding the cord in place, release the retainer latch and the cord will be
securely held. To remove the cord, depress the retainer latch and pull the cord out.
Trimming Technique and Performance Notes
Proper trimming technique is essential to obtain the maximum in performance and handling ease.
CAUTION: Inspect area to be trimmed for any wire, cord, or string-like matter which could
become entangled in the rotating line or spool. Be particularly careful to avoid any wire which
might be bent outwardly into the path of the tool, such as barbs at the base of a chain link fence.
Tilt trimmer at a slight angle from the ground (Figure 2).
Lower to grass or weeds you intend to cut. (If they are over 20cm (8") high, start cutting at top.)
Slowly swing unit into and out of area being cut, holding the unit off the ground at desired
cutting height.
SPOOL
HUB
EYELET
SPRING
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
When using electric tools, basic safety precautions should always be followed to
reduce risk of fire, electric shock and personal injury, including the following :
WARNING:Some dust created by this product contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are: • compounds in fertilizers
• compounds in insecticides, herbicides and pesticides
• arsenic and chromium from chemically treated lumber
To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that
are specially designed to filter out microscopic particles.F
WARNING: This product contains chemicals, including lead, known to the State of California
to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.
CAUTION: Wear appropriate personal hearing protection during use. Under some conditions and
duration of use, noise from this product may contribute to hearing loss.
READ ALL INSTRUCTIONS
1. SAFETYSPECTACLES OR GOGGLES — Wear at all times when trimming.
2. GUARD — Do not use trimmer without guard attached.
3. NYLON LINE — Keep face, hands and feet clear of rotating nylon line at all times. Do not extend
beyond length specified in this manual. Wear long pants to protect your legs.
4. KEEP ALL BY-STANDERS A W A Y— at a safe distance from work area, especially children.
5. AVOID ACCIDENT ALSTARTING— don’t carry plugged-in tool with finger on trigger.
6. DO NOT FORCE THE TOOL — at a rate faster than the rate at which it is able to cut effectively.
7. USE THE RIGHT TOOL — Do not use this tool for any job except that for which it is intended.
8. DON’T OVERREACH— Keep proper footing and balance at all times.
9. WARNING — To prevent electric shock hazard, use only with an extension cord suitable for outdoor
use. Always connect extension cords to a fused line or one protected by a circuit breaker.
10. DON’T ABUSE CORD — Don’t yank cord from receptacle. Keep cord from heat, oil and sharp edges.
11. EXTENSION CORDS — to prevent disconnection of extension cord during operation, use extension
cord retainer as described in this manual.
12. DAMAGE TO UNIT — If you strike or become entangled with a foreign object, stop trimmer
immediately, unplug, check for damage and have any damage repaired before further operation is
attempted. Do not operate with a broken hub or spool.
13. DAMAGE TO CORD — Keep power cord away from rotating line. If you damage the extension cord,
unplug it at the electrical outlet before moving the trimmer or examining the damage. If there is
damage to the extension cord, replace cord before further use.
14. DISCONNECT TOOL — When not in use, when replacing line, or prior to cleaning hub.
15. DRESS PROPERLY — Don’t operate the tool when barefoot or wearing open sandals. Always wear
substantial footwear. Use of rubber gloves and substantial rubber soled footwear is recommended
when working outdoors.
16. AVOID DANGEROUS ENVIRONMENT ALCONDITIONS — Do not use electric tools in damp or wet
locations. Follow all instructions in this instruction manual for proper operation of your trimmer.
17. DON’T USE THE TRIMMER IN THE RAIN.
18. DO NOT OPERATE portable electric tools in gaseous or explosive atmospheres. Motors in these tools
normally spark, and the sparks might ignite fumes.
19. STORE IDLE TOOLS INDOORS — When not in use, tools should be stored indoors in dry, locked-up
placed—out of reach of children.
20. THE ROTA TING LINE PERFORMS A CUTTING FUNCTION — Use care when trimming around
screens and desirable plantings.
21. USE ONLY RECOMMENDED REPLACEMENT LINE — Do not use heavier line or other line
materials, eg. metal wire, fishing line or similar materials.
SAVE THESE INSTRUCTIONS
Double Insulation
AN IMPORTANT CONSUMER FEATURE
Your tool is double insulated to give you added safety. This means that it is constructed throughout with
two separate “layers” of electrical insulation or one double thickness of insulation between you and the
tool’s electrical system.
Tools built with this insulation system are not intended to be grounded. As a result, the extension cord
used with your tool can be plugged into any conventional 120 volt electrical outlet without concern for
maintaining a ground connection.
NOTE: Double insulation does not take the place of normal safety precautions when operating this tool.
The insulation system is for added protection against injury resulting from a possible electrical insulation
failure within the tool.
CAUTION: When servicing double insulated tools, USE ONLY IDENTICAL REPLACEMENT PARTS.
Replace or repair damaged cords.
Catalog Series ST1000 FORM NO. 264162-03 REV. 3 PRINTEDIN MEXICO AUG. ‘02
VEA EL ESPAÑOL EN LA CONTRAPORTADA.
SAVE THIS MANUAL FOR FUTURE REFERERENCE.
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA.
ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

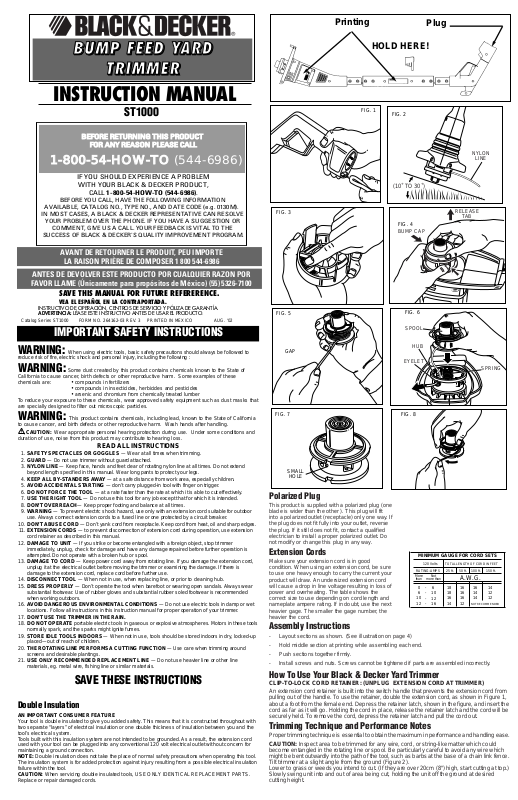

INSTRUCTION MANUAL
BBBBUUUUMM
MMPPPP FFFFEEEEEEEEDDDD YYYYAAAARRRRDDDD
TTTTRRRRIIIIMM
MM
MM
MMEEEERRRR
AVANT DE RETOURNER LE PRODUIT, PEU IMPORTE
LA RAISON PRIÈRE DE COMPOSER 1 800 544-6986
ANTES DE DEVOLVER ESTE PRODUCTO POR CUALQUIER RAZON POR
FAVOR LLAME (Únicamente para propósitos de México) (55) 5326-7100
ST1000
Printing
Plug
HOLD HERE!
☞
FIG. 3
FIG. 1
BUMP CAP
RELEASE
TAB
FIG. 4
FIG. 5
GAP
FIG. 6
FIG. 8
SMALL
HOLE
FIG. 7
MINIMUM GAUGE FOR CORD SETS
120 Volts TOTAL LENGTH OF CORD IN FEET
RATING-AMPS
More
than
Not
more than
0
6
10
12
-
-
-
-
6
10
12
16
18
18
16
14
16
16
16
12
16
14
14
14
12
12
NOT RECOMMENDED
A.W.G.
25 ft. 50 ft. 100 ft. 150 ft.
FIG. 2
(10˚ TO 30˚)
NYLON
LINE
1-800-54-HOW-TO
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON PLEASE CALL
IF YOU SHOULD EXPERIENCE A PROBLEM
WITH YOUR BLACK & DECKER PRODUCT,
CALL 1-800-54-HOW-TO (544-6986).
BEFORE YOU CALL, HAVE THE FOLLOWING INFORMATION
AVAILABLE, CATALOG NO., TYPE NO., AND DATE CODE (e.g. 0130M).
IN MOST CASES, A BLACK & DECKER REPRESENTATIVE CAN RESOLVE
YOUR PROBLEM OVER THE PHONE. IF YOU HAVE A SUGGESTION OR
COMMENT, GIVE US A CALL. YOUR FEEDBACK IS VITAL TO THE
SUCCESS OF BLACK & DECKER'S QUALITY IMPROVEMENT PROGRAM.
(544-6986)
IMPORTANT — for the best cutting action against walls, fences and in high grass, move
trimmer slowly so grass is cut WITH THE TIP of the high speed nylon line.
1. Avoid running trimmer with hub in contact with ground.
2. Trim only when grass and weeds are dry.
3. The life of your nylon line is dependent upon following the above trimming techniques, as
well as what is being cut, and where the cutting is being done.
EXAMPLE: Line will wear faster when run against a foundation wall as compared to
trimming around a tree. Some line breakage will occur from feeding unit too fast, from
entanglement with foreign matter, from normal line fatigue, and from attempting to cut thick,
stalky weeds in excess of unit’s capability.
NOTE: As the weather becomes cooler, the tendency for the nylon line to break becomes
greater.
DO NOT USE UNIT WHEN TEMPERATURE IS BELOW 50°F
4. For best performance, as the line wears, lengthen as indicated in Line Feeding Procedure.
5. Periodically unplug extension cord at trimmer and remove the accumulation of grass
or cutting debris from the inside of the bump cap shroud as shown in Figure 3.
Line Feeding Procedure
In order to feed a length of cutting line, strike the bump cap on the lawn while the trimmer is
running. This will automatically feed a new length of line and trim it to the correct length. Afirm
but gentle motion should be used to strike the bump cap. The unit should be angled slightly
forward to prevent the guard from contacting the ground. This process may be repeated as
often as necessary. If unit fails to feed, unplug extension cord at trimmer and clean out the
bump cap (See Figure 3).
Spool Replacement and Recovery of Line Broken Off Inside Spool
1. Unplug extension cord at trimmer.
2. Remove the bump cap by pulling up while depressing the two release tabs on the sides of
the hub at the points shown in Figure 4.
NOTE: It may be necessary to pull up on the cap while depressing the release tabs one
side at a time.
NOTE: The cutting line is quite springy and can be awkward to handle.
3. Remove any broken cutting line, wrap the remaining line tight and reinsert spool into hub as
follows.
a.Wind the line tight enough so that it is all below the edges of the flanges on the spool. If it
extends past the flanges, it won’t fit into the hub.
b.Place the loose end of the cutting line through the gap in the spool flange as shown in
Figure 6. (Either gap will do but try to leave yourself about 3 or 4 inches of line to work
with as shown in the figure 5)
c.Holding the line in the gap, insert the end through the eyelet in the hub and slip the spool
into the hub, as shown in Figure 6.
Make sure the spring is still in place in the hub. If the spool does not slip into the hub easily,
press gently and pull straight out on the cutting line that protrudes through the eyelet.
4. Once the spool drops into the hub, align the release tabs on the shroud with the slots in
the hub and press the shroud into place. Be sure that both release tabs snap into place.
5. To replace the line on a spool, follow the steps below
a.Locate, on the empty spool, one of the two small holes shown in Figure 7.
b.Insert the end of the line no more than 1/8" into the hole and begin winding the line
around the spool. Be sure to wind the line in the direction of the arrow in Figure 8.
c.Perform steps 4 and 5 .
Maintenance- Unplug Extension Cord at Trimmer
MAINTAIN TOOL WITH CARE
1. Keep the air intake slots clean to avoid overheating which will damage trimmer. For this
cleaning, use a dry brush or cloth to remove grass, sap or other debris.
2. Plastic parts may be cleaned by using a mild soap and a rag dampened with hot water.
Avoid all other types of detergents, cleaners or solvents which might contain chemicals that
could seriously damage the plastic. Do not spray the trimmer with water.
3. Self lubricating bearings are used in the tool and periodic relubrication is not required.
However, it is recommended that after two or three seasons of use, you take or send the
trimmer to a Black & Decker service center or authorized service station (see TOOLS,
ELECTRIC in yellow pages) for a thorough cleaning, inspection and relubrication. If the tool
is being used professionally, the above should be accomplished after each trimming season.
4. If trimmer fails to operate, disconnect extension cord from power source first, then from
trimmer. Make sure extension cord is undamaged and that house fuses are not blown or
circuit breakers tripped. If trimmer still fails to operate, take or send it to your local B&D
service center or authorized service station for repair. Do not attempt to repair it yourself.
IMPORTANT
To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment
(including brush inspection and replacement) should be performed by Black & Decker
service centers or other qualified service organizations, always using Black & Decker
replacement parts. When servicing use ONLYIDENTICAL REPLACEMENT PARTS.
Accessories
Replacement line and safety spectacles are available from your local dealer, or a Black &
Decker service center.If you need assistance in locating any accessory, please contact:
Black & Decker (U.S.) Inc., Consumer Service Department,
626 Hanover Pike, P.O. Box 618, Hampstead, MD 21074-0618.
Recommended accessories for your trimmer are shown in this manual. The use of any other
accessory or attachment might be hazardous.
Cat. No. RS-136, (82-136-02) Replacement Spool with 20 feet of Nylon Line.
Cat. No. BL-065, (82-602) Hank of bulk .065˝ dia. Nylon Line (50 feet)
Cat. No. 82-611 One pound .065˝ dia. Nylon Line.
CAUTION: Use only
recommended accessories with your yard trimmer. The use of any other
attachment or accessory might be hazardous. Use only specially treated .065" diameter
Black & Decker monofilament nylon line with your yard trimmer.
NOTE: Always include date code numbers on all correspondence. This 4 or 5 digit number is
printed on the nameplate label located on the motor housing.
Service Information
Black & Decker offers a full network of company-owned and authorized service locations throughout North
America. All Black & Decker Service Centers are staffed with trained personnel to provide customers with
efficient and reliable power tool service.
Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black &
Decker location nearest you.
To find your local service location, refer to the yellow page directory under “Tools—Electric” or call:
1-800-54-HOW-TO.
Full Two-Year Home Use Warranty
Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or
workmanship. The defective product will be replaced or repaired at no charge in either of two ways:
The first, which will result in exchanges only, is to return the product to the retailer from whom it was
purchased (provided that the store is a participating retailer). Returns should be made within the time period
of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be
required. Please check with the retailer for their specific return policy regarding returns that are beyond the
time set for exchanges.
The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized
Service Center for repair or replacement at our option. Proof of purchase may be required. Black & Decker
owned and authorized service centers are listed under “T ools-Electric” in the yellow pages of the phone
directory.
This warranty does not apply to accessories. This warranty gives you specific legal rights and you may
have other rights which vary from state to state. Should you have any questions, contact the manager of
your nearest Black & Decker Service Center.
This product is not intended for commercial use.
AVANT DE RETOURNER LE PRODUIT, PEU IMPORTE
LA RAISON PRIÈRE DE COMPOSER 1 800 544-6986
IMPORTANTES MISES EN GARDE
AVERTISSEMENT : Afin de réduire les risques d’incendie, de secousses électriques ou de
blessures lorsqu’on utilise des outils électriques, il faut toujours respecter les mesures de sécurité suivantes.
AVERTISSEMENT :
Le produit génère de la poussière qui peut renfermer des produits
chimiques. Selon l’état de la Californie, ces produits chimiques peuvent causer le cancer ainsi que des
malformations congénitales, et ils présentent d’autres dangers au système reproductif humain. Voici
des exemples de tels produits chimiques :
• les composés d’engrais;
• les composés d’insecticides, d’herbicides et de pesticides;
• l’arsenic et le chrome provenant de bois traité.
Afin de minimiser les risques, porter de l’équipement de sécurité approuvé comme des masques
antipoussières spécialement conçu pour filtrer les particules microscopiques.
AVERTISSEMENT :
Le produit renferme des produits chimiques, dont du plomb. Selon
l’état de la Californie, ce produit chimique peut causer le cancer ainsi que des malformations
congénitales, et il présente d’autres dangers au système reproductif humain. Se laver les mains après
l’utilisation.
MISE EN GARDE : Porter un dispositif approprié de protection de l’ouïe lors de l’utilisation du
produit. Dans certaines conditions et durées d’utilisation, le produit peut émettre un niveau de bruit
provoquant la perte de l’ouïe.
LIRE TOUTES LES DIRECTIVES.
1. Toujours porter des LUNETTES DE SÉCURITÉ. Les porter tant et aussi longtemps que l’appareil est
branché.
2. Ne pas utiliser l’outil sans le PROTECTEUR en place.
3. Éloigner en tout temps le visage, les mains et les pieds du FIL DE NYLON qui tourne. Ne pas le régler
à une longueur dépassant celle qui est spécifiée dans le présent guide. Porter des pantalons afin de se
protéger les jambes.
4. ÉLOIGNER LES SPECTATEURS, surtout les enfants.
5. ÉVITER LES DÉMARRAGES ACCIDENTELS. Ne pas laisser le doigt sur l’interrupteur lorsqu’on
transporte un outil branché.
6. NE JAMAIS FORCER L’OUTIL. Afin d’obtenir un rendement sûr et efficace, utiliser l’outil à son
rendement nominal.
7. UTILISER L’OUTIL APPROPRIÉ. Se servir de l’outil selon l’usage prévu.
8. NE PAS DÉPASSER SA PORTÉE. Toujours demeurer dans une position stable et garder son équilibre.
9. AVERTISSEMENT : Afin d’éviter les risques de secousses électriques, utiliser l’outil seulement avec un
cordon de rallonge conçu pour l’extérieur. Toujours brancher le cordon de rallonge sur une ligne pourvue
de fusibles ou protégée par un disjoncteur.
10.NE PAS MANIPULER LE CORDON DE FAÇON ABUSIVE. Ne pas tirer sur le cordon pour le débrancher
de la prise. Tenir le cordon loin des sources de chaleur, des flaques d’huile et des arêtes tranchantes.
11. Afin d’éviter le débranchement accidentel du CORDON DE RALLONGE pendant l’utilisation, se servir du
dispositif de retenue du cordon de la façon décrite dans le présent guide.
12.POUR ÉVITER D’ENDOMMAGER L’OUTIL, l’arrêter immédiatement lorsqu’il frappe un objet ou qu’il
s’enchevêtre dans un corps étranger. Débrancher l’outil, vérifier s’il est endommagé et le faire réparer
avant de s’en servir de nouveau. Ne pas s’en servir lorsque la bobine ou le moyeu sont endommagés.
13.POUR ÉVITER D’ENDOMMAGER LE CORDON, l’éloigner du fil qui tourne. En cas de dommage,
débrancher le cordon de la prise avant de déplacer l’outil ou d’examiner l’étendue des dommages.
Remplacer le cordon endommagé.
14.DÉBRANCHER L’OUTIL lorsqu’il ne sert pas et avant de remplacer la bobine ou de nettoyer le moyeu.
15.PORTER DES VÊTEMENTS APPROPRIÉS. Ne jamais utiliser l’outil lorsqu’on est pieds nus ou que l’on
porte des sandales. Toujours porter des chaussures fermées. Il est recommandé de porter des gants
de caoutchouc et des chaussures à semelle antidérapante pour travailler à l’extérieur.
16.ÉVITER LES MILIEUX DE TRAVAIL DANGEREUX. Ne pas utiliser l’outil dans des endroits humides ou
mouillés. Suivre les directives du présent guide quant au bon fonctionnement de l’outil.
17.NE PAS UTILISER LE COUPE-BORDURE SOUS LA PLUIE.
18.NE PAS UTILISER les outils portatifs électriques dans des endroits où l’atmosphère contient des vapeurs
combustibles ou explosives. Les étincelles que produit le moteur en marche pourraient enflammer ces
produits.
19.RANGER LES OUTILS INUTILISÉS À L’INTÉRIEUR dans un endroit sec, fermé à clé, hors de la portée
des enfants.
20.LE FIL ROTATIF COUPE. S’en servir avec prudence à proximité de moustiquaires et des plantes qu’on
veut garder.
21.UTILISER SEULEMENT LE FIL DE RECHANGE RECOMMANDÉ. Ne pas utiliser de fil de plus gros
calibre ni toute autre type de fil (comme du fil métallique, du fil à pêche ou tout autre matériau du genre).
CONSERVER CES MESURES.
Double isolation
CARACTÉRISTIQUE AVANTAGEUSE
L’outil est doté d’une double isolation afin d’assurer une sécurité accrue. En effet, il comporte
deux couches distinctes d’isolant électrique ou une double épaisseur d’isolant qui protègent
l’utilisateur contre les risques de blessures provenant du système électrique de l’outil.
Ce système de double isolation élimine le besoin de mettre les outils à la terre. En effet, l’outil
est muni d’une fiche à deux broches, ce qui permet de le brancher dans une prise standard de
120 volts sans avoir à se soucier d’assurer la mise à la terre.
NOTE : Cette double isolation ne dispense pas des mesures de sécurité normales lors de
l’utilisation de l’outil. Elle vise à procurer une protection supplémentaire contre les blessures que
peut entraîner une défectuosité de l’isolant électrique à l’intérieur de l’outil.
MISE EN GARDE : Pour réparer tout outil à double isolation, N’UTILISER QUE DES PIÈCES DE
RECHANGE IDENTIQUES. Réparer ou remplacer les cordons endommagés.
Fiche polarisée
L’outil est muni d’une fiche polarisée (une lame plus large que l’autre). Ce genre de fiche n’entre
que d’une façon dans une prise polarisée. Lorsqu’on ne peut insérer la fiche à fond dans la
prise, il faut tenter de le faire après avoir inversé les lames de côté. Si la fiche n’entre toujours
pas dans la prise, il faut demander à un électricien certifié d’installer une prise polarisée
appropriée. Il ne faut en aucun cas neutraliser ce dispositif de sécurité.
Cordon de rallonge
S’assurer que le cordon de rallonge est en bon
état. Lorsqu’on se sert d’un cordon de rallonge,
s’assurer qu’il est de calibre approprié pour la
tension nécessaire au fonctionnement de l’outil.
L’utilisation d’un cordon de calibre inférieur
occasionne une baisse de tension entraînant une
perte de puissance et la surchauffe. Le tableau
suivant indique le calibre approprié selon la
longueur du cordon et les mentions de la plaque
signalétique de l’outil. En cas de doute, utiliser un
cordon de calibre supérieur. Le chiffre indiquant le
calibre est inversement proportionnel au calibre du cordon.
Directives relatives au montage
- Placer les sections de la façon illustrée.
- Saisir la partie imprimée de la section centrale tout en montant chacune des extrémités.
- Pousser fermement les sections l’une dans l’autre.
- Installer les vis et les écrous. On ne peut serrer les vis si les composantes ne sont pas bien
montées.
Fonctionnement du coupe-bordure Black & Decker
DISPOSITIF DE RETENUE DU CORDON (DÉBRANCHER LE CORDON
DU COUPE-BORDURE.)
La poignée de l’outil est munie d’un dispositif de retenue du cordon de rallonge qui empêche
celui-ci de se débrancher accidentellement. Pour s’en servir, il suffit de faire une boucle dans le
cordon à environ un pied de la prise femelle, comme le montre la figure 1. Appuyer ensuite sur
le loquet de retenue (voir la figure) et insérer à fond le cordon. Maintenir le cordon en place et
relâcher le loquet de retenue. Pour enlever le cordon, appuyer sur le loquet de retenue et tirer
le cordon.
See ‘Tools-Electric’
– Yellow Pages –
for Service & Sales
Black & Decker (U.S.) Inc.,
701 E. Joppa Rd.
Towson, MD 21286 U.S.A.
CALIBRE MINIMAL DES CORDONS DE RALLONGE
120 Volts
INTENSITÉ
Au
moin
s
0
-
6
-
10
-
12
-
LONGUEUR TOTALE DU CORDON EN PIEDS
25 ft. 50 ft. 100 ft. 150 ft.
Au
CALIBRE AMÉRICAIN DE FIL (AWG)
plus
18
16
6
10
12
16
18
16
14
16
16
12
16
14
14
NON RECOMMANDÉ
14
12
12
Loading...
