Black & Decker LEDLIB Instruction Manual

ADVERTENCIA:

peligroso.

El uso de cualquier accesorio no recomendado para el uso con esta aplicación podía ser

UNA GARANTÍA LIMITADA DEL AÑO

El fabricante garantiza este producto contra defectos en materiales y mano de obra durante un período de UN
(1) AÑO desde la fecha de compra por el usuario final comprador (“período de garantía”).

Si hay un defecto y una reclamación válida es recibido dentro del periodo de garantía, el producto defectuoso
puede ser reemplazado o reparado en las siguientes maneras: (1) Devolver el producto al fabricante de
reparación o sustitución de fabricante, opción. Prueba de compra puede ser requerida por el fabricante. (2)
Devolver el producto al minorista donde producto fue comprado por un intercambio (siempre que la tienda
es una participación minorista). Regresa al minorista debe hacerse dentro del plazo del minorista, política de
retorno de intercambios sólo (generalmente de 30 a 90 días después de la venta). Prueba de compra puede ser
necesaria. Por favor consulte con el minorista para su regreso específicas política sobre rendimientos que están
fuera del plazo establecido para el intercambio.

Esta garantía no se aplicará a los accesorios, bulbos, fusibles y baterías; defectos resultantes de desgaste
normal; accidentes; daños y perjuicios sufridos durante el envío; alteraciones; el uso no autorizado o reparación;
abandono; mal uso; abuso; y no seguir las instrucciones de cuidado y mantenimiento del producto.

Esta garantía le da, el original comprador minorista, determinados derechos jurídicos y puede tener otros
derechos que varían de estado a estado o provincia a provincia. Este producto no está destinado para uso
comercial.

ESPECIFICACIONES

Reflector

Bombillo :
Batería:

Adaptador de la CA de 120 voltios

Cargador:

Adaptador de la CC de 12 voltios (accesorio opcional)

Voltaje:
Fusible de conexión CC: 5A

bulbo de 10 vatios LED
Litio-ion, 7.4 V CC

UL clase 2 listado, 12 voltios CC (500 mA)

12 voltios de CC

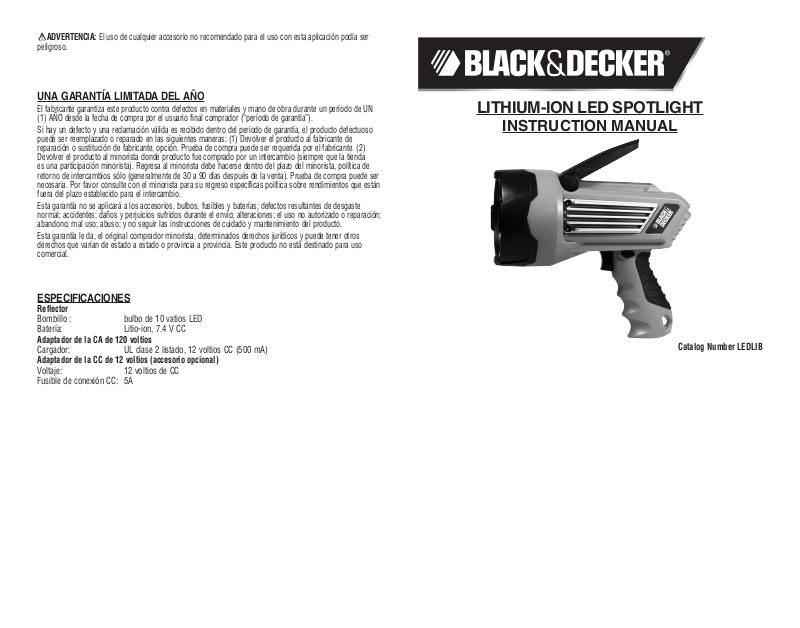

LITHIUM-ION LED SPOTLIGHT

INSTRUCTION MANUAL

Catalog Number LEDLIB

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment.

•

GENERAL SAFETY WARNINGS AND INSTRUCTIONS

READ ALL inStRuctionS

WARNING: Read all instructions before operating spotlight. Failure to follow all instructions listed

below may result in electric shock, fire and/or serious injury.

SAfEty guiDELinES / DEfinitionS

DANGER:

injury.

WARNING:

serious injury.

CAUTION:

injury.

CAUTION:

may result in property damage.

RISK OF UNSAFE OPERATION.

followed to reduce the risk of personal injury. Improper operation, maintenance or modification of tools or
equipment could result in serious injury and property damage. There are certain applications for which tools
and equipment are designed. Manufacturer strongly recommends that this product NOT be modified and/or
used for any application other than for which it was designed. Read and understand all warnings and operating
instructions before using any tool or equipment.

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious

Indicates a potentially hazardous situation which, if not avoided, could result in death or

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate

Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided,

When using tools or equipment, basic safety precautions should always be

iMPoRtAnt SAfEty inStRuctionS

INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS

WARNING – WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE

FOLLOWED, INCLUDING THE FOLLOWING:

•To reduce the risk of injury, close supervision is necessary when the spotlight is used near children.

•Use only attachments recommended or sold by the manufacturer.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK:

•Do not put spotlight in water or other liquid. Do not place or store appliance where it can fall or be pulled into
a tub or sink.

•Charge indoors only. Do not expose chargers to water or any other liquid.

•Do not clean this appliance with a water spray or the like.

•Use only the charger supplied by the manufacturer to recharge.

•When an extension cord is used:

– The marked rating of the detachable power supply cord or extension cord should be at least as great as the

electrical rating of this appliance.

– The cord should be arranged so that it will not drape over the countertop or tabletop where it can be tripped

over, snagged, or pulled on unintentionally (especially by children).

– The extension cord should be kept dry and off the ground.

WARNING: FIRE HAZARD:

•Keep spotlight lamp and heat sink away from materials that may burn.

•Never contact combustible material to the lens or heat sink.

CAUTION: TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:

•The LED gets hot quickly. Do not touch hot lens, guard, heat sink, or enclosure.

•Never look directly into the light or shine the light into another person’s eyes.

•Keep sharp objects away from lens — it is glass and can break.

•Do not immerse spotlight in water.

•Do not expose this unit to extremely high temperatures.

•Do not drop or throw spotlight. It contains glass and a lithium-ion battery pack.

•Use only with AC or DC charging adapters that are provided with unit. Plug in the charging adapter at the

spotlight first, then plug into the charging source.

•After charging/recharging, disconnect charging adapter and wait 5 minutes before use.

•Do not crush, cut, pull or expose charging adapter cords to extreme heat.

•Position charging adapter cords so they do not become entangled or become a safety hazard. Keep charging

adapter cords away from sharp edges.

•Use in a dry location only.

•Do not open body casing. There are no user-serviceable parts inside.

•Do not operate the spotlight without the lens in place.

•To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting.

•Do not attempt to charge the unit if the charger is damaged – return the charger to manufacturer for repair or

replacement.

SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM-ION BATTERIES

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, BURST HAZARD, OR INJURY TO

PERSONS OR PROPERTY:

Lithium-ion batteries are small, compact and ideal for providing long-lasting power to this unit. However, they
must be used and charged properly. Improper use can result in serious injury, fire, or death.

•Lithium-ion batteries can explode in the presence of a source of ignition. Do not use the product in the
presence of an open flame.

•Do not place this lithium-ion battery powered unit in fire or apply heat to it.

•Do not subject this lithium-ion battery powered unit to strong impacts or shocks. The battery in this unit

contains safety and protection devices which, if damaged, may cause the battery to generate heat, rupture or
ignite.

•Do not expose this lithium-ion battery powered unit to water or salt water, or allow the battery to get wet.

•Avoid storing this lithium-ion battery powered unit in the basement, bathroom or other areas of the house that

are or may become wet.

•Do not leave this lithium-ion battery powered unit in direct sunlight, or use or store the unit inside cars in hot
weather. Doing so may cause the battery to generate heat, rupture, or ignite. Using the battery in this manner
may also result in a loss of performance and a shortened life expectancy.

•Never charge this unit near heat or flammable objects.

NEVER THROW WATER ON A BURNING LI-ION BATTERY! If a lithium-ion battery does catch on fire,

•

it will burn even more violently if it comes in contact with water or even moisture in the air. A fire
extinguisher must be used.

Battery Charging and Capacity

This unit is delivered in a partially charged state – you must fully charge it before using it for the first time.
When stored at room temperature with a full charge, Li-ion batteries will will begin to discharge from the time

they are manufactured, even when unused. Deep discharges also decrease their capacity. Battery life can be
extended by the following:

•Charge battery to full capacity before storage.

•Store this unit at temperatures between 5°C and 20°C (41°F and 68°F).

•Never discharge the battery fully.

•Charge after each use.

•Always charge at least once every 3-6 months if not in frequent use to prevent overdischarge.

Transportation of Lithium-Ion Batteries

•Always check all applicable local, national, and international regulations before transporting a unit containing a
Lithium-Ion battery.

•Transporting an end-of-life, damaged, or recalled battery may, in certain cases, be specifically limited or
prohibited.

SAVE thESE inStRuctionS

INTRODUCTION

Congratulations on purchasing your new

Instruction Manual and follow the instructions carefully before using your new spotlight.

FEATURES

6

3

2
1

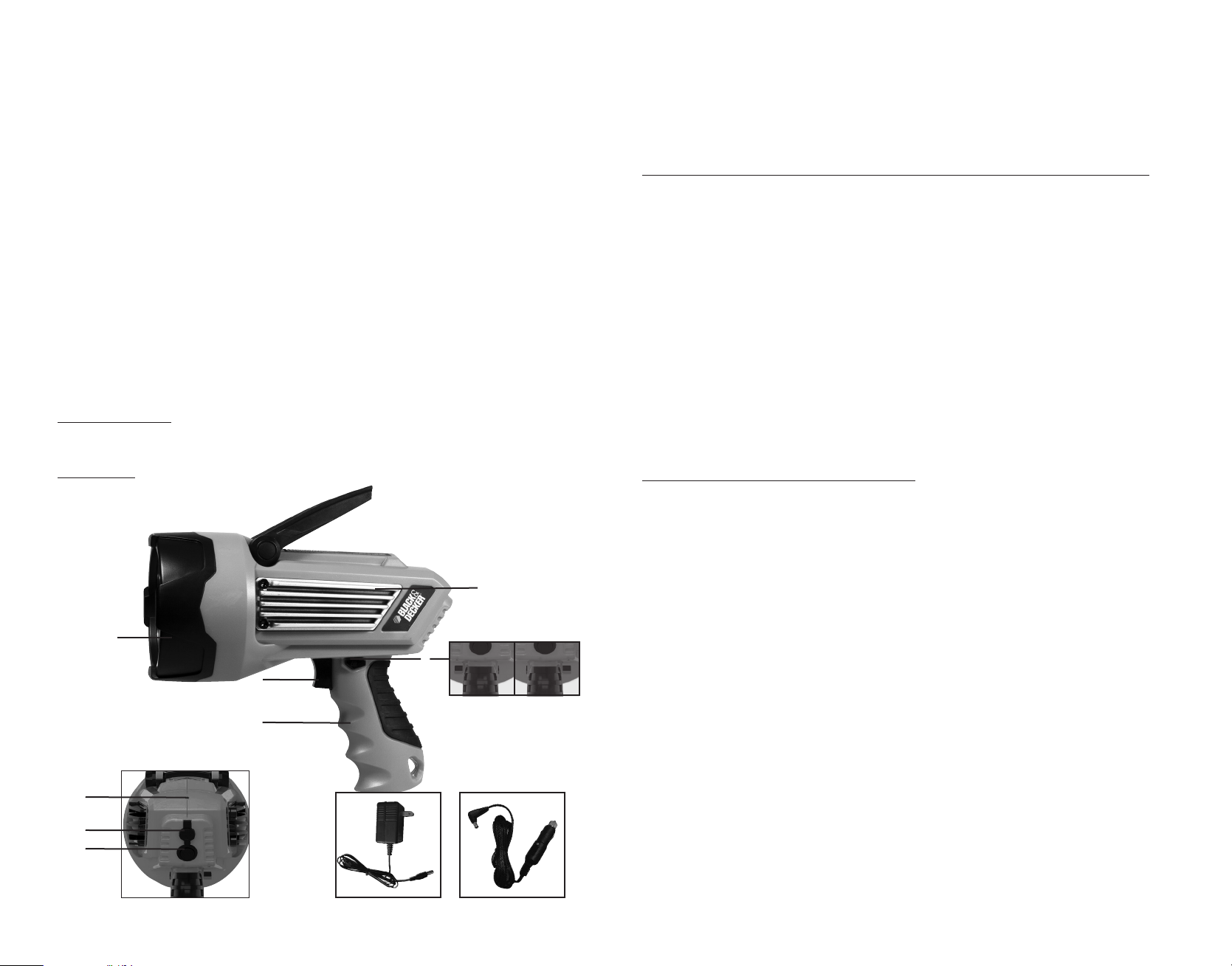

1. Light Mode Select Button

2. 12VDC Charging Port (under protective cover)

3. Battery/Charge Status LED Indicator

4. Pistol Grip Handle

5. On/Off Trigger

6. Rubber Bezel

Black & Decker Lithium-Ion LED Spotlight

9

5

4

10

7. Locking Adjustable Stand

8. Aluminum heat sink

9. Trigger Lock

10. 120 Volt AC Adapter

11. 12 Volt DC Adapter (optional accessory)

.

Read this

8

11

READING THE BATTERY/CHARGE STATUS LED INDICATOR

The battery and charging status LED indicator is located on the back of the unit. It lights or flashes in three
colors to indicate the following:

When charging:

Green:

Battery is in a fully charged state.

Orange (flashing):
Red (flashing):
Green & Red (flashing alternately):

1. The battery of the unit is overheated due to extensive use or recharging. The charging process will stop at
this stage and will automatically resume after a cool down period.

2. The battery voltage of your vehicle or other 12 volt DC power source has dropped to a level that is too
low when charging using the 12 volt DC adapter. The charging process will stop at this stage and will
automatically resume after the battery level of the 12 volt DC power source returns to normal.

Battery is in a partially charged state.

Battery needs to be recharged.

When operating:

Green:

Battery is operating at full voltage.

Orange:

Battery is operating at partial voltage.

Red:

Battery is operating at low voltage, and should be recharged.

CHARGING/RECHARGING THE SPOTLIGHT

This unit is shipped in a partially charged state. Charge unit after purchase and BEFORE first use using the 120
Volt AC Adapter for 6 hours or until the battery/charge status LED indicator lights green.

Recharge after each use until the battery/charge status LED indicator lights green.

IMPORTANT: When the unit is not in use, we recommend that the battery is charged at least every 3
to 6 months.

Charging/recharging using the 120 Volt AC Adapter

•Make sure the spotlight is off (the trigger lock is in the off position and the trigger is not depressed).

•Insert the barrel connector of the AC Adapter into the 12 Volt DC Charging Port on the back of the unit. Insert

the plug end into a (powered) standard North American 120 volt 60Hz outlet.

•Charge until the battery/charge status LED indicator lights green (approximately 6 hours).

Charging/recharging using the 12 Volt DC Adapter (optional accessory)

•Make sure the spotlight is off (the trigger lock is in the off position and the trigger is not depressed).

•Insert the barrel tip of the supplied 12 Volt DC Adapter into the 12 Volt DC Charging Port on the back of the

unit.

•Insert the 12 volt DC plug end into the accessory outlet of your vehicle or other 12 volt DC power source.

•Charge until the battery/charge status LED indicator lights green (approximately 4-6 hours).

Notes:

•

•The 12 Volt DC Adapter must only be connected to batteries with a nominal output voltage of 12 volts. The

When using a vehicle’s 12 volt DC accessory outlet as a charging source, be aware that some vehicles require you to turn on the
ignition to power the accessory outlet.

WARNING:TO AVOID THE RISK OF PROPERTY DAMAGE:

NEVER CONNECT THE UNIT TO A POSITIVE GROUNDED VEHICLE.

unit will not operate from a 6 volt battery and will sustain permanent damage if connected to a 24 volt battery.

OPERATING INSTRUCTIONS

Operating the spotlight

1. Disconnect from charger.

2. The On/Off trigger is located in the front of the handle of the spotlight.

3. To turn the spotlight on, squeeze the trigger.

4. To turn off the spotlight, release the trigger.

Note:

The battery/charge status LED indicator will light in one of three colors (as described in the “Reading the Battery/Charge Status LED

The On/Off trigger can be locked in the on position using the trigger lock bar on the side of the unit.

Indicator” section) to indicate the battery status.
