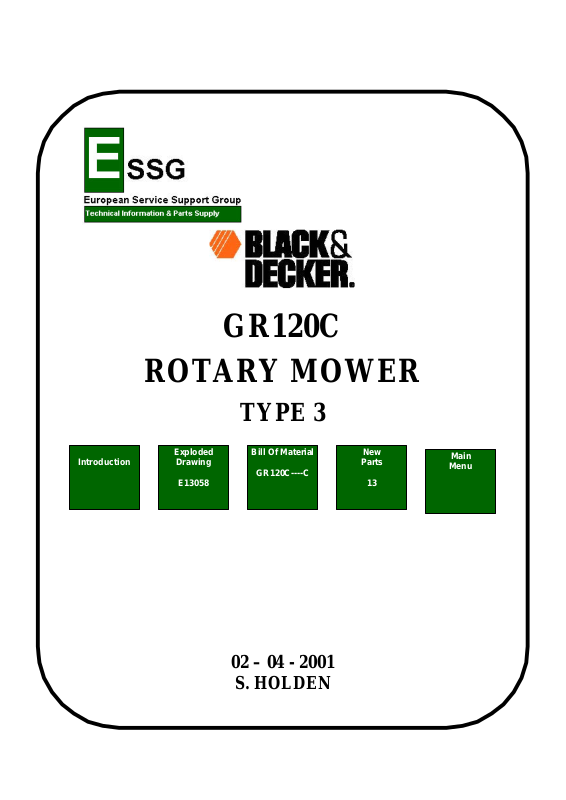

GR120C
ROTARY MOWER
TYPE 3
Introduction

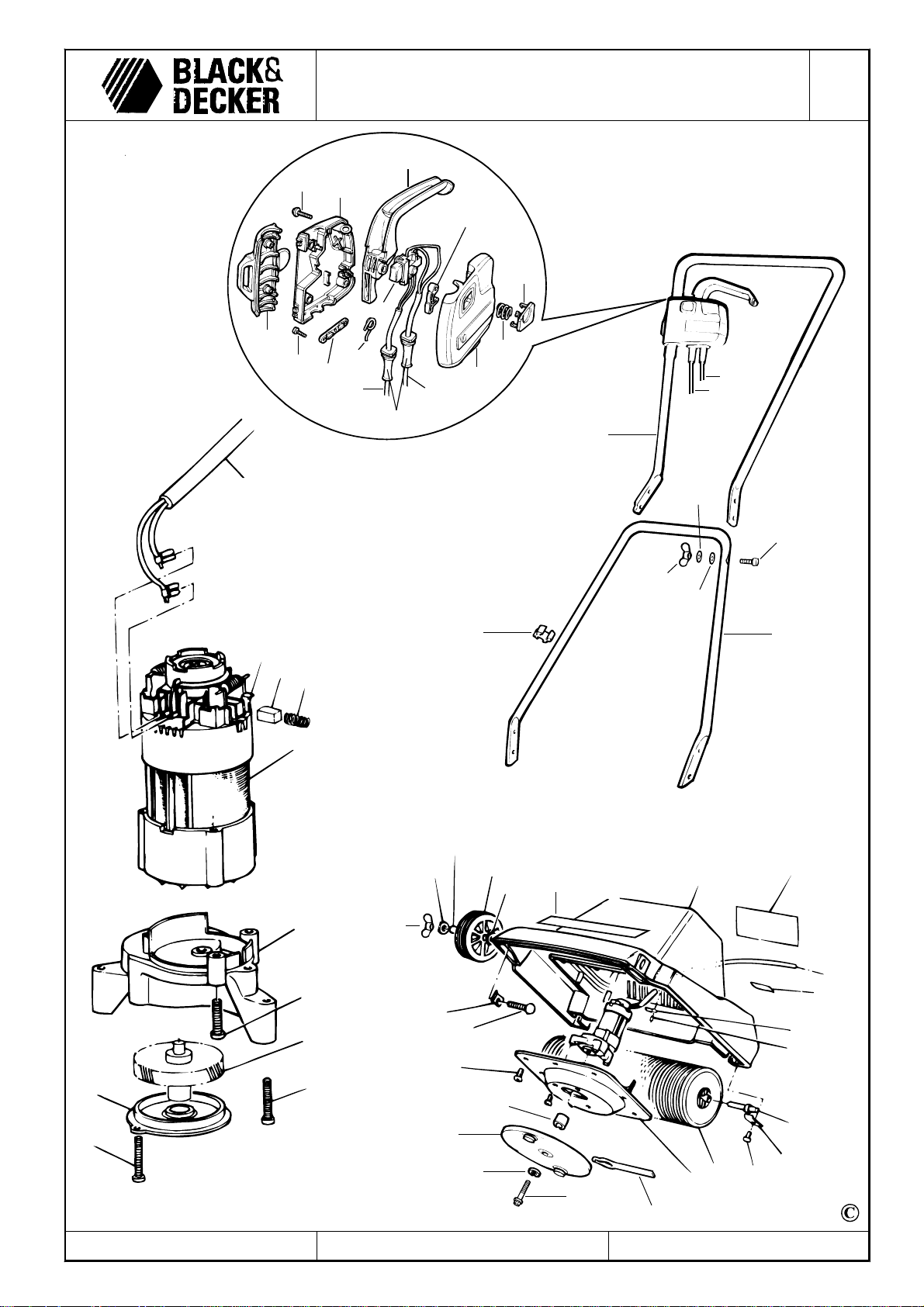

Exploded
Drawing
E13058
Bill Of Material
GR120C----C
02 – 04 - 2001
S. HOLDEN
New
Parts
13
Main
Menu
Page 2
GR120C TYPE 3
GB
L
AUNCH MARKETS & QUANTITIES
CE LPA Sound Pressure
Cutting width
MANUFACTURING PLANT
SPENNYMOOR
LAUNCH DATE
MARCH 2001
BULK DATE
MARCH 2001
PRODUCT ENGINEER
S.HOLDEN
Program Manager/Engineer
R.THOMAS
Type No. 3 CURRENT STATUS & MAJOR CHANGES .
TREE FROG GREEN MODEL
Ø Excellent value for money
Ø Rear roller for stripes
Ø Safety blades
CE LWA Acoustic Power
Hand /arm weighted vibration
Voltage
Power Input
PRODUCT DETAILS
Technical Information
72A
92A
2.5
230
450 Watts
Cutting system
Motor type
Height adjustment
30 cm
Safety blades
Series + gearbox
Manual
G:\EUROTECH\newproducts\GR120C.DOCLast printed 29/03/01 13:26
Page 3
31
54
38
37
30
48
41
32
36
33
35
GR120C
40
39
50
30
TYP.
3
35
41
42
35
53
51
46
44
47
45
4349
52
1
25
13
2
26
24
13
28
27
29
35
11
23
20
22
9
15
13
12
14
16
8
17
31 - 10 - 2000
4
5
6
E13058/375813-36
7
www.2helpU.com
10
21
17
19
18
Page 4
Black & Decker Bill of Materials - PARTS LIST
Product Number
Item
Number
1 1 376926-07 MOTOR SA No
2 1 369270 GEARCASE SA No
4 1 369273 SPINDLE & GEAR No
5 1 369269 GEARCASE COVER No
6 2 812171 SCREW No
7 3 745659 SCREW.TEMP No
8 1 827882 PLATE No
9 7 823143 SCREW No
10 1 372139-08 RATING PLATE No
11 3 849256 SCREW No
12 1 370865 BOLT No
13 5 891070 WASHER No
14 2 370572 BLADE No
15 1 848861 SPACER No
16 1 827892 ROLLER No
17 4 810269 SCREW No
18 2 827884 PLATE No
19 2 827883 AXLE STUB No
20 1 821111-02 BLADE CARRIER No
21 1 821070 CORD CLAMP No
22 2 798388 SCREW.TEMP No
23 2 884005 INDICATOR No
24 2 890717-01 WHEEL No
25 2 830618 SPACER No
26 1 577259-00 NUT WING No
27 1 369745-01 CUTTER COVER No
28 1 373096-02 BRAND LABEL No
29 1 376145-01 WARNING LABEL No
30 1 799361-03 CLAMSHELL T.F.G No
31 1 799364-01 COVERPLATE No
32 1 795780 SWITCH No
33 1 373094 LEVER No
Quantity
Per
GR120C----C
Part Number Part Description Variant Description Type Description Market Codes Refer to
Product Description
MOWER
Page 1
Type Identifier
TYPE 3 GB ONLY
R.I.
Page 5
Black & Decker Bill of Materials - PARTS LIST
27 1 369745-01 CUTTER COVER No
28 1 373096-02 BRAND LABEL No
29 1 376145-01 WARNING LABEL No
30 1 799361-03 CLAMSHELL T.F.G No
31 1 799364-01 COVERPLATE No
32 1 795780 SWITCH No
33 1 373094 LEVER No
35 1 370762 CABLE SA No
36 2 770235 PROTECTOR No
37 1 827140 CABLE CLAMP No
38 2 810269 SCREW No
39 1 373092 BUTTON LOCK-OFF No
40 1 797929 ACTUATOR No
41 1 808240-16 CORDSET No
42 1 577255-00 HANDLE UPPER No
43 1 577254-00 LOWER HANDLE No
44 2 899161 SCREW No
45 2 893809 WASHER No
46 2 895141 WASHER No
47 2 896288 NUT WING No
48 1 827135 SPRING No
49 2 915859 CLIP CABLE No
50 1 827137 SPRING No
51 2 376143 BRUSH No
52 2 847709 SPRING No
53 2 812738 BRUSH HOLDER No
54 6 832530 SCREW No
55 1 577526-00 PARTS PACK No
Page 2
Page 6
New Parts
GR120C
Part Number
Part Description
OPP ROTARY MOWER
CUTTER COVER369745-01
RATING PLATE372139-08
BRAND LABEL373096-02
WARNING LABEL376145-01
MOTOR SA376926-07
LOWER HANDLE577254-00
HANDLE UPPER577255-00
WING NUT577259-00
PARTS PACK577526-00
CLAMSHELL799361-03
COVER PLATE799364-01
BLADE CARRIER821111-01
WHEEL890717-01
Any queries please contact the European Service Support Group
Martin Cook : 0044 1753 500640
Steve Hurt : 0044 1753 500830
Martin Chadwick : 0044 1753 500540
Sean Holden : 0044 1753 500583
Please DO NOT order any parts until a Service Change Note is published.
30 March 2001 Page 1 of 1
