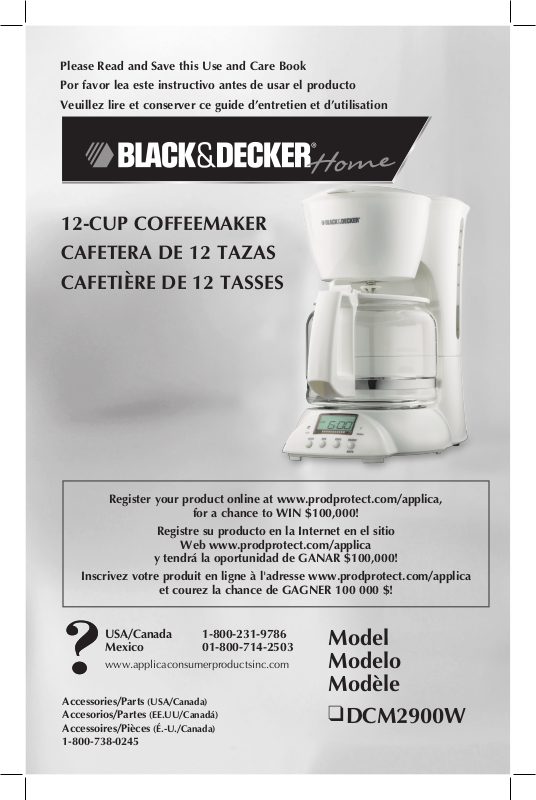

Please Read and Save this Use and Care Book Por favor lea este instructivo antes de usar el producto Veuillez lire et conserver ce guide d’entretien et d’utilisation

Model Modelo Modèle

❑

DCM2900W

USA/Canada 1-800-231-9786 Mexico 01-800-714-2503

www.applicaconsumerproductsinc.com

Accessories/Parts (USA/Canada) Accesorios/Partes (EE.UU/Canadá) Accessoires/Pièces (É.-U./Canada) 1-800-738-0245

for a chance to WIN $100,000!

Registre su producto en la Internet en el sitio

Web www.prodprotect.com/applica

y tendrá la oportunidad de GANAR $100,000!

Inscrivez votre produit en ligne à l'adresse www.prodprotect.com/applica

et courez la chance de GAGNER 100 000 $!

12-CUP COFFEEMAKER CAFETERA DE 12 TAZAS CAFETIÈRE DE 12 TASSES

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

q Read all instructions. q Do not touch hot surfaces. Use handle or knobs. q To protect against electric shock, do not place cord, plug or appliance

in water or other liquids.

q Close supervision is necessary when any appliance is used by or near

children.

q Unplug from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts and before cleaning the appliance.

q Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment. Or, call the appropriate toll-free number on the cover of this manual.

q The use of an accessory not evaluated for use with this appliance may

cause injuries.

q Do not use outdoors. q Do not let cord hang over the edge of table or counter, touch with hot

surfaces.

q Do not place on or near a hot gas or electric burner or in a heated oven. q To disconnect, turn any control to "off" then remove plug from wall

outlet.

q Keep the lid on the carafe when in use. q The carafe is designed for use with the appliance. It must never be used

on a range top.

q Do not set a hot carafe down on a wet or cold surface. q Do not use the carafe if the glass is cracked or has a loose or weakened

handle.

q Do not clean the carafe with abrasive cleansers, steel wool, or other

abrasive material.

q Do not use this appliance for anything other than intended use. q Scalding may occur if the lid is removed during the brewing cycles.

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW Warning : This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside.

Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be

provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

b) Longer detachable power-supply cords or extension cords are available and

may be used if care is exercised in their use.

c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,

2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and

3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

Product may vary slightly from what is illustrated.

How to Use

This product is for household use only.

GETTING STARTED

1. Remove all stickers, packing material, and literature.

2. When selecting a location for the unit, make sure to place it away from your cabinets.

Setting the Clock

1. Plug unit into a standard wall outlet. The digital clock displays 12:00 AM.

2. To change the time, press the HOUR button then the MIN button until you reach the desired time.

Tip: When selecting the time, you can press and hold the HOUR or MIN button to speed up the time sequence.

Note: If you unplug the unit or power is interrupted momentarily, the unit will remember the last set time, but after a few seconds, you will need to set the time again.

3. To reset the time, follow steps 1 and 2.

Cleaning Coffeemaker before First Use

1. To open the cover, grip the front and lift cover to bring it all the way back until it stays in the up position.

2. Pour cold water in the reservoir up to the 12-cup level mark on the water window. Do not overfill.

3. Grip the brew basket by the handle and insert inside brew

basket holder (B). Be sure brew basket is in position inside the brew basket holder, otherwise the cover will not close.

4. To close the one-piece cover, press down on the front

until it snaps into place.

Important: Make sure the cover snaps securely into place.

5. Place the carafe on the Keep Hot plate.

6. Plug in the unit and press the ON/OFF button. The POWER indicator light illuminates and brewing cycle begins.

7. When cycle is finished, press the ON/OFF button twice to turn off the unit. The POWER indicator light goes off.

8. Discard the water from the carafe and rinse the carafe, carafe lid, and brew basket in warm, sudsy water.

READY TO BREW COFFEE

1. Lift the one-piece cover to open.

2. Use water markings on carafe to fill water reservoir with cold water.

3. Insert a basket style paper filter into the brew basket.

4. Add ground coffee (we recommend one or two heaping tablespoons for every cup).

5. Insert brew basket into brew basket holder. Be sure brew basket is in position inside the brew basket holder, otherwise the cover will not close.

6. To close the cover, press down on the front until it snaps into place.

Important: Make sure the cover snaps securely into place.

7. Place the carafe on the Keep Hot plate.

1. One-piece cover

2. Showerhead

3. Water reservoir

4. Water window † 5. Carafe (Part# DCM2900W-03)

6. Nonstick Keep Hot plate

7. Control panel (see A for details) † 8. Removable brew basket (inside)

(Part# DCM2900W-01) † Consumer replaceable/removable parts

CONTROL PANEL

1. Clock display

2. Power indicator light

3. ON/Off and AUTO brew button

4. Program button

5. Minute button

6. Hour button

7. Auto brew indicator light































8. Plug in the unit and press the ON/OFF button. The POWER indicator light illuminates and brewing cycle beings.

9. Once the coffee has finished brewing: a. Stir it before serving to blend the flavors. b. Discard the coffee grounds left in the filter.

10. Remove the carafe to pour coffee.

11. Replace the carafe on the “Keep Hot” plate when not serving to keep coffee hot. The coffeemaker will keep coffee warm for 2 hours before it automatically shuts off.

BREWING COFFEE ANYTIME

1. Prepare your coffeemaker as instructed in steps 1-7 under Ready to Brew Coffee.

2. To program and set a time for the coffeemaker to begin brewing your coffee. a. Press the PROG button then press HOUR and MIN buttons to select a time. b. Press the ON/OFF and AUTO brew button once; the POWER indicator light

illuminates. c. Press the ON/OFF and AUTO brew button again; the AUTO indicator light

illuminates and AUTO appears on the digital clock display. d. To check the time set for AUTO brew, press the ON/OFF button once, then

press the PROG button, PROGRAM flashes on the digital display flashes PROGRAM and shows the preset time you selected.

3. At the preset time, the POWER indicator will illuminate, the AUTO light will go off and ON appears on the display, indicating the brewing cycle has started.

4. To cancel the AUTO brew, press the ON/OFF button; the AUTO indicator light goes off.

SNEAK-A-CUP® INTERRUPT FEATURE

While the coffee is brewing, the Sneak-a-Cup® feature allows you to pour a cup of coffee from the carafe. When finished pouring coffee, place the carafe under brew basket. The brewing process continues.

Important: To avoid possible overflow after removing the carafe, be sure to replace the carafe under the brew basket within 30 seconds.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Be sure the unit is unplugged and has cooled.

2. Open the cover.

3. To remove the brew basket, grip the handle and lift straight up.

4. Discard the paper filter with the coffee grounds.

5. Wash the brew basket and carafe with lid in dishwasher, top rack or wash by hand in warm, sudsy water.

6. Wipe the unit’s exterior surface, control panel and Keep Hot plate with a soft damp cloth.

7. Do not use abrasive cleansers or scouring pads. Never immerse the coffeemaker in water.

8. To clean the inside of the cover, open the cover and leave in the open position.

9. Pull out the water shower head from the locking tab, wipe surfaces with a damp cloth then push it back to insert firmly in place (C).

Mineral Deposits and Clogging

Mineral deposits left by hard water can clog your coffeemaker. Cleaning is recommended every 3 months.

1. Pour white vinegar into the water reservoir up to the 6-

cup level on the water window. Add cold water up to the 10-cup line.

2. Put a paper filter in the brew basket and close the cover. Set the empty carafe on the “Keep Hot” plate.

3. Turn on the coffeemaker and let half the cleaning solution brew into the carafe (till water level goes down to around “5”). Turn off the coffeemaker and let it soak for at least 15 minutes to soften the deposits.

4. Turn on the coffeemaker and brew the remaining cleaning solution into the carafe.

5. Turn off the coffeemaker; empty the carafe and discard the soiled filter.

6. Fill the reservoir with cold water to the 11-cup line, replace the empty carafe, then turn on the coffeemaker for a complete brew cycle to flush out the remaining cleaning solution. You may have to repeat this to eliminate the vinegar smell/taste.

7. Wash the brew basket and carafe as instructed in “Cleaning.”
