Black & Decker DCM25 User Manual
www.blackanddecker.ae
DCM25
ENGLISH

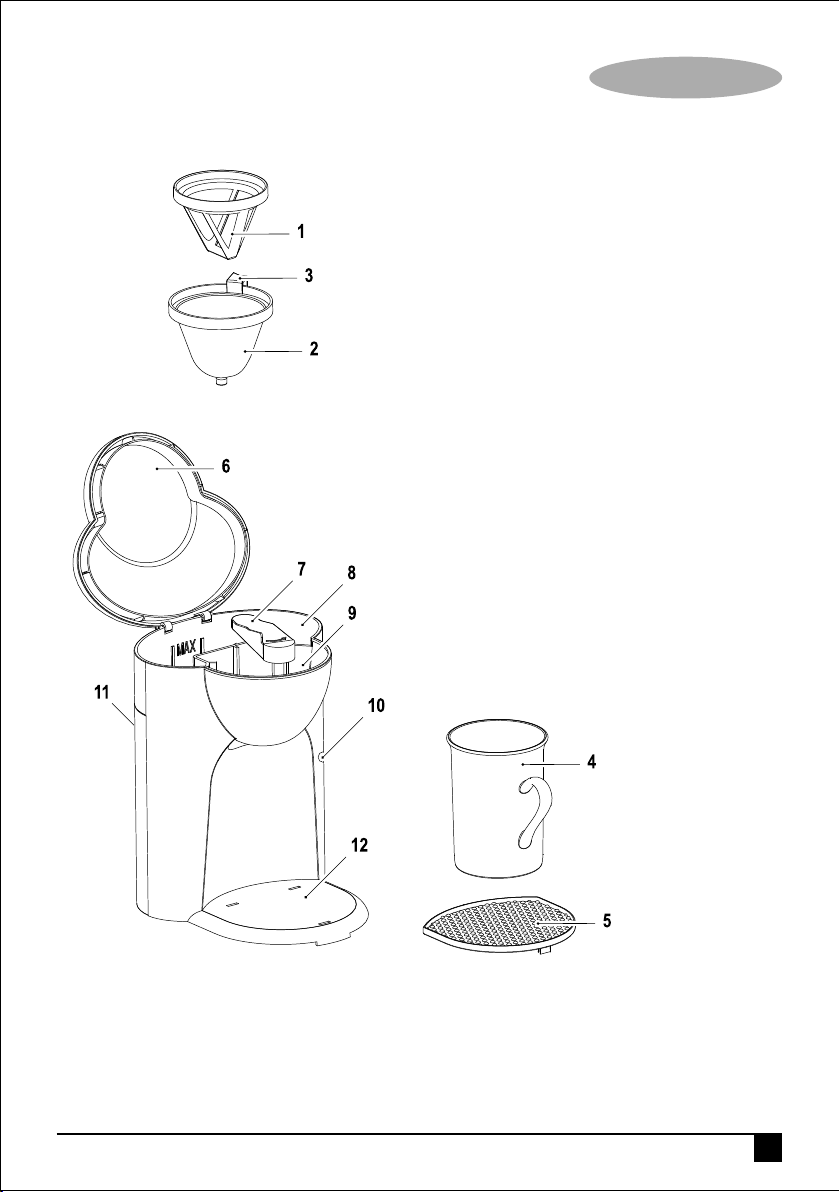

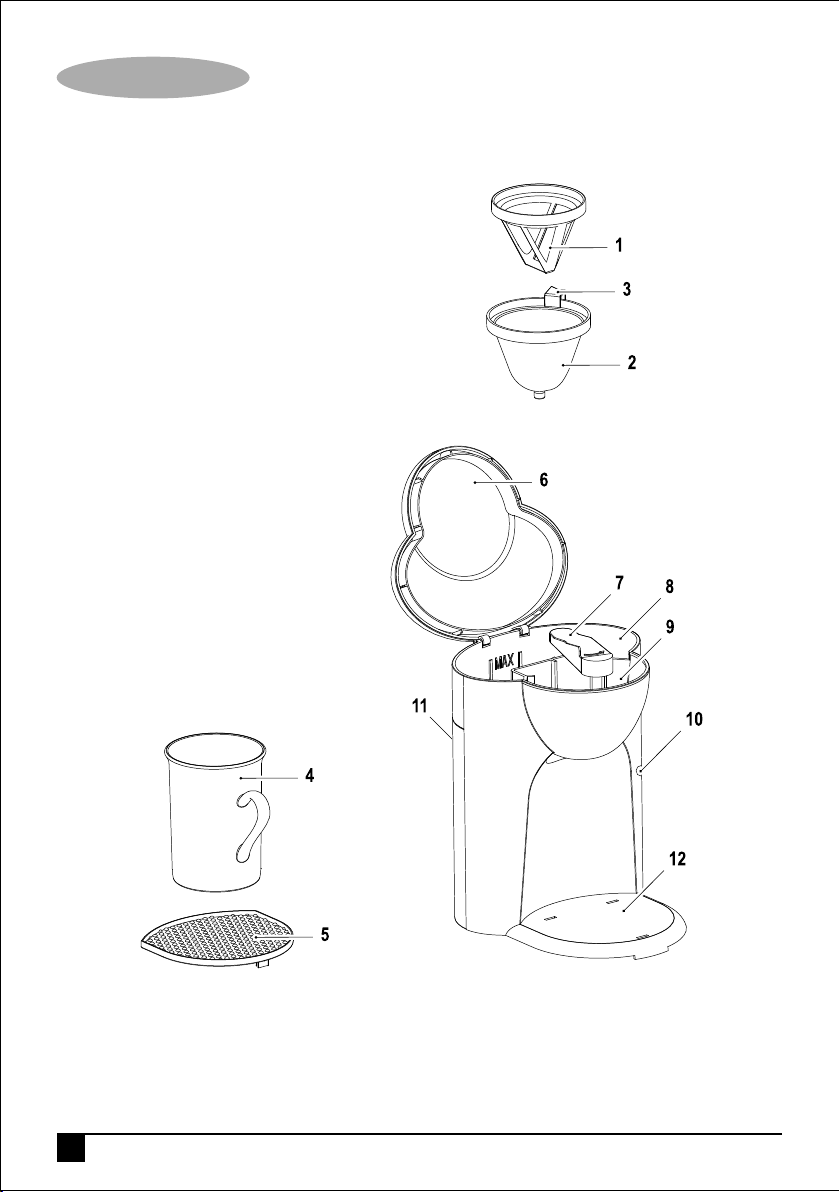

Parts Identification
1. Filter
2. Filter holder
3. Support clip
4. Cup
5. Removable stand
6. Lid
7. Water outlet
8. Water tank
9. Filter holder support
10. Indicator
11. On/Off Switch
12. Base
2
ENGLISH
Intended use
Your Black & Decker coffee maker has been
designed for making coffee.
This product is intended for household use only.
Thank you for choosing Black & Decker. We
hope that you will enjoy using this product for
many years.
Read this entire manual carefully
before using the appliance.
Safety instructions
Warning! When using mains-powered
appliances, basic safety precautions, including
the following, should always be followed to
reduce the risk of fire, electric shock and
personal injury.
• The intended use is described in this manual.
The use of any accessory or attachment or
the performance of any operation with this
appliance other than those recommended in
this instruction manual may present a risk of
personal injury.
• Retain this manual for future reference.
Using your appliance
• Always take care when using the appliance.
• Do not use the appliance outdoors.
• Never pull the power supply cord to
disconnect the plug from the socket. Keep the
power supply cord away from heat, oil and
sharp edges.
• If the power supply cord is damaged during
use, disconnect the appliance from the power
supply immediately. Do not touch the power
supply cord before disconnecting from the
power supply.
• Disconnect the appliance from the power
supply when not in use and before cleaning.
Safety of others
• This appliance is not intended for use by
persons (including children) with reduced
physical sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
After use
• Switch off, remove the plug from the socket
and let the appliance cool down before
leaving it unattended and before changing,
cleaning or inspecting any parts of the
appliance.
• Do not operate the appliance if your hands
are wet. Do not operate the appliance if you
are barefoot.
• Guide the power supply cord neatly so it
does not hang over the edge of a worktop
and cannot be caught accidentally or tripped
over.
• When not in use, the appliance should be
stored in a dry place. Children should not
have access to stored appliances.
Inspection and repairs
• Switch off the appliance before cleaning,
changing accessories or approaching parts
which move in use
3
ENGLISH
• Before use, check the appliance for
damaged or defective parts. Check for
breakage of parts, damage to switches and
any other conditions that may affect its
operation.
• Do not use the appliance if any part is
damaged or defective.
• Have any damaged or defective parts
repaired or replaced by an authorised repair
agent.
• Before use, check the power supply cord for
signs of damage, ageing and wear.
• Do not use the appliance if the power supply
cord or mains plug is damaged or defective.
• If the power supply cord or mains plug is
damaged or defective it must be repaired by
an authorised repair agent in order to avoid a
hazard. Do not cut the power supply cord
and do not attempt to repair it yourself.
• Never attempt to remove or replace any
parts other than those specified in this
manual.
Electrical safety
Before use, check that the mains voltage
corresponds to the voltage on the rating plate.
This product must be earthed. Always
check that the mains voltage
corresponds to the voltage on the rating plate.
• Appliance plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed (Class 1)
appliances. Unmodified plugs and matching
outlets will reduce the risk of electric shock.
Extension cables & class 1
product
• A 3 core cable must be used as your tool is
earthed and of class 1 construction.
• Up to 30m (100 ft) can be used without loss
of power.
• If the supply cord is damaged, it must be
replaced by the manufacturer or an
authorised Black & Decker Service Centre in
order to avoid a hazard.
Mains plug replacement
If a new mains plug needs to be fitted:
• Safely dispose of the old plug
• Connect the brown lead to the live terminal of
the new plug
• Connect the blue lead to the neutral terminal
• If the product is class I (earthed), connect the
green/yellow lead to the earth terminal.
Note: If your product is class II double insulated
(only 2 wires in the cord set), no connection is to
be made to the earth terminal.
Follow the fitting instructions supplied with good
quality plugs
Any replacement fuse must be of the same
rating as the original fuse supplied with the
product.
Warning! The above section on mains plug
replacement is for authorized service centre
personals.
4
ENGLISH
Additional safety instructions
for coffee makers
Warning! The lid may become hot during use.
Warning! Steam may escape from the unit.
• Allow the appliance to cool before fitting or
removing any parts and before cleaning.
• Do not immerse the appliance in liquid.
Use
Warning! Never use the appliance without
water in the reservoir.
Before first use
• Unpack the coffee maker and remove all
packaging, promotional materials and
stickers. Remove all printed documents.
• Check that your mains supply is the same as
the one indicated on the appliance.
• Position the appliance on a flat, stable work
surface, away from the edge and other
electrical appliances. Ensure that the coffee
maker is not positioned under any cupboards
or near any furnishings, wallpaper or similar
that could be damaged by hot steam.
• Wash all removable parts of the appliance in
warm, soapy water. Rinse and dry thoroughly
with a soft cloth. Do not use harsh/abrasive
cleaners or place any part of the appliance in
the dishwasher.
Warning! Never immerse the main body of the
appliance, cord set or plug in water or any other
liquid.
• We recommend that you first familiarise
yourself with all parts of the appliance before
using it for the first time. Do not fill with water
or connect to the mains supply when doing
this.
• To remove any remaining residue from the
manufacturing process, we recommend
operating the coffee maker as described in
the ‘ Use ’ section. This will flush the
appliance out. Use water only, do not add
coffee.
Note! Ensure that the coffee maker mains cord
does not overhang the edge of the worktop
Note! When the coffee maker is plugged in and
operated for the first time, there may be a small
amount of smoke and/or odour as the heating
elements warm up. This represents no danger
or malfunction with the product and should clear
after a couple of uses.
Adding coffee
• Place the filter (1) in the filter holder (2). Add
the desired amount of coffee.
• Open the lid (6).
• Rotate the water outlet (7) towards the back
of the appliance and place the filter holder
(2) in the filter holder support (9). Make sure
the support clip (3) on the filter holder (2) fits
securely over the recess on the right hand
side of the filter holder support (9).
• Rotate the water outlet (7) back towards the
front of the appliance so it is over the coffee
in the filter (1).
Adding water
Using the cup (4), fill the water tank (8) with the
desired quantity of COLD water.
5
ENGLISH
• Close the lid (6)
Note! Do not fill above the MAX mark in the
water tank.
Warning! DO NOT open the lid (6) whilst the
coffee maker is on. Hot water may be ejected.
Switching on and off
• To switch the appliance on, press the on/off
button (11).
• To switch the appliance off, press the on/off
button (11) again.
Brewing coffee
• Ensure that the removable stand (5) is fitted
into the base (13).
• Add coffee as described.
• Add water as described.
• Close the lid (6)
• Place the cup onto the removable stand.
• Switch the appliance on. (The indicator light
(12) on the right side of the appliance will
come on.)
• Remove the filter (1) and the filter holder (2)
from the filter holder support (9). Remove the
used coffee grounds from the filter.
• Remove the water outlet (7) by pulling it
upwards.
• Wash the cup (4), water outlet (7) filter holder
(2) and the filter (1) in hot, soapy water.
Rinse then dry all parts thoroughly then re-fit
refit them.
• Wipe the outside of the appliance with a
damp cloth.
De-scaling the appliance
If the appliance is used in an area with hard
water, it is advised to de-scale the appliance
when from time to time.
• Use a commercial de-scaling agent for coffee
makers, or use water and white vinegar as
follows:
• Fill the water tank (8) and add 3 teaspoons
of vinegar. Operate the appliance as for
making coffee until the reservoir is empty.
• Discard the used water and repeat the
procedure 2 or 3 times with fresh water.
Note!.This product does not have an anti drip
nozzle. Switch the appliance off and wait for the
coffee to stop flowing before removing the cup.
Cleaning and maintenance
Warning! Before cleaning and maintenance,
switch the appliance off and remove the plug
from the socket.
6
Technical data
DCM25
Voltage 220 – 240 Volts
(50-60 Hz)
Power 270-330W
Weight 0.748 kg
ENGLISH
Protecting the environment
Separate collection. This product must not
be disposed of with normal household
waste.
Should you find one day that your Black &
Decker product needs replacement, or if it is of
no further use to you, do not dispose of it with
other household waste. Make this product
available for separate collection.
• Black & Decker provides a facility for
recycling Black & Decker products once they
have reached the end of their working life.
This service is provided free of charge. To
take advantage of this service please return
your product to any authorised repair agent
who will collect them on our behalf.
• You can check the location of your nearest
authorised repair agent by contacting your
local Black & Decker office at the address
indicated in this manual. Alternatively, a list of
authorized Black & Decker repair agents and
full details of our after-sales service and
contact are available on the Internet at:
www.2helpU.com.
Warranty
Black & Decker is confident of the quality of its
products and offers an outstanding warranty.
This warranty statement is in addition to and in
no way prejudices your statutory rights.
The warranty is valid within the territories of the
Member States of the European Union and the
European Free Trade Area.
If a Black & Decker product becomes defective
due to faulty materials, workmanship or lack of
conformity, within 24 months from the date of
purchase, Black & Decker warranty to replace
defective parts, repair products subjected to fair
wear and tear or replace such products to ensure
minimum inconvenience to the customer unless:
The product has been used for trade,
professional or hire purposes;
The product has been subjected to misuse
or neglect;
The product has sustained damage
through foreign objects, substances or
accidents;
Repairs have been attempted by persons
other than authorised repair agents or
Black & Decker service staff.
To claim on the warranty, you will need to submit
proof of purchase to the seller or an authorised
repair agent. You can check the location of your
nearest authorised repair agent by contacting
your local Black & Decker office at the address
indicated in this manual.
Alternatively, a list of authorised Black & Decker
repair agents and full details of our after-sales
service and contacts are available on the Internet
at: www.2helpU.com.
7
Loading...
