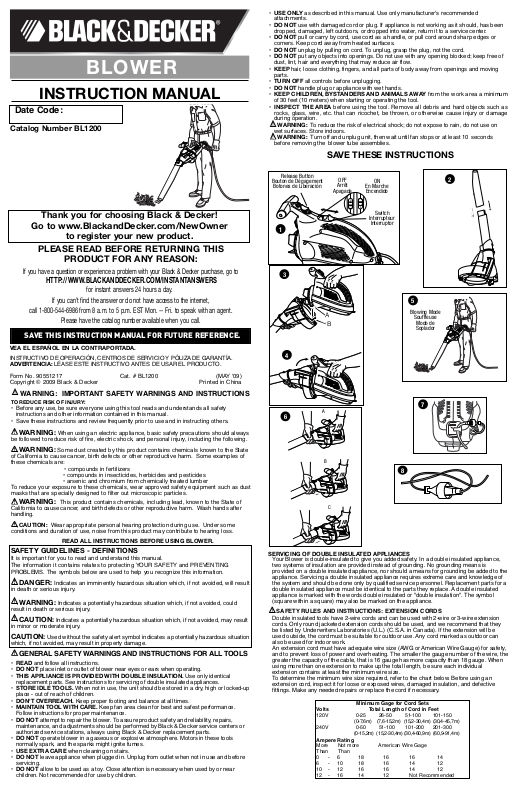

Black & Decker BL1200, 90551217 User Manual

WARNING: IMPORTANT SAFETY WARNINGS AND INSTRUCTIONS

TO REDUCE RISK OF INJURY:

• Before any use, be sure everyone using this tool reads and understands all safety instructions and other information contained in this manual.

• Save these instructions and review frequently prior to use and in instructing others.

WARNING: When using an electric appliance, basic safety precautions should always

be followed to reduce risk of fire, electric shock, and personal injury, including the following.

WARNING: Some dust created by this product contains chemicals known to the State

of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers

• compounds in insecticides, herbicides and pesticides

• arsenic and chromium from chemically treated lumber To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

WARNING: This product contains chemicals, including lead, known to the State of

California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

CAUTION: Wear appropriate personal hearing protection during use. Under some

conditions and duration of use, noise from this product may contribute to hearing loss.

READ ALL INSTRUCTIONS BEFORE USING BLOWER.

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result

in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could

result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result

in minor or moderate injury.

CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation

which, if not avoided, may result in property damage.

GENERAL SAFETY WARNINGS AND INSTRUCTIONS FOR ALL TOOLS

• READ and follow all instructions.

• DO NOT place inlet or outlet of blower near eyes or ears when operating.

• THIS APPLIANCE IS PROVIDED WITH DOUBLE INSULATION. Use only identical

replacement parts. See instructions for servicing of double insulated appliances.

• STORE IDLE TOOLS. When not in use, the unit should be stored in a dry, high or locked-up

place - out of reach of children.

• DON'T OVERREACH. Keep proper footing and balance at all times.

• MAINTAIN TOOL WITH CARE. Keep fan area clean for best and safest performance.

Follow instructions for proper maintenance.

• DO NOT attempt to repair the blower. To assure product safety and reliability, repairs,

maintenance, and adjustments should be performed by Black & Decker service centers or authorized service stations, always using Black & Decker replacement parts.

• DO NOT operate blower in a gaseous or explosive atmosphere. Motors in these tools

normally spark, and the sparks might ignite fumes.

• USE EXTRA CARE when cleaning on stairs.

• DO NOT leave appliance when plugged in. Unplug from outlet when not in use and before

servicing.

• DO NOT allow to be used as a toy. Close attention is necessary when used by or near

children. Not recommended for use by children.

Catalog Number BL1200

Release Button

Bouton de Dégagement

Botones de Liberación

Blowing Mode

Souffleuse

Modo de Soplador

En Marche

Encendido

OFF

Arrêt

Apagada

Switch

Interrupteur

Interruptor

INSTRUCTION MANUAL

BLOWER

Date Code:

• USE ONLY as described in this manual. Use only manufacturer's recommended attachments.

• DO NOT use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

• DO NOT pull or carry by cord, use cord as a handle, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.

• DO NOT unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• DO NOT put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair and everything that may reduce air flow.

• KEEP hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• TURN OFF all controls before unplugging.

• DO NOT handle plug or appliance with wet hands.

• KEEP CHILDREN, BYSTANDERS AND ANIMALS AWAY from the work area a minimum of 30 feet (10 meters) when starting or operating the tool.

• INSPECT THE AREA before using the tool. Remove all debris and hard objects such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation.

WARNING: To reduce the risk of electrical shock; do not expose to rain, do not use on

wet surfaces. Store indoors.

WARNING: Turn off and unplug unit, then wait until fan stops or at least 10 seconds

before removing the blower tube assemblies.

SAVE THESE INSTRUCTIONS

SERVICING OF DOUBLE INSULATED APPLIANCES

Your Blower is double-insulated to give you added safety. In a double insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double insulated appliance requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double insulated appliance must be identical to the parts they replace. Adouble insulated appliance is marked with the words double insulated or "double insulation". The symbol (square within a square) may also be marked on the appliance.

SAFETY RULES AND INSTRUCTIONS: EXTENSION CORDS

Double insulated tools have 2-wire cords and can be used with 2-wire or 3-wire extension cords. Only round jacketed extension cords should be used, and we recommend that they be listed by Underwriters Laboratories (U.L.) (C.S.A. in Canada). If the extension will be used outside, the cord must be suitable for outdoor use. Any cord marked as outdoor can also be used for indoor work.

An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety, and to prevent loss of power and overheating. The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size.

To determine the minimum wire size required, refer to the chart below. Before using an extension cord, inspect it for loose or exposed wires, damaged insulation, and defective fittings. Make any needed repairs or replace the cord if necessary.

Thank you for choosing Black & Decker!

Go to www.BlackandDecker.com/NewOwner

to register your new product.

PLEASE READ BEFORE RETURNING THIS

PRODUCT FOR ANY REASON:

If you have a question or experience a problem with your Black & Decker purchase, go to

HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS

If you can’t find the answer or do not have access to the internet,

call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. -- Fri. to speak with an agent.

Please have the catalog number available when you call.

for instant answers 24 hours a day.

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZADE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

Minimum Gage for Cord Sets

Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150

(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)

240V 0-50 51-100 101-200 201-300

(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)

Ampere Rating

More Not more American Wire Gage Than Than 0-6 18 16 16 14 6 - 10 18 16 14 12 10 - 12 16 16 14 12 12 - 16 14 12 Not Recommended

SAFETY WARNINGS AND INSTRUCTIONS: POLARIZED PLUG

To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This equipment must be used with a suitable polarized 2 wire or 3 wire extension cord. Polarized connections will fit together only one way. Make sure that the receptacle end of the extension cord has large and small blade slot widths. If the plug does not fit fully into the extension cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord does not fit fully into the outlet, contact a qualified electrician to install the

proper outlet. Do not change the tool plug or extension cord in any way.

BEFORE OPERATING

• SECURING POWER SUPPLY CORD - Secure the extension cord in the tool's built-in cord retainer as shown in Figure 7 or secure the power supply cord and a suitable extension cord as shown in Figure 8.

SWITCH

NOTE: The switch will not operate if the release button, shown in Figure 1, is depressed.

To turn the tool ON, slide the switch forward, as shown in Figure 1. To turn tool OFF, slide switch to the rear.

OPERATION

USE AS A BLOWER: ALWAYS WEAR SAFETY GLASSES, WEAR A FILTER MASK IF THE OPERATION IS DUSTY. USE OF RUBBER GLOVES AND SUBSTANTIAL FOOTWEAR IS RECOMMENDED WHEN WORKING OUTDOORS. FOR HOUSEHOLD USE ONLY.

• BLOWER MODE

Ensure that the unit is switched OFF and is disconnected from the power supply. Assemble blow tube as shown in Figure 2. (This only needs to be done the first time you assemble the unit.)

WARNING: When turning the tool off for tube installation or any other reason, wait 10

seconds for the fan to stop rotating before disassembly.

Attach the blower tube assembly (The assembly includes the blower tubes, the fan chamber and the blower air speed control mechanism) to the front of the tool, as shown in Figure 3 by inserting point A into the matching recess marked point B, also shown in Figure 3. Swing the tube up to engage the lock, as shown in Figure 4.

NOTE: The lock will not engage if the ON/OFF switch is in the forward (ON) position.

Hold the end of the blower tube approximately 7 inches (180mm) above the ground and turn the tool ON. Using a sweeping motion, from side to side, advance slowly keeping the accumulated debris (leaves,grass clippings etc.) in front of you, as shown in Figure 5.

• BLOWER AIR SPEED CONTROL

Your Blower has a variable air speed feature that allows you to select the air speed that best fits your needs. To adjust the air speed, simply slide the collar. This will allow movement over the full range of 1 3/4 in.(44.5mm).With the slide collar in the "A" position, as shown in Figure 6, the maximum blower speed will be 200 mph (320 kph). When pushed forward to position "C" ( as far from the tool housing as possible; about 1 3/4 in.{44.5mm}) the speed will be approximately 140 mph (225 kph). Position "B" (midway between the two) permits infinite adjustment between positions "A" and "C". A little practice will help you determine what is the best speed for your application.

• REMOVING THE BLOWER TUBE ASSEMBLY

Switch off the unit and unplug from the outlet. To disconnect the blower tube assembly from the tool, depress the release button, shown

in Figure 1, ensuring that the tube does not fall to the ground.

NOTE: The release button will not depress if the ON/OFF switch is in the forward (ON) position.

MAINTENANCE

• CLEANING AND STORAGE

TURN OFF AND UNPLUG TOOL! (Unplug extension cord at power source.)

CAUTION: DO NOT POUR OR SPRAY WATER ON THE TOOL IN AN ATTEMPT TO

CLEAN.

Do not store the tool on or adjacent to fertilizers or chemicals. Such storage can cause rapid corrosion of the metal parts.

Use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts.

ACCESSORIES

Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call:

1-800-544-6986).

WARNING: The use of any accessory not recommended for use with this tool could be

hazardous.

SERVICE INFORMATION

All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under "Tools—Electric" or call: 1-

800-544-6986 or visit www.blackanddecker.com

FULL TWO-YEAR HOME USE WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways.

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges.

The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required.Black & Decker owned and authorized Service Centers are listed under "Tools-Electric" in the yellow pages of the phone directory.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for warranty information.

TROUBLESHOOTING

Problem Possible Cause Possible Solution

• Unit will not start. • Cord not plugged in. • Plug tool into a working outlet.

• Circuit fuse is blown. • Replace circuit fuse. (If the product repeatedly causes the circuit fuse to

blow, discontinue use immediately and have it serviced at a Black & Decker service center or authorized servicer.)

• Circuit breaker is tripped. • Reset circuit breaker. (If the product repeatedly causes the circuit breaker to trip, discontinue use immediately and have it serviced at a Black & Decker service center or authorized servicer.)

• Cord or switch is • Have cord or switch replaced at Black

damaged. & Decker Service Center or Authorized

Servicer

For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK & DECKER help line at

1-800-544-6986.

MODE D’EMPLOI

SOUFFLEUR

N° de catalogue : BL1200

AVERTISSEMENT : AVERTISSEMENTS DE SÉCURITÉ ET

DIRECTIVES DE PREMIÈRE IMPORTANCE

AFIN DE RÉDUIRE LES RISQUES DE BLESSURES :

• Avant toute utilisation, s’assurer que tous ceux qui se servent de l’outil lisent et comprennent toutes les mesures de sécurité et tout autre renseignement contenus dans le présent guide.

• Conserver ces mesures et les relire fréquemment avant d’utiliser l’outil ou d’en expliquer le fonctionnement à d’autres personnes.

AVERTISSEMENT : Afin de réduire les risques d’incendie, de secousses

électriques ou de blessures lorsqu’on utilise des outils électriques, il faut toujours respecter les mesures de sécurité suivantes.

AVERTISSEMENT : Le produit génère de la poussière qui peut renfermer des

produits chimiques. Selon l’état de la Californie, ces produits chimiques peuvent causer le cancer ainsi que des malformations congénitales, et ils présentent d’autres dangers au système reproductif humain. Voici des exemples de tels produits chimiques :

• les composés d’engrais;

• les composés d’insecticides, d’herbicides et de pesticides;

• l’arsenic et le chrome provenant de bois traité. Afin de minimiser les risques, porter de l’équipement de sécurité approuvé comme des masques antipoussières spécialement conçu pour filtrer les particules microscopiques.

AVERTISSEMENT : Le produit renferme des produits chimiques, dont du plomb.

Selon l’état de la Californie, ce produit chimique peut causer le cancer ainsi que des malformations congénitales, et il présente d’autres dangers au système reproductif humain. Se laver les mains après l’utilisation.

MISE EN GARDE : Porter un dispositif approprié de protection de l’ouïe lors de l’utilisation du produit. Dans certaines conditions et durées d’utilisation, le produit peut émettre un niveau de bruit provoquant la perte de l’ouïe.

LIRE TOUTES LES DIRECTIVES AVANT D’UTILISER L’OUTIL.

LIGNES DIRECTRICES EN MATIÈRE DE SÉCURITÉ - DÉFINITIONS

Il est important que vous lisiez et compreniez ce mode d’emploi. Les informations qu’il contient concernent VOTRE SÉCURITÉ et visent à ÉVITER TOUT PROBLÈME. Les symboles ci-dessous servent à vous aider à reconnaître cette information.

DANGER : Indique une situation dangereuse imminente qui, si elle n’est pas évitée,

causera la mort ou des graves blessures.

AVERTISSEMENT : Indique une situation potentiellement dangereuse qui, si elle n’est pas évitée, pourrait causer la mort ou de graves blessures.

MISE EN GARDE : Indique une situation potentiellement dangereuse qui, si elle n’est pas évitée, pourrait causer des blessures mineures ou modérées.

MISE EN GARDE : Utilisé sans le symbole d’alerte à la sécurité, indique une situation potentiellement dangereuse qui, si elle n’est pas évitée, peut résulter en des dommages à la propriété.

AVERTISSEMENTS ET DIRECTIVES DE SÉCURITÉ GÉNÉRALES POUR TOUS LES OUTILS.

• LIRE et respecter toutes les mesures de sécurité.

• NE PAS porter l’entrée ou la sortie du tube de souffleur à proximité des yeux ou des oreilles

lorsque l’outil fonctionne.

• L’OUTIL EST MUNI D’UNE DOUBLE ISOLATION. Utiliser seulement des pièces de

rechange identiques. Voir les directives sur l’entretien des outils à double isolation.

• RANGER LES OUTILS NON UTILISÉS dans un endroit sec, situé en hauteur ou fermé à

clé, hors de portée des enfants.

• NE PAS DÉPASSER SA PORTÉE. Toujours demeurer dans une position stable et garder

son équilibre en tout temps.

• BIEN ENTRETENIR L’OUTIL. Garder le ventilateur propre afin d’optimiser et de sécuriser

le rendement. Suivre les directives d’entretien.

See ‘Tools-

Electric’

– Yellow Pages –

for Service &

Sales

Imported by

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A.

Merci d’avoir choisi Black & Decker!

Consulter le site Web

www.BlackandDecker.com/NewOwner

pour enregistrer votre nouveau produit.

À LIRE AVANT DE RETOURNER CE PRODUIT

POUR QUELQUE RAISON QUE CE SOIT :

Si des questions ou des problèmes surgissent après l’achat d’un produit Black & Decker,

consulter le site Web

HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS

Si la réponse est introuvable ou en l’absence d’accès à Internet, composer le

1-800-544-6986 de 8 h à 17 h HNE, du lundi au vendredi, pour parler avec un agent.

Prière d’avoir le numéro de catalogue sous la main lors de l’appel.

pour obtenir des réponses instantanément 24 heures par jour.

CONSERVER CE MANUEL POUR UN USAGE ULTÉRIEUR.
