Black & Decker BDH1720SM User Manual

STEAM MOP

INSTRUCTION MANUAL

CATALOG NUMBER

BDH1720SM

Thank you for choosing Black & Decker! To register your new product, go to

www.BlackandDecker.com/NewOwner

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your Black & Decker purchase, go to

http://www.blackanddecker.com/instantanswers

If you can’t find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

VEA EL ESPANOL EN LA CONTRAPORTADA.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

It is important for you to read and understand this manual. The information it contains

relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols

below are used to help you recognize this information.

DANGER: Indicates an imminently hazardous situation which, if not avoided,

SAFETY GUIDELINES - DEFINITIONS

will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION: Indicates a potentially haz ard ous situation which, if not avoided,

may result in minor or mod er ate injury.

NOTICE: Used without the safety alert symbol indicates potentially hazardous

situation which, if not avoided, may result in property damage.

INTENDED USE

Your Black & Decker steam mop has been designed for sanitizing and cleaning the following SEALED floors: hardwood, laminate, linoleum, vinyl, ceramic tile, stone, and marble. For floor use only; do not use the unit upside down. This appliance is intended for indoor household use only.

SAFETY INSTRUCTIONS

WARNING:

and instructions listed below may result in electric shock, fire and/or serious injury.

Read all safety warnings and all instructions. Failure to follow the warnings

WARNING: When using electrical appliances, basic safety precautions, including

the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

SAFETY WARNINGS AND INSTRUCTIONS: POLARIZED PLUGS

To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This equipment must be used with a suitable polarized 2 wire or 3 wire extension cord. Polarized connections will fit together only one way. Make sure that the receptacle end of the extension cord has large and small blade slot widths. If the plug does not fit fully into the extension cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord does not fit fully into the outlet, contact a qualified electrician to install the proper outlet. Do not change the tool plug or extension cord in any way.

Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150 (0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)

240V 0-50 51-100 101-200 201-300 (0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)

Ampere Rating

More Not more American Wire Gauge Than Than 0 - 6 18 16 16 14 6 - 10 18 16 14 12 10 - 12 16 16 14 12 12 - 16 14 12 Not Recommended

Minimum Gauge for Cord Sets

• Read all of this manual carefully before using the appliance.

• The intended use is described in this manual. The use of any accessory or attachment

or the performance of any operation with this appliance other than those recommended

in this instruction manual may present a risk of personal injury.

• Retain this manual for future reference.

USING YOUR APPLIANCE

• Do not direct steam at people, animals, electrical appliances or electrical outlets.

• Do not expose to rain.

• Do not immerse the appliance in water.

• Do not leave the appliance unattended. Keep children away from unit while in use.

• Do not leave the appliance connected to an electrical outlet when not in use.

• Never pull the power cord to disconnect the appliance from the socket. Keep the

appliance cord away from heat, oil and sharp edges.

• Do not handle steam cleaner with wet hands.

• Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around

sharp corners or expose cord to heated surfaces. Do not use appliance in an enclosed space filled with vapor given off by oil-based paint

•

thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapors.

• Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or other

delicate, steam-sensitive materials.

• Do not use on any unsealed hard floor surfaces. Additionally, on surfaces that have been

treated with wax or some no-wax floors, the sheen may be removed by the heat and steam action. It is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend that you check the use and care instructions from the floor manufacturer.

• Never put de-scaling, aromatic, alcoholic or detergent products into the steam mop, as

this may damage it or make it unsafe for use. If the circuit breaker activates while using the steam function, discontinue product use

•

immediately and contact the customer support center. (Beware of the risk of electrical shock.)

• The appliance emits very hot steam to sanitize the area of use. This means that the

steam head and cleaning pads get very hot during use.

CAUTION:

changing the accessories on your steam mop. Do not wear slippers or open-toed footwear.

• Steam may escape from the appliance during use.

• Care should be taken when using this appliance. DO NOT touch any parts which may

become hot during use.

Always wear suitable shoes when using your steam mop and when

AFTER USE

• Unplug the appliance and allow to cool down on resting mat before cleaning.

• When not in use, the appliance should be stored in a dry place.

• Children should not have access to stored appliances.

INSPECTION AND REPAIRS

• Unplug the appliance and allow to cool down on resting mat before performing any

maintenance or repairs.

• Before use, check the appliance for damaged or defective parts. Check for breakage of

parts, damage to switches and any other conditions that may affect its operation.

• Regularly check the power cord for damage.

• Do not use the appliance if any part is damaged or defective.

• Have any damaged or defective parts repaired or replaced by an authorized repair agent.

• Never attempt to remove or replace any parts other than those specified in this manual.

SAFETY OF OTHERS

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

RESIDUAL RISKS

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use, etc. Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

• Injuries caused by touching any moving parts.

• Injuries caused by touching any hot parts.

• Injuries caused when changing any parts or accessories.

• Injuries caused by prolonged use of the appliance. When using any appliance for

prolonged periods ensure you take regular breaks.

FUNCTIONAL DESCRIPTION

1. ON/Off Switch

2. SmartSelect

Dial

3. Removable Water Tank

4. Handle

5. Steam Head

Micro-Fiber Cleaning Pad

7. Resting mat

8. Bottom Cord Hook

9. Top Cord Hook

10. Hanging Bracket

ASSEMBLY

NOTICE: Each steam mop is 100% tested in the factory to ensure product

performance and safety. When assembling your new steam mop for the first time you may notice water residue inside of the unit.

WARNING: Before attempting any of the following operations, make sure that the

appliance is switched off and unplugged and that the appliance is cold and contains minimal or no water.

ATTACHING THE HANDLE - Fig. B& I

• With the cord hooks (8 & 9) toward the back of the

appliance, slide the bottom end of the handle tube (4) into the top end of the steam mop body (11) until it is firmly seated and clicks into place.

ATTACHING THE STEAM HEAD - Fig. C

• Slide the bottom end of the steam mop body (11)

onto the steam head (5) until it clicks into place.

• The steam head can be removed from the steam

mop body by pressing the steam head release button (12) and pulling the steam mop body (11) off the steam head (5).

ATTACHING THE WATER TANK

• Clip the water tank (3) onto the handle (4).

• Slide the water tank down into the steam mop body

(11), ensure that the water tank is firmly seated.

ATTACHING A CLEANING PAD - Fig. D

Replacement cleaning pads are available from your Black & Decker dealer (cat. no. SMP20).

• Place a micro-fiber cleaning pad (6) on the

floor with the ‘hook & loop’ side facing up.

• Raise the steam mop off the resting mat

(7) and press it down onto the cleaning pad (6). You are now ready to steam clean and sanitize your floor.

NOTICE: Always place the steam mop on

the resting mat (7) with the handle (4) in the upright position when stationary and make sure the steam mop is turned off when not in use.

REMOVING A CLEANING PAD - Fig. E

CAUTION: Always wear suitable shoes

when changing the cleaning pad on your steam mop. Do not wear slippers or open-toed footwear.

• Return the handle (4) to the upright position

and turn the steam mop ‘OFF’.

• Place the steam mop on the resting mat and

wait until it cools down. (approximately five minutes)

•

Place the front of your shoe onto the cleaning pad removal tab (13) and press down firmly.

• Lift the steam mop up off the cleaning pad.

NOTICE:

upright position when stationary and make sure the steam mop is turned off when not in use.

Always place the steam mop on the resting mat (7) with the handle (4) in the

FILLING THE WATER TANK - Fig. F & G

This Steam Mop incorporates an anti-calcium system to help prolong the life of the system.

NOTICE: The water tank is conveniently

removable for easier use.

NOTICE: Fill the water tank with regular

tap water.

NOTICE: In areas of very hard water, the

use of de-ionized water is recommended.

WARNING: Do not overfill the tank.

Only fill to bottom of hole with water tank in vertical position.

•

Ensure that the appliance is switched off and the power cord is disconnected from the power supply.

• Place the steam mop on the resting mat (7)

with the handle (4) in the upright position.

• Remove the water tank (3) by pulling it upwards.

• Open the filler cap (14) by lifting it up.

• Fill the water tank (3) with water to the bottom

of the hole with tank in vertical position.

• Close the filler cap (14).

• Re-install the water tank onto the steam

mop body (11) and ensure it is firmly seated.

NOTICE: Always empty the water tank

after use.

OPERATION

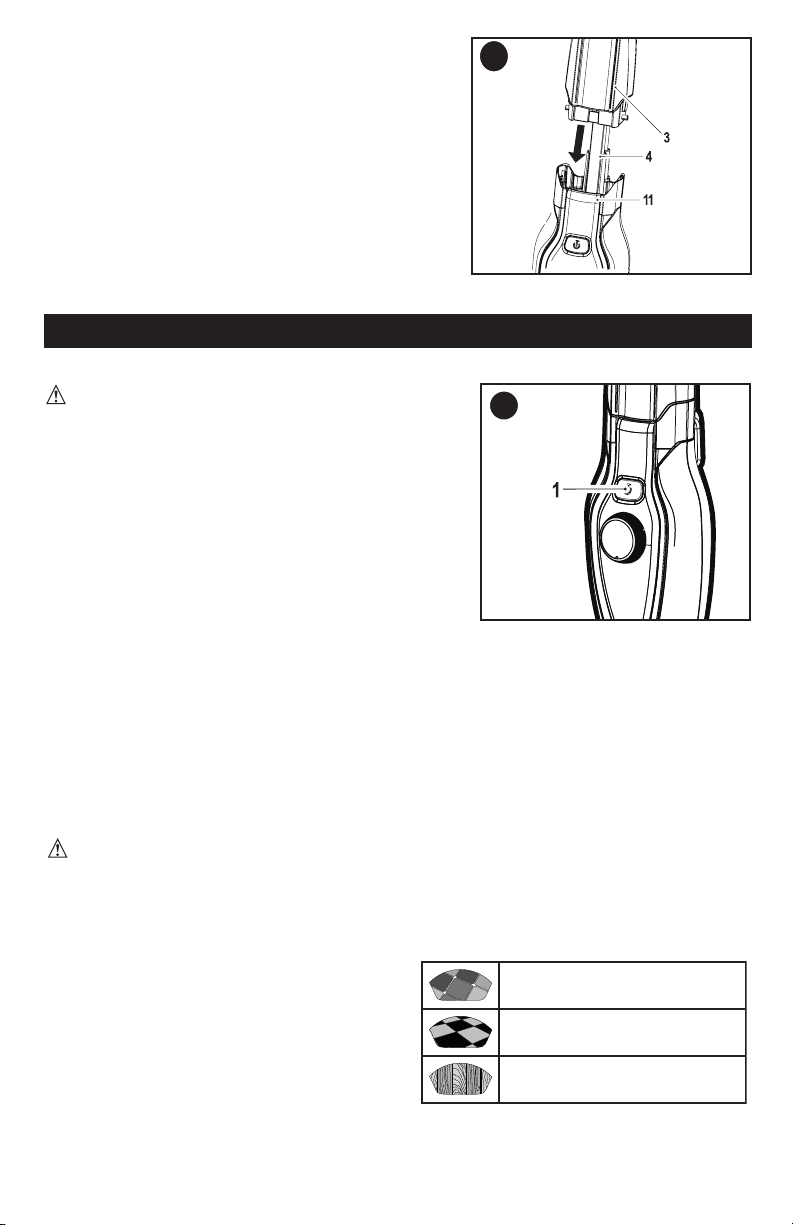

SWITCHING ON AND OFF - Fig. H

CAUTION: FOR FLOOR USE ONLY;

DO NOT USE THE UNIT UPSIDE DOWN.

NOTICE:

turned on the water reservoir will glow red. Once the steam mop is ready to use the water reservoir will glow blue. 15 seconds for the steam mop to heat up.

• To switch the appliance on, press the ON/ OFF button (1).

• To switch the appliance off, press the ON/ OFF button.

NOTICE:

Always place the steam mop on the resting mat (7) with the handle tube (4) in the upright position when stationary and make sure the steam mop is turned off when not in use.

When the steam mop is first

It takes approximately

Never leave the steam mop in one spot on any surface for any period of time.

NOTICE: Always empty the water tank after use.

SmartSelectTM Dial

The steam mop is equipped with a SmartSelectTM dial (2) which shows various hard floor surface cleaning applications. They are used to select the correct operating mode for your particular hard floor surface.

NOTICE: Do not use on any unsealed hard floor surfaces. Additionally, on surfaces

that have been treated with wax or some no wax floors, the sheen may be removed by the heat and steam action. It is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend that you check the use and care instructions from the floor manufacturer.

Using the SmartSelectTM dial (2), choose from one of the following applications:

The steam mop will select the correct volume of steam required for your particular cleaning operation.

NOTICE: This unit will kill 99.9% of bacteria

and germs when used in accordance with this manual and with the micro fiber pad fitted and a continuous run time of 90 seconds.

HINTS FOR OPTIMUM USE

GENERAL USE

CAUTION: Never use the steam mop without first attaching a cleaning pad. WARNING: It is important to monitor the water level in the water tank. To refill the

water tank and continue to sanitize/ clean, see the Filling Water Tank section.

CAUTION:

time. Always place the steam mop on the resting mat (7) with the handle (4) in the upright position when stationary and make sure the steam mop is turned off when not in use.

• Alwaysvacuumorsweepthefloorbeforeusingthesteammop.

• The easiest way to use the steam mop is to tilt the handle to a 45˚ angle and clean

slowly, covering a small area at a time.

• Donotusechemicalcleanerswithyoursteammop. To remove stubborn stains from vinyl or linoleum floors, you can pre-treat them with a mild detergent and some water before using the steam mop.

Never leave the steam mop in one spot on any surface for any period of

STEAM CLEANING

• Place a cleaning pad (6) on the floor with the ‘hook & loop’ side facing up.

•

Raise the steam mop off the resting mat (7) and lightly press it down onto the cleaning pad.

• Place the steam mop on the resting mat.

• Plug the steam mop electric cord into the outlet.

•

Press the ON/OFF button (1). It takes approximately 15 seconds for the steam mop to heat up.

• Rotate the SmartSelectTM dial (2) until the required setting is reached.

• Pulling the handle (4) back will activate the steam pump. After a few seconds steam will

start to come out of the steam head.

NOTICE: If the system has been run dry it may take up to 30 seconds to prime the

system on first use.

• It takes a few seconds for steam to enter the cleaning pad. The steam mop will now

glide easily over the surface to be sanitized/cleaned.

•

Push and pull the steam mop slowly across the floor to thoroughly steam clean each section.

NOTICE: During use you may turn off the steam pump by returning the handle to

the upright position, this convenient feature will allow you to place the steam mop on the resting mat for a short time so that you may move items or furniture, then continue cleaning without the need to switch the appliance off.

• When you have finished using the steam mop, return the handle (4) to the upright

position and turn it ‘OFF’, place it on the resting mat (7) and wait until the steam mop cools down. (approximately five minutes)

AFTER USE - Fig. I

• Return the handle (4) to the upright position and turn the steam mop ‘OFF’.

• Place the steam mop on the resting mat (7) and wait until the steam mop cools down.

(approximately five minutes)

• Unplug the steam mop from the wall outlet.

• Empty the water tank (3).

• Remove the cleaning pad (6) and wash it so that it is

ready for the next use. (Take care to follow the wash care instructions printed on the cleaning pad).

• Wrap the electric cord around the cord hooks (8 & 9).

NOTICE: The top cord hook rotates to easily release the

cord for the next use.

• Place steam mop on the resting mat (7) for storage.

NOTICE: With the handle (4) in the upright position, the

cord neatly wrapped around the cord hooks (8 & 9), your steam mop will stand on its own for storage. Alternatively there is a hanging bracket built into the hand grip which will allow your steam mop to be hung from a suitable hook on the wall. Always ensure that your wall hook is capable of supporting the weight of the steam mop safely.

MAINTENANCE AND CLEANING

Your Black & Decker corded appliance has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper appliance care and regular cleaning.

WARNING: Before performing any maintenance or cleaning on corded appliances

switch off and unplug the appliance.

• Clean your appliance using a soft damp cloth. Never let any liquid get inside the

appliance; never immerse any part of the appliance into a liquid. IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts.

•

For stubborn marks you can use a mild solution of soap and water to dampen your cloth.

CARE OF THE CLEANING PADS NOTICE:

Wash care instructions - Machine wash warm 140°F (60°C) - No bleach - No fabric

softener - Air dry only - Allow to dry fully before re-use.

Follow the cleaning instructions printed on the label of your cleaning pad.

7I8

ACCESSORIES

Recommended accessories for use with your appliance are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

WARNING: The use of any accessory not recommended for use with this

appliance could be hazardous.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

• Unit will not start. • Cord not plugged in. • Plug appliance into a working

outlet.

• Main switch not on. • Turn main switch on.

• Floor head not correctly • Ensure floor head is correctly

fitted. attached.

• Circuit fuse is blown. • Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced at a Black & Decker service center or authorized servicer.)

• Circuit breaker is tripped. • Reset circuit breaker. (If the product repeatedly causes the circuit breaker to trip, discontinue use immediately and have it serviced at a Black & Decker service center or authorized servicer.)

• Cord or switch is • Have cord or switch replaced damaged. at a Black & Decker Service Center or Authorized Servicer.

• Mop will not make steam. • No water in water tank. • Add water to the water tank.

• Tank not fitted correctly. • Ensure tank is fully attached and

seated.

• Mop leaves water on floor. • Cleaning pad is too wet. • Unplug unit from power outlet

and change the micro-fiber cleaning pad.

• Mop left spot on floor. • Mop left in one spot too • Never leave the steam mop on

long. the floor with a damp or wet cleaning pad still attached when not in use.

• Hard water. • Use distilled water.

For assistance with your product, visit our website www.blackanddecker.com for the

location of the service center nearest you or call the BLACK & DECKER help line at

1-800-544-6986.

SERVICE INFORMATION

All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under “Tools—Electric” or call: 1-800-544-6986 or visit www.blackanddecker.com

LIMITED TWO-YEAR HOME USE WARRANTY

Black & Decker (U.S.) Inc. warrants this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than Black & Decker and its Authorized Service Centers. A defective product meeting the guarantee conditions set forth herein will be replaced or repaired at no charge in either of two ways:

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer).Returns should be made within the time period of the retailer’s policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at Black & Decker’s option. Proof of purchase may be required. Black & Decker owned and authorized service centers are listed under “Tools–Electric” in the yellow pages of the phone directory or online at

www.blackanddecker.com.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other warranties, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286 U.S.A.

See ‘Tools-Electric’

– Yellow Pages –

for Service & Sales

bAlAi à vAPEur

MODE D’EMPLOI

N° DE CATALOGUE

BDH1720SM

Merci d’avoir choisi Black & Decker! Consulter le site Web www.BlackandDecker.com/NewOwner pour enregistrer votre nouveau produit.

À LIRE AVANT DE RETOURNER CE PRODUIT POUR QUELQUE RAISON QUE CE SOIT :

Si des questions ou des problèmes surgissent après l’achat d’un produit Black & Decker, consulter le site Web www.blackanddecker.com/instantanswers pour obtenir des réponses instantanément 24 heures par jour. Si la réponse est introuvable ou en l’absence d’accès à l’Internet, composer le 1 800 544-6986 de 8 h à 17 h HNE, du lundi au vendredi, pour parler avec un agent. Prière d’avoir le numéro de catalogue sous la main lors de l’appel.

Pour l´achat d´un filtre de rechange composer le 1-888-678-7278

CONSERVER CE MODE D’EMPLOI POUR UN USAGE ULTÉRIEUR.

pour usage domestique seulement.

+ 22 hidden pages
