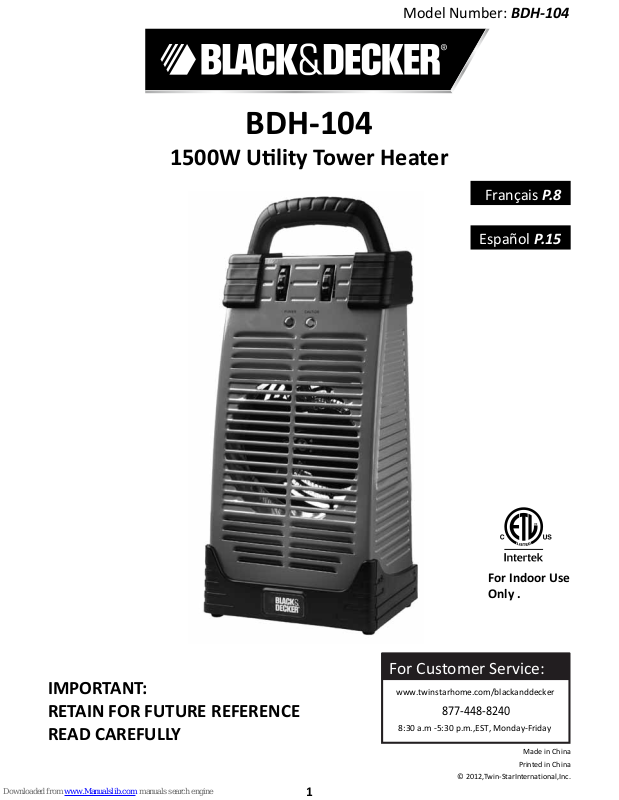

Black & Decker BDH-104 User Manual
1
Français P.8
Español P.15
Model Number: BDH-104
BDH-104
1500W Ulity Tower Heater
For Indoor Use
Only .
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
Made in China
Printed in China
© 2012,Twin-StarInternational,Inc.
www.twinstarhome.com/blackanddecker
877-448-8240
8:30 a.m -5:30 p.m.,EST, Monday-Friday
For Customer Service:
2
Consumer Safety Informaon
Warning: If the information in this manual is not followed exactly, an electric shock or fire may result
causing property damage, personal injury or loss of life.
Notice: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
Notice: For Household use only.
Notice: Read all instructions before use.
Voltage Frequency Wattage (Max) Max. Amperage
120 V~ 60 Hz 1500W 12.5A
Product Specicaons
Safety Terms Used in this Manual
Danger: Indicates an imminently hazardous situation, which if not avoided, will result in death
or serious injury.
Warning: Indicates a potentially hazardous situation, which, if not avoided, will result in death or
serious injury.
Caution: Indicates a potentially hazardous situation, which, if not avoided, could result in death or
serious injury.
Notice: Addresses practices not related to personal injury, such as product and/or property damage.
3
When using electrical appliances, basic precautions should always be followed to reduce
the risk of fire, electrical shock, and injury to persons including the following: READ ALL
INSTRUCTIONS BEFORE USE.
1. Keep the product out of the reach of children and pets. This product is not intended
for use by children. Extreme caution is necessary when any heater is used near
children or the physically challenged and whenever the heater is left operating
and unattended.
2. Do not let bare skin touch hot surfaces, as heater is hot! To avoid burns, use the
handle when moving this heater. Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from all sides of
the heater.
3. Always unplug the heater when not in use.
4. Do not use this product in bathrooms, laundry areas, or similar damp/wet indoor
locations. Do not place the product where it may fall into a bathtub or other
water container.
5. Do not run the power cord under carpeting or cover it with throw rugs, runners, or
similar coverings. Arrange the cord away from traffic areas where it will not be
tripped over.
6. To disconnect the product from an electrical outlet, turn any controls to the Off
position, and then pull directly on the plug to remove it from the outlet; do not pull
on the power cord.
7. Do not insert or allow foreign objects to enter any ventilation or exhaust opening of
the product as this may cause electric shock or fire, or damage the heater.
8. Do not block air intakes or exhaust, as this may cause a risk of fire. Do not use the
product on soft surfaces, such as a bed, where openings may become blocked.
9. Do not use this product in an area where gasoline, paint, or flammable liquids are
used or stored, as this product has hot and arcing or sparking parts inside.
10. Do not place the product near a bed because objects, such as pillows or blankets, can
fall off and be ignited by the product.
11. Use this product only as described in this manual. Any other use not recommended
by the manufacturer may cause fire, electric shock, or injury to persons.
12. Do not immerse or expose the power cord, plug, or product to water or other liquids.
If the product falls into water, immediately unplug it from the electrical outlet; do not
touch or reach into the water. If water or other liquids reach any internal areas of this
product, permanently discontinue its use.
13. Ensure the product is unplugged from the electrical outlet and allowed to cool before
relocating or cleaning it.
14. Use the heater in a vertical position only.
15. Do not place the product in or near an open window. Rain, snow, or other weather
elements could cause electrical short-circuiting in the product.
16. Do not use outdoors.
17. To disconnect heater, turn controls to the off position, then remove plug from outlet.
IMPORTANT INSTURCTIONS
4
B
A
C D
COVER OF GROUNDED
OUTLET BOX
GROUNDING PIN
METAL SCREW
ADAPTER
GROUNDING
MEANS
GROUNDING
PIN
SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS
18. Do not plug into or unplug the product from the electrical outlet with a wet hand.
19. Do not operate this product if it has a damaged power cord or plug, if it malfunctions,
or if it has been dropped or damaged. This product has no user-serviceable parts. Do
not attempt to examine or repair this product yourself. Only qualified service
personnel should perform any servicing; take the product to an appliance repair shop
of your choice for inspection and repair.
20. This appliance is not intended for use by persons (included children) with reduced
physical, sensory or mental capability, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
21. Children should be supervised to ensure that they do not play with the appliance.
22. This product is intended solely for indoor, non-commercial, non-industrial use in
temporarily heating rooms. Do not use this product outdoors.
23. Do not operate the product continuously. Portable electric heaters are designed for
finite space heating or as a supplementary heat source. They are not intended to be
main sources of heat during the normal heating season.
24. Do not hang or wall-mount the product.
25. Place the product upright on a flat, level, stable, heat-resistant surface. This heater is
foruseon120volts.ThecordhasaplugasshowninfigureA.SeeFigure1for
grounding instruction. An adapter as shown at C is available for connecting
three-blade grounding type plugs to two-slot receptacles. The green grounding plug
extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adaptor should not be used if a three-slot
grounded receptacle is available.
26. Always plug heaters directly into a wall outlet/ receptacle. Never use with an
extension cord or relocatable power tap (outlet/ power strip).
27.Do not attempt to disassemble heater for service or cleaning.Damage to the heater
could occur and improper re-assembly could cause risk of fire or electric shock.
Fig.1
5
Assembly Instrucon
Operang Instrucons
High Heat (1500W)
Low Heat (750W)
Fan Only
Off
Control Wheel Thermostat Wheel
Roll the wheel downward
to increase the thermostat
setting temperature. Roll
the wheel upward to
decrease the thermostat
setting temperature.
Press the handle firmly into the body of the heater until it snap securely fito place.
6
• Thisproducthasprotectionsafeguardsthatshutofftheproductwhenpartsbecomeexcessivelyhotor
if it tips over. If the product shuts off, immediately turn the Control to the "O" position and unplug it
from the electric outlet.
• Ifoverheated:
a. Remove any objects near the product that may cause overheating. Use the product
in a well-ventilated area. Keep at least 3 feet (0.9 meters) of space on all sides
of the product to allow adequate air circulation.
b. Allow the product to cool down for at least 10 minutes before plugging it back into
an electric outlet for re-use.
• Iftippedoverplacetheproductonaflat,level,stablesurfaceinordertopreventtheproduct
from tipping over again.
WARNING: Do not attempt to disassemble this product for any reason, as incorrect
re-assembly could cause a risk of fire or electric shock. Only qualified service personnel should
perform any servicing.
WARNING: Always unplug the product from the electrical outlet and allow it to cool before cleaning or
storing it.
WARNING: Do not allow water or other liquids to enter the interior of the product.
NOTICE: This product is permanently lubricated at the factory before shipping and will not require
further lubrication for the life of the product.
Clean only the exterior surface by wiping with a soft, damp cloth, and allow the product to dry
completely before storing or using. Dust can be removed from any vents using a small vacuum.
NOTICE: Do not use abrasive cleaners/pads to clean the product.
To store, wind and secure the power cord using a twist tie or rubber band, and then place the
product in a cool, dry location.
Safety Protecon Systems
Care And Maintenance
7
The manufacturer warrants that your new electric heater is free from manufacturing and material defects
for a period of one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this electric heater in accordance with the installation and
operating instructions furnished with the product at all times. Any unauthorized repair,
alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that
the purchase was made through an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in
material or workmanship, provided that such part(s) have been subjected to normal
conditions of use and service, after said defect is confirmed by the manufacturer’s
inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to
this warranty by refunding the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses
arising from defective part(s), repair, replacement, or otherwise of same, will not be
covered by this warranty, or shall the manufacturer assume responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect
or consequential loss or damage arising out of the use, or inability to use the product,
except as provided by law.
7. All other warranties – expressed or implied –with respect to the product, its
components and accessories, or any obligations/liabilities on the part of the
manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its
behalf, any other liabilities with respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories
used in conjunction with the installation of this product.
10. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
This warranty is void if:
a. The heater is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
If warranty service is needed contact the manufacturer by calling customer service department
at 1-877-448-8240, 8:30 a.m.-5:30 p.m., EST, Monday-Friday. Make sure you have your warranty, your sales
receipt, location of purchase and the model/serial number of your product.
1-Year Limited Warranty
