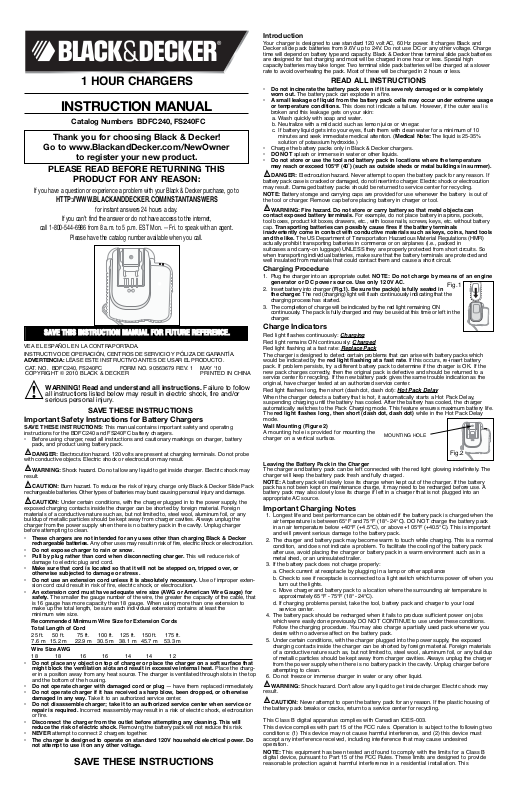

Black & Decker BDFC240 User Manual

WARNING! Read and understand all instructions. Failure to follow

all instructions listed below may result in electric shock, fire and/or
serious personal injury.

SAVE THESE INSTRUCTIONS

Important Safety Instructions for Battery Chargers

SAVE THESE INSTRUCTIONS: This manual contains important safety and operating
instruc tions for the BDFC240 and FS240FC battery chargers.

• Before using charger, read all instructions and cautionary markings on charger, battery
pack, and product using battery pack.

DANGER: Electrocution hazard. 120 volts are present at charging terminals. Do not probe

with conductive objects. Electric shock or electrocution may result.

WARNING: Shock hazard. Do not allow any liquid to get inside charger. Electric shock may

result.

CAUTION: Burn hazard. To reduce the risk of injury, charge only Black & Decker Slide Pack

rechargeable batteries. Other types of batteries may burst causing personal injury and damage.

CAUTION: Under certain conditions, with the charger plugged in to the power supply, the

exposed charging contacts inside the charger can be shorted by foreign material. Foreign
materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any
buildup of metallic particles should be kept away from charger cavities. Always unplug the
charger from the power supply when there is no battery pack in the cavity. Unplug charger
before attempting to clean.

• These chargers are not intended for any uses other than charging Black & Decker
rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.

• Do not expose charger to rain or snow.

• Pull by plug rather than cord when disconnecting charger. This will reduce risk of
damage to electric plug and cord.

• Make sure that cord is located so that it will not be stepped on, tripped over, or

otherwise subjected to damage or stress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper exten-
sion cord could result in risk of fire, electric shock, or electrocution.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for
safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that
is 16 gauge has more capacity than 18 gauge. When using more than one extension to
make up the total length, be sure each individual extension contains at least the
minimum wire size.

Recommended Minimum Wire Size for Extension Cords
Total Length of Cord

25 ft. 50 ft. 75 ft. 100 ft. 125 ft. 150 ft. 175 ft.

7.6 m 15.2 m 22.9 m 30.5 m 38.1 m 45.7 m 53.3 m

Wire Size AWG

18 18 16 16 14 14 12

• Do not place any object on top of charger or place the charger on a soft surface that
might block the ventilation slots and result in excessive internal heat. Place the charg­er in a position away from any heat source. The charger is ventilated through slots in the top
and the bottom of the housing.

• Do not operate charger with damaged cord or plug — have them replaced immediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise
damaged in any way. Take it to an authorized service center.

• Do not disassemble charger; take it to an authorized service center when service or
repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution
or fire.

• Disconnect the charger from the outlet before attempting any cleaning. This will
reduce the risk of electric shock. Removing the battery pack will not reduce this risk.

• NEVER attempt to connect 2 chargers together.

• The charger is designed to operate on standard 120V household electrical power. Do

not attempt to use it on any other voltage.

SAVE THESE INSTRUCTIONS

Introduction

Your charger is designed to use standard 120 volt AC, 60 Hz power. It charges Black and
Decker slide pack batteries from 9.6V up to 24V. Do not use DC or any other voltage. Charge
time will depend on battery type and capacity. Black & Decker three terminal slide pack batteries
are designed for fast charging and most will be charged in one hour or less. Special high
capacity batteries may take longer. Two terminal slide pack batteries will be charged at a slower
rate to avoid overheating the pack. Most of these will be charged in 2 hours or less.

READ ALL INSTRUCTIONS

• Do not incinerate the battery pack even if it is severely damaged or is completely
worn out. The battery pack can explode in a fire.

• A small leakage of liquid from the battery pack cells may occur under extreme usage
or temperature conditions. This does not indicate a failure. However, if the outer seal is

broken and this leakage gets on your skin:

a. Wash quickly with soap and water.
b. Neutralize with a mild acid such as lemon juice or vinegar.
c. If battery liquid gets into your eyes, flush them with clean water for a minimum of 10

minutes and seek immediate medical attention. (Medical Note: The liquid is 25-35%
solution of potassium hydroxide.)

• Charge the battery packs only in Black & Decker chargers.

• DO NOT splash or immerse in water or other liquids.

• Do not store or use the tool and battery pack in locations where the temperature
may reach or exceed 105°F (40˚) (such as outside sheds or metal buildings in summer).

DANGER: Electrocution hazard. Never attempt to open the battery pack for any reason. If

battery pack case is cracked or damaged, do not insert into charger. Electric shock or electrocution
may result. Damaged battery packs should be returned to service center for recycling.

NOTE: Battery storage and carrying caps are provided for use whenever the battery is out of
the tool or charger. Remove cap before placing battery in charger or tool.

WARNING: Fire hazard. Do not store or carry battery so that metal objects can

contact exposed battery terminals. For example, do not place battery in aprons, pockets,

tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. without battery
cap. Transporting batteries can possibly cause fires if the battery terminals

inadvertently come in contact with conductive materials such as keys, coins, hand tools
and the like. The US Department of Transportation Hazardous Material Regulations (HMR)

actually prohibit transporting batteries in commerce or on airplanes (i.e., packed in
suitcases and carry-on luggage) UNLESS they are properly protected from short circuits. So
when transporting individual batteries, make sure that the battery terminals are protected and
well insulated from materials that could contact them and cause a short circuit.

Charging Procedure

1. Plug the charger into an appropriate outlet. NOTE: Do not charge by means of an engine
generator or DC power source. Use only 120V AC.

2. Insert battery into charger (Fig.1). Be sure the pack(s) is fully seated in
the charger. The red (charging) light will flash continuously indicating that the

charging process has started.

3. The completion of charge will be indicated by the red light remaining ON
continuously. The pack is fully charged and may be used at this time or left in the
charger.

Charge Indicators

Red light flashes continuously: Charging
Red light remains ON continuously: Charged

Red light flashing at a fast rate: Replace Pack
The charger is designed to detect certain problems that can arise with battery packs which

would be indicated by the red light flashing at a fast rate. If this occurs, re-insert battery
pack. If problem persists, try a different battery pack to determine if the charger is OK. If the
new pack charges correctly, then the original pack is defective and should be returned to a
service center for recycling. If the new battery pack gives the same trouble indication as the
original, have charger tested at an authorized service center.

Red light flashes long, then short (dash dot, dash dot): Hot Pack Delay
When the charger detects a battery that is hot, it automatically starts a Hot Pack Delay,

suspending charging until the battery has cooled. After the battery has cooled, the charger
automatically switches to the Pack Charging mode. This feature ensures maximum battery life.
The red light flashes long, then short (dash dot, dash dot) while in the Hot Pack Delay
mode.

Wall Mounting (Figure 2)

A mounting hole is provided for mounting the
charger on a vertical surface.

Leaving the Battery Pack in the Charger

The charger and battery pack can be left connected with the red light glowing indefinitely. The
charger will keep the battery pack fresh and fully charged.

NOTE: A battery pack will slowly lose its charge when kept out of the charger. If the battery
pack has not been kept on maintenance charge, it may need to be recharged before use. A
battery pack may also slowly lose its charge if left in a charger that is not plugged into an
appropriate AC source.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the
air temperature is between 65°F and 75°F (18°- 24°C). DO NOT charge the battery pack
in an air temperature below +40°F (+4.5°C), or above +105°F (+40.5°C). This is important
and will prevent serious damage to the battery pack.

2. The charger and battery pack may become warm to touch while charging. This is a normal
condition, and does not indicate a problem. To facilitate the cooling of the battery pack
after use, avoid placing the charger or battery pack in a warm environment such as in a
metal shed, or an uninsulated trailer.

3. If the battery pack does not charge properly:
a. Check current at receptacle by plugging in a lamp or other appliance
b. Check to see if receptacle is connected to a light switch which turns power off when you

turn out the lights.

c. Move charger and battery pack to a location where the surrounding air temperature is

approximately 65°F - 75°F (18°- 24°C).

d. If charging problems persist, take the tool, battery pack and charger to your local

service center.

4. The battery pack should be recharged when it fails to produce sufficient power on jobs
which were easily done previously. DO NOT CONTINUE to use under these conditions.
Follow the charging procedure. You may also charge a partially used pack whenever you
desire with no adverse affect on the battery pack.

5. Under certain conditions, with the charger plugged into the power supply, the exposed
charging contacts inside the charger can be shorted by foreign material. Foreign materials
of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup
of metallic particles should be kept away from charger cavities. Always unplug the charger
from the power supply when there is no battery pack in the cavity. Unplug charger before
attempting to clean.

6. Do not freeze or immerse charger in water or any other liquid.

WARNING: Shock hazard. Donʼt allow any liquid to get inside charger. Electric shock may

result.

CAUTION: Never attempt to open the battery pack for any reason. If the plastic housing of

the battery pack breaks or cracks, return to a service center for recycling.

This Class B digital apparatus complies with Canadian ICES-003.
This device complies with part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This

CAT. NO. BDFC240, FS240FC FORM NO. 90563679 REV. 1 MAY ʻ10
COPYRIGHT © 2010 BLACK & DECKER PRINTED IN CHINA

Fig.1

MOUNTING HOLE

Fig.2

Thank you for choosing Black & Decker!

Go to www.BlackandDecker.com/NewOwner

to register your new product.

PLEASE READ BEFORE RETURNING THIS

PRODUCT FOR ANY REASON:

If you have a question or experience a problem with your Black & Decker purchase, go to

HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS

If you can’t find the answer or do not have access to the internet,

call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. -- Fri. to speak with an agent.

Please have the catalog number available when you call.

for instant answers 24 hours a day.

1 HOUR CHARGERS

Catalog Numbers BDFC240, FS240FC

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA.
ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

INSTRUCTION MANUAL

AVERTISSEMENT ! Lire et comprendre toutes les directives. Tout
manquement aux directives suivantes pose des risques de choc
électrique, dʼincendie et/ou de blessures corporelles graves.

CONSERVER CES DIRECTIVES

Directives de sécurité importantes pour les chargeurs de piles

CONSERVER CES DIRECTIVES : ce mode dʼemploi renferme dʼimportantes directives de
sécurité et dʼutilisation pour les chargeurs de pile modèles BDFC240 et FS240FC.

• Avant dʼutiliser le chargeur, lire toutes les directives et les indications dʼavertissement
figurant sur le chargeur, le bloc-piles et le produit utilisé avec le bloc-piles.

DANGER : risque dʼélectrocution. Les bornes de charge présentent une tension de 120 V. Ne

pas sonder les bornes avec des objets conducteurs. Risque de choc électrique ou dʼélectrocution.

AVERTISSEMENT : risque de choc électrique. Éviter la pénétration de tout liquide dans le

chargeur. Cela peut provoquer des chocs électriques.

MISE EN GARDE : risque de brûlure. Pour réduire le risque de blessures, charger
seulement des blocs-piles coulissants rechargeables Black & Decker. Dʼautres types de piles
peuvent exploser et causer des blessures corporelles et des dommages.

MISE EN GARDE : sous certaines conditions, lorsque le chargeur est branché au bloc
dʼalimentation, les contacts de chargement exposés à lʼintérieur du chargeur peuvent être court­circuités par des corps étrangers. Tout corps étranger conducteur, tel que, mais sans sʼy limiter,
la laine dʼacier, le papier dʼaluminium, ou toute accumulation de particules métalliques, doit être
maintenu à distance des ouvertures du chargeur. Débrancher systématiquement celui-ci si
aucun bloc-piles nʼy est inséré ou avant de le nettoyer.

• Ces chargeurs ne sont pas prévus pour être utilisés à d’autres fins que celles de

charger les piles rechargeables Black & Decker. Toute autre utilisation risque de
provoquer un incendie, un choc électrique ou une électrocution.

• Ne pas exposer le chargeur à la pluie ou à la neige.

• Tirer sur la fiche plutôt que sur le cordon pour débrancher le chargeur. Cela permet de

réduire le risque dʼendommager la fiche ou le cordon dʼalimentation.

• S’assurer que le cordon est situé en lieu sûr de manière à ce que personne ne marche

ni ne trébuche dessus ou à ce qu’il ne soit pas endommagé ni soumis à une tension.

• Ne pas utiliser de rallonge à moins que cela ne soit absolument nécessaire.

Lʼutilisation dʼune rallonge inadéquate risque dʼentraîner un incendie, un choc électrique ou
une électrocution.

• La rallonge utilisée doit présenter un calibre adéquat (AWG ou calibrage américain

normalisé des fils) pour assurer la sécurité. Plus le numéro de calibre de fil est petit et
plus sa capacité est grande, par exemple un calibre 16 a plus de capacité quʼun calibre 18.
Si plus dʼune rallonge est utilisée pour obtenir la longueur totale, sʼassurer que chaque ral­longe présente au moins le calibre de fil minimum.

Calibre minimum recommandé pour les rallonges
Longueur totale de fil

25 pi 50 pi 75 pi 100 pi 125 pi 150 pi 175 pi
7,6 m 15,2 m 22,9 m 30,5 m 38,1 m 45,7 m 53,3 m

Calibre de fil AWG

18 18 16 16 14 14 12

• Ne pas mettre d’objet sur le chargeur ni mettre ce dernier sur une surface molle pou-

vant obstruer les fentes de ventilation et ainsi provoquer une chaleur interne exces­sive. Mettre le chargeur à un endroit éloigné de toute source de chaleur. La

ventilation du chargeur se fait par les fentes pratiquées dans les parties supérieures et
inférieures du boîtier.

• Ne pas faire fonctionner le chargeur si la fiche ou le cordon est endommagé; les rem-

placer immédiatement.

• Ne pas faire fonctionner le chargeur s’il a reçu un choc violent, s’il est tombé ou s’il a

été endommagé de quelque manière que ce soit. Apporter le chargeur à un centre de
réparation autorisé.

• Ne pas démonter le chargeur; l’apporter à un centre de réparation autorisé lorsqu’un

entretien ou une réparation est requise. Un chargeur mal réassemblé peut causer un
choc électrique, une électrocution ou un incendie.

• Débrancher le chargeur avant de le nettoyer. Cela permettra de réduire le risque de

choc électrique. Retirer le bloc-piles ne réduira pas le risque.

• Ne JAMAIS relier 2 chargeurs ensemble.

• Le chargeur est conçu pour être alimenté en courant domestique standard de 120

volts. Ne pas utiliser une tension supérieure pour le chargeur.

CONSERVER CES DIRECTIVES

Introduction

Le chargeur est conçu pour utiliser une alimentation standard de 120 V c.a., 60 Hz. Il charge
des bloc-piles coulissants Black & Decker de 9,6 V jusquʼà 24 V. Ne pas utiliser un courant
continu ou toute autre tension. Le temps de charge dépendra du type et de la capacité de la
pile. Les blocs-piles coulissants à trois bornes de Black & Decker sont conçus pour un
chargement rapide et la plupart des piles se chargeront en une heure ou moins. Les piles
spéciales à haute capacité peuvent prendre plus de temps. Les blocs-piles coulissants à
deux bornes se chargeront plus lentement pour éviter la surchauffe du bloc. La plupart des
piles se chargeront en deux heures ou moins.

LIRE TOUTES LES DIRECTIVES.

• Ne pas incinérer le bloc-piles même s’il est très endommagé ou complètement usé.

Le bloc-piles peut exploser dans un feu.

• Une petite fuite de liquide peut se produire dans les cellules du bloc-piles en cas d’u-

tilisation extrême ou de conditions de température. Cela nʼindique pas de
défaillance. Toutefois, si le joint dʼétanchéité extérieur est rompu et que la fuite entre en con­tact avec la peau :

a. Laver rapidement la zone touchée au savon et à lʼeau.
b. Neutraliser avec un acide doux comme du jus de citron ou du vinaigre.
c. Si le liquide de la pile entre en contact avec les yeux, les laver abondamment à lʼeau

propre, pendant un minimum de 10 minutes, puis obtenir des soins médicaux.
(note médicale : le liquide est composé dʼune solution de 25 % - 35 % dʼhydroxyde de
potassium).

• Charger uniquement les bloc-piles au moyen de chargeurs Black & Decker.

• NE PAS éclabousser le bloc-piles ou lʼimmerger dans lʼeau ou tout autre liquide.

• Ne pas ranger ni utiliser l’outil et le bloc-piles à un endroit où la température peut

atteindre ou dépasser les 40 °C (105 °F) (comme dans les remises extérieures ou les
bâtiments métalliques l’été).

DANGER: risque dʼélectrocution. Ne jamais ouvrir le bloc-piles pour quelque raison que ce

soit. Si le boîtier du bloc-piles est fissuré ou endommagé, ne pas lʼinsérer dans un chargeur.
Risque de choc électrique ou dʼélectrocution. Les blocs-piles endommagés doivent être envoyés
au centre de réparation pour être recyclés.

REMARQUE : le rangement du bloc-piles et les bouchons de transport sont fournis afin dʼêtre
utilisés lorsque le bloc-piles nʼest pas dans lʼoutil ou le chargeur. Enlever le bouchon avant de
mettre le bloc-piles dans le chargeur ou lʼoutil.

AVERTISSEMENT : risque d’incendie Ne pas ranger ni ne transporter les piles de
manière à ce que des objets métalliques puissent entrer en contact avec les bornes
exposées des piles. Par exemple, ne pas mettre les piles sans bouchon dans un tablier, une

poche, une boîte à outils, une boîte de nécessaire de produit, un tiroir, etc. avec des clous, des
vis, des clés ou tout autre objet semblable. Le transport des piles peut provoquer un incendie

si les bornes des piles entrent en contact involontairement avec des matières
conductrices comme des clés, de la monnaie, des outils manuels et d’autres éléments
semblables. La Hazardous Material Regulation du département américain des transports

interdit en fait le transport des piles pour le commerce et dans les avions (ex. : piles emballées
dans des valises et des bagages à main) À MOINS quʼelles soient bien protégées contre les
courts-circuits. Pour le transport des piles individuelles, sʼassurer que les bornes sont
protégées et bien isolées contre toute matière pouvant entrer en contact avec elles et causer un
court-circuit.

Procédure de charge

1. Brancher le chargeur dans une prise appropriée. REMARQUE : Ne pas charger la pile

au moyen d'un alternateur ou d'une source dʼalimentation c.c. Utilisez uniquement
le c.a. 120 V.

equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.

If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. This Class B digital
apparatus complies with Canadian ICES-003.

THE RBRC™ SEAL

The RBRC™ (Rechargeable Battery Recycling Corporation)
Seal on the nickel-cadmium battery (or battery pack) indicates that the costs to
recycle the battery (or battery pack) at the end of its useful life have already been
paid by Black & Decker. In some areas, it is illegal to place spent nickel-cadmium batteries in
the trash or municipal solid waste stream and the RBRC program provides an environmentally
conscious alternative.
RBRC in cooperation with Black & Decker and other battery users, has established programs
in the United States and Canada to facilitate the collection of spent nickel-cadmium batteries.
Help protect our environment and conserve natural resources by returning the spent nickel­cadmium battery to an authorized Black & Decker service center or to your local retailer for
recycling. You may also contact your local recycling center for information on where to drop off
the spent battery, or call 1-800-8-BATTERY.

Important

This product is not user serviceable. There are no user serviceable parts inside the charger.
Servicing at an authorized service center is required to avoid damage to static sensitive
internal components.

READ ALL OF THE INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO
CHARGE THE battery pack FOR YOUR TOOL.

To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should
be performed by certified service centers or other qualified service organizations, always
using identical replacement parts.

SERVICE INFORMATION

All Black & Decker Service Centers are staffed with trained personnel to provide customers
with efficient and reliable power tool service. Whether you need technical advice, repair, or
genuine factory replacement parts, contact the Black & Decker location nearest you. To find
your local service location, refer to the yellow page directory under "Tools—Electric" or call:

1-800-544-6986 or visit www.blackanddecker.com

FULL TWO-YEAR HOME USE WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material
or workmanship. The defective product will be replaced or repaired at no charge in either of
two ways.
The first, which will result in exchanges only, is to return the product to the retailer from whom
it was purchased (provided that the store is a participating retailer). Returns should be made
within the time period of the retailerʼs policy for exchanges (usually 30 to 90 days after the
sale). Proof of purchase may be required. Please check with the retailer for their specific
return policy regarding returns that are beyond the time set for exchanges.
The second option is to take or send the product (prepaid) to a Black & Decker owned or
authorized Service Center for repair or replacement at our option. Proof of purchase may be
required.Black & Decker owned and authorized Service Centers are listed under
"Tools-Electric" in the yellow pages of the phone directory.
This warranty does not apply to accessories. This warranty gives you specific legal rights and
you may have other rights which vary from state to state or province to province. Should you
have any questions, contact the manager of your nearest Black & Decker Service Center. This
product is not intended for commercial use.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are
missing, call 1-800-544-6986 for a free replacement.
LATIN AMERICA: This warranty does not apply to products sold in Latin America. For
products sold in Latin America, check country specific warranty information contained in the
packaging, call the local company or see the website for warranty information.

MODE D’EMPLOI

Numéros de catalogue BDFC240 et FS240FC

Troubleshooting

Problem Possible Cause Possible Solution

• Battery will not charge. • Charger not plugged into • Plug charger into a working

a working outlet. outlet. Refer to “Important

Charging Notes” for more
details.

• Check current at receptacle
by plugging in a lamp or other
appliance.

• Check to see if receptacle is
connected to a light switch
which turns power off when
you turn out the lights.

• Surrounding air temperature • Move charger and tool to
too hot or too cold. a surrounding air temperature

of above 40 degree F (4.5°C)
or below 105 degree F (+40.5°C).

For assistance with your product, visit our website www.blackanddecker.com for the
location of the service center nearest you or call the BLACK & DECKER help line at

1-800-544-6986.

Merci d’avoir choisi Black & Decker!

Consulter le site Web

www.BlackandDecker.com/NewOwner

pour enregistrer votre nouveau produit.

À LIRE AVANT DE RETOURNER CE PRODUIT

POUR QUELQUE RAISON QUE CE SOIT :

Si des questions ou des problèmes surgissent après l’achat d’un produit Black & Decker,

consulter le site Web

HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS

Si la réponse est introuvable ou en l’absence d’accès à Internet, composer le

1-800-544-6986 de 8 h à 17 h HNE, du lundi au vendredi, pour parler avec un agent.

Prière d’avoir le numéro de catalogue sous la main lors de l’appel.

pour obtenir des réponses instantanément 24 heures par jour.

CONSERVER CE MANUEL POUR UN USAGE ULTÉRIEUR.

See ‘Tools-

Electric’

– Yellow Pages –

for Service &

Sales

Imported by

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A.
