Black + Decker BC6BDWCA Instruction Manual
120
6A WATERPROOF BATTERY CHARGER
INSTRUCTION MANUAL
Catalog Number BC6BDWCA
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Cat. # BC6BDWCA RD031517
Copyright © 2017 Baccus Global LLC Printed in China
Thank you for choosing Black & Decker!
Go to www.Baccusglobal.com
to register your new product.
PLEASE READ BEFORE RETURNING THIS
PRODUCT FOR ANY REASON:
If you have a question or experience a problem with your purchase, go to
HTTP://WWW.BACCUSGLOBAL.COM
for instant answers 24 hours a day.
If you can’t find the answer or do not have access to the internet,
call 1-877-571-2391 from 9 a.m. to 5 p.m. EST, Mon. – Fri. to speak with an agent.
Please have the catalog number available when you call.
BC
BC6BDWCA_ManualENFR_031517.indd 20-1 3/16/2017 2:03:13 PM
2 3
This Class B digital apparatus complies with Canadian ICES-003. CAN ICES-3(B).
SAFETY GUIDELINES / DEFINITIONS
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury.
CAUTION: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided,
may result in property damage.
RISK OF UNSAFE OPERATION. When using tools or equipment, basic safety precautions should always be
followed to reduce the risk of personal injury. Improper operation, maintenance or modification of tools or
equipment could result in serious injury and property damage. There are certain applications for which tools
and equipment are designed. Manufacturer strongly recommends that this product NOT be modified and/or
used for any application other than for which it was designed. Read and understand all warnings and operating
instructions before using any tool or equipment.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This product or its power cord contains lead, a chemical known to the State of California to cause
cancer and birth defect or other reproductive harm. Wash hands after handling.
READ ALL INSTRUCTIONS
WARNING: Read all instructions before operating product. Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
GENERAL SAFETY WARNINGS AND INSTRUCTIONS
•Avoid dangerous environments. Do not expose the clamps or cords to rain or snow.
•Keep children away. Keep away from children. This is not a toy!
•Store indoors. When not in use, battery chargers should be stored indoors in dry, and high or locked-up
places – out of reach of children.
•Unplug the battery charger when not in use.
SPECIFIC SAFETY INSTRUCTIONS FOR POWER CORDS
•Don’t abuse cord. Never carry appliance by cord or yank it to disconnect from receptacle. Keep cord from
heat, oil, and sharp edges. Pull by plug rather than cord when unplugging the unit.
•Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuits or outlets to be used.
Receptacles are available having built in GFCI protection and may be used for this measure of safety.
Extension cords
•An extension cord should not be used unless absolutely necessary. Use of improper extension cord could
result in a risk of fire and electric shock. If an extension cord is used, make sure that the pins of the extension
cord are the same number, size and shape as those in the charger.
•Make sure your extension cord is in good condition. When using an extension cord, be sure to use one
heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. The following table shows the correct size to use depending on
cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number,
the heavier the cord.
Recommended Minimum AWG Size for Extension Cords for Battery Chargers
AC Input Rating American Wire Gage (AWG) Size of Cord
Amperes Length of Cord, feet (m)
Equal to or But less
25 (7.6) 50 (15.2) 100 (30.5) 150 (45.6)
greater than than
0 2 18 18 18 16
2 3 18 18 16 14
3 4 18 18 16 14
4 5 18 18 14 12
5 6 18 16 14 12
6 8 18 16 12 10
8 10 18 14 12 10
10 12 16 14 10 8
12 14 16 12 10 8
14 16 16 12 10 8
16 18 14 12 8 8
18 20 14 12 8 6
•Power Cord Safety: This appliance has a polarized plug (one blade is wider than the other) as a safety feature.
This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
SPECIFIC SAFETY INSTRUCTIONS FOR BATTERY CHARGERS
•This unit was designed for household use only.
•Use of accessories and attachments: The use of any accessory or attachment not recommended by
manufacturer for use with this battery charger could be hazardous.
•Stay alert. Use common sense. Do not operate this equipment when you are tired or impaired.
•Check for damaged parts. A part that is damaged should be properly repaired or replaced by manufacturer
before further use unless otherwise indicated elsewhere in this instruction manual.
•Do not operate the battery charger near flammable liquids or in gaseous or explosive atmospheres. Motors
may spark, and the sparks might ignite fumes.
•Do not operate the battery charger if it has received a sharp blow, been dropped, or has been otherwise
damaged in any way. Return it to the manufacturer for repair.
•THIS UNIT IS NOT FOR USE BY CHILDREN AND SHOULD ONLY BE OPERATED BY ADULTS.
WARNING – Burst hazard:
•Do not use the unit for charging dry-cell batteries that are commonly used with home appliances. These
batteries may burst and cause injury to persons and damage property. Use the unit for charging/boosting a
LEAD-ACID battery only. It is not intended to supply power to a low-voltage electrical system other than in a
starter-motor application.
•Never attempt to charge non-rechargeable batteries.
WARNING – Risk of explosive gases:
•WORKING IN THE VICINITY OF A LEAD ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE
GASES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF THE UTMOST IMPORTANCE
THAT EACH TIME BEFORE USING THE BATTERY CHARGER YOU READ THIS MANUAL AND FOLLOW
INSTRUCTIONS EXACTLY.
•To reduce the risk of battery explosion, follow these instructions and those published by the battery
manufacturer and manufacturer of any equipment you intend to use in the vicinity of the battery. Review
cautionary markings on these products and on the engine.
•This equipment employs parts (switches, relays, etc.) that produce arcs or sparks. Therefore, if used in a
garage or enclosed area, the unit MUST be placed not less than 18 inches above the floor.
WARNING – To reduce the risk of fire:
•Do not operate near flammable materials, fumes or gases.
•Do not expose to extreme heat or flames.
CAUTION – To reduce the risk of injury or property damage:
•This charger is not designed for use with every make, manufacture or model of engine. Use only with 12 volt
systems.
BC6BDWCA_ManualENFR_031517.indd 2-3 3/16/2017 2:03:14 PM
4 5
•NEVER ATTEMPT CHARGE A FROZEN BATTERY.
•Do not charge the battery while the engine is operating.
•Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons.
•Vehicles that have on-board computerized systems may be damaged if vehicle battery is jump-started. Before
jump-starting, read the vehicle’s owner’s manual to confirm that external-starting assistance is suitable.
•When working with lead acid batteries, always make sure someone is close enough to provide immediate
assistance in case of accident or emergency.
•Always have protective eyewear when using this product: contact with battery acid may cause blindness and/or
severe burns. Be aware of first aid procedures in case of accidental contact with battery acid.
•Have plenty of fresh water and soap nearby in case battery acid contacts skin.
•If battery acid contacts skin or clothing, wash immediately with soap and water for at least 10 minutes and get
medical attention immediately.
•Never smoke or allow a spark or flame in vicinity of vehicle battery, engine or battery maintainer.
•Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead acid
battery. A lead acid battery can produce a short circuit current high enough to weld a ring, or similar metal
object, to skin causing a severe burn.
•Be extra cautious to avoid dropping a metal tool onto the battery. It might spark or short-circuit the battery or
another electrical part, and that may cause an explosion.
•Never allow battery acid to come in contact with this unit.
•Do not operate this unit in a closed area or restrict ventilation in any way.
•Always turn the battery charger off by unplugging it when not in use.
•Do not open the battery charger — there are no user-serviceable parts inside. Opening the battery charger will
void manufacturer’s warranty.
•Operate battery charger only as described in this Instruction Manual.
•Check battery charger and components periodically for wear and tear. Return to manufacturer for replacement
of worn or defective parts immediately.
•IMPORTANT: This unit features an aluminum heat sink, which is used for heat dissipation and is located
at the base of the unit. Never touch the heat sink while the unit is operating and never allow the bottom of
the unit to contact flammable materials while operating.
DC ACCESSORY PLUG SAFETY
• WARNING! NEVER connect this unit to a positive grounded vehicle by the DC accessory plug.
•Make sure that the vehicle’s accessory socket is clean and free of debris before connecting the unit.
• WARNING – Risk of fire! If the vehicle accessory outlet fuse opens (blows) when plugging in this battery
charger, do not use this battery charger with this vehicle accessory outlet:
– Do not repeatedly replace the fuse.
– Do not replace the vehicle accessory outlet fuse with one of a higher amperage rating.
– Never attempt to patch the fuse with tin foil or wire.
Any of these actions may cause serious electrical damage and/or a fire.
SPECIFIC SAFETY INSTRUCTIONS FOR USING THE UNIT IN WET
ENVIRONMENTS
The housing of this unit is rated to IP67 dust-proof and waterproof standards. However, it is recommended
that you observe the following:
•Never submerge the unit in water deeper than 1 meter, for time longer than 30 minutes and/or in temperatures
other than between 41ºF and 104ºF (5ºC and 40ºC), or the unit could sustain permanent damage.
•Never submerge the unit in water unless the bushing (insulation) of the AC or DC cord is intact.
•Do not allow plug or clamps to be exposed to the elements for long periods of time; and never submerge
them.
FIRST AID
•SKIN: If battery acid comes in contact with skin, rinse immediately with water, then wash thoroughly with soap
and water. If redness, pain, or irritation occurs, seek immediate medical attention.
•EYES: If battery acid comes in contact with eyes, flush eyes immediately, for a minimum of 15 minutes and
seek immediate medical attention.
WARNING – To reduce the risk of injury or property damage: Follow these instructions and those published
by the manufacturer of any engine you intend to use with this battery charger. Review cautionary markings on
the battery charger and engine.
•Read and Understand This Instruction Manual Before Using This Unit.
SAVE THESE INSTRUCTIONS
INTRODUCTION
Congratulations on purchasing your new Black & Decker 6 Amp Waterproof Battery Charger. Read this
Instruction Manual and follow the instructions carefully before using your new battery charger.
FEATURES
AC PLUG

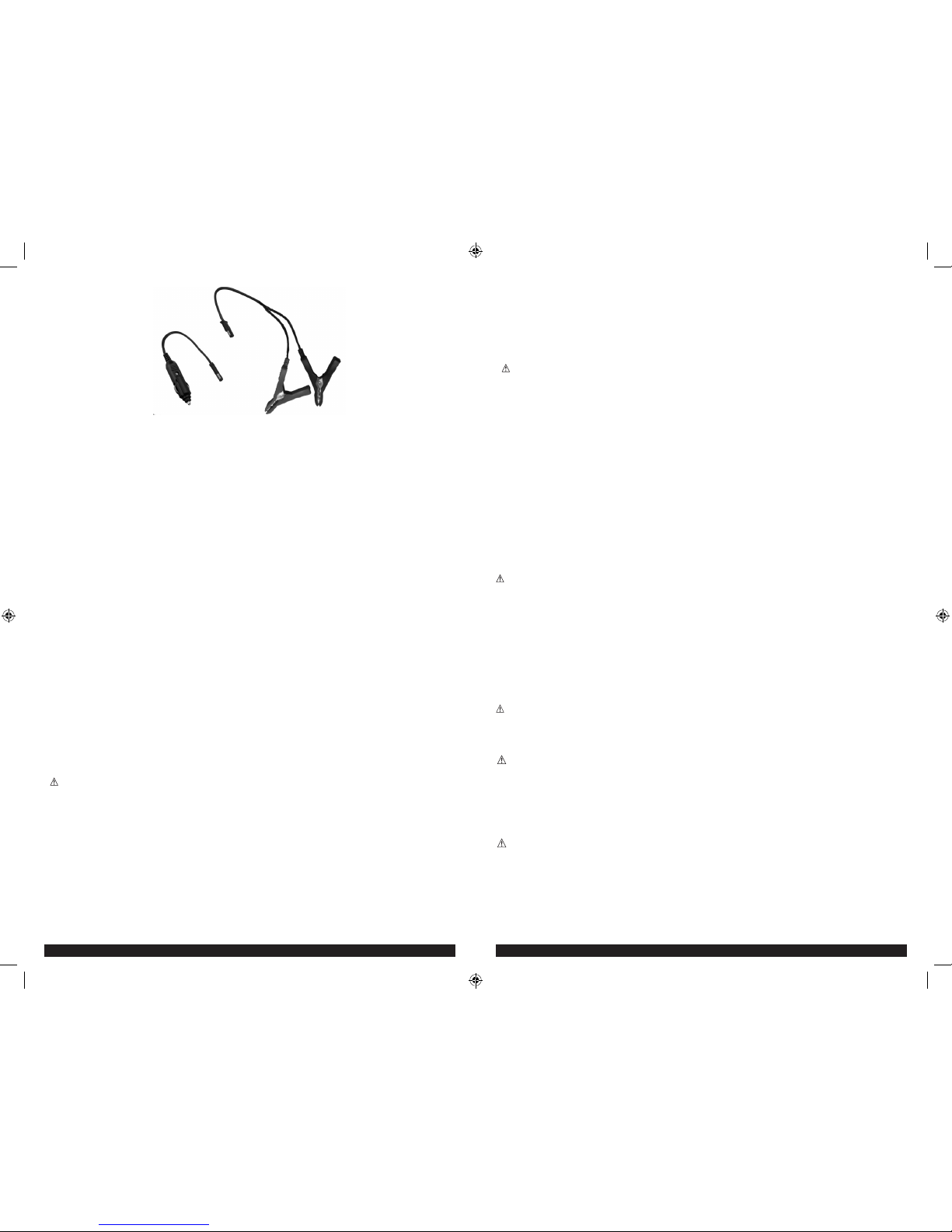

DOUBLE BARREL CHARGER
CONNECTOR (CONNECTS
TO CLAMPS OR VEHICLE
ADAPTER PLUG)
HANGING HOOK
POWER LED
REVERSE
POLARITY/FAULT
LED
BATTERY
CHARGING LED
CHARGING
COMPLETE LED
MOUNTING
BRACKETS
MOUNTING
BRACKETS
BC6BDWCA_ManualENFR_031517.indd 4-5 3/16/2017 2:03:14 PM
