Black & Decker BC2WBD Instruction Manual
120
2A WATERPROOF BATTERY CHARGER
INSTRUCTION MANUAL
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Cat. # BC2WBD July 2014
Copyright © 2014 Baccus Global LLC Printed in China
Thank you for choosing Black & Decker!
Go to www.Baccusglobal.com
to register your new product.
PLEASE READ BEFORE RETURNING THIS
PRODUCT FOR ANY REASON:
If you have a question or experience a problem with your purchase, go to
HTTP://WWW.BACCUSGLOBAL.COM
for instant answers 24 hours a day.
If you can’t find the answer or do not have access to the internet,
call 1-877-571-2391 from 9 a.m. to 5 p.m. EST, Mon. – Fri. to speak with an agent.
Please have the catalog number available when you call.
BC
Catalog Number BC2WBD
BC2WBD_ManualENSP_071514.indd 20-1 7/15/2014 10:19:51 AM
2 3
Extension cords:
• An extension cord should not be used unless absolutely necessary. Use of improper extension
cord could result in a risk of fire and electric shock. If an extension cord is used, make sure that the
pins of the extension cord are the same number, size and shape as those in the charger.
• Make sure your extension cord is in good condition. When using an extension cord, be sure to
use one heavy enough to carry the current your product will draw. An undersized cord will cause a
drop in line voltage resulting in loss of power and overheating. The following table shows the correct
size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier
gage. The smaller the gage number, the heavier the cord.
Recommended Minimum AWG Size for Extension Cords for Battery Chargers
AC Input Rating American Wire Gage (AWG) Size of Cord
Amperes Length of Cord, feet (m)
Equal to or But less
25 (7.6) 50 (15.2) 100 (30.5) 150 (45.6)
greater than than
0 2 18 18 18 16
2 3 18 18 16 14
3 4 18 18 16 14
4 5 18 18 14 12
5 6 18 16 14 12
6 8 18 16 12 10
8 10 18 14 12 10
10 12 16 14 10 8
12 14 16 12 10 8
14 16 16 12 10 8
16 18 14 12 8 8
18 20 14 12 8 6
• Power Cord Safety: This appliance has a polarized plug (one blade is wider than the other) as a
safety feature. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into
the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to
defeat this safety feature.
SPECIFIC SAFETY INSTRUCTIONS FOR BATTERY CHARGERS
• This unit was designed for household use only.
• Use of accessories and attachments: The use of any accessory or attachment not recommended by
manufacturer for use with this battery charger could be hazardous.
• Stay alert. Use common sense. Do not operate this equipment when you are tired or impaired.
• Check for damaged parts. A part that is damaged should be properly repaired or replaced by
manufacturer before further use unless otherwise indicated elsewhere in this instruction manual.
• Do not operate the battery charger near flammable liquids or in gaseous or explosive atmospheres.
Motors may spark, and the sparks might ignite fumes.
WARNING: BURST HAZARD: Do not use the unit for charging dry-cell batteries that are commonly
used with home appliances. These batteries may burst and cause injury to persons and damage
property. Use the unit for charging/boosting a LEAD-ACID battery only. It is not intended to supply
power to a low-voltage electrical system other than in a starter-motor application.
WARNING: RISK OF EXPLOSIVE GASES:
• Working in the vicinity of a lead acid battery is dangerous. Batteries generate explosive gases during
normal battery operation. For this reason, it is of the utmost importance that each time before using
the battery maintainer you read this manual and follow instructions exactly.
• To reduce the risk of battery explosion, follow these instructions and those published by the battery
manufacturer and manufacturer of any equipment you intend to use in the vicinity of the battery.
Review cautionary markings on these products and on the engine.
• This equipment employs parts (switches, relays, etc.) that produce arcs or sparks. Therefore, if used
in a garage or enclosed area, the unit MUST be placed not less than 18 inches above the floor.
• THIS UNIT IS NOT FOR USE BY CHILDREN AND SHOULD ONLY BE OPERATED BY ADULTS.
WARNING: TO REDUCE THE RISK OF FIRE:
• Do not operate near flammable materials, fumes or gases.
• Do not expose to extreme heat or flames.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not approved by the party responsible for compliance could void user’s authority to operate the
equipment.
SAFETY GUIDELINES / DEFINITIONS
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
CAUTION: Used without the safety alert symbol indicates potentially hazardous situation which, if not
avoided, may result in property damage.
RISK OF UNSAFE OPERATION. When using tools or equipment, basic safety precautions should
always be followed to reduce the risk of personal injury. Improper operation, maintenance or
modification of tools or equipment could result in serious injury and property damage. There
are certain applications for which tools and equipment are designed. Black & Decker strongly
recommends that this product NOT be modified and/or used for any application other than for which
it was designed. Read and understand all warnings and operating instructions before using any tool or
equipment.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This product or its power cord contains lead, a chemical known to the State of
California to cause cancer and birth defect or other reproductive harm. Wash hands after handling.
READ ALL INSTRUCTIONS
WARNING: Read all instructions before operating product. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury.
GENERAL SAFETY WARNINGS AND INSTRUCTIONS
• Keep children away. Keep away from children. This is not a toy!
• Store indoors. When not in use, battery chargers should be stored indoors in dry, and high or
locked-up places – out of reach of children.
• Unplug the battery charger when not in use.
SPECIFIC SAFETY INSTRUCTIONS FOR POWER CORDS
• Don’t abuse cord. Never carry appliance by cord or yank it to disconnect from receptacle. Keep cord
from heat, oil, and sharp edges. Pull by plug rather than cord when unplugging the unit.
• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuits or outlets to be
used. Receptacles are available having built in GFCI protection and may be used for this measure of
safety.
BC2WBD_ManualENSP_071514.indd 2-3 7/15/2014 10:19:52 AM
4 5
WARNING: TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE: Follow these instructions
and those published by the manufacturer of any engine you intend to use with this battery charger.
Review cautionary markings on the battery charger and engine.
INTRODUCTION
Congratulations on purchasing your new Black & Decker 2 Amp Waterproof Battery Charger. Read
this Instruction Manual and follow the instructions carefully before using your new battery charger.

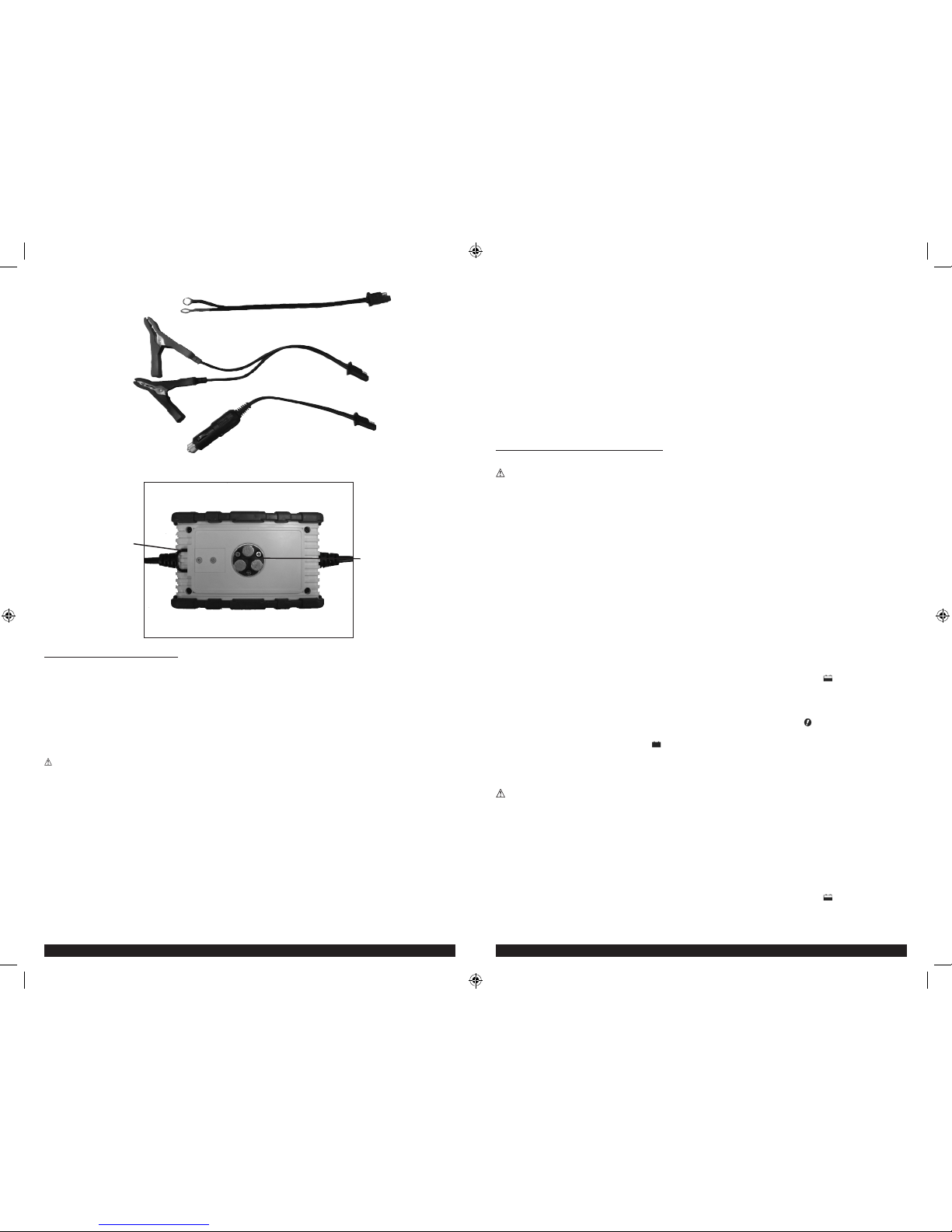

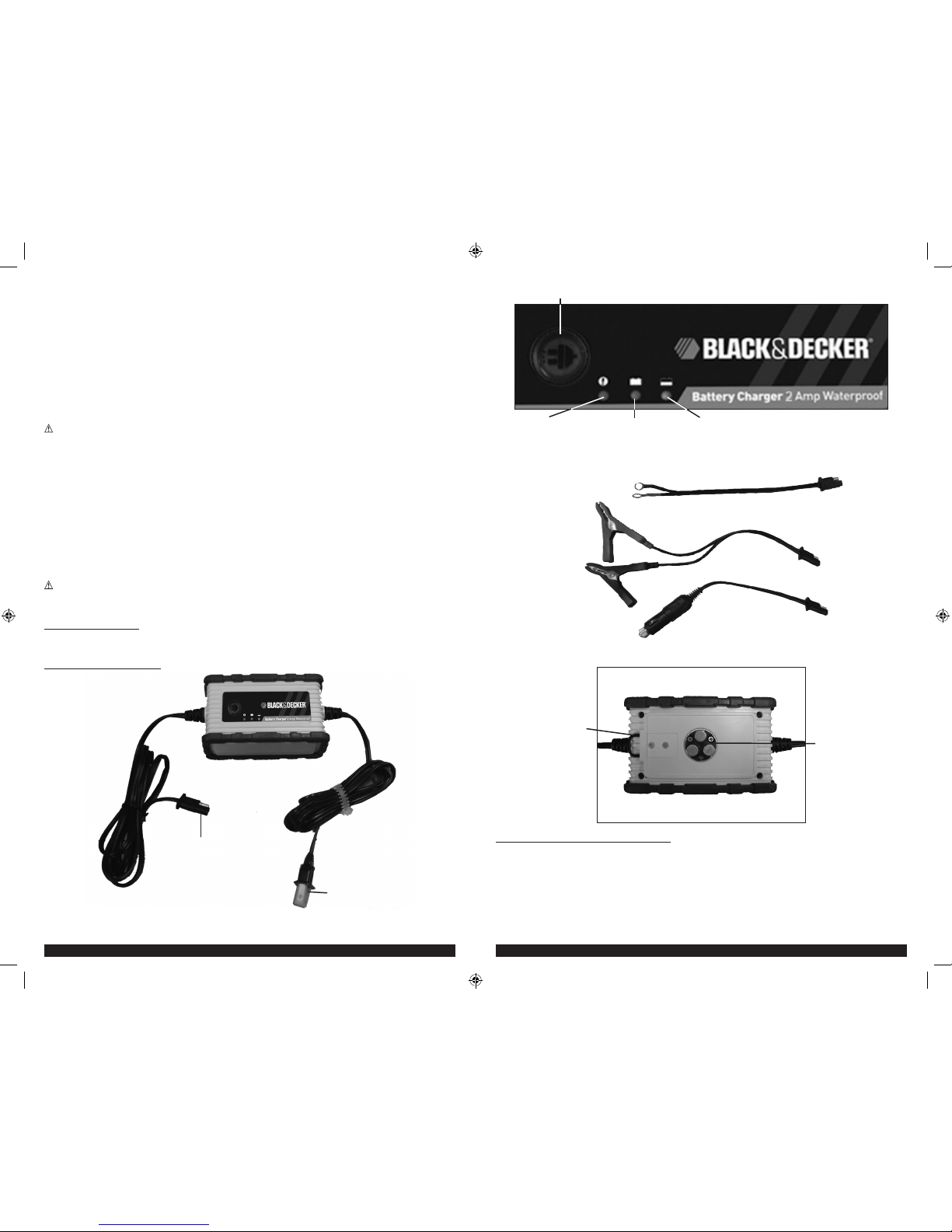

FEATURES
120 VOLT
AC PLUG
DOUBLE BARREL
CHARGER CONNECTOR
(connects to clamps.
ring terminals or vehicle
adapter plug)
POWER LED
REVERSE
POLARITY/
FAULT LED
CHARGING
COMPLETE LED
BATTERY
CHARGING LED
• If the vehicle accessory outlet fuse opens (blows) when plugging in this battery charger, do not use
this battery charger with this vehicle accessory outlet:
– Do not repeatedly replace the fuse.
– Do not replace the vehicle accessory outlet fuse with one of a higher amperage rating.
– Never attempt to patch the fuse with tin foil or wire.
Any of these actions may cause serious electrical damage and/or a fire.
CAUTION: TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:
• NEVER ATTEMPT TO CHARGE A FROZEN BATTERY.
• Do not charge the battery while the engine is operating.
• Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons.
• Vehicles that have on-board computerized systems may be damaged if vehicle battery is jumpstarted. Before jump-starting, read the vehicle’s owner’s manual to confirm that external-starting
assistance is suitable.
• When working with lead acid batteries, always make sure immediate assistance is available in case
of accident or emergency.
• Always have protective eyewear when using this product: contact with battery acid may cause
blindness and/or severe burns. Be aware of first aid procedures in case of accidental contact with
battery acid.
• Have plenty of fresh water and soap nearby in case battery acid contacts skin.
• If battery acid contacts skin or clothing, wash immediately with soap and water for at least 10
minutes and get medical attention immediately.
• Never smoke or allow a spark or flame in vicinity of vehicle battery, engine or battery maintainer.
• Remove personal metal items such as rings, bracelets, necklaces and watches when working with a
lead acid battery. A lead acid battery can produce a short circuit current high enough to weld a ring,
or similar metal object, to skin causing a severe burn.
• Never allow battery acid to come in contact with this unit.
• Do not operate this unit in a closed area or restrict ventilation in any way.
• FIRST AID – SKIN: If battery acid comes in contact with skin, rinse immediately with water, then
wash thoroughly with soap and water. If redness, pain, or irritation occurs, seek immediate medical
attention.
EYES: If battery acid comes in contact with eyes, flush eyes immediately, for a minimum of 15
minutes and seek immediate medical attention.
• Always turn the battery charger off by unplugging it when not in use.
• DO NOT OPEN THE BATTERY CHARGER — there are no user-serviceable parts inside. Opening the
battery charger will void manufacturer’s warranty.
• Operate battery charger only as described in this Instruction Manual.
• Check battery charger and components periodically for wear and tear. Return to manufacturer for
replacement of worn or defective parts immediately.

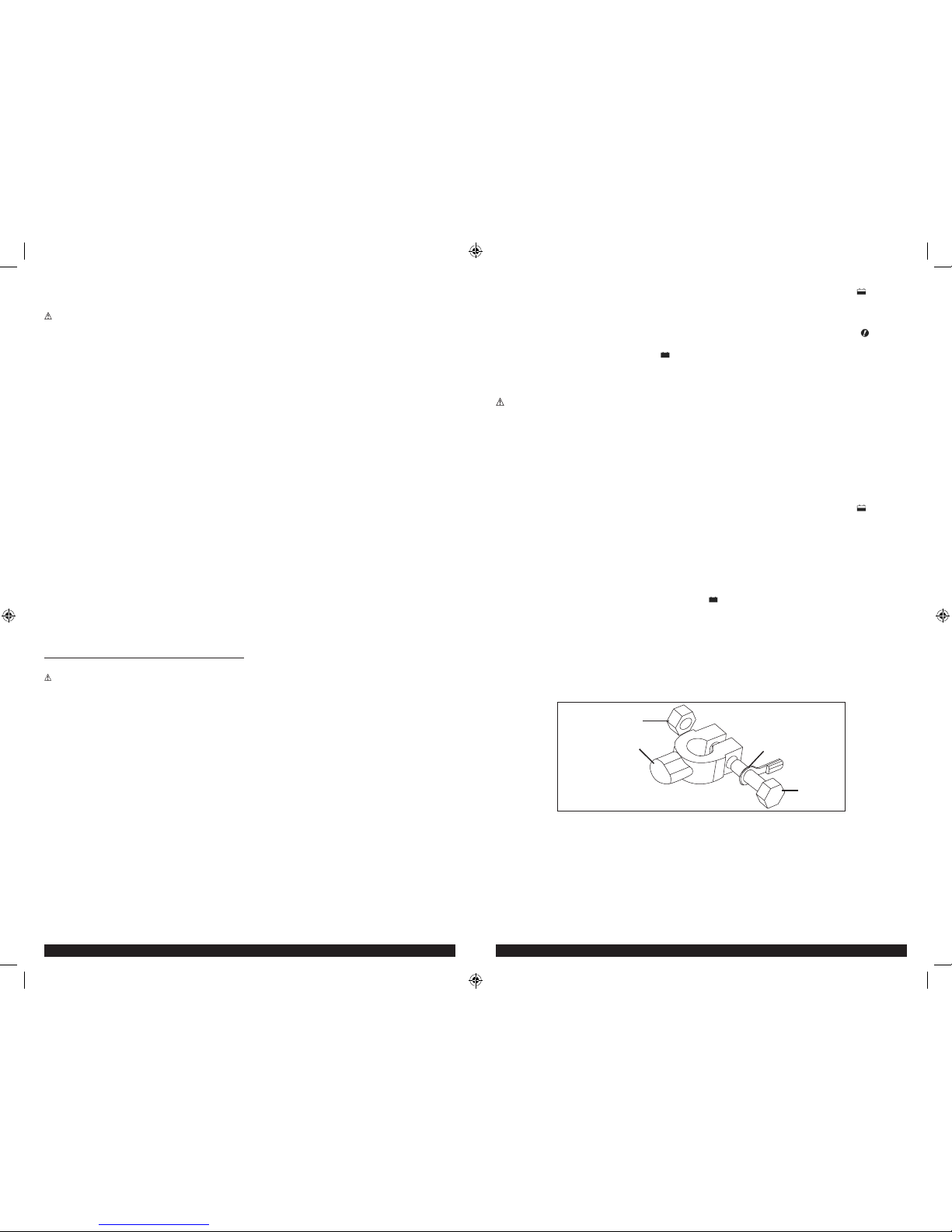

Connection Precautions
• Connect and disconnect terminal rings, battery clamps or vehicle accessory plug only after removing
AC cord from electric outlet.
• Never allow terminal rings or clamps to touch each other.
• Attach clamps only as indicated in “Charging Using the Supplied Battery Clips.”
CAUTION: TO REDUCE THE RISK OF PROPERTY DAMAGE WHEN USING THE UNIT IN WET
ENVIRONMENTS:
The housing of this unit is rated to IP67 dust-proof and waterproof standards. However, it is
recommended that you observe the following:
• Never submerge the unit in water deeper than 1 meter, for time longer than 30 minutes and/
or in temperatures other than between 41ºF and 104ºF (5ºC and 40ºC), or the unit could sustain
permanent damage.
• Never submerge the unit in water unless the bushing (insulation) of the AC or DC cord is intact.
• Do not allow plug or clamps to be exposed to the elements for long periods of time; and never
submerge them.
• Read and Understand This Instruction Manual Before Using This Unit.
SAVE THESE INSTRUCTIONS
