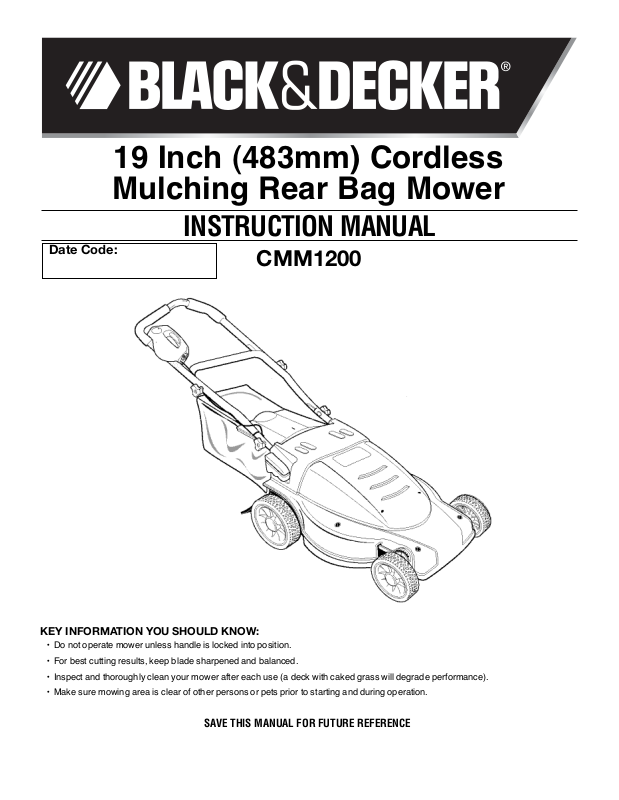

Black & Decker 90531291 User Manual

KEY INFORMATION YOU SHOULD KNOW:

• Do not operate mower unless handle is locked into position.

• For best cutting results, keep blade sharpened and balanced.

• Inspect and thoroughly clean your mower after each use (a deck with caked grass will degrade performance).

• Make sure mowing area is clear of other persons or pets prior to starting and during operation.

SAVE THIS MANUAL FOR FUTURE REFERENCE

19 Inch (483mm) Cordless

Mulching Rear Bag Mower

INSTRUCTION MANUAL

CMM1200

Date Code:

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

DANGER: Indicates an imminently hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if

not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury.

CAUTION: Used without the safety alert symbol indicates a

potentially hazardous situation which, if not avoided, may result in property damage.

The following are explanations of important safety hazard pictorials on the mower.

1. User must read and understand the instruction manual.

2. To avoid the risk of serious injury do not mow up and down slopes. Always mow across slopes.

3. To avoid the risk of injury to bystanders keep all persons and pets at a safe distance from the mower while operating.

4. Rotating blades can cause serious injury. Keep hands

and feet clear of mower deck and discharge opening at all times. Always be sure blade has stopped (wait for the blade to stop rotating (approx. 3 seconds) after releasing switch lever and removing the safety key) before

removing and replacing grass catcher, cleaning,

servicing, transporting or lifting the mower.

5. Objects struck by mower blade can cause serious injury. Stay behind the handle when the motor is running. Always ensure persons and pets are clear of the discharge from the mower while operating. Always inspect mowing area before mowing and remove objects that could be thrown by blade. Release switch lever to turn mower off and wait for the blade to stop rotating (approx. 3 seconds) before crossing walk, roads, patios and gravel drives.

WARNING: IMPORTANT SAFETY WARNINGS AND

INSTRUCTIONS

WARNING:

When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire,electric shock, and personal injury, including the following.

READ ALL INSTRUCTIONS

BEFORE RETURNING THIS PRODUCT

FOR ANY REASON PLEASE CALL

1-800-544-6986

BEFORE YOU CALL, HAVE THE CATALOG No. AND DATE CODE

AVAILABLE. IN MOST CASES, A BLACK & DECKER REPRESENTATIVE

CAN RESOLVE THE PROBLEM OVER THE PHONE. IF YOU HAVE A

SUGGESTION OR COMMENT, GIVE US ACALL. YOUR FEEDBACK IS

VITALTO BLACK & DECKER.

HANK

YOU

FOR

CHOOSING

LACK

&&D

ECKER

! G

OOTTO

WWW

LACKAND

ECKER

COM

WNER

TTOOREGISTER

YOUR

NEW

PRODUCT

TO REDUCE RISK OF INJURY:

• Before any use, be sure everyone using this tool reads and understands all safety instructions and other information contained in this manual.

• Save these instructions and review frequently prior to use and in instructing others.

DANGER: IMPORTANT SAFE PRACTICES FOR

WALK-BEHIND MOWERS

This mower is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

GENERAL OPERATION

1. Read, understand, and follow all instructions on the mower and in

the instruction manual before starting.

2. Do not put hands or feet near or under the mower. Keep clear of

the discharge opening at all times.

3. Only allow responsible adults, who are familiar with the

instructions, to operate this mower.

4. Clear the area where the mower is to be used of objects such as

rocks, sticks, wire, toys, bones, etc., which could be thrown by the blade. Objects struck by the blade can cause severe injury to persons. Stay behind the handle when the motor is running.

5. Be sure the area surrounding the mower is clear of bystanders

before operating. All bystanders and pets should be kept at a safe distance. Stop the mower if anyone enters the area surrounding the mower.

6. Do not operate mower barefooted or while wearing sandals.

Always wear substantial footwear.

7. Do not pull mower backward unless absolutely necessary. Always

look down and behind before and while moving backward.

8. Never direct discharged material toward anyone. Avoid discharging

material against a wall or obstruction. Material may ricochet back toward the operator. Release switch lever to turn mower off and stop the blade when crossing gravel surfaces.

9. Do not operate mower without the entire grass catcher, discharge

guard, rear guard, or other safety protective devices in place and working. Periodically check all guards and safety protective devices to ensure they are in good working order and will operate properly and perform their intended function. Replace a damaged guard or other safety device before further use.

10. Never leave a running mower unattended.

11. Always release the switch lever to stop the motor and wait until the

blade comes to a complete stop and remove the safety key before cleaning the mower, removing the grass catcher, unclogging the discharge guard, when leaving the mower, or before making any adjustments, repairs or inspections.

12. Operate mower only in daylight or good artificial light when objects

in the path of the blade are clearly visible from the operating area of the mower.

13. Do not operate mower while under the influence of alcohol or

drugs, or when you are tired or ill. Always stay alert, watch what you are doing, and use common sense.

14. Avoid dangerous environments. Never operate mower in damp or

wet grass, never use mower in the rain. Always be sure of your footing; walk; never run.

15. Disengage the drive system, if so equipped, before starting the

motor.

16. If the mower should start to vibrate abnormally, release the switch

lever, wait for the blade to stop and remove the safety key, then check for the cause immediately. Vibration is generally a warning of trouble.

17. Always wear proper eye and respiratory protection when operating

the mower.

18. The use of any accessory or attachment not recommended for use

with this mower could be hazardous. Only use accessories approved by Black & Decker.

19. Never overreach while operating the mower. Always be sure to keep

proper footing and balance at all times while operating the mower.

SLOPE OPERATION

Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not mow it.

1. Mow across the face of slopes; never up and down. Exercise

extreme caution when changing direction on slopes.

2. Watch for holes, ruts, bumps, rocks, or other hidden objects.

Uneven terrain could cause a slip and fall accident. Tall grass can hide obstacles.

3. Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident.

4. Do not mow near drop-offs, ditches, or embankments. You could lose your footing or balance.

CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the mower and the mowing activity. Never assume that children will remain where you last saw them.

1. Keep children out of the mowing area and under the watchful care of a responsible adult other than the operator.

2. Be alert and turn mower off if a child enters the area.

3. Never allow children to operate the mower.

4. Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of a child.

GENERAL SERVICE

1. Never operate mower in a closed area.

2. Keep all nuts and bolts tight to be sure the equipment is in safe working condition.

3. Never tamper with safety devices. Check their proper operation regularly.

4. Keep mower free of grass, leaves, or other debris build-up. Allow mower to cool before storing.

5. If you strike a foreign object, release switch lever to turn mower off, wait for the blade to stop and remove the safety key and then inspect the mower. Repair, any damage, before starting and operating the mower.

6. Never make any adjustments or repairs with the motor running or while the safety key is in the mower.

7. Always remove safety key before adjusting, cleaning, repairing, inspecting, transporting, storing or leaving the mower.

8. Check grass catcher components and the discharge guard frequently and when necessary replace with Black & Decker recommended parts only.

9. Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.

10. Maintain or replace safety and instruction labels, as necessary.

WARNING: GENERAL SAFETY WARNINGS AND

INSTRUCTIONS FOR ALL TOOLS

• THIS TOOL CAN BE DANGEROUS. Follow all warnings and Safety

Instructions in this manual. The operator is responsible for following warnings and instructions in this manual and on unit. Restrict use of this mower to persons who read, understand and follow warnings and instructions in this manual and on unit.

• STORE IDLE MOWER INDOORS. Always store with safety key

removed. Mowers should be stored indoors in dry, secured area – out of reach of children.

• DON’T FORCE MOWER. It will do the job better and with less

likelihood of a risk of injury at the rate for which it was designed.

• USE RIGHT APPLIANCE. Do not use the mower for any job except

that for which it is intended.

• DRESS PROPERLY. Do not wear loose clothing or jewelry. They can

be caught in moving parts. Rubber gloves, long pants and substantial, non-skid footwear are recommended when working outdoors.

• USE SAFETY GLASSES AND OTHER SAFETY EQUIPMENT. Use

safety goggles or safety glasses with side shields, complying with applicable safety standards and, when needed, a face shield. Also use face or dust mask if operation is dusty. This applies to all persons in the work area. Also use a hard hat, hearing protection, gloves, safety shoes and dust collection systems when specified or required. Safety glasses or the like are available at extra cost at your local dealer or Black & Decker Service Center.

• DON’T ABUSE CORD. Never carry charger by cord or yank it to

disconnect from receptacle. Keep cord away from heat, oil, and sharp edges.

• MAINTAIN MOWER WITH CARE. Keep cutting edge clean and sharp

for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect mower cord periodically and if damaged, have it repaired by authorized service facility. Keep handles dry, clean, and free from oil and grease.

• AVOID UNINTENTIONAL STARTING. Don’t carry mower with safety

key inserted in switch housing. Be sure switch lever is not engaged while inserting safety key.

• BEFORE USING, always visually inspect to see that the blade, blade

fasteners and cutter assembly are not worn or damaged. Replace worn or damaged blades and fasteners in sets to preserve balance. Inspect the mower cord - ensure it is in good condition. Cord insulation must be intact with no cracks or deterioration.

• USE OF EXTENSION CORDS

Make sure the extension cord is in good condition before using. Always use the proper size extension cords with the tool – that is, proper wire size for various lengths of cord and heavy enough to carry the current the tool will draw. Use of an undersized cord will cause a drop in line voltage resulting in loss of power and overheating. For proper size cords see chart below.

• CHECK FOR DAMAGED PARTS. Before further use of the mower, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect their operation. Aguard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this manual.

• REPAIRS AND SERVICE. Repairs, maintenance and any adjustments not specified in this manual should be performed by Black & Decker authorized service centers or other qualified service organizations, always using identical replacement parts.

DANGER: ADDITIONAL WARNINGS FOR MOWERS

• ALWAYS firmly grip handle with both hands when operating mower.

• NEVER wear radio or music headphones while operating mower.

• CONTAIN long hair.

• NEVER attempt to make a wheel height adjustment while the motor is running or while the safety key is in the switch housing.

• IF MOWER stalls, release switch lever to turn mower off, wait for blade to stop and remove the safety key, before attempting to unclog the chute or remove anything from under the deck.

• KEEP HANDS and feet away from cutting area.

• KEEP BLADES sharp. Always use protective gloves when handling the mower blade.

• IF YOU are using a grass catcher, check it frequently for wear and deterioration. If excessively worn, replace with new bag for your safety.

• USE EXTREME CAUTION when reversing or pulling mower toward you.

WARNING: Some dust created by this product contains

chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers

• compounds in insecticides, herbicides and pesticides

• arsenic and chromium from chemically treated lumber To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

Minimum Gage for Cord Sets

Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150

(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)

240V 0-50 51-100 101-200 201-300

(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)

Ampere Rating

More Not more American Wire Gage Than Than 0-6 18 16 16 14 6 - 10 18 16 14 12 10 - 12 16 16 14 12 12 - 16 14 12 Not Recommended

PREPARATION

PLEASE REFER TO DIAGRAMS (A, B, C...) AND ITEM NUMBERS (1, 2, 3...) AS NOTED THROUGHOUT MANUAL. FOR EXAMPLE, A-1 REFERS TO ITEM 1 IN FIGURE A.

UNPACKING

Your mower has been completely assembled at the factory except for the grass bag. Your Black & Decker cordless mower is shipped with the battery system fully assembled and ready for use.

To remove mower from carton:

1. Remove the grass bag frame and cardboard fillers.

2. Remove the mower from the carton and place all four wheels on the ground or floor.

3. Check the carton thoroughly and make sure there are no loose parts.

To unfold handle:

Raise the handle section A-1 into place and secure by tightening the two lower knobs A-2. Be careful not to pinch power cord.

DANGER: Sharp moving blade. For your own safety

DO NOT use this mower without either the grass catcher, mulch insert, or optional discharge chute in operating position, as serious injury could result.

ASSEMBLING THE GRASS CA

TCHER (FIGURE

C1, C2, C3, C4)

1. Before starting to assemble the grass bag to the frame, check that the grass bag and frame are similar to figure C1.

2. Slide the grass bag onto the frame as shown in figure C2.

3. Assemble the top clips to the frame as shown in figure C3, then assemble the two side clips and the bottom clip last.

4. Completely assembled grass catcher is shown in figure C4.

HANDLE

ADJUSTMENT

Your mower has a variable height handle adjustment feature. To adjust the handle position to suit your height preference, use the following procedure:

1. Remove both knobs B-1 on the middle part of the handlebars and remove the saddle bolts B-2.

2. Slide the upper handle into one of the 3 adjustment positions B-3, aligning the holes in the upper and lower handles.

3. Insert the saddle bolts and install the knobs, tightening securely. The knobs should always be on the outside of the handles to avoid interference with the rear door and grass bag.

WHEEL

HEIGHT ADJUSTMENT (1-3/4 IN.(44

mm)

TO 3-1/2 IN. (89mm)

1. Before making any adjustments, release switch lever to turn mower off, wait for blade to stop, and remove safety key.

2. Your mower features the Black & Decker one touch wheel height adjustment system. This system will adjust all four wheels at the same time.

3. To raise or lower the cutting height, place the palm of your hand on the palm rest E-1 and with your fingers, squeeze upward on the finger grip E-2 and hold.

4. While holding the finger grip up you can raise or lower the cutting height. The mower has seven blade height adjustment positions. Refer to the scale F-1 and pointer F-2 at the front of the mower. The pointer will indicate the height setting for cutting your lawn. This setting can be a reference for the next time you want to cut your lawn at the same height. When you have the mower at the height you would like, hold it in place with your left hand on the lower right handle bar and release the finger grip with your right hand to lock the height adjust.

Note: To ensure that the deck is securely locked in one of the seven positions, press down on the palm rest after releasing the finger grip.

BATTERY

CAUTION: USE ONLY BLACK & DECKER APPROVED

REPLACEMENT BATTERIES - CONTACT YOUR LOCAL SERVICE CENTER OR 1-800-544-6986.

The battery in your cordless mower is a 24-volt sealed lead acid system. There is no liquid contained within the battery and the mower can therefore be stored in any position without fear of leakage.

• For optimal performance the battery should be kept on constant charge when not in use.

• The battery prefers to be charged in a cool, dry place.

• The battery does not need to be fully discharged before recharging.

• 2 to 3 initial charging cycles may be required after purchase to achieve maximum run time capacity.

• The battery can be safely stored down to -40°C (-40°F).

• The battery is maintenance free.

CHARGER SAFETY RULES

1. Plug charger directly into an electrical outlet. DO NOT

ABUSE THE

CORD. Never carry charger by cord. Do not disconnect the charger

from the outlet or mower by pulling it by the cord.

WARNING: To reduce the risk of fire, electrical shock, or

personal injury do not attempt to use this charger with any other product. Likewise, do not attempt to charge the mower with any other charger.

3. Do not service mower with charger or safety key installed.

4. Do not operate a damaged charger. Replace damaged cords or charger immediately at an authorized Black & Decker service center.

5. Always charge the mower in a dry area protected from the weather. Do not expose the mower or charger to rain. Do not charge in wet locations. Do not charge mower when temperature is above 40°C (104°F) or below 5°C (41°F).

6. Keep the mower and charger away from water, heat sources, (such as radiators, heaters, stoves, etc.) flames, or chemicals. Be careful not to damage the charger cord, by keeping cord away from sharp edges.

ARNING: FIRE HAZARD

ALWAYS DISCONNECT THE CHARGER FROM THE POWER SUPPLY (WALL OUTLET) BEFORE REMOVING THE CHARGER CONNECTOR. UNDER CERTAIN CONDITIONS, WITH THE CHARGER PLUGGED IN TO THE POWER SUPPLY, THE EXPOSED CONNECTOR CAN BE SHORTED BY FOREIGN MATERIAL AND MAY CAUSE A FIRE. FOREIGN MATERIALS OF A CONDUCTIVE NATURE, SUCH AS, BUT NOT LIMITED TO, STEEL WOOL, ALUMINUM FOIL, OR ANY BUILD-UP OF METALLIC PARTICLES, SHOULD BE KEPT FROM THE CONNECTOR. ALWAYS UNPLUG CHARGER BEFORE ATTEMPTING TO CLEAN.

CHARGING PROCEDURE

The charger for your mower is a specially designed 2-step charger. Step 1: The recharge cycle is indicated by the illuminated red light (D-1). Step 2: The maintenance cycle is indicated by the illuminated green

light (D-2). This cycle will maintain your mower in a fully charged condition.

1. Remove safety key D-6.

2. Plug the charger connector D-3 into the receptacle D-8 on the mower. The charger connector can only be plugged into the mower receptacle one way.

3. Insert the 120 volt plug D-4 of the charger D-5 into the wall receptacle.

4. The red light on the charger should come on indicating you have power and the battery is being charged. The red light should extinguish and the green light will come on when charging is complete (takes approximately 9 hours to charge a fully discharged mower).

5. It is recommended to leave the mower on constant charge for optimum performance during the mowing season.

6. The charger supplied with this product is intended to be plugged in such that it is correctly orientated in a vertical or floor mount position.

OPERATION

PLEASE REFER TO DIAGRAMS (A, B, C...) AND ITEM NUMBERS (1, 2, 3...) AS NOTED THROUGHOUT MANUAL. FOR EXAMPLE, A-1 REFERS TO ITEM 1 IN FIGURE A.

KNOW YOUR MOWER

READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR MOWER. See diagram G to familiarize

yourself with the location of various controls and adjustments referenced below. Save this manual for future reference.

G-1: Safety key/charging port G-2: Switch lever G-3: Handle adjustment knobs G-4: Handle storage knobs G-5: Grass bag G-6: Cut height adjustment release G-7: Cut height indicator

SAFETY KEY

DANGER : SHARP MOVING BLADE.

In order to prevent accidental start-up or unauthorized use of your Cordless Mower, a removable Safety Key D-6 has been incorporated into the design of your mower. The mower will be completely disabled when the Safety Key has been removed from the mower. With the Safety Key removed, you will have access to the charger receptacle D-8.

NOTE: THE SAFETY KEY HAS A HOLE IN THE CENTER TO ALLOW FOR STORAGE ON A NAIL, OUT OF THE REACH OF CHILDREN. DO NOT TETHER SAFETY KEY TO MOWER.

DANGER: ROTATING BLADES CAN CAUSE SERIOUS

INJURY. TO PREVENT SERIOUS INJURY, REMOVE SAFETY KEY WHEN UNATTENDED, OR WHEN CHARGING, CLEANING, SERVICING, TRANSPORTING, LIFTING, OR STORING MOWER.

TO TURN MOWER ON

Insert Safety Key D-6 into the switch housing, until it is fully seated inside housing. The mower is now operational and can be started by activating the switch lever.

DANGER: SHARP MOVING BLADE. NEVER ATTEMPT TO

OVERRIDE THE OPERATION OF THIS SWITCH AND SAFETY KEY SYSTEM AS SERIOUS INJURY COULD RESULT.

ON-OFF SWITCH LEVER -

FIGURE H

Your mower is equipped with a special on-off switch system. To operate the system, first push switch lever out (H-1), then pull it to the handlebar (H-2).To turn the mower off, just release the switch lever.

Once the switch lever has returned to the original position it will activate the “Automatic Braking Mechanism”. The motor is electrically braked and the mower blade will stop rotating in 3 seconds or less.

MEETS CPSC SAFETY REQUIREMENTS

Black and Decker Mowers conform to the safety standards of the American National Standards Institute, and the U.S. Consumer Product Safety Commission. The Blade turns when the motor is running.

SAFETY SHIELD AND REAR DOOR

This safety shield I-1 is designed to minimize the throwing of stones or other objects by the mower blade backward from under the mower deck. The shield, along with the rear door I-2, minimizes the possibility of accidental foot contact with the blade. DO NOT operate mower without the safety shield and rear door in place.

DANGER: Sharp moving blade. For your own safety DO NOT

use this mower without either the grass catcher or mulch insert in operating position as serious injury could result.

DANGER: Sharp moving blade. Do not operate the mower if the

rear door is not closed under spring tension as serious injury could result. Take your mower to the nearest service center for repair.

REMOVING MULCH INSERT

To remove the mulch insert I-3 so that you can bag the grass or discharge with the optional discharge chute, follow the steps listed below:

1. Release switch lever to turn mower off, wait until the blade stops and remove safety key D-6.

2. Raise the rear discharge door I-2 and hold it up.

3. Locate your hand in the handle pocket I-4 as shown, and lift and

pull out the mulch insert I-3 completely.

4. The rear discharge door is spring loaded. When you release it the

door will return to the closed position.

INSTALLING MULCH INSERT

1. Repeat steps 1 and 2 for removing mulch insert.

2. Slide the mulch insert I-3 into the discharge opening until it is firmly

in contact with the deck.

3. Release rear door and ensure it is properly closed.

INSTALLING GRASS CA

TCHER

1. Release switch lever to turn mower off, wait until the blade stops

and remove safety key D-6.

2. Reaching down between the mower handles, raise the rear

discharge door J-1 to a vertical position and hold the door up. Ensure that the mulch insert I-3 has been removed.

3. Pick up the grass catcher J-2 by the handle J-3 and place the

grass catcher between the mower handles as shown.

4. Position the grass catcher hanger hooks J-4 on the mower as

shown in Figure K. Release the rear discharge door.

DANGER: Sharp moving blade. Never operate the mower

unless the hanger hooks on the grass catcher are seated properly on the mower and the rear discharge door rests firmly against the top of the grass catcher as serious injury could result.

MOWING TIPS

NOTE: ALWAYS INSPECT AREA WHERE MOWER IS TO BE USED AND REMOVE ALL STONES, STICKS, WIRE, BONES AND OTHER DEBRIS WHICH MIGHT BE THROWN BY THE ROTATING BLADE.

1. Mow across the face of slopes, never up-and-down. Exercise

extreme caution when changing direction on slopes. Do not mow excessively steep slopes. Always maintain good footing.

2. Release switch lever to turn mower “OFF” when crossing any

gravel area (stones can be thrown by the blade).

3. Set mower at highest cutting height when mowing in rough ground

or in tall weeds. Removing too much grass at one time can cause circuit breaker to trip, which stops mower. Refer to troubleshooting guide.

4. If a grass catcher is used during the fast growing season, the grass

may tend to clog up at the discharge opening. Release switch lever to turn mower off and remove the safety key. Remove the catcher and shake the grass down to the back end of the bag. Also clean out any grass or debris which may be packed around the discharge opening. Replace the grass catcher.

5. If mower should start to vibrate abnormally, release switch lever to

turn mower off and remove safety key. Check immediately for cause. Vibration is a warning of trouble. Do not operate mower until a service check has been made. Refer to troubleshooting guide in manual.

6. ALWAYS RELEASE SWITCH LEVER TO TURN MOWER OFF

AND REMOVE SAFETY KEY WHEN LEAVING IT UNATTENDED EVEN FOR A SHORT PERIOD OF TIME.

THE FOLLOWING SUGGESTIONS WILL HELP YOU TO OBTAIN OPTIMUM RUN TIME FROM YOUR CORDLESS MOWER:

1. Slow down in areas where the grass is especially long or thick.

2. When mulching, avoid cutting more than 1-1/2 inches off the length at any one time.

3. Avoid mowing when the grass is wet from rain or dew-soaked.

4. Cut your lawn frequently, especially during high growth periods.

NOTE: IT IS RECOMMENDED THAT YOUR MOWER BE RECHARGED AFTER USE. FREQUENT CHARGING WILL NOT HARM YOUR BATTERY, AND WILL ENSURE THAT THE BATTERY IS FULLY CHARGED AND READY FOR ITS NEXT USE.

MULCHING MOWING TIPS

Your mower was shipped from Black & Decker with the mulch insert installed. While mulching, your new mower is designed to cut the grass clippings into small pieces and distribute them back into the lawn. Under normal conditions, the mulched grass will biodegrade quickly to provide nutrients to the lawn.

Please review the following recommendations for optimum mulching performance.

1. Avoid mowing when the grass is wet from rain or dew. Wet grass may form clumps which interfere with the mulching action and reduce run-time. The best time to mow grass is in the late afternoon when the grass is dry and the newly cut area will not be exposed to direct sunlight.

2. For best mulching performance, set the cutting height to remove about one third of the grass blade length, ideally no more than

1-1/2 in. at one time. If the lawn is overgrown, it may be necessary to increase the cut height to reduce the pushing effort and prevent overloading the motor. For extremely heavy mulching, it is advisable to first cut at a high cut height setting, and then re-cut to the final cut height. Otherwise, make narrower cuts and mow slowly.

3. For best performance, keep the mower housing free of built-up grass. From time to time release switch lever to turn mower off and wait for the blade to come to a complete stop. Then remove the safety key and turn mower on its side. Using an object such as a stick, wipe out any accumulation of grass in the blade area. Be careful of the sharp edges of the blade. Clean often in wet, spring grass, and always after every use.

4. Certain types of grass or grass conditions may require that an area be mulched a second time to fully disperse the grass throughout the lawn. If cutting a second time, it is advisable to cut perpendicular (across) the first cut pattern. DO NOT CHANGE CUT PATTERN IN ANY WAY THAT WOULD CAUSE MOWING DOWN A HILL.

5. Change your cutting pattern from week to week. This will help prevent matting of the lawn.

MAINTENANCE

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement) should be performed by BLACK & DECKER Service Centers or other qualified service organizations, always using Black & Decker replacement parts. When servicing use ONLY IDENTICAL REPLACEMENT PARTS.

PLEASE REFER TO DIAGRAMS (A, B, C...) AND ITEM NUMBERS (1, 2, 3...) AS NOTED THROUGHOUT MANUAL. FOR EXAMPLE, A-1 REFERS TO ITEM 1 IN FIGURE A.

REMOVING

AND INSTALLING BLADE

1. RELEASE SWITCH LEVER TO TURN MOWER OFF, WAIT FOR THE BLADE TO STOP, AND REMOVE SAFETY KEY.

2. Cut a piece of 2x4 wood N-1 (about 2 feet long) to keep blade from turning while removing flange nut.

3. Turn the mower on its side. Wear gloves and proper eye protection. Be careful of sharp edges of blade. Position wood and remove flange nut N-3 with 3/4 in. (19mm) wrench N-2 as shown in Figure N.

4. Remove square metal blade spacer O-2, square plastic blade insulator O-3, and blade O-4 as shown in figure O. Examine blade insulator for damage and replace if necessary.

5. When replacing sharpened or new blade on shoulder of fan O-5, make sure the “GRASS SIDE” on the blade will be facing the ground when the mower is returned to its normal upright position. After installing blade O-4, place blade insulator O-3 on blade such that the raised lips on one side engage the edges of the blade. Then install the blade spacer O-2 so that it sits inside the raised lips on the other side of the blade insulator. Be sure to align the flats in the hole of the blade spacer with the flats of the shaft, rotating the blade and blade insulator together as necessary. Position piece of wood P-1 to keep blade from turning as shown in figure P. Install flange nut with the flange against the blade spacer and securely tighten.

BLADE SHARPENING

KEEP BLADE SHARP FOR BEST MOWER PERFORMANCE. A DULL BLADE DOES NOT CUT GRASS CLEANLY OR MULCH PROPERLY.

WEAR PROPER EYE PROTECTION WHILE REMOVING, SHARPENING, AND INSTALLING BLADE. ENSURE THAT SAFETY KEY IS REMOVED.

Sharpening the blade twice during a mowing season is usually sufficient under normal circumstances. Sand causes the blade to dull quickly. If your lawn has sandy soil, more frequent sharpening may be required.

REPLACE BENT OR DAMAGED BLADE IMMEDIATELY.

WHEN SHARPENING THE BLADE:

1. Make sure blade remains balanced.

2. Sharpen blade at the original cutting angle.

3. Sharpen cutting edges on both ends of blade, removing equal amounts of material from both ends.

TO SHARPEN BLADE IN A VISE:

1. Be sure the switch lever is released, the blade has stopped and the safety key removed before removing the blade.

2. Remove blade from mower. See instructions for removing and installing blade.

3. Secure blade L-1 in a vise L-2.

4. Wear proper eye protection and gloves and be careful not to cut yourself.

5. Carefully file the cutting edges of the blade with a fine tooth file L-3 or sharpening stone, maintaining the original cutting edge.

6. Check balance of blade. See instructions for blade balancing.

7. Replace blade on mower and tighten securely.

BLADE BALANCING

Check balance of blade by placing center hole in blade M-1 over a nail or round shank screwdriver M-2, clamped horizontally in a vise M-3. If either end of the blade rotates downward, file that end. Blade is properly balanced when neither end drops.

LUBRICA

TION

No lubrication is necessary. Do not oil the wheels. They have plastic bearing surfaces which require no lubrication.

CLEANING

RELEASE SWITCH LEVER TO TURN MOWER OFF, LET THE BLADE COME TO A STOP AND THEN REMOVE SAFETY KEY. USE ONLY MILD SOAP AND A DAMP CLOTH TO CLEAN THE MOWER. CLEAN OUT ANY CLIPPINGS WHICH MAY HAVE ACCUMULATED ON THE UNDERSIDE OF THE DECK. AFTER SEVERAL USES, CHECK ALL EXPOSED FASTENERS FOR TIGHTNESS.

PREVENTING CORROSION

Fertilizers and other garden chemicals contain agents which greatly accelerate the corrosion of metals. If you mow in areas where

HERE ARE SOME HELPFUL HINTS TO GET THE MOST FROM YOUR BLACK & DECKER CORDLESS MOWER...AND KEEP YOUR LAWN LOOKING BEAUTIFUL

1. Lawns should first be mowed in the spring when the grass is about 2 1/2 to 3 inches high. Mowing too early restricts the grass root systems which renew themselves every spring. New grass should be clipped when it is about 2 1/2 inches high.

2. Do not remove too much grass blade surface at one time...never more than 1/3 of the leaf height during each cutting. Cutting too close “shocks” sensitive grass blades, resulting in a shallow root system and thus making it more difficult for your lawn to reach water in the soil.

3. Lawn care experts say that excessively close cutting is responsible for much of the difficulty experienced on many lawns. The depth and strength of the roots of grass are almost exactly proportional to its growth. Grasses of mature lawns often are seriously injured when mowed shorter than 1 1/2 inches, and a height of 1 1/2 to 2 inches is preferred on large lawns.

4. Mow your lawn when it is dry to avoid clumping of wet grass. If you have a choice, late afternoon is the ideal time for mowing, not only because the grass is dry, but also because the sensitive new cut area of the grass will not be exposed to intense sunlight.

5. Keep the mowing blade sharp for a nice clean cut. This improves the mower’s performance and enhances the look of your lawn. A dull blade shatters and bruises the tips of the grass. This impairs the healthy growth of your lawn and increases susceptibility to turf diseases. If the grass tips are bruised it causes a brownish colour and gives your lawn an unhealthy appearance. A dull blade may also pull up young seedlings.

6. Try to mow your lawn at the same (consistent) cutting height. While there are times when you should vary the cutting height with the changing seasons, a consistent cutting height produces a healthier, lovelier lawn with generally fewer weeds. Mow more frequently during periods of fast growth. Frequent cutting ensures that the lower, less attractive portion of the grass will not show.

7. If your lawn has grown too long, (a vacation, for example, may interrupt your cutting schedule) mow at a cutting height one or two positions higher than normal. A second pass at “normal” cutting height a few days later will put your lawn back on schedule. Changing the cutting height is a simple matter with Black & Decker’s One Touch Wheel Height Adjustment, which simultaneously adjusts all four wheels at once.

8. During the spring and fall, (or after an interruption to the cutting schedule) the grass will be longer and thicker. If the motor continually slows down while cutting, try setting the wheels for a higher cutting height. Excessive motor loading can result in uneven cutting, quicker discharge of the battery, and can cause the circuit breaker to trip, which stops the motor.

9. Three good ideas to enhance your lawn’s appearance: Vary the mowing direction frequently; mow horizontally on hillsides; (this is also a good safety practice) and do not forget to overlap the mowing path on each pass.

10. Always mow grass so that clippings are discharged onto cut lawn. This will keep your lawn looking fresh by avoiding “Cut Grass” build-up which will eventually brown and appear ugly. This method also preserves your battery charge, ensuring you get the most from your Black & Decker Cordless Power Mower.

11. During the spring and fall seasons when the grass is longer and thicker, you can use your mower without it being fully recharged.

fertilizers or chemicals have been used, the mower should be cleaned immediately afterward as follows: (1) Release switch lever to turn mower off and remove safety key. (2) Wipe all exposed parts with a damp cloth.

CAUTION: DO NOT POUR OR SPRAY WATER ON THE

MOWER IN AN ATTEMPT TO CLEAN IT. Do not store the tool on or adjacent to fertilizers or chemicals. Such

storage can cause rapid corrosion.

TRANSPORTING

AND STORAGE

DANGER: Rotating blade can cause serious injury. Release

switch lever to turn mower off and remove the safety key before lifting, transporting or storing the mower. Store in a dry place.

OFF-SEASON STORAGE

1. In warmer climates to ensure optimal performance, it is recommended that the battery be maintained on constant charge.

2. The mower may be stored with the charger disconnected if all of the following conditions are met.

-the mower is fully charged before storing.

-the average temperature of the storage location is below 10°C (50°F)

-Storage duration is less than 6 months.

BATTER

Y SERVICE AND INSTALLATION

When service or repair is required, it is recommended that you take your mower to an authorized Black & Decker Service Center. When servicing or replacing batteries, please note:

• At the end of normal service life, both batteries should be replaced at the same time. Mixing fresh and discharged batteries could increase internal cell pressure and cause battery rupture.

• When inserting batteries into this product, the proper polarity or direction must be observed. Reverse insertion of the batteries can result in leakage or explosion.

THE RBRC™ SEAL (Battery Recycling)

The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the lead acid battery (or battery pack) indicates that the costs to recycle the battery (or battery pack) at the end of its useful life have already been paid by Black & Decker. In some areas, it is illegal to place spent lead acid batteries in the trash or municipal solid waste stream and the RBRC program provides an environmentally conscious alternative.

RBRC in cooperation with Black & Decker and other battery users, has established programs in the United States and Canada to facilitate the collection of spent lead acid batteries. Help protect our environment and conserve natural resources by returning the lead acid battery to an authorized Black & Decker service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery, or call

1-800-544-6986

Accessories

Recommended accessories for use with your mower are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986

WARNING:The use of any accessory not recommended for use

with this tool could be hazardous.

p/n 242354-01 MULCH INSERT p/n 242867-00 SIDE DISCHARGE CHUTE p/n 242501-05 REPLACEMENT GRASSBAG MB-850 REPLACEMENT BLADE

7 88

(i.e. green charge indication light is on). This will enable you to perform short cutting tasks, but we don’t recommend this be done frequently. The battery and mower perform much better if charged fully.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE

Service Information

All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under "Tools—Electric" or call: 1-800-544-6986 or visit

www.blackanddecker.com

WARRANTIES Full Two-Year Home Use Warranty

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways. The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges. The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required.Black & Decker owned and authorized Service Centers are listed under "Tools-Electric" in the yellow pages of the phone directory. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

Deck Warranty

Lifetime Warranty for DECK only against any defects in material or workmanship.

This product is not intended for commercial use.

TROUBLE SHOOTING GUIDE

PROBLEM SOLUTION

1. Mower doesn’t run when switch lever is activated. A. Check to make sure safety key has been installed and is fully seated.

B. Release switch lever to turn mower off. Remove safety key, turn mower

over and check that blade is free to turn.

C. Has battery been fully charged? Plug in charger and wait for green light to

come on.

2. Motor stops while mowing. A. Release switch lever to turn mower off. Remove safety key. Turn mower over and check that blade is free to turn.

B. Raise cutting height of wheels to highest position and start mower.

C. Has battery been fully charged? Plug in charger and wait for green light to

come on.

D. Circuit breaker may have tripped. It resets automatically. Re-set time could

be as long as 1 minute. Slow down or raise cut height.

3. Mower runs but cutting performance is unsatisfactory, A. Has battery been fully charged? Plug in charger and wait for green light to come on.”

or does not cut entire lawn.

B. Release switch lever to turn mower off. Remove safety key. Turn mower

over and check: *Blade for sharpness *Deck and discharge chute for clogging.

C. Wheel height adjustment may be set too low for grass condition. Raise cut-

ting height.

4. Mower is too hard to push. A. Raise cutting height to reduce deck drag on grass. Check each wheel for free rotation.

5. Mower is abnormally noisy and vibrates. A. Release switch lever to turn mower off. Remove safety key. Turn mower on side and check blade to ensure it has not been bent or damaged. If blade is damaged, replace with a Black & Decker replacement blade. If the underside of the deck is damaged return mower to a Black & Decker Authorized service center.

B. If there is no visible damage to the blade and the mower still vibrates:

Release switch lever to turn mower off, remove safety key and remove blade. Rotate blade 180 degrees and retighten. If mower still vibrates, return the mower to an authorized Black & Decker service center.

NOTE

Should the red light remain on after charging the battery for 24 hours on initial charge, the mower can still be used. The battery may need to be “conditioned” requiring a few battery charge and discharge cycles before the green indicator light comes on.

THIS IS ONLY A GUIDE INTENDED TO ENABLE YOU TO PERFORM VISUAL CHECKS AND SIMPLE TESTS. SHOULD NONE OF THE SOLUTIONS PROVIDE SATISFACTION OR IMPROVE PERFORMANCE CALL 1-800-544-6986 (1-800-54-HOW-TO) TO SPEAK TO A CONSUMER SERVICE REPRESENTATIVE OR TAKE THIS MOWER TO THE CLOSEST AUTHORIZED BLACK & DECKER SERVICE CENTER FOR SERVICING.

Imported by

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A.

See ‘Tools-

Electric’

– Yellow Pages –

for Service &

Sales

CLIP PINCE PINZA

GRASSBAG SAC À HERBE BOLSA PARA PASTO

FRAME CADRE BASTIDOR

+ 22 hidden pages
