Black & Decker 90517736 User Manual

• DO NOT unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• DO NOT put any objects into openings. Do not use with any opening blocked; keep free of

dust, lint, hair and everything that may reduce air flow.

• KEEP hair, loose clothing, fingers, and all parts of body away from openings and moving

parts.

• TURN OFF all controls before unplugging.

• DO NOT vacuum water, other liquids, or wet objects such as leaves. Never immerse any

part of the tool in liquid.

• DO NOT handle plug or appliance with wet hands.

• KEEP CHILDREN, BYSTANDERS AND ANIMALS AWAY from the work area a minimum

of 30 feet (10 meters) when starting or operating the tool.

• INSPECT THE AREA before using the tool. Remove all debris and hard objects such as

rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation. As a vacuum, the tool is designed to pick up dry material such as leaves, grass, small twigs, and bits of paper. Do not vacuum stones, gravel, metal, broken glass, etc.

WARNING: Shock Hazard. To reduce the risk of electrical shock; do not expose to rain,

do not use on wet surfaces. Store indoors.

WARNING: Cut Hazard. Turn off and unplug unit, then wait until fan stops or at least 10

seconds before removing the blower or vacuum tube assemblies.

SAVE THESE INSTRUCTIONS

Servicing of Double Insulated Appliances

Your Blower/Vac is double-insulated to give you added safety. In a double insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double insulated appliance requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double insulated appliance must be identical to the parts they replace. Adouble insulated appliance is marked with the words double insulated or "double insulation". The symbol (square within a square) may also be marked on the appliance.

Safety Rules and Instructions: Extension Cords

Double insulated tools have 2-wire cords and can be used with 2-wire or 3-wire extension cords. Only round jacketed extension cords should be used, and we recommend that they be listed by Underwriters Laboratories (U.L.) (C.S.A. in Canada). If the extension will be used outside, the cord must be suitable for outdoor use. Any cord marked as outdoor can also be used for indoor work. An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety, and to prevent loss of power and overheating. The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. Before using an extension cord, inspect it for loose or exposed wires, damaged insulation, and defective fittings. Make any needed repairs or replace the cord if necessary.

To determine the minimum wire size required, refer to the chart below:

SAVE THIS MANUAL FOR FUTURE REFERENCE.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA.

ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR ELPRODUCTO.

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

Form No. 90517736 Cat. # BV4000 (MAY 2007)

KEY INFORMATION YOU SHOULD KNOW:

• Before operating, make sure that either the blower or vacuum tube assembly is locked in place.

• The power switch must be OFF in order to depress the release button for changing blower and vacuum tube assemblies.

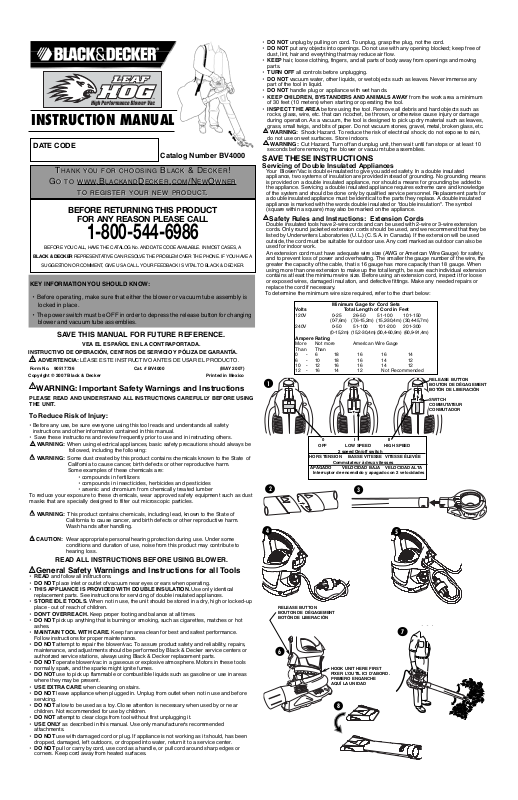

INSTRUCTION MANUAL

DATE CODE

Catalog Number BV4000

WARNING: Important Safety Warnings and Instructions

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS CAREFULLY BEFORE USING THE UNIT.

To Reduce Risk of Injury:

• Before any use, be sure everyone using this tool reads and understands all safety instructions and other information contained in this manual.

• Save these instructions and review frequently prior to use and in instructing others.

WARNING: When using electrical appliances, basic safety precautions should always be

followed, including the following:

WARNING: Some dust created by this product contains chemicals known to the State of

California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers

• compounds in insecticides, herbicides and pesticides

• arsenic and chromium from chemically treated lumber To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

WARNING: This product contains chemicals, including lead, known to the State of

California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

CAUTION: Wear appropriate personal hearing protection during use. Under some

conditions and duration of use, noise from this product may contribute to hearing loss.

READ ALL INSTRUCTIONS BEFORE USING BLOWER.

General Safety Warnings and Instructions for all Tools

• READ and follow all instructions.

• DO NOT place inlet or outlet of vacuum near eyes or ears when operating.

• THIS APPLIANCE IS PROVIDED WITH DOUBLE INSULATION. Use only identical

replacement parts. See instructions for servicing of double insulated appliances.

• STORE IDLE TOOLS. When not in use, the unit should be stored in a dry, high or locked-up

place - out of reach of children.

• DON'T OVERREACH. Keep proper footing and balance at all times.

• DO NOT pick up anything that is burning or smoking, such as cigarettes, matches or hot

ashes.

• MAINTAIN TOOL WITH CARE. Keep fan area clean for best and safest performance.

Follow instructions for proper maintenance.

• DO NOT attempt to repair the blower/vac. To assure product safety and reliability, repairs,

maintenance, and adjustments should be performed by Black & Decker service centers or authorized service stations, always using Black & Decker replacement parts.

• DO NOT operate blower/vac in a gaseous or explosive atmosphere. Motors in these tools

normally spark, and the sparks might ignite fumes.

• DO NOT use to pick up flammable or combustible liquids such as gasoline or use in areas

where they may be present.

• USE EXTRA CARE when cleaning on stairs.

• DO NOT leave appliance when plugged in. Unplug from outlet when not in use and before

servicing.

• DO NOT allow to be used as a toy. Close attention is necessary when used by or near

children. Not recommended for use by children.

• DO NOT attempt to clear clogs from tool without first unplugging it.

• USE ONLY as described in this manual. Use only manufacturer's recommended

attachments.

• DO NOT use with damaged cord or plug. If appliance is not working as it should, has been

dropped, damaged, left outdoors, or dropped into water, return it to a service center.

• DO NOT pull or carry by cord, use cord as a handle, or pull cord around sharp edges or

corners. Keep cord away from heated surfaces.

0 I II

OFF LOW SPEED HIGH SPEED

2 speed On/off switch

HORS TENSION BASSE VITESSE VITESSE ÉLEVÉE

Commutateur à deux vitesses

APAGADO VELOCIDAD BAJA VELOCIDAD ALTA

Interruptor de encendido y apagado con 2 velocidades

HOOK UNIT HERE FIRST FIXER L'OUTIL ICI D'ABORD. PRIMERO ENGANCHE AQUÍ LA UNIDAD

RELEASE BUTTON BOUTON DE DÉGAGEMENT BOTÓN DE LIBERACIÓN

SWITCH COMMUTATEUR CONMUTADOR

Minimum Gage for Cord Sets

Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150

(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)

240V 0-50 51-100 101-200 201-300

(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)

Ampere Rating

More Not more American Wire Gage Than Than 0-6 18 16 16 14 6 - 10 18 16 14 12 10 - 12 16 16 14 12 12 - 16 14 12 Not Recommended

BEFORE RETURNING THIS PRODUCT

FOR ANY REASON PLEASE CALL

1-800-544-6986

BEFORE YOU CALL, HAVE THE CATALOG No. AND DATE CODE AVAILABLE. IN MOST CASES, A

BLACK & DECKER REPRESENTATIVE CAN RESOLVE THE PROBLEM OVER THE PHONE. IF YOU HAVE A

SUGGESTION OR COMMENT, GIVE US A CALL. YOUR FEEDBACK IS VITAL TO BLACK & DECKER.

HANK

YOU

FOR

CHOOSING

LACK

&&D

ECKER

OOTTOOWWW

WWW

LACKAND

ECKER

COM

WNER

TTOOREGISTER

YOUR

NEW

PRODUCT

RELEASE BUTTON BOUTON DE DÉGAGEMENT BOTÓN DE LIBERACIÓN

Safety Rules and Instructions: Polarized Plug

To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This equipment must be used with a suitable polarized 2 wire or 3 wire extension cord. Polarized connections will fit together only one way. Make sure that the receptacle end of the extension cord has large and small blade slot widths. If the plug does not fit fully into the extension cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord does not fit fully into the outlet, contact a qualified electrician to install the proper outlet. Do not change the tool plug or extension cord in any way.

Before Operating Switch

On/Off Switch (Fig. 1)

For extra control, your blow vac is fitted with a two speed switch located on the handle of the powerhead. The switch has a central off. Position 0. To use in low speed, move the switch fully to the rear. Position I. To change to high speed push the switch back to the off position and then fully forward. Position II. NOTE: The switch will not operate if the release button, shown in Figure 1, is depressed. To turn the tool ON, slide the switch forward, as shown in Figure 1. To turn tool OFF, slide switch to the middle position.

Assembly

USE AS ABLOWER: ALWAYS WEAR SAFETY GLASSES, WEAR A FILTER MASK IF THE OPERATION IS DUSTY. USE OF RUBBER GLOVES AND SUBSTANTIAL FOOTWEAR IS RECOMMENDED WHEN WORKING OUTDOORS. FOR HOUSEHOLD USE ONLY.

WARNING: Cut Hazard. When turning the tool off for tube installation or any other reason,

wait 10 seconds for the fan to stop rotating before disassembly.

Vacuum Tube Assembly (Fig. 2)

• Vacuum tubes must be assembled together before use.

• To ease assembly apply soapy water solution to joint area.

• Align the notches and the triangles on upper and lower tubes. (Fig. 2)

• Push the lower tube firmly into the upper tube, until the triangles click into place. (Never

operate apart).

• In the interests of safety, it is not intended for the tubes to be separated once assembled.

Blow Tube Assembly (Fig. 3)

• Blow tube must be assembled to the blow clamshell before use.

• Align the circles on the clamshell and the tube.

• Push the tube firmly onto the clamshell until the circles click into place.

Cord Retainer (Fig. 4,5)

• Acord retainer is incorporated into the rear of the power head.

• To use, first tie the two cords in a knot as shown in figure (4

• Then, double the extension cord several inches from the end and hook the loop formed by

doubling the cord over the retainer post as shown in figure (5).

• Gently tug on the cord to insure that it is firmly retained in the Blowvac's handle.

Blow Mode (Fig. 6)

• Ensure your product is switched off and disconnected from the main power supply.

• Attach the blow clamshell and tube to the powerhead (Fig. 6) by locating the blower as

indicated by arrow, then pivot about this point until the locking/release catch is fully engaged.

• Hold the blow tube approximately (7”) 180mm above the ground, switch your product on and

using a sweeping motion from side to side, advance slowly keeping the accumulated debris/leaves in front of you (Fig. 7).

• Once you have blown the debris/leaves into a pile, you can convert to vacuum mode to

collect the debris.

• Installing the concentrator will help remove matted debris and leaves (Fig. 8).

Removing Blow/Vacuum Tube

• Switch off your product and disconnect from power supply.

• To disconnect the blow clamshell or vacuum tube from the powerhead, depress the release

button, ensuring the tube does not fall to the ground.

• The release button will not depress if the power switch is in the “on” position. (Fig. 1)

Vacuum Mode

• Switch off your product and disconnect from power supply.

To fit the bag assembly to your product:

Attach the collection bag to the vacuum outlet using the bayonet fitting, as shown in Figure 9.

• Attach the vacuum assembly and tube to the powerhead (Fig. 10) by locating the assembly

as indicated by arrow, then pivot about this point until the locking/release catch is fully engaged.

• Position the tube slightly above the debris/leaves. Switch your product on, then using a

sweeping motion the debris/leaves will be sucked up the tube, mulched and deposited into the collection bag. (Fig 11) For matted debris/leaves your vacuum tube is incorporated with a scraper. Use this scraper to loosen the debris and continue to vacuum as normal.

As the bag fills the power of the suction will decrease, switch off your product and unplug from power supply. Unzip the bag to empty before continuing to operate.

CAUTION: NEVER REMOVE THE COLLECTION BAG WITHOUT FIRST TURNING

OFF AND UNPLUGGING THE VACUUM.

NOTE: If the suction decreases and the bag is not full, the vacuum tube is probably clogged

with debris. Turn off and unplug the vacuum and clear the tube before continuing.

Operation

• When using as a blower or vacuum, always wear safety glasses. If using in dusty conditions, wear a filter mask as well.

• Do not use in vacuum mode without the vacuum tubes and collection bag in place.

• Always switch off and remove the plug from the electrical supply when:

• Changing from blower to vacuum.

• The supply cable has become damaged or entangled.

• You leave your product unattended.

• Clearing a blockage.

• Checking, adjusting, cleaning or working on your product.

• Use your product only in daylight or good artificial light.

Maintenance

• CLEANING AND STORAGE

TURN OFF AND UNPLUG TOOL! (Unplug extension cord at power source.)

Use only mild soap and a damp cloth to clean the tool. Clean out any clippings which may have accumulated in the Blower/Vac. When used properly with dry leaves the fan chamber of your Blower/Vac should remain clean. If damp earth and debris are ingested some of the particles may build up on the inside of the fan chamber. If this happens the performance of the unit will decrease. This area can be cleaned out by gently wiping out with a damp rag after disconnecting from the power source. Your Blower/Vac should be stored in a dry place.

WARNING: SHOCK HAZARD. DO NOT POUR OR SPRAY WATER ON THE TOOL IN

AN ATTEMPT TO CLEAN.

Do not store the tool on or adjacent to fertilizers or chemicals. Such storage can cause rapid corrosion of the metal parts. Use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Important

To assure product SAFETY and RELIABILITY; repairs, maintenance and adjustments (other than those listed in this manual) should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts.

SERVICE INFORMATION

All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under "Tools—Electric" or call:

1-800-544-6986 or visit www.blackanddecker.com

FULL TWO-YEAR HOME USE WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways. The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges. The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required.Black & Decker owned and authorized Service Centers are listed under "Tools-Electric" in the yellow pages of the phone directory. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

See ‘Tools-Electric’

– Yellow Pages –

for Service & Sales

Imported by

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A.

TROUBLESHOOTING

Problem Possible

Cause Possible

Solution

• Unit will not start. • Cord not plugged in. • Plug tool into a working outlet.

• Circuit fuse is blown. • Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced at a Black & Decker service center or authorized servicer.)

• Circuit breaker is tripped. • Reset circuit breaker. (If the product repeatedly causes the circuit breaker to trip, discontinue use immediately and have it serviced at a Black & Decker service center or authorized servicer.)

• Cord or switch is damaged. • Have cord or switch replaced at Black & Decker Service Center or Authorized Servicer

For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK & DECKER help line at

1-800-544-6986.

HOOK UNIT HERE FIRST FIXER L'OUTIL ICI D'ABORD. PRIMERO ENGANCHE AQUÍ LA UNIDAD

RELEASE BUTTON BOUTON DE DÉGAGEMENT BOTÓN DE LIBERACIÓN
