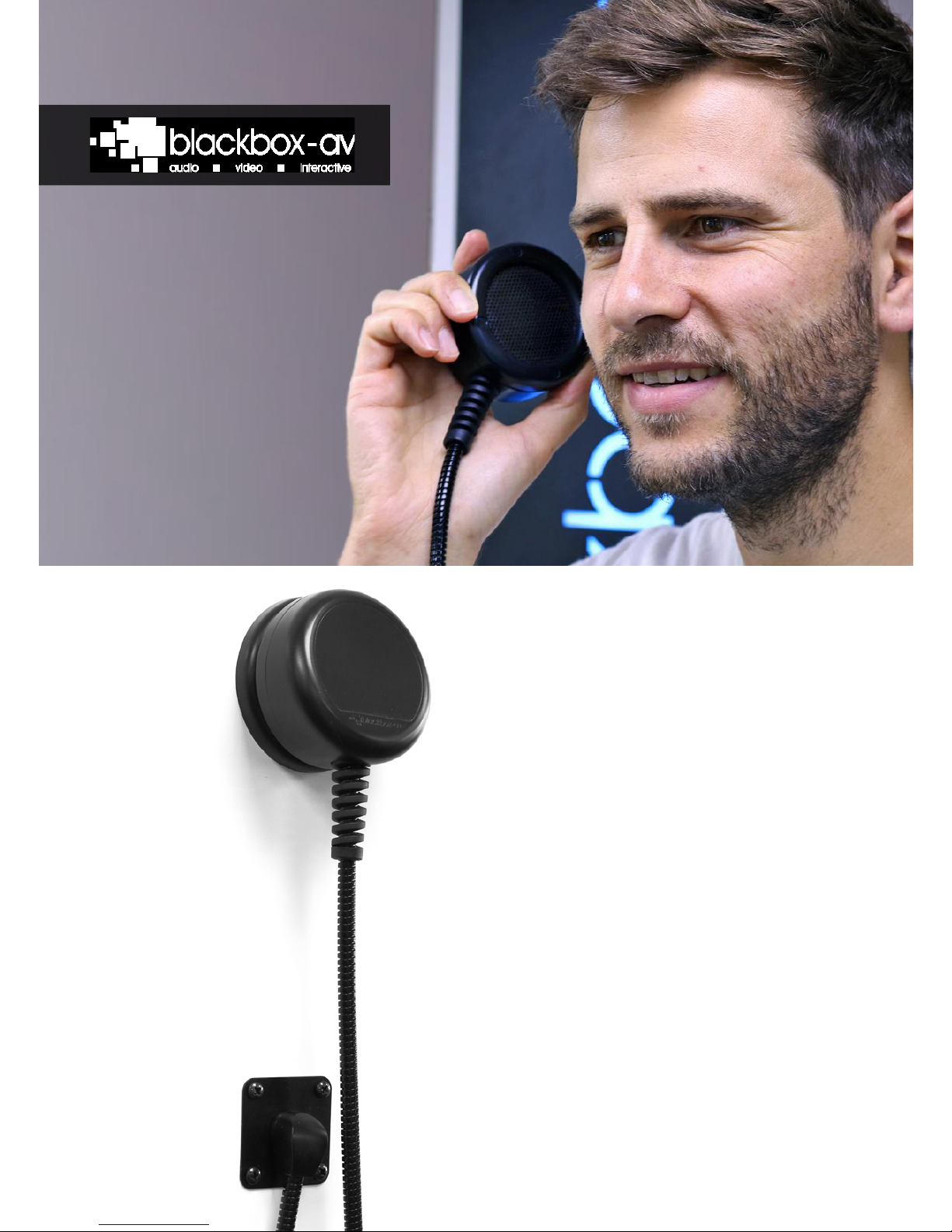

Page 1
Heavy Duty Handset
Manual
Page 2
www.interpretationshop.co.uk 1
Product Codes
HDH-S
HDH-B
A/HDH-S
A/HDH-B

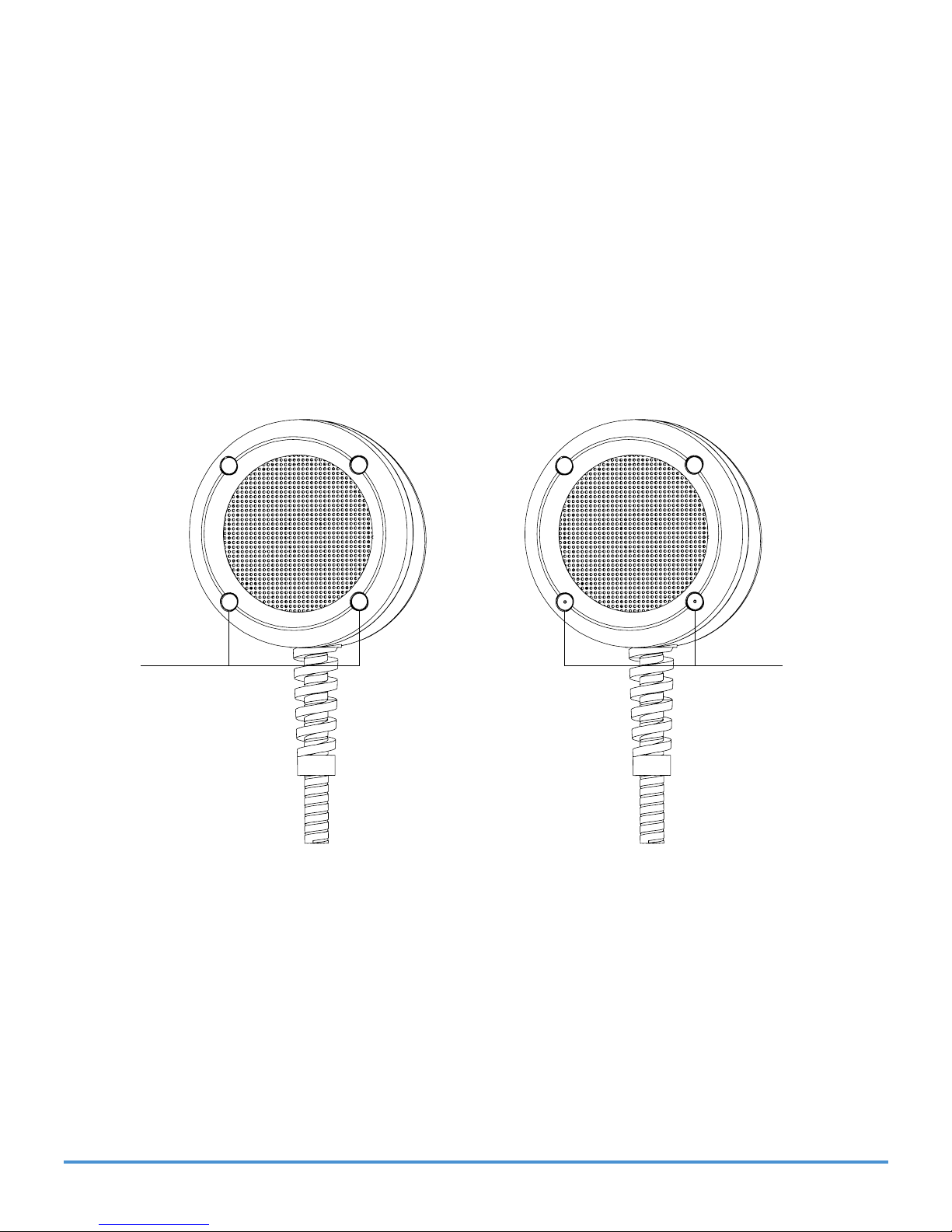

You will be able to identify whether your handset
has AutoPlay functionality through the existence
of dimples displayed on the screw covers.
Standard AutoPlay
Note: Please do not remove serial number label from 3.5mm Jack Cable
- Heavy Duty Handset - Silver
- Heavy Duty Handset - Black
- AutoPlay Heavy Duty Handset - Silver
- AutoPlay Heavy Duty Handset - Black
With Dimples
Without Dimples
Warranty
Blackbox-av provides a 12 month warranty with
this product. For further information or advice
please contact [email protected]
Page 3
www.interpretationshop.co.uk 2
In the Box:
1. Heavy Duty Handset
2. Magnetic Hanger
3. Knuckle Mounting Plate
4. Trigger & Splitter Cable
(only supplied with AutoPlay version)
5. Wood Screws x2, Machine Screws x2
(for fitting magnetic hanger)
6. Customised Branding Labels
(if purchased)
7. Manual

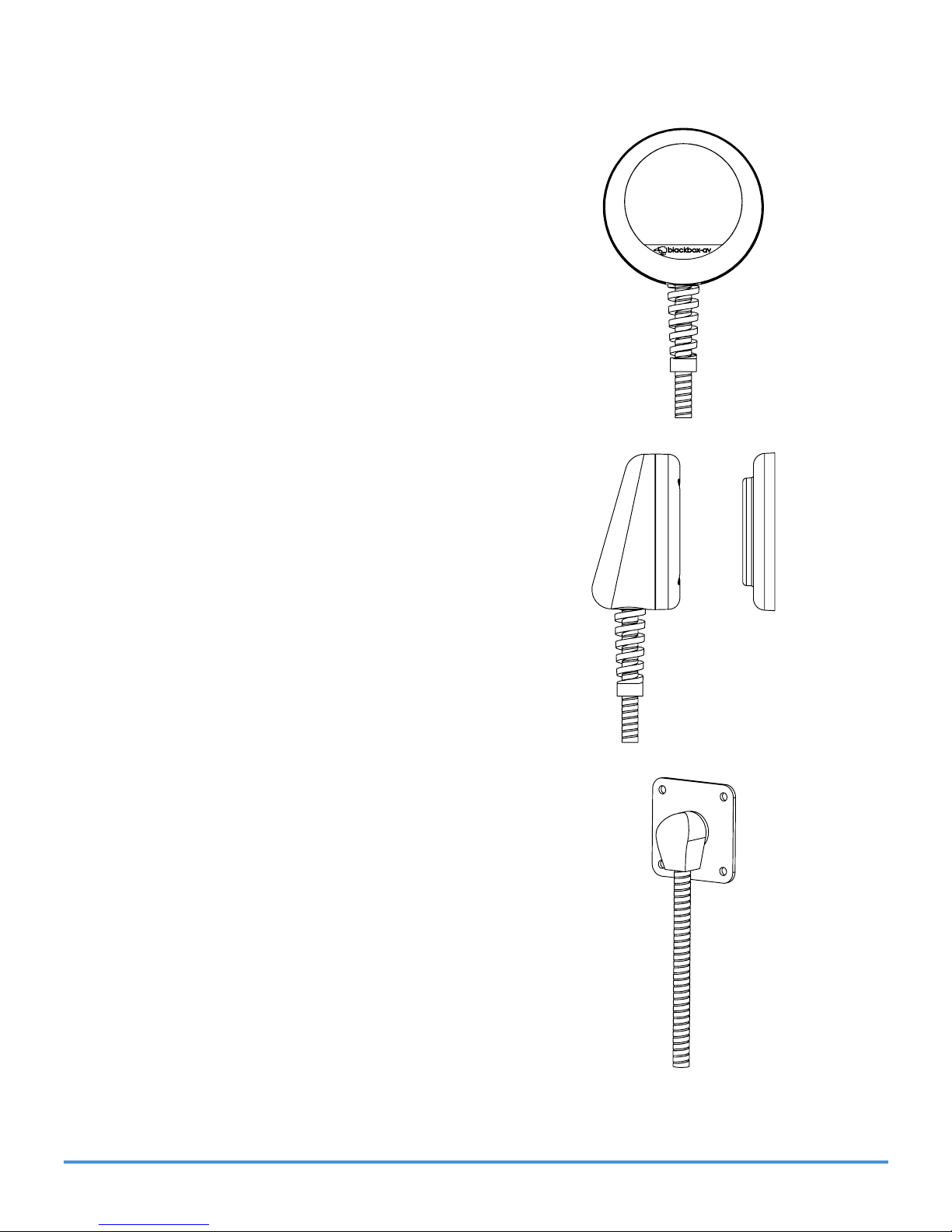

Your new Handset
Heavy Duty Handset
Constructed from high grade and impact resistant
plastics. The speaker element offers great
dynamic range able to reproduce audio with
exceptional clarity.
Magnetic Hanger
The handset is secured to a flat surface via the
supplied magnetic hanger. We have optimsed the
pull force so that it is both easy to remove with
minimum effort but equally simple to replace.
Armoured Cable, 90°
Knuckle & Mounting Plate
A stainless steel armoured cable protects the
inner handset cable, outputting to a 3.5mm jack.
This is anchored to your structure with a 90°
swivel knuckle and stainless steel plate (see
installation & technical drawings).
Page 4
www.interpretationshop.co.uk 3
AutoPlay Functionality
When used with a compatible device the AutoPlay
version of the handset allows the triggering of the
playback unit upon pickup. When the handset is
lifted from the magnetic hanger, a sensor
triggers your content. When returned to the
hanger, the content will stop.
AutoPlay Cabling/SoundClip Range
AutoPlay functionality is supported by our
SoundClip range of audio players. The handset
is supplied with a trigger and splitter cable, the
3.5mm jack is installed to the output, while the
activation cables are wired to an
appropriate button terminal on the SoundClip
device.
AutoPlay With Other Devices
You will need to check with the manufacturer of
other playback devices to ensure compatibility.
To connect to third party devices you will need to
be aware of the cable connections as displayed
below.
When the handset is removed from the hanger,
the trigger is ‘open’.

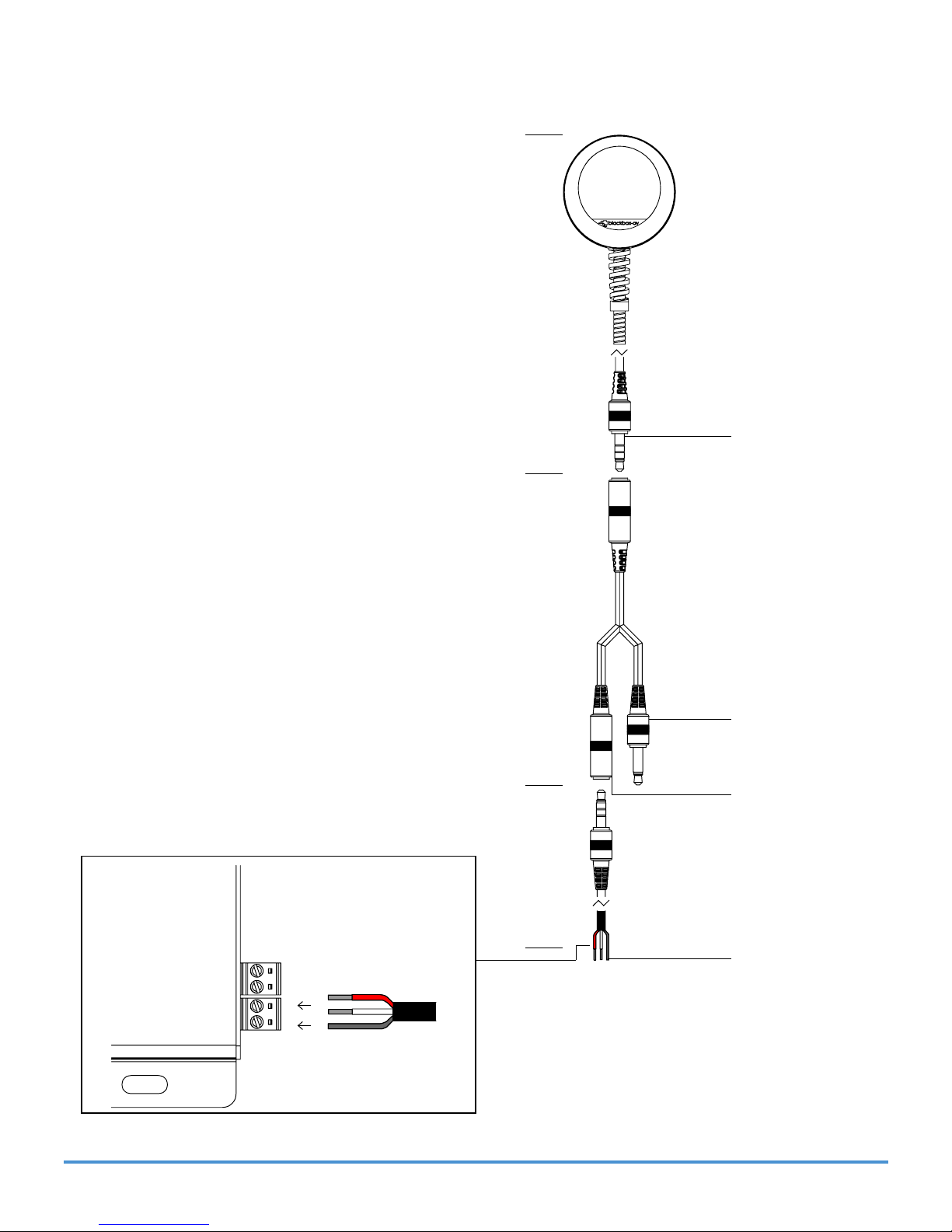

AutoPlay Version
3.5mm Jack from Handset
3.5mm Jack to your
Audio Playback Device
Input for Trigger Cable
White & Red = Signal
Screen = 0v
SoundClip
Heavy Duty HandsetSplitter CableTrigger Cable
1 2
Bare Ends
Page 5
www.interpretationshop.co.uk 4

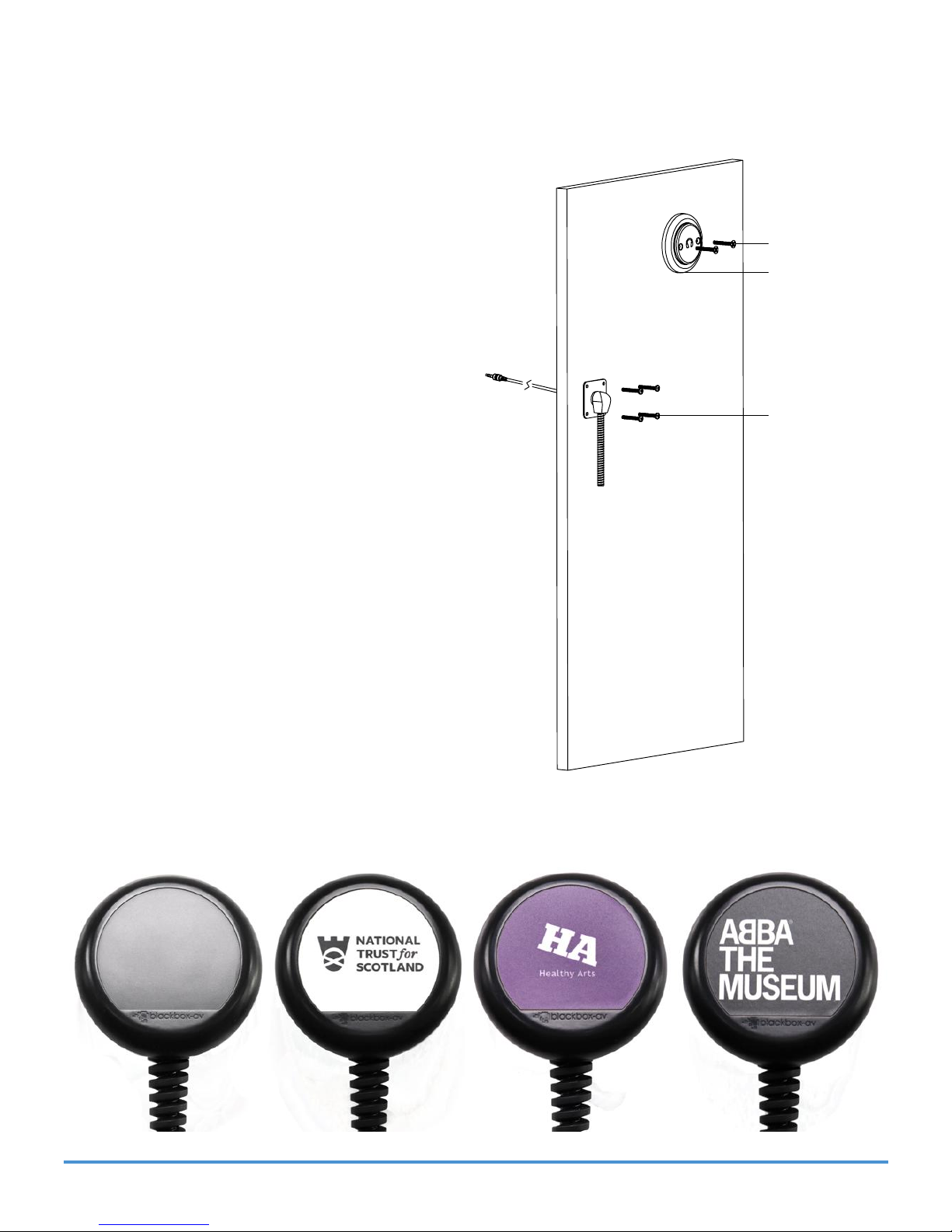

Installation
The Hanger
To mount the hanger, use the supplied
countersunk wood or machine screws. Ensure
that the surface to which the hanger is attached is
perfectly flat to avoid flexing of the product.
The Knuckle & Mounting Plate
The knuckle plate can be mounted to a structure
with a suitable hole for the knuckle nut to fit
through (see technical drawings). Alternatively,
you can fit the knuckle without the plate if you
have a metal panel.
Optional Branding Labels
The handset can be supplied with custom
branding labels, allowing the display of images
or logos, or simply a way to add colour. If you
have selected this option the handset will come
with a label already applied along with spares. To
replace the label simply peel from the handset,
(note: the handset has been designed with a
slight lip to make picking of the label more
difficult) completely remove the old label and
clean the handset, before applying a new one.
Replacement labels are available on the
InterpretationShop.
Mounting Screws
(not supplied)
Magnetic Hanger
Screws
(supplied)
Page 6
www.interpretationshop.co.uk 5
Unpackaged Weight
425g
Packaged Weight
520g
Package Dimensions
180 x 160 x 80mm
Nominal Impedance
100Ω
Frequency Range
50Hz - 20KHz
Sound Pressure Level
123 dB
Input Power (W)
Rated: 30mW - Max: 50mW
Input Power (V)
Rated: 1.7V - Max: 2.25V
Armoured Cable Length
1350mm
Trigger Cable Length
300mm
3.5mm Cable Length
(from Knuckle)
650mm (+/- 10mm)
Screw Sizes
Wood Screws (Driver bit No. 2, 30mm)
Machine Screws (Imperial M4, 30mm)
Switching Signal
Handset on base: Contact closed/
handset off: Contact open
Switching Capacity
100Vdc
Switching Current
0.25A
Operating Temperature
-20°C to +60°C
Hearing Aid Compatible
ADA/DDA

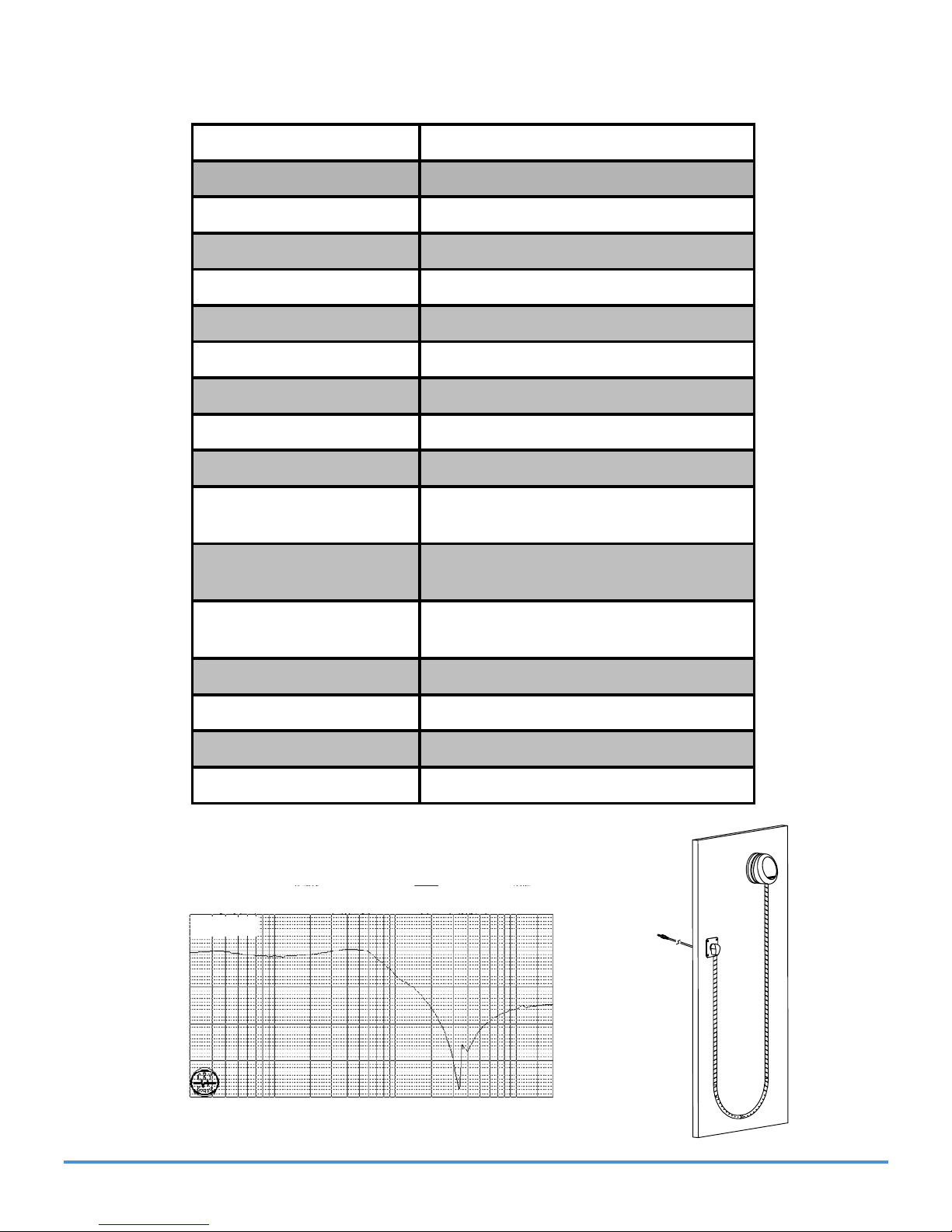

Technical Information
140
dB
130
120
110
100
090
20Hz 50 100 200 500 1k 2k 5k 10k 20k
0 dB
20.0YPa
001 ms 1/12 Oct
PASS
Frequency Response
Page 7
www.interpretationshop.co.uk 6Version 1.0 - Sept 2018
Safety Guide
Read this guide carefully before using or installing the product.
Preventing damage to the product and
malfunctions
• As the product is not water-resistant
install in a dry place where excessive
liquid ingress may not occur.
• Clean the product regularly with a soft
dry cloth or anti bacterial wipe.
• Ensure there is no pressure on the
3.5mm headphone jack when installed.
• Only use this product with good quality
equipment with a dedicated headphone
connection. Damage caused by
defective audio equipment will void the
warranty.
Preventing accidents and protecting the
health to the user of the handset.
• Ensure the audio levels are set so ear
damage cannot occur when someone is
using the product.
• When tethering the armoured cable
ensure there is no trip hazard created
when the handset is stowed on its
hanger.
• Over time monitor the product to
ensure there is no damage caused by
deliberate vandalism which could harm
other users.
Magnetic Hanger
Knuckle Mounting Plate
Side View Rear View Wall Cut-Out
56.30
81.15
40
4.30
81.15
4.20
25
38
50
38
R1.50
45°
R8

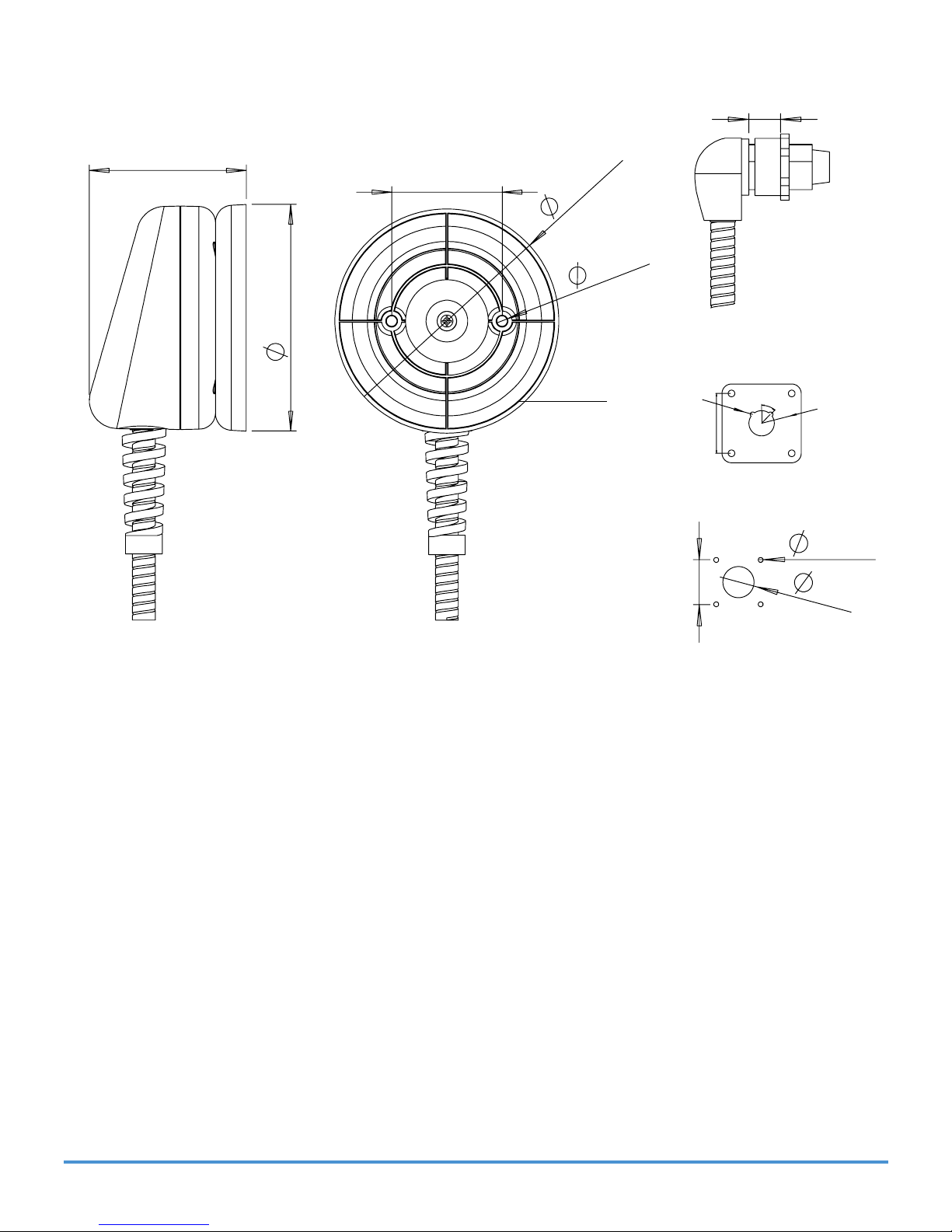

Technical Drawings
12
Note: 12mm is
maximum depth
of panel.
Swivel Knuckle
(not to scale)
