ServSwitch™ Wizard
Advanced KVM switching for a
variety of placements and applications.
Page 2
724-746-5500 blackbox.com
2 of 7
11/14/2011
#21896
The ServSwitch Wizard is flash-upgradable, supports DDC, and has sleek desktop styling.
»
All models:
Handle resolutions up to 1600 x 1280.
»
Powered from interface or optional
power supply.
»
Wizard :
Supports DDC, flash-upgradable.
»
Wizard LP: Small, light, can be placed
almost anywhere.
»
Wizard PRO:
Menus enable easy configur ation
and operation.
»
Wizard MP:
Works with PCs, Sun, and Macintosh.
»
Wizard DVI:
Supports DVI video cards with up to
four outputs.
FE ATU RES
SW652A
Button fo r changing
channels an d entering
configuration mode
Display shows status
and mouse /keyboard
data act ivity
Control po rt
monitor
connector
CPU port video
connec tors (blue)
Control
port
Connector for
optional power
supply
Control po rt
mouse connector
Control po rt
keyboard
connector
Options port for Remote Control Modul e,
RS-232 control, multi-video synchr onization,
and firmw are upgrades
CPU ports 1 through 4 (port s 3 and 4
are presen t on 4-port mod el only)
CPU port mouse
connec tors (green)
CPU port ke yboard
connectors (purple)
Control as many as four or eight PCs with one Wizard
family switch, or cascade switches to control more.
ServS witch Wizard L P #1
(first l ayer)
ServSwitc h Wizard LP #2
(secon d layer)
CPUs
CPUs
Premium
KVM CPU
cables
Shared Key board, Mouse, and M onitor
You can use Premium KVM Cables (EHN408, EHN409)
to run most Wizard family device connections to
greater distances.
HD15
Keyboard and mouse
strands m olded to sides
Cross-section:
10"
(25.4cm)
11"
(27. 9
cm)
6-pin
mini DIN
6-pin min i
DIN
Central
video
strand
Page 3
724-746-5500 blackbox.com
3 of 7
11/14/2011
#21896
The ServSwitch Wizard
LP (4-port model
shown here) packs
a ton of useful
components into the
least possible space.
Power
LED
DIP switc h for
configuration
Shared moni tor connectio n
Shared mouse
connection
Shared keyb oard
connection
Keyboard and mouse
connectors for
PCs 1 and 2
Keyboar d and mouse connec tors
for PCs 3 and 4
Connect or for optional pow er
supply (5 V DC, 2.5 A)
Button fo r changing channe ls and
entering ma intenance mode
Connectors for PC
video outputs
Channel status
LEDs
The ServSwitch Wizard
LP (4-port model
shown here) packs
a ton of useful
components into the
least possible space.
Display sho ws status and
mouse /keyboard dat a activity
Attachm ent points for
rackmou nt bracket
Button fo r changing
channels an d entering
configuration mode
1A
5V
8 7 6 5 4 3 2 1
Control po rt monitor
connector
CPU port v ideo connecto rs
Control
port
Power
connector
Control port mouse
connector
Control po rt keyboard
connector
OPTION S port for Remote Co ntrol Module and R S-232 control
CPU ports 1 through 8 (port s 5 through 8
are presen t on 8-port mod el only)
CPU port mouse
connectors
CPU port ke yboard
connectors
Page 4
724-746-5500 blackbox.com
4 of 7
11/14/2011
#21896
The ServSwitch Wizard MP for PC and Sun (KV804A model shown here) is a KVM- and audio- sharing
device that supports a wide range of IBM PC and Sun compatible hardware and software platforms.
Control port PS/2 mouse
(left ) and keyboard (r ight)
connectors
Control port microphone ( left)
and headph one/speake r
(right) connectors
Control po rt keyboard /
mouse connector
Connector
for option al power
supply
Control po rt monitor
connector
CPU port s
1 through 4
Expansion port for Remote
Control Mo dule and firmware
upgrades
Control
port
Button for changing channels
and entering configuration
mode
Display sho ws status and
mouse /keyboard dat a activity
The ServSwitch Wizard DVI (4-port single-head model shown here) can support DVI video cards
with up to four video outputs. They also support user stations with as many as four monitors.
User Statio n Monitor,
Keyboar d, and Mouse
CPU
EHN450
ServS witch Wizard DV I
(KV 1004A-R2 )
Page 5
724-746-5500 blackbox.com
5 of 7
11/14/2011
#21896
The KV805A model also supports computers with USB keyboard
and mouse ports, including USB versions of the Apple
®
Macintosh®
G3
™
and G4™. The Wizard MP enables control of up to four devices.
Like the Wizard MP, the ServSwitch Wizard DVI enables control of
high-end PS/2 compatible computers (IBM RS/6000, Compaq Alpha,
and SGI). This ServSwitch is specifically designed to work with Digital
Visual Interface (DVI ) video. It comes in several models.
The 2-Port (KV1002A-R2) and 4-Port (KV1004A-R2) Single-Head
models support DVI video cards with a single video output.
The 2-Port (KV1022A-R2) and 4-Port (KV1024A-R2) Dual-Head
models support DVI video cards with up to two video outputs.
They also support user stations with either dual monitors or a single
monitor that can combine dual video feeds into a single image.
The 4- Port ( KV1044A-R2) Quad-Head model supports DVI video
cards with up to four video outputs. It also supports user stations with
either as many as four monitors or a single monitor that can combine
as many as four video feeds into a single image.
All models include support for video resolutions up to 1600 x
1280, multiple channel-switching methods, auto-scanning, screen
blanking, cascading, and keyboard commands (using any of several
possible hotkeys).

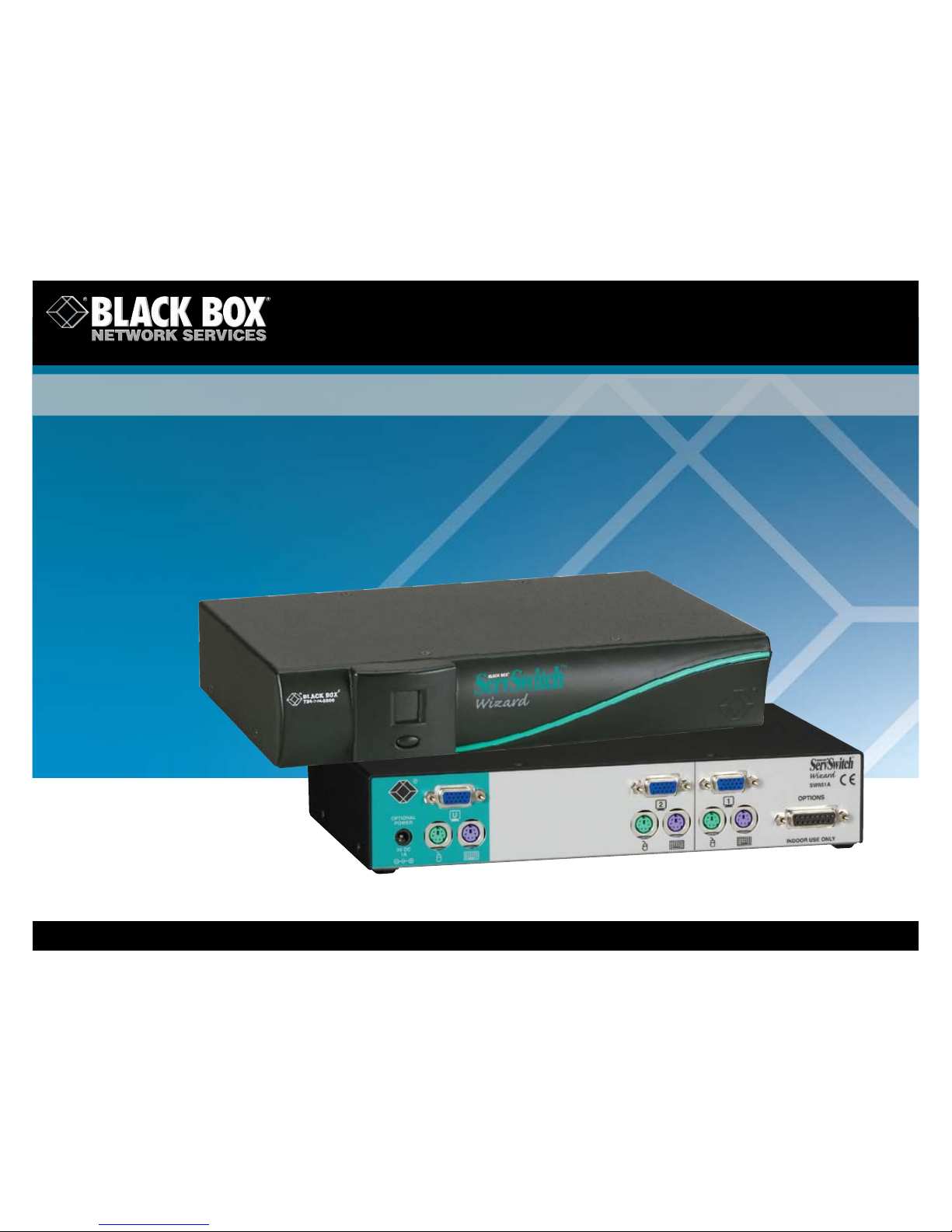

The ServSwitch
™
Wizard (SW651A–SW652A) is designed to
be placed on desktops and to look great there. But it’s not just
for show—it’s a sophisticated switch that can support Display
Data Channel (DDC) PC-to-monitor communication and whose
firmware can be flash-upgraded. Two or more Wizards can even
be synchronized to support CPUs with multiple video outputs.

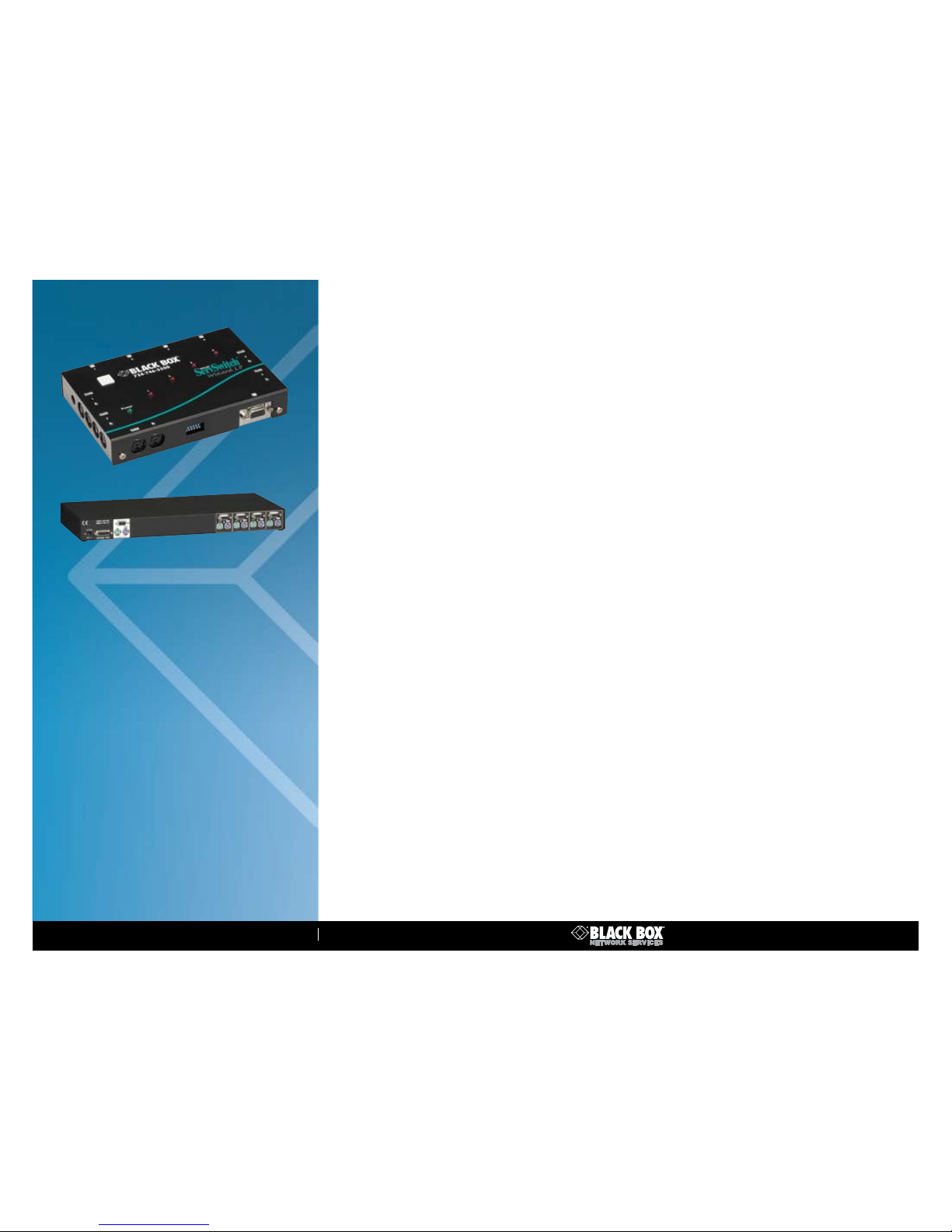

The ServSwitch Wizard LP (SW642A) is a little over an inch
(2.5-cm) thick and measures 6.6"W by 4.8"D (16.8 x 12.2 cm).
It’s so tiny that we ship it with VELCRO
®
strips, so you can stick
it on the wall!
In addition, we offer a the 4-port Wizard model as a kit
(SW642A-K). It includes the 4-Port Wizard LP and (4) premium
KVM user cables (EHN40 8-0 010).
The ServSwitch Wizard PRO (SW644A, SW648A) can be placed
in a 19" rack with its Rackmount Kit (RMK19WP). Even if you put it
on the desktop, it’s sturdy enough to go under a monitor or other
device. It has a powerful on screen menu system.
The ServSwitch Wizard MP (K V804A –KV805A) is a highperformance multiplatform keyboard-, monitor-, mouse-, and audiosharing device that supports a wide range of I BM
®
PC and Sun®
compatible hardware and software platforms, including some highend PS/2
®
compatible computers ( RS/ 6000®, Compaq® Alpha®,
and SGI
™
).
OVERVIE W
Complianc e — Wizard, Wizard LP, Wizard PRO : CE (EN55022 Class B),
FCC Part 15 Subpart B Class A, IC Class/ classe A;
Wizard MP, Wizard DVI : CE (EN55022 Class A ), FCC Part 15 Subpart B
Class A, IC Class /classe A
Distance (Maxim um) — All models except Wizard DVI: 2 m ( 6.5 ft.)
if interface-powered or 10 m (32.8 ft .) if AC-powered to any attached
keyboard, monito r, and mouse;
Wizard, Wizard PRO, Wizard MP: 5 m (16.4 ft .) if interface -powered or 30 m
(98.4 f t.) if AC-powered to any attache d CPU or cascaded KVM s witch;
Wizard LP: 10 m (32.8 ft.) if interface -powered or 30 m (98.4 f t.) if
AC-powered to any attached CPU or c ascaded K VM switch;
Wizard DVI : 5 m (16.4 ft.) to any at tached CPU or cascaded K VM switch
Resolution — All: Up to 1600 x 1280 noninterlaced at up to 100 Hz;
Wizard DVI : With video cards and monito rs that suppor t composite imag es
transmitted on multiple heads, the KV1022A-R2 and KV1024A-R2 can
support up to 2400 x 1600 and the K V1044A -R2 can sup port up to
3200 x 2400
RS-232 C haracteristics of O PTION S Port (Wizard, Wiz ard PRO, Wizard MP,
Wizard DVI ) — Protocol: Asynchronous;
Data format: 8 dat a bits, no parit y, 1 stop bit;
Data rate: 1200 bps;
Flow control: N one
Standard s — Wizard, Wizard L P, Wizard PRO, Wizard MP : VGA, SVGA, XGA,
XGA-2, SXGA, or UXGA video;
Wizard MP: A lso support s VESA DDC, DDC1 and DDC2 signaling;
Wizard DVI : DDC2B signaling
Interfa ce —
Wizard, Wizard LP, Wizard PRO:
Video: VGA ;
Keyboard and mouse:
IBM P S/2 compatible; with appropr iate adapters, als o support s IBM
PC/AT
®
keyboards, CPUs wi th PC/AT keyboard ports, an d CPUs
with TIA /EIA RS-232 mouse ports;
OPTIO NS port (Wizard, Wiz ard PRO): T IA/EIA R S-232 proprieta rily pinned
on DB15;
Wizard MP:
Video: VGA ;
Keyboard and mouse:
Both models : IBM PS /2 or Sun compati ble; with appr opriate adapter s,
also suppor ts IBM PC /AT keyboards , CPUs with PC/ AT keyboard
ports, a nd CPUs with TIA /EIA RS-232 mous e ports
KV805A o nly: USB;
Audio: 3.5- mm stereo;
OPTIO NS port: TIA /EIA R S-232 proprieta rily pinned on DB15;
Wizard DVI :
Video: Di gital Video I nterface;
Keyboard and mouse: IBM PS/2 or compatible; with appropriate
adapters, als o supports CPUs with TIA /EIA RS-232 mous e ports;
OPTIO NS port: TIA /EIA R S-232 proprieta rily pinned on DB15
(more spec s on page 6)
TECH SPECS
Page 6
724-746-5500 blackbox.com
6 of 7
11/14/2011
#21896
SW642A
SW644A: rear view
TECH SPECS
User Controls — All models: Keyboard comm ands; Mouse -click functions;
Wizard, Wizard PRO, Wizard MP, Wizard DVI : (1) front-mounted p ushbutton
for channel change an d configuration mo de;
Wizard LP:
(1) top-mounted pushbutton for chann el change and maintenance mode;
Wizard, Wizard MP only:
(1) bottom-mounted 8-position DIP switch for reset and firmware
upgrade;
Wizard
PRO
only: On- screen menu;
Wizard DVI onl y: (1) bottom-m ounted 8-po sition DIP s witch for bootup
autoswitching, reset, and firmwa re upgrade; opt ional Remote Control
Module for channel change; optional serial command s for channel change
and multichassis synchronization
Connectors —
Wizard, Wizard PRO, Wizard MP,
Wizard DVI : (1) rear-mounted barrel jack for optiona l
power-supply connection; (1) mult ipurpose DB15 F;
Wizard LP: (1) side -mounted barrel jack for optio nal
power-supply connection;
Wizard, Wizard PRO, Wizard LP:
User port :
(1) HD15 F for monitor attachment;
(2) 6-pi n mini-DI N F for keyboard and mou se attachment;
CPU ports :
(2) on SW651A;
(4) on SW642A, SW6 44A, SW652A;
(8) on S W648A ), each consist ing of: (1) HD15 F for video port
attachment ; (2) 6-pin m ini-DI N F for keyboard por t
and mouse por t attachment;
Wizard MP:
User port :
(1) HD15 F for monito attachment;
(1) 8-pin mini- DIN F for Sun keyboard and mouse at tachment;
(2) 6-pi n mini-DI N F for PS/ 2 keyboard and mous e attachment ;
(2) 3.5-mm s tereo audio jack s: (1) for microphone
attachment , (1) for speaker or headpho ne attachment ;
CPU ports : (4) DB25 F composite;
Wizard DVI :
User port :
(2) 6-pi n mini-DI N F for keyboard and mouse attachment ;
Molex DVI -D F for monitor attachment :
(1) on KV1002A-R2, KV1004A-R2;
(2) on KV1022A-R2, KV1024A-R2;
(4) on KV1044A-R2;
CPU ports ( [2] on KV10x2A models ; [4] on KV10x4A
models) , each consisting of:
(2) 6-pi n mini-DI N F for keyboard and mouse attachment ;
Molex DVI -D F for video port attachment:
(1) on KV1002A-R2, KV1004A-R2;
(2) on KV1022A-R2, KV1024A-R2;
(4) on KV1044A-R2
Indicato rs — Wizard, Wiz ard PRO, Wizard MP, Wizard DVI: (1) front-mounted
7-segment status display;
Wizard LP: A ll top-mounte d: (1) Power LED;
SW642A : (4) Por t (Channel) LED s
Enclosure — W izard, Wizard M P, Wizard DVI: Steel, aluminum, and plastic;
Wizard LP, Wizard PRO : Steel and aluminum
Temperature Toleran ce — 32 to 104°F (0 to 4 0°C)
Humidit y Tolerance — 5 to 60%, no ncondensing
Altitude ( Maximum) — 10,000 ft. (3048 m)
Power —
All models exce pt Dual- and Quad -Head Wizard DVI:
• 5 VDC at up to 500 mA from the keyboard interfaces of th e attached
computers, or
• From the optional power suppl y PS649 -R3 (not in cluded): 10 0–240
VAC, 50–60 Hz from p ower outlet, through detacha ble power cord
and IEC 320 M inlet, to ex ternal transformer;
Dual- and Quad -Head Wizard DVI only: From power supply P S649-R3
(not included): 100– 240 VAC, 50– 60 Hz from power outlet, through
detachable p ower cord and IEC 320 M inlet , to external trans former
Size — Wizard, Wiz ard MP, Wizard DVI: 1.75"H (1U) x 10.3"W x 5.9"D
(4.4 x 26.2 x 15 cm);
Wizard LP: 1.1"H x 6.6"W x 4.8"D (2.8 x 16.8 x 12.2 cm);
Wizard PRO : 1.75"H (1U) x 17.1"W x 8.1"D (4.4 x 43.4 x 20.6 cm );
connector s protrude an additional 0.2" (0.5 cm ) from the rear of the unit ,
for a total depth of 8 .3" (21.1 cm)
Weight — Wizard, Wizard MP, Wizard DVI : 2.2 lb. (1 kg);
Wizard LP: 1 lb. ( 0.5 kg);
Wizard PRO : 3.2 lb. (1.5 kg)
Page 7
724-746-5500 blackbox.com
7 of 7
11/14/2011
#21896
Item Code
To connect the Wizard DVI to your CPUs, order…
Wizard DVI CPU Cables
Single-Head Switch
3-f t. (0.9-m)
EHN450-0003
6 -ft. (1.8-m)
EHN450-0006
10-ft. (3-m)
EHN450-0010
Dual-Head Switch
3-ft. (0.9-m)
EHN460-0003
6 -ft. (1.8-m)
EHN460-0006
10-ft. (3-m)
EHN460-0010
Quad- Head Switch
6 -ft. (1.8-m)
EHN470-0006
10-ft. (3-m)
EHN470-0010
To extend the distance between the Wizard DVI
and your monitor, order…
DVI- D Male– DVI-D Female Ex tension Cable
6-f t. (1.8-m)
EVNDVI03-0006
10-ft. (3-m)
EVNDVI03- 0010
To extend the distance between the Wizard DVI
and your keyboard or mouse, order…
6-Pin Mini-DI N Cable
2-ft. (0.6-m)
EVMPS03-0002-MF
3-ft. (0.9-m)
EVMPS03-0003-MF
6-ft. (1.8-m)
EVMPS03-0006-MF
10-ft. (3 -m)
EVMPS03-0010-MF
You may also need…
Adapter for connec ting the keyboard por t of a PC/AT t ype CPU
(use with CPU Cable, comes with Kits)
FA212- R2
Adapter for connec ting the serial mouse port of a PC/ AT type CPU
(use with CPU Cable, comes with Kits)
FA314
Adapter for connec ting a PC/AT keyboard
FA211- R2
Remote- Control Module for Ser vSwitch W izard, Wizard PRO,
and Wizard DVI
with 10-f t. (3-m) Cable
KV6REM
with 25-f t. (7.6-m) Cable
KV6REM-25
with 50 -ft. (15.2-m) Cable
KV6REM-50
with 75-f t. (22.9-m) Cable
KV6 REM-75
ServSwitch Wizard PRO Rackmount Kit
RM K19WP
Item Code
ServSwitch™ Wizard
2-Port, Standalone
SW651A
4-Port, Standalone
SW652A
ServSwitch Wizard LP
4-Port, Standalone
SW642A
4-Port, Kit
SW642A-K
ServSwitch Wizard PRO
4-Port
SW644A
8-Port
SW648A
ServSwitch Wizard MP for PC and Sun
4-Port
KV804A
4-Port with USB
KV805A
ServSwitch Wizard DVI
Single- Head, 2-Port
KV1002A-R2
Single- Head, 4-Port
KV100 4A-R2
Dual-Head, 2-Port
KV1022A-R2
Dual-Head, 4-Port
KV1024A-R2
Quad-Head, 4-Port
KV1044A-R2
If you need an external DC power supply, order…
Optional Power Supply (100 to 240 VAC input, 5 VDC/1 A output) ..
PS649-R3
To connect the Wizard, Wizard LP, or Wizard PRO to your CPUs,
order…
Premium KV M CPU Cable (to connect CPUs)
10-ft. (3-m)
EHN408- 0010
20-ft. (6.1-m)
EHN408- 0020
30-ft. (9.1-m)
EHN408- 0030
To extend the distance between your control station
(keyboard/monitor/mouse) and the Wizard, Wizard LP,
or Wizard PRO, order…
Premium KV M User Cable (to extend distance to user stations)
10-ft. (3-m)
EHN409- 0010
20-ft. (6.1-m)
EHN409- 0020
30-ft. (9.1-m)
EHN409-0030
For PS/2 to USB connections…
PS/ 2 to USB Flash Cable
EHN428-0006
For PS/2 to Sun connections…
PS/ 2 to Sun 8-Pin Mini-DIN Flash Cable
EHN429-0006
To connect the Wizard MP to your CPUs, order…
Wizard MP K VM CPU Cables with Audio
PS/2
6.6 -ft. (2-m)
EHN825-0006
Sun
6.6 -ft. (2-m)
EHN826-0006
16.4-ft. (5-m)
EHN826- 0016
USB
6.6 -ft. (2-m)
EHN827-0006
16.4-ft. (5-m)
EHN827-0 016
SW648A: rear view
KV1004A-R2: rear view
KV1044A-R2: rear view
Loading...
