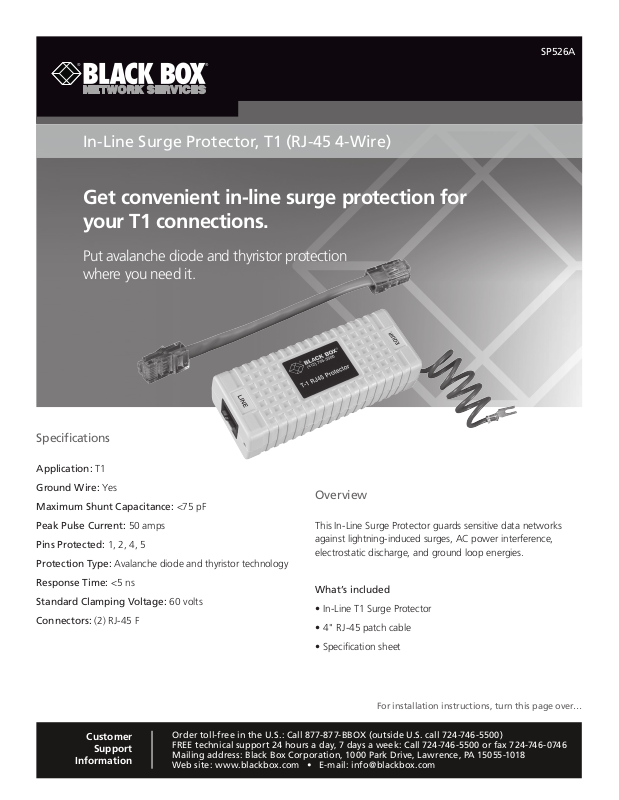

In-Line Surge Protector, T1 (RJ-45 4-Wire)

Get convenient in-line surge protection for
your T1 connections.

Put avalanche diode and thyristor protection
where you need it.

SP526A

MT1000A-85-R4

Specifications

Application: T1

Ground Wire: Yes

Maximum Shunt Capacitance: <75 pF

Peak Pulse Current: 50 amps

Pins Protected: 1, 2, 4, 5

Protection Type: Avalanche diode and thyristor technology

Response Time: <5 ns

Standard Clamping Voltage: 60 volts

Connectors: (2) RJ-45 F

Overview

This In-Line Surge Protector guards sensitive data networks
against lightning-induced surges, AC power interference,
electrostatic discharge, and ground loop energies.

What’s included

• In-Line T1 Surge Protector

• 4" RJ-45 patch cable

• Specification sheet

For installation instructions, turn this page over…

Customer

Support

Information

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: w ww.blackbox.com • E-mail : [e-mail]

Installation Steps

1. Disconnect the RJ-45 line from the equipment you wish to protect.

2. If the equipment you wish to protect is metal, plug the surge protector into the unit and attach the ground wire to the unit’s
chassis. If the unit is plastic, connect the ground wire to the electrical outlet ground for the unit.

3. Connect the network-side RJ-45 cable to the surge protector and connect the patch cable included with the surge protector
between the surge protector and the equipment you are protecting.
