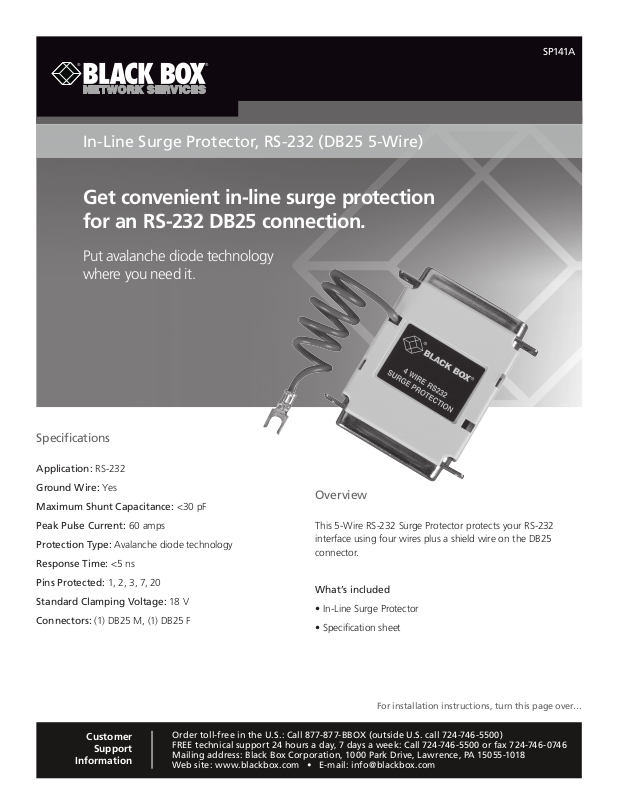

In-Line Surge Protector, RS-232 (DB25 5-Wire)
Get convenient in-line surge protection
for an RS-232 DB25 connection.
Put avalanche diode technology
where you need it.
SP141A
MT1000A-85-R4
Specifications
Application: RS-232
Ground Wire: Yes
Maximum Shunt Capacitance: <30 pF
Peak Pulse Current: 60 amps
Protection Type: Avalanche diode technology
Response Time: <5 ns
Pins Protected: 1, 2, 3, 7, 20
Standard Clamping Voltage: 18 V
Connectors: (1) DB25 M, (1) DB25 F
Overview
This 5-Wire RS-232 Surge Protector protects your RS-232
interface using four wires plus a shield wire on the DB25
connector.
What’s included
• In-Line Surge Protector
• Specification sheet
For installation instructions, turn this page over…
Customer
Support
Information
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: w ww.blackbox.com • E-mail : info@blackbox.com
Installation Steps
To install the Protector, insert the surge protector in series between the data cable and the I/O port of the equipment you wish to
protect.
CAUTION: You must attach the connector shell to earth/chassis ground through a grounded AC power receptacle to ensure
effective protection.
© Copyright 2010. Black Box Corporation. All rights reserved. Printed in U.S.A. Black Box® and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Double Diamond™
is a trademark of BB Technologies, Inc. Any third-party trademarks appearing in this publication are acknowledged to be the property of their respective owners.
SP141A, rev. 1
