Page 1
1
⁄4" hex head bolts
1
⁄4" steel
washers
1
⁄4" hex head bolts

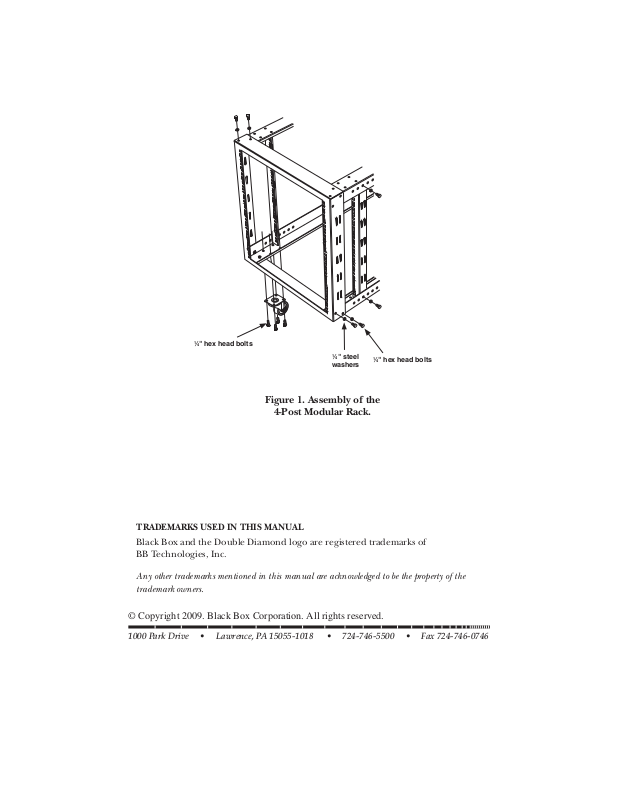

Figure 1. Assembly of the
4-Post Modular Rack.
TRADEMARKS USED IN THIS MANUAL
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the
trademark owners.
© Copyright 2009. Black Box Corporation. All rights reserved.
1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746
Page 2
4-Post Modular Rack
with Adjustable M6 Rails
JANUARY 2009
RMT625A
Specifications
Finish: Black powder coat
Load Capacity: 350 lb. (159 kg)
Material: 14-gauge steel
7
Max. Rail Depth: 35
Min. Rail Depth: 3
Size: 23"H (25
⁄8" (91.1 cm)
3
⁄4" (9.5 cm)
3
⁄4" with casters) x 21"W x
36"D (58 [65.4 with casters] x 53.3 x
91.4 cm)
Weight: 35 lb. (15.9 kg)
Overview
The 4-Post Modular Rack is a portable,
open-design rack that’s great for
frequent moves, adds, and changes.
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
What‘s Included
• (2) front/rear frames, 12U
• (4) front to rear rails
• (2) movable EIA mounting rails,
12U
1
• (52)
• (36)
• (4) 2" swivel casters
• (16)
• (16) M6 cage nuts (for mounting
• (16) M6 screws (for mounting
⁄4" hex head bolts
1
⁄4" steel washers
1
⁄4" star nuts (for mounting
casters)
equipment)
equipment)
