SELECT SERVER CABINETS
2
TRADEMARKS USED IN THIS MANUAL
PLEXIGLAS is a registered trademark of Roehm GmbH & CO.
UL is a registered trademark of Underwriters Laboratories Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
Specifications
Capacity: 2205 lb. (1000 kg)
Mounting Rails: 19" M6 rails
Compliance: UL
®
Listed
Interior Height: RM2400A, RM2410A: 26.3" (15U) (66.8 cm); RM2420A, RM2430A: 66.5" (38U) (168.9 cm);
RM2440A, RM2450A: 73.5" (42U) (186.7 cm)
Exterior Height: RM2400A, RM2410A: 30.4" (77.2 cm); RM2420A, RM2430A: 70.7" (38 U) (179.6 cm);
RM2440A, RM2450A: 77.6" (197.1 cm)
Interior Width: 21.3" (54.1 cm)
Exterior Width: 23.6" (59.9 cm)
Interior Depth: 38.5" (97.8 cm)
Exterior Depth: 39.4" (100.1 cm)
Overview

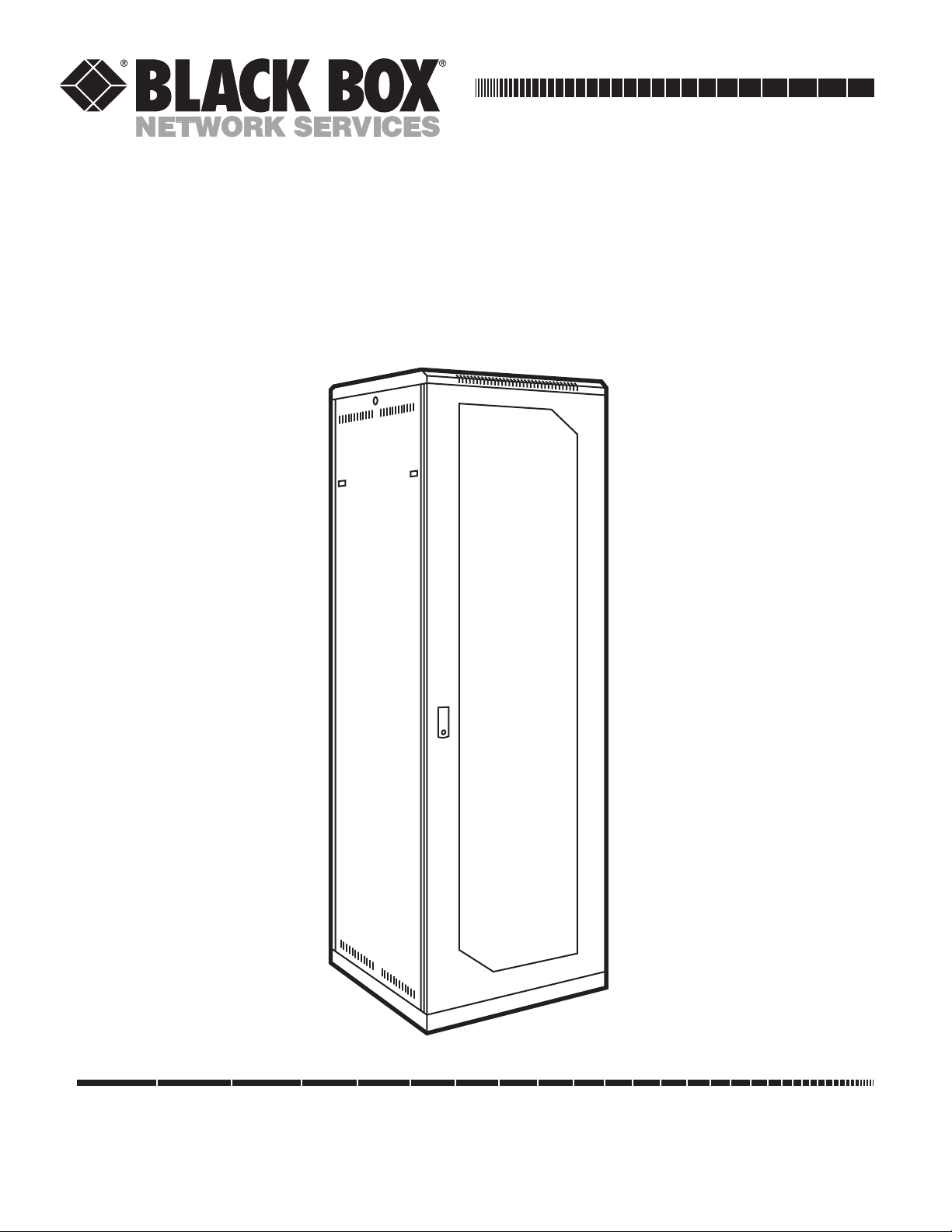

The Select Server Cabinet holds your data center servers. It arrives fully assembled and includes keyed door
locks and locking side panels for security. Six models are available. Choose either mesh or PLEXIGLAS
®
doors.
• Select Server Cabinet, 15U, Mesh (RM2400A)
• Select Server Cabinet, 15U, PLEXIGLAS (RM2410A)
• Select Server Cabinet, 38U, Mesh (RM2420A)
• Select Server Cabinet, 38U, PLEXIGLAS (RM2430A)
• Select Server Cabinet, 42U, Mesh (RM2440A)
• Select Server Cabinet, 42U, PLEXIGLAS (RM2450A)
Optional accessories are also available.
• Multicabinet Joining Kit (RM2407)
Page 4
SELECT SERVER CABINETS
3
• Grounding Kit (RM2408)
• 3-Fan Unit (RM2409)
• 6-Fan Unit (RM2415)
What‘s Included
Your Select Server Cabinet (RM2400A, RM2410A, RM2420A, RM2430A, RM2440A, or RM2450A) package
should include the following items. If anything is missing or damaged, please contact Black Box Technical
Support at 724-746-5500.
• (1) Select Server Cabinet with attached casters and leg levelers
• (2) sets of panel keys (8025)
• (2) sets of door keys (R-0220)
• (1) bag of clip nuts
• (1) bag of screws with standard washers and clear plastic washers
• This user’s manual
Your accessories packages should include the following items.
Multicabinet Joining Kit (RM2407):
• (24)
3
⁄4" (1.9-cm) screws
• (6) joining connectors
• This user’s manual
Grounding Kit (RM2408):
• (6) 8" (20.3-cm) grounding straps
• (12) hex bolts
• This user’s manual
3-Fan Unit (RM2409):
• (3) fans in one unit with power cord
• This user’s manual
6-Fan Unit (RM2415):
• (6) fans in one unit with power cord
• This user’s manual
