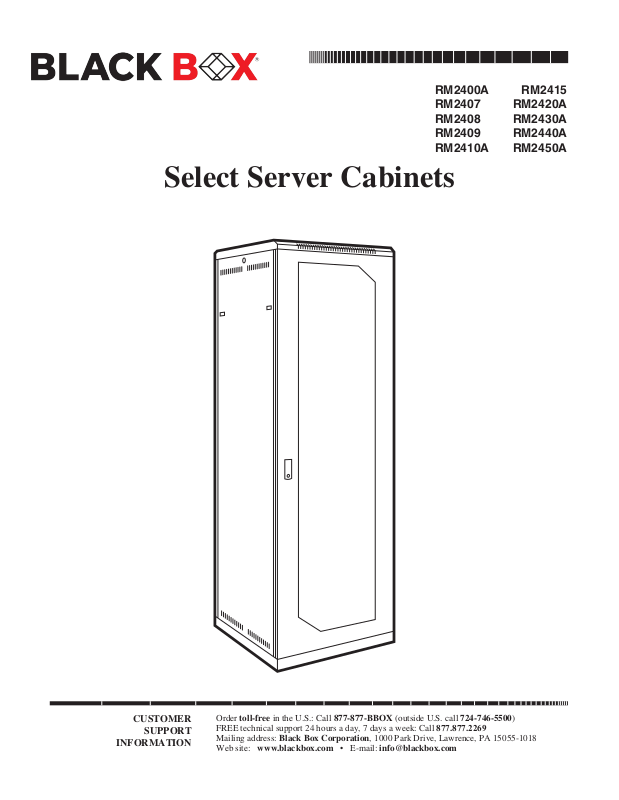

Page 1
CUSTOMER
SUPPORT
INFORMATION
RM2400A RM2415
RM2407 RM2420A
RM2408 RM2430A
RM2409 RM2440A
RM2410A RM2450A
Select Server Cabinets
r toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Orde
FREE technical support 24 hours a day, 7 days a week: Call 877.877.2269
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
Page 2
SELECT SERVER CABINETS
2
TRADEMARKS USED IN THIS MANUAL
PLEXIGLAS is a registered trademark of Roehm GmbH & CO.
UL is a registered trademark of Underwriters Laboratories Inc.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
Specifications
• Select Server Cabinet, 15U, Mesh (RM2400A)
• Select Server Cabinet, 15U, PLEXIGLAS (RM2410A)
• Select Server Cabinet, 38U, Mesh (RM2420A)
• Select Server Cabinet, 38U, PLEXIGLAS (RM2430A)
• Select Server Cabinet, 42U, Mesh (RM2440A)
• Select Server Cabinet, 42U, PLEXIGLAS (RM2450A)
Optional accessories are also available.
• Multicabinet Joining Kit (RM2407)
Capacity: 2
Mounting Rails: 19" M6 rails
Compliance: UL
Interior Height: RM2400A, RM2410A: 26.3" (15U) (66.8 cm); RM2420A, RM2430A: 66.5" (38U) (168.9 cm);
RM2440A, RM2450A: 73.5" (42U) (186.7 cm)
Exterior Height: RM2400A, RM2410A: 30.4" (77.2 cm); RM2420A, RM2430A: 70.7" (38 U) (179.6 cm);
RM2440A, RM2450A: 77.6" (197.1 cm)
Interior Width: 21.3" (54.1 cm)
Exterior Width: 23.6" (59.9 cm)
Interior Depth: 38.5" (97.8 cm)
Exterior Depth: 39.4" (100.1 cm)
205 lb. (1000 kg)
®
Listed
Overview
The Select Server® Cabinet holds your data center servers. It arrives fully assembled and includes keyed door
locks and locking side panels for security. Six models are available. Choose either mesh or PLEXIGLAS® doors.
Page 3
SELECT SERVER CABINETS
3
• Grounding Kit (RM2408)
• 3-Fan Unit (RM2409)
• 6-Fan Unit (RM2415)
Your accessories packages should include the following items.
Multicabinet Joining Kit (RM2407):
Grounding Kit (RM2408):
What‘s Included
Your
Select Server® Cabinet (RM2400A, RM2410A, RM2420A, RM2430A, RM2440A, or RM2450A)
package should include the following items. If anything is missing or damaged, please contact Black Box
Technical Support at 877.877.2269.
• (1) Select Server Cabinet with attached casters and leg level
• (2) sets of panel keys (8025)
• (2) sets of door keys (R-0220)
• (1) bag of clip nuts
• (1) bag of screws with standard washers and clear plastic washers
• (24) 3⁄4" (1.9-cm)
• (6) joining connectors
(
• (6) 8"
• (12) hex bolts
20.3-cm) grounding straps
screws
ers
3-Fan Unit (RM2409):
• (3) fans in one unit with power cord
4
-Fan Unit (RM2415):
• (6) fans in
one unit with power cord
Page 4
© Copyright 2005, 2022. Black Box Corporation. All rights reserved.
rm2400a_user_Rev2.pdf
1000 Park Drive • Lawrence, PA 15055-1018
• 1.877.877.2269
