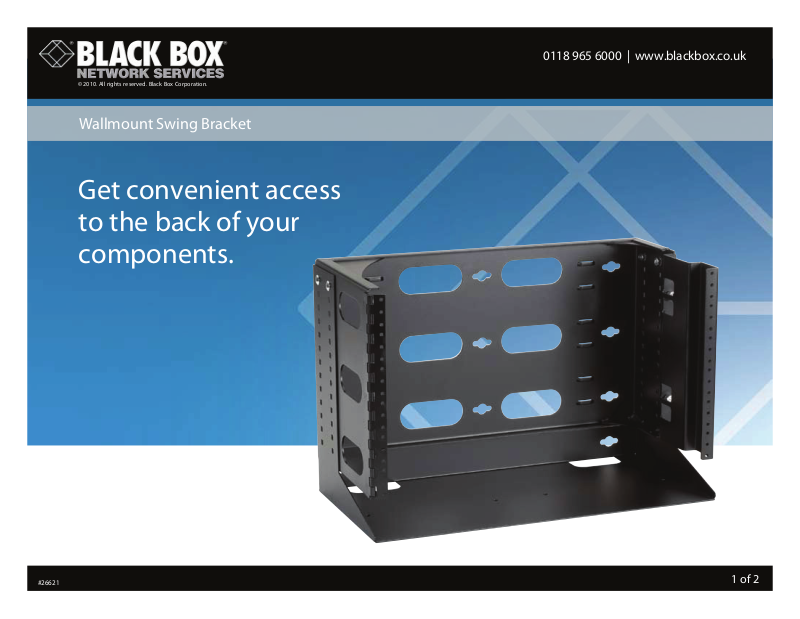

Wallmount Swing Bracket
Get convenient access
to the back of your
components.
0118 965 6000 | www.blackbox.co.uk
#26621
1 of 2
Page 2
FEATURES
» Provides 6U of convenient wallmount
racking space.
» Weight capacity of 34 kg.
» Constructed of 14-gauge welded steel.
» 12-24 tapped holes for rackmounting.
» The Hinged Panel (RM098, included with
the Wallmount Swing Bracket) enables you
to swing out rackmount components. It can
be mounted to swing left or right.
» Customise the Wallmount Swing Bracket
(RM095A)
(RM097) or Hinged Dust Cover (RM099
by adding the Adjustable Shelf
).
OVERVIEW
The BLACK BOX® Wallmount Swing Bracket is the most convenient
way to wallmount a patch panel or other network components.
Standard 19" rails with 12-24 holes hold equipment up to 6U high.
The bracket measures 10.9"H x 19.5"W x 9.5"D and provides enough
depth for you to mount even oversized components.
The Hinged Panel (included with the Wallmount Swing Bracket)
enables you to easily swing out components to
switches. The quick-release, spring-loaded thumbscrews mean no
tools are required. Or, for components that don’t need rear access,
you can order the Wallmount Bracket by itself.
The optional Adjustable Shelf provides a handy spot for tools or
for equipment that’s not rackmountable. You can set the shelf from
2" to 6" above or below the bracket. To protect your components,
order the Hinged Dust
up easily when you need to access components.
Cover. This light-weight aluminum shield lifts
access cables or DIP
T E C H S P E C S
Capacity (Maximum) — Frame: 34 kg.;
Shelf: 11.34 kg.
Construction — 14-gauge steel
Rack Units — 6U
Size — 10.9"H x 19.5"W x 9.5"D
Weight — 11.79 kg.
Item Code
Wallmount Swing Bracket
* Includes Wallmount Bracket (RM096A) and Hinged Panel (RM098).
Hinged Panel
Adjustable Shelf
Hinged Dust Cover
RM095A-R2
RM098
RM097
RM099
#26621
0118 965 6000 www.blackbox.co.uk
2 of 2
