Black Box MT850A User Manual

RODUCT P/N MT850A

P

Compact T1

USER MANUAL

MAY 2003

770-0110-AA

CUSTOMER

SUPPORT

INFORMATION

Order toll-free in the U.S.: Call 877-877-BBOX (outside the U.S. call 724-746-5500)
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [e-mail]

Supporting Software Version:

Controller 6.1
IP Router 1.6
CMG Router 2.0

Compliance

FCC Requirements for Telephone-Line Equipment

1. The Federal Communications Commission (FCC) has established rules which permit this device
to be directly connecte d to the telephon e network with stan dardized jacks. T his equipment shou ld not
be used on party lines or coin lines.

2. If this device is malfunction ing, it may also be caus ing harm to the te leph one network ; this de vice
should be disconne cted until the so urce of the prob lem can be determ ined and until the repair has been
made. If this is not done, the telephone company may temporarily disconnect service.

3. If you have problems with your telephone equipment after installing this device, disconnect this
device from the line to see if it is causing the problem . If it i s , con tac t y our su pp lier o r a n auth ori zed
agent.

4. The telephone company may make changes in its technical operations and procedures. If any such
changes affect the compatibility or use of this device, the telephone company is required to give
adequate notice of the ch anges.

5. If the telephone company requests information on what equipm e nt is connected to the ir lin es,
inform them of:

PREFACE

Preface

a. The telephone number that this unit is connected to .

b. The ringer equivalence number.

c. The USOC jack required: RJ-11C.

d. The FCC registrat ion number.

Items (b) and (d) can be found on the unit’s FCC label. The ringer equivalence number (REN) is

used to determine how many devices can be connected to your telephone line. In most
areas, the sum of the RENs of all devices on any one line should not exceed five (5.0). If
too many devices are attached, they may not ring properly.

6. In the event of an equipment malfunction, all repairs should be performed by your
supplier or an authorized agent. It is the responsibility of users requiring service to report
the need for service to the supplier or to an authorized agent.

Preface

Compliance

Certification Notice for Equipment Used in Canada

The Canadian Department of Communications label identifies certified equipment. This

certification means that the equipment meets certain telecommunications-network
protective, operation, and safety requirements. The Department does not guarantee the
equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the
facilities of the local telecommunications company. The equipment must also be installed using an
acceptable method of connection. In some cases, the company’s inside wiring associated with a
single-line individual service may be extended by means of a certified connector assembly (extension
cord). The customer should be aware that compliance with the above conditions may not prevent
degradation of service in some situations.

Repairs to certified equipment should be made by an auth orize d Canadia n mainte n anc e facility —in
this case, your supplier. Any repa irs or alte rat ions mad e by the u ser to th is equi pm ent, or e q uip ment
malfunctions, may give the tel ecommu nications c ompany cause to request the u ser to disconn ect the
equipment.

Users should ensure for their own protectio n t hat the electrical ground connectio ns of t he power
utility, telephone lines, and internal metallic water pipe system, if present, are connected together.
This precaution may be particularly important in rural areas.

CAUTION! USERS SHOULD NOT ATTEMPT TO MAKE SUCH CONNECTIONS

THEMSELVES, BUT SHOULD CONTACT THE APPROPRIATE ELECTRIC INSPECTION
AUTHORITY, OR ELECTRICIAN, AS APPROPRIATE.

The LOAD NUMBER (LN) assigned to each terminal device denotes the percentage of the total load
to be connected to a telephone loop which is used by the device, to prevent overloading. The
termination on a loop m ay consist of any c ombination of d evices, subje ct only to the requirement that
the total of the load numbers of all the devices does not exceed 100.

iv Compact T1 - Release 6.1

Preface

Compliance

Federal Communications Commission and Canadian Department of Communications Radio Frequency Interference Statements

This equipment generates, uses, and can radiate radio frequency energy and if not installed and used
properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to
radio communication. It has been t ested and foun d to comp ly with the limits for a Class A comp uting
device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed
to provide reasonable protecti on against such interference when the equipment is operated in a
commercial environment. Operati on of this equipment in a residential area is like ly to cause
interference, in which case the user at his own expense will be required to take wh atever measures
may be necessary to correct the interference.

Changes or modif ications no t express ly approve d by the party re sponsibl e for complia nce could vo id
the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits fo r r adio noise emission from digi tal
apparatus set out in the Radio Interference Regulation of the Canadian Department of
Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le Règl ement sur le brouillage
radioélectri qu e pu blié par le ministère de s Co m munications du Canada .

Compact T1 - Release 6.1 v

Preface

Compliance

Normas Oficiales Mexicanas (NOM) Electrical Safety Statement Instrucciones de Seguridad

1. Todas las instrucc iones de seguridad y operación deberán ser leídas antes de que el aparato
eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser gu ardadas para referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser
respetadas.

4. Todas las instrucc iones de operación y us o deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño,
lavabo, sótano moj ado o cerca de una alberca, etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedest ales que sean recomendados
por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el
fabricante.

8. Servicio—El usuario no deb e inte nt ar d ar serv icio a l e quipo el éctri co más a llá a lo de sc rito en las
instrucciones de operación. Todo otro servicio deberá ser referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no in terfiera su uso. La
colocación del aparato eléctrico sobre una cama, sofá, alfombra o superficie similar puede bloquea la
ventilación, no se debe colocar en librer os o gabinetes que impid a n el flujo de aire por los o rificios
de ventilación.

10. El equipo eléctrico deber ser sit uado fuera del alcance de fuentes de calor como radiadores,
registros de calor, estufas u otros aparatos (incluyendo amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el
instructivo de operación, o como se indique en el aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea
eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni
pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y
receptáculos donde salen del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del
fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.

vi Compact T1 - Release 6.1

Preface

Compliance

16. El cable de corri ente deberá ser desconectado del cuando el eq uipo no sea usado por un largo
periodo de tiemp o.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la
cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provi s to cuando:
A: El cable de poder o el contacto ha sido dañad o; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuest o a l a lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o
E: El aparato ha sido ti rado o su cubierta ha sido dañada.

Compact T1 - Release 6.1 vii

Preface

Safety Information

Safety Information

CAUTION! ALWAYS USE CAUTION WHEN INSTALLING TELEPHONE LINES.

R

EAD THE CAUTIONS BELOW FOR DETAILS ON SAFETY GUIDELINES TO PREVENT

INJURY.

l Never touch uninsulated telephone wires and terminals unless the

telephone line has been disconnected at the Network Interface (NI) as
voltage potenti al s as hi gh as 300 VAC may be pr es ent a cross the transmit
and receive pairs

l Only use No. 26 AWG or larger tele communica tion li ne cord, to red uce

the risk of fire

l Never install telephone wiring during a lightning storm
l Never install telephon e jacks in w et locations unless the jack is

specifically designed for wet locations

l Refer to the installation section of this manual for a safe and proper

installation proc edure. All wiring e xternal to this equ ipment should foll ow
the current provision of the National Electrical Code

viii Compact T1 - Release 6.1

Preface

Notices

Notices

This manual contains import ant information and warnings that must be followed to
ensure safe operation of the equipment.

DANGER! A DANGER NOTICE INDICATES THE PRESENCE OF A HAZARD THAT

CAN OR WILL CAUSE DEATH OR SEVERE PERSONAL INJURY IF THE HAZARD IS
NOT AVOIDED.

CAUTION! A CAUTION NOTICE INDICATES THE POSSIBILITY OF

INTERRUPTING NETWORK SERVICE IF THE HAZARD IS NOT AVOIDED.

WARNING! A WARNING NOTICE INDICATES THE POSSIBILITY OF EQUIPMENT

DAMAGE IF THE HAZARD IS NOT AVOIDED.

NOTE: A Note indicates information to help you understand how to

perform a procedure or how the system works. Notes should be read before
performing the required action.

Compact T1 - Release 6.1 ix

Preface

Electrostatic Discharge (ESD) Precautions

Electrostatic Discharge (ESD) Precautions

ESD can damage processors, circuit cards, and other electronic components. Always
observe the following precautions before installing a system component.

1. Do not remove a component from its protective packaging until ready to
install.

2. Wear a wrist grounding strap and attach it to a metal part of the system unit
before handling co mponen ts. If a wrist str ap is no t avai lable , main tain c ontact
with the system unit throughout any procedure requiring ESD protection.

WARNING! INTEG RATED CIRCUITS (ICS) ARE EXTREMELY SUSCEPTIBLE TO

ELECTROSTATIC DISCHARGE. UNLESS YOU ARE A QUALIFIED SERVICE TECHNICIAN WHO
USES TOOLS AND TECHNIQUES THAT CONFORM TO ACCEPTED INDUSTRY PRACTICES, DO
NOT HANDLE ICS.

The ESD warning label appears on packages and storage bags
that contain static-sensitive products and components.

x Compact T1 - Release 6.1

TABLE OF CONTENTS

Table of Contents

Preface

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

FCC Requirements for Telephone-Line Equipment . . . . . . . . . . . . . . iii

Certification Notice for Equipment Used in Canada . . . . . . . . . . . . . iv

Federal Communications Commi ssi on and Canad ian Depar tment of

Communications Radio Frequency Interference Statements . . . . . v

Normas Oficiales Mexicanas (NOM) Electrical Safety Statement

Instrucciones de Seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

Electrostatic Discharge (ESD) Precautions . . . . . . . . . . . . . . . . . . . . . . . . . x

1 Base Platform

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Dual T1 Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

115 VAC/-48 VDC Power Supply/Charger. . . . . . . . . . . . . . . . . . . . 1-3

Service Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

FXS Service card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

FXO Service card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

ISDN BRI Service card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

OCU-DP Service card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Quad T1 Service card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

V.35 and V.35/54 Service cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

IP Router Service card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

CMG Router Service card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Local and Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Platform Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Basic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Table of Contents

2 Physical Installation

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Management Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Network Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Network Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Testing and Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7

Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

Rear Chassis Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9

Physical Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9

Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10

RS-232 Craft Port (Female DB-9) . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

T1 and 10Base-T Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12

Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

Installation Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

Assembly of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

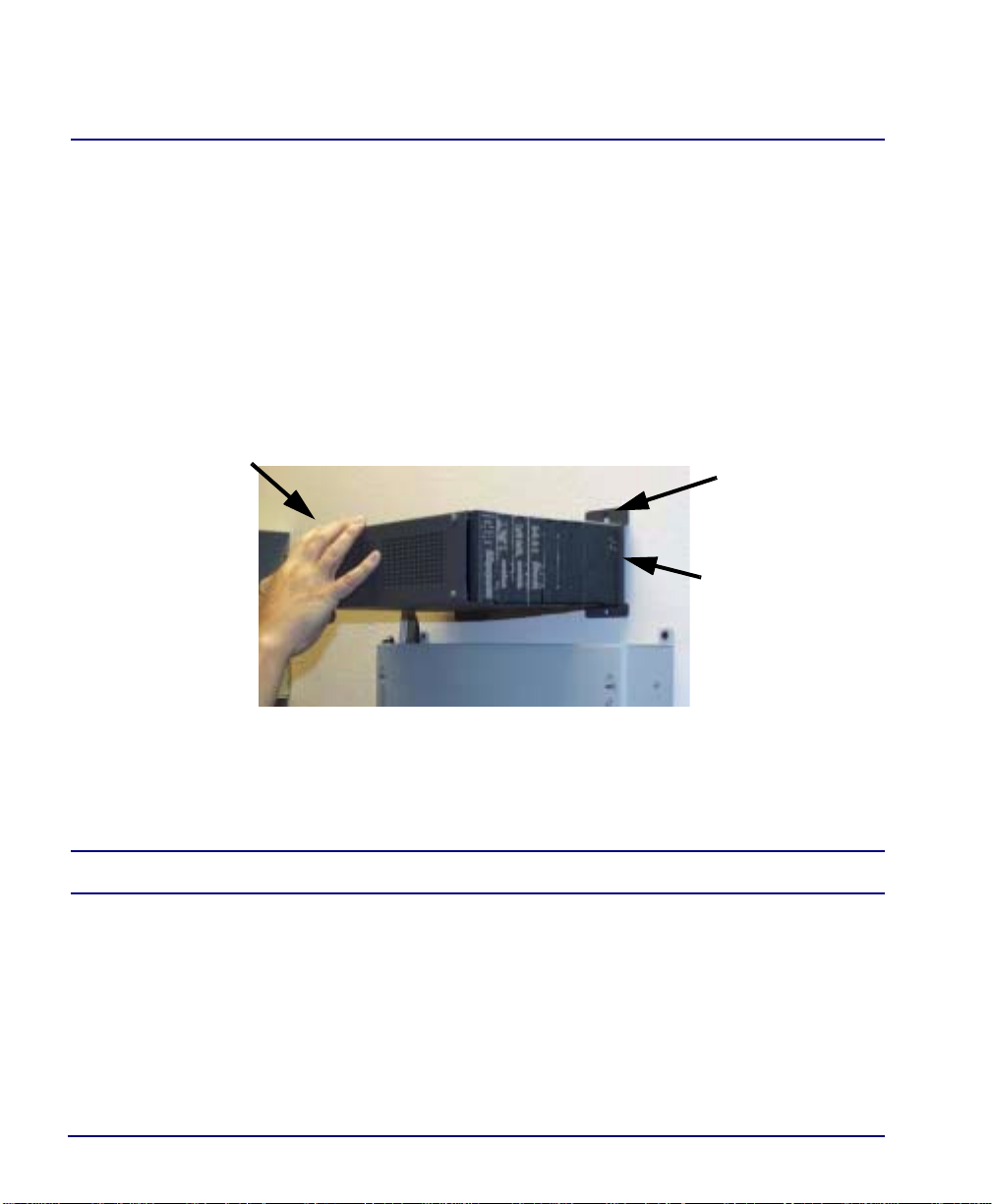

Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

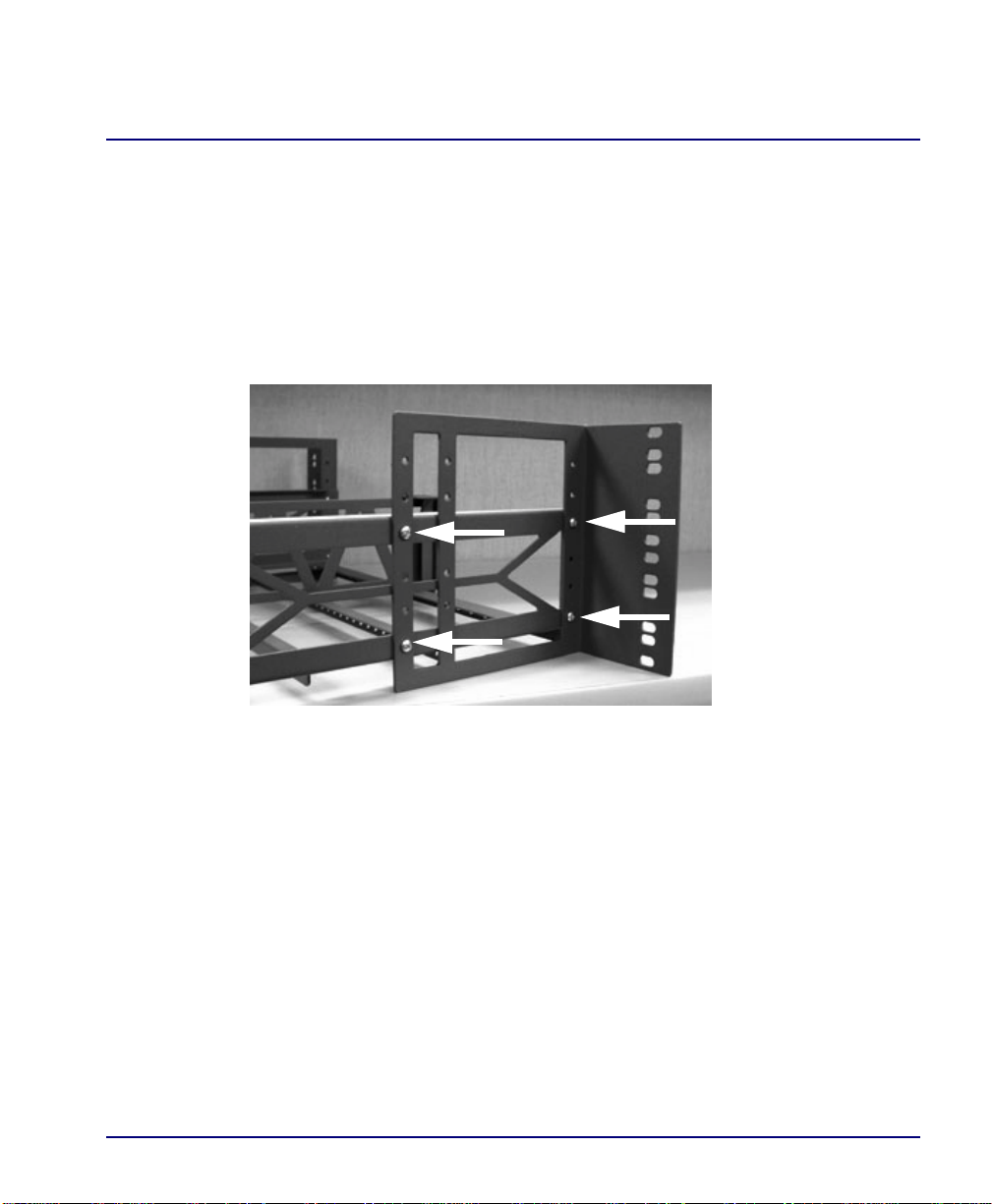

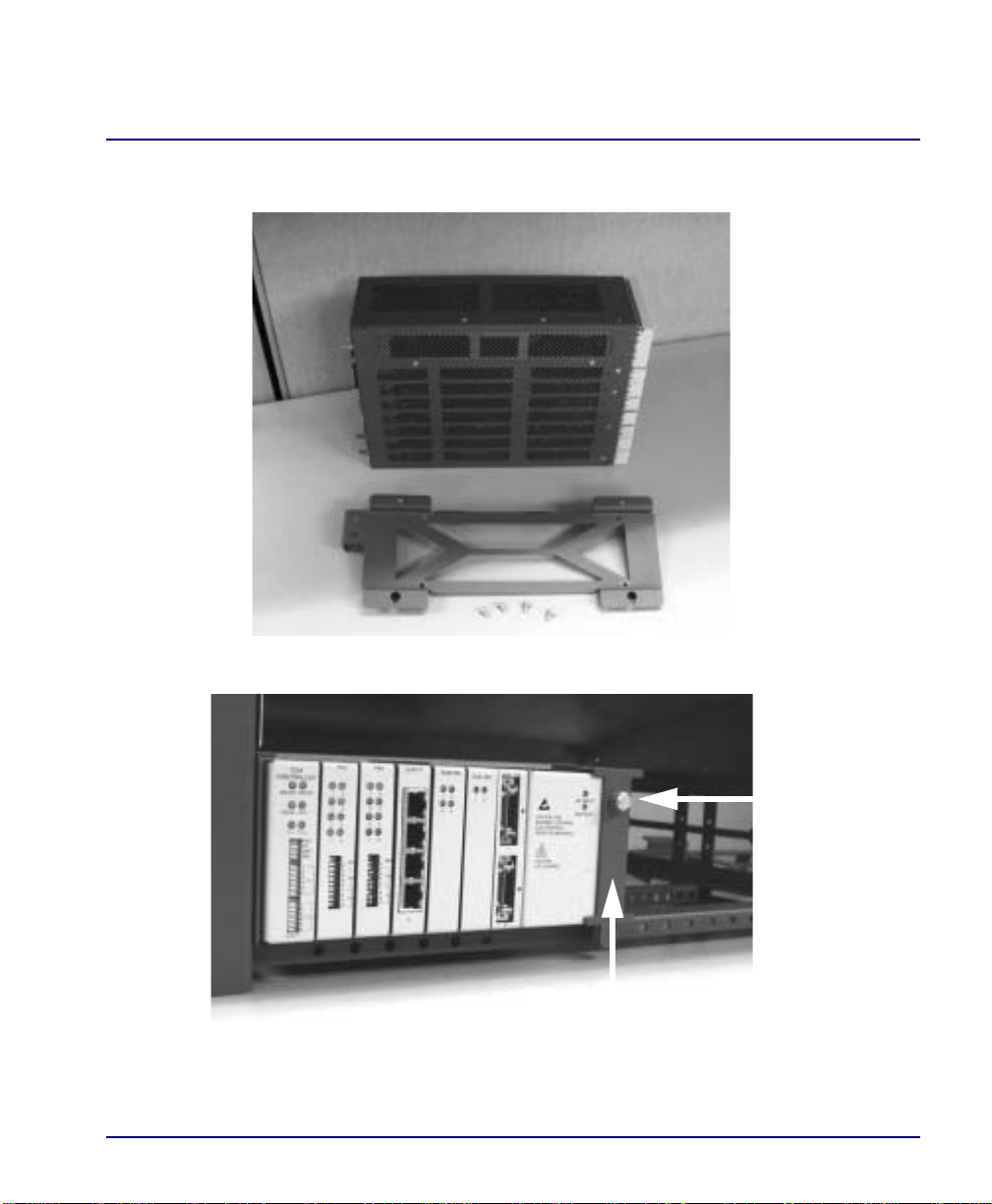

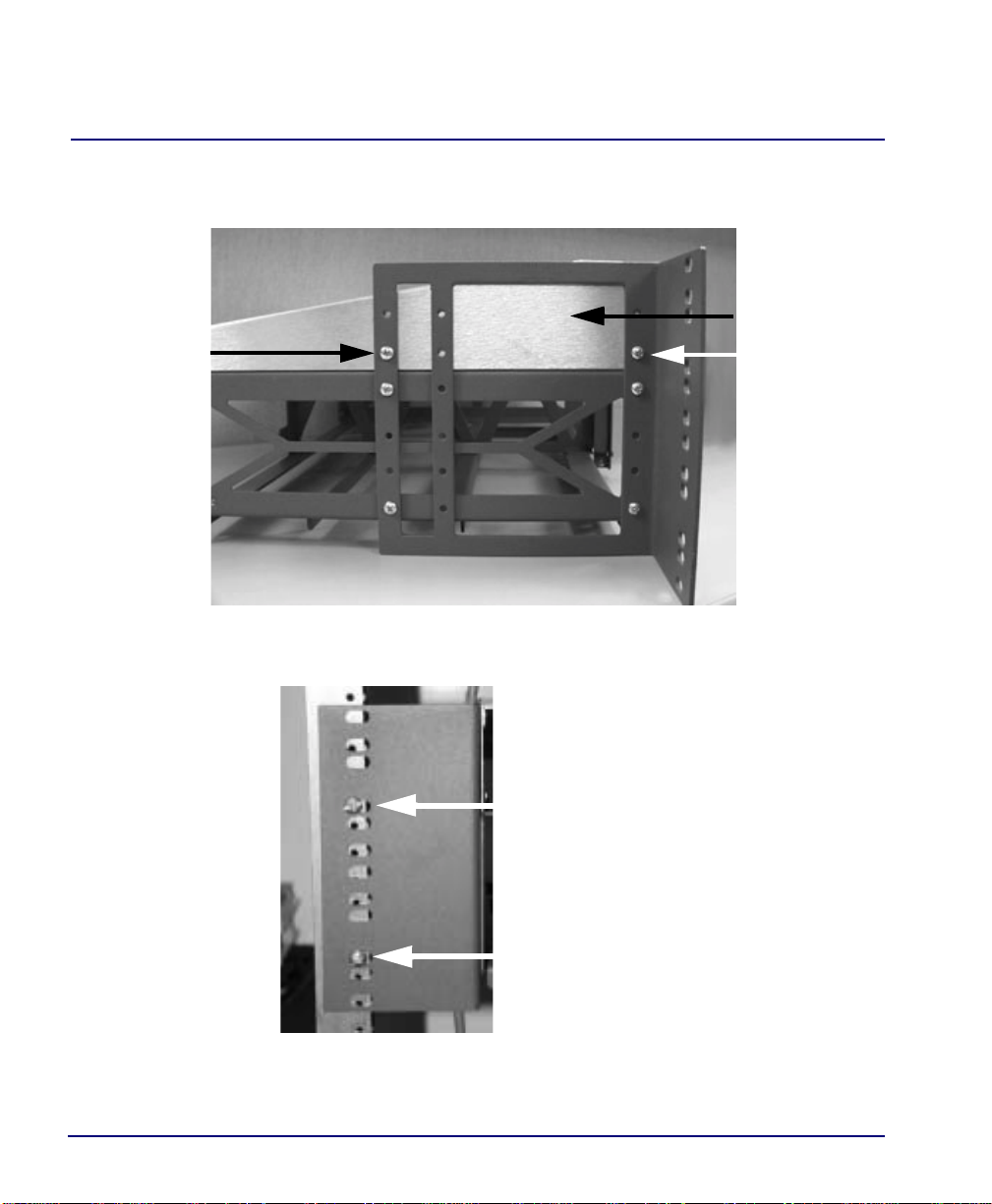

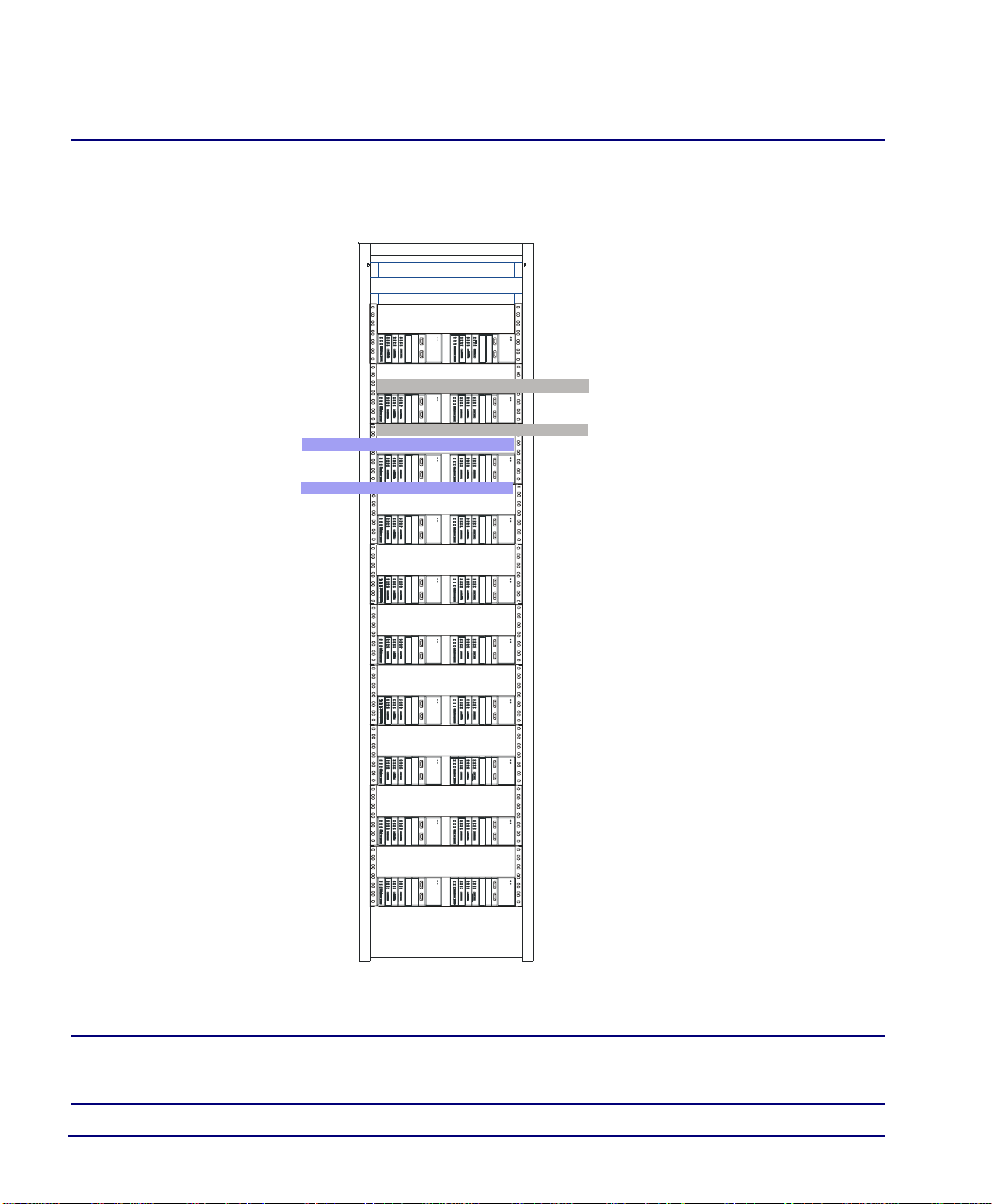

Rack Mounting (Optional Feature) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

3 Electrical Installati on and Cabling

Compliant Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

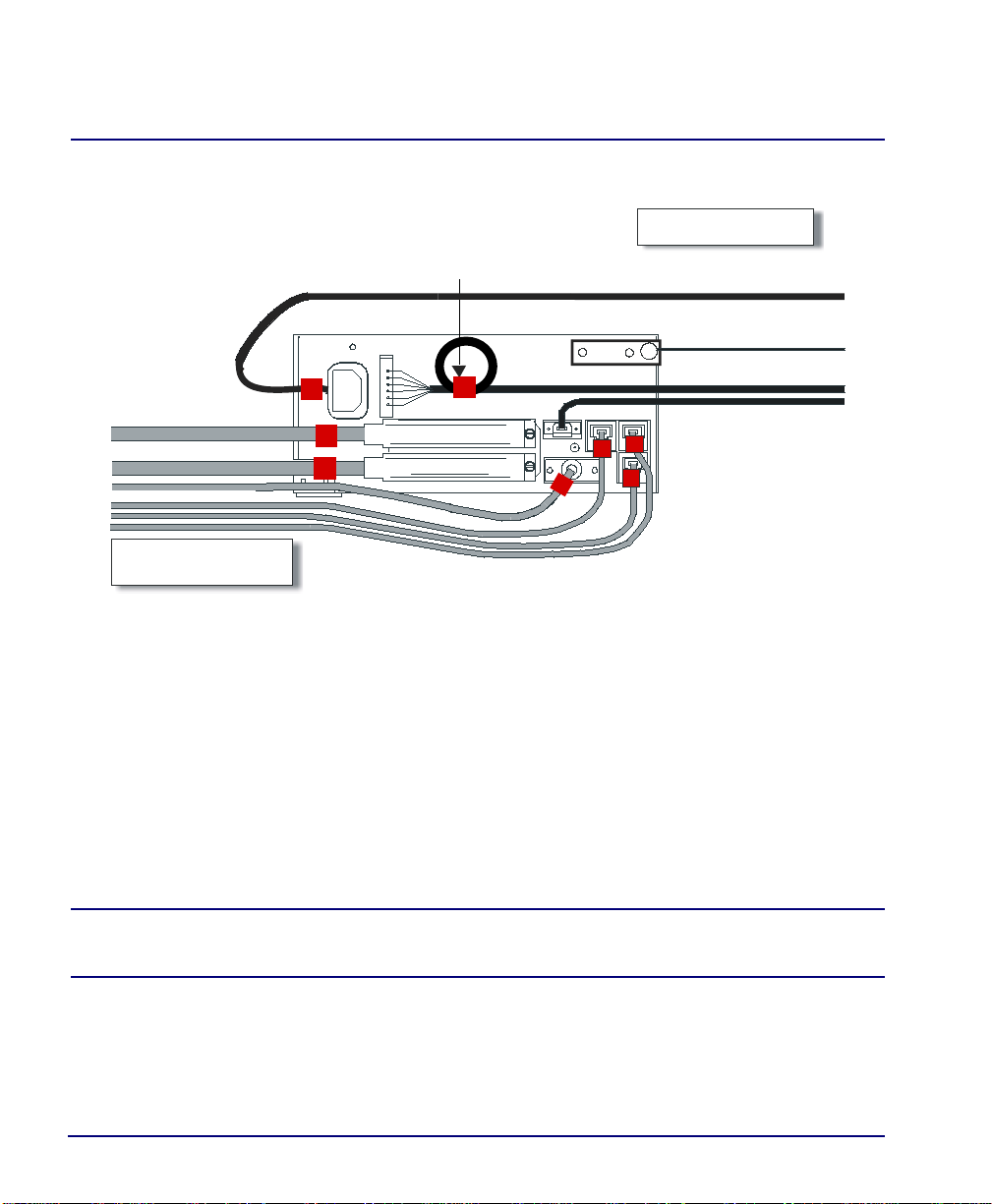

Ferrite Beads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

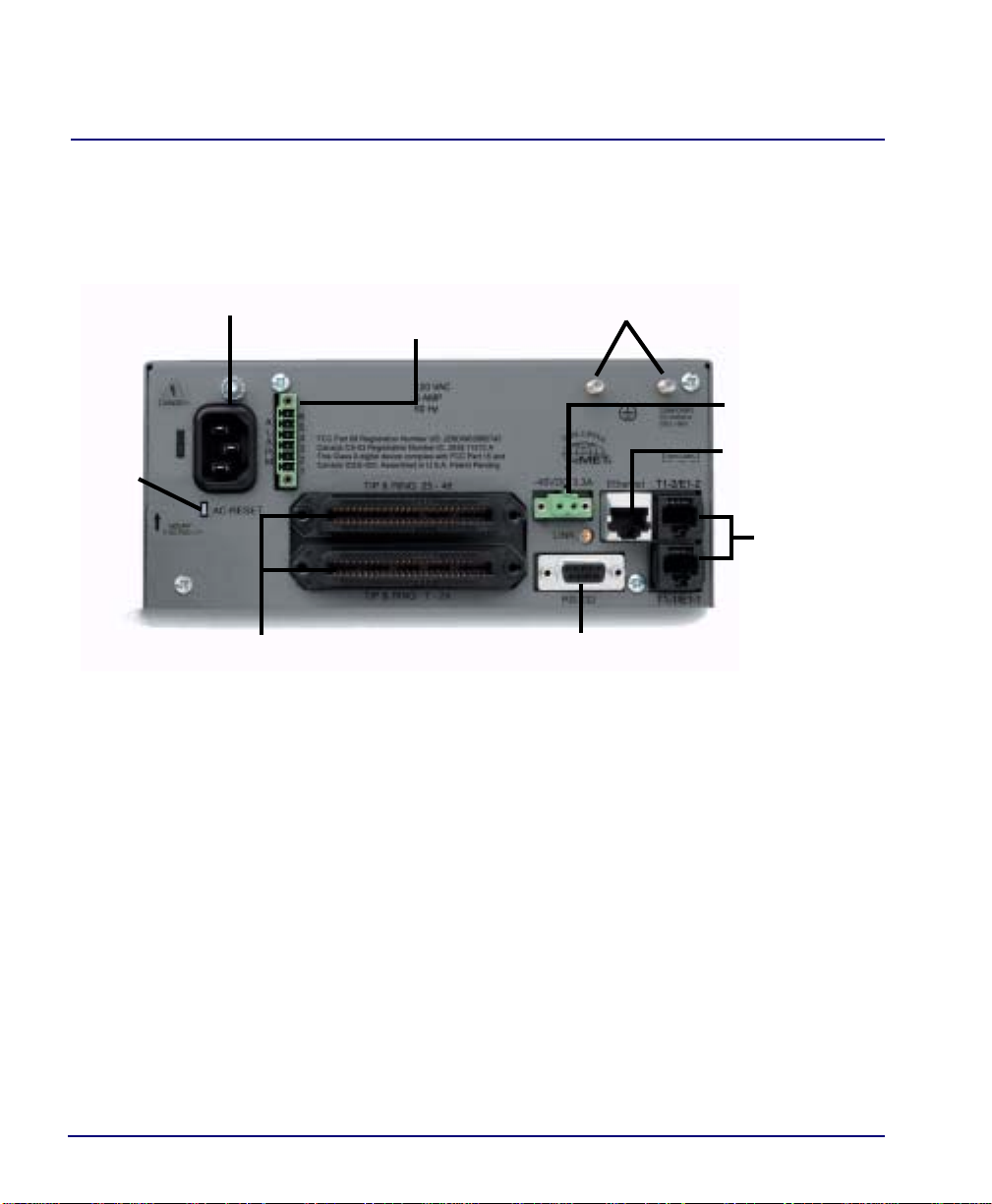

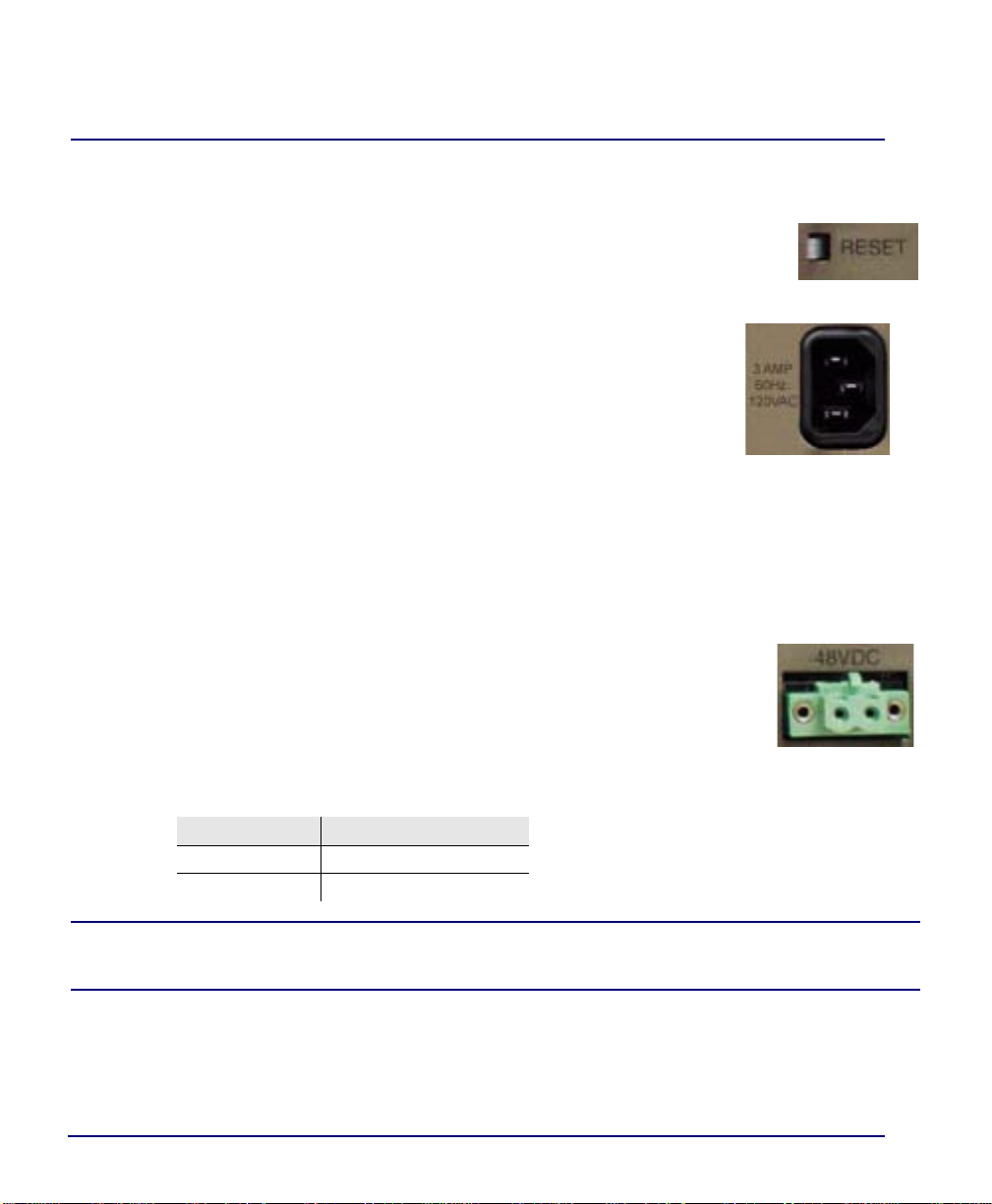

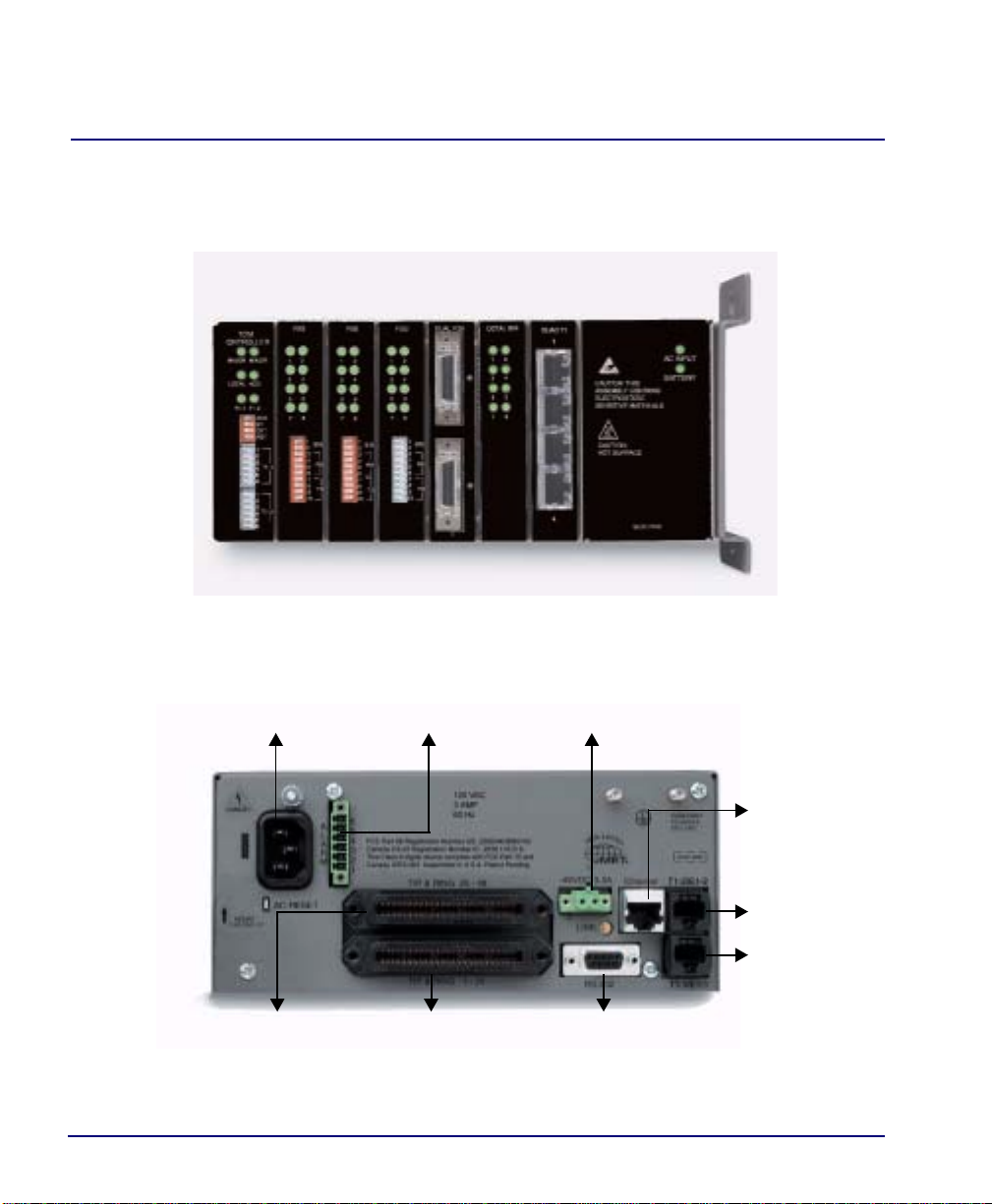

Chassis Connectors and Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Interface Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

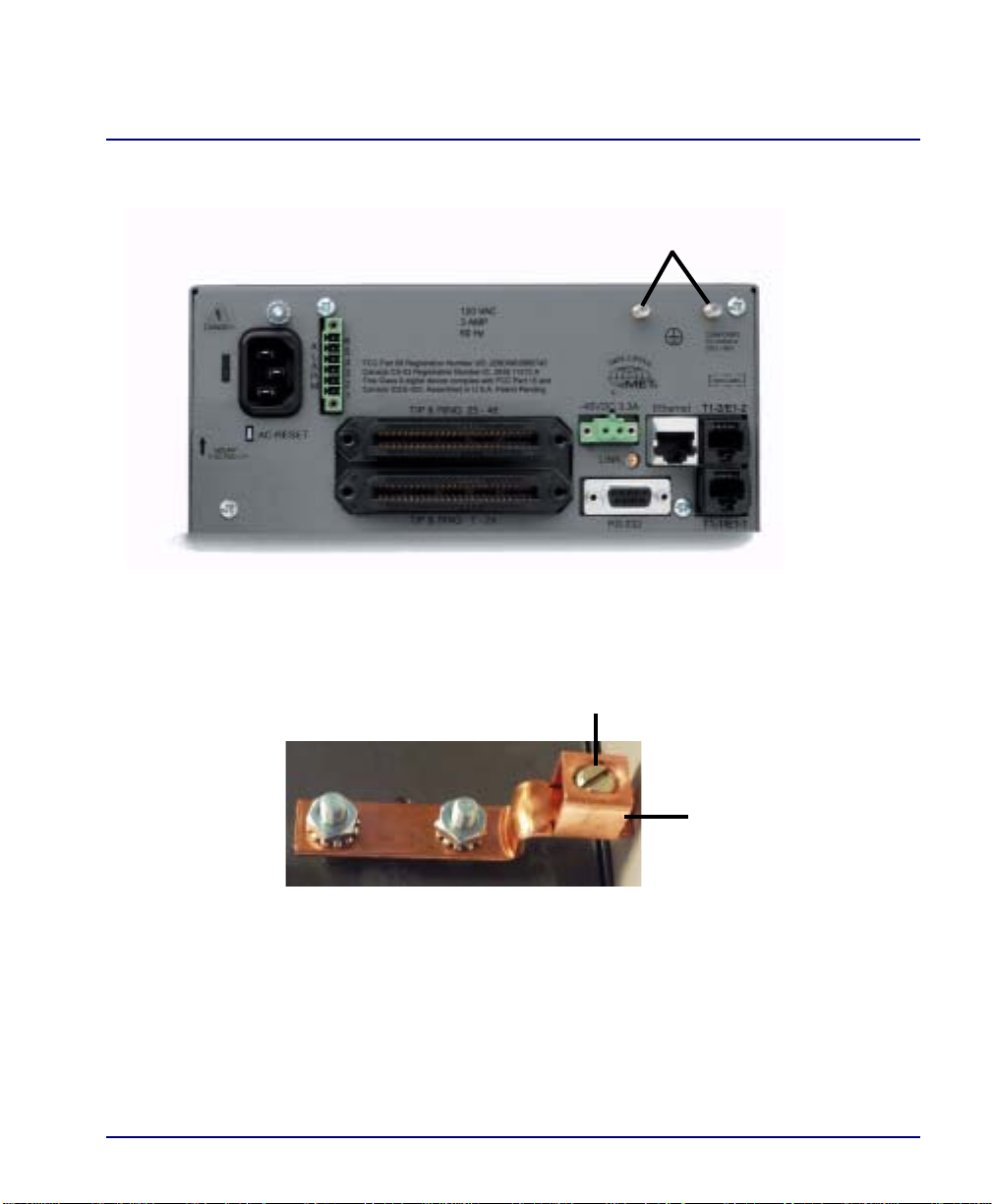

Chassis Ground Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

Power Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

Power Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

External Alarm Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8

25-Pair Telco Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9

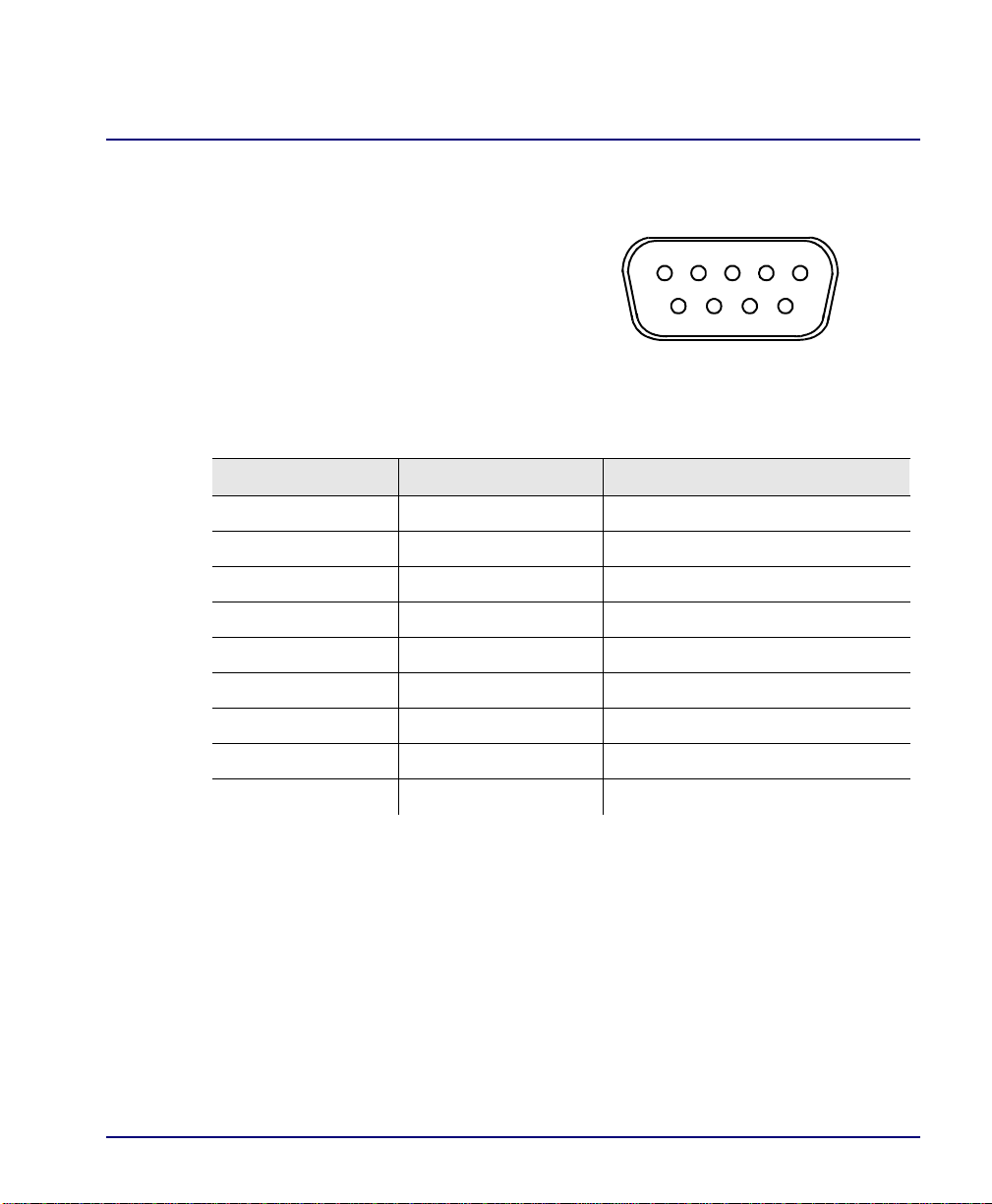

RS-232 Craft Port (Female DB-9) . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

T1 Connection Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12

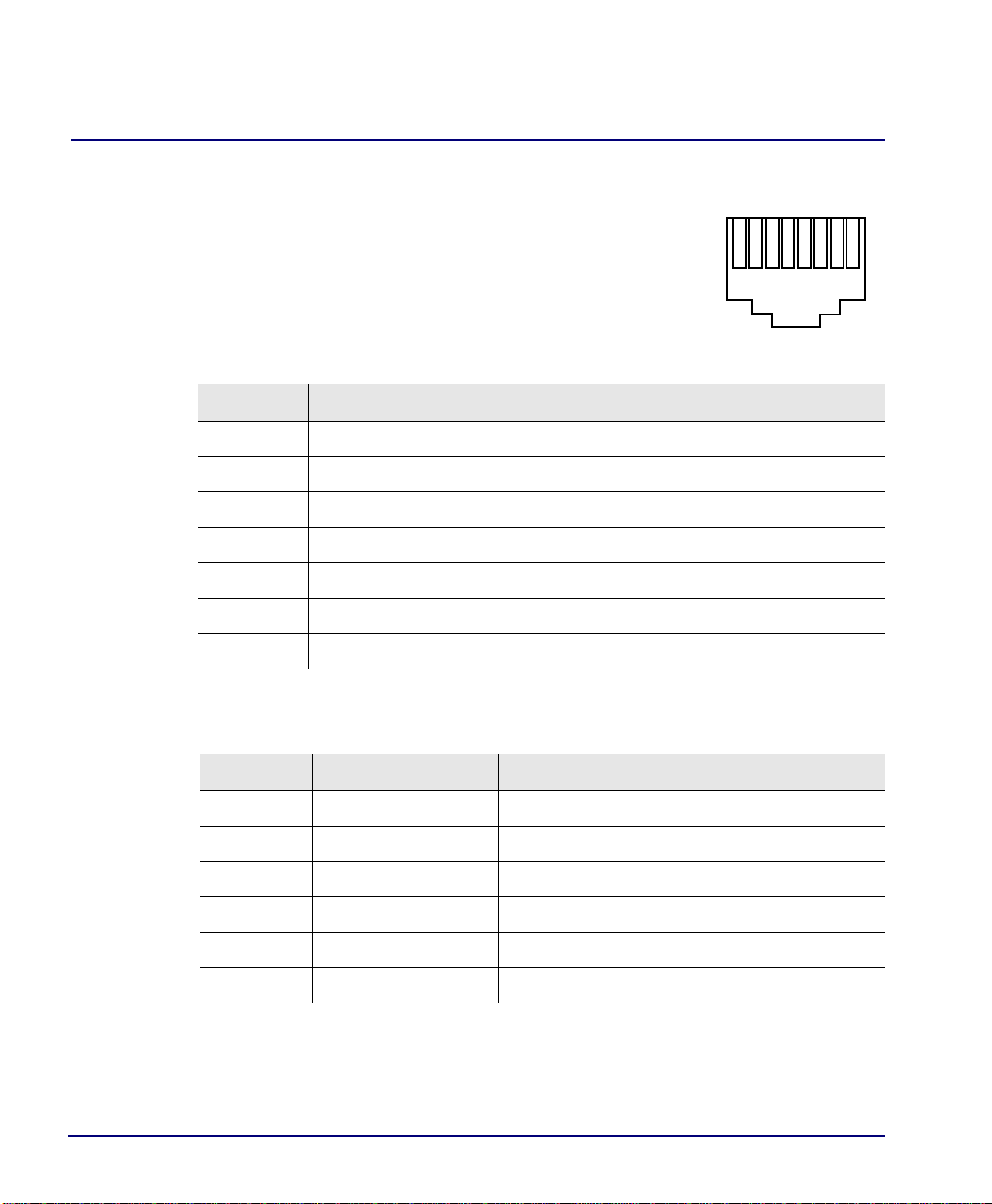

10Base-T Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-12

xii Compact T1 - Release 6.1

Table of Contents

4 Configuration

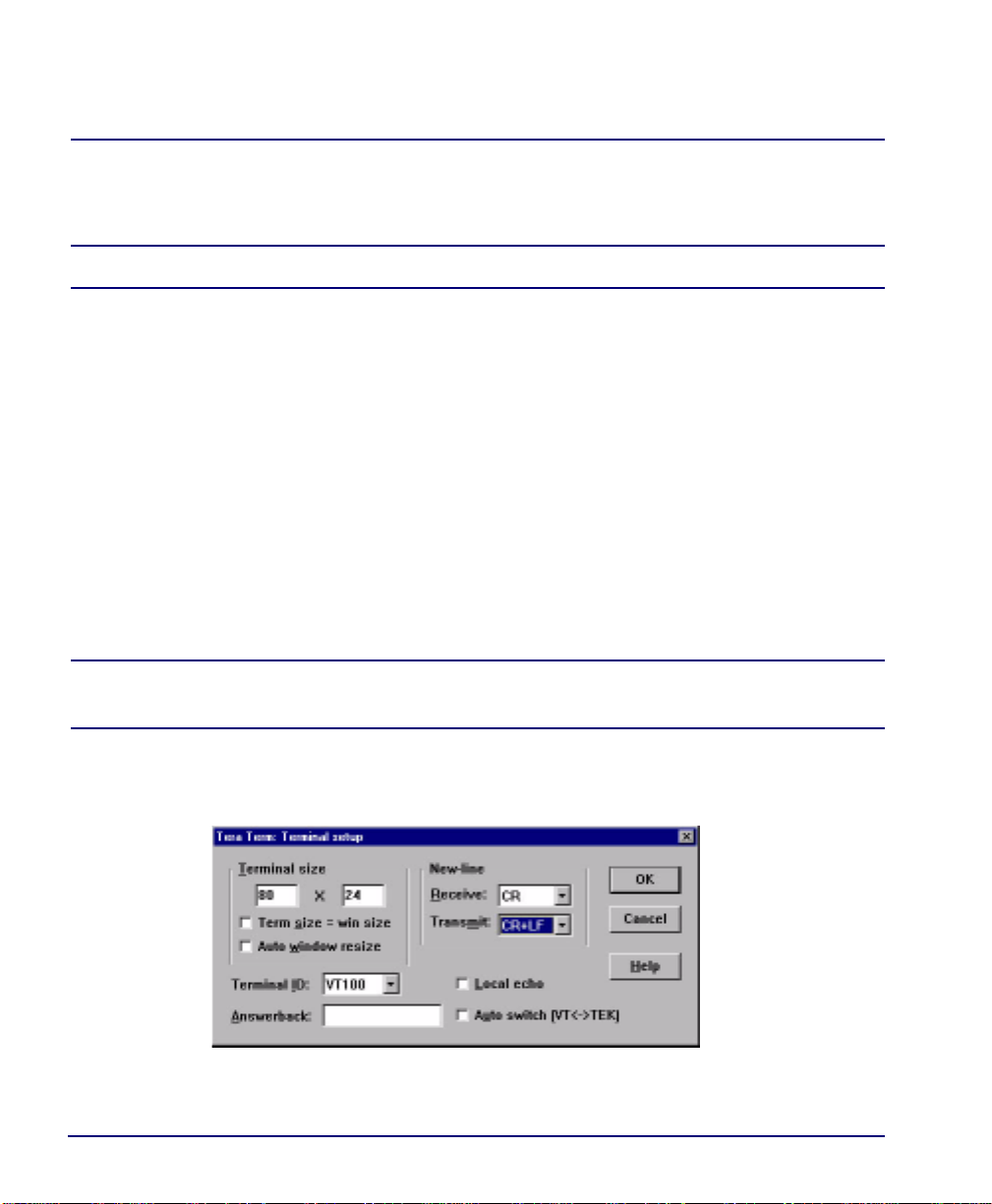

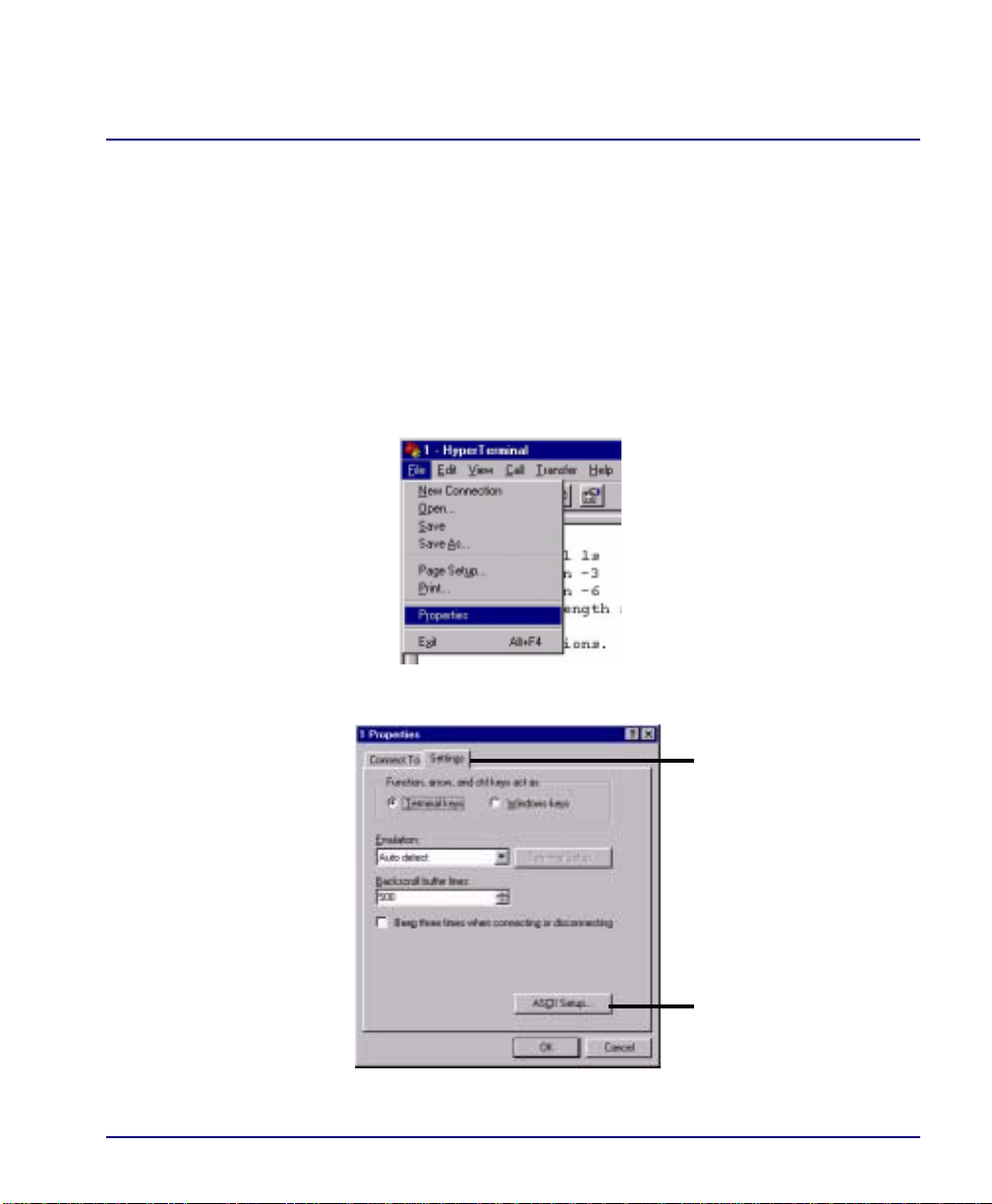

Setting up a CLI Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

System Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Basic System Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Set Up Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Set Up a DS1/T1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Set Up a DS0/Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Set Up an Analog Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Set Up the Router Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Establish a Static Channel Connection . . . . . . . . . . . . . . . . . . . . . . . 4-8

Set Up a ISDN BRI Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Set Up the OCU-DP Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Set Up a V.35 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Change the IP Address of the DS0 Management Channel . . . . . . . 4-10

Upgrade the Controller Software. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Upgrade the Router (IP or CMG) Software. . . . . . . . . . . . . . . . . . . 4-11

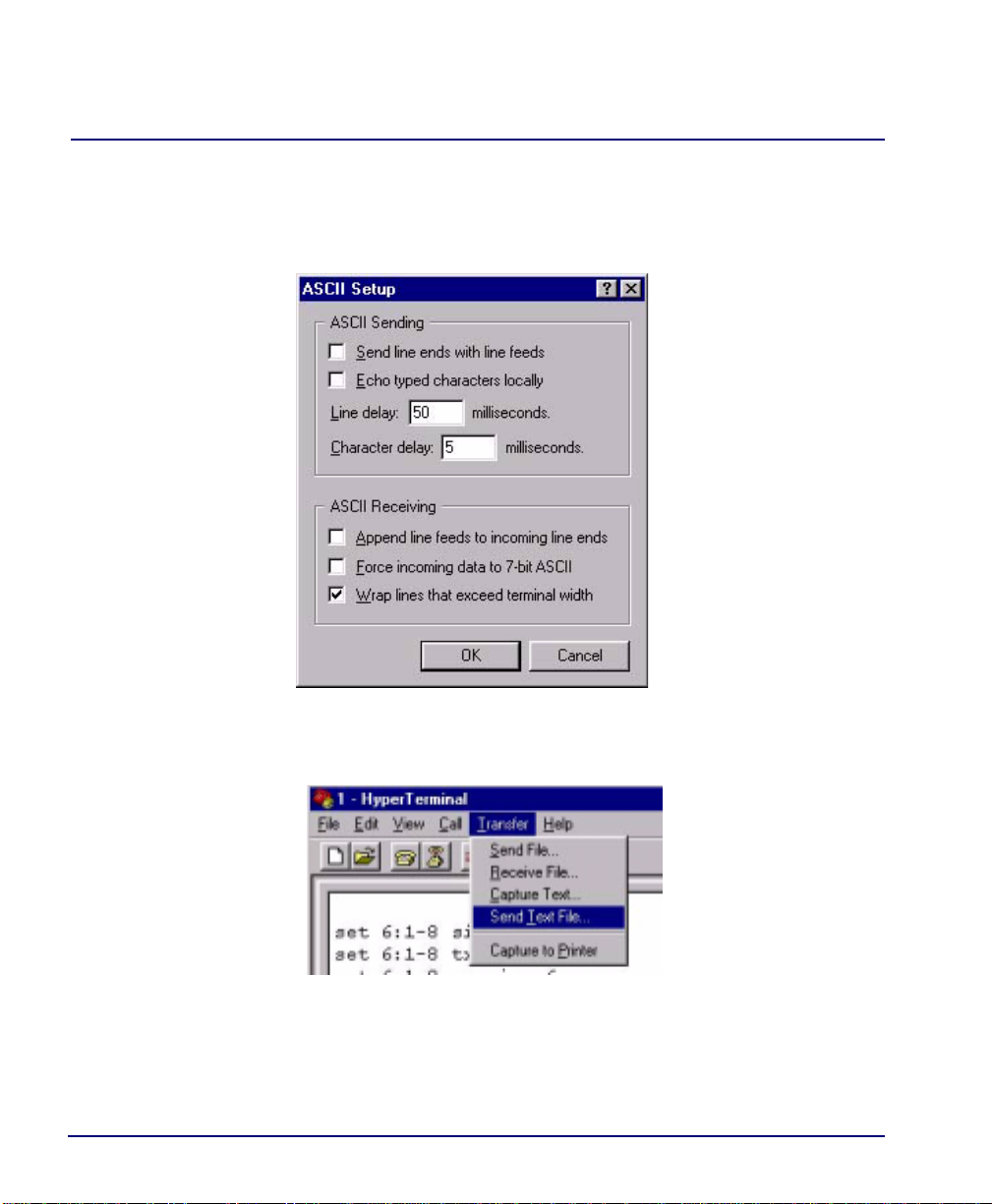

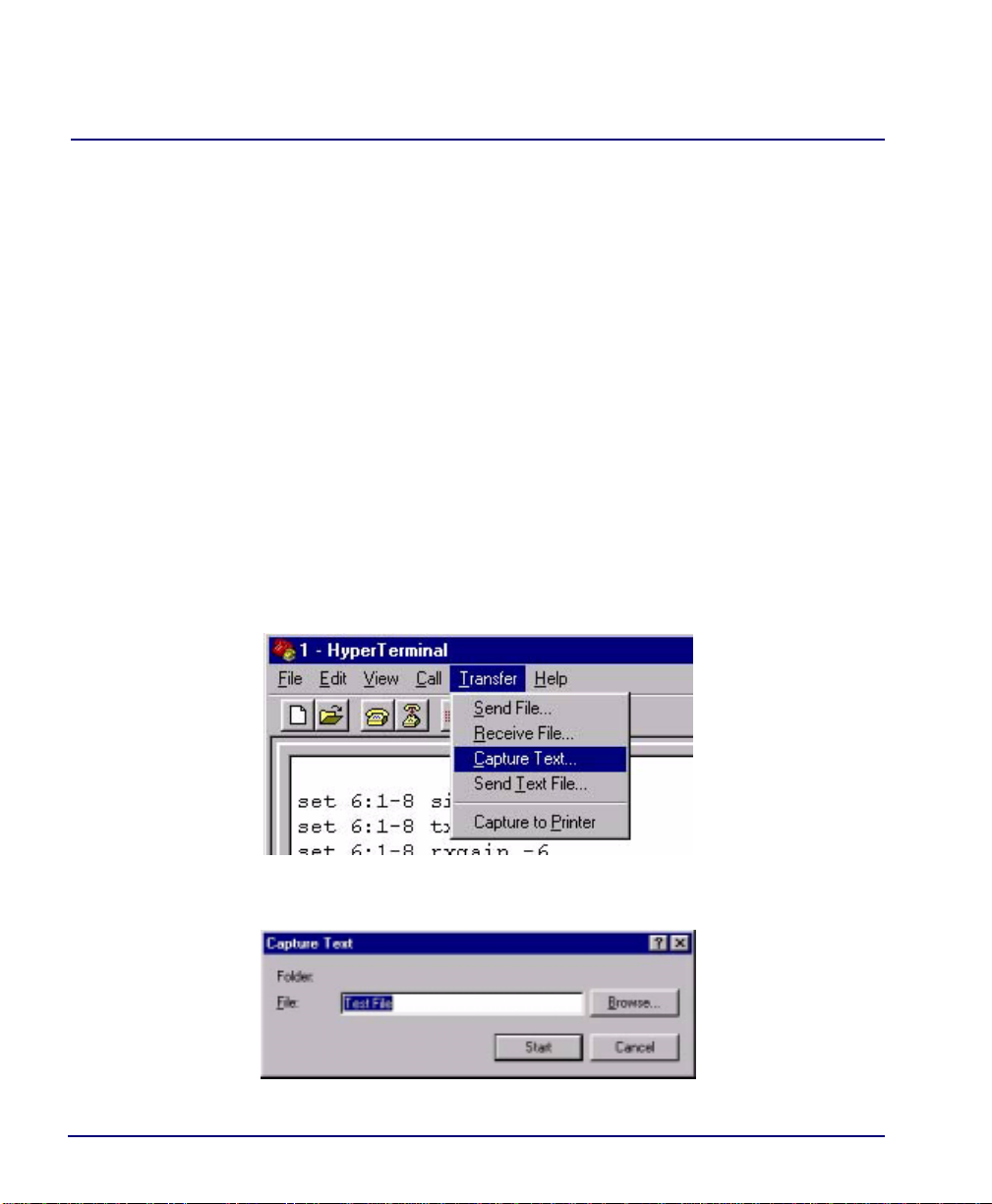

Quick Configuration Reload. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Setup of DS0 Management Channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

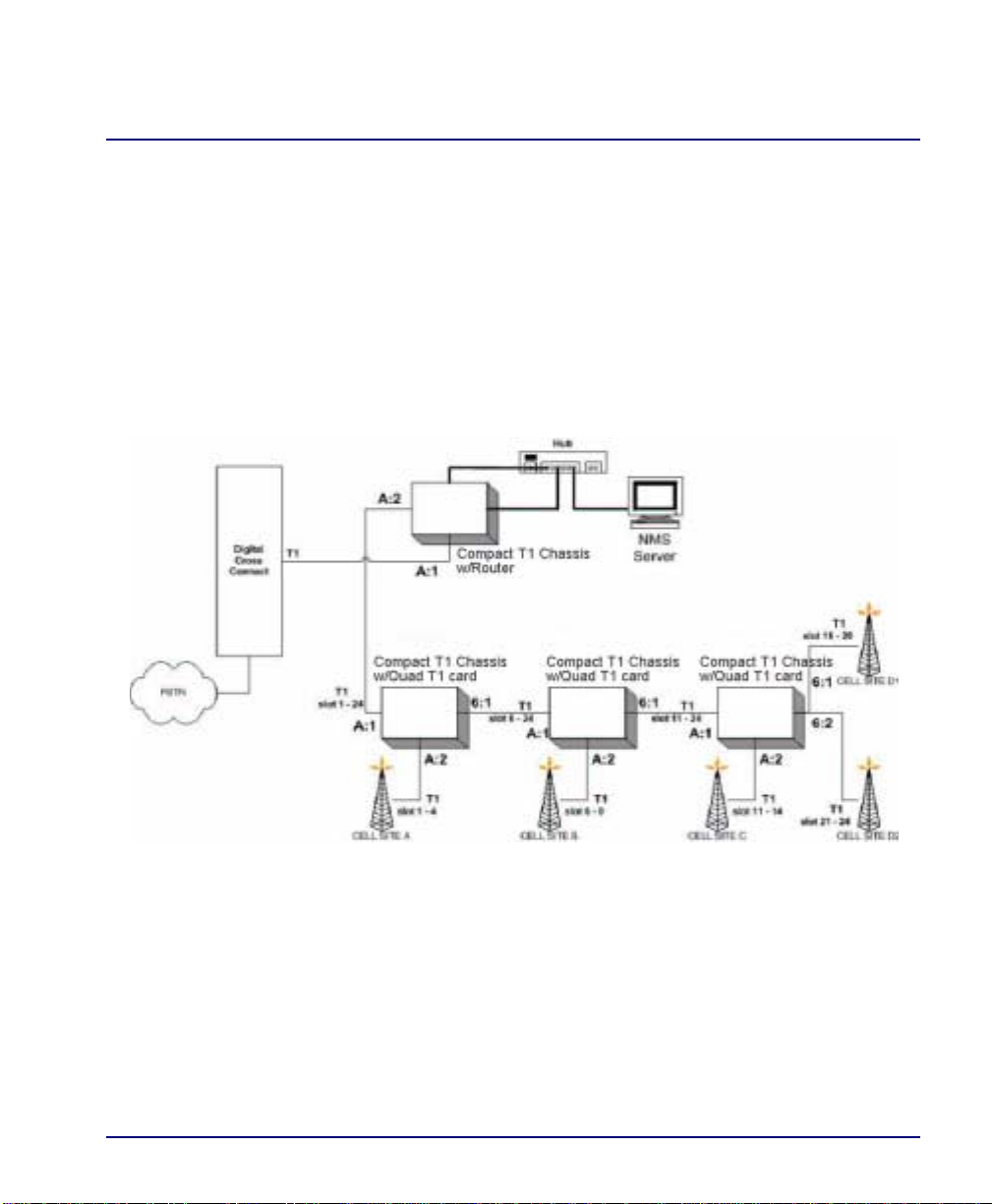

Application Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Provision DS0s for data and cross-connect to the outgoing T1. . . . 4-17

Configure the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17

Setup the Profile for Site A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Setup the Profile for Site B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

Setup the Profile for Site C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

Remote Site A Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

Remote Site B Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Remote Site C Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

Compact T1 - Release 6.1 xiii

Table of Contents

5 CLI Commands

Command Line Interface Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2

? or help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2

[TAB] usage for word or command completion. . . . . . . . . . . . . . . . . 5-2

CLI Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4

aco (Alarm Cut Off) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5

add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6

add (router) dns proxy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7

add (router) remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7

add (router) snmp community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8

add (router) snmp trap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

add (router) static dns host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

add (router) uploaduser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-11

add (router-lan) filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-12

add (router-lan) secondary ip address . . . . . . . . . . . . . . . . . . . . . . . .5-15

add (router-lan) static . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-16

add (router-wan) firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-20

add (router-wan) gre network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-23

add (router-wan) nat bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-24

add (router-wan) static . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-25

add user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-29

alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-30

clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-31

clear (ds1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-32

clear log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-32

clear (router) ip address table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-33

clear (router) log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-33

clear (router) mac address table . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-34

clear (router) mgcp stats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-34

clear (router) performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-35

connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-36

connect (bri) [4:1 mode] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-36

Channel Associated Signaling (CAS) Conversions . . . . . . . . . . . . .5-37

connect (router-trunk) (t1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-38

xiv Compact T1 - Release 6.1

Table of Contents

connect (card-trunk) (card-trunk). . . . . . . . . . . . . . . . . . . . . . . . . . . 5-39

connect (router-voice) (t1|fxs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40

delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-41

delete (router) dns proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42

delete (router) remote. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42

delete (router) snmp community . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43

delete (router) snmp trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43

delete (router) static dns host. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-44

delete (router) uploaduser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-44

delete (router-lan) filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-45

delete (router-lan) secondary ip address . . . . . . . . . . . . . . . . . . . . . 5-46

delete (router-lan) static. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-47

delete (router-wan) firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-50

delete (router-wan) gre network. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-51

delete (router-wan) nat bypass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-52

delete (router-wan) static . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-53

delete (router-wan) static ipx network. . . . . . . . . . . . . . . . . . . . . . . 5-54

delete user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-56

disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-57

disconnect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-57

exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-57

install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-58

install (slot) router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-58

load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-59

load tftp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-59

load xmodem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-60

log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-61

ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-62

print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-63

print config. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-63

print help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-64

rename (router) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-64

reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-65

reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-65

Compact T1 - Release 6.1 xv

Table of Contents

reset (router) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-65

restore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-66

restore defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-66

rtrping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-67

set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-68

set alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 -70

set autoexit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-70

set (bri) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-71

set (bri) autoactivate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-72

set (bri) mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-72

set (bri) pmsync. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-73

set clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 -74

set date. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-74

set (ds0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-75

set (ds1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-76

set ethernet ip address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-79

set (fxo) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-79

set (fxs5G). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-80

set id . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-81

set ip gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-81

set ipds0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-82

set local . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-83

set login auth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-83

set login support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-83

set ntp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-84

set (ocudp) baud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-86

set (ocudp) loopback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-87

set (ocudp) loopdetect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-88

set (ocudp) mvec. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-89

set (ocudp) secondary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-89

set (ocudp) selftest. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-90

set (ocudp) up/down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-90

set radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-91

xvi Compact T1 - Release 6.1

Table of Contents

set (router) autologout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-93

set (router) cdr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-94

set (router) compander. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-94

set (router) default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-95

set (router) dhcp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-96

set (router) dns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-101

set (router) enhanced security . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-103

set (router) hookflash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-103

set (router) lmi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-104

set (router) lmi poll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-104

set (router) log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-105

set (router) login auth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-106

set (router) login prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-107

set (router) mgcp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-108

set (router) ntp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-127

set (router) password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-129

set (router) ppp auth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-130

set (router) ppp security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-132

set (router) priority tos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-134

set (router) proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-135

set (router) reboot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-136

set (router) rip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-136

set (router) snmp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-137

set (router) stp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-139

set (router) syslog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-142

set (router) voip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-144

set (router-lan) collision. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-153

set (router-lan) filter forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-155

set (router-lan) framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-156

set (router-lan) gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-157

set (router-lan) ip address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-158

set (router-lan) ipx network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-159

set (router-lan) phy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-160

Compact T1 - Release 6.1 xvii

Table of Contents

set (router-lan) rip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-161

set (router-lan) stp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-163

set (router-lan) up/down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-165

set (router-trunk) encapsulation . . . . . . . . . . . . . . . . . . . . . . . . . . .5-166

set (router-trunk) multilink group . . . . . . . . . . . . . . . . . . . . . . . . . .5-166

set (router-trunk) up/down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-167

set (router-trunk) voice bandwidth limit. . . . . . . . . . . . . . . . . . . . .5-168

set (router-voice) algorithm preference. . . . . . . . . . . . . . . . . . . . . .5-169

set (router-voice) cpd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-170

set (router-voice) default. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-171

set (router-voice) down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-172

set (router-voice) dtmfrelay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-173

set (router-voice) echo cancellation . . . . . . . . . . . . . . . . . . . . . . . . 5-173

set (router-voice) echo tail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-174

set (router-voice) endpoint prefix . . . . . . . . . . . . . . . . . . . . . . . . . .5-175

set (router-voice) endpoint suffix . . . . . . . . . . . . . . . . . . . . . . . . . .5-176

set (router-voice) log start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-177

set (router-voice) log stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-177

set (router-voice) rxgain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-178

set (router-voice) silence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-179

set (router-voice) slash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-180

set (router-voice) tos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-180

set (router-voice) txgain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-181

set (router-voice) up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-181

set (router-wan) dlci . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-182

set (router-wan) gre. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-183

set (router-wan) ip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-185

set (router-wan) ip address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-185

set (router-wan) ipx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-186

set (router-wan) nat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-187

set (router-wan) other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-189

set (router-wan) ppp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-190

set (router-wan) rip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-192

set (router-wan) stp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-193

xviii Compact T1 - Release 6.1

Table of Contents

set (router-wan) trunk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-195

set (router-wan) up/down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-195

set screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-196

set snmp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-197

set syslog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-198

set time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-200

set user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-201

set (v35) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-202

set (v54) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-204

set verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-206

show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-207

show autoexit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-208

show (bri). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-208

show clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-209

show connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-209

show date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-210

show (ds0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-210

show (ds1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-211

show ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-212

show (fxo) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-212

show (fxs5G) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-213

show impedance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-214

show id. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-215

show ip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-215

show ipds0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-215

show local . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-216

show login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-216

show ntp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-216

show (ocudp) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-217

show radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-217

show (router) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-218

show (router) dhcp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-220

show (router) dns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-220

show (router) dns proxy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-221

Compact T1 - Release 6.1 xix

Table of Contents

show (router) lmi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-221

show (router) log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-222

show (router) mgcp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-223

show (router) mgcp algorithmname . . . . . . . . . . . . . . . . . . . . . . . .5-224

show (router) ntp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-225

show (router) ppp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-226

show (router) rip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-227

show (router) snmp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-227

show (router) stp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-228

show (router) syslog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-228

show (router) uploaduser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-229

show (router) voip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-230

show (router-lan). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-231

show (router-lan) collision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-233

show (router-lan) filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-234

show (router-lan) static . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-236

show (router-lan) stp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-238

show (router-voice). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-239

show (router-wan). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-240

show (router-wan) firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-242

show (router-wan) nat bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-242

show (router-wan) ppp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-243

show (router-wan) static ip address. . . . . . . . . . . . . . . . . . . . . . . . .5-244

show (router-wan) static ip network . . . . . . . . . . . . . . . . . . . . . . . .5-244

show (router-wan) static ipx network . . . . . . . . . . . . . . . . . . . . . . .5-245

show (router-wan) static mac address. . . . . . . . . . . . . . . . . . . . . . .5-245

show (router-wan) static nat address. . . . . . . . . . . . . . . . . . . . . . . .5-246

show (router-wan) stp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-246

show (router-wan) trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-247

show screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-247

show snmp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-248

show syslog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-248

show time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-249

show users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-249

xx Compact T1 - Release 6.1

Table of Contents

show (v35) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-250

show (v54) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-251

show (wan). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-252

status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-253

status (bri) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-254

status clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-255

status (ds0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-256

status (ds1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-257

status equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-258

status (fxo) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-260

status (fxs5G). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-261

status ipds0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-262

status (ocudp). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-262

status (ocudp) performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-263

status (ocudp) performance history . . . . . . . . . . . . . . . . . . . . . . . . 5-264

status (router). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-265

status (router) alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-265

status (router) channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-266

status (router) dns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-267

status (router) events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-268

status (router) ip address table . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-269

status (router) ip network table . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-270

status (router) ipx network table . . . . . . . . . . . . . . . . . . . . . . . . . . 5-271

status (router) ipx server table . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-272

status (router) log. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-273

status (router) mac address table . . . . . . . . . . . . . . . . . . . . . . . . . . 5-274

status (router) mgcp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-275

status (router) performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-276

status (router) stp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-277

status (router-lan). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-278

status (router-trunk) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-279

status (router-voice). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-280

status sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-281

status (v35). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-282

Compact T1 - Release 6.1 xxi

Table of Contents

6 T1 Controller Card

status (v54) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-283

store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-284

telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-285

telnet (router). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-285

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 -4

Product Includes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4

Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5

Network T1 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5

Service Interfaces Supported. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6

Network Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6

Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6

Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6

Testing and Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8

CLI Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8

DIP Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9

LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-10

DS0 Management (IP over DS0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-11

TR-08 Mode 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12

xxii Compact T1 - Release 6.1

Table of Contents

7 FXO Voice Card

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Controller Software Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

FXO Transmission Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

FXO Signaling Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Card Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

CLI Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

DIP Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

Channel Associated Signaling (CAS) Conversions . . . . . . . . . . . . . . . . . 7-9

8 FXS Voice Card

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Controller Software Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

FXS Transmission Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

FXS Signaling Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

Card Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

CLI Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

DIP Switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

Channel Associated Signaling (CAS) Conversions . . . . . . . . . . . . . . . . 8-10

Compact T1 - Release 6.1 xxiii

Table of Contents

9 ISDN BRI Card

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-2

ISDN BRI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-2

3-DS0 BRITE Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-2

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 -4

Controller Software Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-4

Product Includes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-4

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-4

Network Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-4

Network Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-5

Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-5

Testing & Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-5

Product Supports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-5

Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-5

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-6

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-6

Card Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-7

CLI Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-7

LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-8

Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 -9

25-Pair Telco Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-9

10 OCU-DP Card

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-2

Customer Premise Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-3

SS7 Backhaul Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-4

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-5

Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-6

Controller Software Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-6

Service Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-6

Network Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-6

Loopbacks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-6

Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-6

Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-7

xxiv Compact T1 - Release 6.1

Table of Contents

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7

Card Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8

CLI Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8

Basic Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10

Jumper Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11

Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12

Line Rates/Line Lengths. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-13

Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-14

DDS RJ-48S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-14

25-Pair Telco Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-15

11 Power Supply

115 VAC/-48 VDC Power Supply/Charger . . . . . . . . . . . . . . . . . . . . . . 11-2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3

AC Electrical Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3

DC Electrical Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3

Electrical Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3

Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3

Ringing Generators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4

Interface Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5

Input Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5

115 VAC LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6

Ringer Waveform Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-7

Replacing a Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-11

Compact T1 - Release 6.1 xxv

Table of Contents

12 Quad T1 Card

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-2

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-3

Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-3

Controller Software Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-3

T1 Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-4

Network Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-4

Network Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-4

Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-4

Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-5

Testing and Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-5

Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-5

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-5

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-5

Card Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-6

CLI Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-6

Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-7

Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-8

25-pin Telco Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-8

RJ-48 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-10

LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-11

Configuration Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-12

13 Router (IP) Card

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-2

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-3

Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-3

Controller Software Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-3

Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-4

WAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-4

LAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-4

Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-4

Bridging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-4

Router Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-4

xxvi Compact T1 - Release 6.1

Table of Contents

Advanced Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-5

Frame Relay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-5

Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-5

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-5

MIBs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6

Clocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6

Testing and Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7

Card Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-8

CLI Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-8

Connector Pinouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-16

Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-16

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-17

14 Router (CMG) Card

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-4

Controller Software Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-4

Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-4

Voice and Packet Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-4

Voice Processing and Mediation . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-5

Connection Types (Media Flows) . . . . . . . . . . . . . . . . . . . . . . . . . . 14-5

Routing and Policy Management. . . . . . . . . . . . . . . . . . . . . . . . . . . 14-5

Router Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-6

Advanced Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-6

TDM-Side Signaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-6

Softswitch Call Control and Signaling. . . . . . . . . . . . . . . . . . . . . . . 14-6

Services Enabled (under Softswitch Control) . . . . . . . . . . . . . . . . . 14-6

Softswitch/Call Agent Interoperability . . . . . . . . . . . . . . . . . . . . . . 14-7

Network Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-7

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-7

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-7

Compact T1 - Release 6.1 xxvii

Table of Contents

15 V.35/V.54 Cards

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-7

Card Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-8

CLI Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-8

Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-20

Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-20

Softswitch Interoperability Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-21

BroadSoft™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-21

LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-23

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-2

V.35 Service Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-2

V.35/54 Service Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-2

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-3

Additional V.54 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-3

Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-3

Controller Software Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-3

Service Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-3

Network Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-4

Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-4

Testing and Diagnostics (V.35/54 card) . . . . . . . . . . . . . . . . . . . . . .15-4

Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-4

Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-4

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-5

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-5

Card Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-6

CLI Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-6

LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-7

Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-8

Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-9

V.35 DCE (DB-26) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-9

xxviii Compact T1 - Release 6.1

Table of Contents

16 Maintenance

Software Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-2

Minimum Version Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-2

Determining Boot Code Software Level . . . . . . . . . . . . . . . . . . . . . 16-2

Upgrading System and Router Software via TFTP. . . . . . . . . . . . . 16-3

Upgrading System and Router Software via TFTP using Proxy. . . 16-4

Upgrading Software Levels via X-Modem . . . . . . . . . . . . . . . . . . . 16-6

Backup Controller Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-7

Save Controller Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-7

Load Controller Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-8

Replace Controller Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-9

Hot Swap Service Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-9

A SNMP Interface

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

SNMP Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-2

MIB Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Enterprise MIB Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-3

Router Enterprise MIB Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Public MIB Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Router Public MIB Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-7

SNMP Trap Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

Standard Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

Enterprise Traps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9

Compact T1 - Release 6.1 xxix

Table of Contents

B Diagnostices & Troubleshooting

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Test Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Identify Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Clear Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

Status and Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

Loopbacks Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

DS1 Loopbacks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

V.35 Loopbacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-14

V.35/V.54 Loop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-18

V.54 Equipment Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-21

OCU-DP Loopbacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-23

Router Diagnostics and Performance Tools. . . . . . . . . . . . . . . . . . . . . . B-27

Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-28

Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-28

System Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-29

Glossary
Index

xxx Compact T1 - Release 6.1

CHAPTER

Base Platform

In this Chapter

n Overview
n Features
n Dual T1 Controller
n Service Cards
n Local and Remote Management
n Technical Specifications
n Chassis

Base Platform

Overview

Overview

The Compact T1 Multi-service Delivery Terminal is the ideal solution for delivering
carrier-quality broadband voice and data services to small- and medium-sized
businesses. It enables ISPs, ILECs, MSOs, IXCs, CLECs, and wireless mobility
carriers to offer their customers a wide variety of voice and high-speed data services
using the most economical broadband transport. The Compact T1 defines a new class
of equipment that combines multi-network access and multi-service delivery into one
platform. The result is an extremely cost-effective, compact, flexible solution that
enables service provi ders to deliver busin ess voice, IP, high-speed data , and private line
services using the most economical broadband access available over wireline and
wireless networks.

The modular Compact T1 platform supports the needs of service pr ovi der s f ac ed with
a changing array of network technologies, transport media, and customer service
interfaces. Its expa ndable architecture allows service provide rs t o sca le across service
types, network architectures, and bandwidth requirements to fit a dynamic service
delivery environment. Hot-swappable service cards provide the physical, electrical,
and logical connections for customer service demarcations, PBX interfaces, LAN to
WAN connectivity, and network access. Customer interface types include Routed
Ethernet, FXS, FXO/DPT, V.35, V.35/V.54, OCU-DP, ISDN BRI and T1. Any service
card can be placed in any of the six available slots. New revenue-generating services
can be added easily by inst alling a new card. In add ition, the Customer Media Gateway
(CMG) Service Card enables the unit to provide a cost-effective migration path to
packet-based softswit ching in frast ructu re s using the MGCP protocol for bot h existing
TDM-based infrastructures and Greenfield VoIP applications.

1-2 Compact T1 - Release 6.1

Base Platform

Features

Features

l Allows any service connection or network access line to be deployed in any slot
l Provides integrated 18 T1 port digital cross-connect for service grooming and

restoration

l Flexibly provision s a broad varie ty of services within a singl e chassis occ upying

just 2 rack units of equipment space:

- 18 T1s, or 12 V.35 connections, or 24 OCU-DP terminations, or 12

synchronous RS-232 connections

- 6 10/100Base-TX IP routers, or 24 10/100Base-TX Ethernet ports, or

asynchronous RS-232 remote management ports

l - 48 analog FXS or FXO lines, or 40 ISDN BRI channels
l Supplies integrated dual T1 CSU/DSUs and SNMP management on the

Controller

l Support for VoIP service s through the Customer Media Gateway (CMG) Ser vice

Card

l Enables remote SNMP and Telnet provisioning, monitoring, and testing of

services and network conditions

l NEBS certif ied

Dual T1 Controller

The Controller manage all service cards installed in the unit and have an integrated
Dual T1 CSU/DSU functionality and an integrated 1/0 DS0 digital cross-connect for
service grooming.

Power Supply

115 VAC/-48 VDC Power Supply/Charger

Enables the Unit to be powered from either 115 VAC or -48 VDC sources, and i ncludes
an integral battery charger and ringing generator.

Compact T1 - Release 6.1 1-3

Base Platform

Service Cards

Service Cards

All Service card s a re hot-swapable and can be installed in a ny of the 6 service slots of
the chassis.

FXS Service card

The FXS service card is an 8 port Foreign Exchange Station line card. Delivers either
outside phone lines or on-premise customer business line services from T1 access
circuits.

FXO Service card

The FXO service card is an 8 port Foreign Exchange Office (FXO) or Dial Pulse
Termination (DPT) line card. Delivers high-density provisioning of Direct Inward
Dialing (DID) or FX0 telephone services from T1 access circuits.

ISDN BRI Service card

The ISDN Basic Rate Interfac e (BRI) service ca rd is available in a Dua l, Quad or Octal
port option. The ISDN BRI servi ce delivery in terfaces enab le delivery of high-densi ty,
standards based, ISDN BRI services of T1 access circuits.

OCU-DP Service card

The OCU-DP service card is available in a Single or Quad port option. The OCU-DP
interface service allows Digital Data Service (DDS) circuit terminations on the
Compact T1 platform. Provides the electrical and physical ter mination of a 4-wire DDS
baseband co nnection which interface s with a remote CSU/DSU.

Quad T1 Service card

The 4 port T1 service card enables cost-effective provisioning and expansion of T1
bandwidth with full non-blocking digital cross-connection of all ti meslots to any Adit
service card. This card requires an Adit system with an T1 Controller.

1-4 Compact T1 - Release 6.1

Base Platform

Service Cards

V.35 and V.35/54 Service cards

The Dual port V.35 interface service card provides connectivity to high-speed serial
synchronous Data Terminal Equipment (DTE) devices.

IP Router Service card

The Single port Router card that provides up to 60 DS0s of bandwidth or up to 24
WANS connections per Router card.

CMG Router Service card

The CMG Router card provides all IP Router card functions and features, along with
VoIP feature s.

Compact T1 - Release 6.1 1-5

Base Platform

Local and Remote Management

Local and Remote Management

The Controller cards have several local and remote management options available.
Front-panel LEDs quickly communicate alarm, system and line status. The cards can
be configured and managed locally through the RS-232 or Ethernet management
connections using a Command Line Interface (CLI).

A number of remote management options are available to reduce truck roll costs for
most maintenance and troubleshooting activities. The in-band DS0 management
channel on the controller delivers 6 4 Kbps remote access to the Compact T 1 without
incurring additional facilities costs. Alternatively, as separate Ethernet facility can be
deployed to support out-of-band SNMP network management.

Technical Specifications

Platform Features

l Wide selection of service cards
l Hot-swapable service cards
l Integrated 1:0 Digital Cross Connect Switching with 18 full T1s

Basic System

The basic configuration has the following:

l Two T1 network interfaces
l Maximum capacity of 48 voice channels, on 6 eight-channel cards
l 6 x universal service cards
l Status and alarming LEDs

1-6 Compact T1 - Release 6.1

Base Platform

Technical Specifications

Management

l SNMP management over 10Base-T or dedicated DS0
l Remote management over T1 ESF Facility Data Link or dedicated DS0

Management Ports

l RS-232 Craft Port f or connection th rough any VT100 terminal , PC, or modem for

remote management using Command Line Interface (CLI)

l 10Base-T Ethernet Port for management of the Controller card

Network Interface

l T1
l Framing: SF (D4) or ESF
l Line code for T1: B8ZS and AMI
l Framing for T1: SF (D4) or ESF

Network Standards

l ANSI/TIA T1.403 ESF FDL

Clocking

l T1 loop timing with hold-over
l Internal 4E Stratum clock with hold-over

Alarms

l External Alarm: 6-pin connec tor (rear), 1 input, 2 output s for major/minor alarms
l T1: LOS, BPV, Yellow, LOF/AIS

Testing and Diagnostics

l T1 loop code
l V.54 loop codes, QRSS, 2047, 220-1, 215-1 test patterns

Compact T1 - Release 6.1 1-7

Base Platform

Technical Specifications

Power

l Standard 115VAC/-48VDC Power Supply/Charger features

- Power supply with integrated battery charger

- AC power: 90 to 130 VAC, 60 Hz

- DC power: -42 to -60 VDC @ 3.5 A max

- DC power: 24 VDC @ 6 A max

- Maximum power: 115 W

Rear Chassis Interfaces

l 1 x RS-232 DB-9 female jack
l 1 x 2 pin modular plug for AC or DC power feeds

(depending on power supply installed)

l 1 x 2 pin modular plug for -48 V/Battery

(with 115V Power Supply installed)

l 1 x 10/100Base-T Ethernet RJ-45 jack
l 2 x RJ-48C jacks
l 2 x 6 pin modular receptacle for alarm relay output
l 2 x 25 pin Telco connectors
l 2 x 3/16 inch threaded stud for grounding

1-8 Compact T1 - Release 6.1

Base Platform

Technical Specifications

Regulatory Approvals

USA

l UL60950
l FCC Part 15, Class A
l FCC Part 68
l NEBS Level 3 certified for type 2 and 4 equipment

GR-63-CORE, GR-1089-CORE

Canada

l CSA C22.2 No. 60950-00
l ICES-003, Class A
l CS-03

Physical Information

l Dimensions: 3.5 in. (H-2 RU) x 8.5 in. (W) x 12 in. (D)

8.9 cm (H) x 21.6 cm (W) x 30.5 cm (D)

l Weight: 7 lbs. (3.2 kg) base unit (with Power Supply and Controller)

Compact T1 - Release 6.1 1-9

Base Platform

Chassis

Chassis

3.5 in
(2 RU)

Power Input

Service Card Slots

8.5 in (1/2 RU)

Alarm
Management
Port

Power SupplyController

Mounting
Bracket

-48 VDC/Battery
Power Input

10Base-T
Management
Port

2 T1/E1
Interfaces
on
Controller

Tip & Ring
Telco
Connector
(Lines 25-48)

1-10 Compact T1 - Release 6.1

Tip & Ring
Telco
Connector
(Lines 1-24)

RS-232
Management
Port

Base Platform

Chassis

RS-232 Craft Port (Female DB-9)

The RS-232 craft port connects via a
female DB-9 connector on th e back of the
unit.

The pinouts are as follows:

Pin Number Direction Description

1 Outbound Carrier Detect
2 Outbound Receive Data
3 Inbound Transmit Data
4 Inbound Data Terminal Ready
5 Signal Ground

15

69

6 Outbound Data Set Ready
7 Inbound Request to Send
8 Outbound Clear to Send
9 Not Connected

Compact T1 - Release 6.1 1-11

Base Platform

Chassis

T1 and 10Base-T Ethernet

The T1 and the 10Base-T Ethernet are female RJ-45 connectors
on the back of the unit.

The pinouts are as follows:

Ethernet (RJ-48C)

Pin Name Description

1 Receive + Receive from network
2 Receive - Receive from network
3 Transmit + Transmit to network
4 N/C Not connected
5 N/C Not connected
6 Transmit - Transmit to network
7 - 8 N/C Not connected

T1 (RJ-45)

18

Pin Name Description

1 Receive Ring Receive from DS1 network
2 Receive Tip Receive from DS1 network
3 N/C + Not connected
4 Transmit Ring To DS1 network
5 Transmit Ti p To DS1 network
6 - 8 N/C Not connected

1-12 Compact T1 - Release 6.1

CHAPTER

Physical Installation

In this Chapter

n Unpacking and Inspection
n Installation Environment
n Assembly of Unit
n Wall Mounting
n Rack Mounting (Optional Feature)

Physical Installation

Unpacking and Inspection

Unpacking and Inspection

WARNING! OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC

DEVICES.

1. Inspect containers for damage during shipment. Report any damage to the
freight carrier for possible insurance claims.

2. Compar e packing list with office records. Report any discrepancies to the
office.

3. Open shipping containers, be careful not to damage contents.

4. Inspect contents and report any damage.

5. If equipment must be returned for any reason, carefully repack equipment in
the original shipping container with original packing materials if possible.

6. If equipment is to be installed later, replace equipment in original shipping
container and store in a safe place until ready to install.

Installation Environment

The environment in which you are installing the unit must meet the following
conditions:

l Operating temperature range: 32° to 104° F (0° to 40° C)
l Storage temperature range: -40° to 158° F (-40° to 70° C)
l Cooling method is by free air convection, requires long axis of unit to be mounte d

horizontally

l Maximum operating altitude: 10,000 ft. (3,048 m)
l Maximum non-operating altitude: 40,000 ft. (12,192 m)
l Relative humidity (non-condensing) range: 0 to 95%

For operation outs ide the defined e nvironment requi rements, the unit must be placed in
an environmentally controlled enclosure.

2-2 Compact T1 - Release 6.1

Physical Installation

Assembly of Unit

Assembly of Unit

The cards should be positioned in the chassis as follows:
Note: Slots are labeled on the top and the bottom of the chassis.

l Power Supply in the POWER Slot
l T1 Controller in Slot A
l Service Cards can be in any slot 1 through 6.

Note: When an Unit is mounted to the w all, cards th at use the front cable
connections should be loaded from Slot 6 to 1. This will minimize card access
issues due to cable interference.

l Always install blank faceplates in any unused slots.

APOWER

Compact T1 - Release 6.1 2-3

123456

Service Card Slots

Physical Installation

Wall Mounting

Wall Mounting

Before beginning the mounting process, verify that the area meets the following
requirements:

l A stable environment, clean and free from extremes of temperature, shock,

vibration and EMI, that meets the all instal lation environment requir ements, see
Installation Environment on page 2-2.

Leave adequate clearance
at the back for access to
connectors

Leave at least 3.5"
above and below
the Unit for
adequate ventilation

Mounting Bracket

Leave at least 14" at
the front of the unit for
access to cards and
DIP switches

The Unit is delivered with a mounting bracket attached for quick and easy wall
mounting, as shown in the illustration above.

To install the unit to the wall, attach the unit using the four screws provided, one at each
bracket foot.

NOTE: Do not mount the Unit in any other orientation as show above.

2-4 Compact T1 - Release 6.1

Physical Installation

Rack Mounting (Optional Feature)

Rack Mounting (Optional Feature)

Rack mounting kits are available for both 19 and 23 inch racks.

To rack mount the Unit, follow the instructions below:

1. Attach bracket ears to rack mo unting bracket using four #8-32 x 3/16" scr ews

on each side.

Bracket Ear
Left Side View

Compact T1 - Release 6.1 2-5

Physical Installation

Rack Mounting (Optional Feature)

2. Attach heat baffle to bracket ears usi ng two #8-3 2 x 5/16 " screws o n each sid e.

3. Attach rack mounting bracket ears to rack using two #12-24 x 5/8" rack
mounting screws on each si de.

Heat Baffle
Left Side View

Front View

2-6 Compact T1 - Release 6.1

Physical Installation

Rack Mounting (Optional Feature)

4. Remove wall mount and screws from Unit.

5. Slide the Unit into rack mounting bracket.

Thumbscrew

6. Swing the front latch up to secure the Unit(s), and tighten thumbscrew.

Compact T1 - Release 6.1 2-7

Physical Installation

Rack Mounting (Optional Feature)

As many as 20 Units can be mounted on a sing le 7 foot rack, as shown in the following
illustration (2 Adits are mounted side-by side and 10 high).

Compact T1 Chassis
occupies 2 RUs

1 RU free space

1 RU free space

1 RU free space

1 RU free space

Compact T1 Chassis = 2 RUs (3.5 in) Spacing = 1 RU above and below for each unit.

NOTE: the mounting brackets are 7 inc hes high and will not al low units to

be mounted closer than recommended.

2-8 Compact T1 - Release 6.1

CHAPTER

Electrical Installation and Cabling

In this Chapter

n Compliant Installation
n Chassis Connectors and Buttons
n Interface Connectors

Electrical Installation and Cabling

Compliant Installation

Compliant Installation

Ferrite Beads

are in red

25-pair telco connector

25-pair telco connector
RS-232 craft port

10Base-T Ethernet
T1/E1 connectors

Signal Cables

1. Connect all of the signal cables as shown in the illustration above, and secure
them with a p lastic tie. Dr ess the signa l cables towa rd the left of the unit.

2. If using the 115V Power Supply, connect the -48 VDC battery power cable

3. Secure the ground lugs to the terminals using the nuts provided.

4. Secure the power cable and the ground cable with a plastic tie (not included).
Keep these cables separate from the signal cables.

Ferrite Bead
with cable loop

Power Cables

Power Cord

Grounding Cable

Alarm Wiring

-48 VDC

Battery Power

5. Terminate each signal cable to its appropriate connector.

6. Secure the signal ca bles using the small holes al ong the bottom of th e rack and
plastic ties (not included).

NOTE: It is important that the Signal Cables are secured separat ely from

the Power Cables, for proper equipment operation.

3-2 Compact T1 - Release 6.1

Electrical Installation and Cabling

Compliant Installation

Ferrite Beads

To be compliant with Part 15A of the FCC and for NEBS compliant facilities, the
following beads are included with each chassis, as well as additional ferrite bead(s)
with the Service cards listed below.

Ferrite Beads shipped with Adit chassis:

Ferrite Provided Intended For

1 large (1) Power (AC or DC) cable
3 small (2) One on each T1 cable

(1) Ethernet (10Base-T) cable

Service Card Cables that Require Additional Ferrite Beads:

Card Ferrites

Shipped
with Card

ISDN BRI 2 large (1) 25-pair Telco cable (ISDN BRI card in slot 1-3 top

OCU-DP 1 large Alarm cable (requires a loop through the bead, see

Quad T1 2 large T1 cables from front of Quad T1card

IP Router 1 small Ethernet Cable (from front of card)
CMG Router 1 small Ethernet Cable (from front of card)

Intended For

telco, 4-6 bottom)
(1) Alarm cable (requires a loop through the bead, see
drawing above)

drawing above)

(1 bead can hold 1-4 cables) or,
(2) One on each 25-pair Telco cable

For additional information on Ferrite beads and their installation on the unit, please
contact Customer Support.

Compact T1 - Release 6.1 3-3

Electrical Installation and Cabling

Chassis Connectors and Buttons

Chassis Connectors and Buttons

The following illustrations show all connectors on the back of the unit.

AC Power Connector

Alarms

Reset

Interface Connectors

The following are the Compact T1 chassis interface connectors:

l T1-1 and T1-2 line connection ports each equipped with standard

RJ-48C 8-pin connector jack

l RS-232 craft port connector

Ground Terminals

-48V/Battery

Ethernet
[10Base-T]

T1-2

T1
Connectors

T1-1

RS-232 Craft Port25-Pair Telco Connectors

l Tip and Ring Analog Interfaces equipped with standard 25-pair Telco

Connectors

l 10Base-T Ethernet port t o be connected to a remote management tool such as

Telnet or an SNMP-base d Network Management System with an RJ-45 8-p in
connector jack

l External Alarm Connector
l Ground Lugs

3-4 Compact T1 - Release 6.1

Electrical Installation and Cabling

Interface Connectors

Chassis Ground Connector

Ground Terminals

1. Route wire (#6 or #8 AWG copper) fr om building ground to lug on Unit.

2. Strip insulation off wire end , if necessar y.

Compression
Screw

Lug Barrel

Ground Lug

3. Loosen compression screw until opening is large enough to accept ground wire.

4. Insert ground wire into lug barrel, beneath compression plate and tighten
compression screw.

5. Attach ground lug to chassis

Compact T1 - Release 6.1 3-5

Electrical Installation and Cabling

Interface Connectors

Power Reset

This is a resetable circuit breaker. If at any time there is a short or power
surge on the incoming AC/DC line, the breaker will trip to protect the Power
supply from damage.

Power Connections

AC Power

The AC Power cord is a standa rd AC Power cord and is
provided with a 115 VAC Power Supply.

To connect the Power Cord:

1. Insert power cord (male-end) to AC power source.

2. Plug connector into the Unit.

3. A green light should ap pear on the DC Input LE D on the front of t he Power Supply.

-48V Battery

AC Power Connector

The -48 VDC input connector on the Unit is used for either direct
DC powering of the Unit or fo r a Bat tery Ba ckup co nnecti on when
AC is used. There is no power cable provided for this connector,
however the connector is provided.

The pinouts are as follows:

Pin # Description

1 (+) Battery return
2 (-) -48VDC

1(+) 2(-)

Connector
on back
of Unit
(male)

WARNING! POSSIBLE SHOCK HAZARD EXISTS, PLEASE FOLLOW INSTRUCTIONS

CAREFULLY.

3-6 Compact T1 - Release 6.1

Electrical Installation and Cabling

Interface Connectors

To connect -48 VDC power:

1. Ensure that no power is present on the two wires to be connected.

2. Strip the two wires from the power source so that approximately 5/16 inch of

bare wire is exposed. 1 6 or 18 AWG insulated copper wire is recommended
for power connections.

3. Insert the Battery Return and DC wires into the appropriate square holes, one

at a time.

4. Tighten screws to clamp wires.

5. Ensure that no bare wire shows af ter the wires are installed .

6. Plug connector in the -48 VDC connector, as seen in the graphic and secure

with set screws.

7. Apply power to connector from -48 VDC power source.

8. Verify with voltmeter that voltage is correct and polarity is correct.

9. Plug connector in the -48 VDC connector, as seen in the graphic and secure

with set screws.

Provided connector (female)

Connector
on back
of Unit
(male)

1(+) 2(-)

Battery Return
1(+)

-48 VDC
2(-)

Battery
Return (+)

Compact T1 - Release 6.1 3-7

-48 VDC (-)

Electrical Installation and Cabling

Interface Connectors

External Alarm Connector

The external alarm 6-pin connect or with one input pai r (pins 5 and 6)
and two output pair s (pins 1 and 2 - maj or alarms; pins 3 and 4 - minor
alarms).

The pinouts are as follows:

Pin # Description Explanation

1 Major Alarm + The major alarm output is available for power supply or
2 Major Alarm -

A

L
A
R

6
5
4
3
2

M

major alarm failure alerting. The maximum voltage across
the contacts is 350 V, and the maximum current is 150 mA.

1

This alarm is closed when power is off.
3 Minor Alarm + The minor alarm output is available for power supply or
4Minor Alarm -

5 Alarm In + The alarm inputs provide 5 VDC across the two contacts,
6 Alarm In -

3-8 Compact T1 - Release 6.1

minor alarm failure alerting. The maximum voltage across

the contacts is 350 V, and the maximum current is 150 mA.

This alarm remains open when power is off.

and generate an alarm when a short circuit is detected

between the contacts.

The alarm generated is a minor severity alarm.

Electrical Installation and Cabling

Interface Connectors

25-Pair Telco Connectors

Tip and Ring Analog Interfaces equipped with standard 25-pair Telco Connectors
(female) for connection to key sy stems, fax m achines, m odems, and PBXs. These
interfaces are also use d for ISDN BRI port s and are jumpe r selec table on the Quad T1
card.

Circuit connection s are made a t the 25 -pair

26

telco connectors. A standard 25-pair
telephone cable with RJ-21X wiring and a
male D-type connector at the Unit end is

1

required.
The pinouts are as follows:

Pair Pin Location Function Color Code

126

1

227

2

328

3

429

4

530

5

631

6

732

7

833

8

934

9

10 35

10

Tip Channe l 1
Ring Channel 1

Tip Channe l 2
Ring Channel 2

Tip Channe l 3
Ring Channel 3

Tip Channe l 4
Ring Channel 4

Tip Channe l 5
Ring Channel 5

Tip Channe l 6
Ring Channel 6

Tip Channe l 7
Ring Channel 7

Tip Channe l 8
Ring Channel 8

Tip Channe l 9
Ring Channel 9

Tip Channe l 10
Ring Channel 10

White/Blue
Blue/White

White/Orange
Orange/White

White/Green
Green/White

White/Brown
Brown/White

White/Slate
Slate/White

Red/Blue
Blue/Red

Red/Orange
Orange/Red

Red/Green
Green/Red

Red/Brown
Brown/Red

Red/Slate
Slate/Red

50

25

Compact T1 - Release 6.1 3-9

Electrical Installation and Cabling

Interface Connectors

Pair Pin Location Function Color Code

11 36

11

12 37

12

13 38

13

14 39

14

15 40

15

16 41

16

17 42

17

18 43

18

19 44

19

20 45

20

21 46

21

22 47

22

23 48

23

24 49

24

25 50

25

Tip Channe l 11
Ring Channel 11

Tip Channe l 12
Ring Channel 12

Tip Channe l 13
Ring Channel 13

Tip Channe l 14
Ring Channel 14

Tip Channe l 15
Ring Channel 15

Tip Channe l 16
Ring Channel 16

Tip Channe l 17
Ring Channel 17

Tip Channe l 18
Ring Channel 18

Tip Channe l 19
Ring Channel 19

Tip Channe l 20
Ring Channel 20

Tip Channe l 21
Ring Channel 21

Tip Channe l 22
Ring Channel 22

Tip Channe l 23
Ring Channel 23

Tip Channe l 24
Ring Channel 24

Reserved Violet/Slate

Black/Blue
Blue/Black

Black/Orange
Orange/Black

Black/Green
Green/Black

Black/Brown
Brown/Black

Black/Slate
Slate/Black

Yellow/Blue
Blue/Yellow

Yellow/Orange
Orange/Yellow

Yellow/Green
Green/Yellow

Yellow/Brown
Brown/Yellow

Yellow/Slate
Slate/Yellow

Violet/Blue
Blue/Violet

Violet/Orange
Orange/Violet

Violet/Green
Green/Violet

Violet/Brown
Brown/Violet

Slate/Violet

3-10 Compact T1 - Release 6.1

Electrical Installation and Cabling

Interface Connectors

RS-232 Craft Port (Female DB-9)

The RS-232 craft por t connec tor (f emale) i s for c onnection to an external PC or Ha yes­compatible modem for local or remote configuration, management, and performance
monitoring using the Command Line Interface (CLI).

The RS-232 craft port connects via a
female DB-9 connector on the Unit.

The pinouts are as follows:

Pin Number Direction Description

1 Outbound Carrier Detect
2 Outbound Receive Data
3 Inbound Transmit Data

15

69

4 Inbound Data Terminal Ready
5 N/A Signal Ground
6 Outbound Data Set Ready
7 Inbound Request to Send
8 Outbound Clear to Send
9 N/C Not connected

Compact T1 - Release 6.1 3-11

Electrical Installation and Cabling

Interface Connectors

T1 Connection Ports

The T1 connection ports are each equipped with a standard RJ-48C
(female) o n the Unit.

The pinouts are as follows:

T1 (RJ-48C)

Pin Name Description

1 Receive Ring Receive from DS1 network
2 Receive Tip Receive from DS1 network
3 N/C Not connected
4 Transmit Ring To DS1 network
5 Transmit Tip To DS1 network
6 -8 N/C Not connected

10Base-T Ethernet

The 10Base-T Ethernet (female) port to connect to a remote
management tool such as Telnet or an SNMP-based Netw ork
Management System. Note a LINK LED on the back of the unit

displays green when the system has a good ethernet link.

The pinouts are as follows:

18

18

Ethernet (RJ-45)

Pin Name Description

1 Receive + Receive from network
2 Receive - Receive from network
3 Transmit + Transmit to network
4 - 5 N/C Not connected
6 Transmit - Transmit to network
7 - 8 N/C Not connected

3-12 Compact T1 - Release 6.1

CHAPTER

Configuration

In this Chapter

n Setting up a CLI Connection
n System Information
n Basic System Setup
n Quick Configuration Reload
n Setup of DS0 Management Channel

Configuration

Setting up a CLI Connection

Setting up a CLI Connection

NOTE: Default IP address of the Controller (T1) is 10.0.0.10.

To connect with CLI, set up the connection:

l If connecting via the ethernet 10Base-T connection, use a Telnet TCP/IP

program to access the C LI. This requires an IP address of the Controller. The
Controllers are shipped with the IP addres s set to 10.0.0.10, if this addres s has
been changed and is no t known, use Hyperterm to access t he Controller and use
the CLI command show ip. If an IP address needs to be set use the CLI
command set ethernet ip address.

l If connecting via RS-232, the port settings should be set to:

Bits per second: 9600 Data bits: 8
Parity: None Stop bits: 1
Flow control: None

l

Set your Terminal Emulation to: VT100

NOTE: Note: When using Tera Term TCP/IP, CLI commands will not be

recognized until the following se tup is completed.

l In Tera Term go to Setup/Terminal.
l Set the New-line/Transmit value"CR+LF".

Local vs. Remote Configuration

l For remote c onfiguratio n via the CLI, use the set local off command.

4-2 Compact T1 - Release 6.1

Configuration

System Information

System Information

Once a management session has bee initiated (Telnet or Hyperterm) the system
information will be displayed similar to the follo wing:

00:00:38 01/01/2002
Status Equipment:
BootCode Version: 1.22
CardType
SLOT A T1x2 Present 6.0.0 SIC3DH0CAA
SLOT 1 FXS5Gx8 Not Present
SLOT 2 RTRx1 Present 1.41 NOT AVAIL
SLOT 3 FXS5Gx8 Present 1.06 NOT AVAIL
SLOT 4 CMGx1 Present 1.00 SIIX270DAA
SLOT 5 BRIx4 Not Present
SLOT 6 OCUDPx1 Present 1.01 SIIXA4DDAA

Alarms:

Status SW Vers CLEI

Time
00:00:22 01/01/2002 Major 6:1-OCUDP Out of Service
00:00:21 01/01/2002 Major 6:1-OCUDP Loss of Signal
00:00:15 01/01/2002 Major 4:1-CMG Ethernet Link Down
00:00:15 01/01/2002 Major 2:1-RTR Ethernet Link Down
00:00:06 01/01/2002 Major A:2-DS1 Loss Of Signal
00:00:06 01/01/2002 Major A:1-DS1 Loss Of Signal
Total=6

Status Sessions:
Session
* TELNET1 192.168.43.52
* indicates current session
Show Autoexit:
Autoexit is on; timeout is 20 minutes.
>

Date Severity Description

User Login Port

Compact T1 - Release 6.1 4-3

Configuration

Basic System Setup

Basic System Setup

Following is a quick reference to some of the common tasks in configuring the
Unit.

Initial Setup

Use the following commands for your initial setup , for further information see the
specific command listed in Chapter 5, CLI Commands .

Command Description

set local off Disables DIP switches.
set date {mm/dd/yyyy} Set the date used for event logging
set time {hh:mm:ss} Set the time used for event logging
set id {"id-name"} Set a syst em ID name
set clock1 {slot:port}

internal
set clock2 {slot:port}

internal
set ethernet ip address

{ip-addr} {mask}
set ip gateway {ip-addr} Set the IP gateway, in the conventional IP

4-4 Compact T1 - Release 6.1

Set the primary clock source

Set the secondary clock source

Set the ethernet IP address, in the
conventional IP address format

address format

Configuration

Basic System Setup

Set Up Security

Use the following comm ands to set up the security on the Unit. S ee the set user
command for details.

Command Description

set user {"user-name"}
level {1-3}

set user {"user-name"}
password

Specify the user name and the security level

Set a password for the user

Set Up a DS1/T1

Use the following commands to set up a DS1. See the set (ds1) command for more
details.

Command Description

set {ds1-addr} up Activate the port of the DS1 (slot:port)
set {ds1-addr} id

{"id-string"}
set {ds1-addr} lbo {1 - 9} Set the line buildout value for the DS1
set {ds1-addr} linecode

{ami|b8zs}
set {ds1-addr} framing

{d4|esf|tr8afdl|tr8anofdl|
tr8b}

Set the identification string

Set the linecode for the DS1

Set the framing option for the DS1

set {ds1-addr} loopdetect
{on|off}

Compact T1 - Release 6.1 4-5

Set the detection/reaction to CSU loopcodes

Configuration

Basic System Setup

Set Up a DS0/Channel

Use the following commands to set up a DS0. See the set (ds0) command for details.

Command Description

set {slot:port:channel} up Activate the channel
set {slot:port:channel} signal

{ls|gs|emw|emdw|emicpd|dpt}
set {slot:port:channel} type

{data|voice}

Set the signaling option for the channel

Set the channel type

Set Up an Analog Port

Use the following commands to set up an analog port.

Command Description

set {slot:port} up Activate the port. See set (ds1) command

for details

set {slot:port} signal
{dpt|gs|gsrb|gsw|gswrb|ls|
lscpd|lsrb}

set {slot:port} rxgain {n} Set the receive gain/loss in dB. See the set

set {slot:port} txgain {n} Set the transmit gain/loss in dB. See the set

Set the signaling option for the port. See the
set (fxs5G) or set (fxo) command for details

(fxs5G) or set (fxo) command for details

(fxs5G) or set (fxo) command for details

4-6 Compact T1 - Release 6.1

Configuration

Basic System Setup

Set Up the Router Card

The following is the basic setup, see the Adit Router User Manual or Quick Start
Guide for the following configuration setups:

l PPP Internet Connection and Public IP Address Routing
l Frame Relay Internet Connection and Public IP Address Routing
l Internet Connection using PPP, NAT/PAT and Firewall Filters
l Internet Connection using NAT and Static NAT Addresses
l PPP Internet Connection and Public IP Address Routing
l Back-to-Back with PPP

Command Description

set {ds0-addr} type data Confirm DS0 is set to type data.

ds0-addr = {slot:port:channel} of DS 0
Example: set a:1:1-24 type data

connect {slot:port:trunk}
{slot:port:channel}

set {router-addr} proxy Disable/enable router proxy.

set {slot:port} up Set Router LAN as In-Service.

telnet {router_card-addr} Telnet to Router card.

Local and Remote Profile Setup
reinitialize To enable any configuration changes, the card must be

Cross-connect T1 to router card.
Example: connect a:1:1-24 6:1:1 (rout er in slot 6)

router-addr = {slot:port}| of router card.
Example: set 6:1 proxy disable.

Example: set 6:1 up

router_card-addr = {slot} location of router card
Example: telnet 6 (if earlier than 3.0 re lease {slot:p ort}
must be used)

reinitialized.

Compact T1 - Release 6.1 4-7

Configuration

Basic System Setup

Establish a Static Channel Connection

Use the following commands to establish a static channel connection.

Command Description

set {slot:port:channel} type
{voice|data}

set {slot:port:channel} signal
{emdw|emi|emicpd|emw|gs|ls|pl
ar|r2}

connect {slot:port}
{slot:port}

Set the channel type for the channel you
want to map. See set (ds0 ) command for
details

Set the signaling option for the channel you
want to map. See set (ds0 ) command for
details

Connect the channels. See the show connect
command for details

Set Up a ISDN BRI Service

Use the following commands to set up a ISDN BRI Service. See the set (bri) command
for details.

Command Description

set {slot:port} up Put the ISDN line In-Service
set {slot} mode

{lt3ds0|lt4to1tdm|nt3ds0}
set {slot:port} crv {1-768} Set the Call Reference Value.
set {slot:port} threshold

{day|hour} {es|ses}

Set the ISDN mode

Set the threshold for the IDSN lines

set {slot} pmsync
{adit|switch}

set {slot:port} autoactivate
{on|off}

4-8 Compact T1 - Release 6.1

Set the source for performance monitoring
synchronization

Only used in 4 to 1 mode. Establishes the D
channel when the FDL link can not be used

Configuration

Basic System Setup

Set Up the OCU-DP Card

The following is a basic setup for the OCU-DP card.

Command Description

set {ocudp-addr} baud
{2400|4800|9600|19200|38400|
56000*|64000}

set {ocudp-addr} up Set the OCU-DP port 1 up
show {ocudp_card-addr} Show the OCU-DP card settings.

disconnect a Disconnects all connections to slot a

set {ds0-addr} type data Sets a DS0 data signaling type
connect {ds0-addr}

{ocudp-addr}
show connect

(ocudp_card-addr}

Set the OCU-DP Baud rate.
Where ocudp-addr = {slot:port} of the
OCU-DP card to apply settings to

Where ocudp_card-addr = {slot} of the
OCU-DP card

(controller)

Connects DS0 (in previous step) to OCU-DP
port (in previous step)

Displays connect information for OCU-DP
card

Compact T1 - Release 6.1 4-9

Configuration

Basic System Setup

Set Up a V.35 Port

Use the following commands to set up a V.35 port. See the set (v35) command for
details.

Command Description

set {slot:port} cts
{cd|high|low|rts}

set {slot:port} data
{invert|normal}

set {slot:port} clock
{source|external}

set {slot:port} speed
{56K|64K}

set {slot:port} txclkinv
{invert|normal}

set {slot:port} rxclkinv
{invert|normal}

Set the Clear to Send operation mode

Set the data mode

Set the clock mode

Set the speed

Set the transmit clock inversion mode

Set the receive clock inversion mode

Change the IP Address of the DS0 Management Channel

Use the following commands to cha nge the IP over DS0 Manageme nt Channe l for the
Unit.

Command Description

set ipds0 down Set the DS0 management channel down
set ipds0 ip address

{ip-addr}
set ipds0 up Set the DS0 management channel up

4-10 Compact T1 - Release 6.1

Set the DS0 management channel IP
address.

Configuration

Basic System Setup

Upgrade the Controller Software

Use the following co mmands to d etermine th e system s oftware leve l, then upgrade th e
software to the latest version.

Command Description

status equipment Determine the system software level. The

Slot A line (SW Vers) will display the
current software level

load tftp {ip-addr} {"file­name"} (or load xmodem)

Load the new controller system software.
See the load tftp and load xmodem
command for more information. Note: must
have TFTP running in th e background

Upgrade the Router (IP or CMG) Software

Use the following commands to determine the Rou ter card software level, then upgrade
the software to the latest version.

Command Description

status equipment Determine the Router software level. The

Router Slot line (SW Vers) will display the
current software level

load {router-slot} tftp
{ip-addr} {"file-name"}

Load the new Router software to the Adit
Router card. See the load tftp command for
more information. Note: must have TFTP
running in the background

Compact T1 - Release 6.1 4-11

Configuration

Quick Configuration Reload

Quick Configuration Reload

The print config command can be used as a quick way to reload a configuration into
an Adit unit, in the event that the configuration has been lost due to softw are reload
problems or operator error.

The download of the file generated by the print config c ommand can be done by dir ect
connect to the RS-232 por t or via Telnet, BUT the upload from the PC back to the Adit
can only be done via direct RS- 232 connection. The reason for this i s that there will not
be an IP address in the Adit because it is at the factory default at this time.

The procedure described below is based on using Hyperterm.

Download Config File:

1. Connect to the unit using Hyperterm via the RS-232 port.

2. Type print config (do not hit [E

3. Select Transfer/Capture Text...

4. Name the file so that is can be accessed when needed.

NTER]).

from the menu bar.

4-12 Compact T1 - Release 6.1

Configuration

Quick Configuration Reload

5. Select the [START] button, the window will close and the operator will be

returned to th e Adit command line.

6. Press [E

NTER] to download. Adit will generate an executable file of all

configurable commands and save it to the file location defined above.

7. The download is complete when the text has finished scrolling on the screen
and the Adit ID prompt displays again.

Load Config File Back to Unit:

1. Select File/Properties from the menu bar.

2. Select the Settings tab.

Compact T1 - Release 6.1 4-13

Configuration

Quick Configuration Reload

3. Select the ASCII Setup button.

4. Set the Line delay to 50 milliseconds and the Character delay to 5

milliseconds.

5. Select the [OK] button back to the Main HyperTerminal screen.

6. Select Transfer/Send Text File.. from the menu bar.

Hyperterm will now send the confi guration to the Adit exa ctly as it was saved in
the Download Config File process.

4-14 Compact T1 - Release 6.1

Configuration

Setup of DS0 Management Channel

Setup of DS0 Management Chann el

The DS0 Management Channel provi de s SNMP man age ment a nd re mo te acce ss . The
IPDS0 feature allows for full Transmission Control Protocol/Internet Protocol
(TCP/IP) connectivity to remote Compact T1 and can be used for Simple Network
Management Protocol (SNMP) trap reporting and configuration, Trivial File Transfer
Protocol (TFTP) upgrades of Controllers and Service cards, and remote telnet access.

The following proce dure will walk you th rough t he basi c set up of a DS0 Manag ement
Channel.

Compact T1 - Release 6.1 4-15

Configuration

Setup of DS0 Management Channel

Equipment Required

l DCS
l (1) Collocated Router

This example uses a Compact T1 (version 2.0 or later) with an Compact T1
Router card (version 1.10 or later)

l Remote Compact T1 (1-24) Units (version 2.0 or later)
l PC
l Cables, Ethernet, T1

Application Overview

l IPDS0 management provides a TCP/IP connection to an Compact T1

Controller via an unused DS0 on one of the DS1 ports in slot A. The DS0 is
connected to a Router on a Frame Relay circuit with a default Data Link
Connection Identifier (DLCI) number of 16. IP communication to the remote
Units is made via the Ethernet port of the Router card.

l Remote Units are daisy-chained to the central site and are also configured to

communicate with a Network M anagement Station (NMS) using SNMP.

l Central site Compact T1 and IP Router card are configured to communicate

with the same NMP.

Operation

l Central Site Compact T1 - Incoming DS0s for cell services are delivered on the

first T1 in slot A. The channel s are then cross-connec ted to the second T1 span
on the Controller, along with IPDS0 connections from the Router card.

l Compact T1 at remote loc ations - Available DS0s are de livered on t he firs t T1

in slot A, and the channels are either connected to the IPDS0 management
interface, the second T 1 span of the Controller (f or local cell services), or
passed on to the ne xt Remot e Unit on the first T1 span of the Qua d T1 card in
slot 6. In the configuration for Site C, the 4 channels on the second T1 span in
slot A and 4 channels of the first and second T1 spans in slot 6 are connected
to cell sites.

4-16 Compact T1 - Release 6.1

Configuration

Setup of DS0 Management Channel

Provision DS0s for data and cross-con nect to the outgoing T1

Command Description

disconnect a Disconnects all connections to slot a (controller)
set a:1:all type data Sets all DS0s on T1-1 to data signaling type
set a:2:all type data Sets all DS0s on T1-2 to data signaling type
connect a:1:1-4 a:2:1-4 Connects first four DS0s of T1-1 of the controller to

first four DS0s of T1-2 .

connect a:1:6-9 a:2:6-9 Connects DS0s 6-9 of T1-1 of the controller to

DS0s 6-9 of T1-2.

connect a:1:11-14 a:2:11-14 Connects DS0s 11-14 of T1-1 of the controller to

DS0s 11-14 of T1-2.

connect a:1:15-19 a:2:16-19 Connects DS0s 16-19 of T1-1 of the controller to

DS0s 16-19 of T1-2.

connect a:1:21-24 a:2:21-24 Connects DS0s 21-24 of T1-1 of the controller to

DS0s 21-24 of T1-2.

Configure the Router

Command Description

set 6 default Sets the Router in slot 6 to it’s default settings
add 6 snmp trap "public"

192.168.0.254 "LocalUnit"
set 6:1 ip address

192.168.0.1 255.255.255.0
set 6 lmi disable Disable PVC management for Frame Relay connections
connect a:2:5 6:1:1 Connect the timeslot to the WAN port.

Compact T1 - Release 6.1 4-17

Configure the Router card trap address

Configure the LAN IP address

Configuration

Setup of DS0 Management Channel

Setup the Profile for Site A

Command Description

rename 5 "RemoteUnit" "SITE-A"Configure the LAN IP address

set 6:1:1 encapsulation fr Specify the encapsulation for the profile
set 6 "SITE-A" trunk 1 Specify the trunk number for the profile
set 6 "SITE-A" dlci 16 Specify the DLCI number for the profile
set 6 "SITE-A" up Enable the profile
add 6 "SITE-A" static ip

network 192.168.1.101

255.255.255.255 1

Specify the IP address of the Compact T1 at the far end

Setup the Profile for Site B

Command Description

connect a:2:10 6:1:2 Connect the timeslot to the WAN port.
add 6 remote "SITE-B" Add another WAN profile named SITE-B
set 6:1:2 encapsulation fr Specify the encapsulation for the profile
set 6 "SITE-B" trunk 2 Specify the trunk number for the profile
set 6 "SITE-B" dlci 16 Specify the DLCI number for the profile
set 6 "SITE-B" up Enable the profile
add 6 "SITE-B" static ip

network 192.168.1.102

255.255.255.255 1

Specify the IP address of the Compact T1 at the far end

4-18 Compact T1 - Release 6.1

Configuration

Setup of DS0 Management Channel

Setup the Profile for Site C

Command Description

connect a:2:15 6:1:3 Connect the timeslot to the WAN port.
add 6 remote "SITE-C" Add another WAN profile named SITE-C
set 6:1:3 encapsulation fr Specify the encapsulation for the profile
set 6 "SITE-C" trunk 3 Specify the trunk number for the profile
set 6 "SITE-C" dlci 16 Specify the DLCI number for the profile
set 6 "SITE-C" up Enable the profile
add 6 "SITE-C" static ip

network 192.168.1.103

255.255.255.255 1
set snmp nms 1 192.168.0.254 Set up SNMP Trap address for the Compact T1

Specify the IP address of the Compact T1 at the far end

Remote Site A Configuration

Command Description

disconnect a Disconnects all connections to slot a (controller)
set a:1:all type data Sets all DS0s on T1-1 to data signaling type
set a:2:all type data Sets all DS0s on T1-2 to data signaling type
disconnect 6 Disconnects the router in slot 6
set 6:1:all type data Sets all DS0s on slot 6 to data signaling type
connect a:1:1-4 a:2:1-4 Connect channels to cell site
set ipds0 assign a:1:5 Assign channel to IPDS0 management channel
set ipds0 ip address

192.168.1.101 255.255.255.0
set ipds0 up Enable IPDS0
set ipds0 navalarm off Suppress IPDS0 alarm

Configure IPDS0 ip address

set snmp nms 1 192.168.0.254 Set up SNMP Trap address for the Compact T1

Compact T1 - Release 6.1 4-19

Configuration

Setup of DS0 Management Channel

Remote Site B Configuration

Command Description

disconnect a Disconnects all connections to slot a (controller)
set a:1:all type data Sets all DS0s on T1-1 to data signaling type
set a:2:all type data Sets all DS0s on T1-2 to data signaling type
disconnect 6 Disconnects the router in slot 6
set 6:1:all type data Sets all DS0s on slot 6 to data signaling type
connect a:1:6-9 a:2:1-4 Connect channels to cell site
connect a:1:11-24 6:1:11-24 Connect channels for outgoing T1 port
set ipds0 assign a:1:10 Assign channel to IPDS0 management channel
set ipds0 ip address

192.168.1.102 255.255.255.0
set ipds0 up Enable IPDS0
set ipds0 navalarm off Suppress IPDS0 alarm
set snmp nms 1 192.168.0.254 Set up SNMP Trap address for the Compact T1

Configure IPDS0 ip address

4-20 Compact T1 - Release 6.1

Configuration

Setup of DS0 Management Channel

Remote Site C Configuration

Command Description

disconnect a Disconnects all connections to slot a (controller)
set a:1:all type data Sets all DS0s on T1-1 to data signaling type
set a:2:all type data Sets all DS0s on T1-2 to data signaling type
disconnect 6 Disconnects the router in slot 6
set 6:1:all type data Sets all DS0s on slot 6 to data signaling type
connect a:1:11-14 a:2:1-4 Connect channels to cell site C
connect a:1:16-19 6:1:1-4 Connect channels to cell site D1
connect a:1:21-24 6:2:1-4 Connect channels to cell site D2
set ipds0 assign a:1:15 Assign channel to IPDS0 management channel
set ipds0 ip address

192.168.1.103 255.255.255.0
set ipds0 up Enable IPDS0
set ipds0 navalarm off Suppress IPDS0 alarm
set snmp nms 1 192.168.0.254 Set up SNMP Trap address for the Compact T1

Configure IPDS0 ip address

Test

After configuring al l the Compact T1, verify connectivity to the NMS from each Unit .
> Ping 192.168.0.254
Response should be:
>192.168.0.254 is reachabl e

Compact T1 - Release 6.1 4-21

Configuration

Setup of DS0 Management Channel

4-22 Compact T1 - Release 6.1

CHAPTER

CLI Commands

In this Chapter

n Command Line Interface Help
n CLI Commands

CLI Commands

Command Line Interface Help

During a CLI session, help is available at any time.

? or help

Type a ? (or "help" before a command) at any time for quick command information

> add ?

add ..................... Create users or profiles

{rtr_card-addr} ...... Create profile, object or service on a router

{rtr_lan-addr} ....... Create object or service on the router LAN

user ................. Create user with manager level access.

NOTE: The scrolling feature, will always scroll through the command/

options in alphabetical order.

[TAB] usage for word or command completion

Use [TAB] for command word completion:

> sh [TAB]
> show

Use [TAB] to view command levels:

> [TAB] will scroll through the base commands
> aco [TAB]
> add [TAB]
> alarms [TAB]
> clear [TAB]
> connect [TAB]
> delete ... etc.

5-2 Compact T1 - Release 6.1

CLI Commands

Use [TAB] to view comm and op tio ns, add a sp ace after the bas e command with the use of
the [TAB] feature, scroll through all available options for this command:

> set [TAB] will scroll through the set commands, with each <TAB>
> set alarms [TAB]
> set autoexit [TAB]
> set clock1 ... etc.

If another space is placed after the command and [TAB] is pressed again, the next
command level will display (if any):

> set snmp [TAB] will scroll through all the set SNMP options
> set snmp contact [TAB]
> set snmp getcom [TAB]
> set snmp location [TAB]
> set snmp name ... etc.

Compact T1 - Release 6.1 5-3

CLI Commands

CLI Commands

For maneuverability through these commands, all command names in blue or italics
are hyperlinked.

aco (Alarm Cut Off) ping
add print
alarms rename (router)
clear reset
connect restore
delete rtrping
disconnect set
exit show
install status
load store
log telnet

5-4 Compact T1 - Release 6.1

aco (Alarm Cut Off)

Use the aco command to activate the Alarm Cut Off, which opens the alarm relay contacts on
the back of the unit.

Syntax: aco

Example: aco

ACO LED

Off Normal mode. No alarms are being s uppressed.
Yellow Alarm cutoff active. One or more active alarms suppressed.

To turn off ACO, all alarms must be cleared, or the operator can reset the controller, which will
set the ACO back to the default (off) state.

CLI Commands

aco (Alarm Cut Off)

Compact T1 - Release 6.1 5-5

CLI Commands

add

add

Use the add command to create users, interfaces, services or profiles.
See the following sections for detailed information on the following add commands

add (router) dns proxy
add (router) remote
add (router) snmp community
add (router) snmp trap
add (router) static dns host
add (router) uploaduser
add (router-lan) filter
add (router-lan) secondary ip address
add (router-lan) static
add (router-wan) firewall
add (router-wan) gre network
add (router-wan) nat bypass
add (router-wan) stat ic
add user

5-6 Compact T1 - Release 6.1

CLI Commands

add (router) dns proxy

Use the add (router ) dn s pro xy command to enable DNS p roxy and ad d a remote DNS serve r
address to the specified Router card.

Syntax: add {rtr_card-addr} dns proxy {"domain-name"}

{ip-addr} {"profile-name"}

Example: add 2 dns proxy "Domain1" 192.168.100.245 "Texas"

Example will add a DNS proxy server "Domain1" with address

192.168.100.245 to the WAN named "Texas" on the Router in slot 2.

{rtr_card-addr}

The slot number (1-6) that contains the Router (IP or CMG) card.

{"domain-name"}

The domain name for the external DNS server. Name must be enclosed in quotes, with a
maximum length of 42 characters.

{ip-addr}

The IP address of the external DNS server, in the form of xxx.xxx.xxx.xxx, where xxx is
between 0- 255.

{"profile-name"}

The profile name for the Router interface that is used to reach this destination. Name must
be enclosed in quotes, with a maximum length of 11 characters.

add

add (router) remote

Use the add (router) remote command to add a remote WAN profile to the WAN p rofile table
on the specified Router card.

Syntax: add {rtr_card-addr} remote {"profile-name"}

Example: add 6 remote "Texas"

The example will add a remote WAN named "Texas" to the WAN profile table
for the Router in slot 6.

{rtr_card-addr}

The slot number (1-6) that contains the Router (IP or CMG) card.

{"profile-name"}

The name of the remote WAN profile to add with a maximum length of 11 characters. This
name must be enclosed in quotes.

Compact T1 - Release 6.1 5-7

CLI Commands

add

add (router) snmp community

Use the add (router) snmp community command to add a SNMP community to an interface
on the specified Router card.

Syntax: add {rtr_card-addr} snmp community {both|read|write}

{"community-name"} {ip-addr}

Example: add 2 snmp community both "commune" 192.168.100.245

The example will allow the host 192.168.100.245 read/write access to the
Router card SNMP agent using the community name "commune ". The Router is
located in slot 2.

{rtr_card-addr}

The slot number (1-6) that contains the Router (IP or CMG) card.

{both|read|write}

both Will set the community to be read/write
read Will set the community to be read-only
write Will set the community to be write- only

{"community-name"}

Name of the community to add with a maximum length of 10 characters. Must be enclosed
in quotes.

{ip-addr}

The IP address of the host that can access the SNMP agent via this community, in the form
of xxx.xxx.xxx.xxx, where xxx is between 0-255. The address "0.0.0.0" allows any host.

5-8 Compact T1 - Release 6.1

CLI Commands

add (router) snmp trap

Use the add (router) snm p trap command to specify a destination to send SNMP trap
messages for the specified Router card.

Syntax: add {rtr_card-addr} snmp trap

{"community-name"} {ip-addr} {"profile-name"}

Example: add 3 snmp trap "commune" 192.168.100.245 "RemoteAdit"

The example will add a trap destination of 192.168.100.245 on the interface
"RemoteAdit" and use the community name "commune" in the messages. The
Router is located in slot 3.

{rtr_card-addr}

The slot number (1-6) that contains the Router (IP or CMG) card.

{"community-name"}

The community name to use in each trap message, with a maximum of 10 characters.

{ip-addr}

The IP address of the destination trap t o add, in the form of xx x.xxx.xxx. xxx, where xxx i s
between 0- 255.

{"profile-name"}

The profile name for the Router interface that is used to reach this destination. Maximum
of 11 characters and this name must be enclosed in quotes.

add

Compact T1 - Release 6.1 5-9

CLI Commands

add

add (router) static dns host

Use the add (router) static dns host command to add a static DNS host record for resolving a
domain name to an IP address if the DNS server cannot provide the information. The DNS
resolver will first attempt to resolve the name by querying the configured DNS servers. If this
does not yield the information, the DNS resolver will consult this list of static entries. This
command will fail if the DNS resolver is not enabled.

Syntax: add {rtr_card-addr} static dns host

{ip-addr} {"domain-name"}

Example: add 2 dns host 192.168.100.245 "myhost.some.net"

Example will add a static DNS host record with address 192.168.100.245 and
domain named "myhost.some.net" on the Router in slot 2.

{rtr_card-addr}

The slot number (1-6) that contains the Router (IP or CMG) card.

{ip-addr}

The IP address of the host, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255.

{"domain-name"}

The domain name of the host. Name must be enclosed in quotes, with a maximum length
of 41 characters.

5-10 Compact T1 - Release 6.1

CLI Commands

add (router) uploaduser

Use the add (router) uploaduser command to specify a host that is allowed to upload either
the configuration or software files to the specified Router card.

Syntax: add {rtr_card-addr} uploaduser {both|code|config}

{all|ip-addr} {"profile-name"}

Example: add 3 uploaduser code all "LosAngeles"

The example will allow any user to upload the code file from the Router
interface named "LosAngeles". The Router is located in slot 3.

{rtr_card-addr}

The slot number (1-6) that contains the Router (IP or CMG) card.

{both|code|config}

both Will allow user to upload both the code file and the configuration file

from the Router

code Will allow user to upload the code file from the Router
config Will allow user to upload the configuration file from the Router

{all|ip-addr}

all Will allow upload from anywhere

add

ip-addr The IP address to allow upload boot from. In the form of

xxx.xxx.xxx.xxx, where xxx is between 0-255

{"profile-name"}

The name of the remote WAN or LAN profile that can be used for the upload. This name
must be enclosed in quotes.

Compact T1 - Release 6.1 5-11

CLI Commands

add

add (router-lan) filter

Use the add (router-lan) filter commands to add filters to the specified LAN interface.

add (router-lan) filter address

Use the add (router-lan) filter address command to add an address filter to the table of
Layer 2 filters applied to the specified LAN interface.

Syntax: add {rtr_lan-addr} filter address {both|dest|source}

Example: add 2:1 filter address both 0x00e09700e9cd "Server1"

{rtr_lan-addr}

The Router (IP or CMG) address is in the form {slot:port} or {slot "profile-name"}.

slot The slot number (1-6) that contains the Router card.
port Port nu mber.
"profile-name" The profile name for the Router interface. Name must be enclosed

{both|dest|source}

both Filter by both source and destination

{mac-addr} {"filter-name"}

in quotes, with a maximum length of 11 characters.

dest Filter by destination only
source Filter by source only

{mac-addr}

The MAC address to add to the learned address table for the LAN, in the form a
6-octet HEX value, 0xxxxxxxxxxxx. Please note that the MAC address is preceeded by a
0x.

{"filter-name"}

A symbolic name given to identify a filter rule. This name must be enclosed in quotes, with
a maximum of 8 characters.

5-12 Compact T1 - Release 6.1

CLI Commands

add (router-lan) filt er custom

Use the add (router-lan) filter custom command to add a custom filter to the table of
Layer 2 filters applied to the specified LAN interface.

Syntax: add {rtr_lan-addr} filter custom {pkt-offset} {mask}

{match} {"filter-name"}

Example: add 2:1 filter custom 16 0xFFFF0000 0x45000000

"MyRule"

The example will add a custom layer-2 filter that will match all packets that
contain the hex value 4500 at the 16th octet past the MAC header.

{rtr_lan-addr}

The Router (IP or CMG) address is in the form {slot:port} or {slot "profile-name"}.

slot Slot number (1-6) that contains the Router card.
port Port number.
"profile-name" The profile name for the Router interface. Name must be enclosed

in quotes, with a maximum length of 11 characters.

{pkt-offset}

This field will designate where within a packet (past the MAC header) the system is to
begin looking for a matching character string. The offset value range is 0 to 60 bytes. To
create a filter for the data in the MAC header, use the address and Protocol filters.

{mask}

The 32-bit mask to indicate which bits to compare to the match value starting at the offset
position. The mask is entered as a 32-bit hexadecimal value.

{match}

The 32-bit match value that is used to match the incoming packet. The match value is
entered as a 32-bit hexadecimal value.

{"filter-name"}

A symbolic name given to identify a filter rule. This name must be enclosed in quotes, with
a maximum of 8 characters.

add

Compact T1 - Release 6.1 5-13

CLI Commands

add

add (router-lan) filter protocol

Use the add (router-lan) filter protocol command to add a protocol filter to the table of
Layer 2 filters applied to the specified LAN interface. Note that you only need to identify
either an Ethernet or IEEE value, but not both. The other should be entered as 0.

Syntax: add {rtr_lan-addr} filter protocol {ether-type}

Example: add 2:1 filter protocol 0x0807 0x0 "XNSrule"

{rtr_lan-addr}

The Router (IP or CMG) address is in the form {slot:port} or {slot "profile-name"}.

slot Slot number (1-6) that contains the Router card.
port Port number.
"profile-name" The profile name for the Router interface. Name must be encl osed

{ether-type}

This assigned Ethernet value for this protocol. The ether-type is entered as a 16-bit
hexadecimal value, e.g. 0800 = IP and 0806 = ARP.

{ieee-value}

The assigned IEEE value for this protocol. The IEEE value is the same as the SDAP and
SSAP values in a SNAP packet. The match value is entered as a 8-bit hexadecimal value.

{"filter-name"}

A symbolic name given to identify a filter rule. This name must be enclosed in quotes, with
a maximum of 8 characters.

{ieee-value} {"filter-name"}

The example will add a custom layer-2 filter that will match all XNS packets.

in quotes, with a maximum length of 11 characters.

5-14 Compact T1 - Release 6.1

CLI Commands

add (router-lan) secondary ip address

Use the add (router-lan) secondary ip address command to add a secondary IP address and
subnet to the specified LAN interface. The router will then be capable of routing between the
various subnets on the LAN interface or between any o f the LAN subnets and any WAN subnet.
A maximum of 8 secondary IP addresses can be added to the LAN interface.

Syntax: add {rtr_lan-addr} secondary ip address

{ip-addr [mask]|ip-addr/bits}

Example: add 4:1 secondary ip address 192.168.1.1 255.255.255.0

The example will add a secondary IP address of 192.16 8.1.1 an d a subnet mas k
of 255.255.255.0.

To view the secondary IP addresses, use the show 4:1 command

{rtr_lan-addr}

The Router (IP or CMG) address is in the form {slot:port} or {slot "profile-name"}.

slot The slot number (1-6) that contains the Router card.
port Port number.
"profile-name" The profile name for the Router interface. Name must be enclosed in

quotes, with a maximum length of 11 characters.

add

{ip-addr [mask]|ip-addr/bits}

ip-addr The IP address of the Host to query, in the form of xxx.xxx.xxx.xxx,

where xxx is between 0-255.

mask The mask of the secondary IP address, in the form of

xxx.xxx.xxx.xxx, where xxx i s between 0-255.

bits The subnet mask, specified as the number of ones bits in the mask

value. Range is between 1-32.

Compact T1 - Release 6.1 5-15

CLI Commands

add

add (router-lan) static

Use the add (router-lan) static commands to add static elements on the specified LAN
interface.

add (router-lan) static ip address

Use the add (router-lan) static ip address command to add a static IP address to th e table
of learned addresses on the specified LAN interface. This command is typically used in
bridging.

Syntax: add {rtr_lan-addr} static ip address {"addr-name"}

{ip-addr}

Example: add 3:1 static ip address "JDoe" 195.168.201.140

{rtr_lan-addr}

The Router (IP or CMG) address is in the form {slot:port} or {slot "profile-name"}.

slot Slot number (1-6) that contains the Router card.
port Port number.
"profile-name" The profile name for the Router interface. Name must be encl osed

in quotes, with a maximum length of 11 characters.

{"addr-name"}

A symbolic name for this static ip address. This name must be enclosed in quotes, with a
maximum of 8 characters.

{ip-addr}

The IP address of the learned address table for the LAN, in the form of xxx.xxx.xxx.xxx,
where xxx is between 0-255.

5-16 Compact T1 - Release 6.1
