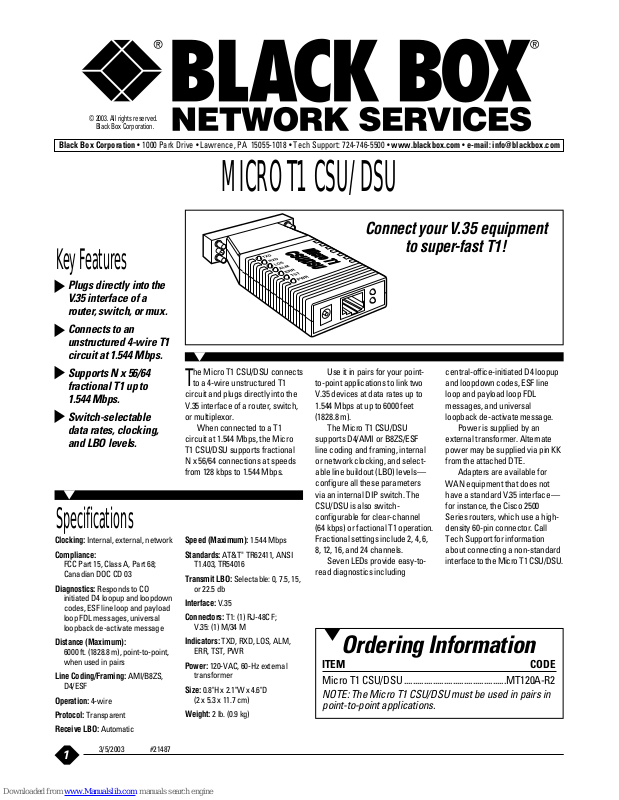

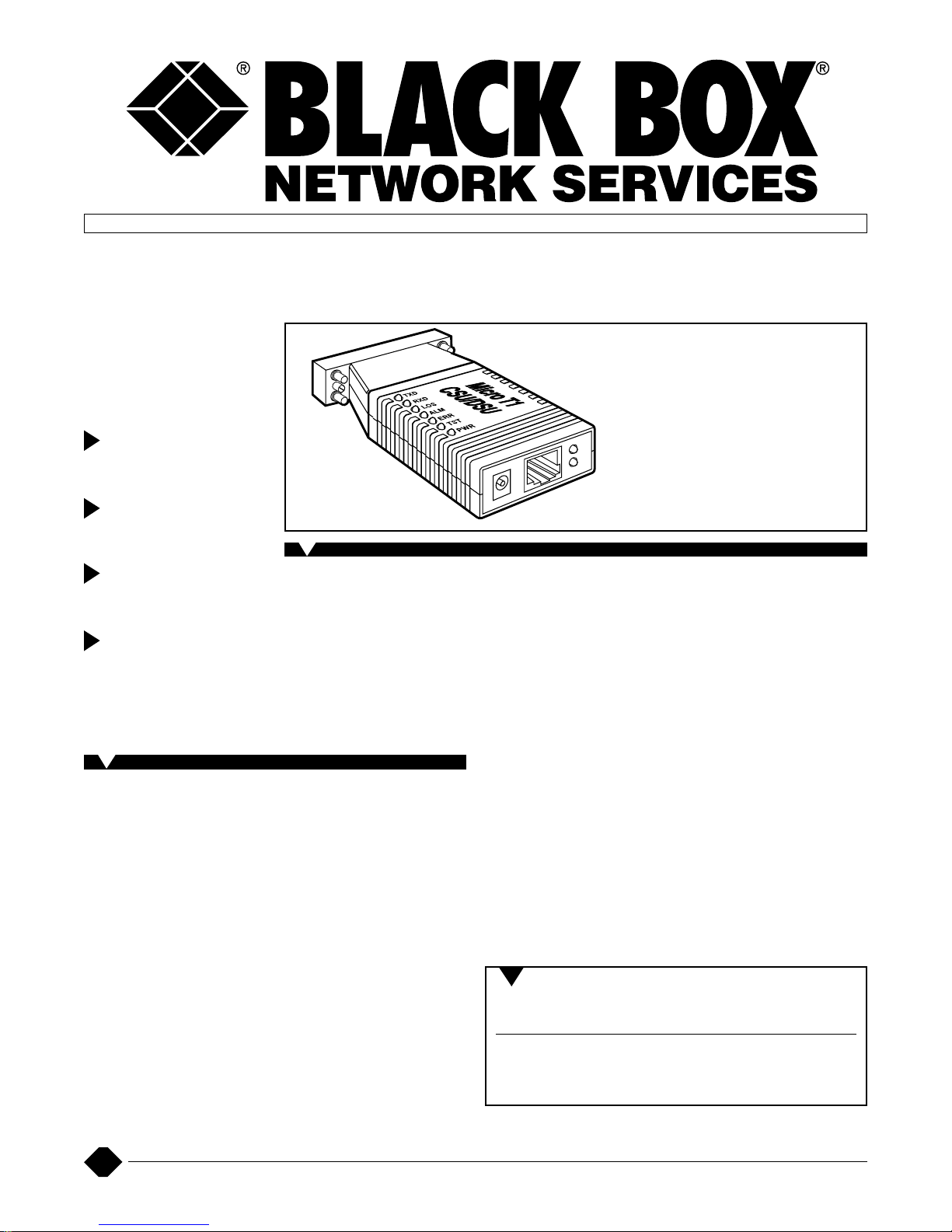

Black Box Corporation • 1000 Park Drive • Lawrence, PA 15055-1018 • Tech Support: 724-746-5500 • www.blackbox.com • e-mail: [email protected]
3/5/2003 #21487
© 2003. All rights reserved.
Black Box Corporation.
Plugs directly into the
V.35 interface of a
router, switch, or mux.
Connects to an
unstructured 4-wire T1
circuit at 1.544 Mbps.
Supports N x 56/64
fractional T1 up to
1.544 Mbps.
Switch-selectable
data rates, clocking,
and LBO levels.
T
he Micro T1 CSU/DSU connects
to a 4-wire unstructured T1
circuit and plugs directly into the
V.35 interface of a router, switch,
or multiplexor.
When connected to a T1
circuit at 1.544 Mbps, the Micro
T1 CSU/DSU supports fractional
N x 56/64 connections at speeds
from 128 kbps to 1.544 Mbps.
Connect your V.35 equipment
to super-fast T1!
Key Features
MICRO T1 CSU/DSU
Ordering Information
ITEM CODE
Micro T1 CSU/DSU ..............................................MT120A-R2
NOTE: The Micro T1 CSU/DSU must be used in pairs in
point-to-point applications.
Use it in pairs for your pointto-point applications to link two
V.35 devices at data rates up to
1.544 Mbps at up to 6000 feet
(1828.8 m).
The Micro T1 CSU/DSU
supports D4/AMI or B8ZS/ESF
line coding and framing, internal
or network clocking, and selectable line buildout (LBO) levels—
configure all these parameters
via an internal DIP switch. The
CSU/DSU is also switchconfigurable for clear-channel
(64 kbps) or factional T1 operation.
Fractional settings include 2, 4, 6,
8, 12, 16, and 24 channels.
Seven LEDs provide easy-toread diagnostics including
central-office-initiated D4 loopup
and loopdown codes, ESF line
loop and payload loop FDL
messages, and universal
loopback de-activate message.
Power is supplied by an
external transformer. Alternate
power may be supplied via pin KK
from the attached DTE.
Adapters are available for
WAN equipment that does not
have a standard V.35 interface—
for instance, the Cisco 2500
Series routers, which use a highdensity 60-pin connector. Call
Tech Support for information
about connecting a non-standard
interface to the Micro T1 CSU/DSU.
Clocking: Internal, external, network
Compliance:
FCC Part 15, Class A, Part 68;
Canadian DOC CD 03
Diagnostics: Responds to CO
initiated D4 loopup and loopdown
codes, ESF line loop and payload
loop FDL messages, universal
loopback de-activate message
Distance (Maximum):
6000 ft. (1828.8 m), point-to-point,
when used in pairs
Line Coding/Framing: AMI/B8ZS,
D4/ESF
Operation: 4-wire
Protocol: Transparent
Receive LBO: Automatic
Speed (Maximum): 1.544 Mbps
Standards: AT&T
®
TR62411, ANSI
T1.403, TR54016
Transmit LBO: Selectable: 0, 7.5, 15,
or 22.5 db
Interface: V.35
Connectors: T1: (1) RJ-48C F;
V.35: (1) M/34 M
Indicators: TXD, RXD, LOS, ALM,
ERR, TST, PWR
Power: 120-VAC, 60-Hz external
transformer
Size: 0.8"H x 2.1"W x 4.6"D
(2 x 5.3 x 11.7 cm)
Weight: 2 lb. (0.9 kg)
Specifications
