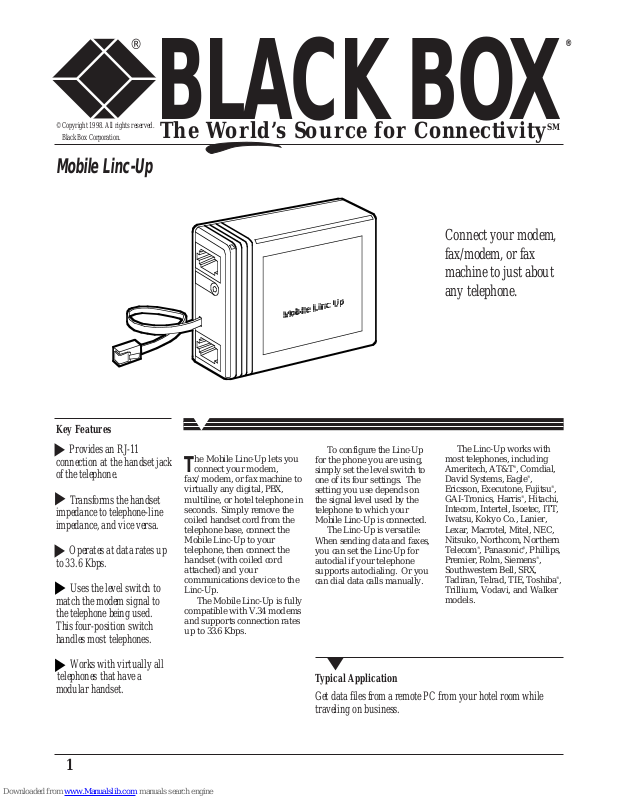

Black Box Mobile Linc-Up Instruction Manual

1

®

© Copyright 1998. All rights reserved.

Black Box Corporation.

®

BLACK

BOX

The World’s Source for Connectivity

SM

Provides an RJ-11
connection at the handset jack
of the telephone.

Transforms the handset
impedance to telephone-line
impedance, and vice versa.

Operates at data rates up
to 33.6 Kbps.

Uses the level switch to
match the modem signal to
the telephone being used.
This four-position switch
handles most telephones.

Works with virtually all

telephones that have a

modular handset.

T

he Mobile Linc-Up lets you

connect your modem,
fax/modem, or fax machine to
virtually any digital, PBX,
multiline, or hotel telephone in
seconds. Simply remove the
coiled handset cord from the
telephone base, connect the
Mobile Linc-Up to your
telephone, then connect the
handset (with coiled cord
attached) and your
communications device to the
Linc-Up.

The Mobile Linc-Up is fully
compatible with V.34 modems
and supports connection rates
up to 33.6 Kbps.

?
?
?
?
?
?

?
@@he?
@@f?O2@@??

@@@@f@@e@@@@@@@L?
@@@@f@@e@@(M?@@1?
@@@@f@@e@@H??@@@?
@@@@f@@e@@e?@@@?

@@@@f@@e@@eJ@@5?
?O@?heW2@@@@@?f@@@@f@@e@@L?7@@H?
@@@?gO@e7@(MI4@?f@@@@e?J@5e@@)X@@@??
@@@?eO2@@@@?J@@H?h@@@@e?7@He@@@@@?e?

@@@@h@?@@@@V'@@?7@@he@@@@e?@5?e@@@@@?e?
@@@@g@@@?@@@@?N@@?@@@hf@@@@@@H?e@@g?
@@@@g@@@?@@@@e@@?@@@L?he@@@@@@f@5g?
@@@@g@@@?@@@@e@@?3@@)KO2@? (Yg?

O@?@@@ @@@@g@@@?@@@@e@@?N@@@@@@5? ?
?@@@?@@@e?O2@@@@?f@@@@g@@@?@@@@e@@e@@@@@0Y? ?
?@@@?@@@e@@(?'@@?f@@@@g@@@?@@@@e@@ ?

@@@@h?@?@@@?J@@Y?V@@?f@@@@g@@@?@@@@e@@ ?
@@@@g?@@@?@@@?7@@@@@@@?f@@@@g@@@?@@@@ ?

@@@@@@@@e?@@@?@@@?@@@@@@@@?f@@@@@@@@@?@@@? ?
?@@?h@@@@@@@@e?@@@?@@@?@@@(Mh@@@@@@@@@? ?
?@@?eO2@@@?@@@@(Y@@@@?@@@?@@@?3@@YO2@@?f@@@0M? ?

?@@@fW2@@@@@@@@@@@?@@@@H?@@@@?@@@?@@@?N@@@@@@@? ?
?@@@L?e7@@@@@@@(M?@@@@@@@e@@@@?@@@?@@@e3@@@0M ?
?@@@1?e@@@@@@@@H??@@@@@@@?J@@@@?@@@?@@@eV40M ?
?@@@@Le@@@@@@@@e?@@@@@@@W&@@e?@@@?@@@ ?
?@@@@1e@@@@@@@@eJ@@@@@@@@@@@e?@@@ ?
?@@@@@e@??@@@@@?O&@@?@@@@@(M? ?
?@@@@@@@@??@@@@@@@@@@?@@@@0Y ?
?@@@@@@@@??@@@@@@@(M ?
?@@@@@@@@??@@??I40Y? ?
?@@@@@@@5??@@? ?
?@@@?I40Y? ?
?@@@ ?

?
?
?
?

Get data files from a remote PC from your hotel room while
traveling on business.

Connect your modem,
fax/modem, or fax
machine to just about
any telephone.

Typical Application

To configure the Linc-Up
for the phone you are using,
simply set the level switch to
one of its four settings. The
setting you use depends on
the signal level used by the
telephone to which your
Mobile Linc-Up is connected.

The Linc-Up is versatile:
When sending data and faxes,
you can set the Linc-Up for
autodial if your telephone
supports autodialing. Or you
can dial data calls manually.

Key Features

The Linc-Up works with
most telephones, including
Ameritech, AT&T

®

, Comdial,

David Systems, Eagle

®

,

Ericsson, Executone, Fujitsu

®

,

GAI-Tronics, Harris

®

, Hitachi,
Intecom, Intertel, Isoetec, ITT,
Iwatsu, Kokyo Co., Lanier,
Lexar, Macrotel, Mitel, NEC,
Nitsuko, Northcom, Northern
Telecom

®

, Panasonic®, Phillips,

Premier, Rolm, Siemens

®

,
Southwestern Bell, SRX,
Tadiran, Telrad, TIE, Toshiba

®

,
Trillium, Vodavi, and Walker
models.

Mobile Linc-Up

2

• (1) Mobile Linc-Up with
batteries (2 each) installed

• (1) AC adapter

• (1) User’s manual

Level Switch

The Level Switch lets you set
the Linc-Up’s signal level to
that of the telephone to which
it is connected.

Make sure the Level
switch is set properly.
Otherwise, you will hear
buzzing or squelching
feedback through the modem
speaker when the modem is
off-hook, which will
adversely affect transmission
and reception.

Battery Life

The Mobile Linc-Up comes
with two 9-VDC batteries
installed. These batteries are
heavy-duty and will yield
over 15 hours of modem or
fax use. With alkaline
batteries installed, the Mobile
Linc-Up will provide
approximately 40 hours of
modem or fax use. The access
door for the battery
compartment is located on
the bottom of the unit.

Specifications

Data Rate — Up to 33.6 Kbps
Connectors — (1) RJ-22F,

(1) RJ-11F, (1) RJ-22M

Operation — Full duplex
Operating Environment —

For indoor use only

What you get when you order the Mobile Linc-Up.

Technically Speaking

Ordering Information

This information will help you place your order quickly.

PRODUCT NAME ORDER CODE

Mobile Linc-Up..............................................................MC115A

A typical installation of the
Mobile Linc-Up is shown in
the diagram at right.

Power — External power

adapter; Input: 110 VAC,
60 Hz, 9 W; Output:
12 VDC, 200 mA

Size — 1.1"H x 2.9"W x 3.8"D

(2.8 x 7.4 x 9.7 cm)

Weight — 7.2 oz. with

batteries (204.1 g)

For these and other components...

Call our expert Technical Support Staff for all your data
communications needs. They’ll help you find the best
equipment for your application.

Mobile Linc-Up
