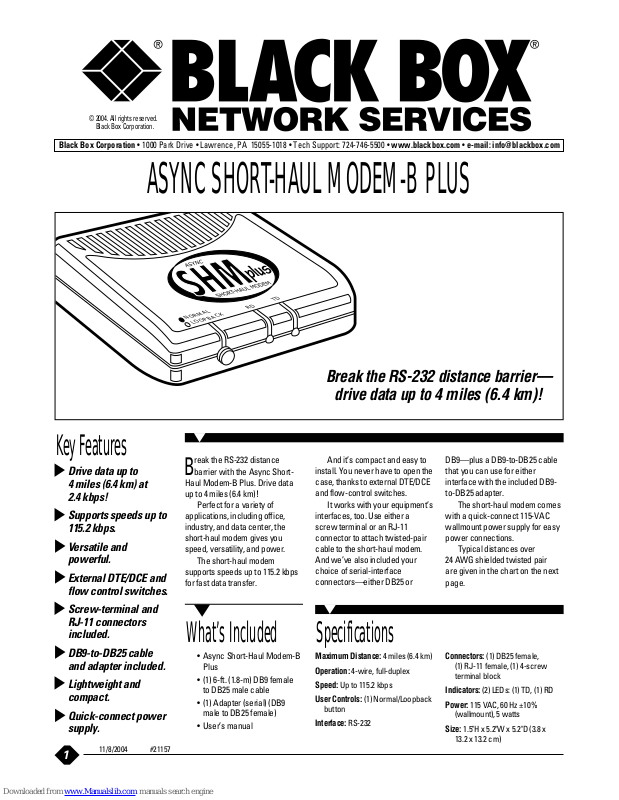

Black Box ME800A-PLUS-R2 Specifications
1
Drive data up to
4 miles (6.4 km) at
2.4 kbps!
Supports speeds up to
115.2 kbps.
Versatile and
powerful.
External DTE/DCE and
flow control switches.
Screw-terminal and
RJ-11 connectors
included.
DB9-to-DB25 cable
and adapter included.
Lightweight and
compact.
Quick-connect power
supply.
B
reak the RS-232 distance
barrier with the Async ShortHaul Modem-B Plus. Drive data
up to 4 miles (6.4 km)!
Perfect for a variety of
applications, including office,
industry, and data center, the
short-haul modem gives you
speed, versatility, and power.
The short-haul modem
supports speeds up to 115.2 kbps
for fast data transfer.
TD
RD
NORMAL
LOOPBACK
Break the RS-232 distance barrier—
drive data up to 4 miles (6.4 km)!
Key Features
ASYNC SHORT-HAUL MODEM-BPLUS
And it’s compact and easy to
install. You never have to open the
case, thanks to external DTE/DCE
and flow-control switches.
It works with your equipment’s
interfaces, too. Use either a
screw terminal or an RJ-11
connector to attach twisted-pair
cable to the short-haul modem.
And we’ve also included your
choice of serial-interface
connectors—either DB25 or
DB9—plus a DB9-to-DB25 cable
that you can use for either
interface with the included DB9to-DB25 adapter.
The short-haul modem comes
with a quick-connect 115-VAC
wallmount power supply for easy
power connections.
Typical distances over
24 AWG shielded twisted pair
are given in the chart on the next
page.
Black Box Corporation • 1000 Park Drive • Lawrence, PA 15055-1018 • Tech Support: 724-746-5500 • www.blackbox.com • e-mail: info@blackbox.com
© 2004. All rights reserved.
Black Box Corporation.
11/8/2004 #21157
Maximum Distance: 4 miles (6.4 km)
Operation: 4-wire, full-duplex
Speed: Up to 115.2 kbps
User Controls: (1) Normal/Loopback
button
Interface: RS-232
Connectors: (1) DB25 female,
(1) RJ-11 female, (1) 4-screw
terminal block
Indicators: (2) LEDs: (1) TD, (1) RD
Power: 115 VAC, 60 Hz ±10%
(wallmount), 5 watts
Size: 1.5"H x 5.2"W x 5.2"D (3.8 x
13.2 x 13.2 cm)
Specifications
• Async Short-Haul Modem-B
Plus
• (1) 6-ft. (1.8-m) DB9 female
to DB25 male cable
• (1) Adapter (serial) (DB9
male to DB25 female)
• User’s manual
What’s Included
2
Ordering Information
ITEM CODE
Async Short-Haul Modem-B Plus .......ME800A-PLUS-R2
Remember to order cable…
Bulk Category 5 Solid-Conductor Cable,
2-Pair, PVC, Custom Lengths..................................EYN717A
W
ith the Async Short-Haul
Modem-B Plus, you can get
distances of up to 4 miles
(6.4 km). Of course, maximum
distances depend on the wire
gauge of the twisted-pair cable
you’re using and the data rate of
your connection. Typical speeds
that you can achieve using
24 AWG cable are shown for
various speeds in Table 1 below.
Technically Speaking
Speedy, convenient, and versatile, this
short-haul modem’s perfect for office,
industry, or data-center applications.
See the diagrams at right.
Table 1. Speed/distances for 24-AWG cable.
Figure 1. Office application.
Figure 2. Industry application.
Figure 3. Data-center application.
NOTE: The speeds and
distances described in Table 1
are based on using 24 AWG
unshielded twisted-pair cable.
Actual distances may vary.
The short-haul modem also
features an improved powersupply jack for easy plug-in, and
built-in optical isolation for extra
safety.
ME800A-PLUS-R2
Async Short-Haul
Modem-B Plus
(ME800A-PLUS-R2)
Async Short-Haul
Modem-B Plus
(ME800A-PLUS-R2)
Async Short-Haul
Modem-B Plus
(ME800A-PLUS-R2)
(ME800A-PLUS-R2)
ME800A-PLUS-R2
PC (up to
115.2 kbps)
PC (up to
115.2 kbps)
Async
minicomputer
RS-232
cable
Call center
EYN717A
EYN717A
EYN717A
RS-232 cable
RS-232
cable
RS-232
cable
Truck scale
PBX
Supervisor’s terminal
(up to 115.2 kbps)
D
T
RD
L
A
M
R
CK
O
N
BA
P
O
LO
D
T
D
R
AL
K
RM
O
AC
N
B
OP
LO
D
T
D
R
L
A
M
K
R
C
O
A
N
B
P
O
LO
TD
D
R
L
A
M
K
OR
AC
N
OPB
LO
D
T
D
R
L
A
M
K
R
C
O
A
N
B
P
O
O
L
O
N
L
A
M
R
B
P
O
O
L
K
C
A
D
T
D
R
