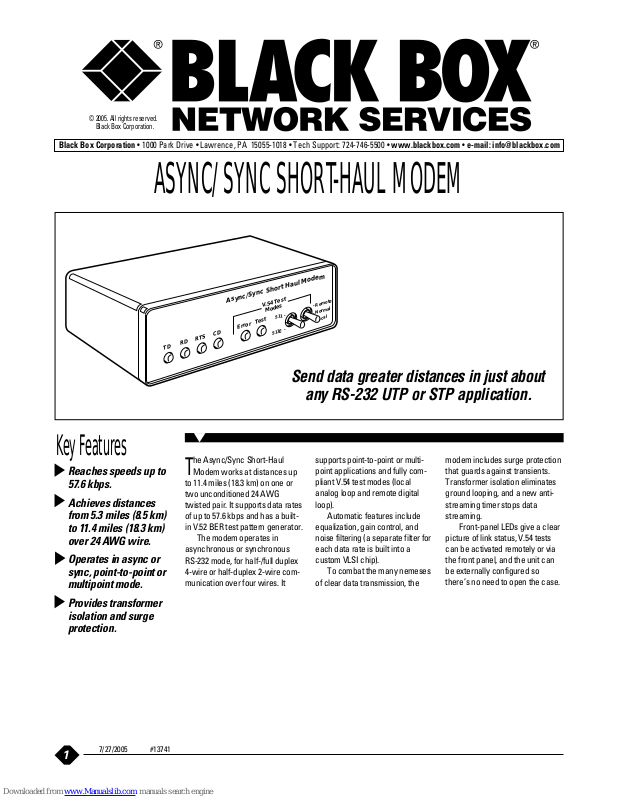

Black Box ME475A Specifications
1
Reaches speeds up to
57.6 kbps.
Achieves distances
from 5.3 miles (8.5 km)
to 11.4 miles (18.3 km)
over 24 AWG wire.
Operates in async or
sync, point-to-point or
multipoint mode.
Provides transformer
isolation and surge
protection.
T
he Async/Sync Short-Haul
Modem works at distances up
to 11.4 miles (18.3 km) on one or
two unconditioned 24 AWG
twisted pair. It supports data rates
of up to 57.6 kbps and has a builtin V.52 BER test pattern generator.
The modem operates in
asynchronous or synchronous
RS-232 mode, for half-/full duplex
4-wire or half-duplex 2-wire communication over four wires. It
- Remote
- Normal
- Local
TD
RD
RTS
CD
Error
Test
511 -
511E -
V.54 Test
Modes
Async/Sync Short Haul Modem
Send data greater distances in just about
any RS-232 UTP or STP application.
Key Features
ASYNC/SYNC SHORT-HAUL MODEM
supports point-to-point or multipoint applications and fully compliant V.54 test modes (local
analog loop and remote digital
loop).
Automatic features include
equalization, gain control, and
noise filtering (a separate filter for
each data rate is built into a
custom VLSI chip).
To combat the many nemeses
of clear data transmission, the
modem includes surge protection
that guards against transients.
Transformer isolation eliminates
ground looping, and a new antistreaming timer stops data
streaming.
Front-panel LEDs give a clear
picture of link status, V.54 tests
can be activated remotely or via
the front panel, and the unit can
be externally configured so
there
’
s no need to open the case.
Black Box Corporation • 1000 Park Drive • Lawrence, PA 15055-1018 • Tech Support: 724-746-5500 • www.blackbox.com • e-mail: info@blackbox.com
© 2005. All rights reserved.
Black Box Corporation.
7/27/2005 #13741
2
Clocking: Internal, external, receive
Line Type: (2) twisted pair
Operation: 2-wire half-duplex or
2- or 4-wire half- or full duplex,
point-to-point or multipoint
Speed (Maximum): 57.6 kbps
Distance: 5.3 mi. (8.5 km) to 11.4 mi.
(18.3 km) over 24 AWG wire
Protocol: Synchronous or
asynchronous
User Controls: (2) toggle switches:
511/511E, Remote/Normal/Local
Interface: RS-232 (DCE)
Connectors: (1) DB25 female,
(1) RJ-45, (1) terminal block
Indicators: (6) LEDs: TD, RD, RTS,
CD, Error, and Test
Power: 120/230 VAC, 50/60 Hz,
switch-selectable
Size: 1.5"H x 4.2"W x 5"D
(3.8 x 10.7 x 12.7 cm)
Weight: 1 lb. (0.5 kg)
Host
computer
PCs
Async/Sync
Short-Haul
Modem
Async/Sync
Short-Haul
Modems
Specifications
Ordering Information
ITEM CODE
Async/Sync Short-Haul Modem ............................ME475A
Y
ou might also need cable…
GigaBase®350 CAT5e, 350-MHz Bulk Cable, 4-Pair,
PVC, 1100-ft. (335.2-m) Boxed Reel,
Blue ................................................................EYN851A-1100
(For other colors or plenum cable, call our FREE Tech
Support.)
Connect five PCs to a
host computer in a
multipoint configuration.
