Introduction

Documentation Number: LWS40xA-906m Chapter 1 1

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

CChhaapptteerr 11:: IInnttrroodduuccttiioonn

Thank you for purchasing a LWS40xA Wireless Serial Server! Like all
Black Box products, your serial server has been manufactured to high
standards of quality and performance to ensure your complete satisfaction.
Please read this manual and carefully follow the instructions to achieve best
results. For additional information on this and other products, and for
technical support, and for technical support, call 724-746-5500, or access
Black Box website at: www.blackbox.com

About Your LWS40xA Wireless Serial Server

LWS40xA Wireless Serial Servers are part of Black Box growing family

of device servers, products that allow you to connect equipment with
available serial connections into existing networks. LWS40xA wireless serial
servers connect RS-232, RS-422 or RS-485 devices to a wireless network via
wireless access points, eliminating the need for network cabling. Devices
connected to the serial ports on your LWS40xA can be accessed from any
node on the LAN using Direct IP Mode, Virtual COM Port, or Serial
Tunneling (Paired Mode) connections. Based on the 802.11g wireless
standard, LWS40xA servers operate at up to 54Mbps over the 2.4 GHz band,
which does not require licensing.

LWS40xA Wireless Serial Servers

( LWS401A shown)

LWS40xA wireless serial servers are built for use in industrial environments
and feature rugged DIN or panel mountable enclosures. They operate from
AC or DC power supply voltages and feature removable screw terminal
power connectors.

Introduction

2 Chapter 1 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Features

• Backward compatibility with 802.11b (up to 11 Mbps)

• Multi-interface serial ports

o The LWS401A features one RS-232 serial port using a standard

DB-9M connector

o The LWS406A features one RS-422/485 serial port using a

removable terminal block connector

o The LWS402A features two serial ports (one RS-232 and one

software-selectable RS-232/422/485) using DB-9M connectors

o The LWS404A features four serial ports (two RS-232 and two

software-selectable RS-232/422/485) using DB-9M connectors

• Rugged DIN rail or panel mountable IP30 enclosure

• Accepts AC or DC power over a wide voltage range

• LAN and WAN Communications via wireless access point

• TCP or UDP Client or Server operation - configurable

• Software Support - Windows 98/ME/2001/XP or NT 4.0

• Field upgradeable

• Configuration of wireless and serial port settings using:

o Web Console, which allows configuration via the network

using a web browser.

Communication Modes

LWS40xA Wireless Serial Servers enable communication with serial
devices over a wireless network. The three main types of communications
supported by LWS40xA Wireless Serial Servers are Direct IP Mode,
Virtual COM Mode and Serial Tunneling Mode.

Direct IP Mode

Direct IP connections allow applications using TCP/IP or UDP/IP socket
programs to communicate with the asynchronous serial ports on the serial
server. In this type of application the serial server is configured as a TCP or
UDP server. The socket program running on the PC establishes a
communication connection. The data is sent directly to and from the serial
port on the server. When using UDP protocol the server can be configured to
broadcast data to and receive data from multiple IP addresses.

Introduction

Documentation Number: LWS40xA-906m Chapter 1 3

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Virtual COM Mode

Virtual COM Mode allows application programs to effectively extend their
COM ports across the network. Data sent to that port is redirected via the
network to a COM port on the serial server. Windows programs using
standard Windows API calls are able to interface to these virtual COM ports.
When a program on the PC opens the port, it communicates with the remote
serial device connected to one of the ports on the serial server.

After connection, the LAN is transparent to the program and serial device.
Applications are able to work just as if the serial device is connected directly
to a physical COM port on the computer. The virtual COM port software
converts the application’s data into IP packets, sends it across the network to
the serial server, which converts the IP packet back to serial data and sends
the data out a serial port located on the serial server.

Serial Tunneling Mode

Serial Tunneling is also called paired mode. In this mode any two serial
devices that can communicate across the wireless link will be able to
communicate using two serial servers.

One server is configured as a TCP or UDP client and the other as a
TCP/UDP server. When setting up the server the remote IP address section
must contain the address of the client. This will allow the client’s IP address
to pass the IP address-filtering feature of the server. Conversely, the Remote
IP address of the client must contain the server’s IP address. Both
communication port numbers must be the same.

802.11 Wireless Networking Basics

LWS40xA wireless serial servers allow you to connect non-network-

enabled serial devices into a wireless network, giving you the capability to
gather more data and implement remote programming and management.
Serial devices no longer are limited to a physical connection to a PC. The
serial device can be connected to a LWS40xA wireless serial server
anywhere within range of an 802.11g compatible wireless access point.
Communication occurs transparently using TCP/IP or UDP/IP over a
wireless link. This allows traditional Windows PC software access to serial
devices anywhere on the wireless network.

The enabling technology for LWS40xA wireless serial servers is based on
the IEEE 802 standard. Some background on the standard follows.

Introduction

4 Chapter 1 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

802.11 Wireless Networking

IEEE 802.11 is a set of standards that defines how multiple devices can
communicate on a wireless network. The standard has grown into a set of
several standards that define various features and functions. The 802.11g
standard defines the physical and data link layers for a wireless network
using the 2.4 GHz frequency band, a band that does not require licensing. As
a part of the IEEE family of standards, 802.11 WLANs are easily connected
to 802.3 (Ethernet) LANs. Higher layer LAN protocols, network operating
systems and internetworking protocols such as TCP/IP integrate seamlessly.

Under the IEEE 802.11 standard there can be two different types of devices
on the wireless network: stations and access points (AP). A station often is a
PC equipped with a wireless network adapter. An 802.11 access point is a
radio with an interface that allows connection to a wired LAN. Access points
run bridging software to facilitate the connection from wireless to wired
network. The access point becomes the base station for the WLAN. It
aggregates access to the wired network for multiple wireless stations. An
access point may be a standalone device or a card in a PC.

Wireless Network Configurations

The 802.11 standard defines two modes of operation: infrastructure mode
and ad hoc mode. Infrastructure mode makes use of one or more access
points connected to a wired LAN. Wireless stations communicate with access
points to gain access to each other and/or the LAN. In the Basic Service Set
(BSS) several stations communicate with one access point, which is
connected to a wired LAN. In the Extended Service Set (ESS) two or more
access points connect to the LAN creating a subnetwork.

In ad hoc mode, also called Independent Basic Service Set (IBSS), access
points are not used. Wireless stations communicate directly with each other
in a peer-to-peer fashion. This mode allows individual computers to set up a
network where wireless infrastructure does not exist.

LWS40xA wireless serial servers can be configured to operate in
infrastructure mode only, ad hoc mode is not supported at this time. During
device configuration a wireless configuration wizard guides you through the
process of setting up the type of network, naming the network (specifying the
SSID, or service set identifier) and other parameters.

Introduction

Documentation Number: LWS40xA-906m Chapter 1 5

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

IEEE 802.11g

IEEE 802.11g standard specifies a WLAN that operates on the 2.4 GHz band
at data rates up to 54 Mbps, but is backward compatible with the earlier

802.11b standard (which operates at up to 11 Mbps). Systems can
incorporate 802.11b and 802.11g equipment and they will interoperate.
However, when connected into the same network the 802.11g equipment will
operate at the 11 Mbps limitation of the 802.11b equipment.

For media access, 802.11 wireless networks use CSMA/CA, a scheme in
which a station that intends to transmit ‘listens’ for traffic on the radio carrier
frequency and sends data packets if the frequency is clear. If the receiving
station receives the packet intact it sends an acknowledgement (ACK) to
confirm the packet has been received. If the transmitting station does not
receive an ACK it assumes a collision occurred and transmits again after a
random delay period.

Communications distances vary depending on the type and thickness of
material around an 802.11g node. The transmitter power output, the type of
antenna used and the amount of attenuation through materials also affects the
useable range. Electromagnetic noise, reflections, the amount of network
traffic, other radio devices operating in the same frequency band also affect
range and overall performance. In an infrastructure network the number of
access points and their coverage pattern also affect how well the system
operates. Typically an 802.11 device operating indoors will have a range
from 100 feet minimum to about 300 feet maximum. Outdoors, some
products, using high gain antennae may achieve line-of-sight ranges of five
miles or more.

Security is a significant concern for WLAN users. Whether security threats
originate intentionally or unintentionally, wireless systems are more
susceptible than wired systems. LWS40xA offer several security options
including WEP (Wired Equivalent Privacy), LEAP (Lightweight Extensible
Authentication Protocol) and others.

Introduction

6 Chapter 1 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

LWS40xA Startup Procedure

Setup and configuration of your LWS40xA wireless serial server is fast,
straightforward and simple. You have several options from which to choose. The
following procedure outlines an easy way to get your server set up and operational.

1. Package Checklist

To begin, check to see that you have everything you will require. The
contents of your LWS40xA package should include:

• One LWS401A, LWS406A, LWS402A or LWS404A Wireless Serial

Server

• One SMA antenna

• One Operation Manual

• One Quick Start Guide

• One CD containing

o Device Detection software
o Serial-IP Virtual COM Port Software
o the Operation Manual (in pdf format)
o the Quick Start Guide (in pdf format)

2. Hardware Setup

1. Connect the antenna to your LWS40xA

2. Connect a standard Ethernet (CAT5/RJ-45 straight through) cable

from the PC network adapter to the LWS40xA Configuration Port

3. Connect 24 VAC or 12 to 30 VDC power to the LWS40xA

4. Connect the serial port on the LWS40xA to the serial port on your

serial device. This is optional during the initial configuration steps
but will be required for operation.

For RS-232 operation, your LWS40xA is configured as a DTE and uses a DB­9M connector. Use a straight through RS-232 cable if your serial device is
configured as a DCE. If your serial device is con figured as a DTE you will have
to use a null modem (crossover) cable.

Introduction

Documentation Number: LWS40xA-906m Chapter 1 7

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

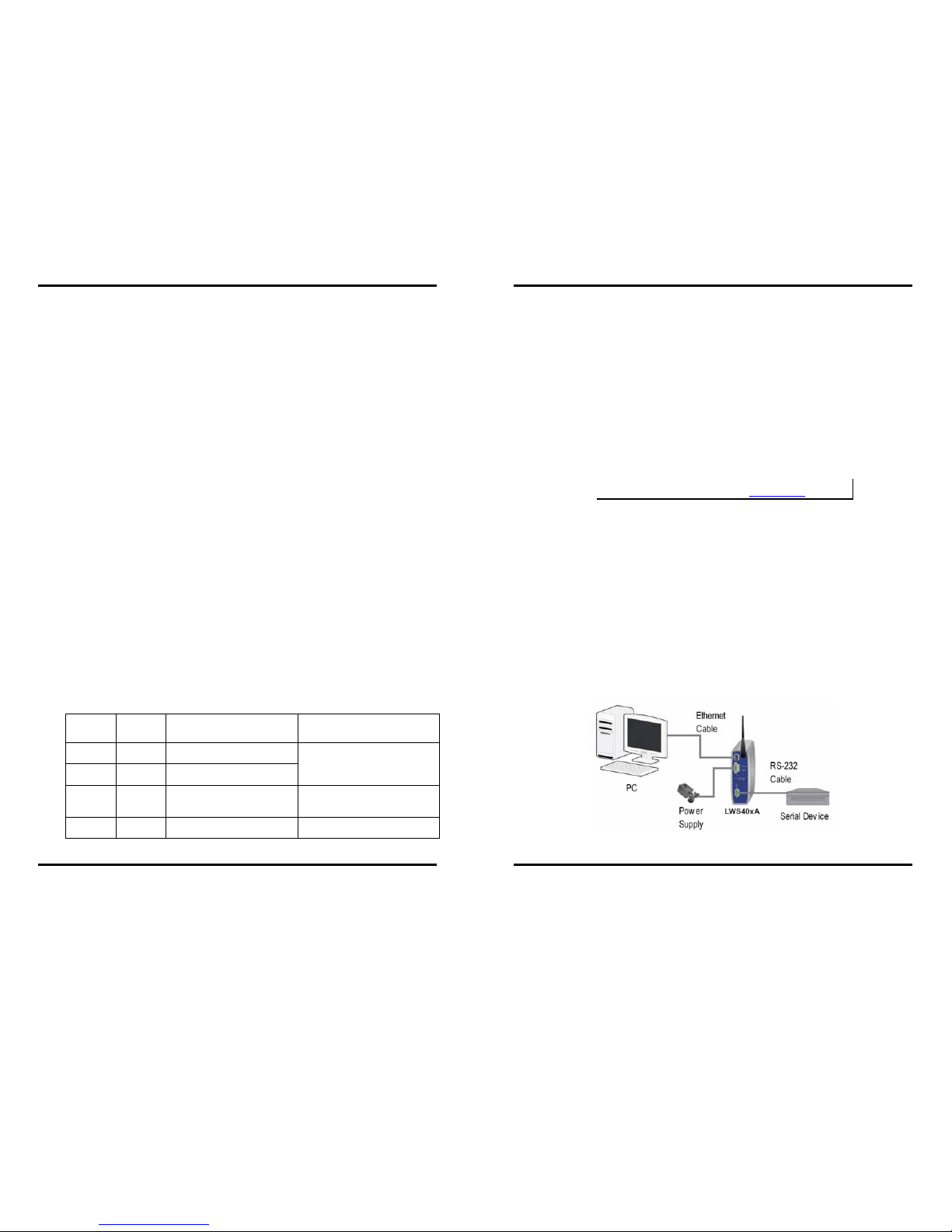

Figure 1. Direct Connection for Configuration

3. Power Up

1. Apply power to the LWS40xA

2. Front panel LED will illuminate with the following sequence:
a. Power LED will always be lit while device is powered
b. Signal Strength LED – White for 5 seconds, blink

yellow/Red and go dark.

c. The Link/Activity LED will be red when the device is

associating with an access point (if configured to do so)

d. The Link/Activity LED will be green when the device is

associated with an access point (if configured to do so)

Note: The device by default is not configured to associate with an access point

Operating System Boot Completion Indication

e. Once the device has booted successfully into the operating

system all of the LEDs with the exception of Power will
blink once to indicate a completed boot sequence.

f. When this sequence starts all of the LEDs will be lit for

one half of a second after which they will resume their
previous state.

Figure 2. LWS40xA LEDs

Introduction

8 Chapter 1 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

4. Set Up PC

1. Configure the PC to work in the 192.168.0.x private address range

2. Open a web browser

3. Enter 192.168.0.200 into the address bar of the browser

Figure 3. Web Console Device Information Page

5. Configuration

1. Enter your Username and Password to Login. The default username is

“Administrator” with no password.

2. Navigate to Wireless Settings, provide SSID name, configure security settings

3. Navigate to Serial Configuration, set up serial parameters to match your serial

device

4. Click Apply and restart the LWS40xA

6. Operation

1. LWS40xA will boot up and attempt to connect to the designated access point

2. The Link LED will light when it makes the connection

3. Communications will occur between the PC and serial device

Figure 4. Infrastructure Mode Operation

LWS40xA Hardware

Documentation Number: LWS40xA-906m Chapter 2 9

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

CChhaapptteerr 22:: LLWWSS4400xxAA HHaarrddwwaarree

Package Checklist

LWS40xA Wireless Serial Servers are shipped with the following items

included:
9 An LWS401A, LWS406A, LWS402A or LWS404A Wireless Serial

Server

9 This Operation Manual
9 CD-ROM disc with Device Detection Software and Serial/IP™ for

Windows 98/ME/2001/XP/NT 4.0, Operation Manual and Quick Start
Guide (in pdf format)

Figure 5. Front View of the LWS401A, LWS406A, LWS402A and

LWS404A Wireless Serial Servers

LWS40xA Hardware

10 Chapter 2 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Hardware Features

Indicators

Power LED

Red: Indicates the device is receiving power from an external source

Signal Strength LED

Tri-color: Indicates the connection quality:

• Dark: no connection or 0% signal strength

• Red: poor signal, represents 1% to 60% signal strength

• Blue: acceptable signal, represents 61% to 85% signal strength

• Green: good signal, represents 86% to 100% signal strength

Link/Activity LED

• Dark: no wireless connection is being attempted

• Solid Red: Indicates that a connection to a wireless access point or

device is being attempted.

• Blinking Red: When link is established, LED blinks.

• Solid Green: Indicates that a connection to a wireless access point or

device has been established.

• Green With Red: Red flashes on and off when data is present on the

wireless network.

Serial Port LEDs (for each port)

• Blinking Red: Indicates the serial port is communicating.

Reset Switch

The Reset switch is a recessed switch located on the front of the LWS40xA.
It can perform more than one function:

• Press 0 to 1 second: no effect

• Press and hold 1 to 10 seconds: reset serial server operating system

• Press and hold 10+ seconds: reset serial server to factory default

settings.

LWS40xA Hardware

Documentation Number: LWS40xA-906m Chapter 2 11

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Connectors

Configuration Port Connector

One standard RJ-45 receptacle that allows the serial server to be connected to
personal computer for programming, troubleshooting and device
configuration. A standard straight-through RJ-45 (male) Ethernet cable can
be used for this purpose. (This port is not intended to connect directly to an
Ethernet network.)

Antenna Connector

The antenna connector is a reverse SMA connector.

(An omni-directional antenna is supplied with LWS40xA wireless serial
servers. All LWS40xA serial servers are FCC-certified when the supplied
antenna is used.)

Serial Port Connector(s)

• LWS401A: One DB-9M connector

• LWS406A: One five-terminal removable terminal block

• LWS402A: Two DB-9M connectors

o Port 1: RS-232
o Port 2: software selectable for RS-232, RS-422 or RS-485

• LWS404A: Four DB-9M connectors

o Ports 1 & 3: RS-232
o Ports 2 & 4: software selectable for RS-232, RS-422 or RS-

485

Power Connector

The power connector is a removable terminal block with four terminals.
From top to bottom the terminals are:

Terminal
Number

Terminal

Name

Connect to Description

1

AC In

One side of AC power supply (if AC

power used)

2

AC In

Other side of AC power supply (if

AC power used)

24 VAC

1

DC GND

Negative side of DC power supply

(if DC power used)

Internally, the chassis ground of the
Server is connected to this terminal.

2 DC power

supply

Positive side of DC power supply (if

DC power used)

+12VDC to 30 VDC

LWS40xA Hardware

12 Chapter 2 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

RS-485 Receiver Biasing

LWS40xA wireless serial servers provide built-in receiver biasing on RS­485 ports (includes the LWS406A 485 port, LWS402A Port 2 and
LWS404A Ports 2 and 4). The Data(+) line is pulled up to 3.3V supply using
a 4.7 kΩ resistor and the Data(-) line is pulled down to ground, also using a

4.7 kΩ resistor.

RS-422/485 Terminating

If a terminating resistor is deemed necessary, for RS-422 operation typically
a 120 Ω resistor would be connected across the Receive Data(+) and Receive
Data(-) lines. For RS-485 operation the resistor would be connected across
the Data(+) and Data(-) lines.

For more information on Receiver Biasing and RS- 422/485 Terminating access the
Black Box RS-422/485 Applicati o n Not e a vai l a bl e at www.blackbox.com)

Connections for Server Configuration

LWS40xA Wireless Serial Servers can be configured via:

• A wired connection to a RJ-45 Ethernet connector on the LWS40xA

front panel.

• The wireless network

The wired connection is recommended for configuration, especially when
configuring wireless settings, to ensure communication is not lost while
changing settings.

Figure 6. Wired Connection for Configuration

LWS40xA Hardware

Documentation Number: LWS40xA-906m Chapter 2 13

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

For wireless configuration, or for typical infrastructure mode operation, the
LWS40xA communicates with a wireless access point, which is connected to
a PC via a wired network.

Figure 7. Connection via the Wireless LAN

Other Hardware Connections

Serial tunneling can occur between two LWS40xA serial servers
communicating with individual access points and across a wired network.

Figure 8. Serial Tunneling via Infrastructure

LWS40xA Hardware

14 Chapter 2 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Web Console

Documentation Number: LWS40xA-906m Chapter 4 15

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

CChhaapptteerr 44:: DDeevviiccee CCoonnffiigguurraattiioonn vviiaa

WWeebb CCoonnssoollee

The Web Console can be used to configure your LWS40xA Wireless Serial
Server from any web browser software (such as Internet Explorer, Mozilla
Firefox or Netscape). Server properties can be set up using six browser
pages: Main, Serial, Network, Wireless, User and Status.

Accessing the Web Browser

In your browser, type the IP Address of the serial server into the address field
at the top of the window and press the

Enter key. The following window

appears.

Figure 9. The Web Console Main Page

Enter your Username and Password to Login. The default username is
“Administrator” with no password. After you have logged in you will be able
to navigate through the web console pages and change properties as required
using the mouse and keyboard.

Web Console

16 Chapter 4 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

You can change the Device Name of the serial server by typing in a different
name

For changes to take effect on this or any other Web Console page, you must
click the Apply button before navigating away from the page.

Configuring the Serial Port

To configure the serial server serial port parameters to match the serial
device connected to the serial server’s port click

Serial on the Web Console

banner. The Serial Configuration page appears. In the Serial
Configuration page you can select each serial port on the serial server and

view or change its parameters.

Figure 10. The Web Console Serial Configuration Page

Select the port to be configured from the Port dropdown list. The selections
available in the Interface Type dropdown will change depending on the
capabilities of the selected port. Select the communications parameters based
on the requirements of the serial device to be connected to the serial server.

Configuring Communications Modes and
Protocols

To configure serial server communications modes and protocols, click the

Advanced button on the Serial Configuration page. The Advanced Serial
Configuration page appears. On this page you can configure:

• Connection Mode (TCP or UDP)

Web Console

Documentation Number: LWS40xA-906m Chapter 4 17

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

• Connection Protocol (RAW Client, RAW Server, Virtual COM Port

Server, RFC2217 Client)

• Server (Remote) IP Address

• Server (Remote) Port

• Local Port

• Send Serial Data to Ethernet… conditions

For explanations of these configuration parameters see Adjusting the
behavior of device communication ports.

Configuring Network Properties

To view or change network properties, click Network on the Web Console
banner. The Device Network Settings appears. This page contains the
Ethernet settings for the wired Configuration Port and the wireless serial
server. If you are configuring the LWS40xA via the hardwired
Configuration Port select Wired Port in the dropdown list box. To
configure via the wireless network, select Wireless in the dropdown list box.

You can choose between dynamic or static IP addressing and view or set up
static addressing parameters.

Figure 11. The Web Console Device Network Settings Page

Configuring Wireless Properties

To view or change wireless properties, click Wireless on the Web Console
banner. The Wireless Interface Configuration page appears.

Web Console

18 Chapter 4 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Figure 12. The Web Console Wireless Interface Configuration Page

On this page you can specify the SSID, or name of the network you want to
connect to. Several other text boxes display useful information about the
devices wireless network configuration:

• Wireless Output Power

• Security Method

o WEP
o LEAP

Managing Users Accounts

As administrator, you can configure multiple user accounts, setting up rights
for each user. User Accounts can be added and removed, and user details
viewed in the Users page. User Details (rights) include: Manage User

Accounts, Modify Device Network Settings, Modify Device Serial Port
Settings, Manage Log, Update Device Firmware and Reset Device.

To view or change user properties, click

User on the Web Console banner.

The following page will appear:

Web Console

Documentation Number: LWS40xA-906m Chapter 4 19

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Figure 13. The Web Console Users Page

Using Device Status Information

To view or change device status properties, click Status on the Web Console
banner. The following page will appear:

Figure 14. The Web Console Status Page

Web Console

20 Chapter 4 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Device Communication Ports

Documentation Number: LWS40xA-906m Chapter 5 21

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

CChhaapptteerr 55:: AAddjjuussttiinngg tthhee BBeehhaavviioorr ooff

DDeevviiccee CCoommmmuunniiccaattiioonn PPoorrttss

There is a significant difference between serial and Ethernet data communications.
Data that comes in through the Ethernet is presented to the device in the form of very
distinct packets. On the other hand without information about the format of the data
coming in through the serial port the device may not know at what point to package
up the data and hand it off to the Ethernet network. It is for this reason that the
LWS40xA series of devices allow you to define when the device converts serial
stream data into Ethernet packets. The following examples are provided to illustrate
the power behind these options:

Configuration #1: The LWS40xA is connected to a device used to monitor air
temperature. Software that interfaces with this hardware polls the device for the
current status once a minute. This data is returned in the form of a single byte
containing the temperature in Celsius.

Configuration #2: This LWS40xA is connected to a machine is connected to an
ATM machine. When a customer starts a transaction with the ATM a large burst of
serial data is passed onto the central bank.

Obviously in both of the configurations the data is critical and needs to be passed over
the network in the quickest manner possible. For configuration #1 the best behavior
for the device would be to send the incoming byte of temperature information out over
the network as soon as it comes in. On the other hand if the device acted the same way
for the second configuration it would flood the network with all of the Ethernet
overhead. In this case the device would be better to wait for a moment and send a full
Ethernet packet rather than a packet for each byte of data.

There are a number of different conditions that your LWS40xA can be configured to
watch for when dealing with the data coming in through it’s serial communication
port(s).

• Polling Strings

• Timeouts

• Data Quantities

Device Communication Ports

22 Chapter 5 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Polling Strings

Polling strings are used when you want the LWS40xA to look for a specific data
pattern before taking the data in it’s serial buffer and creating an Ethernet packet with
it. Polling strings can be configured to monitor not only the serial traffic but the
Ethernet traffic as well.

Timeouts

Polling strings are used when you want the LWS40xA to look for a specific data
pattern before taking the data in its serial buffer and creating an Ethernet packet with
it.

There are two different types of timeouts. Total Message and Inter-character timeouts.
A Total Message timeout counter starts when the first byte is received. Once the
specified amount of time has elapsed since this initial byte the trigger is fired and the
device will transmit the buffered data.

The second type of timeout is an Inter-character timeout. This is used to trigger after a
defined amount of inactivity.

Data Quantities

In addition to the two previously mentioned methods of Ethernet packet transmission
triggers you can also setup a specific data amount that the device will wait for before
acting on the incoming data.

Using Multiple Conditions

You can use the data trigger conditions individually or it is also possible to use them
in combination with each other. When more than one condition is specified they are
treated as a “logical AND”. This means that if any of the conditions specified is true
then the data buffer is transmitted.

Device Communication Ports

Documentation Number: LWS40xA-906m Chapter 6 23

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

CChhaapptteerr 66:: DDeevviiccee DDiissccoovveerryy aanndd

VViirrttuuaall CCOOMM PPoorrttss

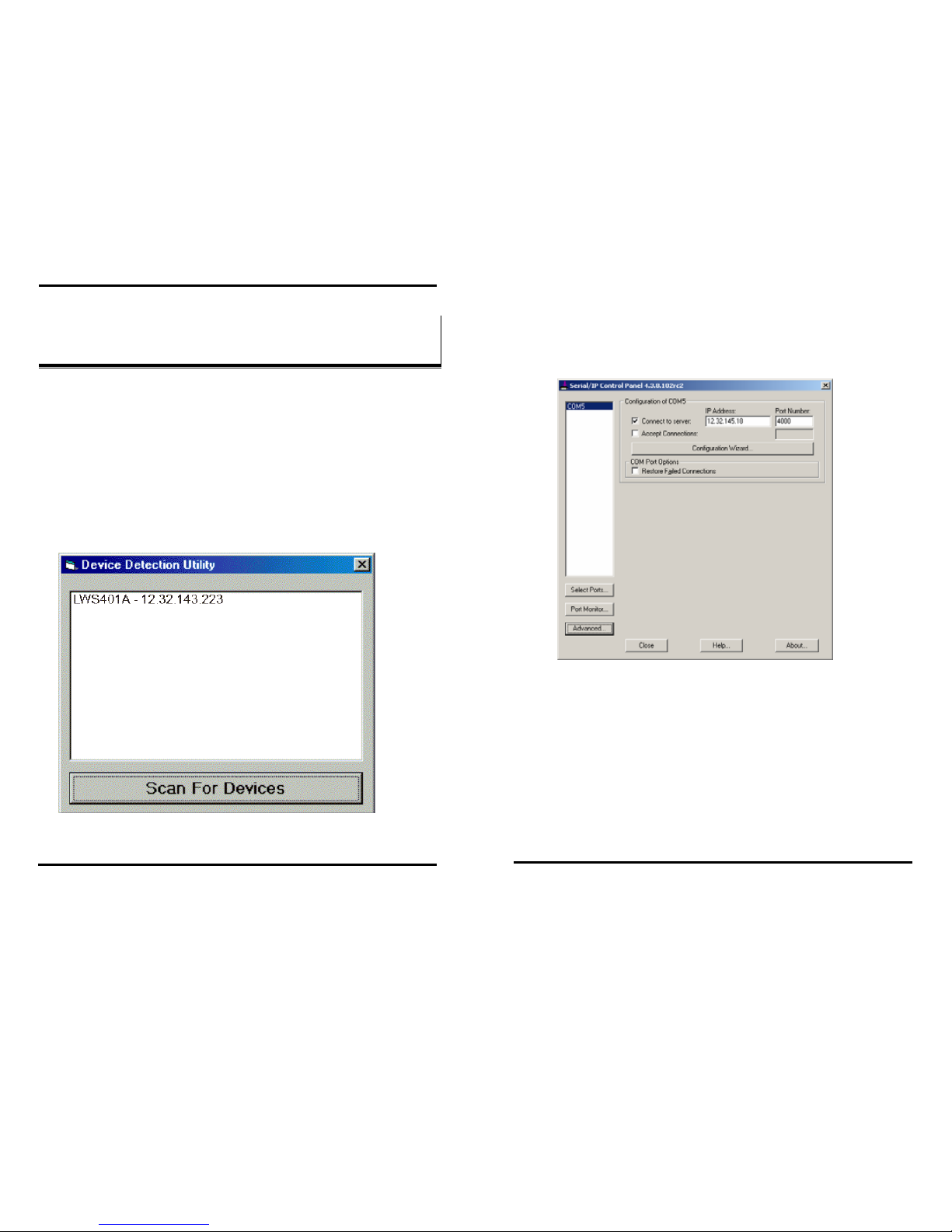

Device Detection Utility

To find devices on a wireless network, run the Device Detection Utility. This
program will be installed in the start menu at Black Box\Tools.

To use, click “Scan For Devices”. The software will send a broadcast and all
devices on that subnet will be displayed in the list. The device will be displayed
with a friendly name and the IP Address that it was found on.

A typical scan would look something like this:

After completing a network scan, use the IP Address to browse to the Web Server
to configure the device.

Device Communication Ports

24 Chapter 6 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

VCOM Port Setup

To install and manage Virtual COM ports, Serial IP software will be provided.
The software will be installed in the start menu at Serial-IP. To run the setup
software, choose Control Panel and this screen will be displayed:

To setup and assign a port, follow these steps:

1. Click “Select Ports” to assign a VCOM

2. Check “Connect to server”

3. Assign IP Address and Port number of device

4. Click “Configuration Wizard”

5. Click “Start”

6. If Configuration Wizard completes successfully, click “Use Settings”

7. Close Serial IP Control Panel

LWS40xA Technical Data

Documentation Number: LWS40xA-906m Appendix A 25

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

AAppppeennddiixx AA:: LLWWSS4400xxAA TTeecchhnniiccaall DDaat

t

aa

Product Specifications

Serial Server Model: LWS401A, LWS406A, LWS402A or LWS404A

Manual: Paper copy of this manual, PDF available

Dimensions 6.85 x 5.72 x 2.27 in (17.4 x 14.5 x 5.77 cm)

Power Supply Voltage Requirements: 12V to 30 VDC or 24VAC

Power Consumption: 12W max, on air

Operating Temperature: 0 to 60 °C (32 to 140 °F)

Storage Temperature: −40 to 85 °C (−40 to 185 °F)

Humidity: 5% to 98% R.H. non-condens ing

Approvals: CE, FCC (using the supplied antenna)

Serial Port Activity Indicator: Red LED

Link/Activity Indicator: Red LED

Port Indicator: Red LED

Set Up Connector: Single RJ-45 female (auto configuring)

Serial Connector(s): LWS401A: one 9 pin D-type male (DB-9M)

LWS406A one removable five terminal screw-type terminal block
LWS402A: Two 9 pin D-type male (DB-9M)
LWS404A: Four 9 pin D-type male (DB-9M)

Power Supply: (AC or DC) Removable four terminal screw-type terminal block
RS-232 Interface Lines Supported: TXD, RXD, RTS, CTS, DTR, DSR, DCD , RI, GND
RS-422 Interface Lines Supported: TXDB(+), TXDA(−), RXDB(+), RXDA(−) and GND
RS-485 Interface Lines Supported: Data B (+), Data A (–) and GND

Serial Data Rates: 110, 300, 60 0, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400,

57600, 115200, 230400 bps

LWS40xA Technical Data

26 Appendix A Documentation Numbe r: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Parity: None, Even, Odd, Mark, Space

Data Bits: 5, 6, 7 or 8

Stop Bits: 1, 1.5 or 2

Set-up Options: Web Console Configuration

Configuration Modes: Direct TCP Server, Client

Virtual COM Port Connection
Pair Mode

Configuration Port: Ethernet RJ-45, Auto-MDX

Wireless Network Interface: 2.4 GHz IEEE 802.11g DSSS

Wireless Data Rates: 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, 1 Mbps

RF Power: +15 dBm Nominal (without antenna gain)

Security: WEP standard encryption, 64/128 bit, administration/configuration

password protection

Antenna: Omni-directional antenna included, reverse SMA connector

Protocols: TCP, IP, ARP, DHCP, HTTP, UDP, ICMP

Stability & Troubleshooting Features: Internal device application logging, Fault logging

Hardware watchdog timer
LEDs indicators for Power, Signal strength, LAN-link, Data

Advanced Data Management: Buffer level triggering

Serial and network delimiter triggering
Serial line status triggering
Total message timeout
Inter-character message timeout

Accessories: Lightning ar restor

Panel mount bracket

Serial Memory: 1K byte per port

Network Memory: 1K byte

LWS40xA Technical Data

Documentation Number: LWS40xA-906m Appendix A 27

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Default Server Properties

Server Name LWS401A or LWS406A or LWS402A or LWS404A

Serial Number: (printed on bottom of unit)

Password: Blank

DHCP: Disable

IP Address: 192.168.0.20 0

Net Mask: 255.255.255.0

Gateway: 192.168.0.25 4
MAC Address: Fixed – see bottom label
Version&Date: current firmware version number & date

Serial server port: 1

Baud Rate: 9600
Data//Stop: 8-1

Parity: None

Flow Control: None

TCP/UDP Protocol: TCP

Serial timeout: 0 seconds

TCP alive timeout: 0 minutes
Connection Mode: Server

TCP/UDP port: LWS401A/402A/404A/406A Port 1: 4000

LWS402A/404A Port 2: 4001
LWS404A Port 3: 4002
LWS404A Port 4: 4003

Serial port mode: LWS40xA (all ports): RS-232

Max connection: 1

Remote IP Address: 255.255.255.255

LWS40xA Technical Data

28 Appendix A Documentation Numbe r: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

LWS40xA Dimensional Diagrams

Figure 15. Dimensional Diagram of the LWS401A

Figure 16. Dimensional Diagram of the LWS406A

LWS40xA Technical Data

Documentation Number: LWS40xA-906m Appendix A 29

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Figure 17. Dimensional Diagram of the LWS402A

Figure 18. Dimensional Diagram of the LWS404A

LWS40xA Technical Data

30 Appendix A Documentation Numbe r: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

RS-232/422/485 Connections

Documentation Number: LWS40xA-906m Appendix B 31

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

AAppppeennddiixx BB:: RRSS--223322//442222//448855 CCoonnnneeccttiioonnss

DB-9 Pin-outs for RS-232 and RS-232/422/485
Connections

DB-9M

Pin

RS-232

Signal Name

RS-232 DTE RS-422 RS-485

1 Carrier Detect DCD In TXDA(-)
2 Receive Data RXD In TXDB(+)
3 Transmit Data TXD Out RXDB(+) DATA B(+)
4 Data Terminal Ready DTR Out RXDA(-) DATA A(-)
5 Signal Ground GND --- GND GND
6 Data Set Ready DSR In
7 Request To Send RTS Out
8 Clear To Send CTS In
9 Ring Indicator RI In

Figure 19. DB-9 Pin-outs for RS-232/422/485

RS-232/422/485 Connections

32 Appendix B Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Terminal Block Pin-out for RS-422 and RS-485
( LWS406A only)

1
2
3
4
5

G

N

D

T

X

D

A

(

-

)

T

X

D

B

(

+

)

R

X

D

B

(

+

)

/

D

a

t

a

(

+

)

R

X

D

A

(

-

)

/

D

a

t

a

(

-

)

Terminal RS-422

RS-422

Signal Name

RS-485

RS-485

Signal Name

1 TXDB (+) Transmit Data(+) -- -­2 TXDA (-) Transmit Data(-) -- -­3 RXDB (+) Receive Data(+) Data(+) Data(+)
4 RXDA(-) Receive Data(-) Data(-) Data(-)
5 Ground Signal Ground Ground Ground

Figure 20. Terminal Block Pin-out for LWS406A Serial Connection

RS-232/422/485 Connections

Documentation Number: LWS40xA-906m Appendix B 33

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

1
2
3
4

Signal Name Terminal

AC Power Supply

(24 VAC)

1

AC Power Supply

(24 VAC)

2

DC Gnd 3

DC Power Supply

(+12 VDC to 30 VDC)

4

Figure 21. Terminal Block Pin-out for LWS40xA Power Supply

Connection

RS-232/422/485 Connections

34 Appendix B Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Configuration Port Connections

Documentation Number: LWS40xA-906m Appendix C 35

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

AAppppeennddiixx CC:: CCoonnffiigguurraattiioonn PPoorrtt CCoonnnneeccttiioonns

s

RJ-45 Pin-out for Configuration Por t Connection

The Configuration Port on the LWS40xA Wireless Serial Servers is wired as
a standard Ethernet connector. However, this port is intended for direct
connection to a PC for configuration purposes only and is not to be
connected to a network.

A standard Ethernet cable can be used to connect the PC to the Configuration
Port.

RJ-45 Pin Signal Wire Color RJ-45 Pin

1 TX+ White-Green 1
2 TX- Green 2
3 RX+ White-Orange 3
4 Not used Blue 4
5 Not used White-Blue 5
6 RX- Orange 6
7 Not used White-Brown 7
8 Not used Brown 8

Figure 22. Pin-out for a Standard Ethernet Cable

Configuration Port Connections

36 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Declaration of Conformity

Documentation Number: LWS40xA-906m 37

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]

Declaration of Conformity

DECLARATION OF CONFORMITY

Model Numbers: LWS401A, LWS406A, LWS402A, LWS404A
Description: Wireless Serial Servers
Type: Light industrial ITE equipment
Application of Council Directive: 89/336-EEC
Standards: EN 55022
EN 61001-6-1

EN 61001 (-4-1, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11)

Declaration of Conformity

38 Documentation Number: LWS40xA-906m

Black Box Corporation - 1001 Park Drive - Lawrence, PA 15055-1018

www.blackbox.com -- Tech Support and Ordering: 724-746-5500 - Fax: [phone]
