1. Getting Started

This guide provides step-by-step instructions for how to use the Pure Networking
Broadband Router and connect to the Internet.

1. Set up your network as shown in Figure 1-1.

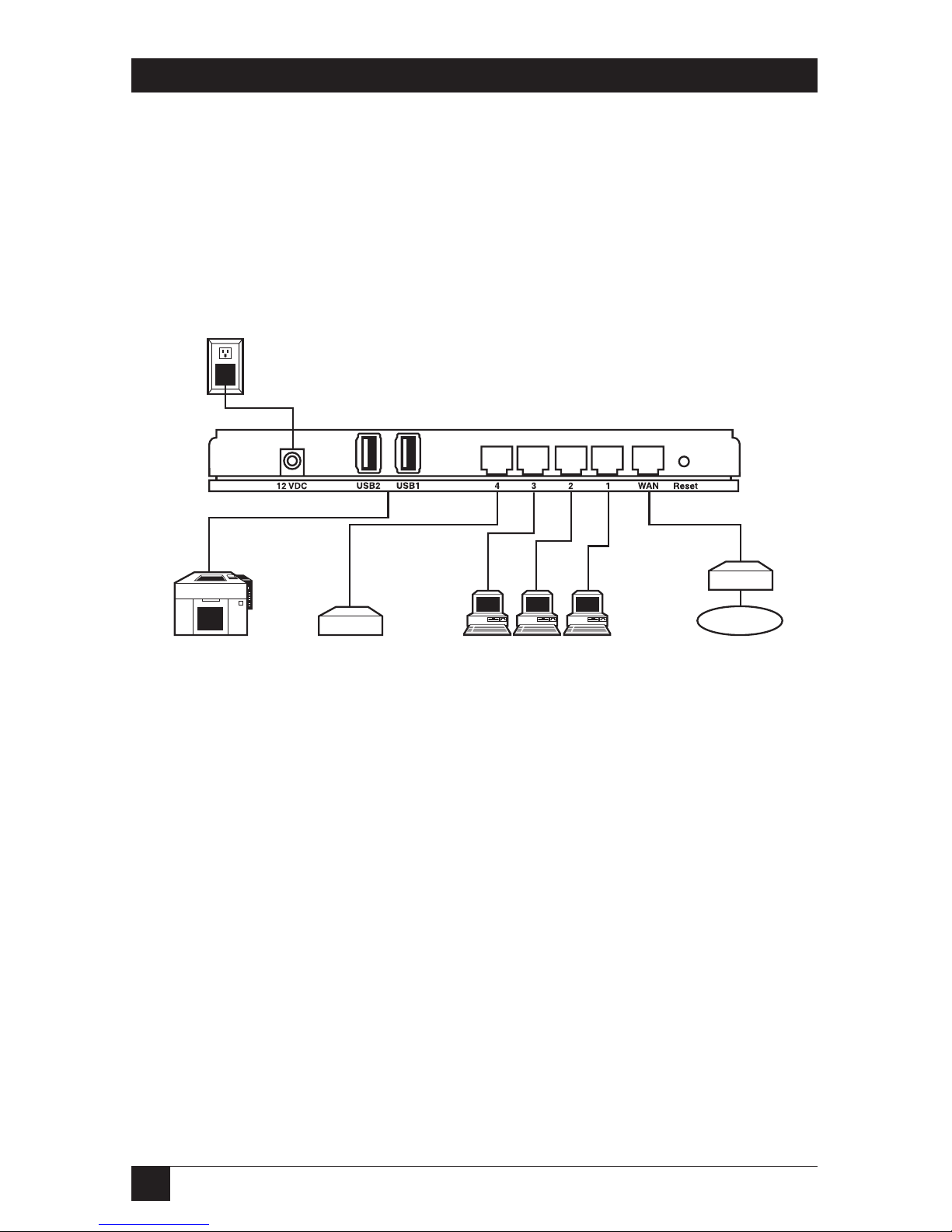

Figure 1-1. Typical LAN setup.

2. Set your LAN PC automatically. By default, the Broadband Router’s DHCP
server is enabled so that you can obtain an IP address automatically.

NOTE

Make sure that the Pure Networking Broadband Router’s DHCP server is
the only DHCP server available on your LAN. If there is another DHCP
server on your network, then you’ll need to switch one of the DHCP
servers off.

3. Once your PC has obtained an IP address from your router, enter the default
IP address 192.168.2.1 (the router’s IP address) into your PC’s Web
browser and press Enter. See Figure 1-2.

Switch/Hub

PCs

Printer

(2) USB

Type A

ports

ADSL or

cable

modem

Pure Networking

Broadband Router

(LR9603A)

Internet

AC power

7

CHAPTER 1: Getting Started

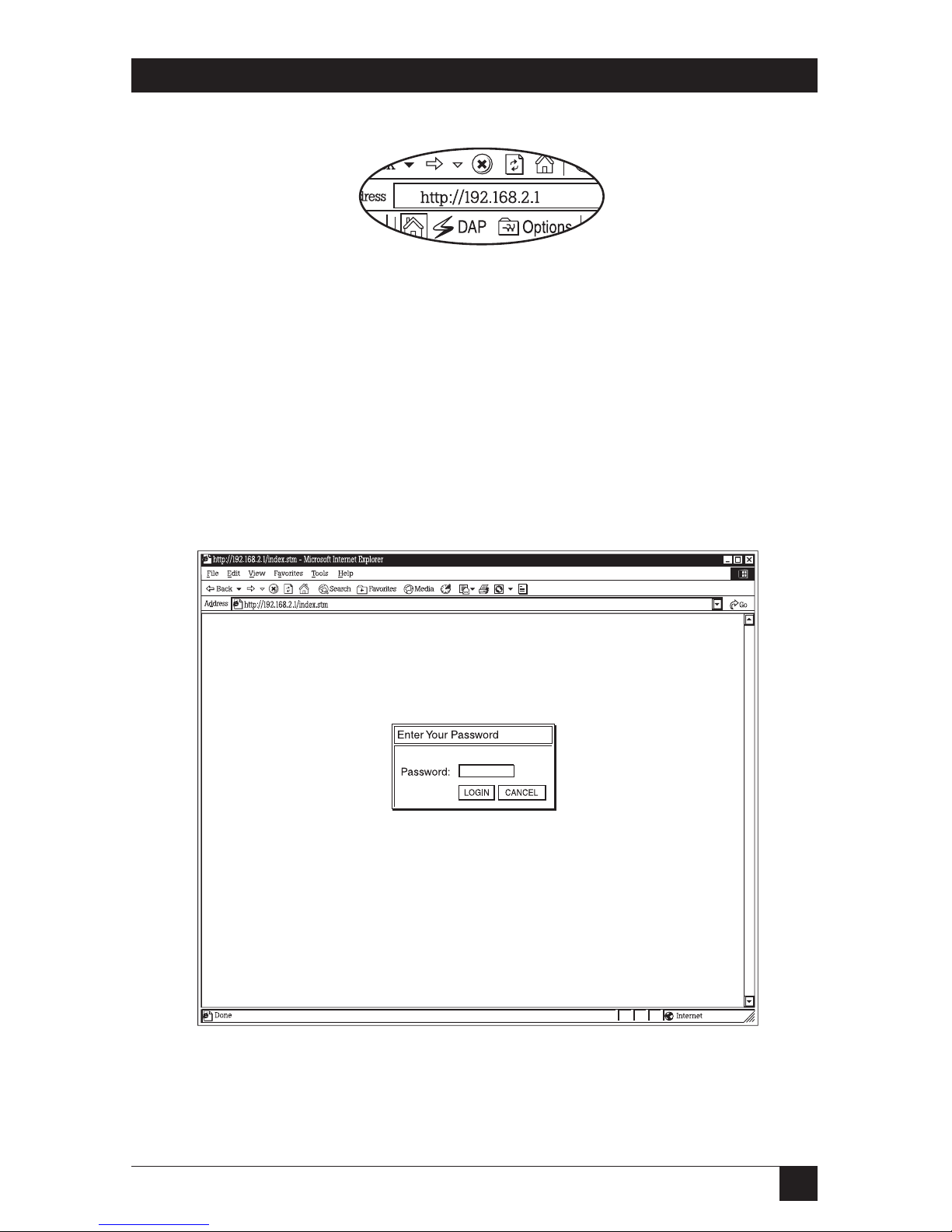

Figure 1-2. Entering the default IP address.

4. The screen shown in Figure 1-3 will appear. This site contains the router’s
Web-based management screens that allow you to configure your Pure
Networking Broadband Router. Click on LOGIN.

NOTE

By default there is no password. For security reasons, we recommend
that you add a password as soon as possible.

Figure 1-3. The Enter Your Password screen.

5. Follow the instructions in Chapters 2 and 3.

8

PURE NETWORKING BROADBAND ROUTER QUICK INSTALLATION GUIDE

2. Quick Setup Wizard

2.1 Setup

The Quick Setup Wizard is designed to get you using the Pure Networking
Broadband Router as quickly as possible. You are required to fill in only the
information necessary to access the Internet. Once you click on the Quick Setup
Wizard in the Home page, you should see the screen shown in Figure 2-1.

2.2 Time Zone

The Time Zone allows your router to base its time on the settings configured here.
This will affect functions such as log entries and firewall settings.

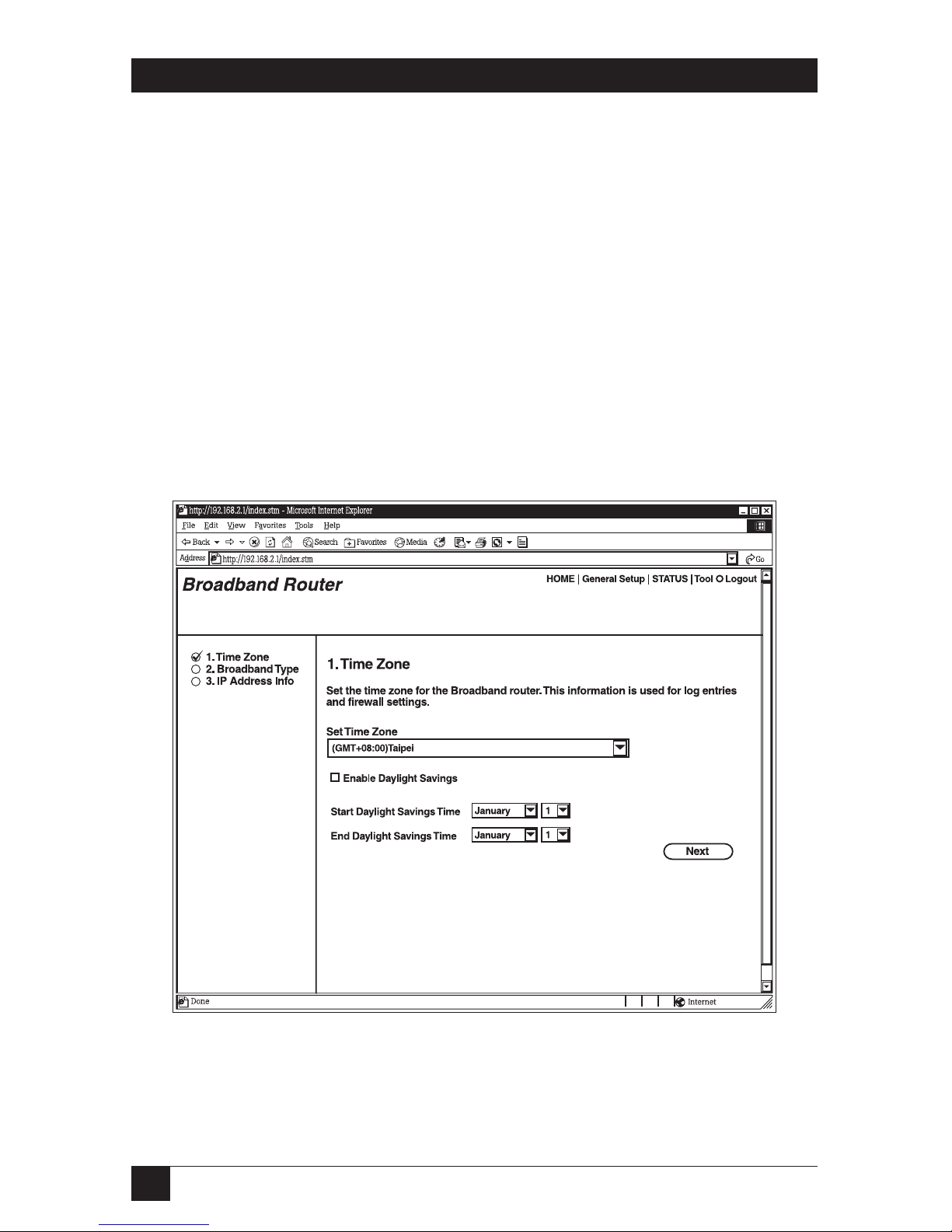

Figure 2-1. Set Time Zone screen.

Table 2-1 describes the router’s time zone options.

9

CHAPTER 2: Quick Setup Wizard

Table 2-1. Set Time Zone screen parameters.

Parameter Description

Set Time Zone Use the drop-down menu to select the time zone of

the country you are currently in. The router will set its

time based on your selection.

Enable Daylight Savings The router can also take Daylight Savings into

account. If you want to use this function, check the

Enable Function box to enable the Daylight Savings

configuration.

Start Daylight Savings Time Use the drop-down menu to select the day you want

to start Daylight Savings Time.

End Daylight Savings Time Use the drop-down menu to select the day you want

to end Daylight Savings Time.

Next button Click on this button to save your changes and go on

to the next screen.

Click on Next to proceed to Broadband Type.

2.3 Broadband Type

In this screen, you’ll select one of four types of connections that you’ll use to
connect your Pure Networking Broadband Router’s WAN port to your ISP (see
Figure 2-2).

NOTE

Different Internet Service Providers (ISPs) require different methods of
connecting to the Internet. Check with your ISP for the type of
connection it requires.

10

PURE NETWORKING BROADBAND ROUTER QUICK INSTALLATION GUIDE

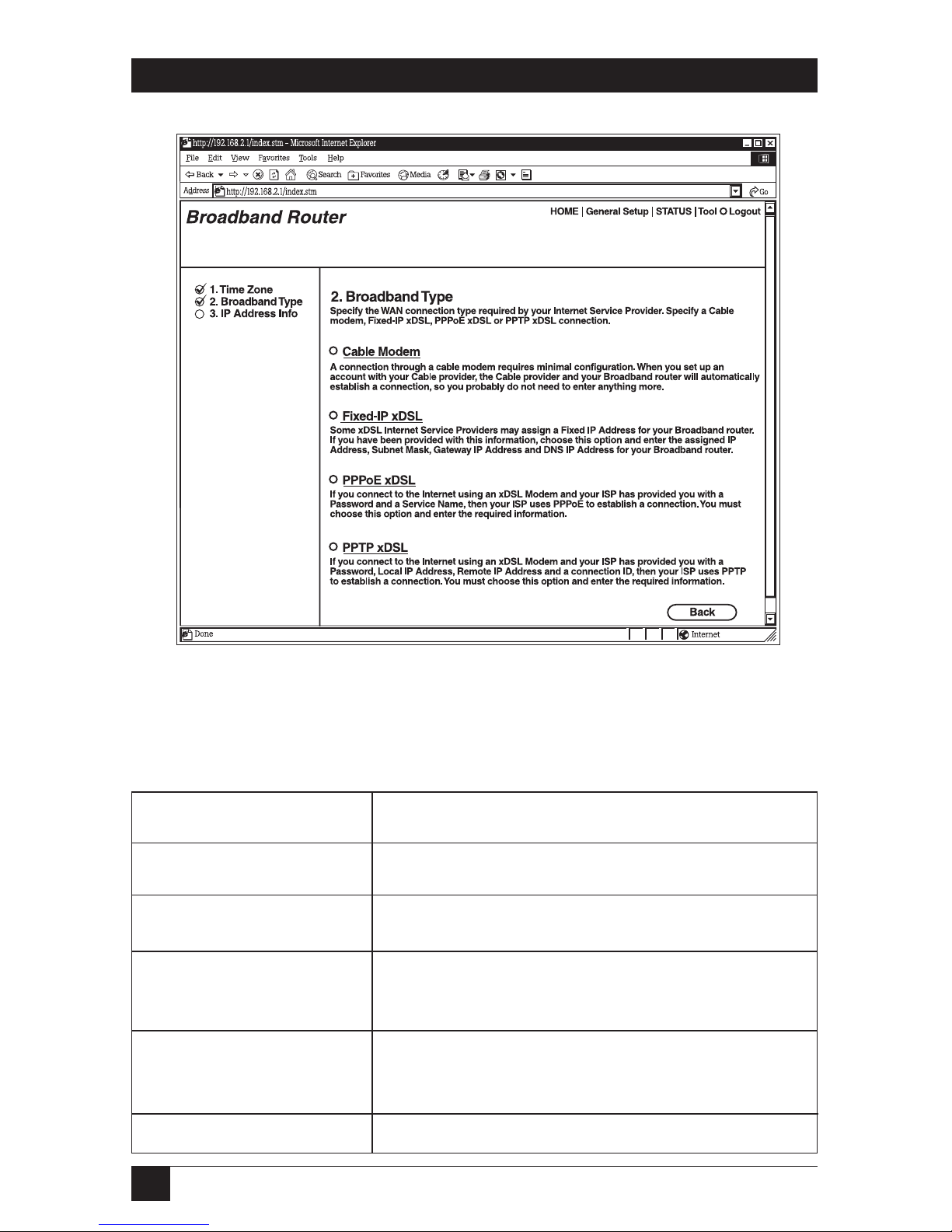

Figure 2-2. Selecting the broadband type.

Table 2-2 lists the ways that the router selects addresses and connections.

Table 2-2. Broadband type parameters.

Menu Type of Connection

Cable Modem Your ISP will automatically give you an IP address.

Fixed-IP xDSL Your ISP has given you an IP address already.

PPPoE xDSL Your ISP requires you to use a Point-to-Point

Protocol over Ethernet (PPPoE) connection.

PPTP xDSL Your ISP requires you to use a Point-to-Point

Tunneling Protocol (PPTP) connection.

Back button Click on this button to go back to the previous screen.

11

CHAPTER 2: Quick Setup Wizard

Click on one of the WAN types and then proceed to the manual’s relevant sub­section (2.3.1, 2.3.2, 2.3.3, or 2.3.4). Click on Back to return to the previous
screen.

2.3.1 C

ABLE

M

ODEM

Choose Cable Modem if your ISP will automatically give you an IP address. Some
ISPs may also require you to fill in additional information, such as Host Name and
MAC address (see Figure 2-3).

NOTE

The Host Name and MAC address section is optional. You can skip this
section if your ISP does not require these settings for you to connect to
the Internet.

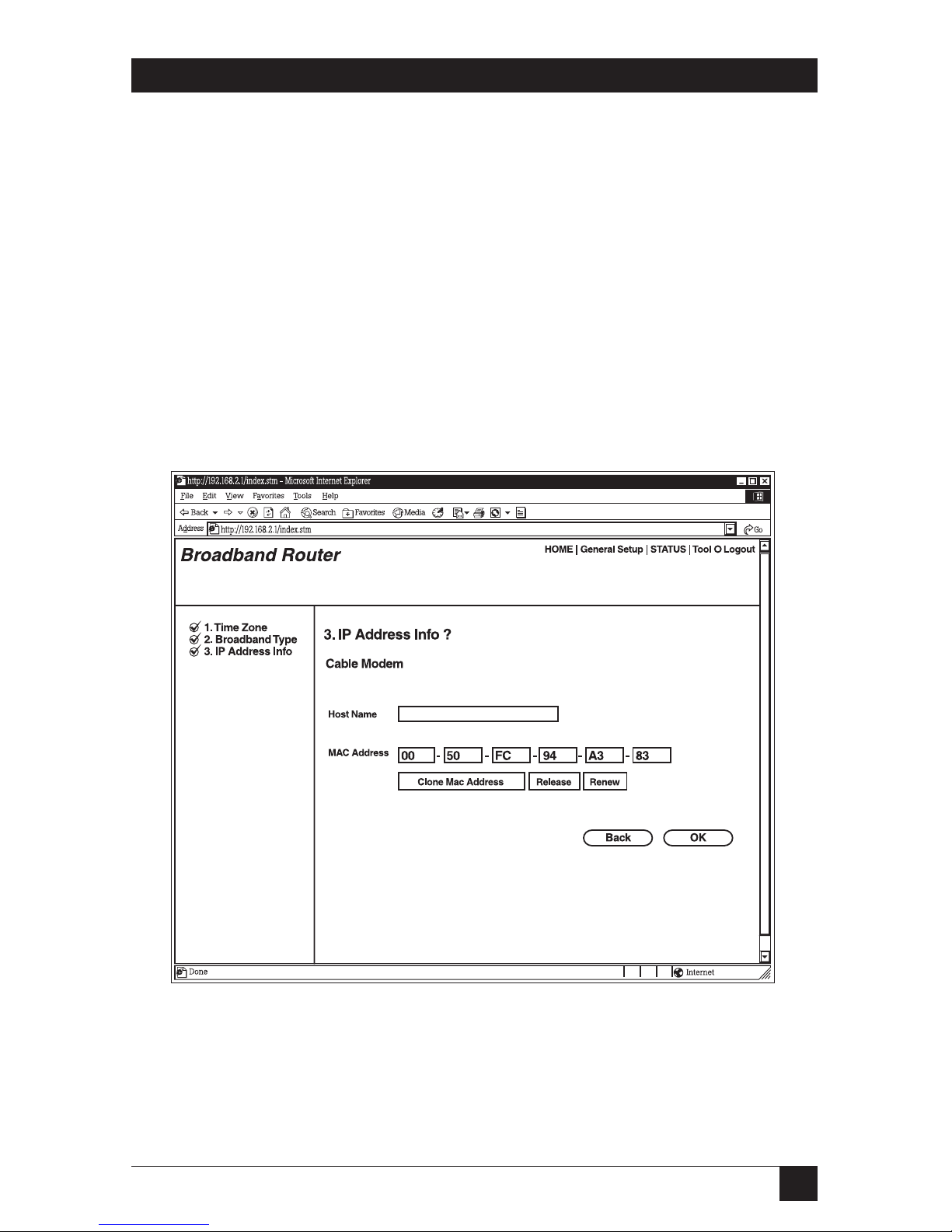

Figure 2-3. IP Address Info, Cable Modem.

Table 2-3 lists the cable modem’s host name and MAC address options.

12

PURE NETWORKING BROADBAND ROUTER QUICK INSTALLATION GUIDE

Table 2-3. Cable modem parameters.

Parameter Description

Host Name If your ISP requires a host name, type in the host

name provided by your ISP. Leave it blank if your ISP

does not require a host name.

MAC Address Your ISP may require a particular MAC address in

order for you to connect to the Internet. This MAC

address is the PC’s MAC address that your ISP had

originally established your Internet connection to.

Type in the MAC address in this section.

Clone MAC Address Or, use the Clone MAC Address button to replace

button the WAN MAC address with the MAC address of the

PC you are currently using. To find out what the PC’s

MAC address is, see Appendix A in the users’

manual.

Release button Click on this button to release the WAN IP address.

Renew button Click on this button to renew the WAN IP address.

Back button Click on this button to go back to the previous screen.

OK button Click on this button to save your changes and go on

to the next screen.

Click OK when you have finished the configuration above. The configuration for
the cable modem connection is complete. You can start using the router now. If
you wish to use some of the advanced features supported by this router, see
Chapters 6, 7, and 8 in the users’ manual on the CD-ROM that’s included with
your router.

2.3.2 F

IXED

-IP XDSL

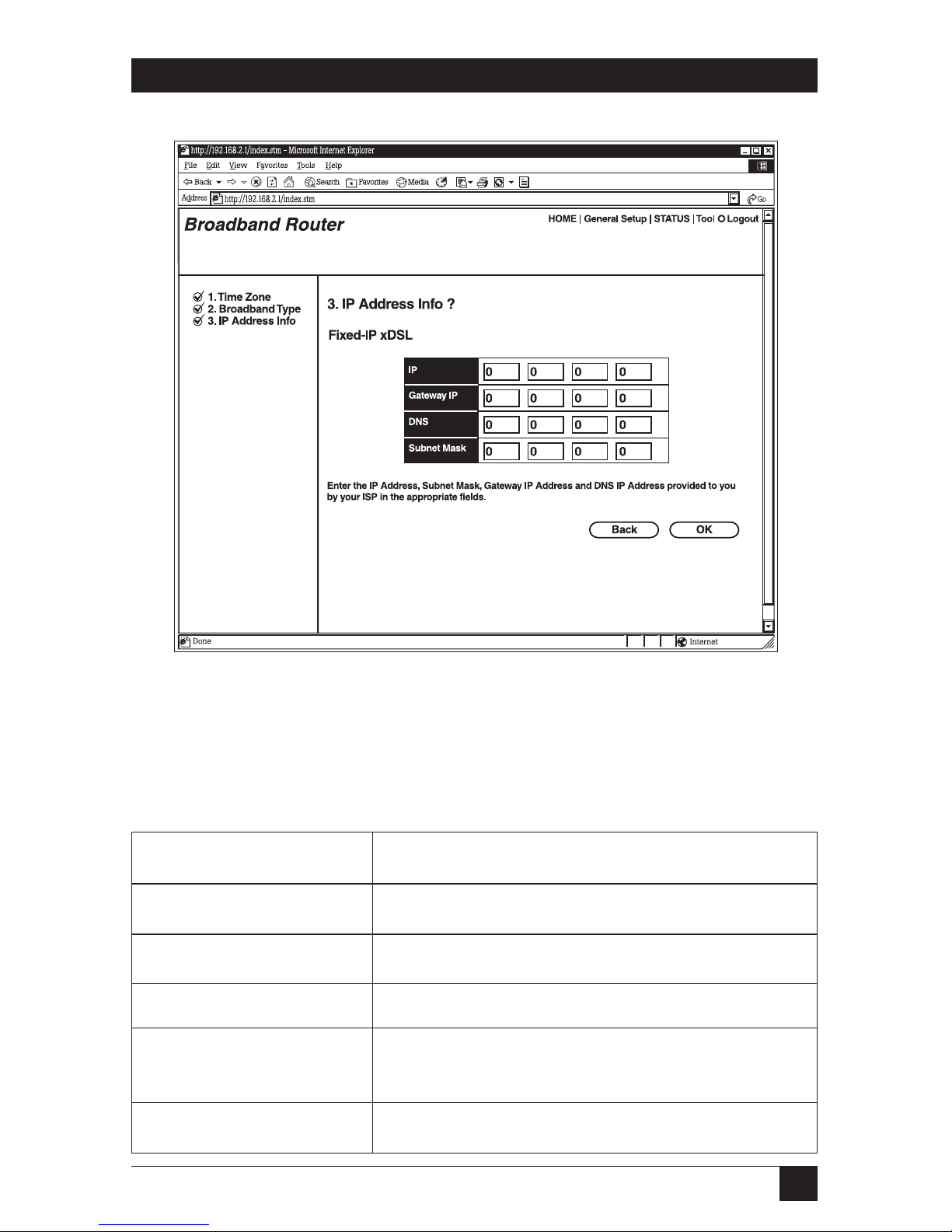

Select Fixed-IP xDSL if your ISP has given you a specific IP address to use. Your ISP
should provide all the information required in this section. See Figure 2-4.

13

CHAPTER 2: Quick Setup Wizard

Figure 2-4. IP Address Info, Fixed-IP xDSL.

Table 2-4 describes the Fixed-IP xDSL options.

Table 2-4. The router’s fixed-IP xDSL parameters.

Parameter Description

IP This is the IP address that your ISP has given you.

Gateway IP This is the ISP’s IP address gateway.

DNS This is the ISP’s DNS server IP address.

Subnet Mask Enter the subnet mask provided by your ISP

(for example, 255.255.255.0).

Back button Click on this button to go back to the previous screen.

14

PURE NETWORKING BROADBAND ROUTER QUICK INSTALLATION GUIDE

Table 2-4 (continued). The router’s fixed-IP xDSL parameters.

Parameter Description

OK button Click on this button to save your changes and go on

to the next screen.

Click OK when you have finished adding the information. The configuration for
the Fixed-IP xDSL connection is complete. You can start using the router now. If
you want to use some of the advanced features supported by this router, see
Chapters 6, 7, and 8 of the users’ manual on the CD-ROM that’s included with the
router.

2.3.3 PPPOE XDSL

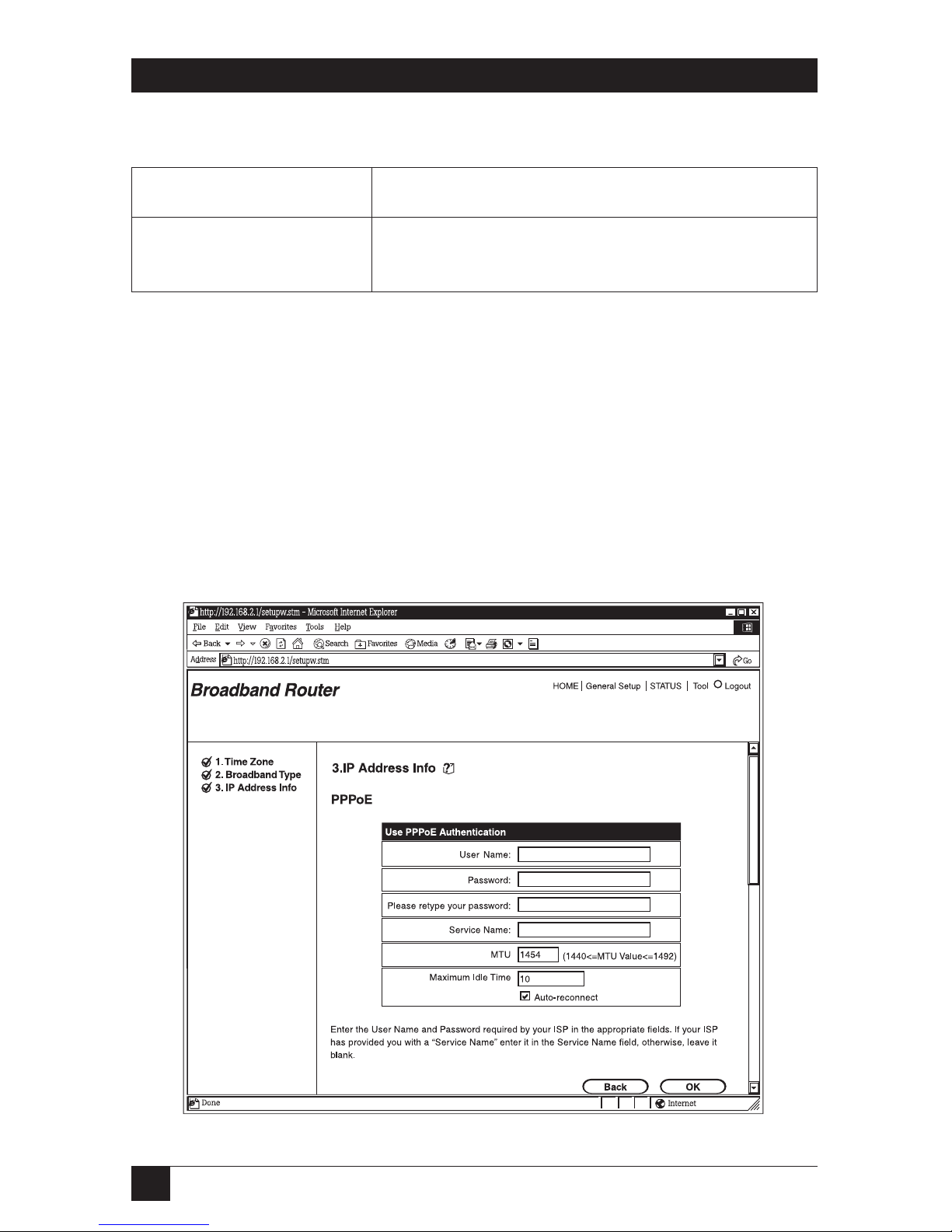

Select PPPoE xDSL if your ISP requires the PPPoE protocol to connect you to the
Internet. Your ISP should provide all the information required in this section (see
Figure 2-5).

Figure 2-5. IP Address Info, PPPoE.

15

CHAPTER 2: Quick Setup Wizard

Table 2-5 lists the parameters you must select to activate the PPPoE protocol.

Table 2-5. PPPoE parameters.

Parameter Description

User Name Type in the user name provided by your ISP for the

PPPoE connection.

Password Type in the password provided by your ISP for the

PPPoE connection.

Please retype Type in the password again to reconfirm.

your password

Service Name This is optional. Type in the service name if your ISP

requires it; otherwise, leave it blank.

MTU This is optional. Type in the maximum size of your

transmission packet to the Internet. Leave it as is if

you do not want to set a maximum packet size.

Maximum Idle Time Type in an idle time threshold (minutes) for the WAN

port. This means that if no packets have been sent

(no one using the Internet) during this specified

period, the router will automatically disconnect the

connection with your ISP.

Auto-reconnect If you check the Auto-reconnect function, then when

the WAN connection is disconnected, the router will

automatically reconnect when a user requests access

to the Internet.

Back button Click on this button to go back to the previous screen.

OK button Click on this button to save your changes and go on

to the next screen.

16

PURE NETWORKING BROADBAND ROUTER QUICK INSTALLATION GUIDE

NOTE

Idle time “0” means no timeout; for example, no time restriction
(always On).

Click OK when you have finished the configuration above. The configuration for
the PPPoE connection is complete. You can start using the router now. If you want
to use some of the advanced features supported by this router, see Chapters 6, 7,
and 8 in the users’ manual.

2.3.4 PPTP XDSL

Select PPTP xDSL if your ISP requires the PPTP protocol for connecting you to the
Internet. Your ISP should provide all the information required in this section. See
Figure 2-6.

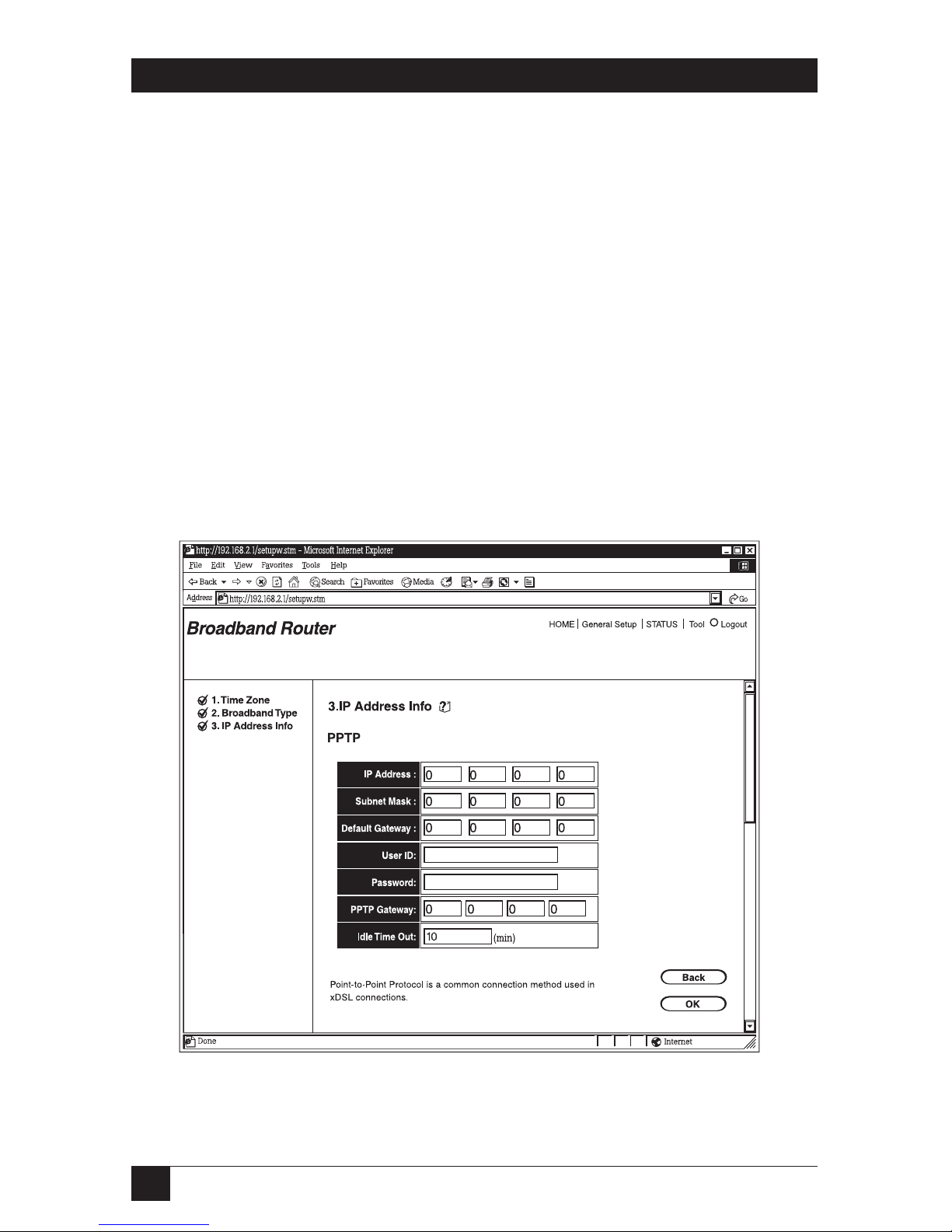

Figure 2-6. IP Address Info, PPTP.

17

CHAPTER 2: Quick Setup Wizard

Table 2-6 lists the options you must select to enable the PPTP protocol.

Table 2-6. PPTP parameters.

Parameter Description

IP Address Type in the IP address that your ISP has given you to

establish a PPTP connection.

Subnet Mask Type in the subnet mask provided by your ISP

(for example, 255.255.255.0).

Default Gateway Type in the ISP gateway’s IP address.

User ID Type in the user name provided by your ISP for the

PPTP connection. This is sometimes called a

connection ID.

Password Type in the password provided by your ISP for the

PPTP connection.

PPTP Gateway If your LAN has a PPTP gateway, then type in that

PPTP gateway IP address here. If you do not have a

PPTP gateway, then enter the ISP’s Gateway IP

address.

Idle Time Out You can type in an idle time threshold (minutes) for

the WAN port. This means that if no packets have

been sent (no one is using the Internet) throughout

this specified period, then the router will automatically

disconnect the connection with your ISP.

Back button Click on this button to go back to the previous screen.

OK button Click on this button to save your changes and go on

to the next screen.

18

PURE NETWORKING BROADBAND ROUTER QUICK INSTALLATION GUIDE

NOTE

Idle time “0” means no time out; for example, no time restriction
(always On).

Click OK when you have finished the configuration above. The configuration for
the PPTP connection is complete. You can start using the router now. If you want
to use some of the advanced features supported by this router, see Chapters 6, 7,
and 8 in the users’ manual.

19

CHAPTER 3: Print Server

3. Print Server

3.1 Install the Print Server Network Driver

1. In Windows®, open the Command Prompt program.

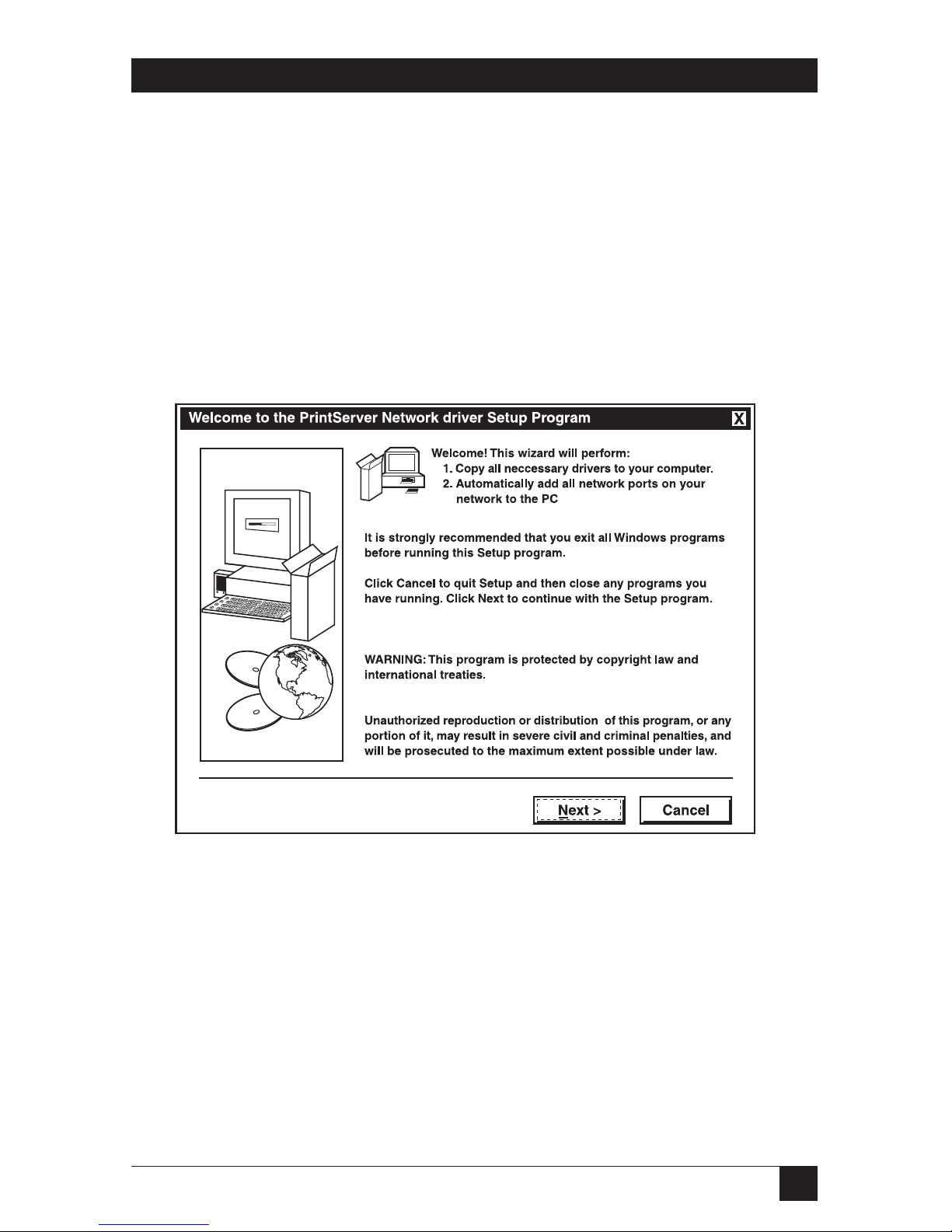

2. Type WEClient.exe at the prompt, and the PrintServer Network Driver

Setup Program window will appear. See Figure 3-1.

Figure 3-1. PrintServer Network Driver Setup Program window.

20

PURE NETWORKING BROADBAND ROUTER QUICK INSTALLATION GUIDE

3. Click on the Next button and specify the destination folder where the utility
will be installed. See Figure 3-2. Or, click on the Cancel button to cancel the
setup.

Figure 3-2. Choose Destination Location window.

Table 3-1 lists the button functions shown in Figure 3-2.

Destination Folder

D:\...\PrintServer Network driver

Browse…

21

CHAPTER 3: Print Server

Table 3-1. Destination Location window parameters.

Parameter Description

Browse Click on this button to browse through the available

destination folders.

Back Click on this button to go back to the previous screen.

Next Click on this button to save your changes and go on to

the next screen.

Cancel Click on this button to cancel your changes.

4. Click on the Next button and specify the program folder where the program
icons will be added. See Figure 3-3.

22

PURE NETWORKING BROADBAND ROUTER QUICK INSTALLATION GUIDE

Figure 3-3. Select Program Folder window.

Table 3-2 describes the program folder options.

Table 3-2. Program folder parameters.

Parameter Description

Program Folders Type in the program folder name.

Existing Folders Scroll through the existing folders list.

Back button Click on this button to go back to the previous screen.

Next button Click on this button to save the changes and go on

to the next screen.

Cancel button Click on this button to cancel the changes.

▲

23

CHAPTER 3: Print Server

5. Click on the Next button to start installation. The Utilities Installation window
(not shown here) appears on your screen.

6. The program will finish installing all the utilities and drivers. So far you’ve
only completed the installation phase and prepared to use the print server.

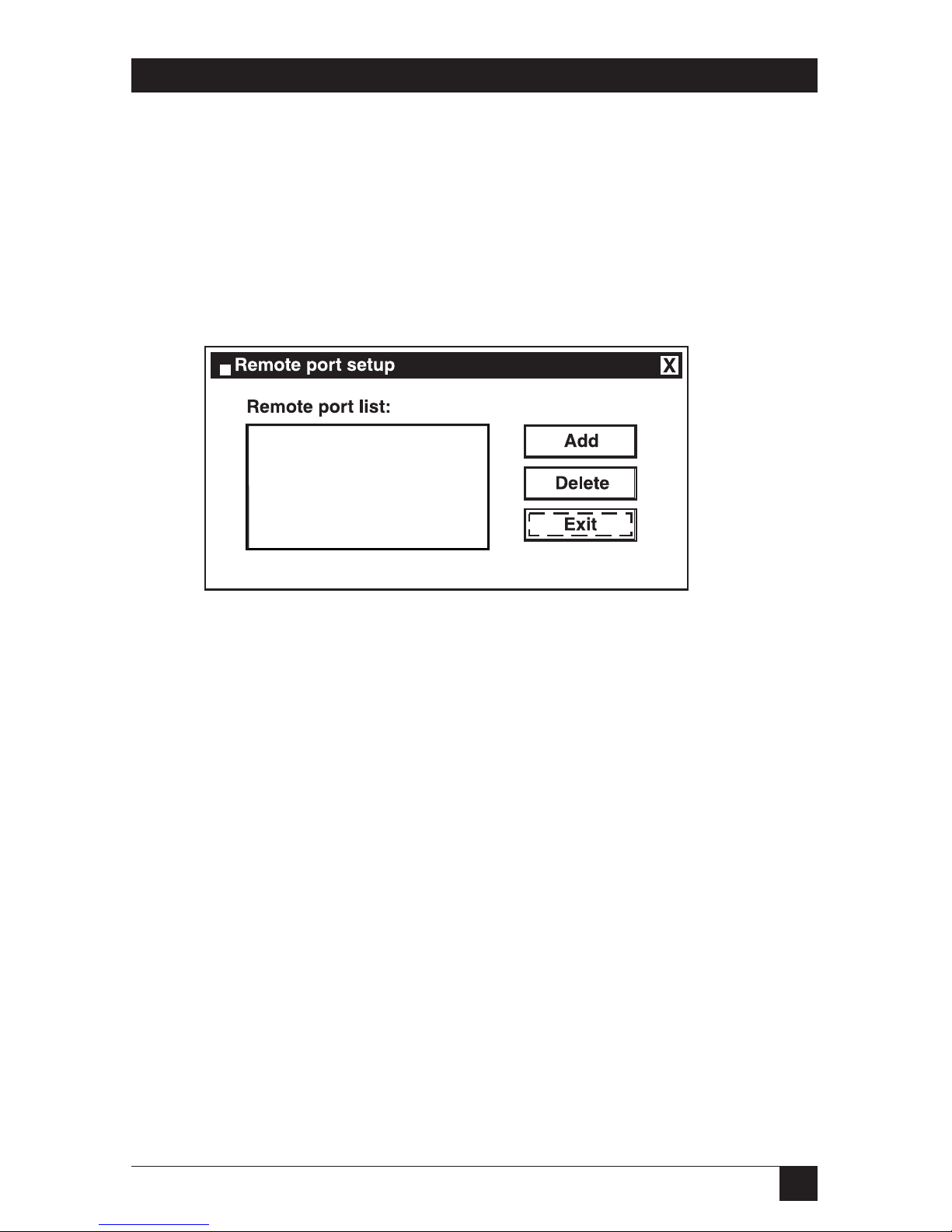

Next, you’ll add a remote port for the print server. Click on the Add button to
add a remote port. See Figure 3-4. Or, click on the Delete button to cancel, or
the Exit button to exit.

Figure 3-4. Remote Port Setup window.

7. You have to assign a print server name and enter the print server’s IP address.
You can only select P1 or P2 (the router has only two print ports). After filling
in the data, click OK to proceed. See Figure 3-5. Or, click on Cancel to cancel
the changes without saving.

24

PURE NETWORKING BROADBAND ROUTER QUICK INSTALLATION GUIDE

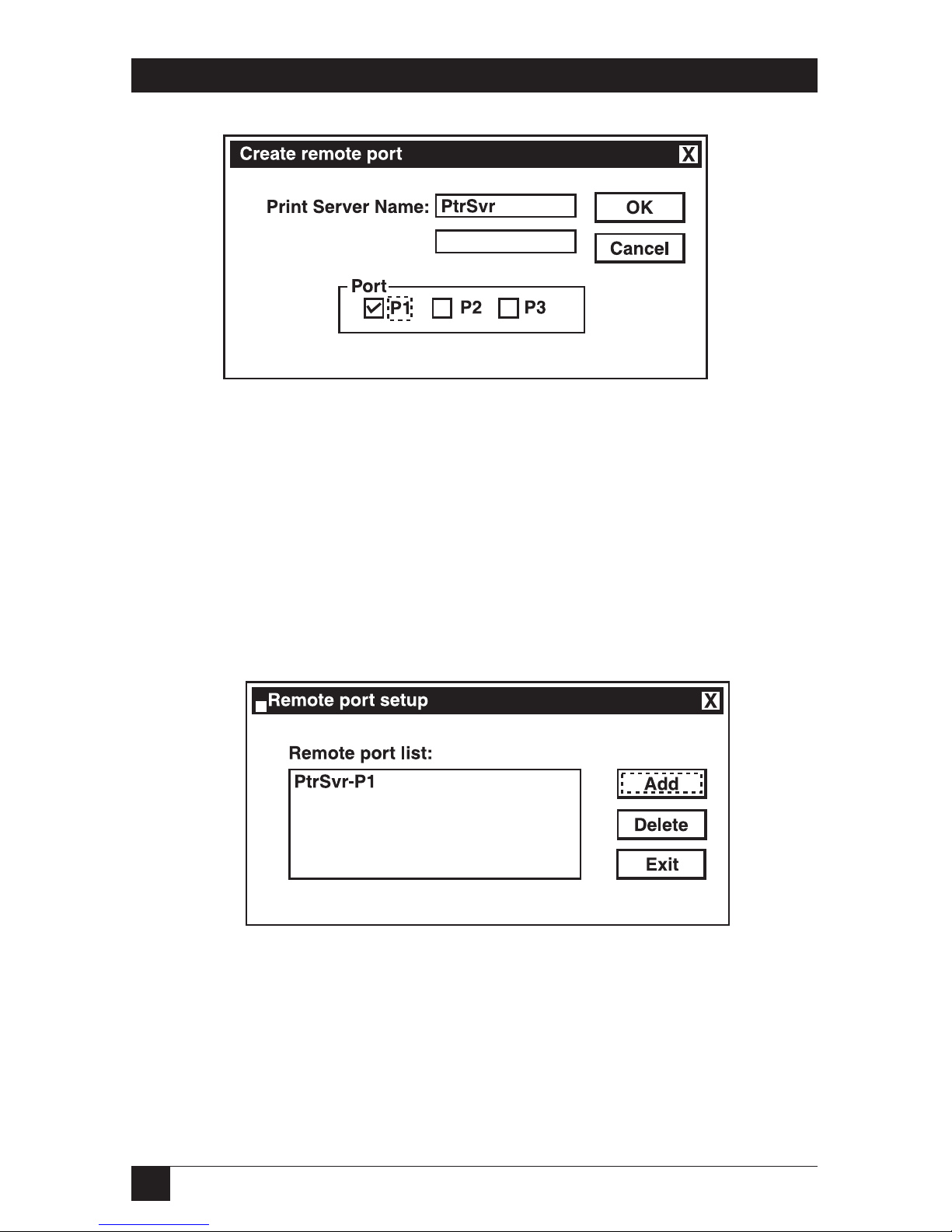

Figure 3-5. Create Remote Port window.

8. After adding a remote port for the print server, you can see the remote port’s
name in the remote port list. The remote port’s name consists of the print
server name and the port number, which are separated by a hyphen. For
example, if you assign “PtrSvr” as the print server name and select port “P1”,
then the remote port’s name will be “PtrSvr-P1”. You can click Add to add
another remote port. Click Delete to delete a selected remote port. When you
have finished setting the remote port, click Exit to exit the setup tool. See
Figure 3-6.

Figure 3-6. Remote Port Setup window.

9. Print server client tool installation is complete. You can start using the print
server.

X

IP Address:

196.168.2.1

25

CHAPTER 3: Print Server

3.2 Add a Network Printer

After installing the print server client tool, you need to add the network printer to
your PC.

1. Click the Start button. Choose Setting and Printers.

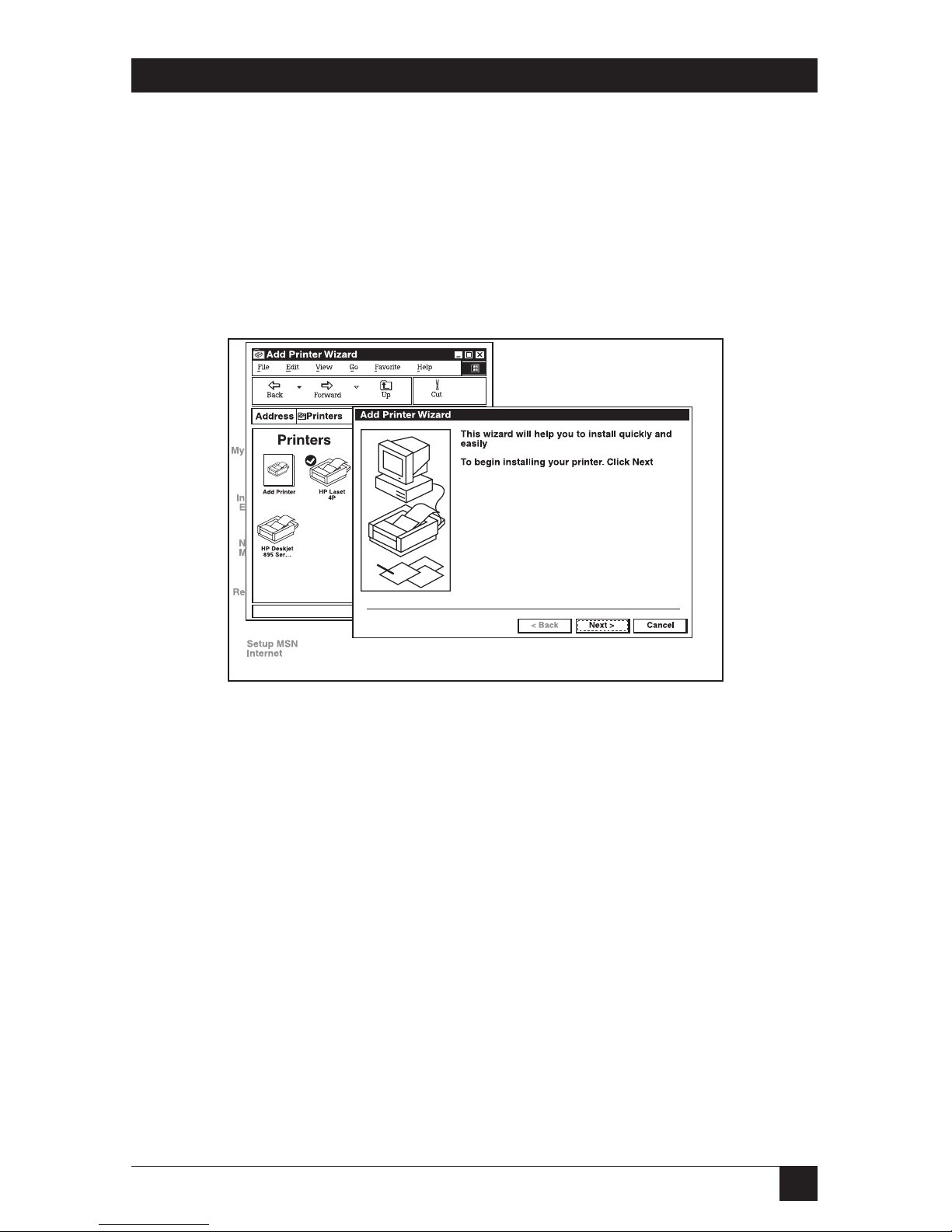

2. Double-click on Add Printer. See Figure 3-7. Click on Next to continue.

Figure 3-7. Add Printer window.

>>

26

PURE NETWORKING BROADBAND ROUTER QUICK INSTALLATION GUIDE

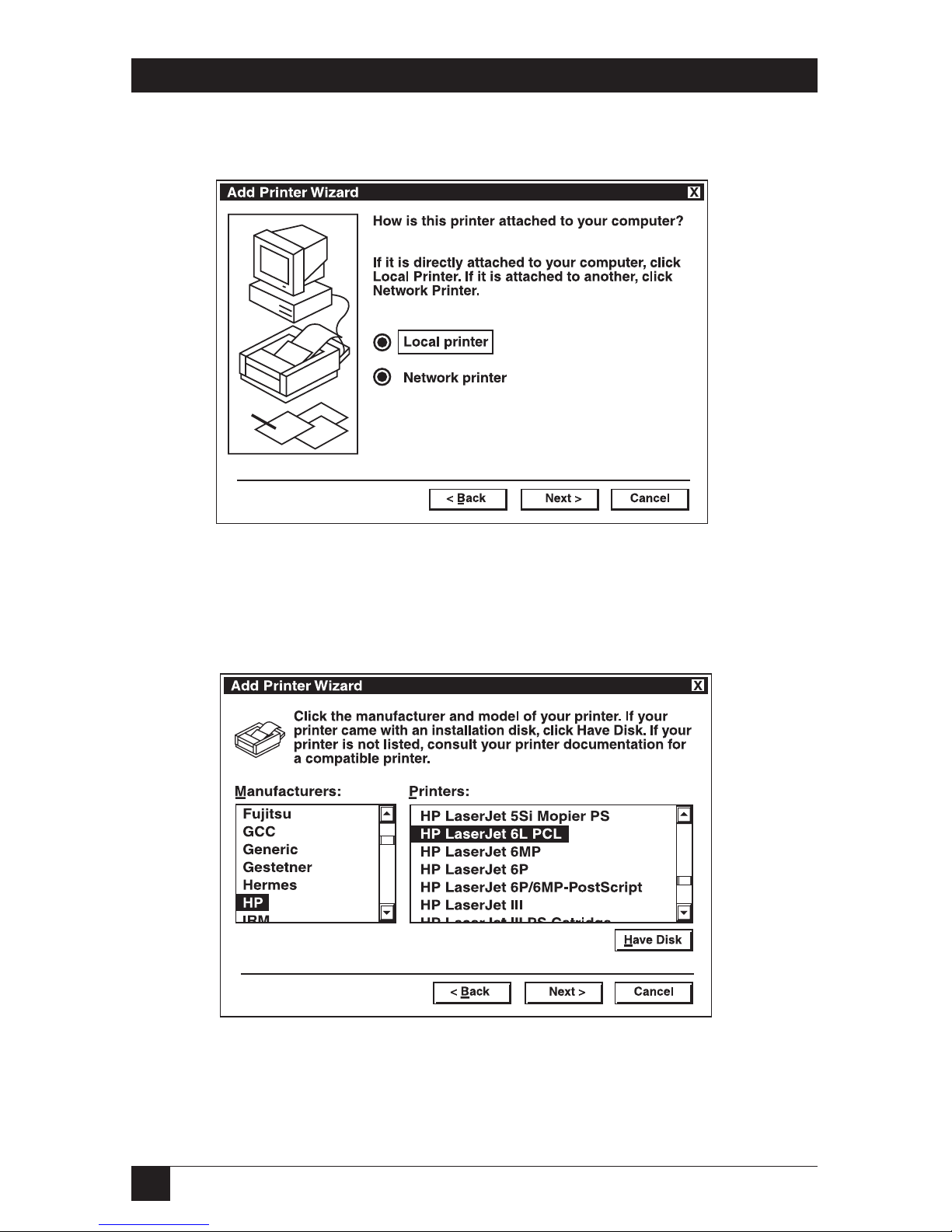

3. Select Local Printer and click Next. See Figure 3-8.

Figure 3-8. Add Printer Wizard.

4. Select the suitable printer manufacturer and model, then click Next. See
Figure 3-9.

Figure 3-9. Choosing a Printer.

27

CHAPTER 3: Print Server

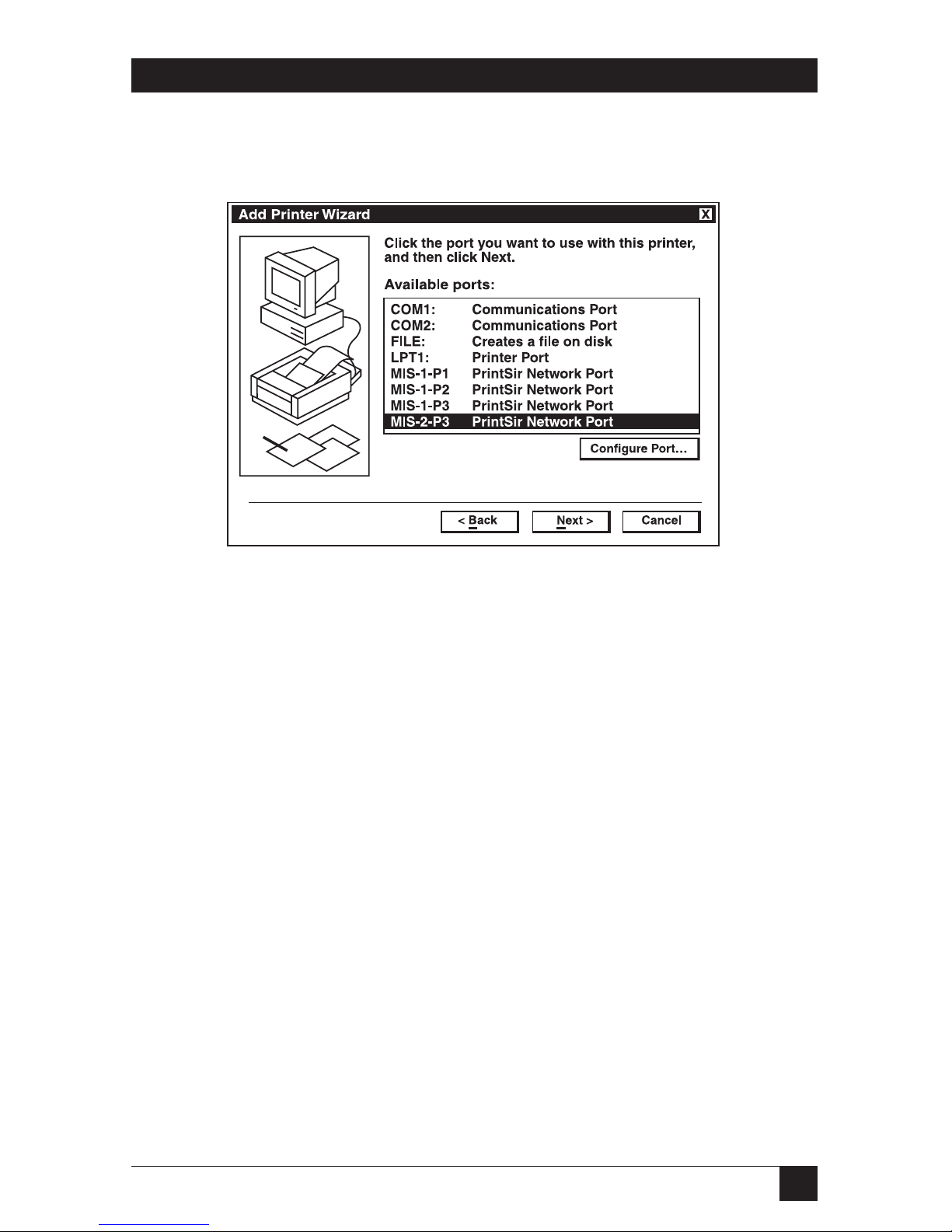

5. Choose the print server’s remote port that was created in Section 3.1 and click
Next. See Figure 3-10.

Figure 3-10. Choosing the Print Server’s remote port.

6. Complete the rest of the questions that will appear on-screen to finish the
network printer setup.
