Black Box LR9501A Quick Start Manual

Download

Page 1

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746

Page 2

CUSTOMER

SUPPORT

INFORMATION

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com

APRIL 2002

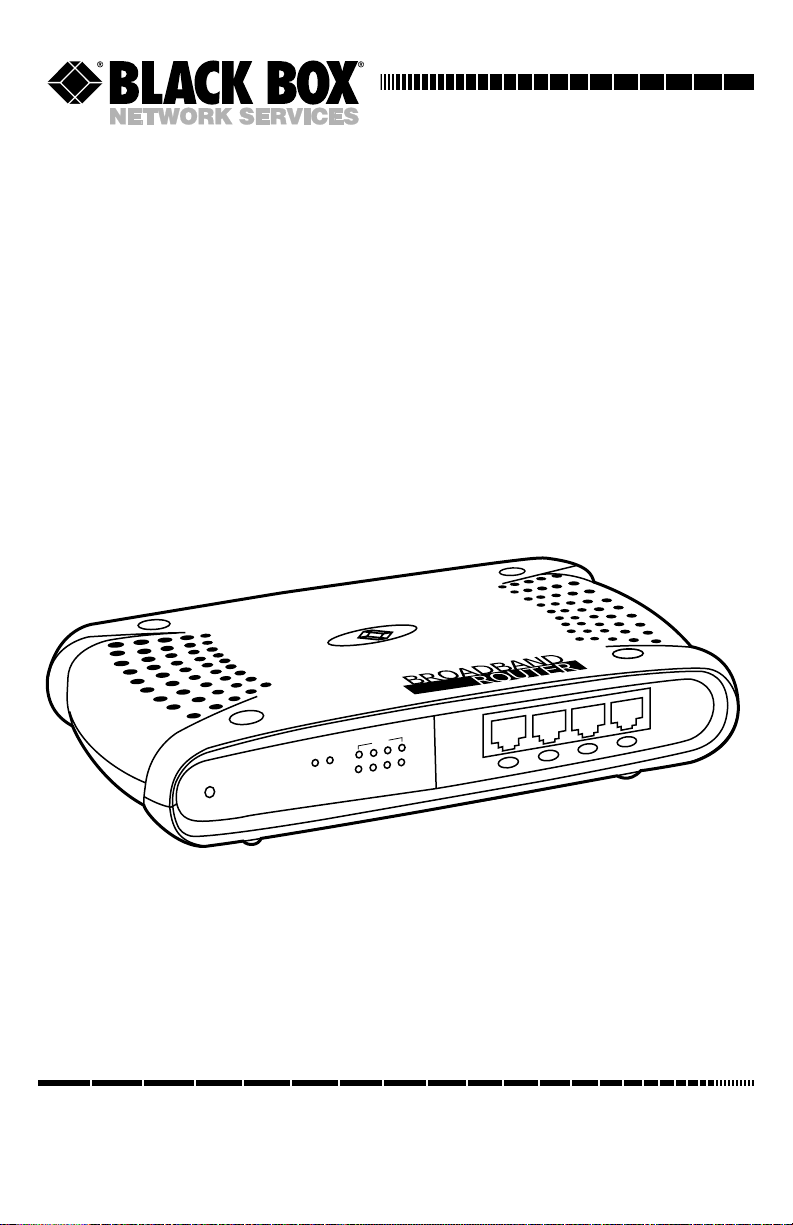

LR9501A

Broadband Router

eset

Page 3

Page 4

FCC AND IC RFI STATEMENTS

FEDERAL COMMUNICATIONS COMMISSION

AND

INDUSTRY CANADA

RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Page 5

BROADBAND ROUTER

NORMAS OFICIALES MEXICANAS (NOM)

ELECTRICAL SAFETY STATEMENT

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes que impidan el flujo de aire por los orificios de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros aparatos (incluyendo amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato.

Page 6

NOM STATEMENT

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando: A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o C: El aparato ha sido expuesto a la lluvia; o D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 7

BROADBAND ROUTER

TRADEMARKS

Internet Explorer, Microsoft, Windows, and Windows NT are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Linux is a registered trademark of Linus Torvalds. Mac and Macintosh are registered trademarks of Apple Computer, Inc. Netscape and Netscape Navigator are registered trademarks of Netscape

Communications Corporation. UNIX is a registered trademark of UNIX System Laboratories, Inc.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

Page 8

CONTENTS

Contents

Chapter Page

Quick-Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.2 What the Package Includes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.3 What You Need to Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3. Hardware Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4. Configuring Your PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.1 Configuring Your PC with Windows 95/98/Me. . . . . . . . . . . . . . . 19

4.1.1 Step 1: Configure TCP/IP Settings . . . . . . . . . . . . . . . . . . . . 19

4.1.2 Step 2: Disable Proxy Server. . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.1.3 Step 3: Obtain IP Settings from Your Broadband Router . . 30

4.2 Configuring Your PC with Windows 2000. . . . . . . . . . . . . . . . . . . . 31

4.2.1 Step 1: Configure TCP/IP Settings . . . . . . . . . . . . . . . . . . . . 31

4.2.2 Step 2: Disable Proxy Server. . . . . . . . . . . . . . . . . . . . . . . . . . 36

4.2.3 Step 3: Obtain IP Settings from Your Broadband Router . . 39

4.3 Configuring Your PC with Windows NT 4.0. . . . . . . . . . . . . . . . . . 41

4.3.1 Step 1: Configure TCP/IP Settings . . . . . . . . . . . . . . . . . . . . 41

4.3.2 Step 2: Disable Proxy Server. . . . . . . . . . . . . . . . . . . . . . . . . . 46

4.3.3 Step 3: Obtain IP Settings from Your Broadband Router . . 49

5. Configuring Your Macintosh Computer . . . . . . . . . . . . . . . . . . . . . . . . . 52

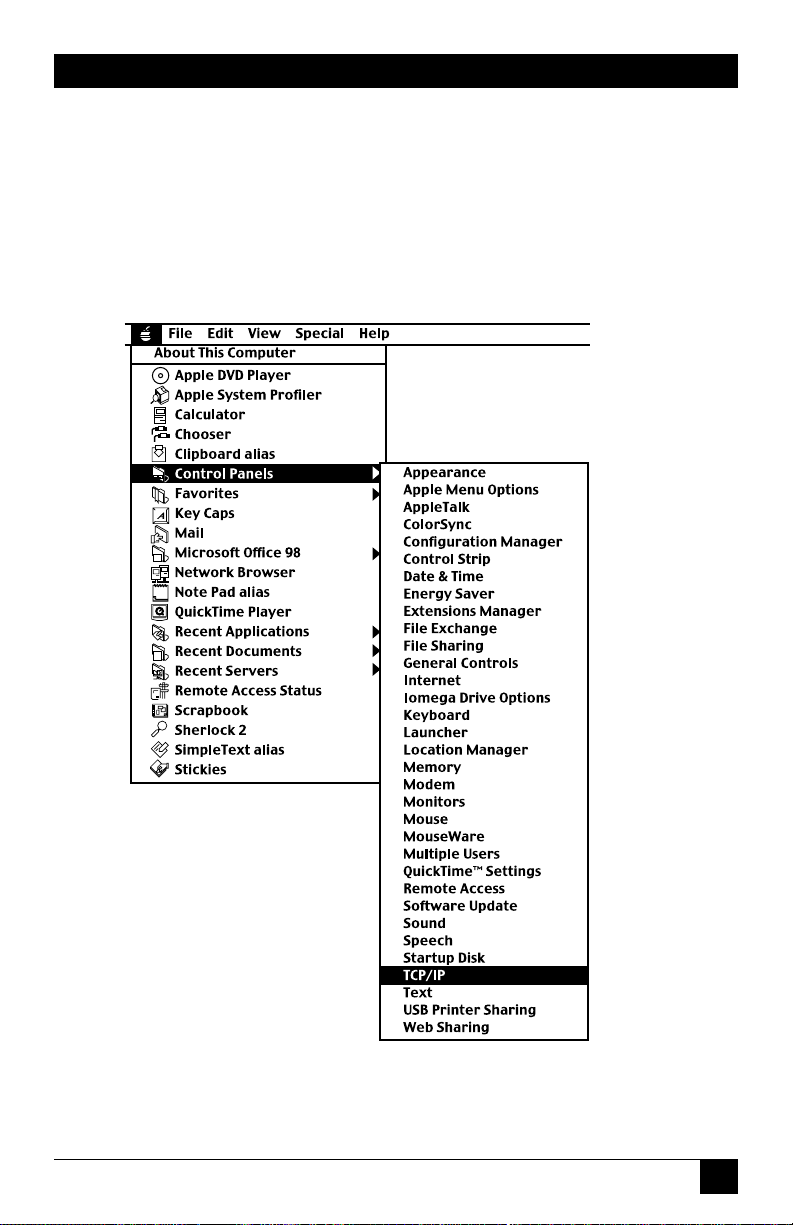

5.1 Step 1: Configure TCP/IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . 52

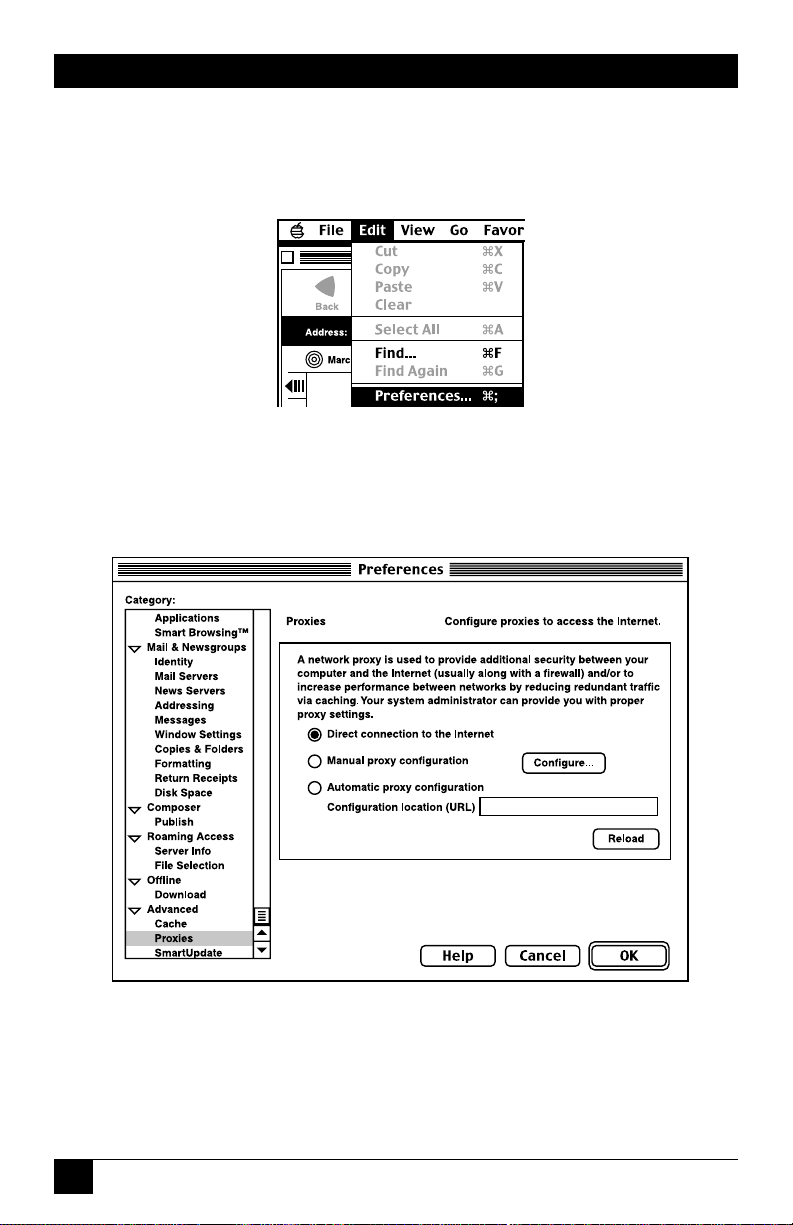

5.2 Step 2: Disable Proxy Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

5.3 Step 3: Obtain IP Settings from Your Broadband Router . . . . . . . 57

6. Configuring Your Broadband Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

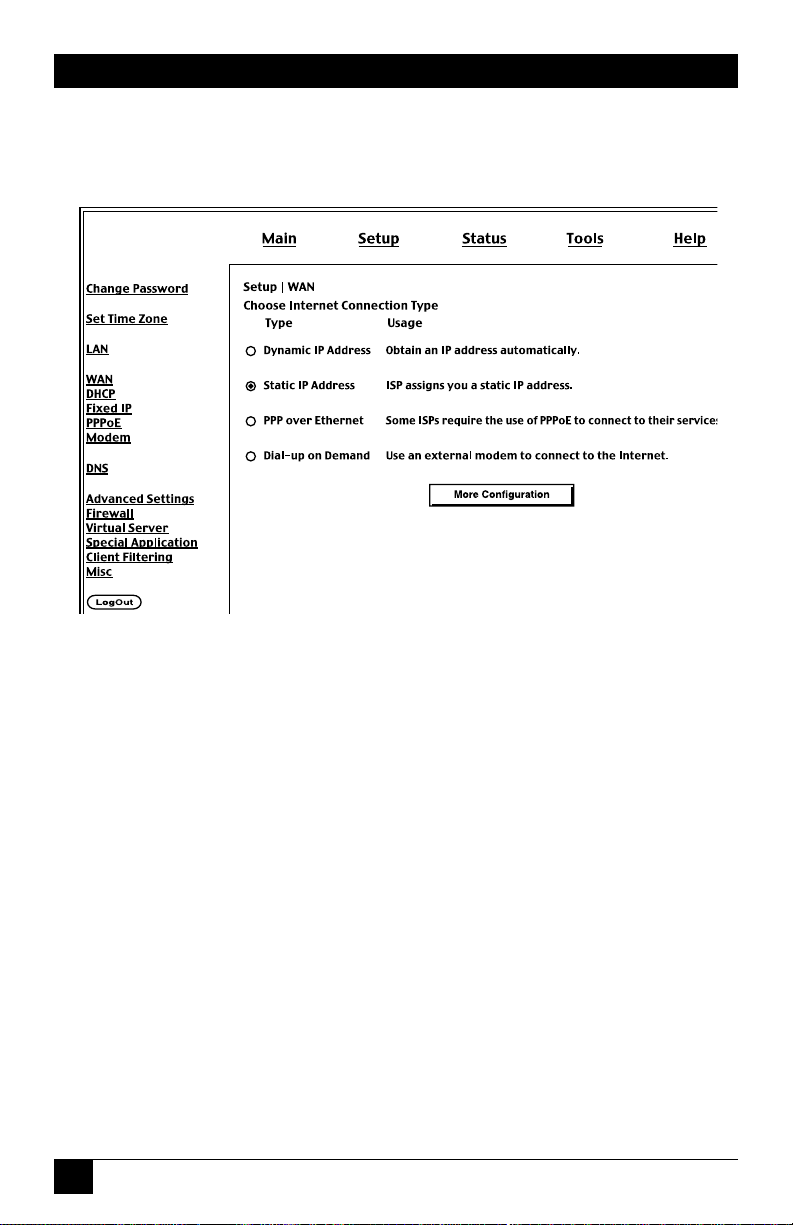

6.1 Configuring Your Broadband Router for a Dynamic IP Address . 67

6.2 Configuring Your Broadband Router for a Static IP Address . . . . 70

6.3 Configuring Your Broadband Router for PPPoE. . . . . . . . . . . . . . 73

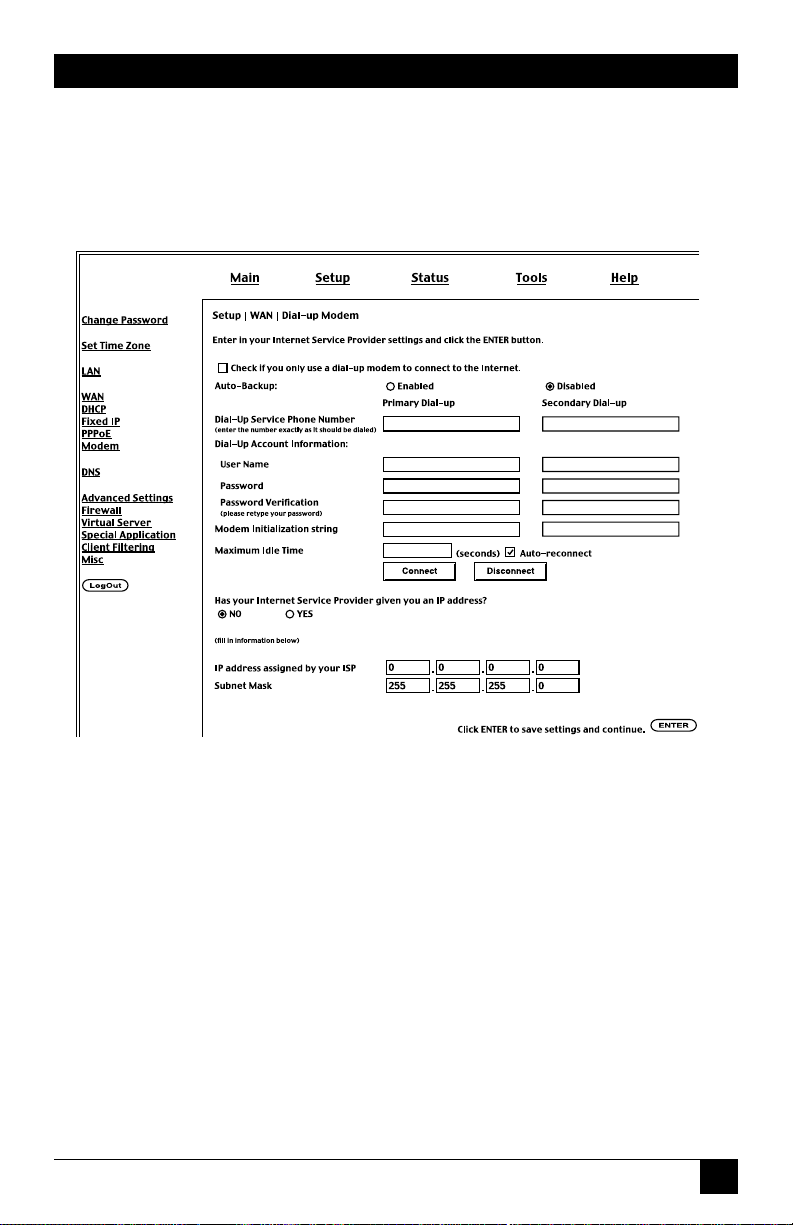

6.4 Configuring Your Broadband Router for Dial-Up on Demand . . 76

Page 9

BROADBAND ROUTER

Contents (continued)

Chapter Page

7. Configuring Your Computer for the Broadband Router

Print Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

7.1 Configuring Your Computer for the Router’s Print Server

for Windows 95/98/Me/2000 and Windows NT . . . . . . . . . . . . 79

7.1.1 Step 1: Installing the Broadband Router’s

Print Server Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

7.1.2 Step 2: Configuring the Broadband Router’s

Print Server Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

7.2 Configure the Network Printer in UNIX Systems . . . . . . . . . . . . . 87

8. Common Configurations for Popular ISPs . . . . . . . . . . . . . . . . . . . . . . . 88

Appendix. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

A.1 Calling Black Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

A.2 Shipping and Packaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Page 10

QUICK-START GUIDE

Quick-Start Guide

NOTE

This quick-start guide covers only the most common situations. Please refer to the rest of this users’ manual if your network uses any of the following: (1) an existing router, (2) an existing DHCP server, or (3) PCs using fixed (static) IP addresses.

Before You Begin

ACKAGECONTENTS

Your package should include the following:

• The Broadband Router,

• An AC power adapter,

• A Documentation/Printer Port Driver CD, and

• This users’ manual.

If anything is missing or damaged, return the package to its place of purchase.

YSTEMREQUIREMENTS

• A broadband modem

• PC(s) with the TCP/IP protocol installed

• Category 5 Ethernet cables with RJ-45 connectors

Step 1: Hardware Installation

1. Make sure that the Broadband Router is powered OFF before starting the installation. Leave your DSL/cable modem connected to its wall socket (phone line or cable outlet); however, make sure you disconnect the DSL/cable modem from your PC.

2. Use Category 5 Ethernet cables to connect the following:

• Up to four PCs to the four LAN ports on the Broadband Router. and/or

• A hub/switch to one of the LAN ports on the router.

Page 11

BROADBAND ROUTER

See Figure Q-1 below.

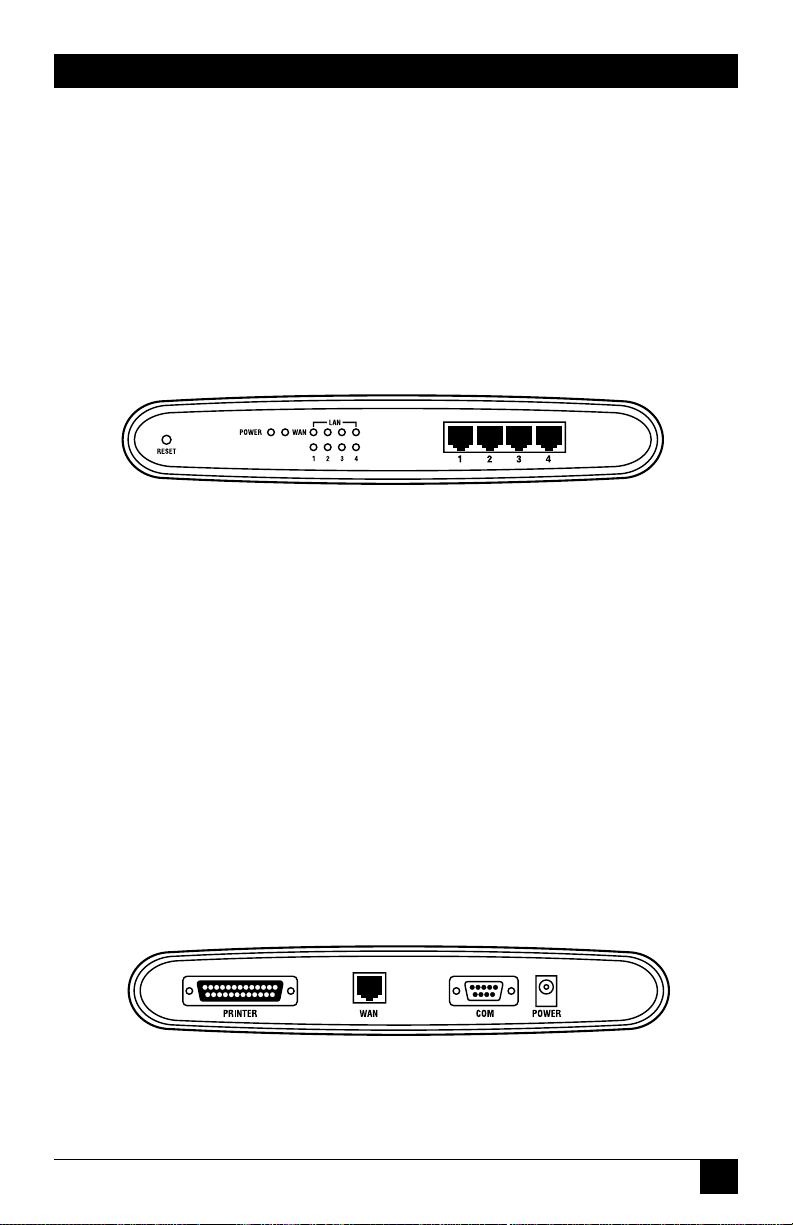

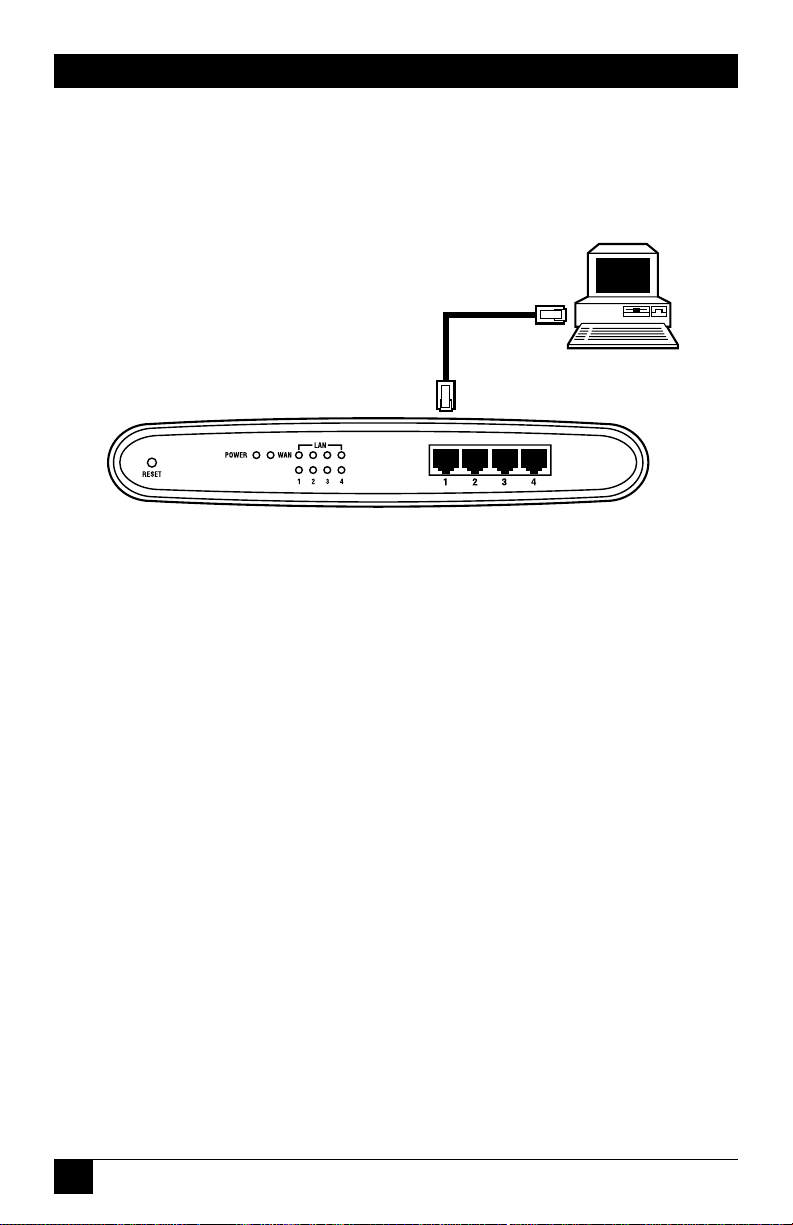

Figure Q-1. Connecting a PC to the Broadband Router.

3. Connect your DSL/cable modem to the Broadband Router’s WAN port using the Ethernet cable that you unplugged in step 1. (See Figure Q-2 on the next page.) If no cable was supplied with your modem, use straight-through Ethernet cable.

NOTE

An ISDN terminal adapter (TA) or dial-up modem may be connected to the Broadband Router as an alternate method of Internet access. Please refer to Section 6.4 for directions on using/configuring this type of connection.

4. Connect the power adapter to the Router. Use only the power adapter provided.

5. (Optional) If you intend to use the Router’s print server functions, connect the parallel cable of the printer to the printer port on the Router before powering on the Router. (See Figure Q-2 on the next page.)

Page 12

QUICK-START GUIDE

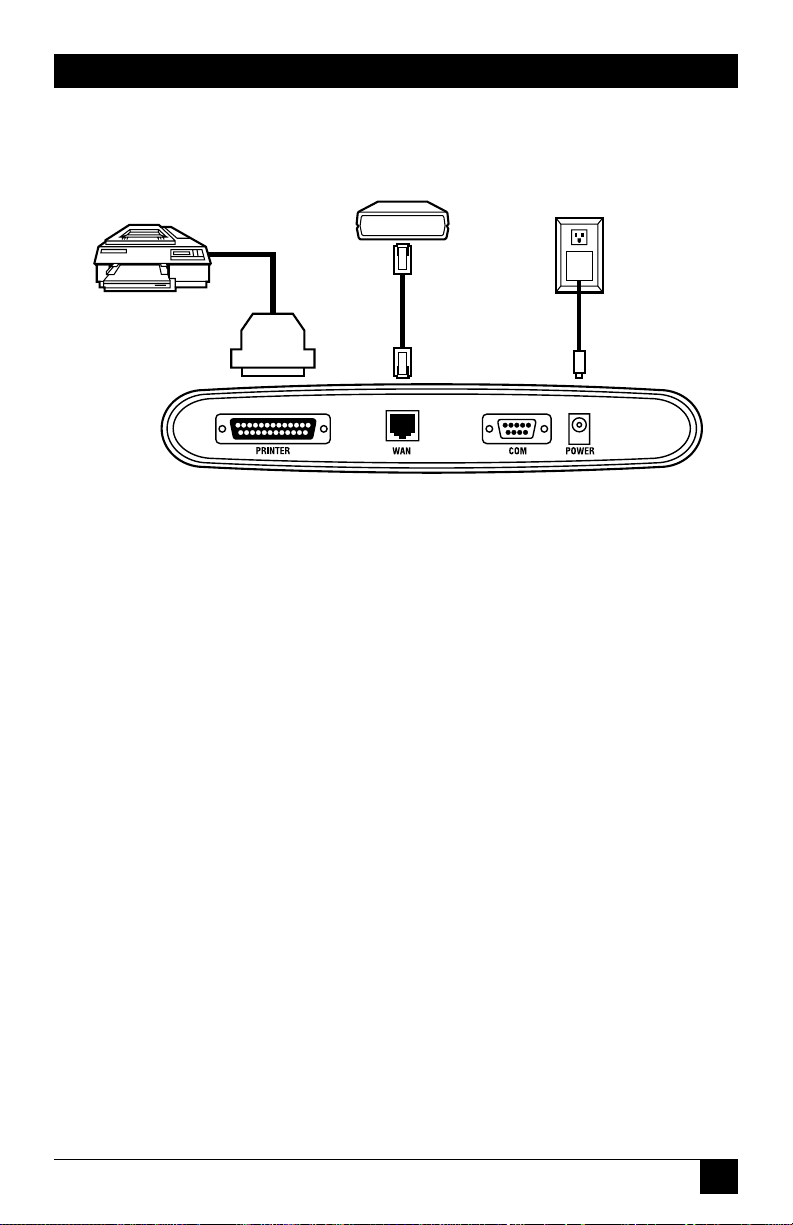

Figure Q-2. Connecting the modem, power adapter, and optional printer

to the Broadband Router.

6. Power ON the Broadband Router.

Step 2: Internet Connection Configuration

If your Internet Service Provider (ISP) assigns your IP address properly for the Broadband Router to act as a plug-and-play device, it does not require additional configuration.

1. Perform TCP/IP Setup for each PC as described in the PC Setup section on page 13. Remember to restart each PC when finished.

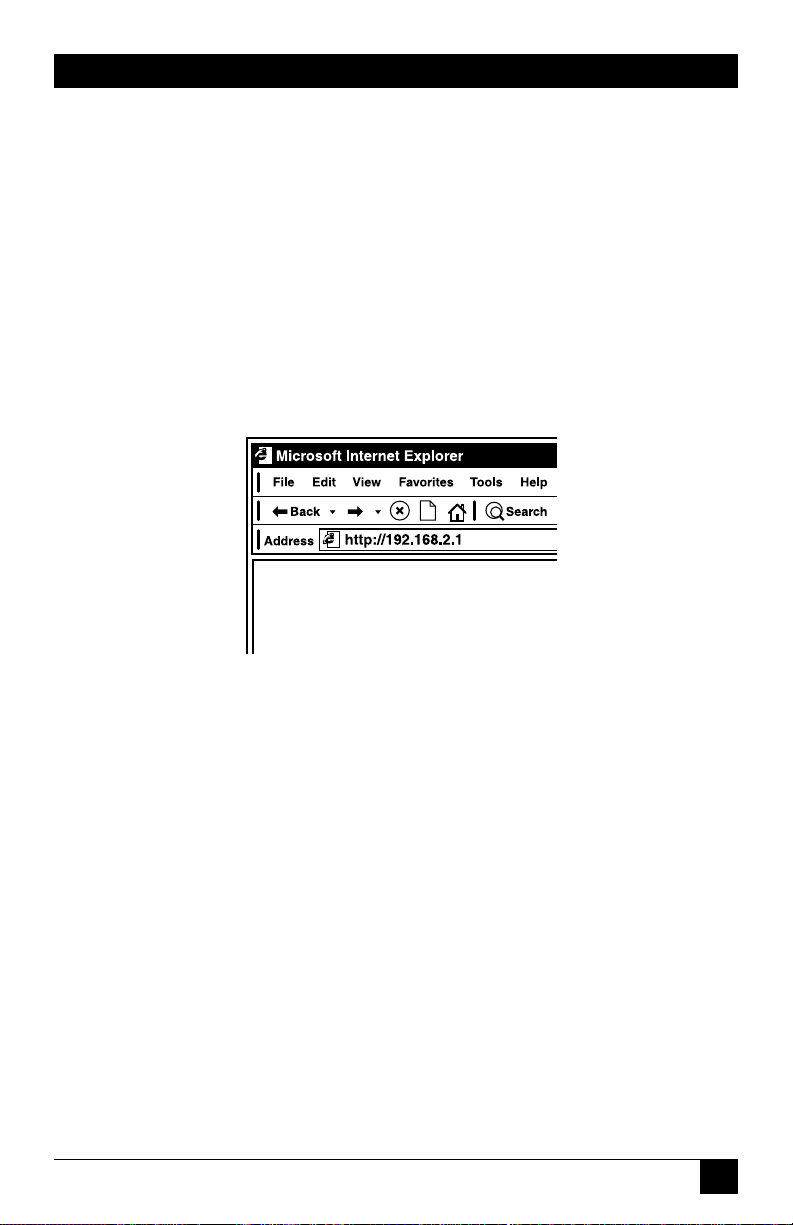

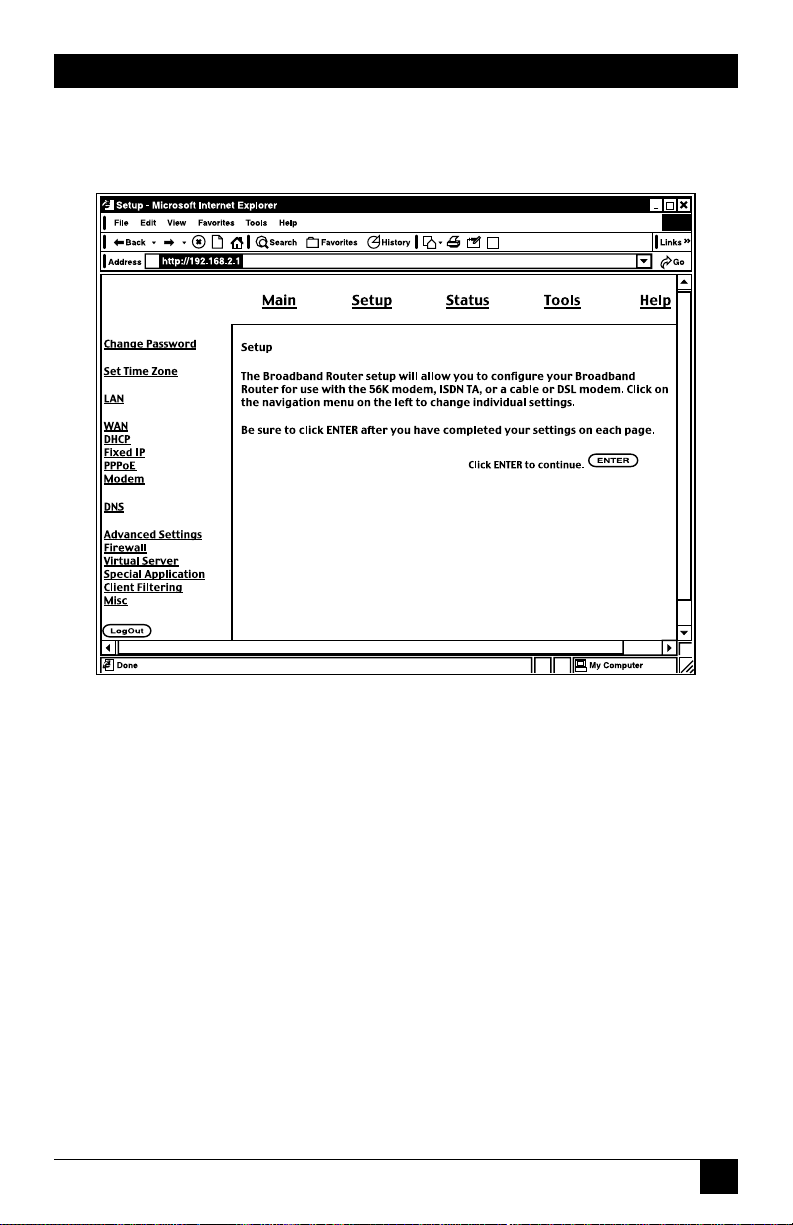

2. Start your Web browser. In the Address box, enter the following:

http://192.168.2.1

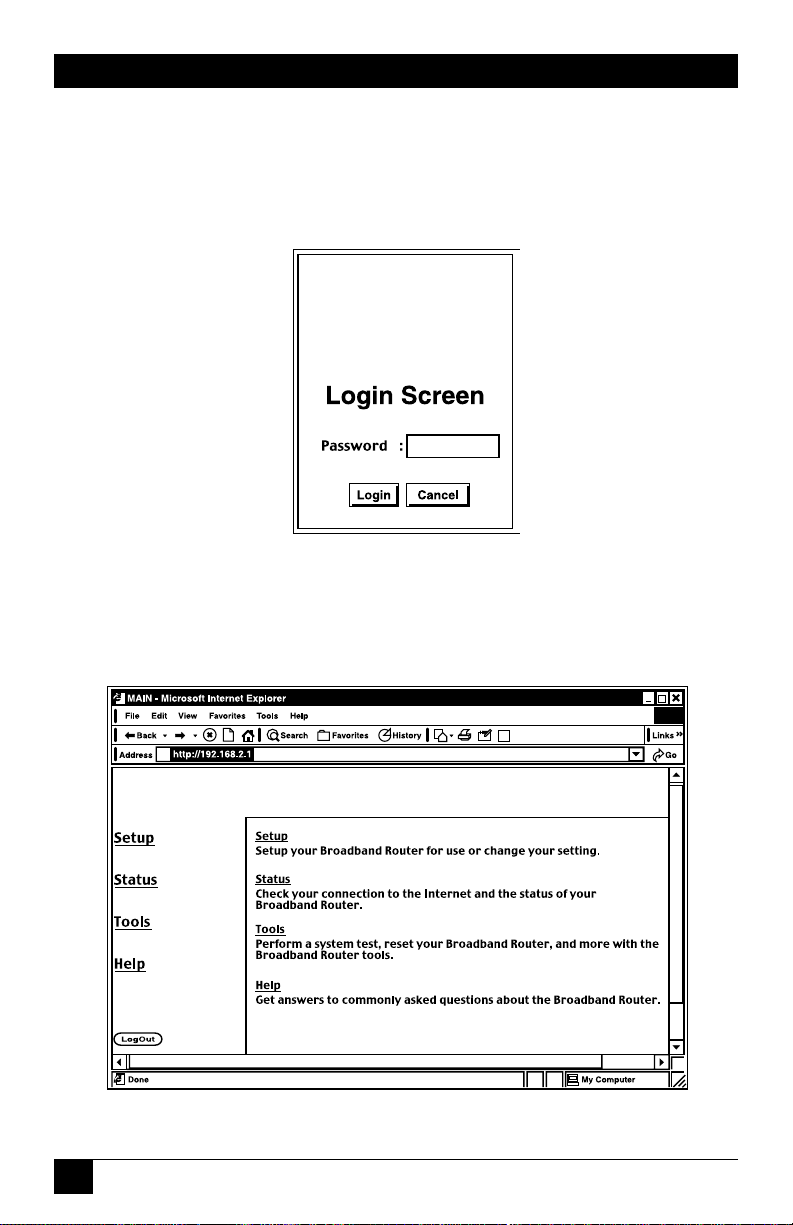

3. Press Enter. You will be prompted for a password. Do not enter a password; just press Enter. You will see the Broadband Router Status screen.

4. Select Simple Setup from the left-side menu. Follow the prompts to change the password, set the time zone, and choose the appropriate Internet connection type.

Printer

DSL/cable

modem

Power adapter

Page 13

BROADBAND ROUTER

If additional configuration is desired, select the Advanced Setup link from the leftside menu to configure firewall parameters, the DMZ host, virtual servers, and special applications that support multi-player online games.

Step 3: Print Server Setup (Optional)

1. Make sure that the printer is connected to the parallel port on the Router. Both the printer and the Router are powered ON.

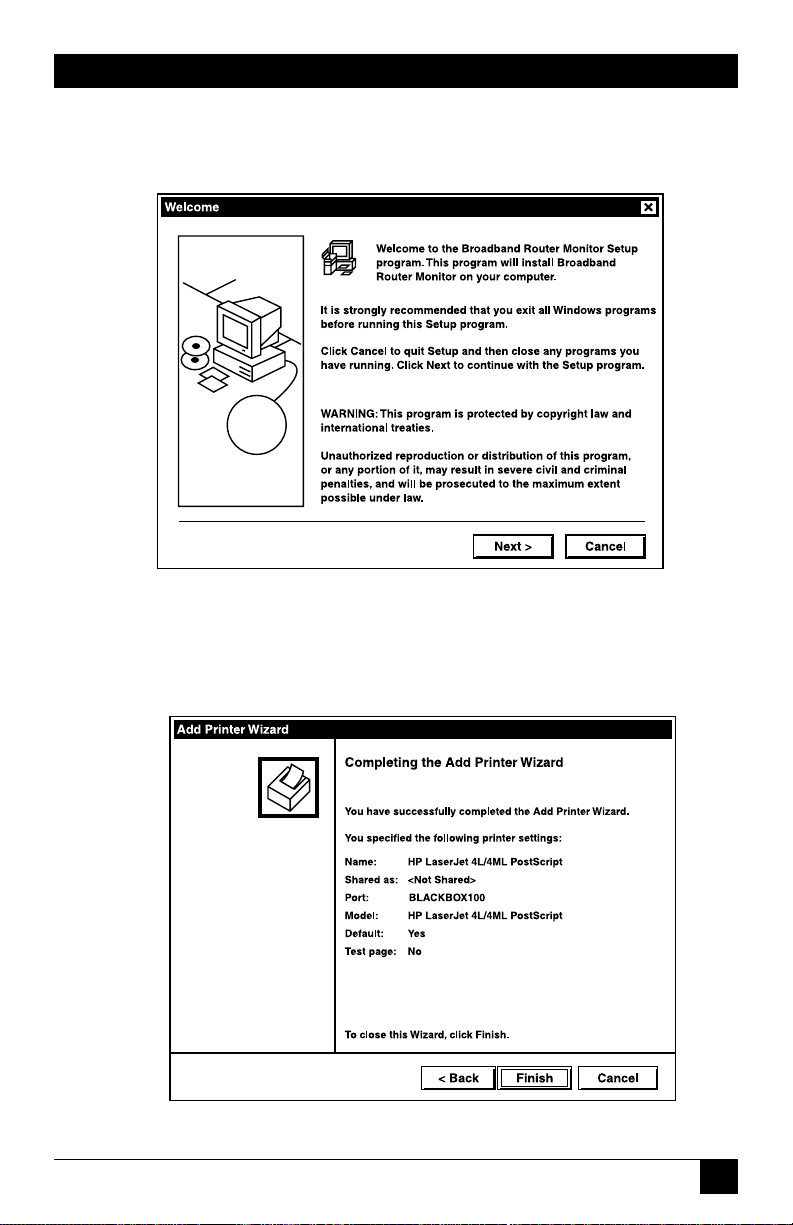

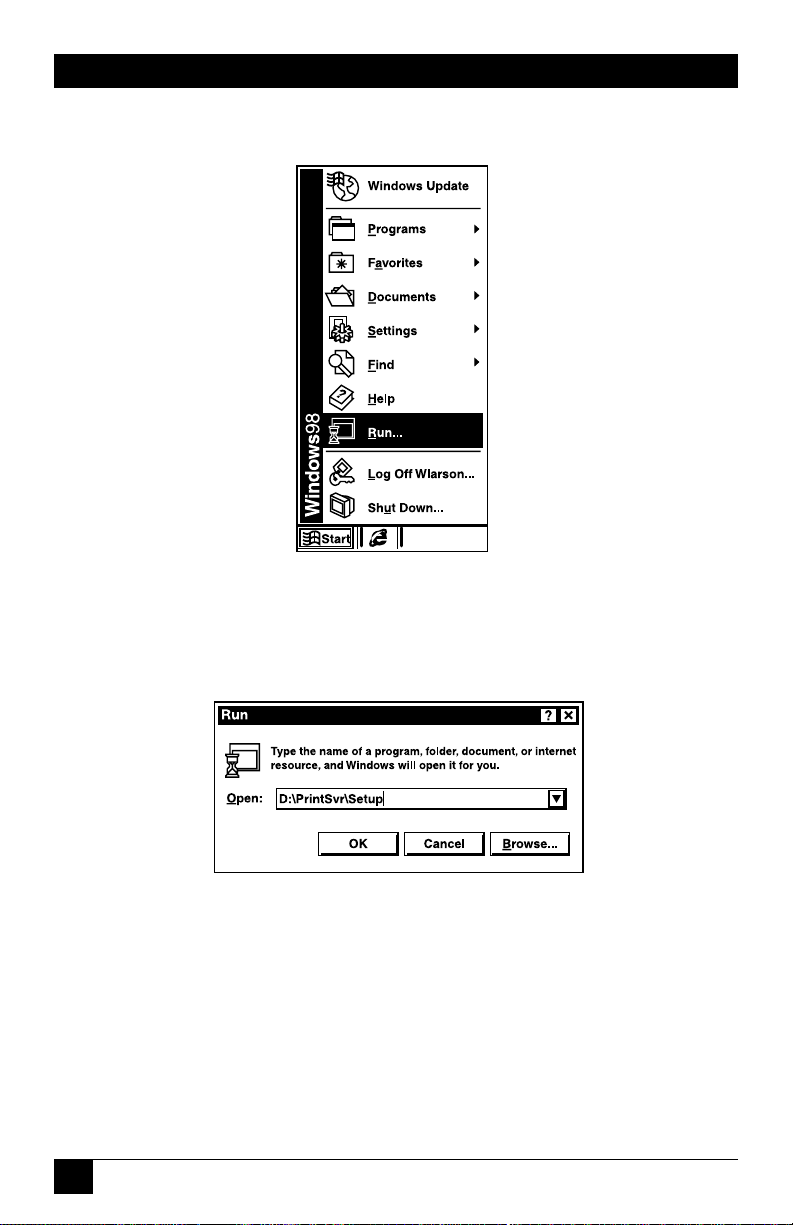

2. Insert the supplied CD-ROM into your CD-ROM drive. If the setup program does not start automatically, run SETUP from the root folder on the CD-ROM.

3. Consult the rest of this manual for step-by-step installation and configuration instructions specific to your operating system.

4. Repeat the procedure for each PC that will share the printer.

Tips and Troubleshooting

ONNECTIONCONFIGURATION FOR

DSL S

ERVICEUSERS

Most DSL service providers supply users with a dynamic IP address, but require that a valid username and password be entered first. This method is known as PPP over Ethernet (PPPoE).

NOTE

If your service provider currently requires you to use separate PPPoE client software, discontinue use of this software. Complete the following procedure to configure the Broadband Router to negotiate the PPPoE logon to your service provider’s network.

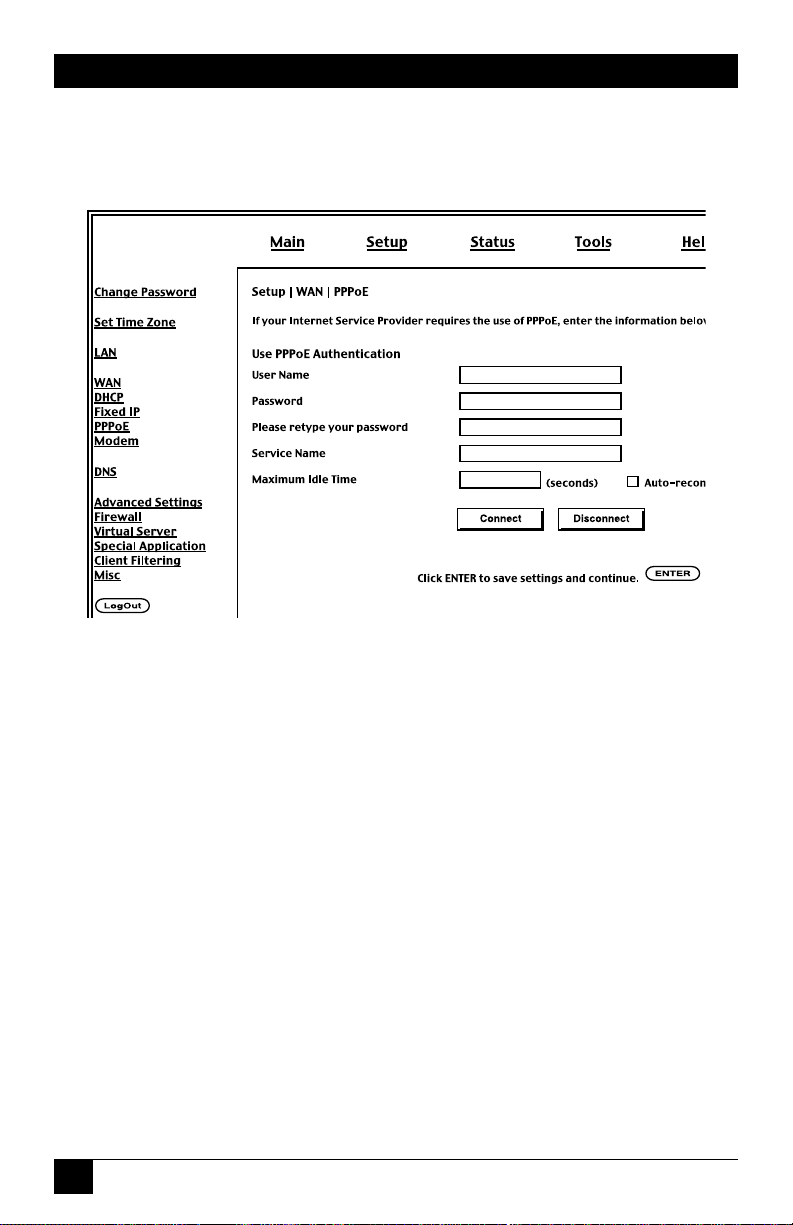

1. Connect to the Router’s configuration interface by entering http://192.168.2.1 and pressing Enter.

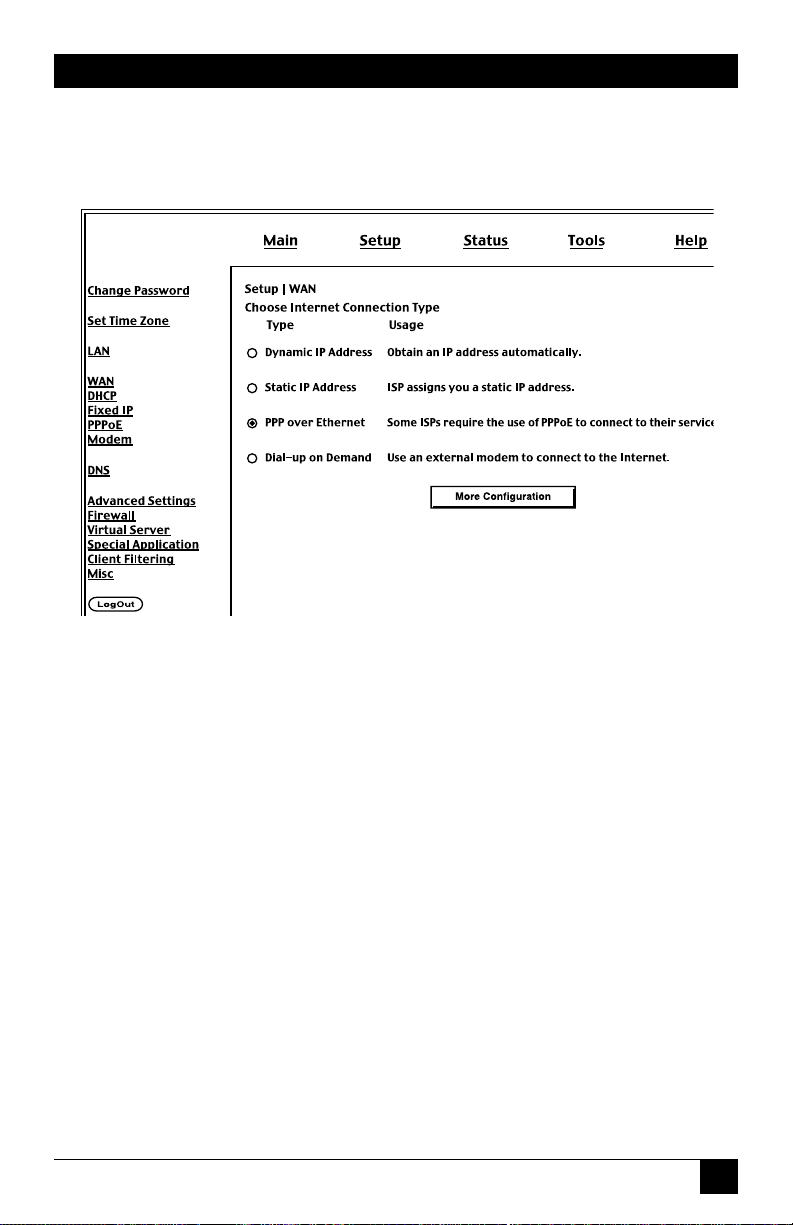

2. You will see the Broadband Router Status screen. Select Simple Setup from the left-side menu. Choose WAN from the expanded menu.

3. Select PPPoE and press Enter.

4. Enter the username and password exactly as provided by your DSL service provider. Leave the service name field blank and press Enter.

5. Wait approximately ten seconds, then click the Status link in the left-side menu.

Page 14

QUICK-START GUIDE

6. On the Broadband Router Status page, check the Internet Connection Status section for the field labeled Cable/DSL. Make sure that the status says Connected.

• If it says Connected, you have successfully obtained an IP address from your DSL service provider. You may proceed with using the Router and Internet service as desired.

• If it says Disconnected, go to the next step.

7. Power OFF the DSL modem and the Broadband Router.

8. Power ON the DSL modem and the Broadband Router.

9. Connect to the Broadband Router’s configuration interface by entering http://192.168.2.1 and pressing Enter.

10. On the Broadband Router Status page, check the Internet Connection Status section for the field labeled Cable/DSL. Make sure that the status says Connected.

• If it says Connected, you have successfully obtained an IP address from your DSL service provider. You may proceed with using the router and Internet service as desired.

• If it says Disconnected, go to the next step.

11. Troubleshooting:

• Make sure that the DSL modem is securely connected to the Router. The modem should be powered ON and functioning properly.

• Make sure that the username and password entered are accurate. (Verify with your DSL service provider, if necessary.)

• Upgrade the Broadband Router’s firmware to the latest version available.

ONNECTIONCONFIGURATION FOR@HOMECABLEMODEMSERVICEUSERS

1. Obtain your exact Host Name from @Home or your Windows Network Control Panel.

2. Connect to the Broadband Router’s configuration interface by entering http://192.168.2.1 and pressing Enter.

3. You will see the Broadband Router Status screen. Select Simple Setup from the left-side menu. Choose WAN from the expanded menu.

Page 15

BROADBAND ROUTER

4. Select Dynamic IP Address and press Enter.

5. Enter the Host Name you were provided by @Home and press Enter.

6. Wait approximately ten seconds, then click the Status link in the left-side menu.

7. On the Broadband Router Status page, check the Internet Connection Status section for the field labeled Cable/DSL. Make sure that the status says Connected.

• If it says Connected, you have successfully obtained an IP address from the @Home service. You may proceed with using the Router and Internet service as desired.

• If it says Disconnected, go to the next step.

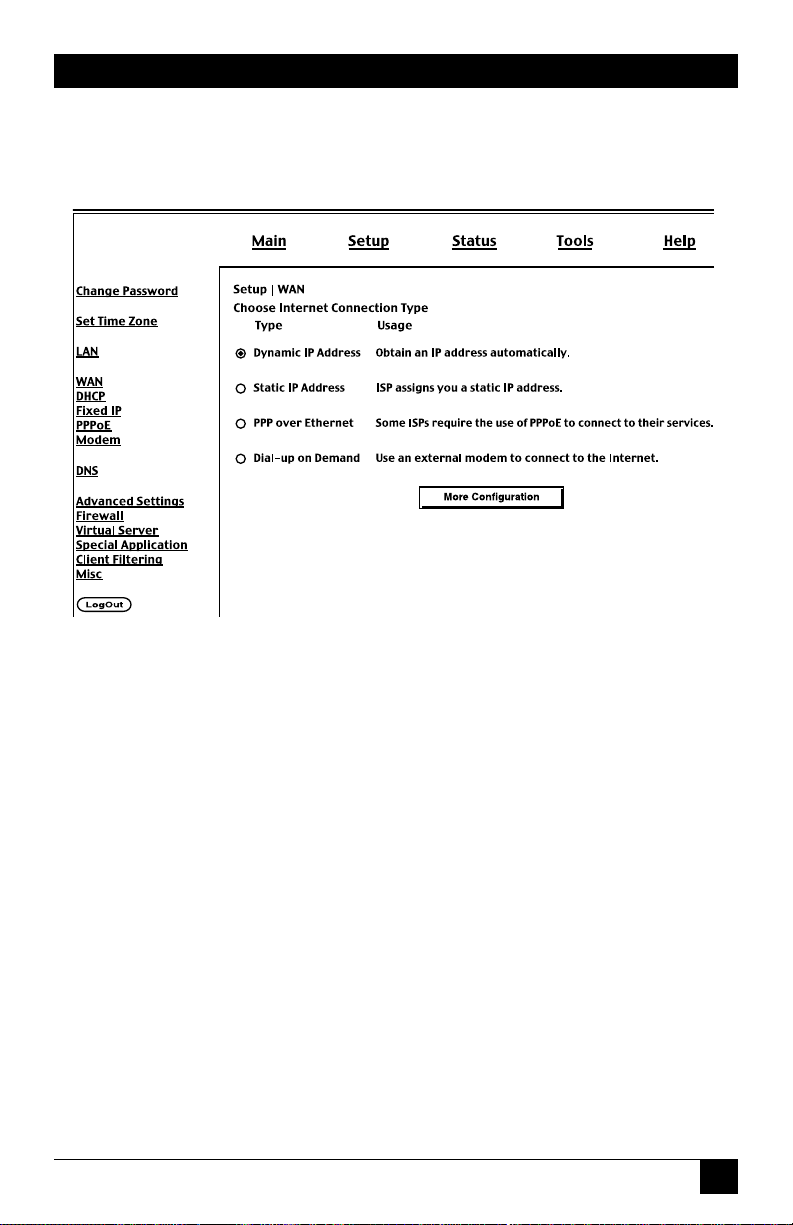

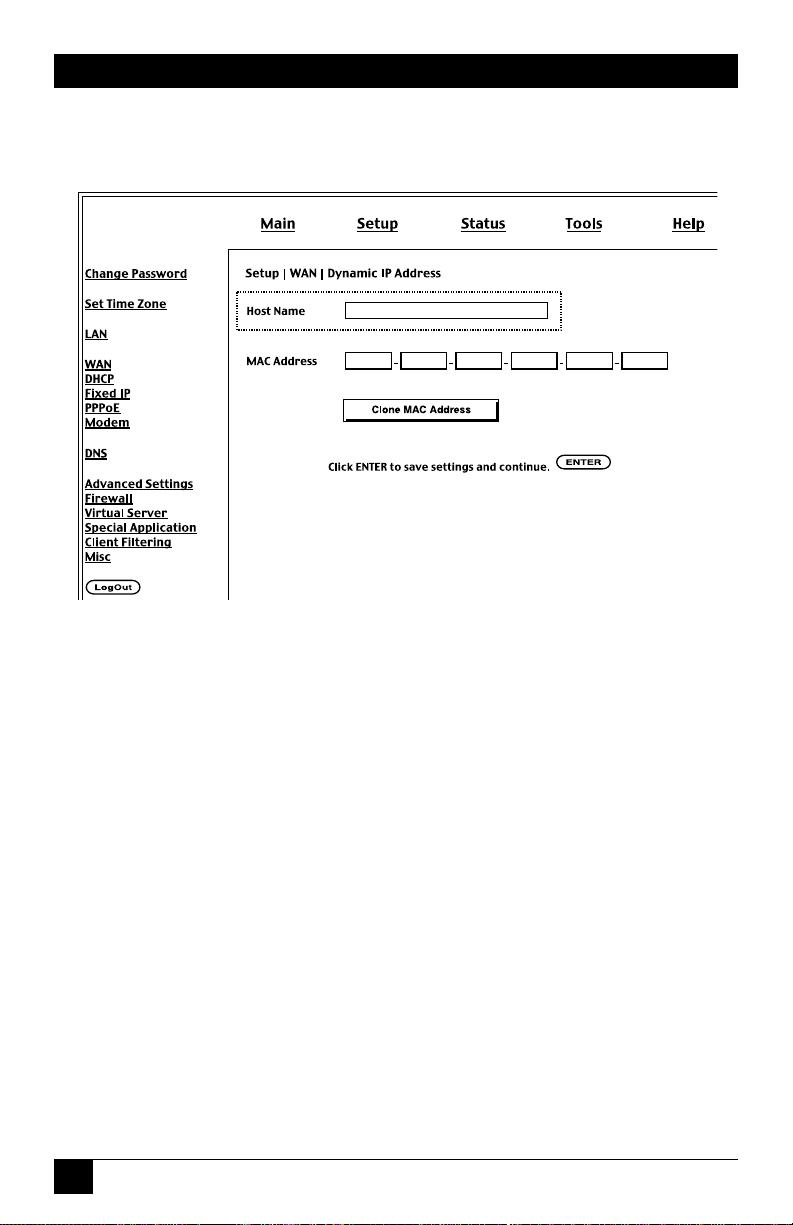

8. Select Simple Setup from the left-side menu and choose WAN from the expanded menu.

9. Select Dynamic IP Address and press Enter.

10. Press the Clone MAC Address button.

11. Press Enter.

12. Wait approximately ten seconds, then click the Status link in the left-side menu.

13. On the Broadband Router Status page, check the Internet Connection Status section for the field labeled Cable/DSL. Make sure that the status says Connected.

• If it says Connected, you have successfully obtained an IP address from the @Home service. You may proceed with using the Router and Internet service as desired.

• If it says Disconnected, go to the next step.

14. Troubleshooting:

• Make sure that the cable modem is securely connected to the Router. The modem should be powered ON and functioning properly.

• Make sure that the Host Name entered is accurate. (Verify with @Home, if necessary.)

Page 16

QUICK-START GUIDE

• Upgrade the Broadband Router’s firmware to the latest version available.

PC S

ETUP—WINDOWS

95/98/98SE/M

TCP/IP Setup

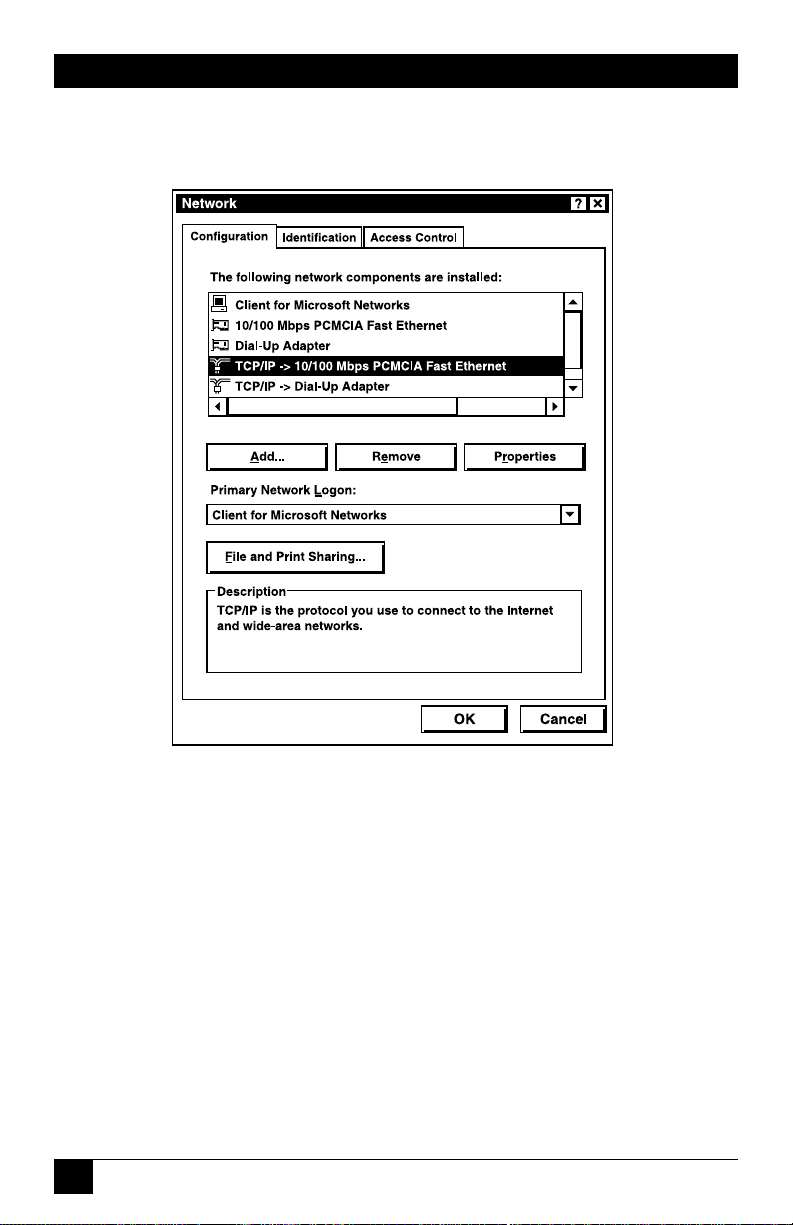

1. Right-click on the Network Neighborhood icon on your desktop. Select Properties.

2. Select the TCP/IP->Ethernet Adapter entry.

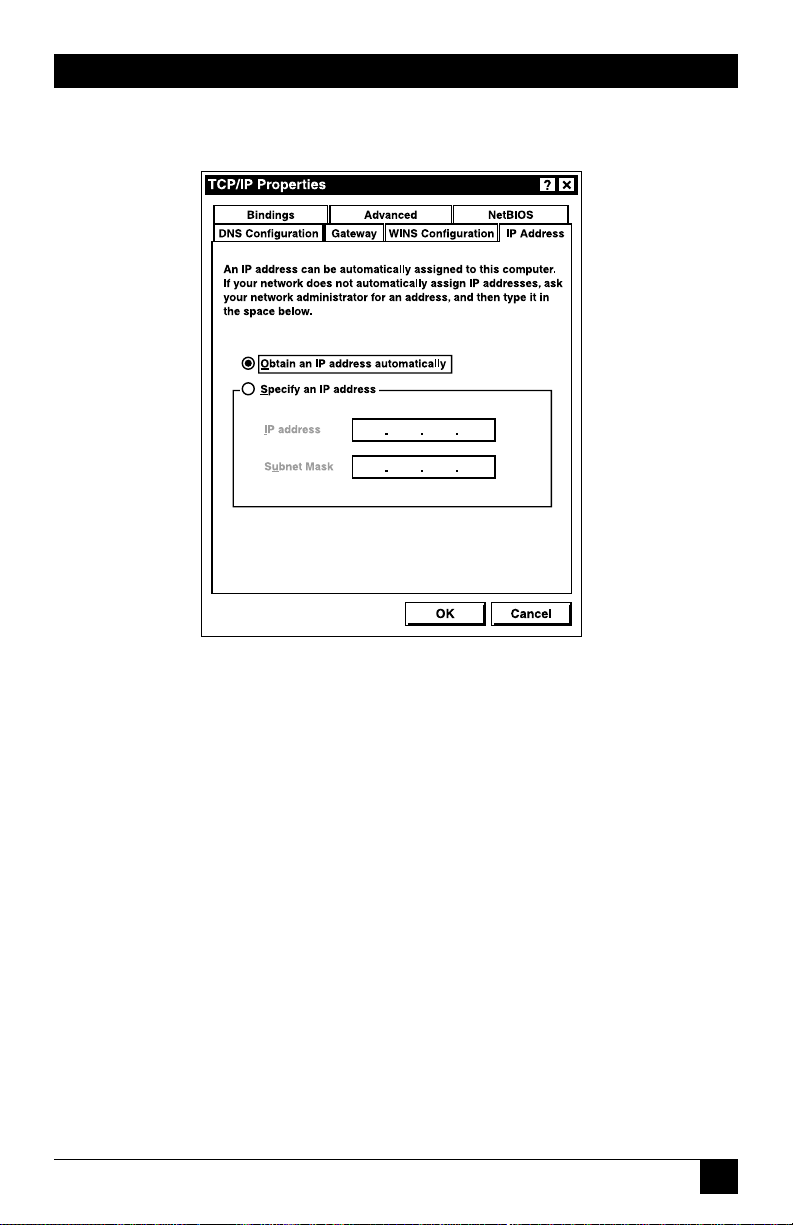

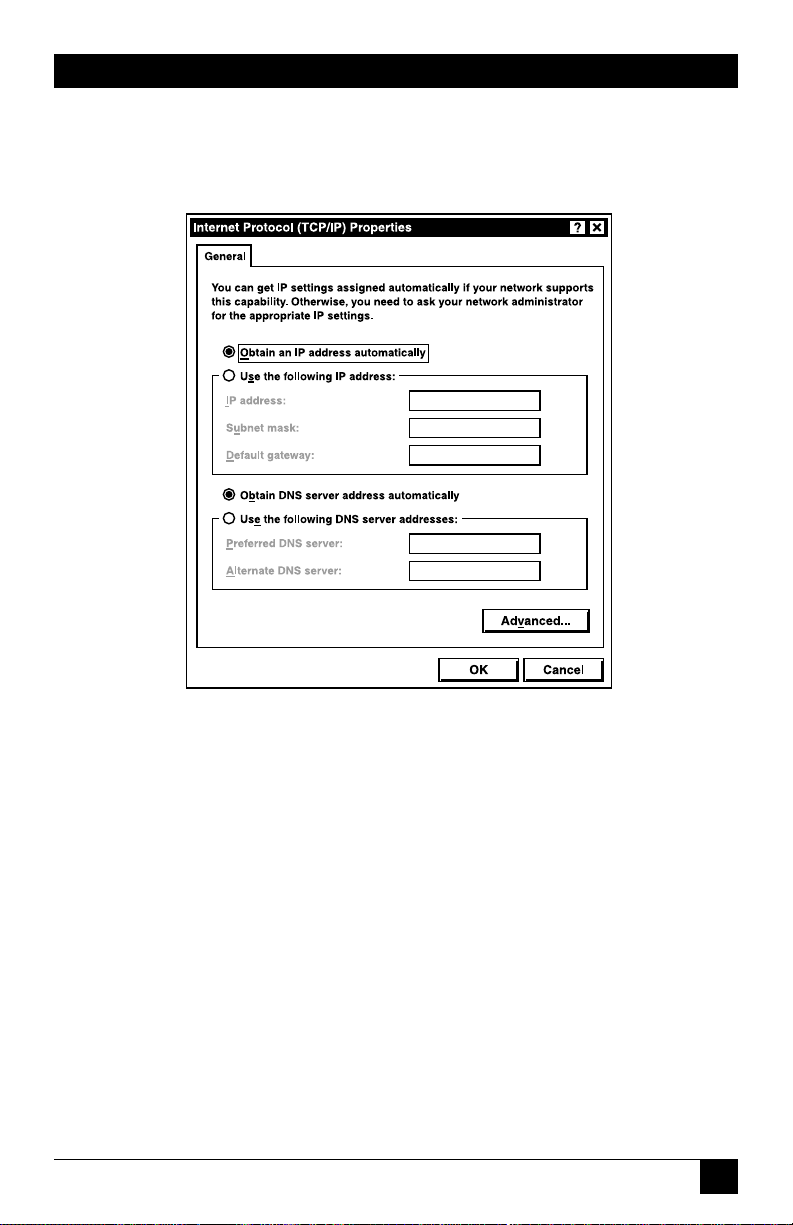

3. Make sure that Obtain an IP Address Automatically is selected. The Broadband Router’s DHCP server will provide an IP address for the PC.

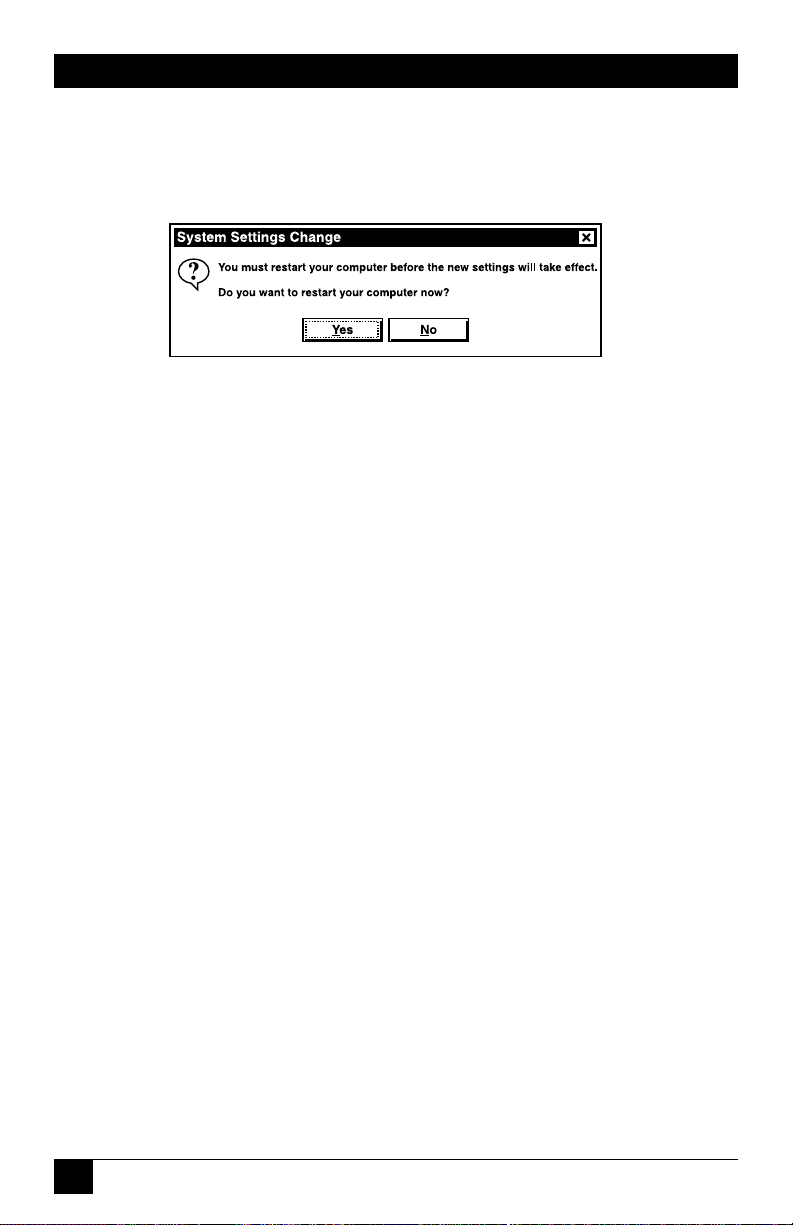

4. Press OK twice, then restart your PC, even if no changes were made.

NTERNETACCESS

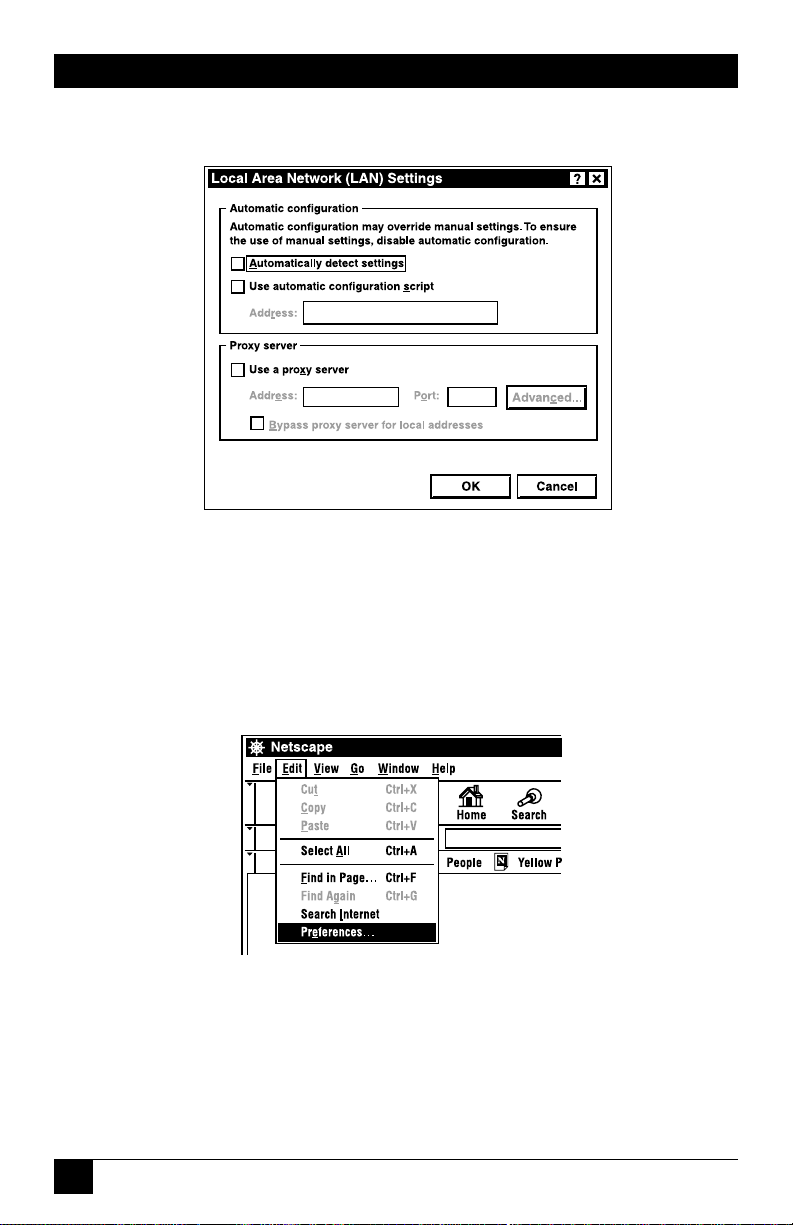

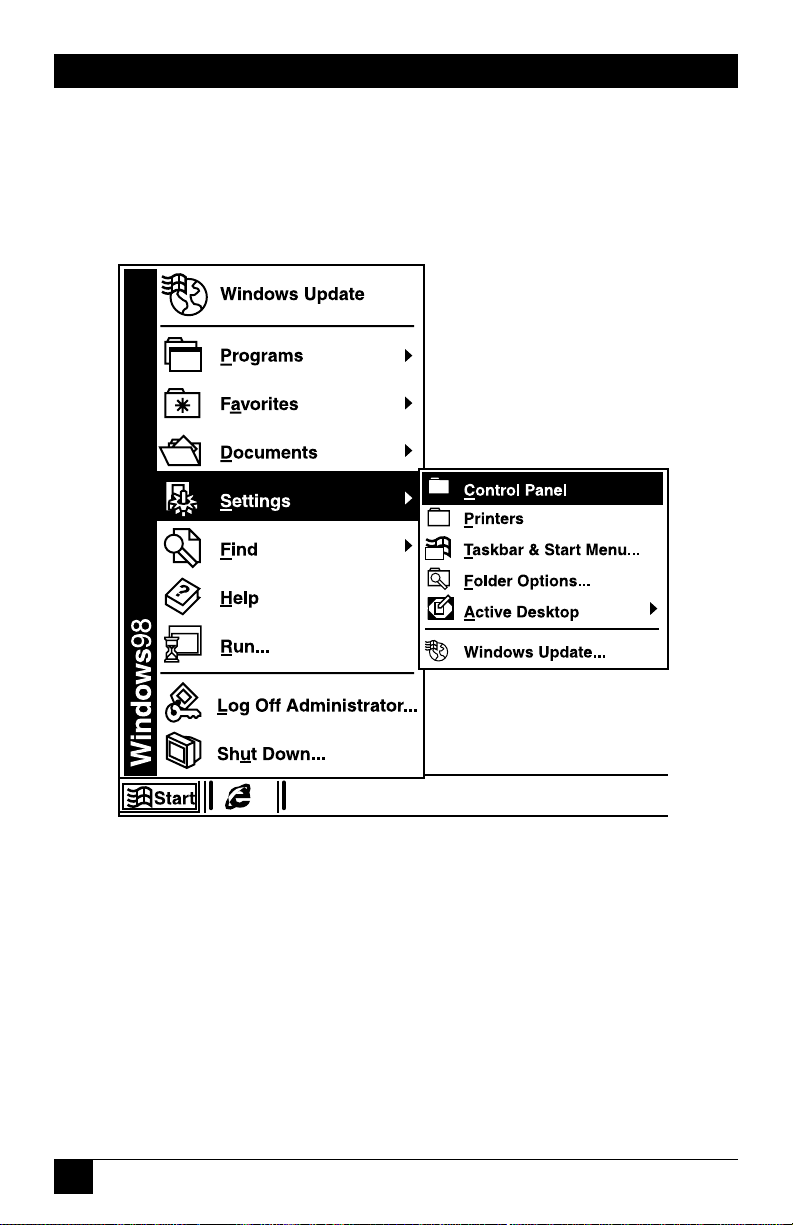

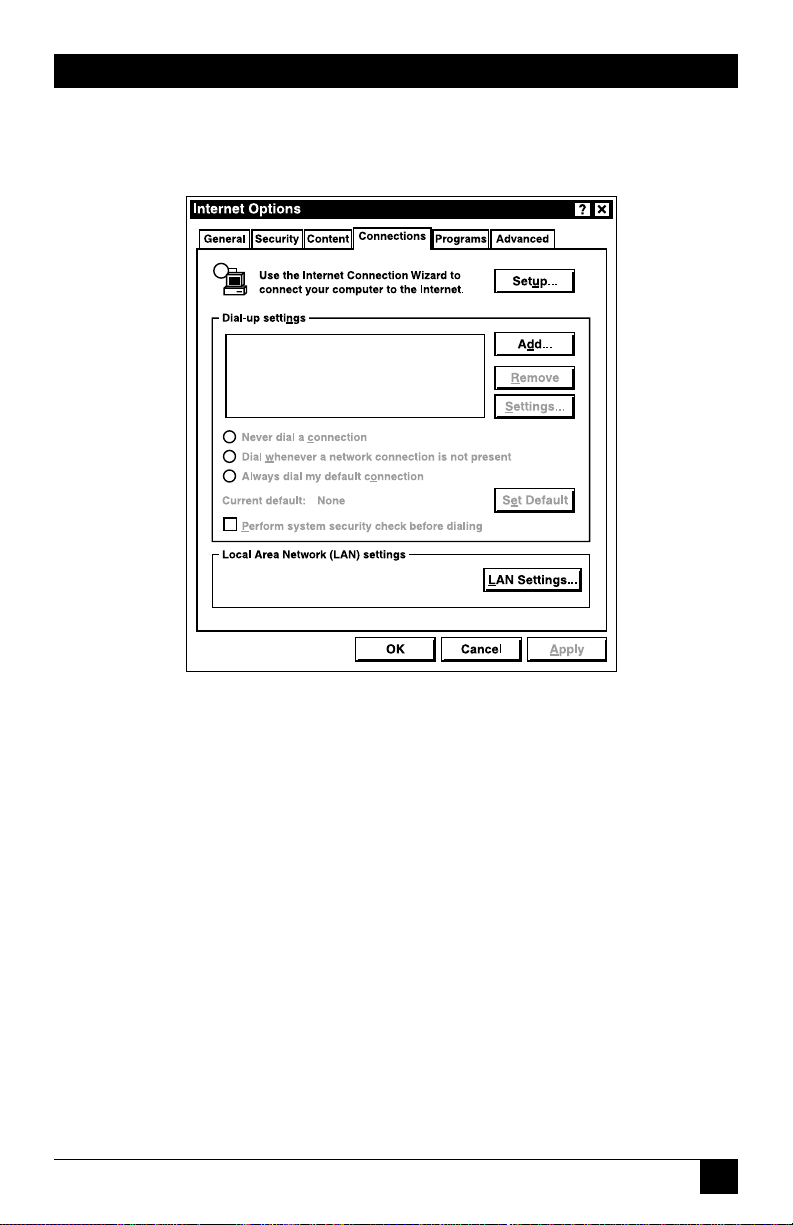

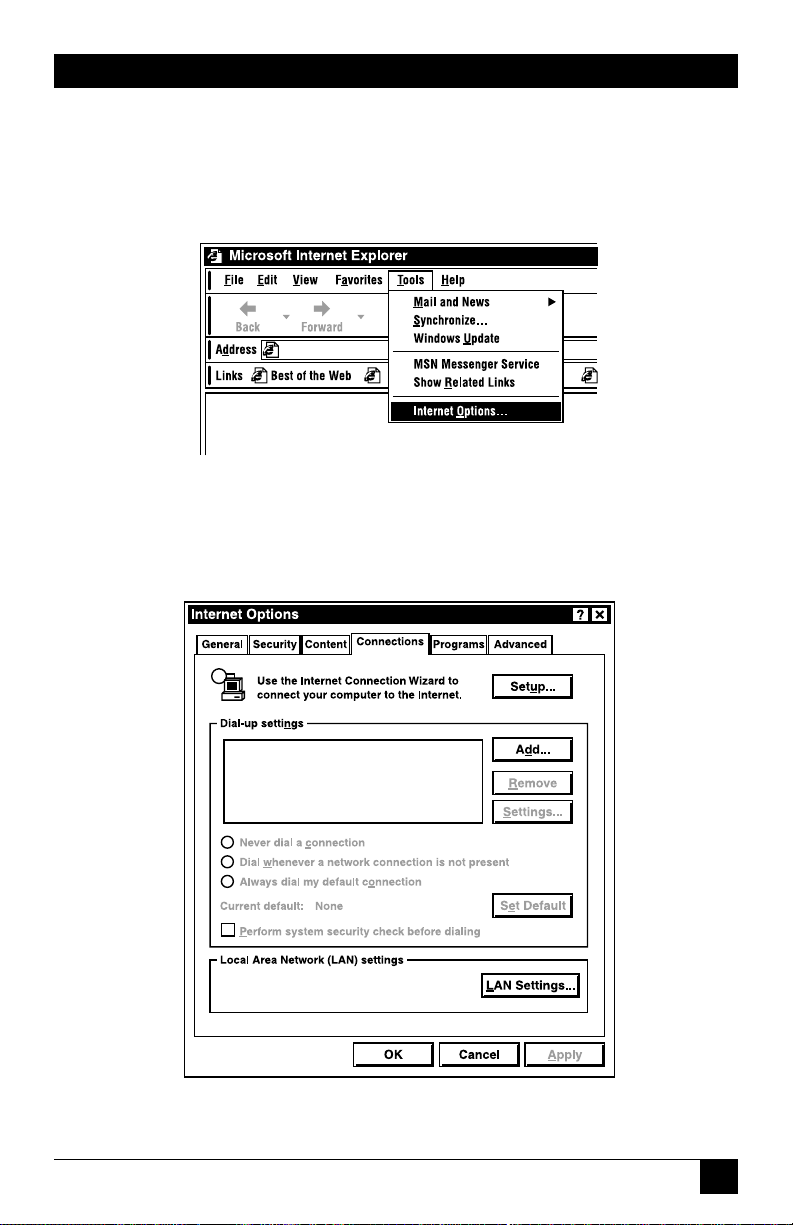

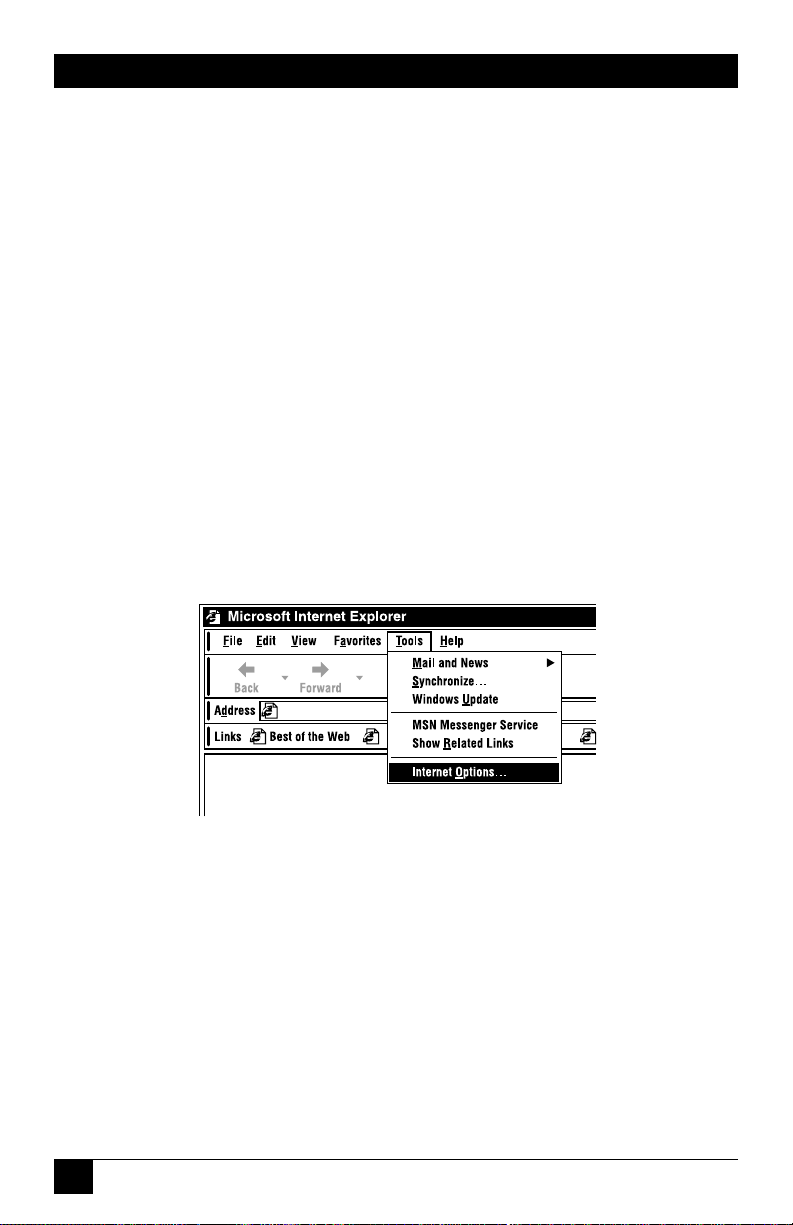

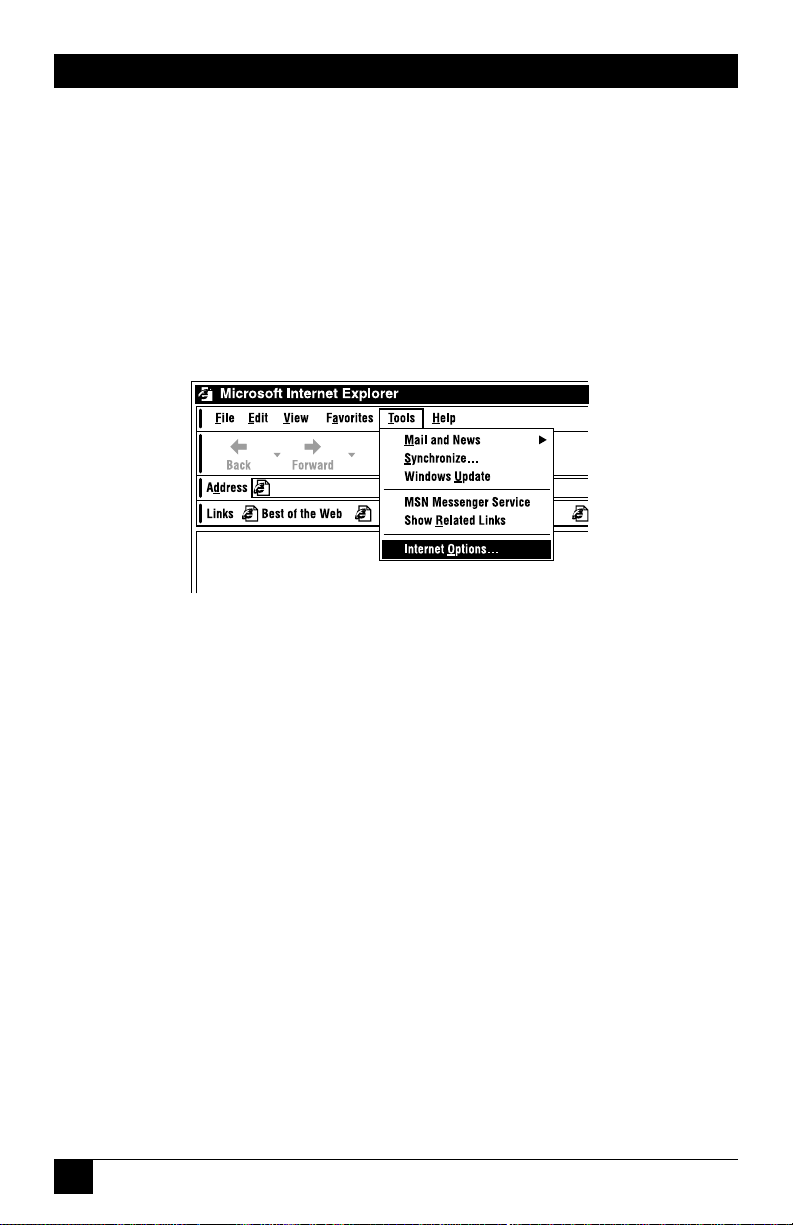

1. Select Start Menu->Settings->Control Panel->Internet Options.

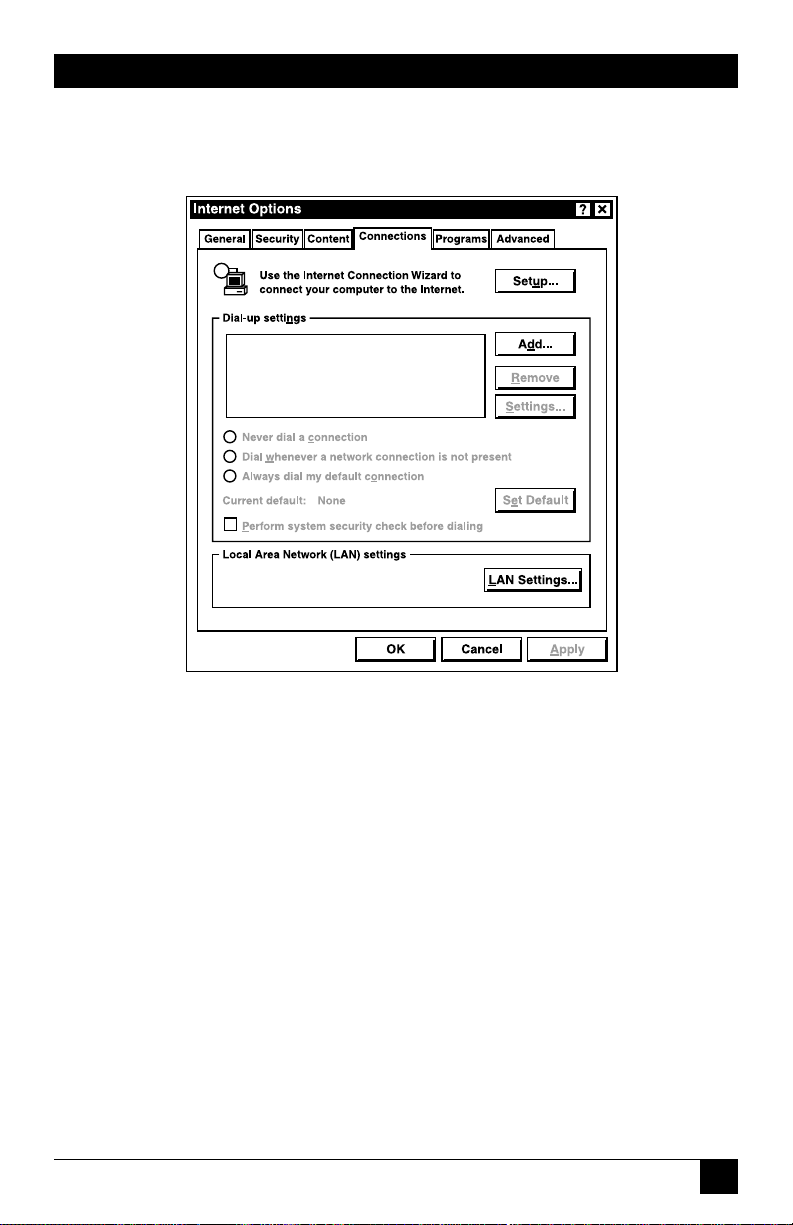

2. Select the Connections tab and press the Setup button.

3. Select I want to set up an Internet connection manually, or I want to connect through a Local Area Network (LAN). Select Next.

4. Select I connect through a Local Area Network (LAN). Select Next.

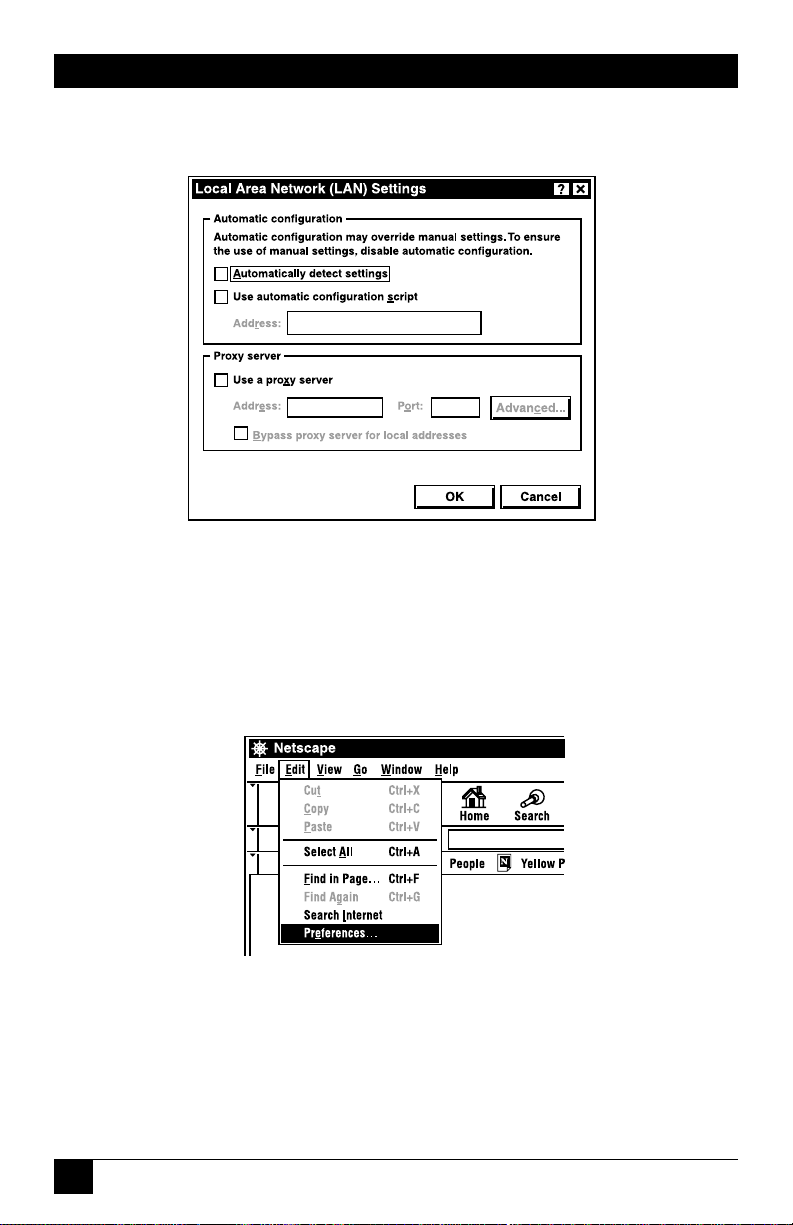

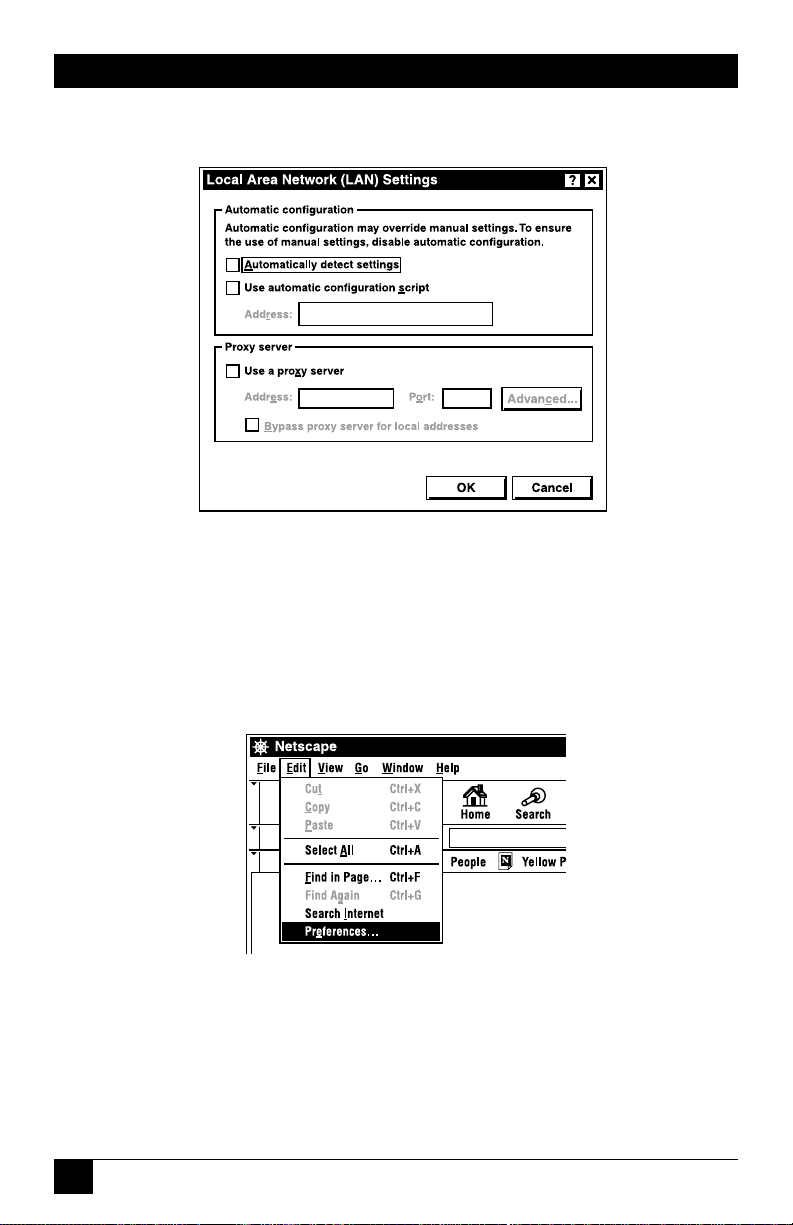

5. Uncheck all boxes on the Local Area Network Internet Configuration screen and select Next.

6. Follow the remaining prompts until the program has finished.

Page 17

BROADBAND ROUTER

1. Specifications

WAN Interface: (1) RJ-45 10BASE-T port, (1) DB9 port for PSTN/ISDN connections

LAN Interface: (4) RJ-45 10BASE-T/100BASE-TX ports Printer Interface: (1) DB25 parallel printer port Management: Web management interface Advanced Features: Dynamic IP Address Configuration—DHCP, DNS; Firewall—

Client privileges, hacker prevention and logging, NAT; Virtual Private Network— PPTP, L2TP, IPSec; Backup Internet Connection—Dial-on-demand via secondary WAN port; Print Server

Internet Standards: ARP (RFC 826); IP (RFC 791); ICMP (RFC 792); USP (RFC 768); TCP (RFC 793); Telnet (RFC 854–859), MD5 (RFC 1321); BOOTP Extension (RFC 1497); PPP LCP Extension (RFC 1570); PPPoE (RFC 2516); NAT (RFC 1631); PPP (RFC 1661); HTML (RFC 1866); HTTP (RFC 1945); CHAP (RFC 1944); DHCP (RFC 2131); PPTP (RFC 2637)

Indicators: (10) LEDs: (1) Power, (1) WAN Link, (4) Port Link Activity, (4) Port Speed 10/100

Power: Input Power: 12 VDC, 1 amp Maximum Current: 0.40 A RMS maximum @ 110 V, 0.4 A RMS maximum @ 240 V Power Consumption: 6.5 watts maximum @ 100–240 VAC Heat Dissipation: 144 BTU/hour maximum @ 100–240 VAC Size: 2"H x 8"W x 4.5"D (5.1 x 20.3 x 11.4 cm) Weight: 12.08 oz. (342 g)

Page 18

CHAPTER 2: Introduction

2. Introduction

2.1 Description

The Broadband Router is a gateway device designed to share Internet access, provide security, and to network multiple devices for a variety of users.

The Broadband Router provides the following wide array of advanced features:

• Instant Internet sharing

• Firewall security

• Simultaneous Web access for up to 253 PCs

• Built-in 10/100-Mbps switch

• Integrated print server

• Works with PC or Mac

computers

2.2 What the Package Includes

• The Broadband Router,

• (1) power adapter,

• (1) Installation CD,

• (1) Category 5 twisted-pair fast Ethernet cable, and

• This users’ manual.

Page 19

BROADBAND ROUTER

2.3 What You Need to Supply

Before proceeding with the Broadband Router’s installation, please be sure you have the following:

• A computer with an Ethernet network card installed.

• Your Windows CD (if your computer is running Windows 95, 98, or Me).

• An Internet connection through a cable or DSL modem, or an external dial-up or ISDN modem.

• An additional Ethernet network cable.

• A Web browser, such as Internet Explorer

or Netscape Navigator®.

Page 20

CHAPTER 3: Hardware Setup

3. Hardware Setup

1. Connecting computers: Connect computers directly to the Broadband Router on ports 1–4 on the front panel (see Figure 3-1). If you have more than four computers to plug in, connect the Router to a hub or a switch and connect additional computers to that device.

Figure 3-1. The front panel.

The ports on the Router support automatic MDI/MDI-X. This means that you can use standard straight-through Ethernet cables to connect these ports to PCs or servers (with installed Ethernet network interface cards), or to any other networking device such as an Ethernet hub or switch.

2. Connecting a cable modem or DSL modem: Connect your cable or DSL modem to the WAN port on the rear panel using the included Ethernet cable.

Figure 3-2. The rear panel.

Page 21

BROADBAND ROUTER

3. Connecting a dial-up modem: If you use an external dial-up modem or ISDN modem, connect it to the COM port on the rear panel.

4. Connecting a printer: If you have a printer that you want to share between computers, connect it to the printer port on the rear panel using a standard parallel printer cable.

5. Power: Plug the AC power adapter into the Router’s power jack on the rear panel.

Indicator LEDs

The Broadband Router’s front panel provides indicator LEDs for easy monitoring. Table 3-1 describes the function of each LED.

Table 3-1. LED functions.

LED Condition Status

Power Steadily on, Green The Router is receiving power.

WAN Steadily on, Green The WAN port has established a valid

network connection.

Flashing, Green The WAN port is transmitting or

receiving data.

Link/Act Steadily on, Green The indicated LAN port has established (ports 1–4) a valid network connection.

Flashing, Green The indicated LAN port is transmitting

or receiving data.

10/100 Steadily on, Amber The indicated LAN port is operating at

100 Mbps.

Off The indicated LAN port is operating at

10 Mbps.

Page 22

CHAPTER 4: Configuring Your PC

4. Configuring Your PC

This chapter provides configuration instructions for Windows®95, 98, Me, 2000, and Windows NT

4.0. Please be sure that you are following the proper instruction

set for your operating system.

4.1 Configuring Your PC with Windows 95/98/Me

You may find that the instructions here do not exactly match your version of Windows. This is because these steps and screen shots were created from Windows

98. Windows 95 and Windows Millennium Edition are very similar, but not identical, to Windows 98.

4.1.1 S

TEP

1: C

ONFIGURE

TCP/IP S

ETTINGS

After you have completed the hardware setup (see Chapter 3), you need to configure your computer to connect to your Broadband Router. You’ll need to determine how your Internet Service Provider (ISP) issues your IP address. Many ISPs issue these numbers automatically using a networking technology known as Dynamic Host Control Protocol (DHCP). Other ISPs will specify your IP address and associated numbers, which you must enter manually. This is also known as a static IP address. How your ISP assigns your IP address determines how you will configure your computer.

Page 23

BROADBAND ROUTER

Follow these steps.

1. From the Windows desktop, select the Start button. Choose Settings, then

Control Panel.

Figure 4-1. Settings, Control Panel tab.

Page 24

CHAPTER 4: Configuring Your PC

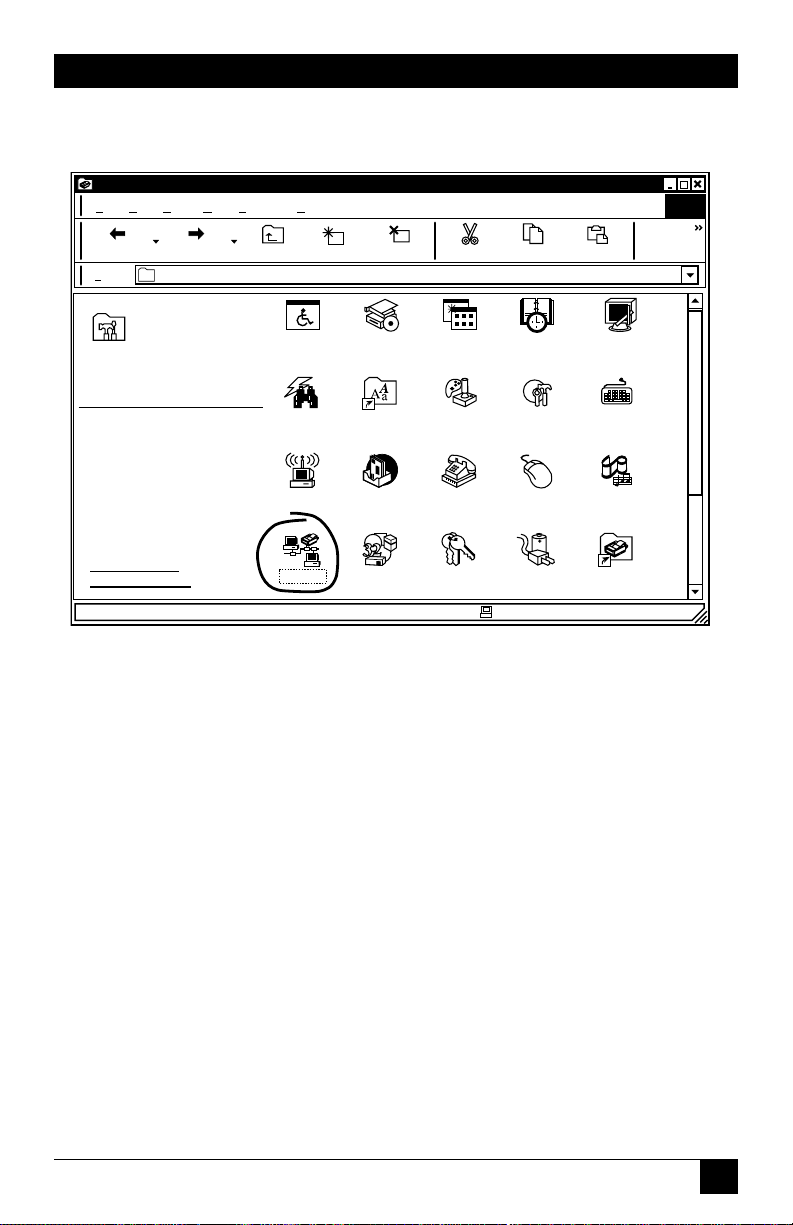

2. From Control Panel, double-click the Network icon.

Figure 4-2. Control Panel, Network icon.

Control Panel

File Edit View Go Favorites Help

Address

Back Forward Up Map Drive Disconnect Cut Copy

Control Panels

My Computer

PasteBack Forward

Find Fast

LiveUpdate Mail Multimedia

ODBC Date

Sources (32bit)

Passwords

26 Object(s)

Use the settings in Control Panel to personalize your computer.

Select an ditem to view its description.

Microsoft Home Technical Support

Accessibility

Options

Add New

Hardware

Add/Remove

Programs

Date/Time

Display

Fonts KeyboardInternet

Options

Game

Controllers

Mouse

Network

Modems

Power

Management

Printers

Page 25

BROADBAND ROUTER

3. In the Network window, under the Configuration tab, double-click the TCP/IP entry that is listed with your network card.

Figure 4-3. Network window, Configuration tab, TCP/IP entry.

Page 26

CHAPTER 4: Configuring Your PC

4. Select the IP Address tab.

Figure 4-4. TCP/IP Properties menu, IP Address tab.

If Obtain an IP address automatically is already selected, your computer is already configured for DHCP. Record the IP address and subnet mask in the spaces provided on page 26 (under TCP/IP Configuration Setting). Press Cancel to close each window, and skip to Section 4.1.2.

If Specify an IP address is selected, type in the IP address and subnet mask. Then press OK. Record the IP address and subnet mask in the spaces provided on page 26 (under TCP/IP Configuration Setting).

Page 27

BROADBAND ROUTER

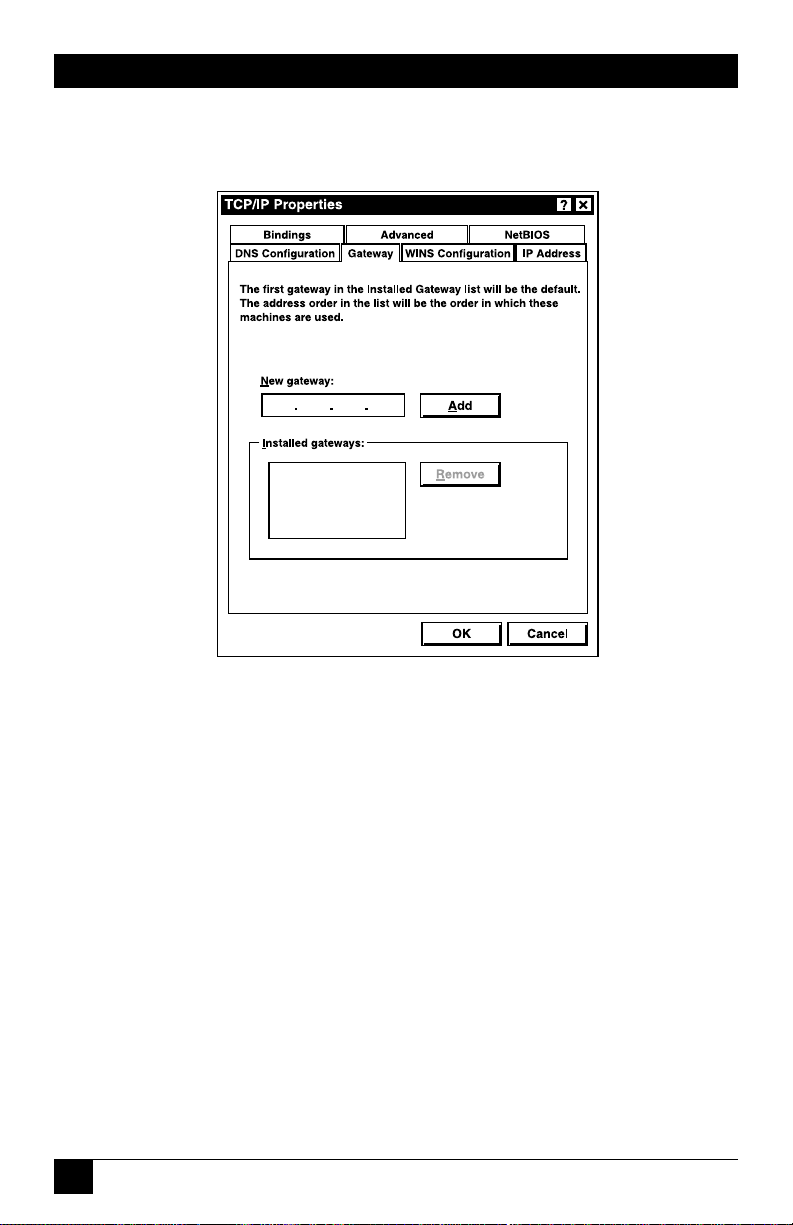

5. Select the Gateway tab and record the numbers listed under Installed gateways. Then press OK.

Figure 4-5. TCP/IP Properties menu, Gateway tab.

Page 28

CHAPTER 4: Configuring Your PC

6. Select the DNS Configuration tab. Locate the DNS servers listed under DNS Server Search Order. Record the listed addresses on the next page (under

TCP/IP Configuration Setting).

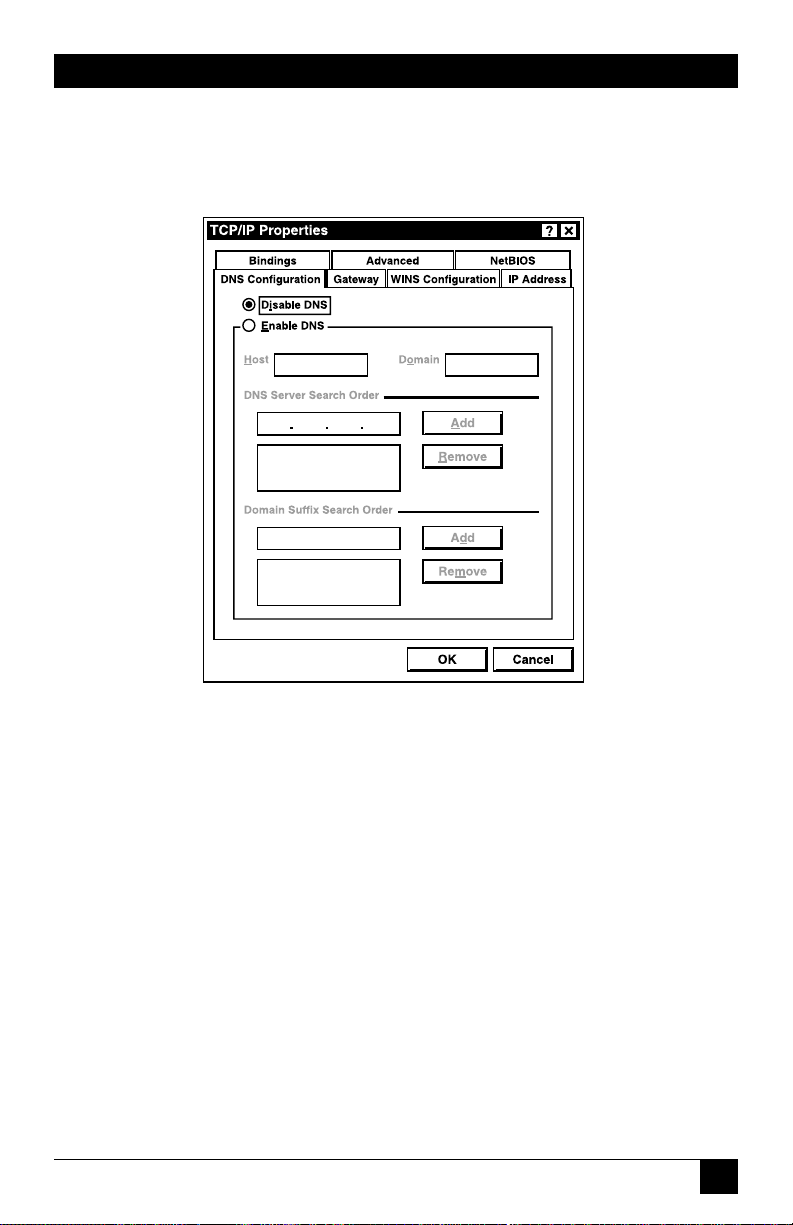

Figure 4-6. TCP/IP Properties menu, DNS Configuration tab.

7. After writing down your settings, re-check all addresses to make sure you have recorded them correctly. Select the IP Address tab and then select Obtain an IP address automatically. Click OK. Select the Gateway tab and re-check the installed gateways. Select OK. Finally, select the DNS Configuration tab and select Disable DNS. Select OK.

Page 29

BROADBAND ROUTER

8. Windows may need your Windows 95/98/Me CD to copy some files. After it finishes copying, it will prompt you to restart your system. Press Yes. Your computer will shut down and restart.

Figure 4-7. System Settings Change screen.

TCP/IP C

ONFIGURATIONSETTING

IP Address ____.____.____.____ Subnet Mask ____.____.____.____ Primary DNS Server ____.____.____.____ Secondary DNS Server ____.____.____.____ Default Gateway ____.____.____.____ Host Name ____________________

4.1.2 S

TEP

2: D

ISABLEPROXYSERVER

You will need to verify that the proxy feature of your Web browser (also known as “HTTP Proxy”) is disabled. This will enable your Web browser to view the configuration pages inside your Broadband Router. Determine whether you’re using Internet Explorer or Netscape Navigator, and follow the appropriate steps.

Page 30

CHAPTER 4: Configuring Your PC

Internet Explorer

1. Open Internet Explorer

and press the Stop button. Select Tools, then

Internet Options.

Figure 4-8. Microsoft®Internet Explorer screen, Internet Options tab.

2. In the Internet Options window, select the Connections tab. Press the LAN Settings button.

Figure 4-9. Connections tab, LAN Settings button.

Page 31

BROADBAND ROUTER

3. Clear all of the check boxes.

Figure 4-10. Clearing the check boxes.

4. Click OK, and then click OK again to close the Internet Options window.

Netscape Navigator

1. Open Netscape and press the Stop button. Select Edit, then Preferences.

Figure 4-11. Edit menu, Preferences option.

Page 32

CHAPTER 4: Configuring Your PC

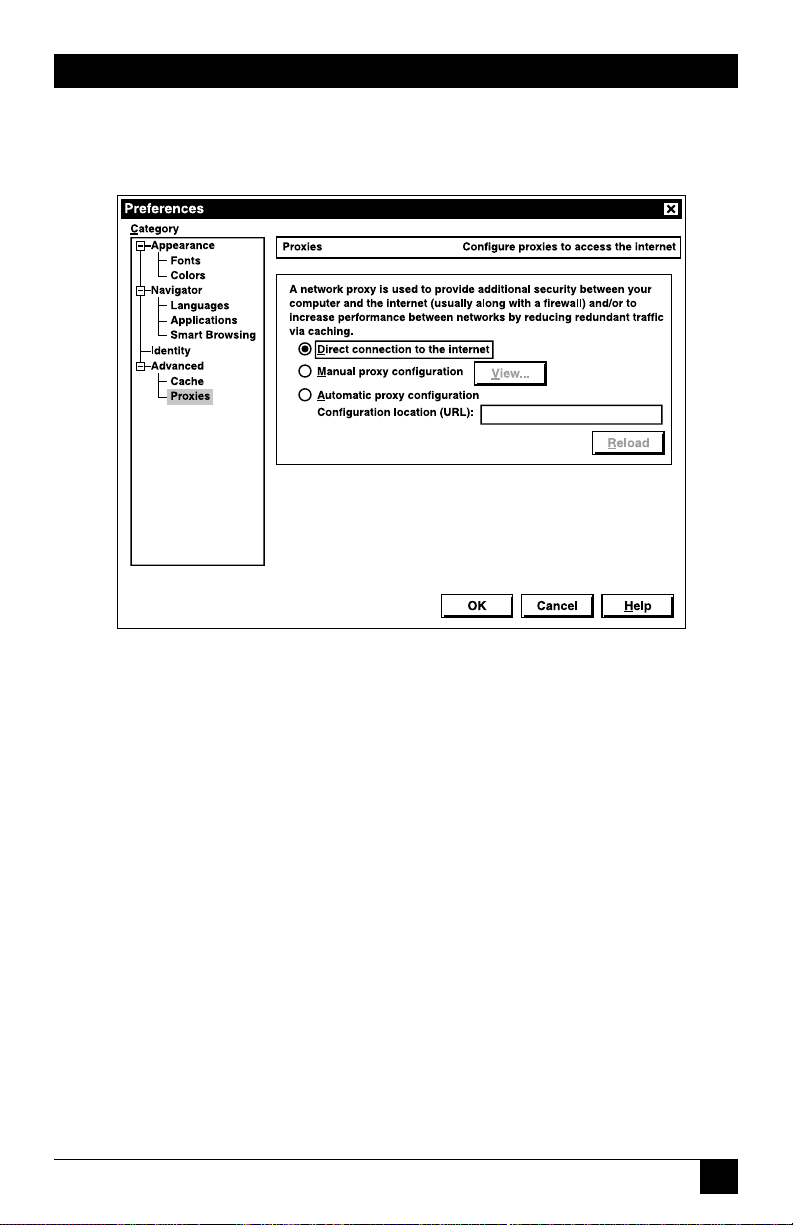

2. In the Preferences window, under Category, double-click Advanced, then click on Proxies. Select Direct connection to the Internet. Press OK.

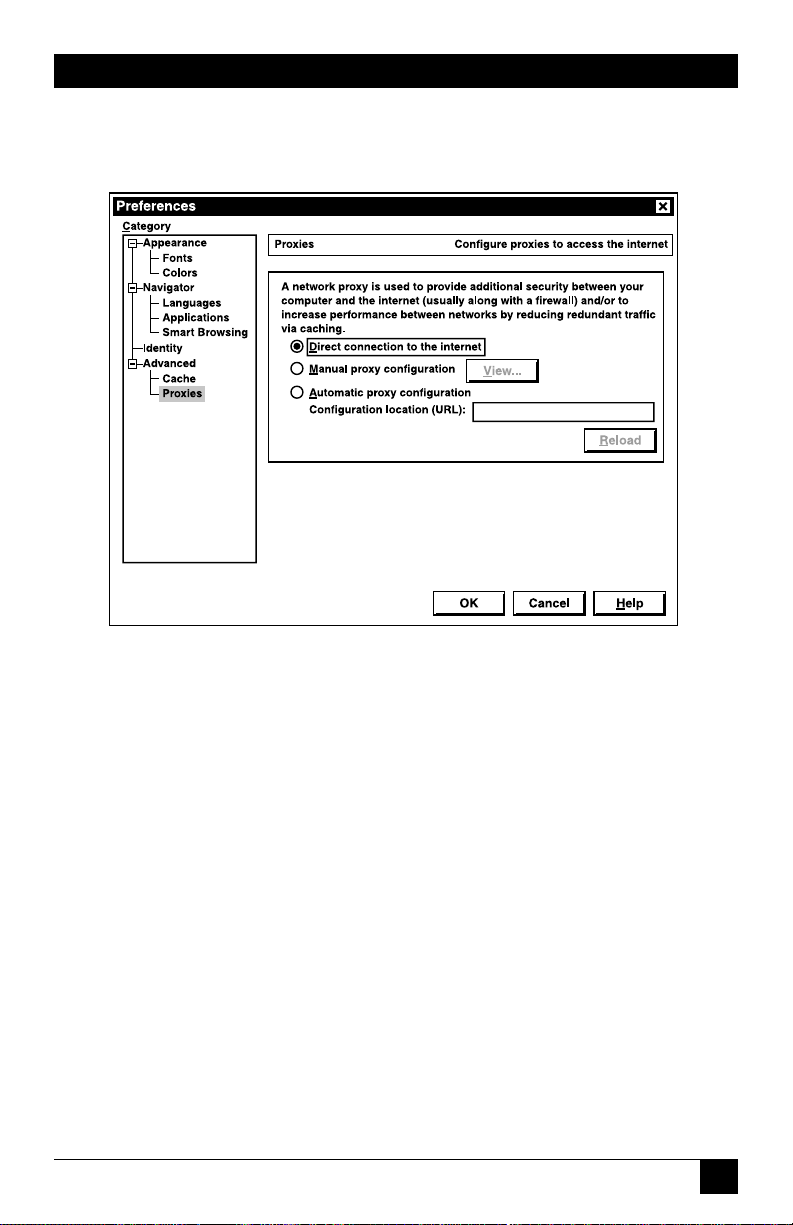

Figure 4-12. Selecting Direct Connection to the Internet.

3. Repeat these steps for each Windows 95/98/Me computer connected to your Broadband Router.

Page 33

BROADBAND ROUTER

4.1.3 S

TEP

3: O

BTAIN

IP S

ETTINGS FROMYOURBROADBANDROUTER

Now that you have configured your computer to connect to your Broadband Router, it needs to obtain new network settings. By releasing any old IP settings and renewing them with settings from your Broadband Router, you will also verify that you have configured your computer correctly.

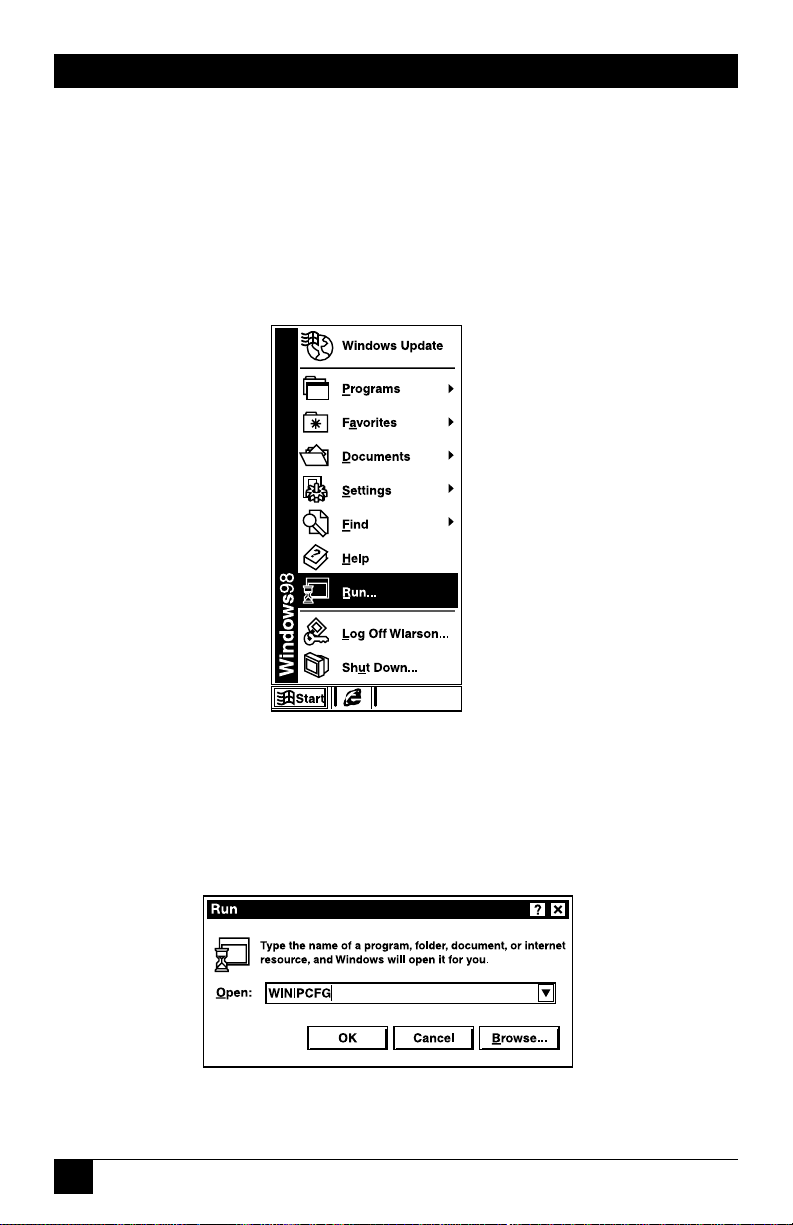

1. From the Windows desktop, select Start, then Run.

Figure 4-13. Run option.

2. Type WINIPCFG and press OK. It may take a minute or two for the IP Configuration window to appear.

Figure 4-14. Run window.

Page 34

CHAPTER 4: Configuring Your PC

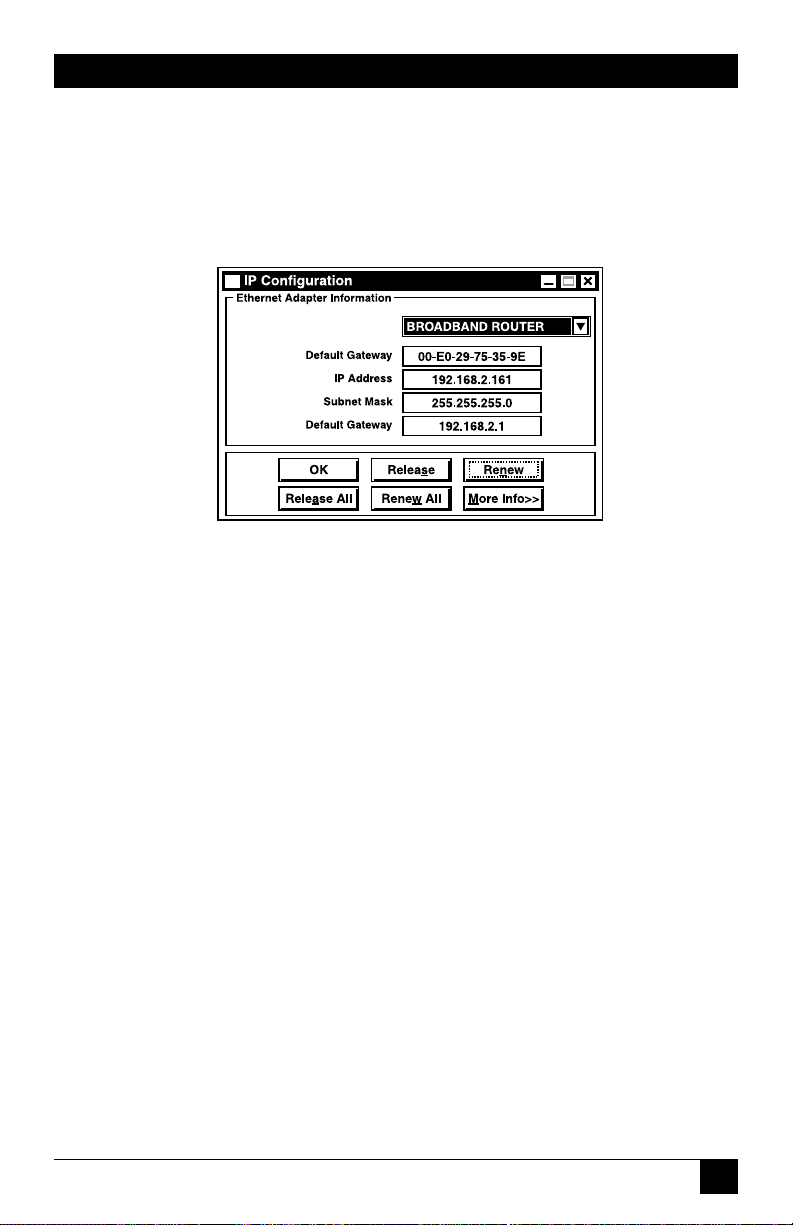

3. From the drop-down menu, select your network card. Press Release, then Renew. Verify that your IP address is now 192.168.2.xxx, your subnet mask is

255.255.255.0 and your default gateway is 192.168. 2.1. These values confirm that your Broadband Router is functioning. Press OK to close the IP Configuration window.

Figure 4-15. IP Configuration window.

Now that your computer is configured to connect to your Broadband Router, please go to Chapter 6.

4.2 Configuring Your PC with Windows 2000

4.2.1 S

TEP

1: C

ONFIGURE

TCP/IP S

ETTINGS

After you have completed the hardware setup (see Chapter 3), you need to configure your computer to connect to your Broadband Router. You’ll need to determine how your ISP issues your IP address. Many ISPs issue these numbers automatically, using a networking technology known as Dynamic Host Control Protocol (DHCP). Other ISPs will specify your IP address and associated numbers, which you must enter manually. This is also known as a static IP address. How your ISP assigns your IP address determines how you will configure your computer.

Page 35

BROADBAND ROUTER

Follow these steps.

1. From the Windows desktop, select the Start button. Choose Settings, then

Control Panel.

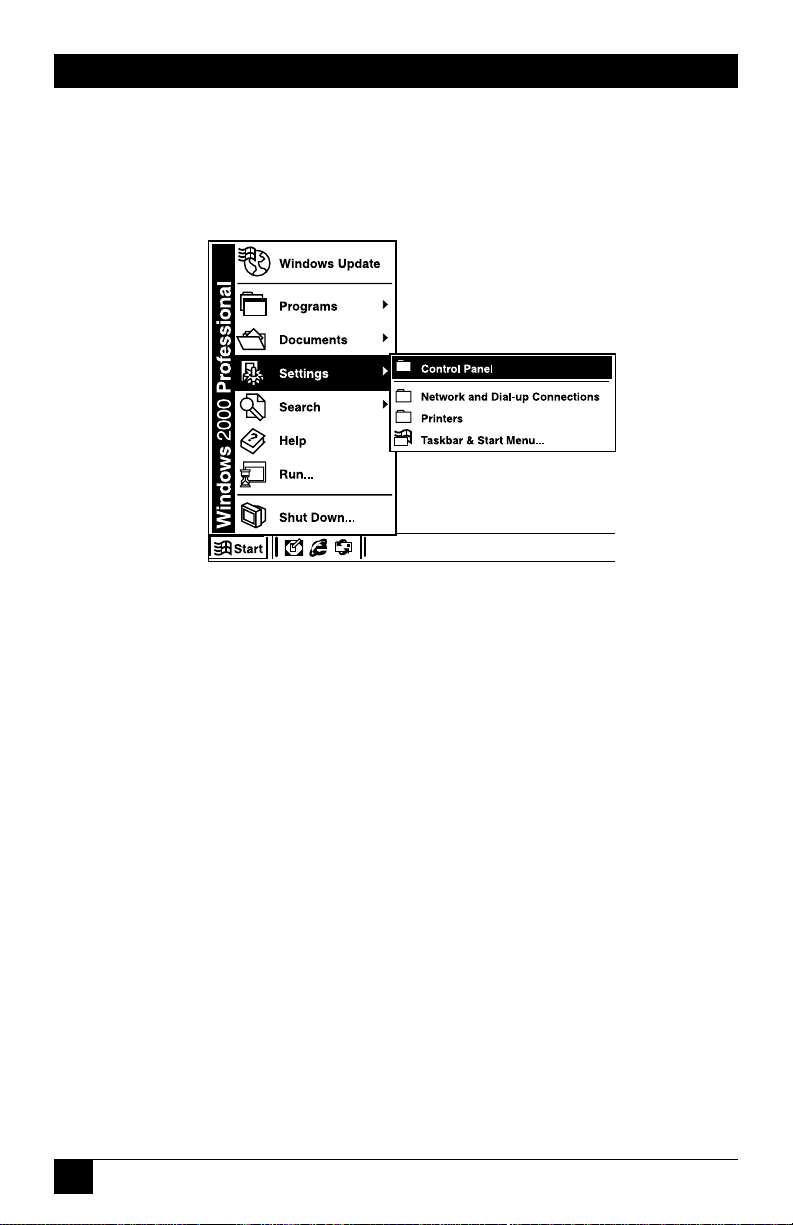

Figure 4-16. Control panel.

Page 36

CHAPTER 4: Configuring Your PC

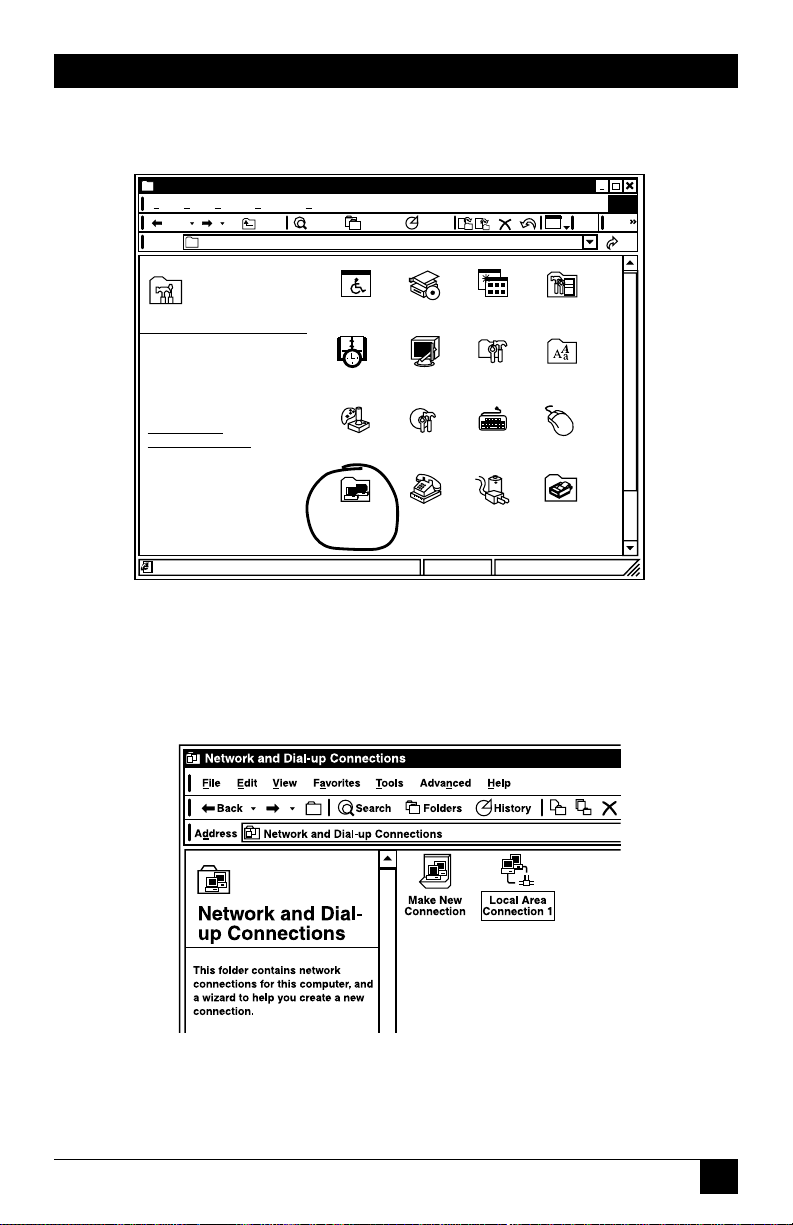

2. Double-click the Network and Dial-Up Connections icon.

Figure 4-17. Network and Dial-Up Connections icon.

3. Double-click the icon that corresponds to the connection to your Broadband Router.

Figure 4-18. Local Area Connection 1 icon.

22 Object(s)

Control Panel

Use the settings in Control Panel to personalize yourcomputer.

Select an ditem to view its description.

Windows Update Windows 2000 Support

Accessibility

Options

Add/Remove

Hardware

Display

Fonts

Keyboard

Internet Options

Game

Controllers

Mouse

Printers

Power Options

Network and

Dial-up

Connections

Phone and

Modem…

Folder Options

Administrative

Tools

Control Panel

File Edit View Favorites Help

Address

Back Search Folders History Links

Control Panel

Date/Time

Add/Remove

Programs

Page 37

BROADBAND ROUTER

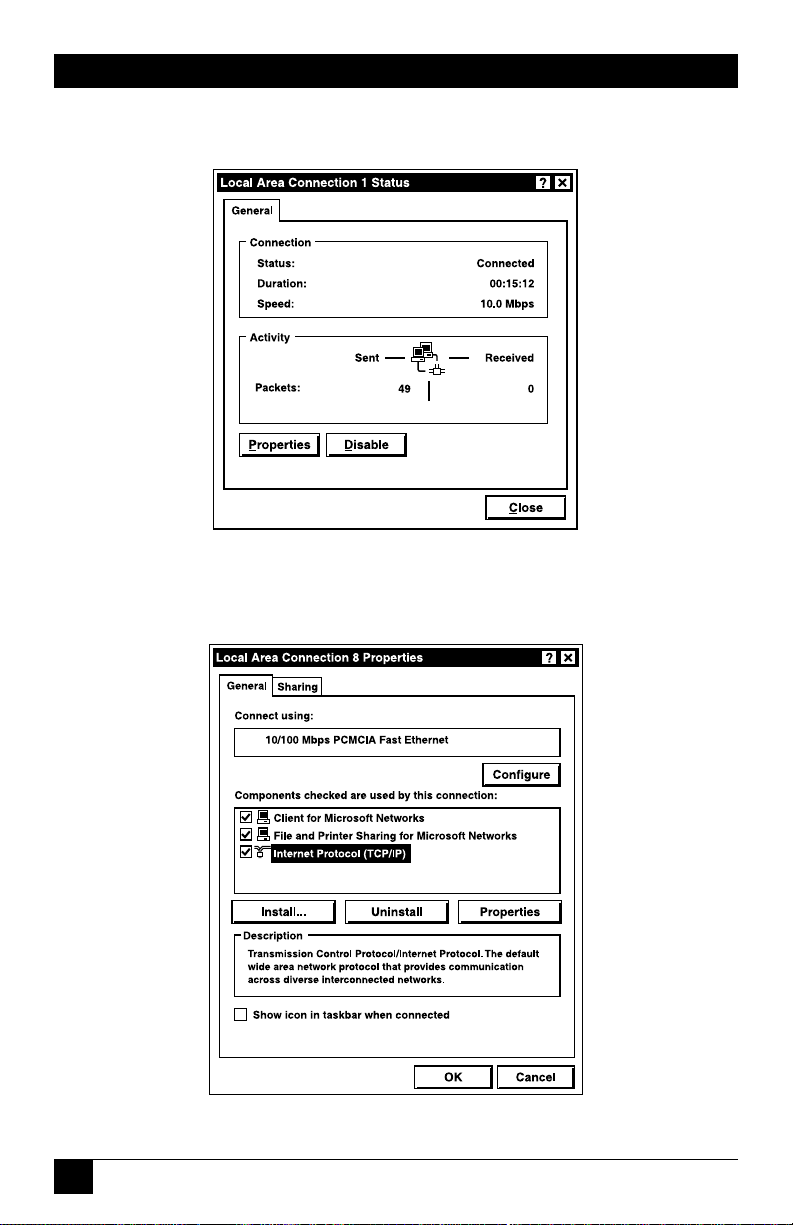

4. Select Properties.

Figure 4-19. Properties.

5. Double-click Internet Protocol (TCP/IP).

Figure 4-20. Internet Protocol TCP/IP.

Page 38

CHAPTER 4: Configuring Your PC

6. All the information that you need to record is on the Internet Protocol (TCP/IP) Properties dialog box. Use the spaces below (under TCP/IP

Configuration Setting) to record the information.

Figure 4-21. Internet Protocol (TCP/IP) Properties box.

Obtain an IP address automatically and Obtain DNS server address automatically are already selected by default. Your computer is already configured for DHCP. Press Cancel to close each window, and go to Section 4.2.2.

TCP/IP Configuration Setting

Page 39

BROADBAND ROUTER

4.2.2 S

TEP

2: D

ISABLEPROXYSERVER

You will need to verify that the proxy feature of your Web browser (also known as “HTTP Proxy”)

is disabled. This will enable your Web browser to view the configuration pages inside your Broadband Router. Determine whether you’re using Internet Explorer or Netscape Navigator, and follow the appropriate steps.

Internet Explorer

1. Open Internet Explorer and press the Stop button. Select Tools, then Internet Options.

Figure 4-22. Microsoft Internet Explorer screen, Internet Options tab.

Page 40

CHAPTER 4: Configuring Your PC

2. In the Internet Options window, select the Connections tab. Press the LAN Settings button.

Figure 4-23. Connections tab, LAN Settings button.

Page 41

BROADBAND ROUTER

3. Clear all of the check boxes.

Figure 4-24. Clearing the check boxes.

4. Click OK, and then click OK again to close the Internet Options window.

Netscape Navigator

1. Open Netscape

and press the Stop button. Select Edit, then Preferences.

Figure 4-25. Edit menu, Preferences option.

Page 42

CHAPTER 4: Configuring Your PC

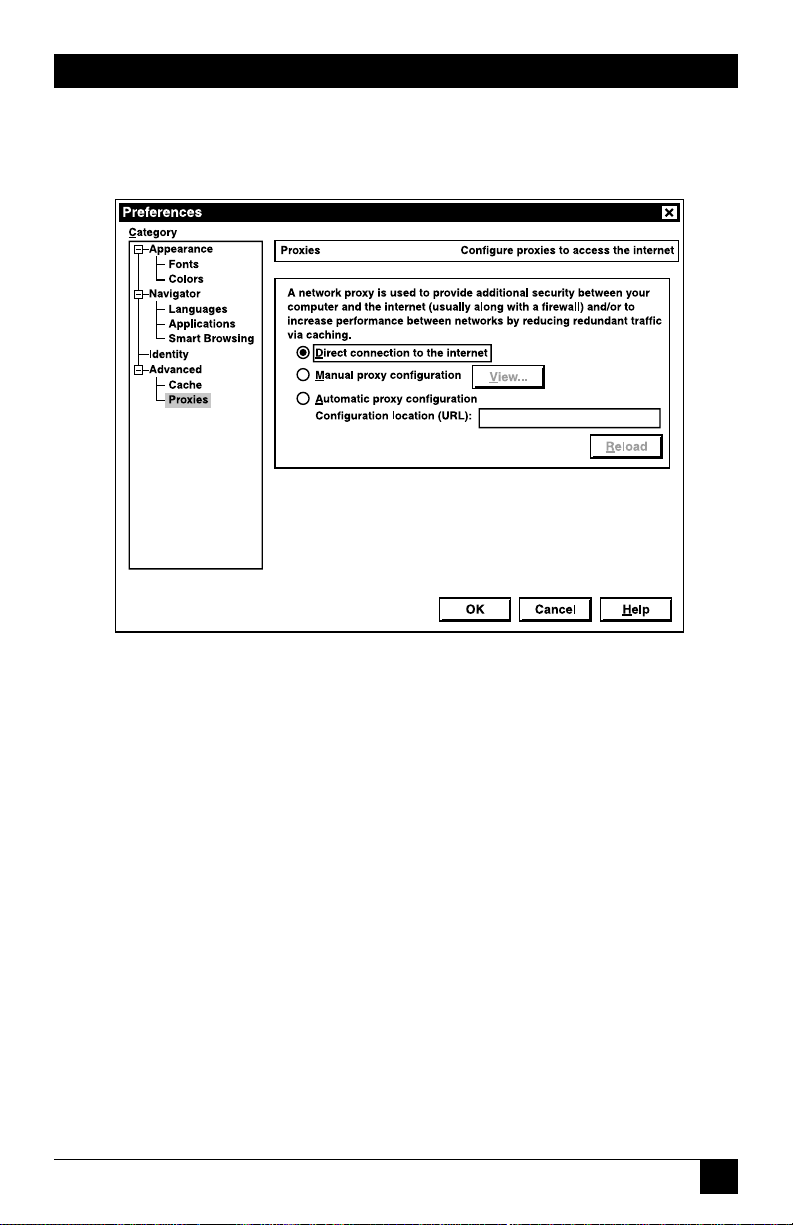

2. In the Preferences window, under Category, double-click Advanced, then click on Proxies. Select Direct connection to the Internet. Press OK.

Figure 4-26. Selecting Direct Connection to the Internet.

3. Repeat these steps for each Windows 2000 computer connected to your Broadband Router.

4.2.3 S

TEP

3: O

BTAIN

IP S

ETTINGS FROMYOURBROADBANDROUTER

Page 43

BROADBAND ROUTER

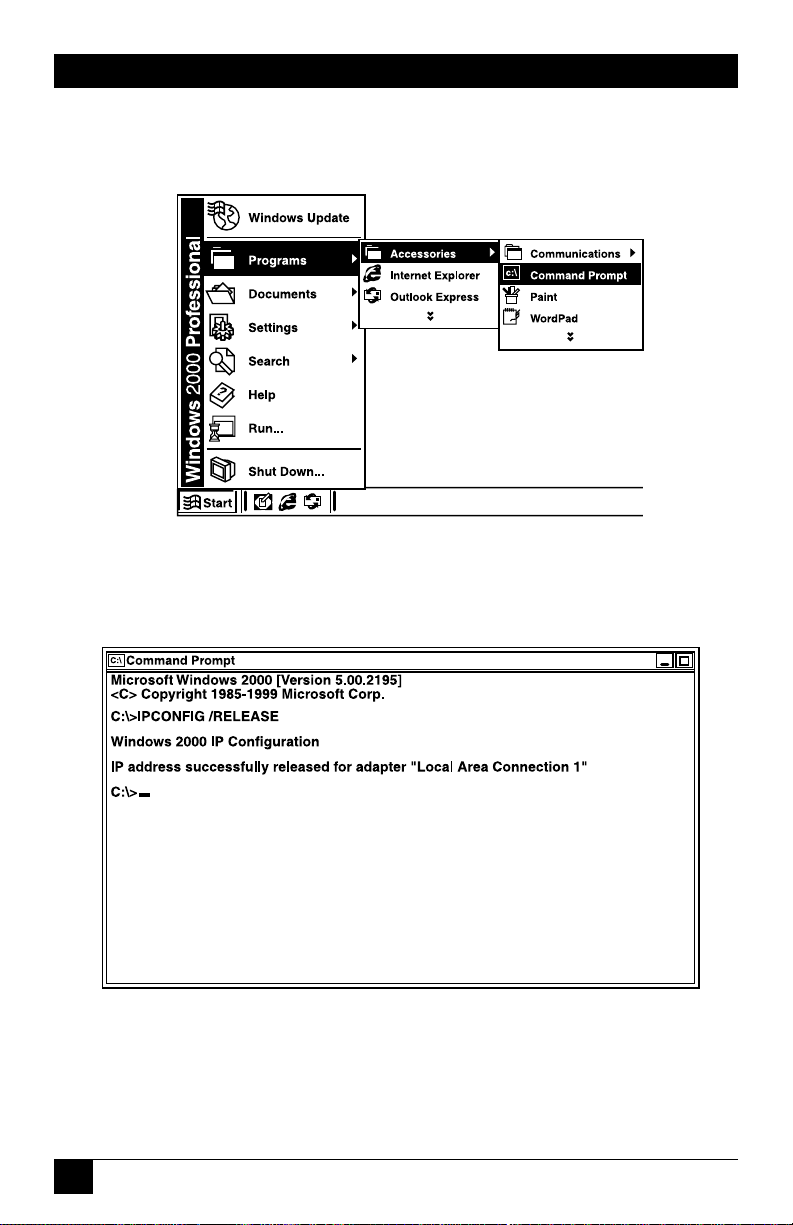

1. From the Windows desktop, press the Start button, then Programs, then Accessories, then Command Prompt.

Figure 4-27. Command Prompt.

2. In the Command Prompt window, type IPCONFIG /RELEASE. Press Enter.

Figure 4-28. IPCONFIG/RELEASE option.

Page 44

CHAPTER 4: Configuring Your PC

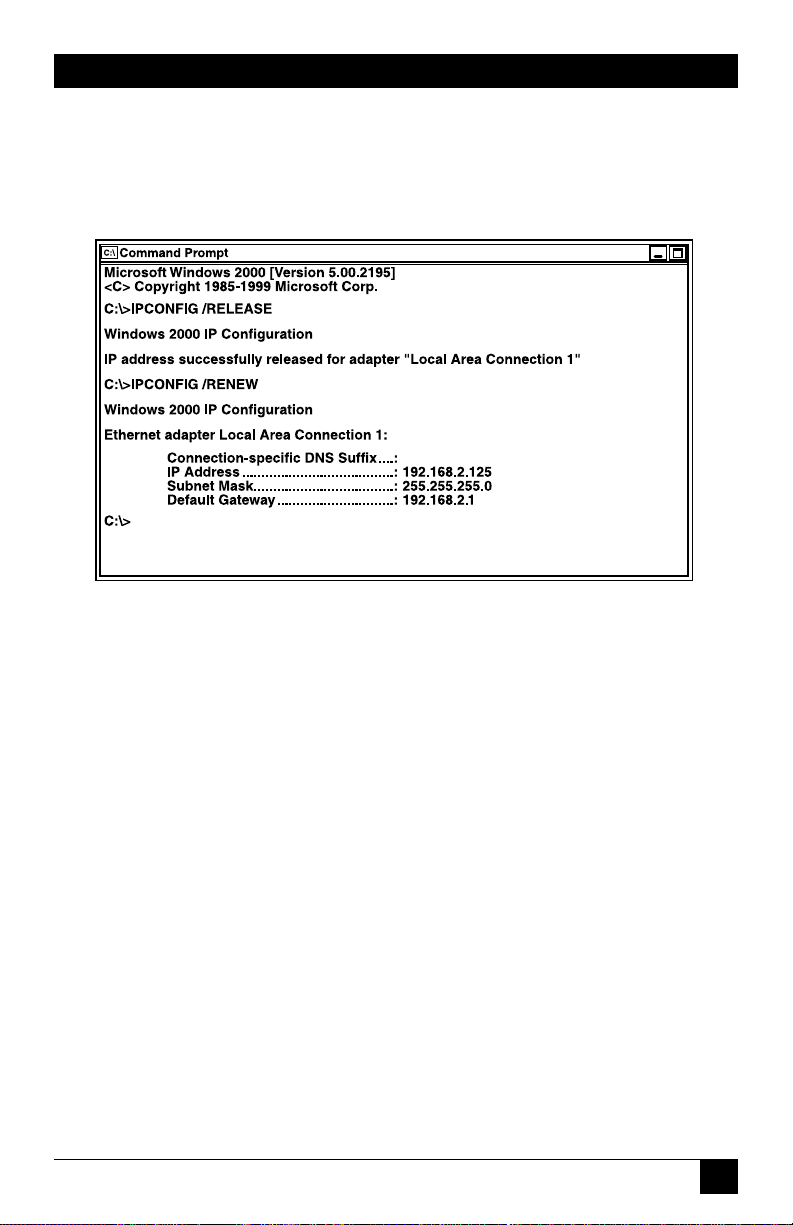

3. Type IPCONFIG /RENEW and press Enter. Verify that your IP address is now

192.168.2.xxx (2–255), your subnet mask is 255.255.255.0, and your default

gateway is 192.168.2.1. These values confirm that your Broadband Router is functioning.

Figure 4-29. IPCONFIG/RENEW option.

4. Type EXIT. Press Enter to close the Command Prompt window.

Now that your computer is configured to connect to your Broadband Router, Gateway, please go to Chapter 6.

4.3 Configuring Your PC with Windows NT 4.0

4.3.1 S

TEP

1: C

ONFIGURE

TCP/IP S

ETTINGS

Page 45

BROADBAND ROUTER

Follow these steps.

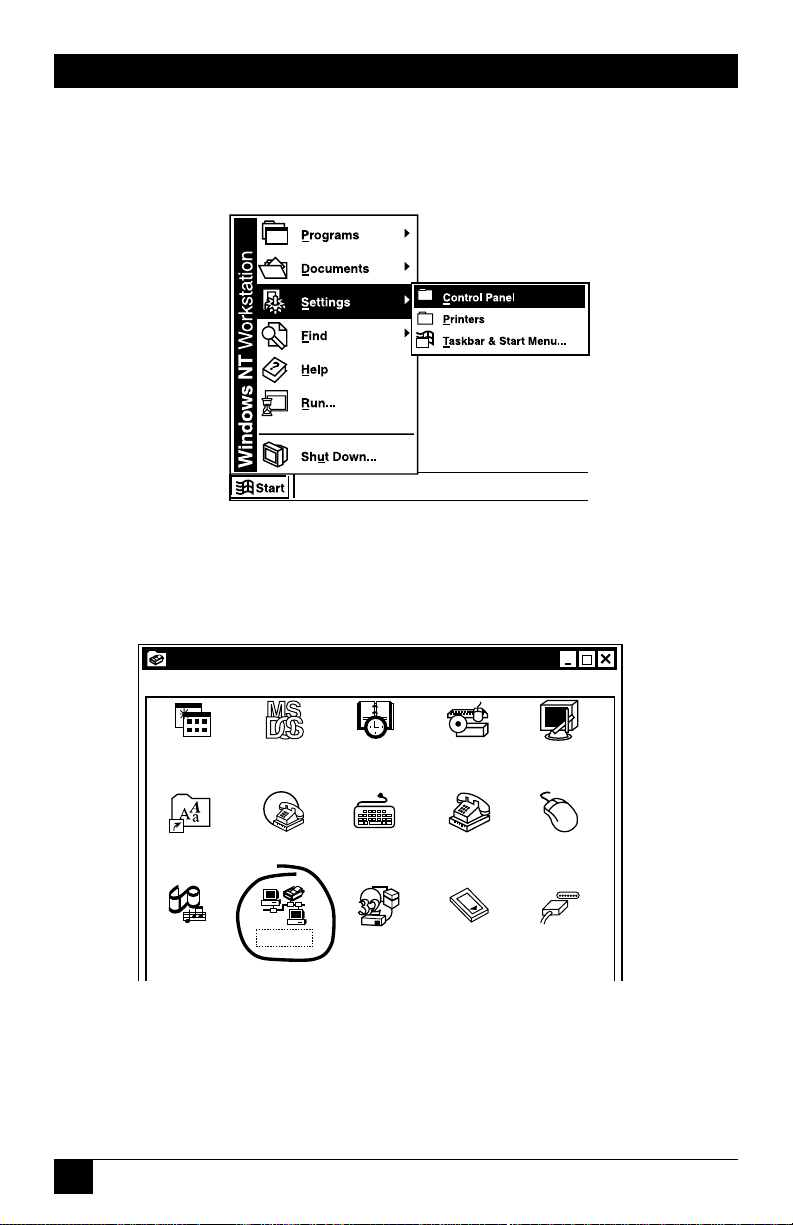

1. From the Windows desktop, select Start, then Settings, then Control Panel.

Figure 4-30. Settings, Control Panel tab.

2. From the Control Panel, double-click the Network icon.

Figure 4-31. Control panel, Network icon.

File Edit View Help

Control Panel

Date/Time

Add/Remove

Programs

Display

Fonts

Internet

Keyboard

Modems

Mouse

Multimedia

Network

ODBC

Devices

PC Card

(PCMCIA)

Ports

Console

Page 46

CHAPTER 4: Configuring Your PC

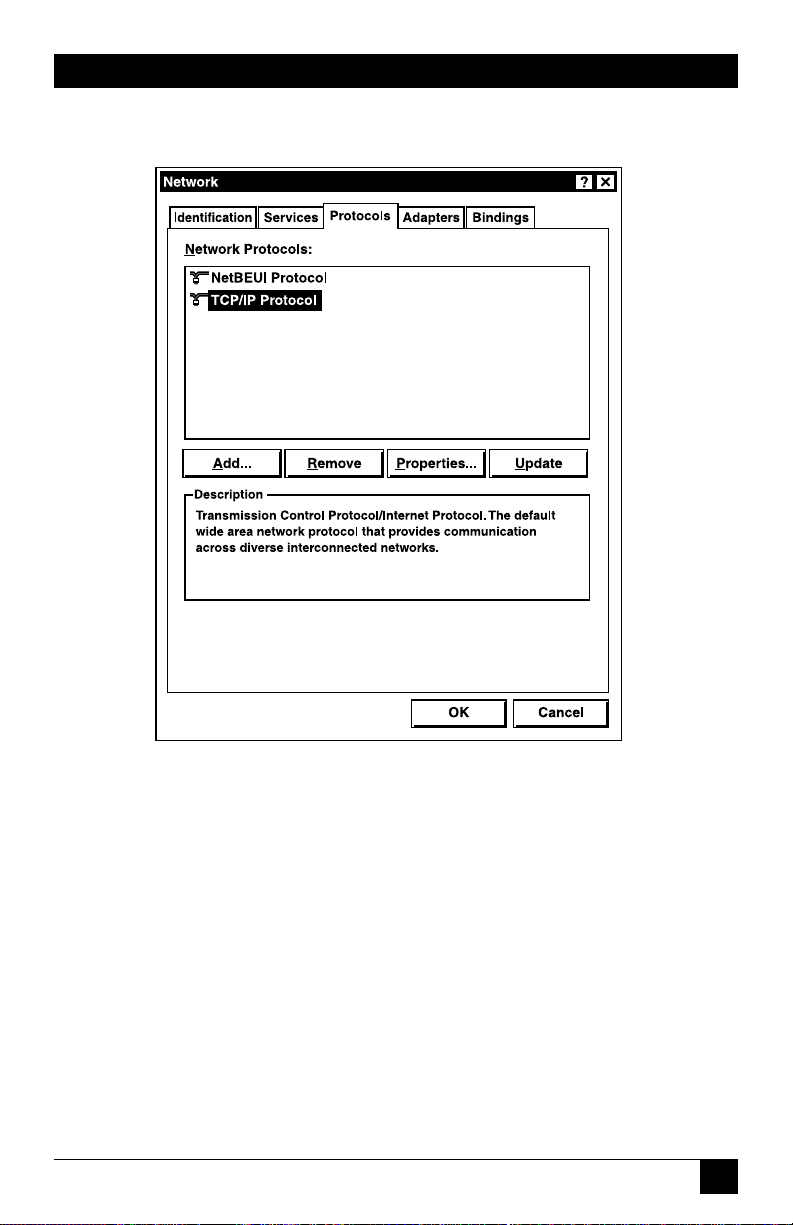

3. Select the Protocols tab.

Figure 4-32. Protocols tab.

4. Double-click TCP/IP Protocol.

Page 47

BROADBAND ROUTER

5. Select the IP Address tab.

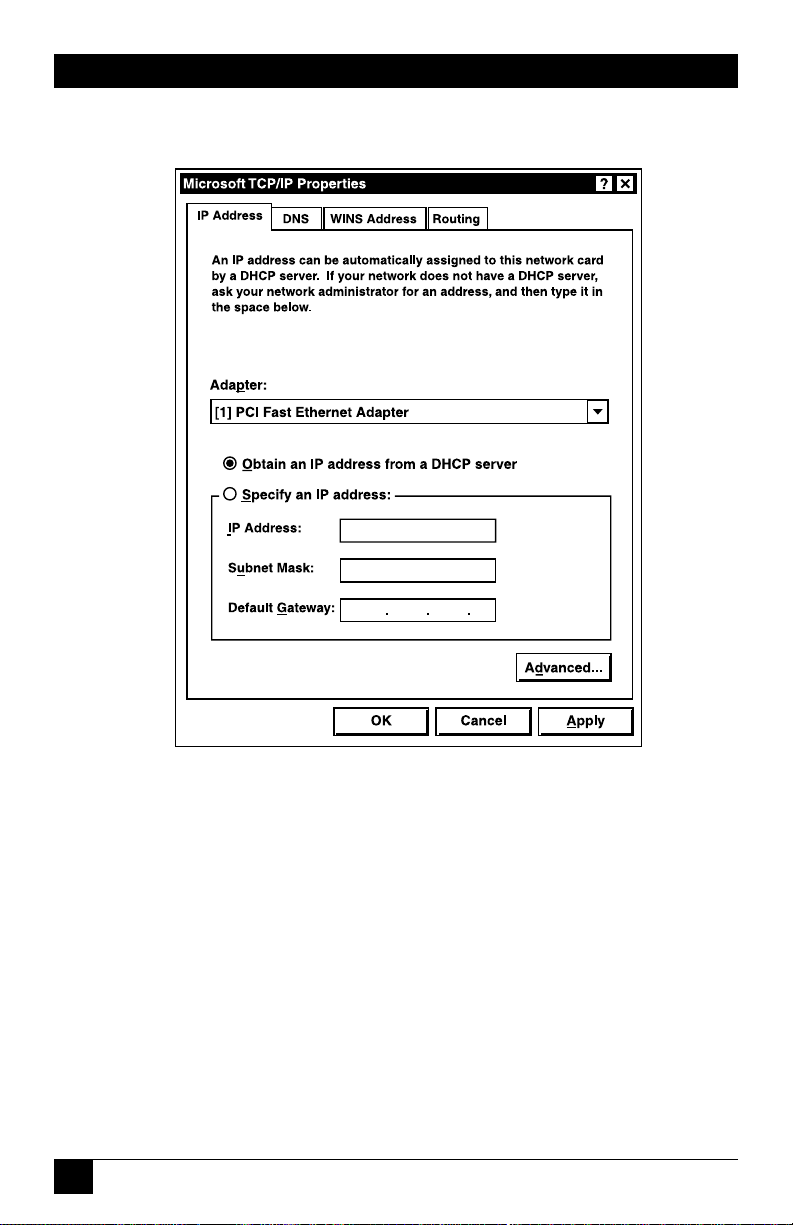

Figure 4-33. TCP/IP Protocol, IP Address tab.

6. In the Adapter drop-down list, be sure your Ethernet adapter is selected. Obtain an IP address from a DHCP server should already be selected. Your

computer is already configured for DHCP. Record these values in the space provided on page 46 (under TCP/IP Configuration Setting). Press Cancel to close each window, and skip to Section 4.3.2.

7. In the TCP/IP Properties dialog box, click the IP Address tab to locate your IP address, subnet mask, and default gateway. Record these values in the space provided on page 46 (under TCP/IP Configuration Setting).

Page 48

CHAPTER 4: Configuring Your PC

8. Select the DNS tab to see the primary and secondary DNS servers. Record these values in the appropriate spaces on the next page (under TCP/IP Configuration Setting).

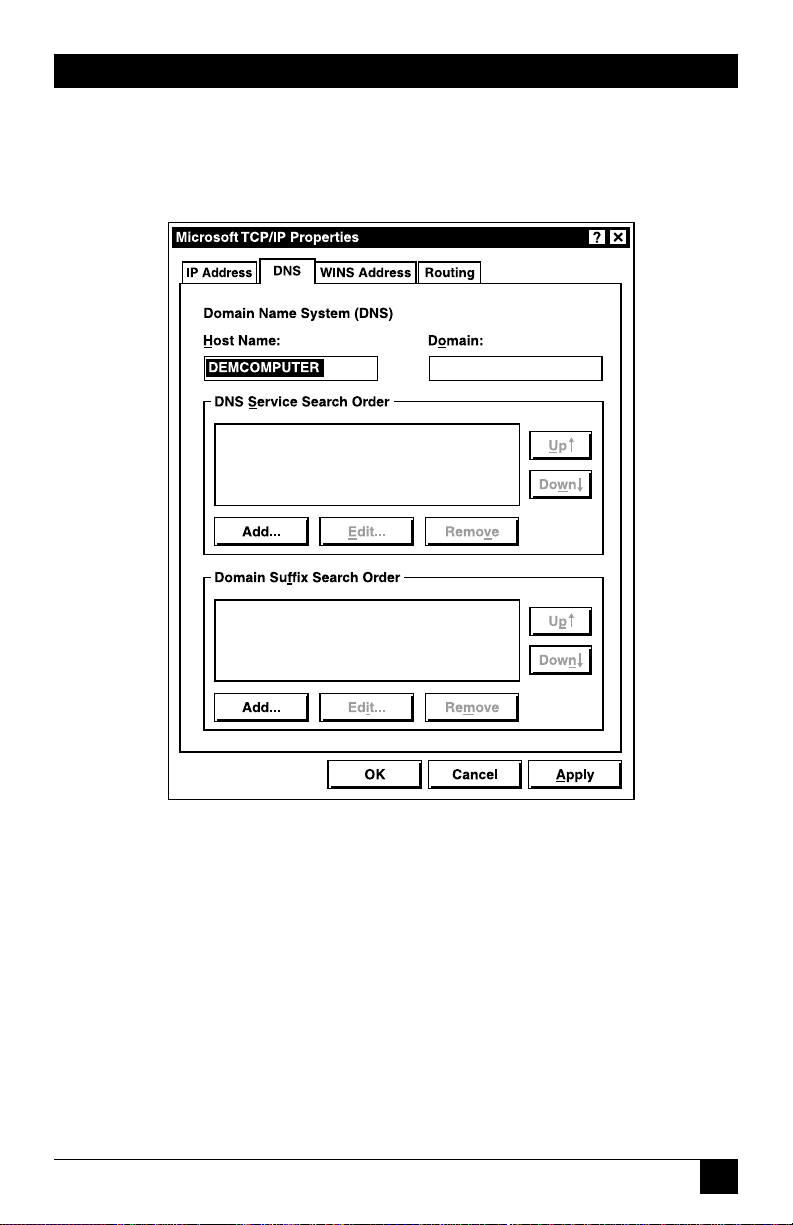

Figure 4-34. TCP/IP Properties screen, DNS tab.

9. After writing down your IP settings, re-check them. Click the IP Address tab. Make sure Obtain an IP address from a DHCP server is selected, and press OK. Press OK again to close the TCP/IP Properties window.

10. Windows may copy some files. After it finishes copying, it will then prompt you to restart your system. Press Yes. Your computer will shut down and restart.

Page 49

BROADBAND ROUTER

TCP/IP Configuration Setting

4.3.2 S

TEP

2: D

ISABLEPROXYSERVER

Internet Explorer

1. Open Internet Explorer and press the Stop button. Select Tools, then Internet Options.

Figure 4-35. Microsoft Internet Explorer screen, Internet Options tab.

Page 50

CHAPTER 4: Configuring Your PC

2. In the Internet Options window, select the Connections tab. Press the LAN Settings button.

Figure 4-36. Connections tab, LAN Settings button.

Page 51

BROADBAND ROUTER

3. Clear all of the check boxes.

Figure 4-37. Clearing the check boxes.

4. Click OK, and then click OK again to close the Internet Options window.

Netscape Navigator

1. Open Netscape and press the Stop button. Select Edit, then Preferences.

Figure 4-38. Edit menu, Preferences option.

Page 52

CHAPTER 4: Configuring Your PC

2. In the Preferences window, under Category, double-click Advanced, then click on Proxies. Select Direct connection to the Internet. Press OK.

Figure 4-39. Selecting Direct Connection to the Internet.

3. Repeat these steps for each Windows NT computer connected to your Broadband Router.

4.3.3 S

TEP

3: O

BTAIN

IP S

ETTINGS FROMYOURBROADBANDROUTER

Page 53

BROADBAND ROUTER

1. From the Windows desktop, press the Start button, then Programs, then Command Prompt.

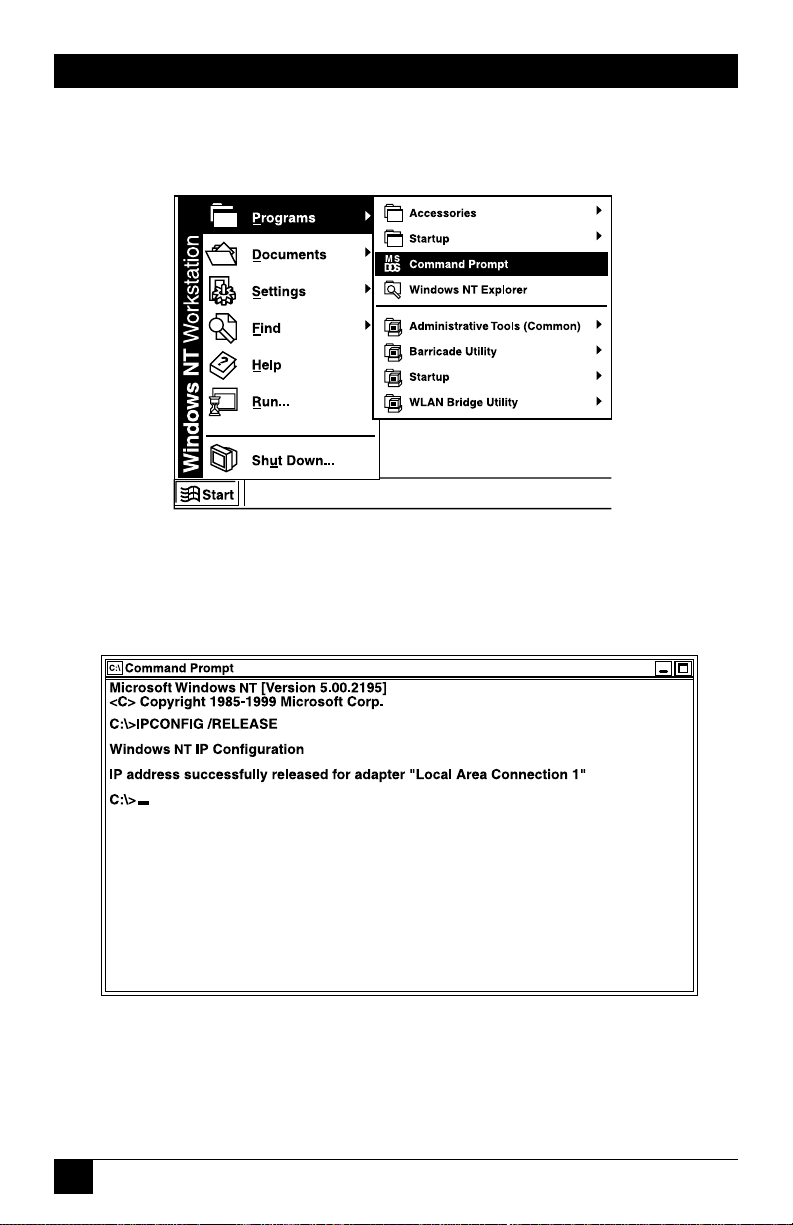

Figure 4-40. Command Prompt.

2. In the Command Prompt window, type IPCONFIG/RELEASE. Press Enter.

Figure 4-41. IPCONFIG/RELEASE option.

Page 54

CHAPTER 4: Configuring Your PC

3. Type IPCONFIG/RENEW and press Enter. Verify that your IP address is now

192.168.2.xxx, your subnet mask is 255.255.255.0, and your default gateway is

192.168.2.1. These values confirm that your Broadband Router is functioning.

4. Type EXIT. Press Enter to close the Command Prompt window.

Now that your computer is configured to connect to your Broadband Router, please go to Chapter 6.

Page 55

BROADBAND ROUTER

5. Configuring Your Macintosh

Computer

You may find that the instructions here do not exactly match your screen. This is because these steps and screen shots were created using Mac OS 8.5. Mac OS 7.x and above are all very similar, but may not be identical to Mac OS 8.5.

5.1 Step 1: Configure TCP/IP Settings

Follow these steps.

1. Pull down the Apple Menu. Select Control Panels, then TCP/IP.

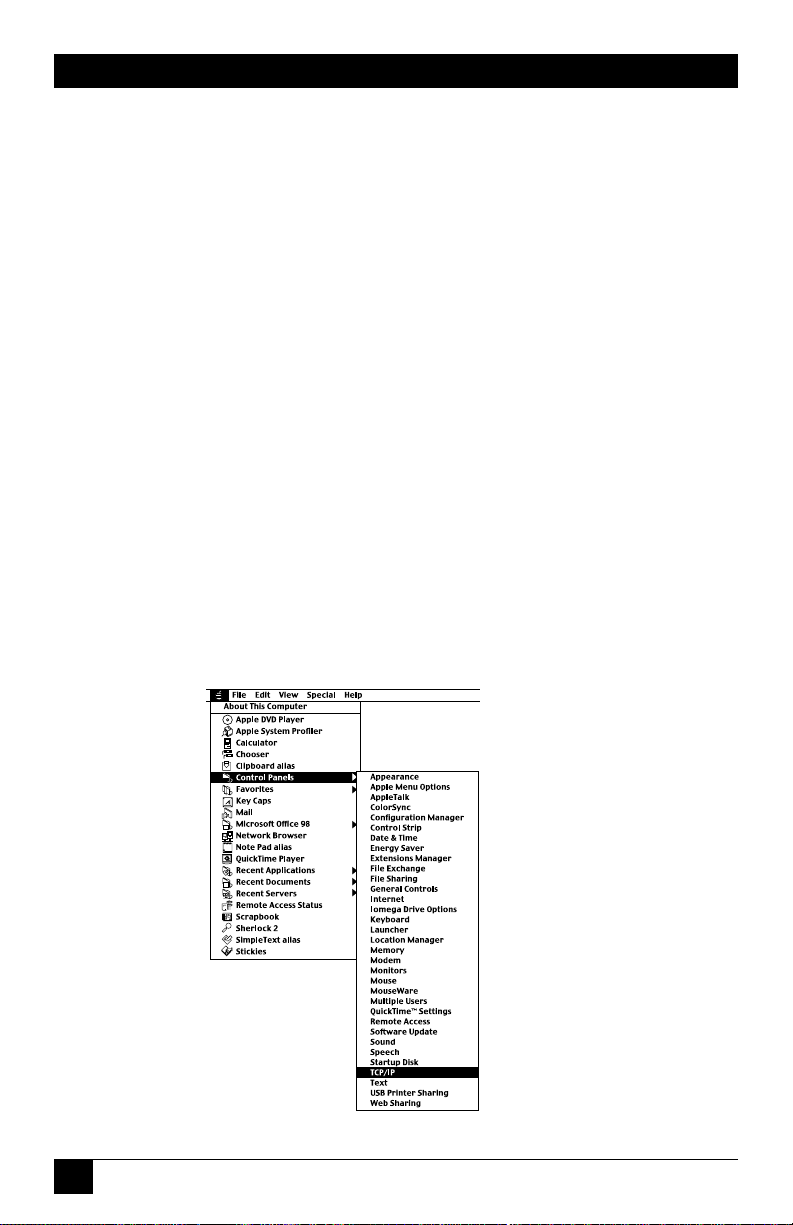

Figure 5-1. Apple menu, Control Panels, TCP/IP option.

Page 56

CHAPTER 5: Configuring Your Macintosh Computer

2. In the TCP/IP dialog box, make sure that Ethernet is selected in the Connect via field.

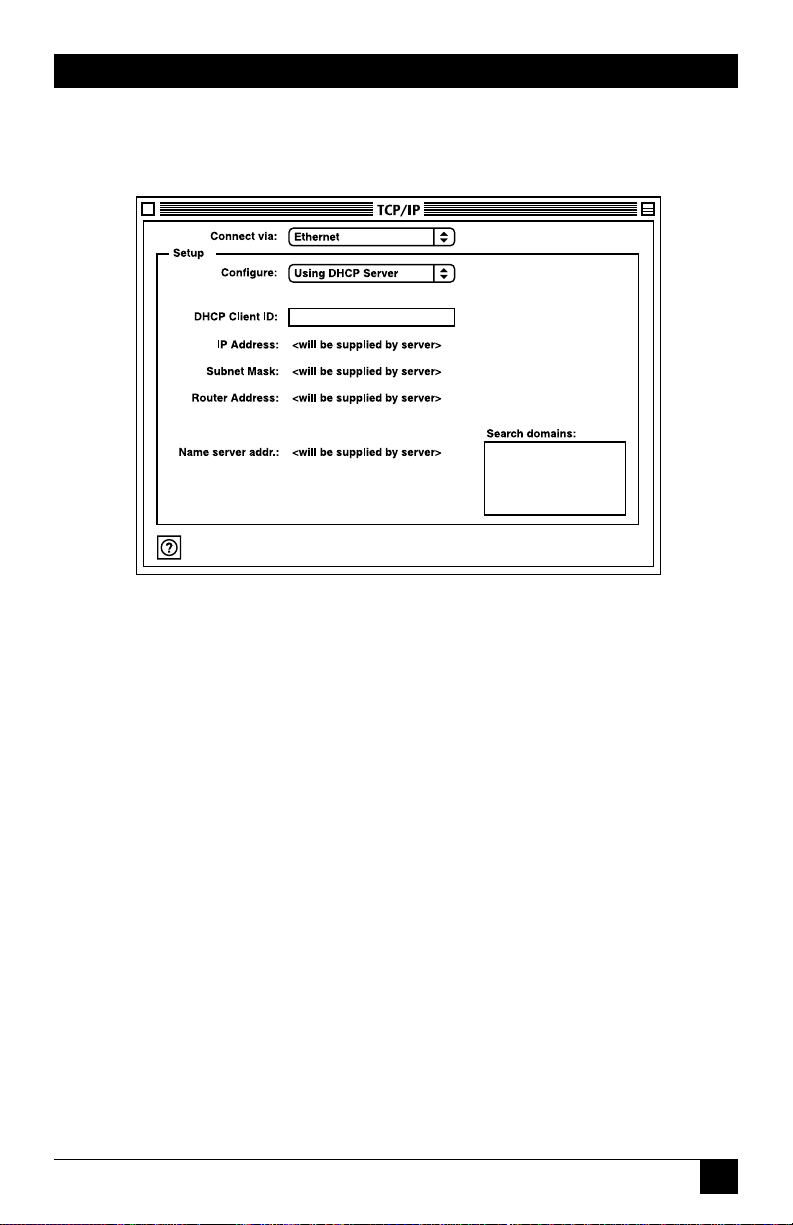

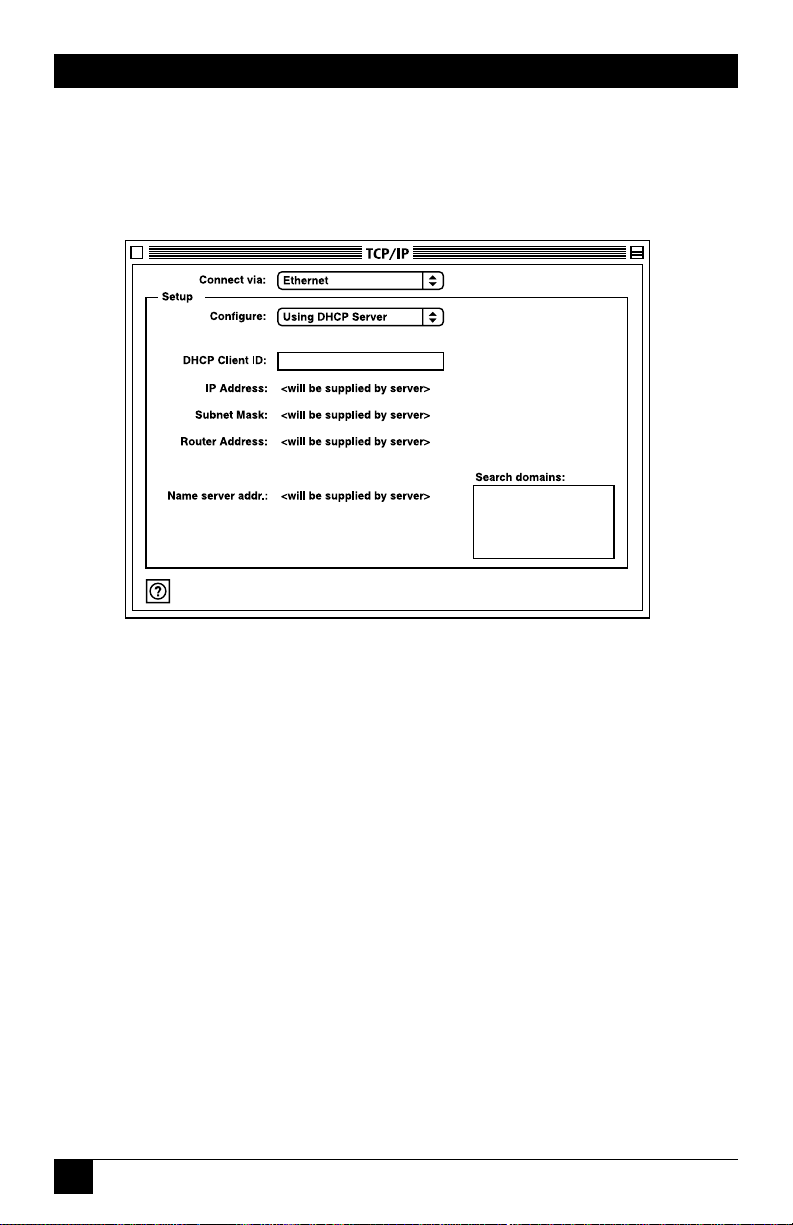

Figure 5-2. TCP/IP screen.

Using DHCP Server should already be selected in the Configure field. (If it’s

not, select it now.) Your computer is already configured for DHCP. All the information that you need to record is on the TCP/IP dialog box. Use

the space on the next page (under TCP/IP Configuration Setting) to record the information.

3. Close the TCP/IP dialog box, and skip to Section 5.2.

Page 57

BROADBAND ROUTER

4. Another box will appear asking whether you want to save your TCP/IP settings. Click Save.

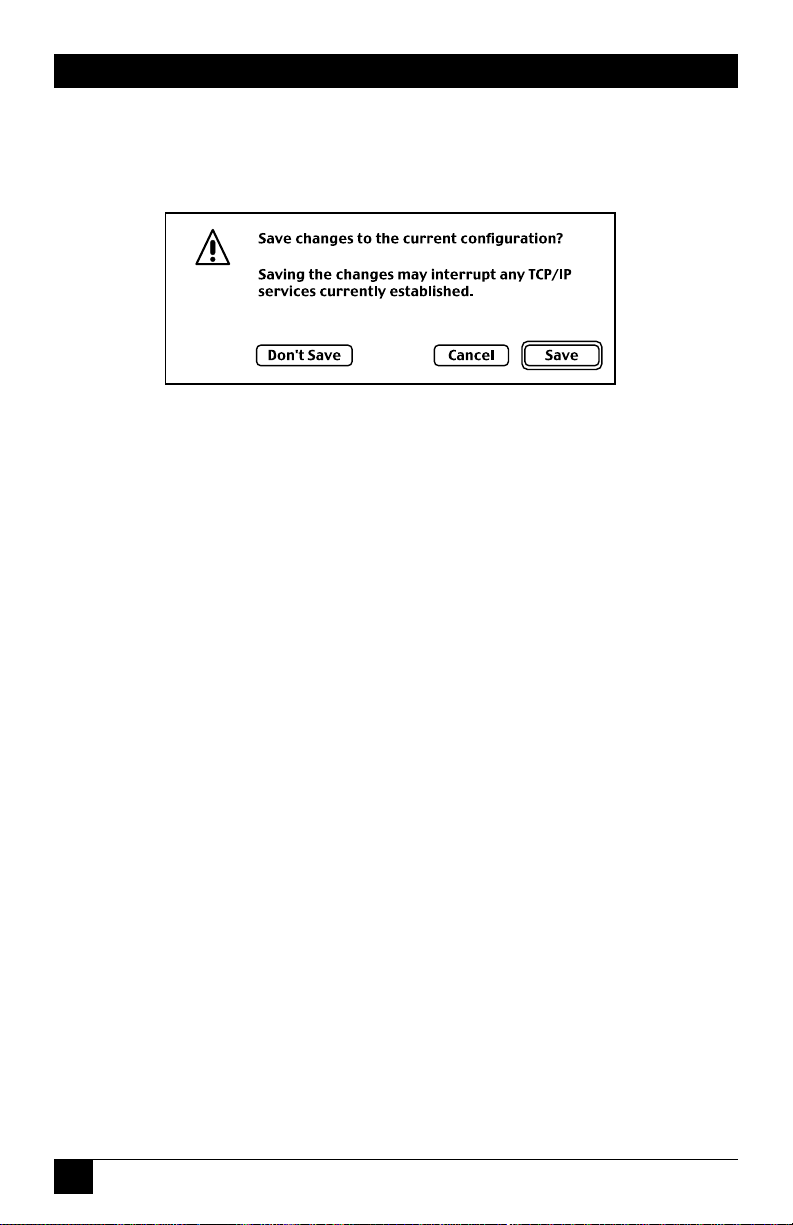

Figure 5-3. Save changes screen.

TCP/IP Configuration Setting

IP Address ____.____.____.____ Subnet Mask ____.____.____.____ Router Address ____.____.____.____ Name Server Address ____.____.____.____

5.2 Step 2: Disable Proxy Server

Page 58

CHAPTER 5: Configuring Your Macintosh Computer

Internet Explorer

1. Open Internet Explorer and press the Stop button. Select Edit, then Preferences.

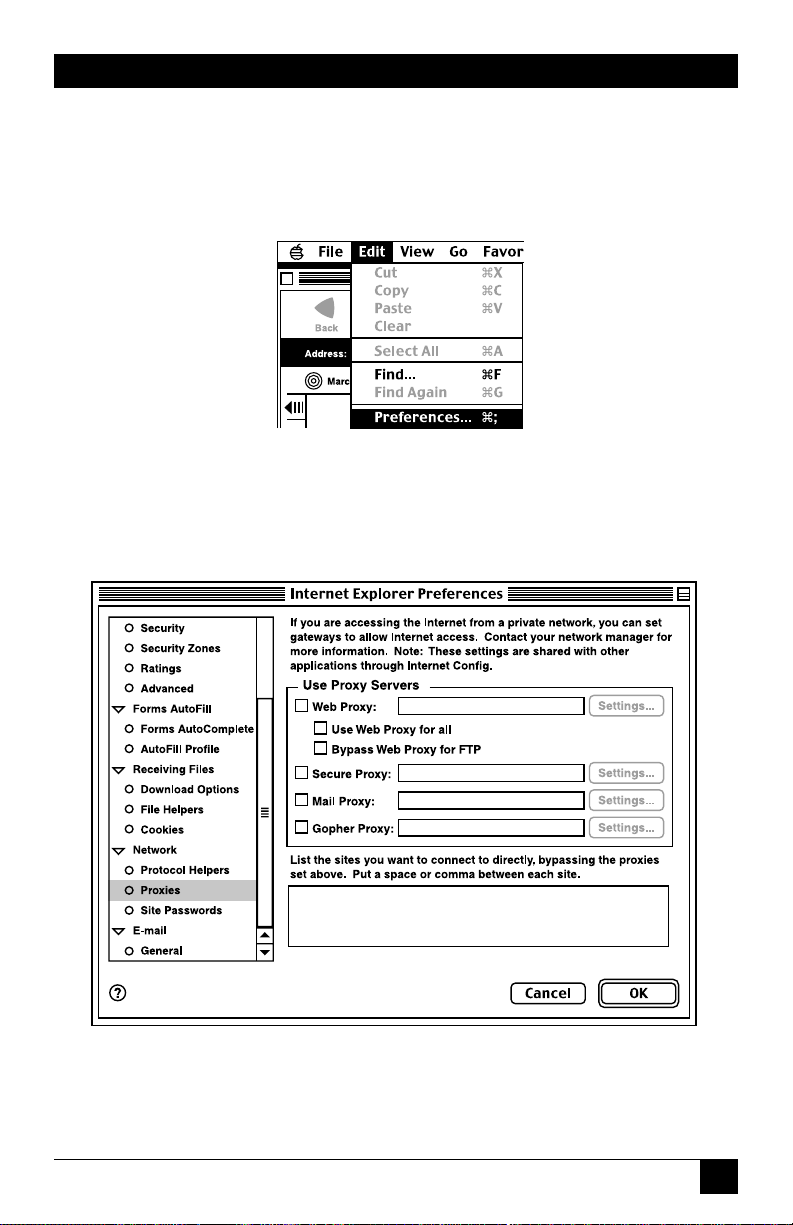

Figure 5-4. Edit, Preferences.

2. In the Internet Explorer Preferences window, under Network, select Proxies.

Figure 5-5. Preferences, Network, Proxies.

3. Uncheck all check boxes and press OK.

Page 59

BROADBAND ROUTER

Netscape Navigator

1. Open Netscape and press the Stop button. Select Edit, then Preferences.

Figure 5-6. Edit menu, Preferences option.

2. In the Preferences dialog box, in the left-hand column labeled Category, select Advanced. Under the Advanced category, select Proxies.

Figure 5-7. Proxies option.

3. Select Direct Connection to the Internet and press OK.

Page 60

CHAPTER 5: Configuring Your Macintosh Computer

5.3 Step 3: Obtain IP Settings from Your Broadband Router

1. Pull down the Apple Menu. Select Control Panels, then TCP/IP.

Figure 5-8. Apple menu, Control Panels, TCP/IP.

Page 61

BROADBAND ROUTER

2. In the TCP/IP window, your new settings will be shown. Verify that your IP address is now 192.168.2.xxx, your subnet mask is 255.255.255.0, and your Router Address is 192.168.2.1. These values confirm that your Broadband Router is functioning.

Figure 5-9. TCP/IP screen.

3. Close the TCP/IP window.

Now that your computer is configured to connect to your Broadband Router, please go to Chapter 6.

Page 62

CHAPTER 6: Configuring Your Broadband Router

6. Configuring Your Broadband Router

Now that you have successfully configured your computer and retrieved your new network settings from your Broadband Router, you are ready to configure the Router’s settings for your LAN.

1. Open your Web browser (Internet Explorer or Netscape Navigator

) and

press the Stop button.

2. In the Address field type http://192.168.2.1 and press Enter.

Figure 6-1. Internet Explorer screen, Address field.

Page 63

BROADBAND ROUTER

3. The Broadband Router login screen will appear. Leave the Password field empty and press Login. There is no password by default. For security reasons, you should assign a password as soon as possible. Note that the password login is case-sensitive.

Figure 6-2. Login screen.

4. On the main page of the Broadband Router Web console, select Setup.

Figure 6-3. Main page.

Page 64

CHAPTER 6: Configuring Your Broadband Router

5. The Broadband Router’s automated setup process will take you through each step for setting up your Router. Press Enter to start the process.

Figure 6-4. Setup screen.

Using a password can protect your Broadband Router from unauthorized changes. Not using a password can easily leave your Router—and your network—open to security risks. We recommend using a password for the security of your network. If you use a password, write it down and keep it in a safe place, or make sure you can remember it.

Page 65

BROADBAND ROUTER

6. In the Change Password screen, enter your current password in the Current Password field. If you have not yet set a password, leave it blank. Choose a password for your Broadband Router and enter it in the next two fields, New Password and Re-Enter Password for Verification.

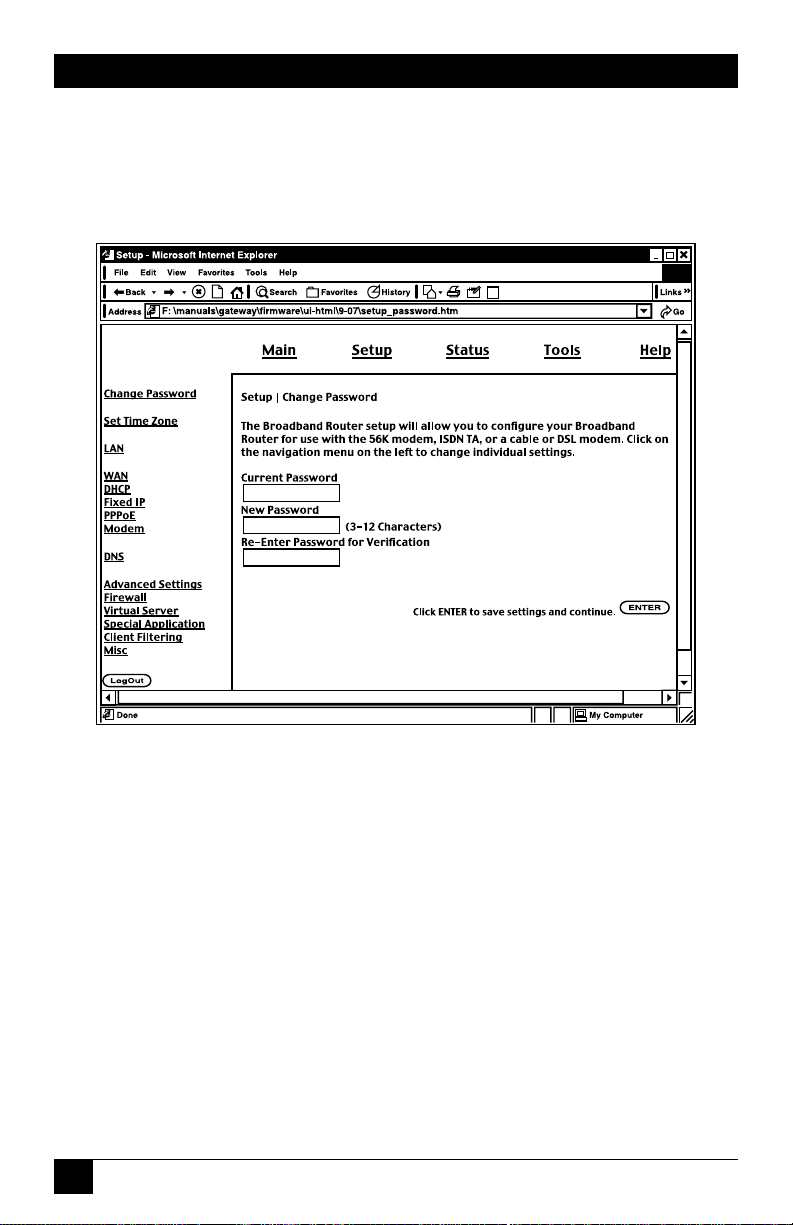

Figure 6-5. Change Password screen.

7. Press Enter when finished.

Page 66

CHAPTER 6: Configuring Your Broadband Router

8. Select your time zone from the list and press Enter.

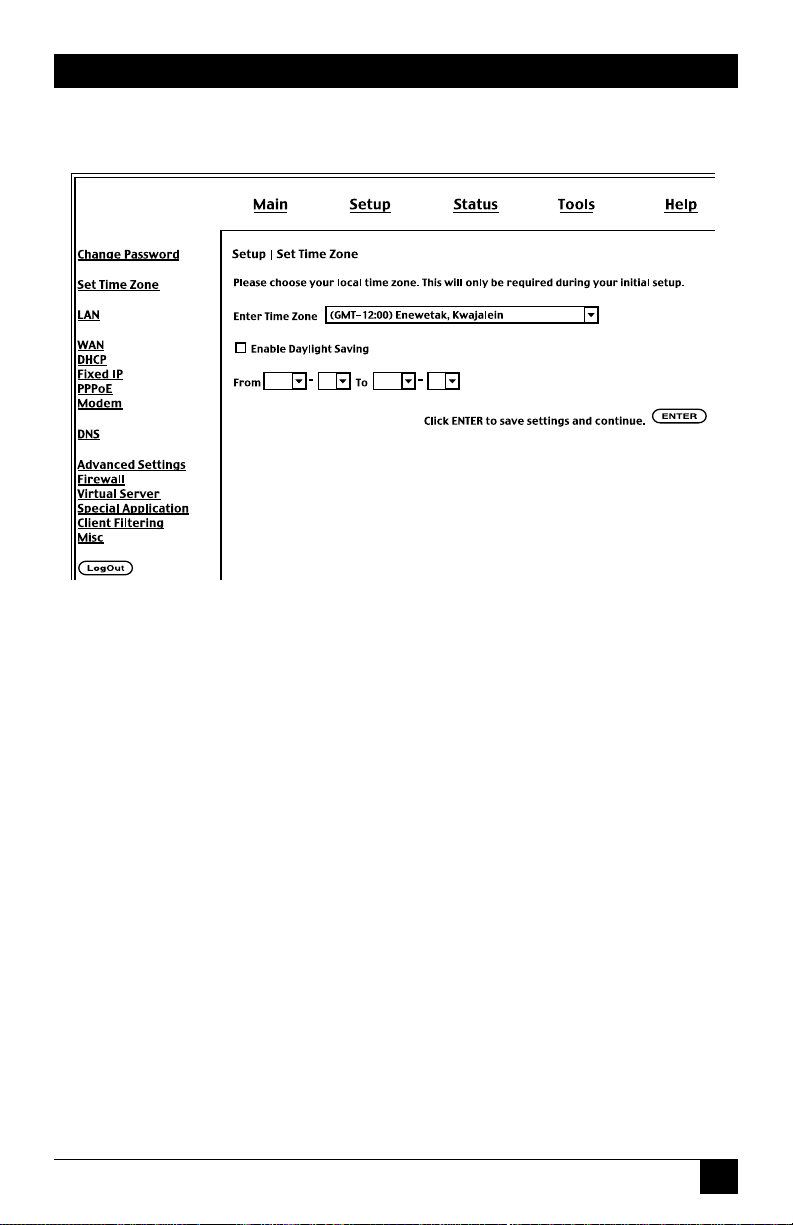

Figure 6-6. Time Zone screen.

9. The LAN screen is where you configure the LAN (Local Area Network) settings of your Broadband Router. These settings will only be visible to your local network and not to the Internet.

Page 67

BROADBAND ROUTER

10. In most applications, you should not change the IP address from the default (192.168.2.1). However, if you are installing your Broadband Router into an existing network, you may need to change it to match your current addressing scheme.

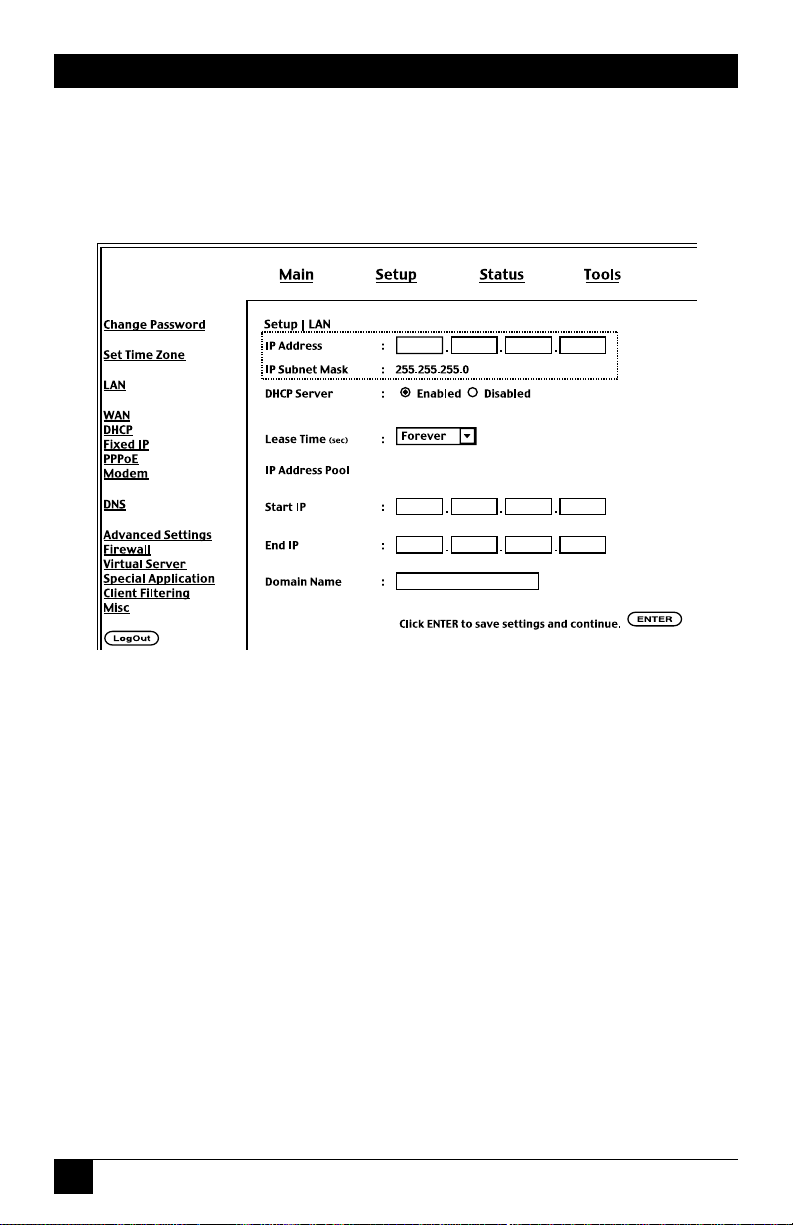

Figure 6-7. IP address screen.

By using the Broadband Router’s built-in DHCP (Dynamic Host Control Protocol) server, you are allowing the Router to handle all the IP addressing on your Local Area Network (LAN). This can save a lot of the time and hassle of administrating your network. If you have a server on your network that requires a static IP address, you may still use the DHCP server and manually assign a static IP address to your server. We recommend leaving the DHCP Server Enabled.

Page 68

CHAPTER 6: Configuring Your Broadband Router

11. In most applications, you should leave the DHCP Server Enabled. If you prefer to handle all the IP addressing on your network yourself, select

Disabled.

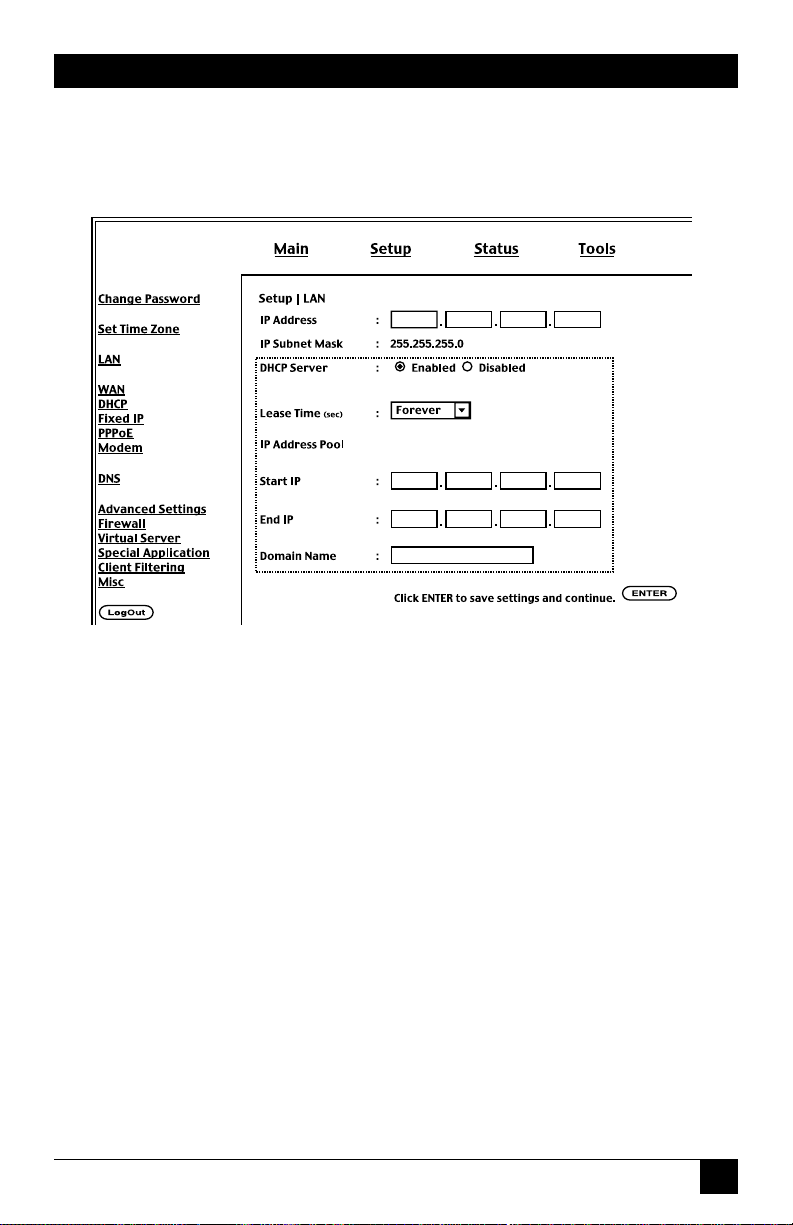

Figure 6-8. DHCP Server screen.

12. There is usually no need to change the IP address pool. If you change the pool range, make sure the first three octets match the Broadband Router’s IP address (that is, 192.168.2.xxx through 192.168.2.yyy).

A Domain Name Server (DNS) is like an index of names and Web addresses. If you type a Web address into your browser, such as www.blackbox.com, a DNS server will find that name in its index and find the matching IP address. Most ISPs provide a DNS server for speed and convenience. Since you are connecting to the Internet with dynamic IP settings, it is likely that your DNS servers are also provided dynamically.

Page 69

BROADBAND ROUTER

13. Press Enter when finished. The LAN side of your Broadband Router is now configured. But you must still

configure it to connect to the Internet. There are four different general configurations for high-speed Internet connections. You need to know about your Internet connection to determine which configuration to use. You found out most of what you need to know when you recorded your IP settings in earlier steps. Here are some guidelines to determine which configuration you should use:

• If you connect to the Internet using a cable modem, your ISP probably uses DHCP to issue an IP address to you. If you use a cable modem or you know you use a dynamic IP address, please go to Section 6.1.

• If you connect to the Internet using a DSL modem, your ISP probably requires you to manually enter your TCP/IP settings. If you have a DSL connection or if you know you use a static IP address, please go to Section 6.2.

• If you connect to the Internet using a DSL modem and you use a login name and password, your ISP uses PPPoE. If your ISP requires a login name and a password or you know your ISP uses PPPoE, please go to Section 6.3.

• To configure your Broadband Router for dialup on demand, please go to Section 6.4.

• See Chapter 8 for a list of common configurations for popular ISPs.

Page 70

CHAPTER 6: Configuring Your Broadband Router

6.1 Configuring Your Broadband Router for a Dynamic IP Address

1. Select Dynamic IP Address, and press More Configuration.

Figure 6-9. Dynamic IP Address, More Configuration option.

Page 71

BROADBAND ROUTER

2. If you have a host name provided by your ISP (for example, CX-1234-56789) enter it in the Host Name field.

Figure 6-10. Host Name field.

The @Home network usually requires your computer to have a Host Name to obtain an IP address from their network.

3. If you need to “clone” the MAC Address from your network card, click Clone MAC Address. The MAC Address field will display the new address.

Some ISPs register the MAC Address of your network card. A MAC (Media Access Control) Address is a unique identification number (in hexadecimal digits) given to each networking device. Once registered, the ISP’s server will check to make sure that the MAC address they have registered matches the one connecting to their servers. If it does not match, you cannot connect. The Broadband Router’s MAC Address will not be the same as your network card’s address, so you may need the Router to “clone” the address from your network card. Then the ISP will find a MAC Address that matches the one they have recorded.

4. Press Enter when finished.

Page 72

CHAPTER 6: Configuring Your Broadband Router

5. If you are connecting to the Internet with a dynamic IP address, you probably do not need to enter anything on the DNS Settings page. However, if there is a DNS server that you would rather use, enter the DNS server addresses in the spaces provided.

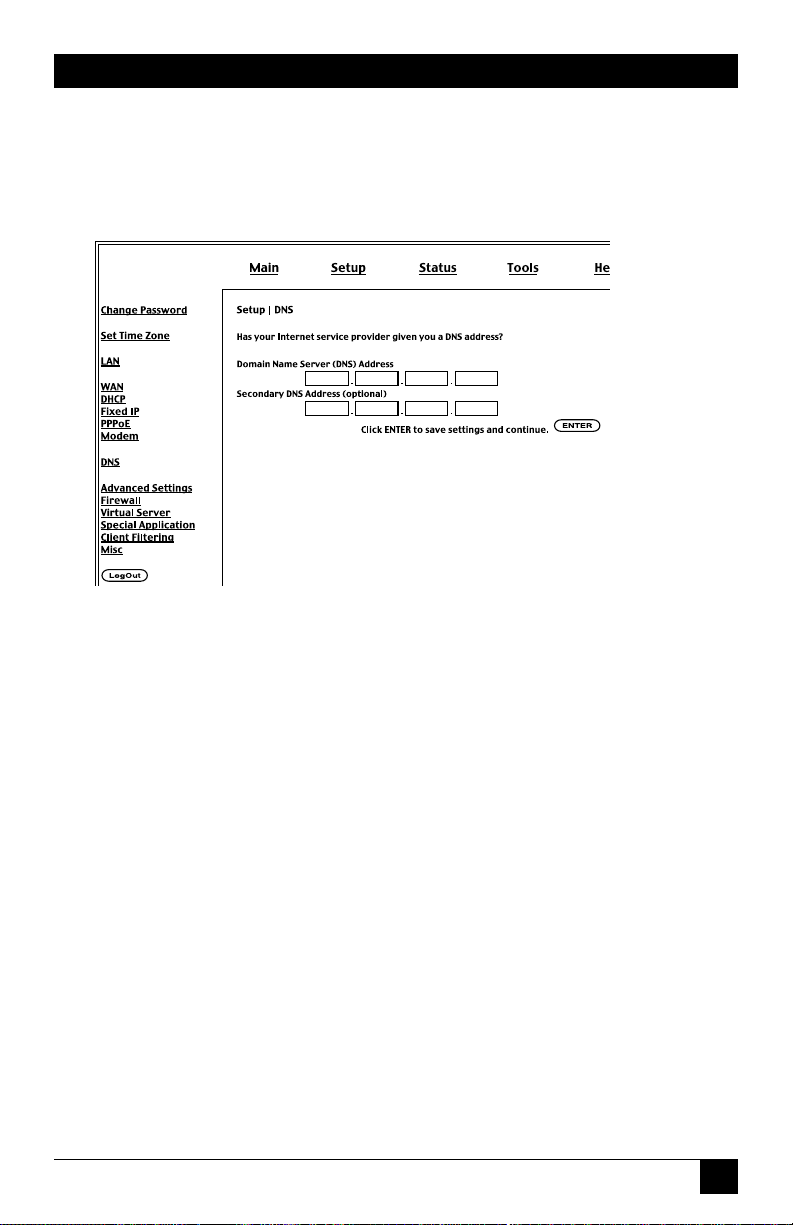

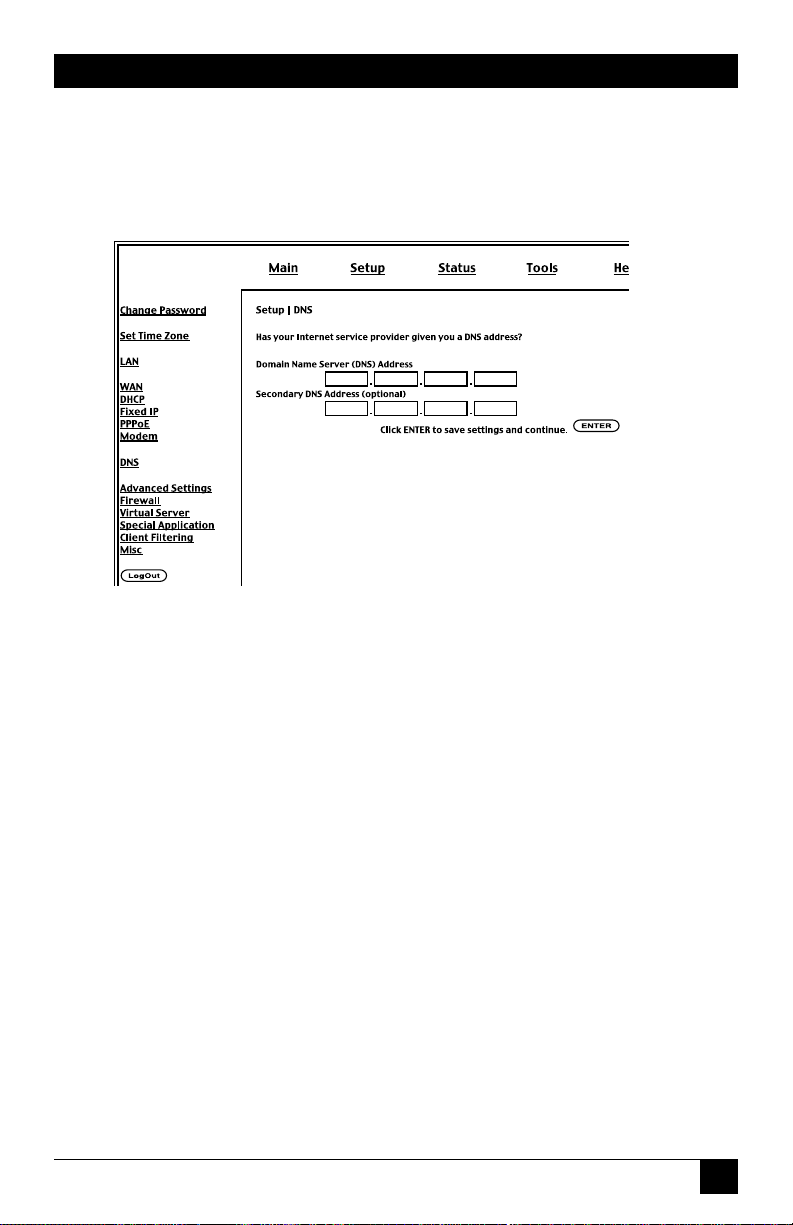

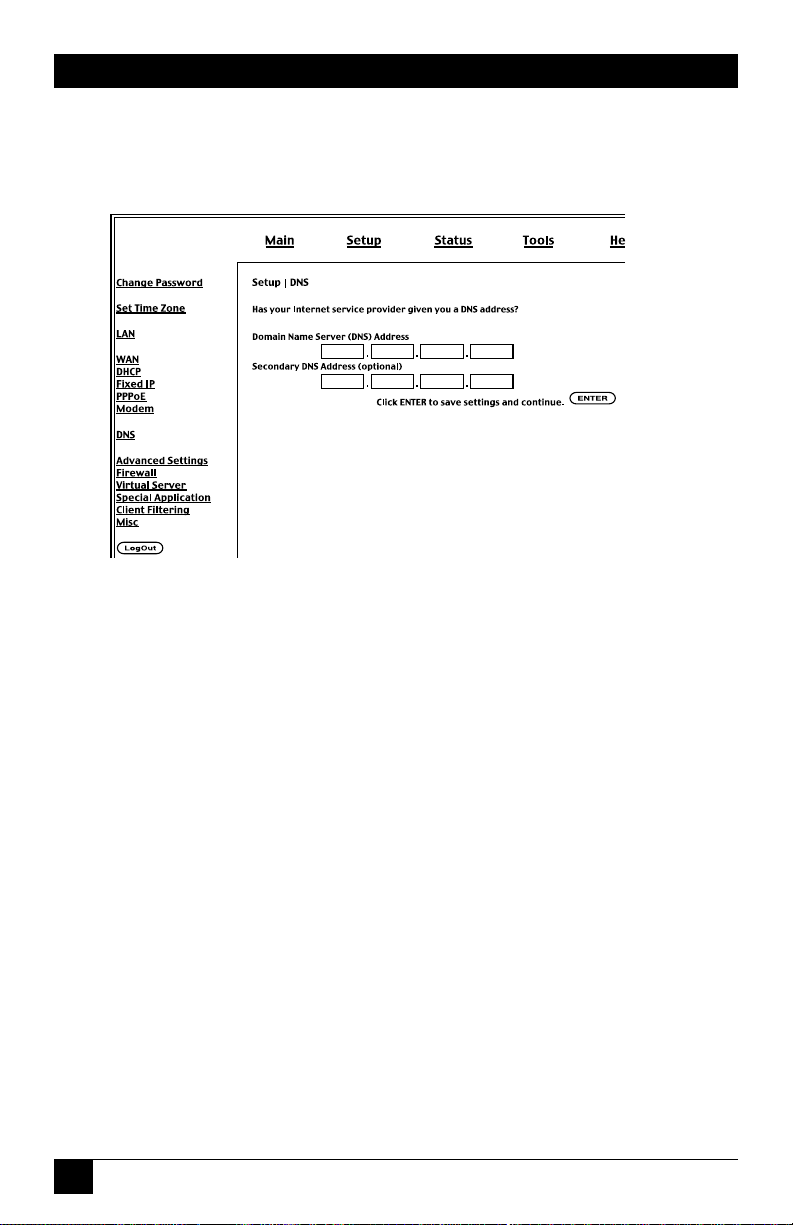

Figure 6-11. DNS Addresses.

6. Press Enter when finished.

7. Restart your cable modem by removing the power, waiting a few seconds, and then reconnecting it.

Many ISPs use modems that automatically configure themselves. Sometimes connection information is stored on the modem and needs to be updated. You may need to shut down and restart your modem after you have configured your Broadband Router.

Configuration is now complete and your Broadband Router is now connected to the Internet. There are also some advanced configuration options that may be configured, but we do not recommend making any changes to these options unless you need to.

Page 73

BROADBAND ROUTER

6.2 Configuring Your Broadband Router for a Static IP Address

1. Select Static IP Address, and press More Configuration.

Figure 6-12. Static IP Address, More Configuration.

Page 74

CHAPTER 6: Configuring Your Broadband Router

2. Enter the IP address, subnet mask, and gateway address (provided to you by your ISP) in the appropriate fields. You recorded these numbers earlier when you configured your computer to connect to the Broadband Router.

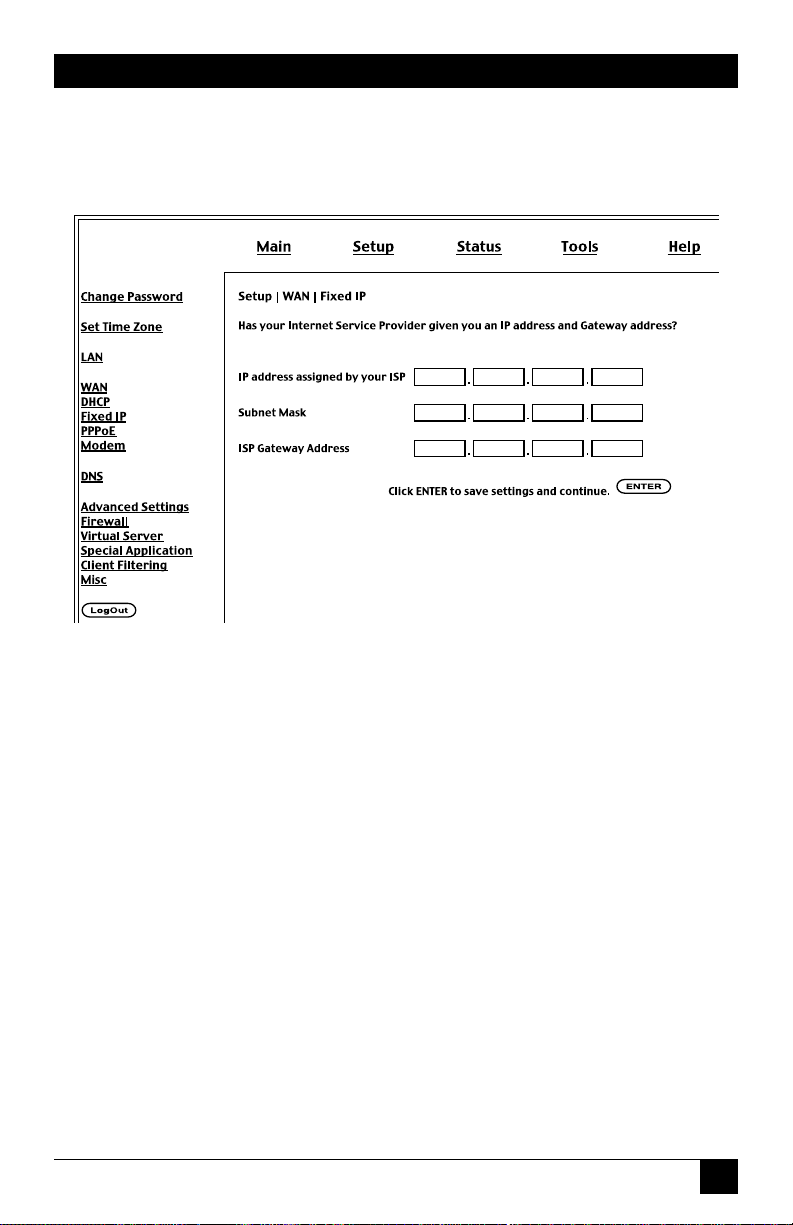

Figure 6-13. Entering the IP address, subnet mask, and gateway address.

Page 75

BROADBAND ROUTER

3. Press Enter when finished.

4. Enter the DNS server addresses in the spaces provided.

Figure 6-14. DNS Addresses.

A Domain Name Server (DNS) is like an index of names and Web addresses. If you type a Web address into your browser, such as www.blackbox.com, a DNS server will find that name in its index and find the matching IP address. Most ISPs provide a DNS server for speed and convenience. Since you are connecting to the Internet with static IP settings, it is likely that your ISP also provided DNS server addresses.

5. Press Enter when finished.

6. Restart your DSL modem by removing the power, waiting a few seconds, and then reconnecting it.

Many ISPs use modems that provide auto-configuration. Sometimes connection information is stored on the modem and needs to be updated. You may need to shut down and restart your modem after you have configured your Broadband Router.

Page 76

CHAPTER 6: Configuring Your Broadband Router

6.3 Configuring Your Broadband Router for PPPoE

1. Select PPP over Ethernet, and press More Configuration.

Figure 6-15. PPP over Ethernet option.

Page 77

BROADBAND ROUTER

2. Enter the User Name and Password required by your ISP in the appropriate fields. Enter the password again for verification in the Please retype your

password field.

Figure 6-16. Enter user name and password.

3. If your ISP has provided you with a service name, enter it in the Service Name field. (Otherwise, leave it blank.)

4. Press Enter when finished.

Page 78

CHAPTER 6: Configuring Your Broadband Router

5. If you are connecting to the Internet through PPPoE, you probably do not need to enter anything on the DNS settings page. However, if there is another DNS server that you would rather use, enter the DNS server addresses in the spaces provided.

Figure 6-17. DNS Addresses.

6. Press Enter when finished.

7. Restart your DSL modem by removing the power, waiting a few seconds, and then reconnecting it.

Page 79

BROADBAND ROUTER

6.4 Configuring Your Broadband Router for Dial-Up on Demand

1. Select Dial-up on Demand, and press More Configuration.

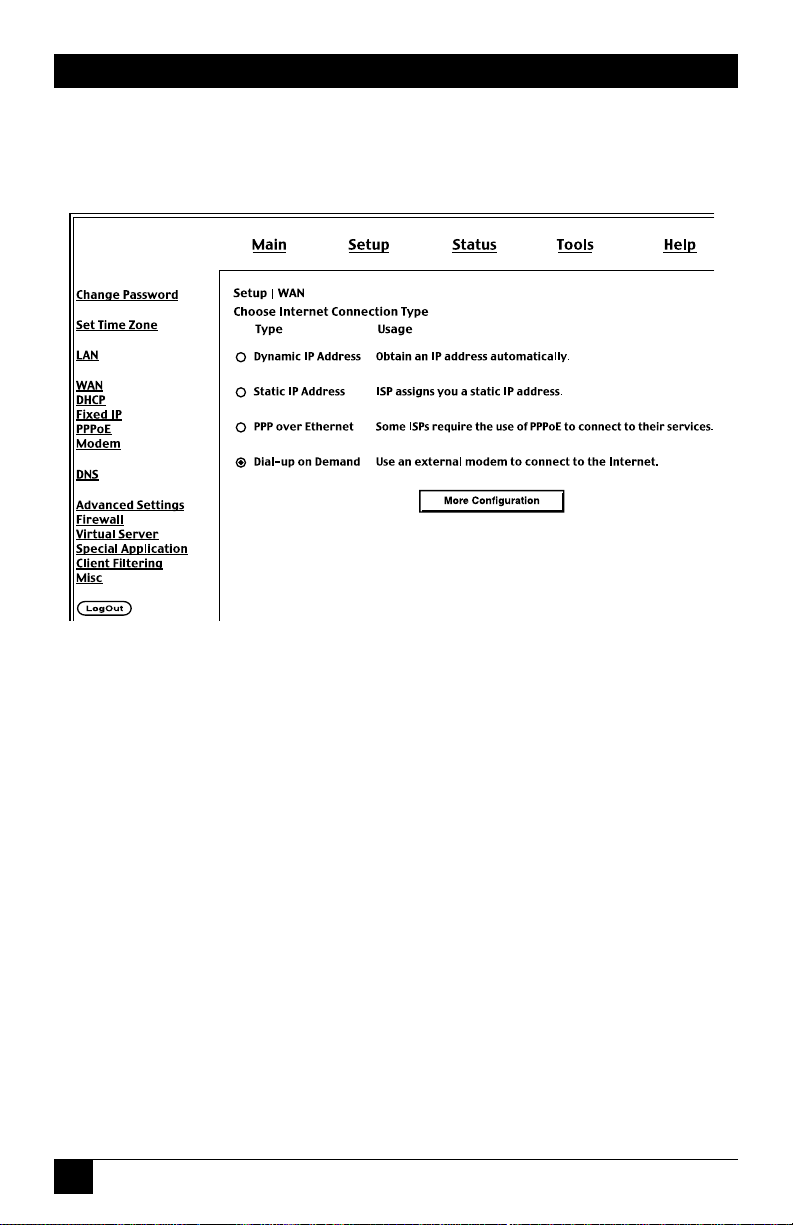

Figure 6-18. Dial-up on Demand, More Configuration.

Page 80

CHAPTER 6: Configuring Your Broadband Router

2. If the serial port is used for primary Internet access, then check the item Check if you only use a dial-up modem to connect to the Internet. (See Figure 6-19.) If not checked, then this connection will only be used for backup access if the primary WAN link fails.

Figure 6-19. Check If You Only Use a Dial-Up Modem to Connect to the

Internet option.

3. Enter your ISP account user name and password in the Dial-Up Account Information field.

4. Enter the Modem Initialization String provided by your modem manufacturer. The following is a sample initialization string.

ATQ1S0=1&D0&K0&W as defined below: Q1: Inhibit result codes to DTE S0=1: Auto-answer on first ring D0: Don’t care DTR

Page 81

BROADBAND ROUTER

K0: Disables DTE/DCE flow control W: Write command to modem memory

5. In the Maximum Idle Time field, enter the maximum idle time for the Broadband Router (in seconds).

6. If you are assigned a dynamic IP address every time you dial up, select NO for Has your Internet Service Provider given you an IP address? However, if your ISP has assigned a fixed IP address for you to use, select YES for this item and enter the IP address and subnet mask.

7. If your ISP has given you a secondary phone number, or if you have a secondary Internet service account, then fill in the relevant fields under the Secondary Dial-up fields.

Page 82

CHAPTER 7: Configuring Your Computer for Broadband Router Print Server

7. Configuring Your Computer for

the Broadband Router Print Ser ver

If you are not connecting your printer to your Broadband Router, skip this chapter.

NOTE

The Broadband Router Print Server does not support Macintosh printing.

With the Broadband Router’s built-in print server, you can connect your printer to the Router and print from any computer on your network. Each computer needs to have a “client” installed that will communicate with the Router’s print server. UNIX

and Linux®operating systems have a print client already installed. If you are running Windows 95, 98, ME, 2000, or NT, you must use the Broadband Router Print Server Monitor as your print client.

7.1 Configuring Your Computer for the Router’s Print Server for Windows 95/98/Me/2000 and Windows NT

7.1.1 S

TEP

1: I

NSTALLING THEBROADBANDROUTER’SPRINTSERVERMONITOR

You must first install the software that will allow your programs to print to the printer attached to the Broadband Router.

1. Insert the Installation CD into your CD-ROM drive.

Page 83

BROADBAND ROUTER

2. Press Start and Run.

Figure 7-1. Start, Run option.

3. Type D:\PrintSvr\Setup and press OK.

Figure 7-2. Run screen.

Page 84

CHAPTER 7: Configuring Your Computer for Broadband Router Print Server

4. InstallShield will guide you through the installation process. Press Next for each window.

Figure 7-3. InstallShield Welcome screen.

5. Press Finish when complete.

Figure 7-4. Add Printer Wizard screen.

Page 85

BROADBAND ROUTER

6. Windows must reboot for the changes to take place. When asked if you want to reboot now, select Yes and press OK.

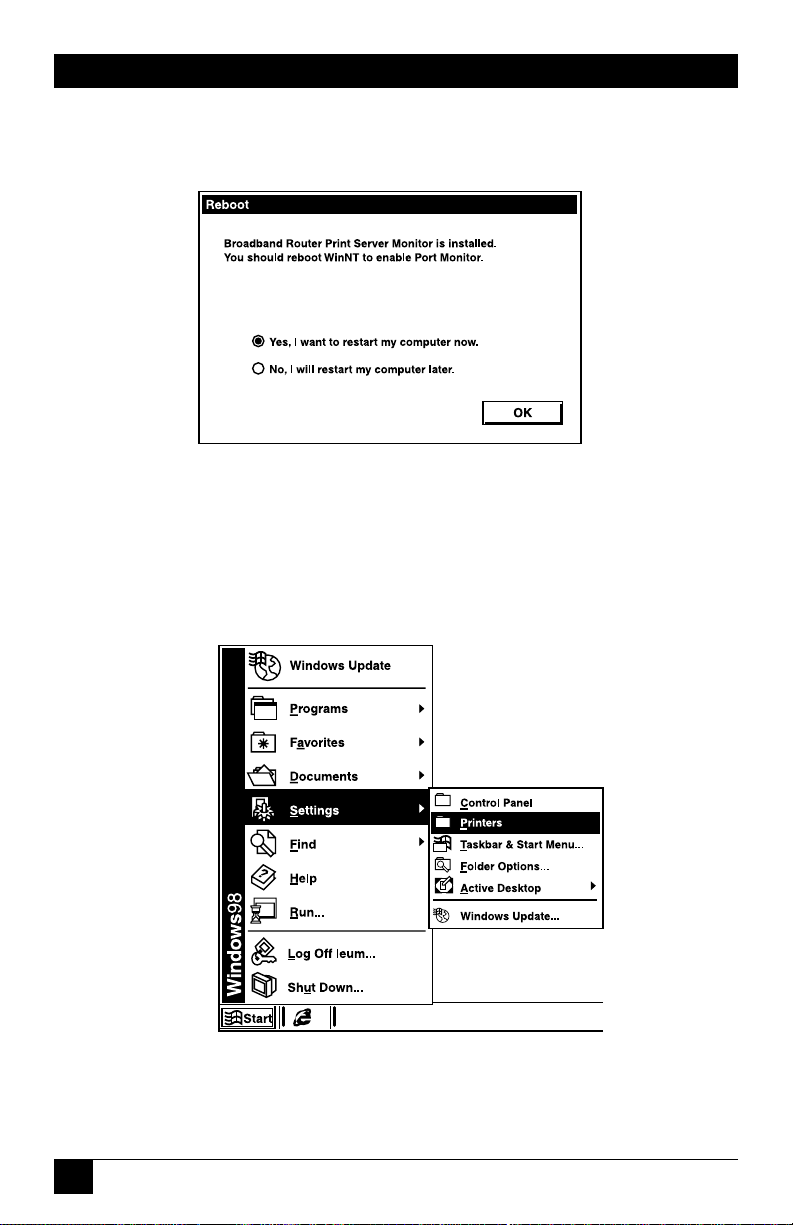

Figure 7-5. Reboot screen.

7.1.2 S

TEP

2: C

ONFIGURING THEBROADBANDROUTER’SPRINTSERVERMONITOR

Now that the software is installed, it must be configured to work properly.

1. Select Start, then Settings, then Printers.

Figure 7-6. Start, Settings, Printers.

Page 86

CHAPTER 7: Configuring Your Computer for Broadband Router Print Server

2. Double-click Add Printer.

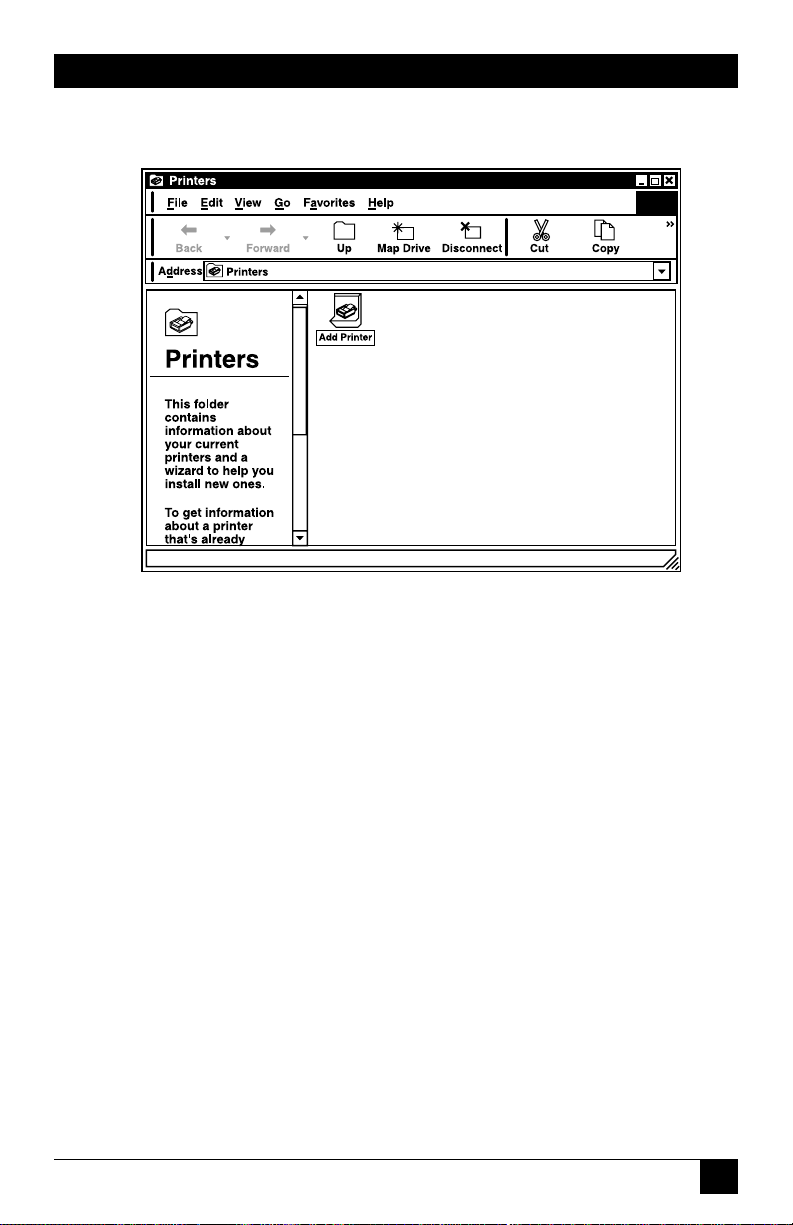

Figure 7-7. Printers screen, Add Printers option.

Page 87

BROADBAND ROUTER

3. Follow the screen prompts to add your printer as a Local printer for Windows 95/98/Me/2000 (see Figure 7-8) or as a printer managed by My Computer for Windows NT (see Figure 7-9).

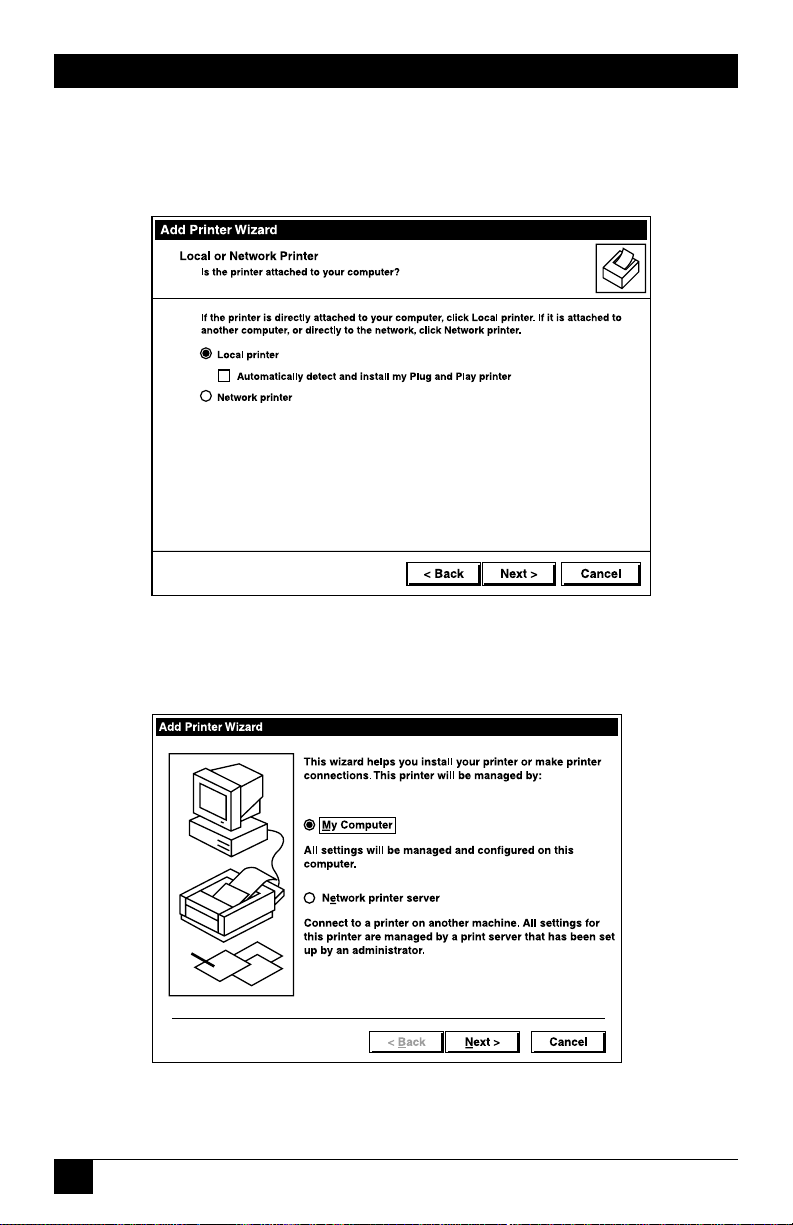

Figure 7-8. Add Printer Wizard, Local Printer option.

Figure 7-9. Add Printer Wizard, My Computer option.

Page 88

4. From the list of manufacturers and printers in the next window, select the printer you have attached to the Broadband Router.

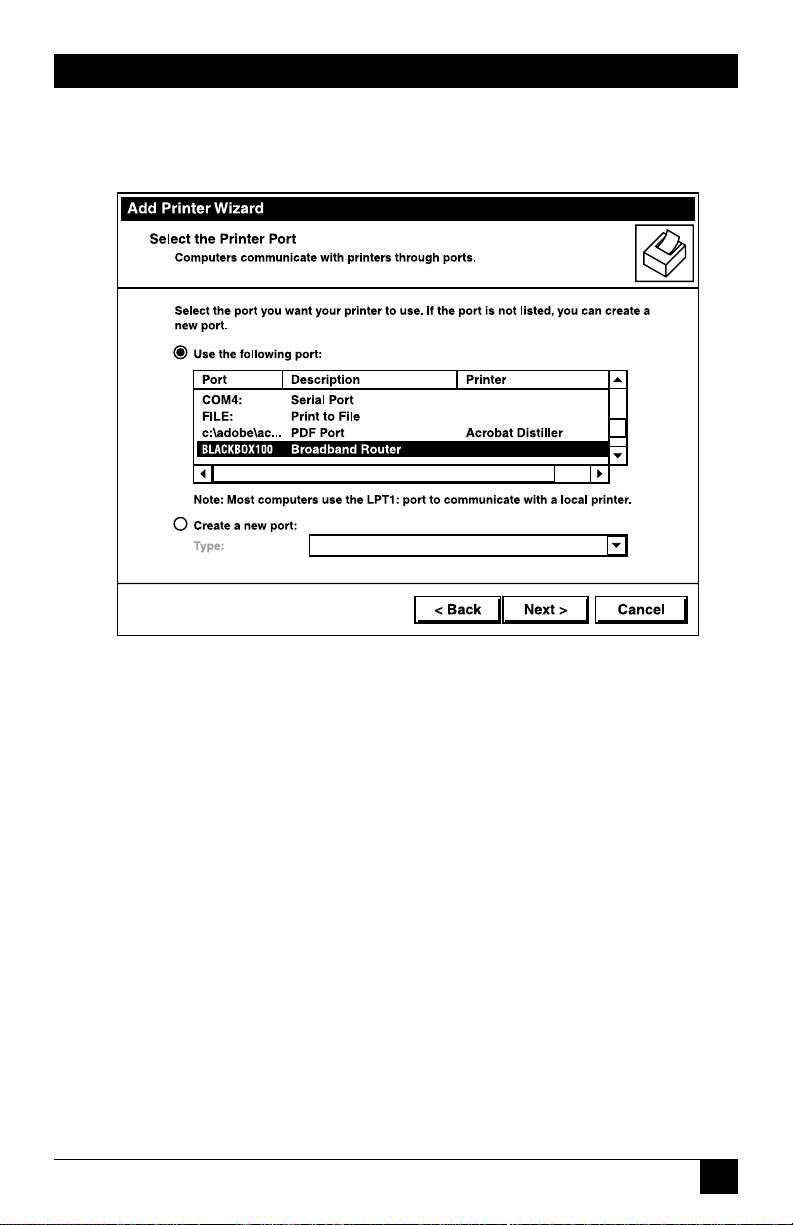

Figure 7-10. Add Printer Wizard, Select the Printer Port option.

CHAPTER 7: Configuring Your Computer for Broadband Router Print Server

Page 89

BROADBAND ROUTER

5. Select the Broadband Router’s Print Server Monitor (the default port name is BLACKBOX100) and press Configure Port.

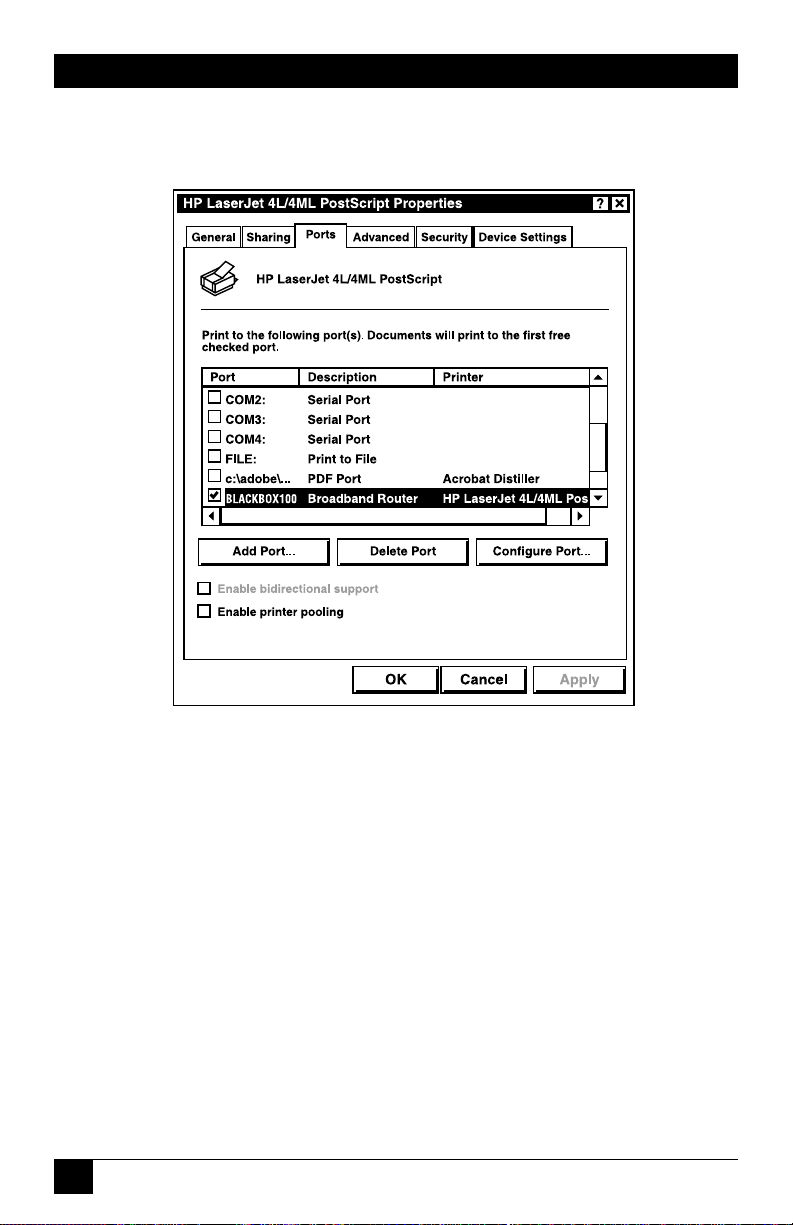

Figure 7-11. Configure Port option.

Page 90

CHAPTER 7: Configuring Your Computer for Broadband Router Print Server

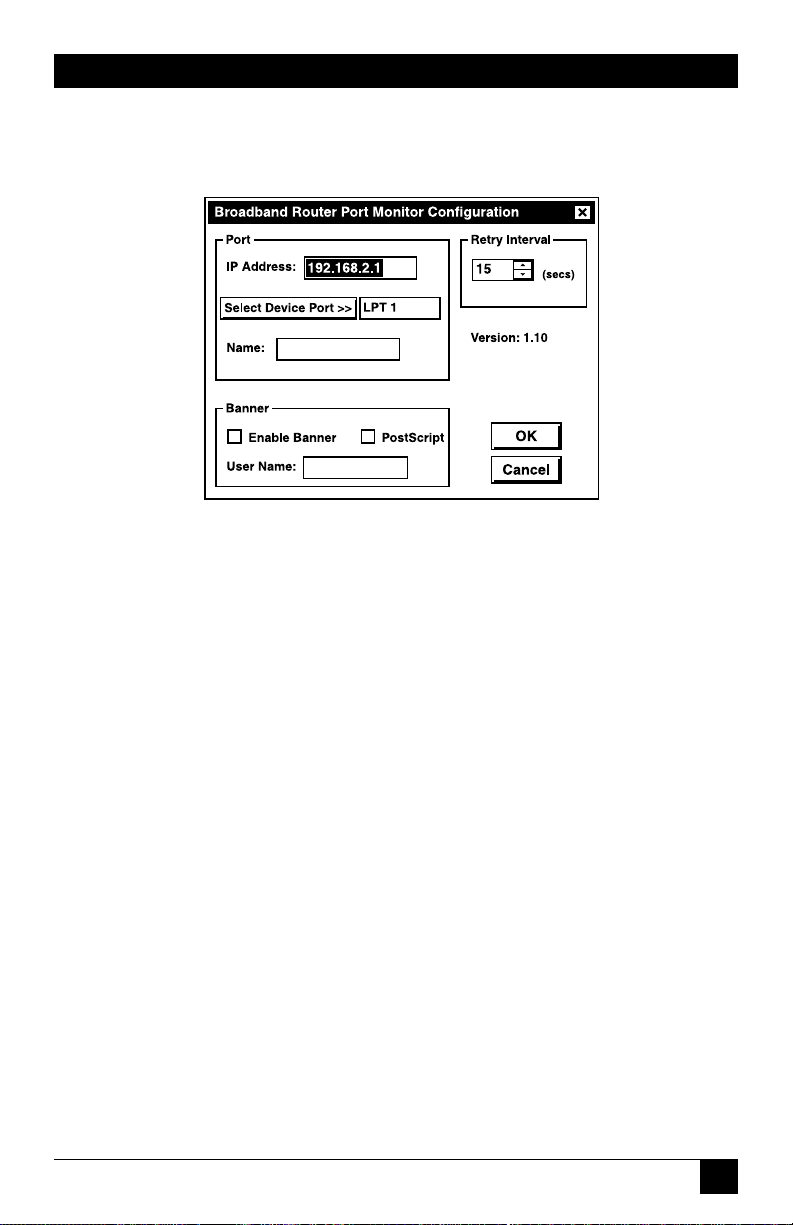

6. Enter the Broadband Router’s IP address in the IP address field (the default is 192.168.2.1) and press OK.

Figure 7-12. Enter IP Address.

7. You will be asked if you want to print a test page. Select Yes to make sure that your printer is configured correctly.

8. Your printer will now appear in the Printers window. Your computer is configured to print via the Broadband Router Print Server. Repeat these steps on each computer connected to the Router.

7.2 Configure the Network Printer in UNIX Systems

Follow the traditional configuration procedure on UNIX platforms to set up the Broadband Router print server. The printer name is “lpt1.”

Page 91

BROADBAND ROUTER

8. Common Configurations for Popular ISPs

WAN Types Characteristics Popular ISPs

Dynamic IP Cable modem ISP, MediaOne, RoadRunner, (Clone MAC) non-hostname based. Optimum Online, Time

Need to clone MAC in Warner, Charter, Adelphia the Router’s DHCP page.

Dynamic IP Cable ISP, requires @Home Network, Cogoco, (Hostname) hostname to authenticate ComCast, Cox, Excite,

(for example, CX213818-B). Rogers, Shaw, Insight, Enter the hostname in the Videotron, SCV MaxOnline Router’s DHCP page exactly as it appears in your documentation.

PPPoE Usually special software Bell, Century Tel, Citizens, (DSL) installed on PC, MacPOET/ Primus, Prodigy, Snet,

WinPOET, EnterNet 300. Sprint FC, Verizon, First The Broadband Router has World, Brightnet, Earthlink, this software built in; Ameritech, Covad, Mindspring, however, it is removeable. Sympatico DSL, USwest, You will need to enter SingNet Broadband, SingTel the account name and Magix, Pacific Internet password that your ISP Broadband gave you in the PPPoE page of the gateway. Leave the service name blank unless your ISP requires it.

Page 92

WAN Types Characteristics Popular ISPs

Static DSL modem, always on. CableSpeed, Cnet, Direct Link, (DSL) Need to enter all IP Drizzle, DSL Extreme,

information from the ISP in Earthlink Wireless, Fast Point, the Router’s “Fixed IP” Flashcom, GTE-WhirlWind, section. Heavenet, HSA Corp, I-55,

InterAccess, LinkLine, Mission, Nauticom, NAS, Omitel, Onterra, Phatpipe, Rhythms, Speakeasy, Sterling, XO, Zyan

Static Cable modem, always on. Cox Cable, Sprint, US Cable, (Cable) ISP assigns specific IP Cable-Cable

information which needs to be entered on the Router’s “Fixed IP” page.

CHAPTER 8: Common Configurations for Popular ISPs

Page 93

BROADBAND ROUTER

Appendix. Troubleshooting

A.1 Calling Black Box

If you determine that your Broadband Router is malfunctioning, do not attempt to alter or repair it. Contact Black Box at 724-746-5500. The problem might be solvable over the phone.

Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including:

• The nature and duration of the problem.

• When the problem occurs.

• The components involved in the problem.

• Any particular application that, when used, appears to create the problem or make it worse.

A.2 Shipping and Packaging

If you need to transport or ship your Broadband Router:

• Package it carefully. We recommend that you use the original container.

• If you are shipping the Broadband Router for repair, make sure you include everything that came in the original package. Before you ship, contact Black Box to get a Return Authorization (RA) number

Black Box LR9501A Quick Start Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
