LR5000A
RISC Router Expandable
POWER
RISC Router/2B
FAULT
WAN
LAN 1
LAN 2
RISC ROUTER EXPANDABLE
PORT
ACTIVITY
8
7
6
5
4
3
2
1
FAULT
PW
R ON
1
FCC AND IC RFI STATEMENT
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart J of Part 15 of FCC rules, which are designed to
provide reasonable protection against such interference when the equipment is
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.
TRADEMARKS USED IN THIS MANUAL
IPX™ is a trademark, and NetWare®is a registered trademark of
Novell, Incorporated.
VT100™ is a trademark of Eigital Equipment Corporation.
Telnet™ is a trademark of Telnet Communications, Inc.
AMD
®
is a registered trademark of Advanced Micro Devices Incorporated.
All applied for and registered trademarks are the property of their respective
owners.
Any trademarks mentioned in this manual are acknowledged to be the property of the
trademark owners.
2
RISC ROUTER EXPANDABLE
Contents
1.0 SPECIFICATIONS ......................................................................................3
2.0 INTRODUCTION.......................................................................................4
2.1 General Description........................................................................4
2.2 Front-Panel Components ...............................................................6
2.3 Back-Panel Components.................................................................7
2.4 RISC Bridge/E Expansion Card ..................................................10
3.0 INSTALLATION.......................................................................................12
3.1 Unpacking Instructions ................................................................12
3.2 Mounting Instructions..................................................................13
3.2.1 Mounting in a Rack .........................................................13
3.2.2 Table Mounting ...............................................................14
3.3 Network Cables .............................................................................14
3.3.1 DTE (AUI) Interface .......................................................14
3.3.2 Thin Net (BNC) Interface ..............................................15
3.3.3 RS-232 Interface...............................................................16
3.3.4 RS-449 Interface...............................................................16
3.4 Network Installation .....................................................................17
3.4.1 Connecting an RS-232 Terminal to
the Control Port...............................................................17
3.4.2 DTE (AUI) Connection ..................................................18
3.4.3 BNC Connection .............................................................18
3.4.4 MAU Connection ............................................................19
3.4.5 Wide-Area Network Connection.....................................20
3.5 AC Connection..............................................................................23
4.0 UPGRADES ..........................................................................................24
4.1 PROM Card Installation ...............................................................24
4.2 Expansion Card Installation.........................................................26
5.0 TROUBLESHOOTING............................................................................29
5.1 Troubleshooting Steps..................................................................29
3
CHAPTER 1: Specifications
1.0 Specifications
Processor — AMD 29000
Clocking Rate — 20 MHz
Line Rate — 10 Mbps
Data Rate — 20 Megabytes per second
Buffer Memory — 1/2 to 2 MB
Ethernet
LAN Interface — 1-8 IEEE 802.3; Ports configured as:
DTE (AUI): Female DB15;
Thin Ethernet: BNC barrel connector;
MAU: Male DB15
WAN Interface — (2) RS-449 Serial ports configured as EIA-530,
V.35, or RS-232
Control Port
Interface — RS-232 (local/modem connection)
Max. Filtering
Rate — 90,000 packets per second (64-byte packets)
Max. Forwarding
Rate — 56,000 packets per second (64-byte packets)
Power — 90 to 132 or 175 to 264 VAC (47 to 440 Hz)
Size — 5.3"H x 17.5"W x 14"D (13.5 x 44.5 x 35.6 cm)
Weight — 23 lb. (10.4 kg)
4
RISC ROUTER EXPANDABLE
2.0 Introduction
This chapter describes the RISC Router Expandable inter-networking
platform, and contains information on the following:
• Major components
• Connectors (with pin assignments)
• Cables (with pin assignments)
• Hardware specifications
2.1 General Description
The RISC Router Expandable is a state-of-the-art RISC-based intelligent
bridge/router, employing the AMD®29000 microprocessor. The RISC Router
Expandable is a transparent network inter-connection device operating on
the MAC layer, level 2, of the OSI model. The RISC Router Expandable
currently routes TCP, IP, IPX™, and XNS protocols and bridges all others.
With eight Ethernet expansion slots, the RISC Router Expandable supplies
a variety of mixed-media hardware interfaces. The RISC Bridge/E Expansion
Card (LB521C) supports three interfaces:
• A Media-Access Unit (MAU) interface — a standard 15-pin male
connector. You can connect a workstation directly to this interface.
• A ThinNet (BNC) interface — a standard Thin Ethernet connection.
• A Data Terminal Equipment (DTE) interface — a standard 15-pin
female connector for a transceiver.
NOTE
IEEE 802.3 and Ethernet v.2 are identified as simply “Ethernet”
in this text.
The RISC Router Expandable delivers maximum bandwidth at 10 megabits per
second across eight individual LAN Ethernet ports. Peak filtering rates of up to
90,000 64-byte packets per second and forwarding at full Ethernet line speeds
of 56,000 64-byte packets per second are achieved under ideal conditions.
For wide area network connection, the RISC Router Expandable provides two
RS-449 serial links. The WAN interface supplies two high-speed transparent
serial channels operating at 384 Kbps. These channels provide a single logical
connection to a remote RISC Router Expandable while balancing the traffic
load over the two channels.
5
CHAPTER 2: Introduction
The RISC Router Expandable currently supports the following wide-area
network protocols:
• X.25
• Frame Relay
• Point-to-point
• HDLC raw
The RISC Router Expandable is equipped with 1 CPU board, 1 PROM card,
and up to eight expansion cards. A network control port is standard and
supports a user-interface via any VT100™ compatible terminal. Each Ethernet
card is equipped with an Ethernet terminator switch. The RISC Router
Expandable operates on 90-132/175-264 VAC, (47-440 Hz) and meets all
regulatory power-safety requirements.
The Network Control program is the user interface to the RISC Router
Expandable and provides the software tools for the internetworking platform.
Depending on the hardware and software configuration of the RISC Router
Expandable, Network Control provides the following:
• TCP/IP routing, IPX/NetWare®routing
• Protocol-transparent, high-speed bridging
• Multiple logical bridges
• Ethernet switching
• Telnet™, SNMP
• Spanning Tree
• Custom-address filtering
• Network statistics
• Password-protected security
6
RISC ROUTER EXPANDABLE
2.2 Front-Panel Components
This section describes the front panel of the RISC Router Expandable.
The numbers in Figure 2-1 correspond to the numbered descriptions below:
1. Port Activity LEDs — The Port Activity LEDs (green) indicate traffic on
the ports of the RISC Router Expandable. Each port has a corresponding
LED that lights when that port is active. The ports are shown from 1
through 8.
2. FAULT LED — The FAULT LED (amber) indicates a software problem.
The software triggers a hardware timer once a second. If it fails to do so,
the FAULT LED lights.
3. PWR OK LED — The PWR OK LED is green when the unit is ON.
Figure 2-1. Front Panel of the RISC Router Expandable.
PORT
ACTIVITY
FAULT PWR OK
1 2 3
RISC ROUTER EXPANDABLE
7
CHAPTER 2: Introduction
2.3 Back-Panel Components
This section describes the back panel components of the RISC Router
Expandable. The numbers in Figure 2-2 correspond to the numbered
descriptions below:

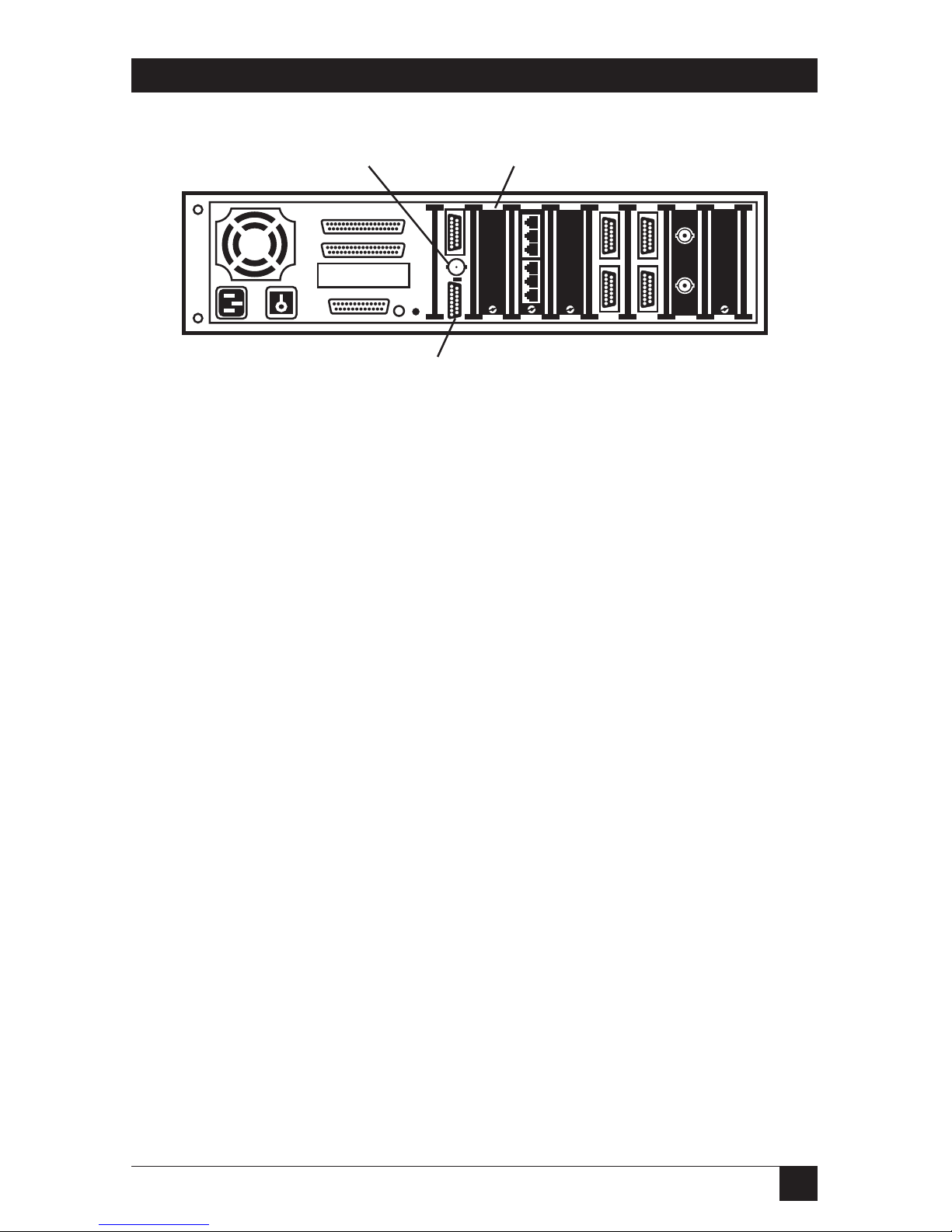

1. AC Power Port — The AC power port is a three-pronged grounded AC
input port for the RISC Router Expandable. The unit uses 110 or 220
VAC and automatically configures to the appropriate voltage.
2. ON/OFF Switch — The ON/OFF switch provides power to the RISC
Router Expandable. The “1” indicates ON. The “0” indicates OFF.
3. Reset Switch — The switch is reserved for future use.
4. FAULT LED — The FAULT LED (amber) indicates a software problem.
The software triggers a hardware timer once a second. If it fails to do so,
the FAULT LED lights. This LED is the same as the FAULT LED on the
front of the RISC Router Expandable.

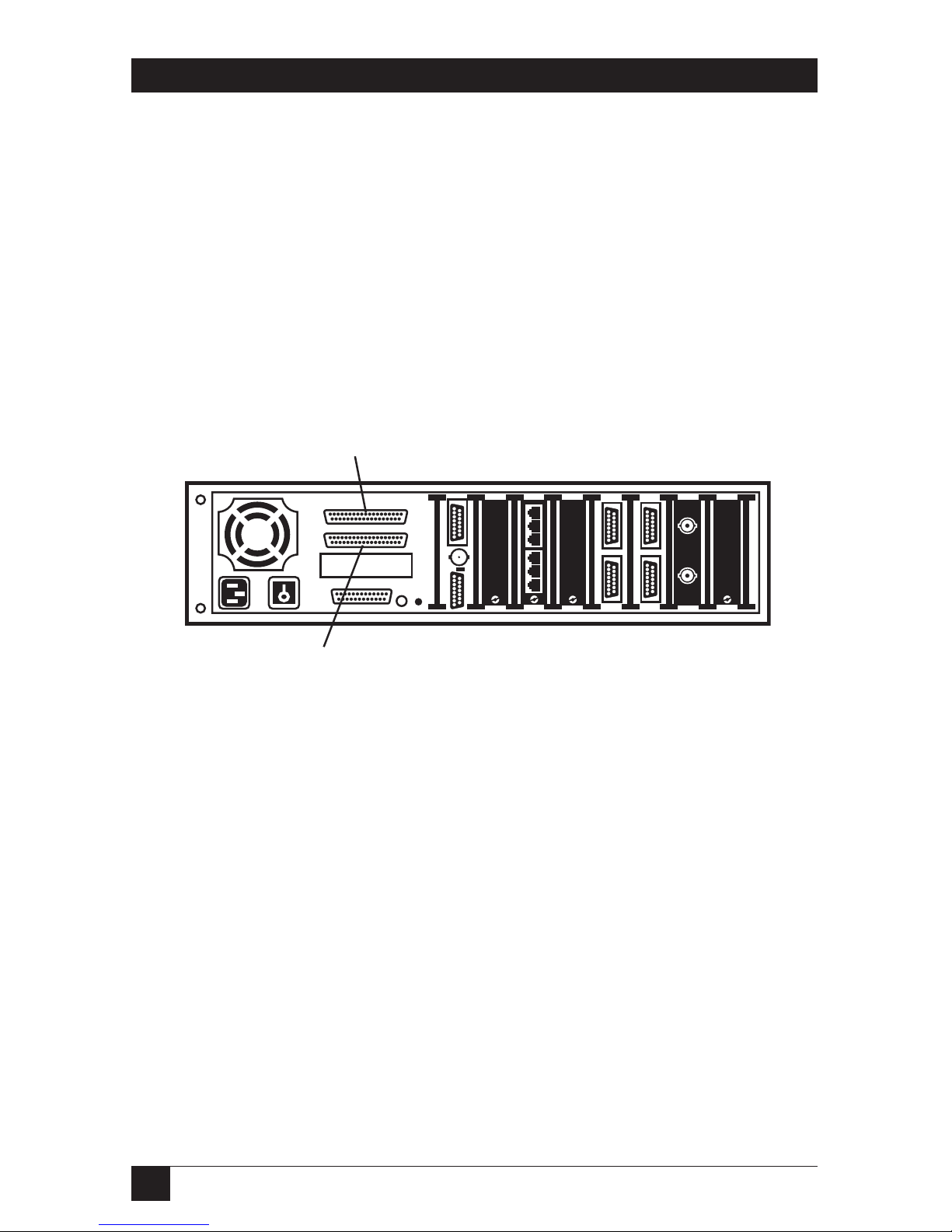

5. Wide Area Network (WAN) Port(s) — The two WAN ports provide
remote transparent bridging. Each WAN port has a male DB37
connector. You can jumper the signaling on the two ports to meet either
RS-423/RS-232, RS-422, or V.35. The signal definitions for the EIA-530
specification follow the RS-422 specification. The V.35-compatible
interface is typically an M-block connector. The pin assignments for
these connectors are in Table 2-1.
6. RS-232 Serial Port — The RS-232 serial port is a DB25 connector used
to provide access to the Network Control program via VT100 compatible
terminal. The pin assignments used in the RISC Router Expandable
RS-232 port are listed in Table 2-2.

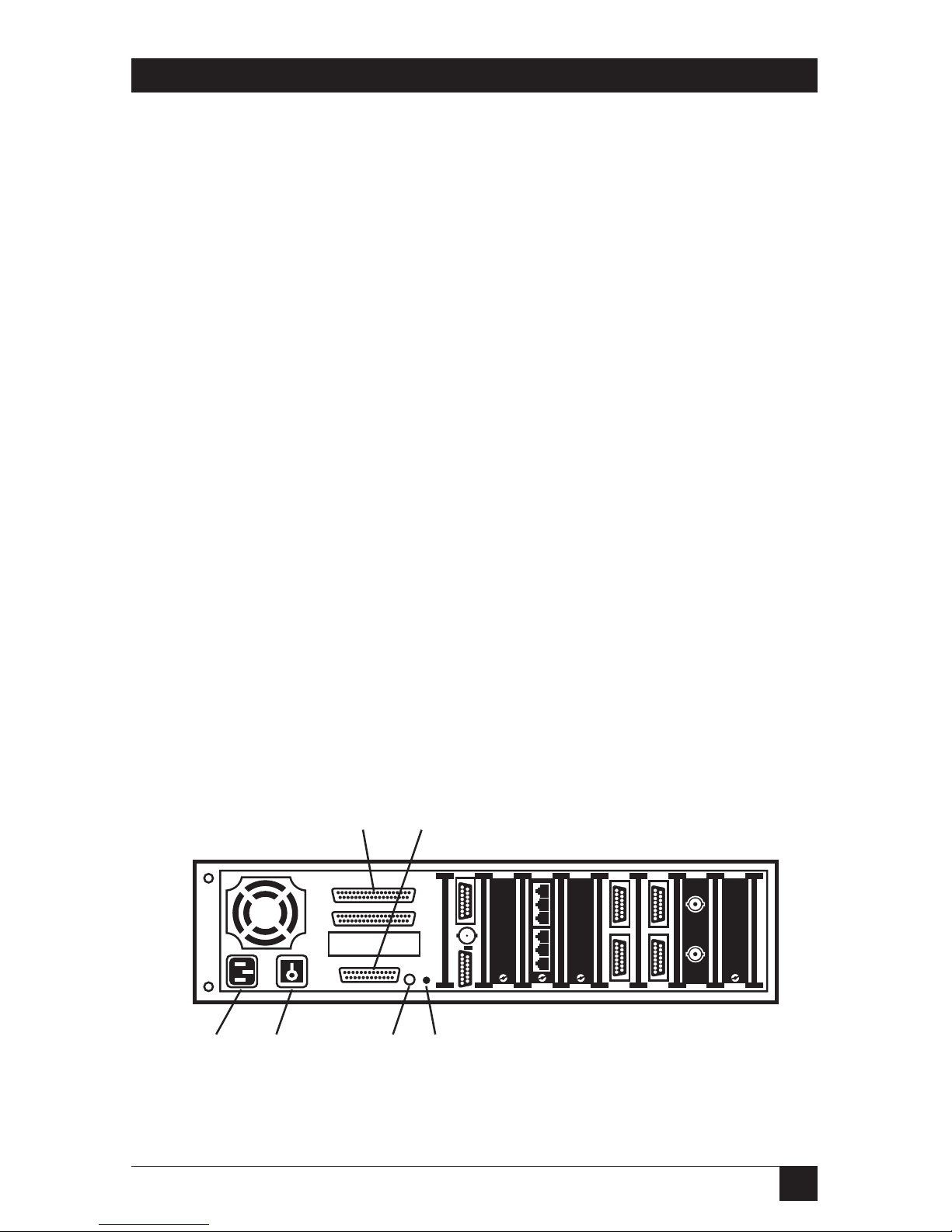

Figure 2-2. Back Panel of the RISC Router Expandable.
1 2 3 4
5
6
8
RISC ROUTER EXPANDABLE

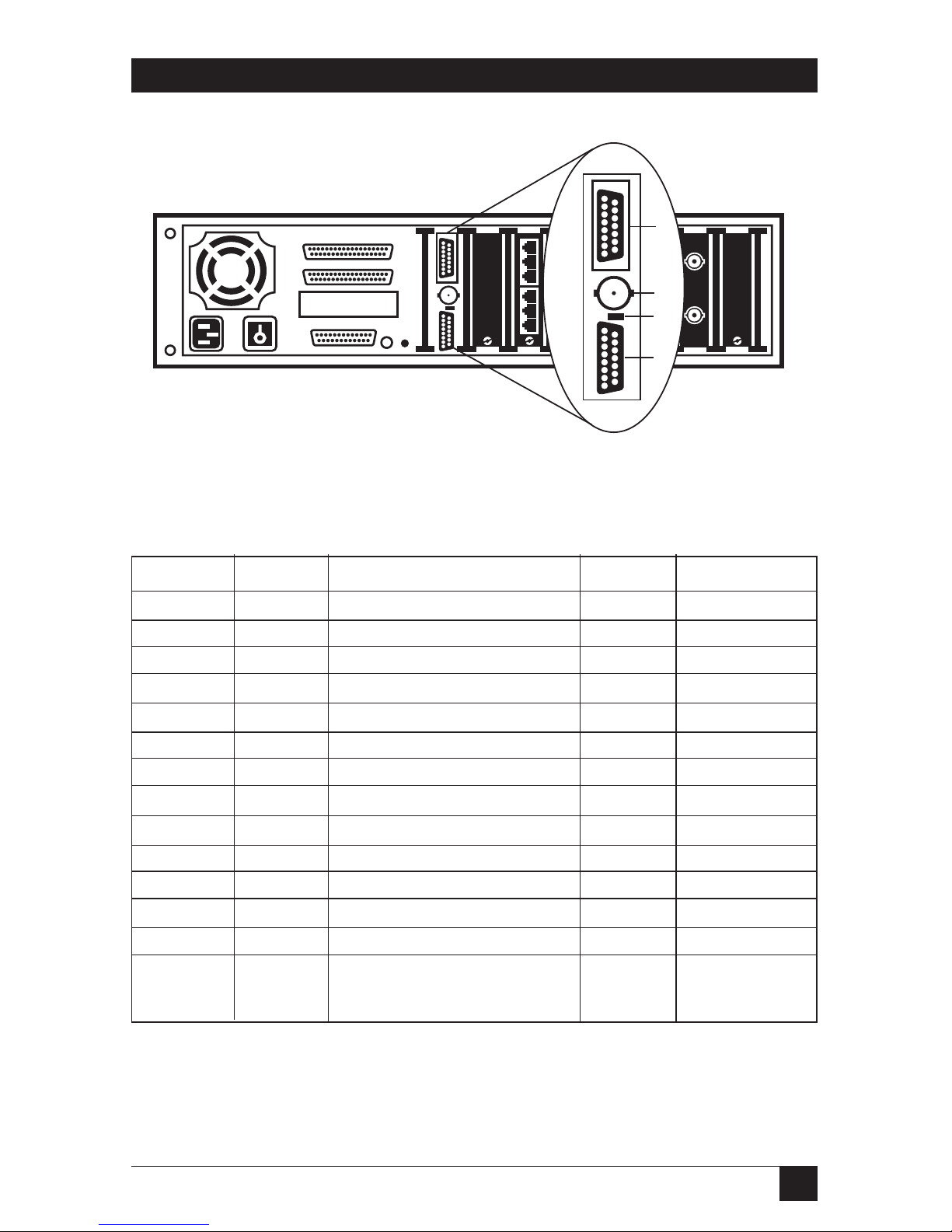

Table 2-1. Pin Assignments for the Wide Area Network Port.
RS-449 EIA-530 RS-232 V.35 Circuit
1 1 1 A Shield
2 — 12 — Signaling Rate
3 — — — Spare
4 2 2 P Send Data (D)
5 15 15 Y Send Timing (A)
6 3 3 R Receive Data (A)
7 4 4 C Request To Send
8 17 17 V Receive Timing (A)
9 5 5 D Clear To Send (A)
10 18 — — Local Loopback
11 6 6 E Data Set Ready (A)
12 20 20 E Terminal Ready (A)
13 8 8 F Receiver Ready (A)
14 21 — — Remote Loopback
15 — 22 — Incoming Call
16 — 23 — Select Frequency
17 24 24 U Terminal Timing (A)
18 25 — — Test Mode
19 7 7 B Signal Ground
20 — 7 B Receive Ground
21 — — — Spare
22 14 — S Send Data (B)
23 12 — AA Send Timing (B)
24 16 — T Receive Data (B)
25 19 — — Request To Send (B)
26 9 — X Receive Timing (B)
27 13 — — Clear To Send (B)
28 — 25 — Terminal Service
29 22 — — Data Set Ready
30 23 — — Terminal Ready (B)
31 10 — — Receiver Ready (B)
32 — — — Select Standby
33 — 21 — Signal Quality
34 — 18 — New Signal
35 11 — W Terminal Timing (B)
36 — — — Standby Indicator
37 — 7 B Send Common
9
CHAPTER 2: Introduction
Table 2-2. Pin Assignments for the RS-232 Port.
Contact Circuit Use
1 Shield
2 BA Transmitted Data
3 BB Received Data
4 CA Request To Send
5 CB Clear To Send
6 CC DCE Ready
7 AB Signal Ground
8 CF Received Line Signal Detector
9 Reserved For Testing
10 Reserved For Testing
12 Not Used
13 Not Used
14 Not Used
15 DB Transmitted Signal Element Timing (DCE Source)
16 Not Used
17 DD Received Signal Element Timing (DCE Source)
18 Not Used
19 Not Used
20 CD DTE Ready
21 Not Used
22 CE Ring Indicator
23 Not Used
24 Transmitted Signal Element Timing (DTE Source)
25 Not Used
10
RISC ROUTER EXPANDABLE
2.4 RISC Bridge/E Expansion Card
The RISC Bridge/E Expansion Card (LB521C) has three interface ports:
A Media Attachment Unit (MAU) interface, a Data Terminal Equipment
(DTE) interface and a Thin Net (BNC) interface. The interface you choose
is automatically configured when you connect a cable to it. Only one interface
per card is configurable at a time. The RISC Router Expandable has eight
total expansion slots that can be configured in any combination. A
description of each interface follows below.
1. Data Terminal Equipment (DTE) Interface — The DTE interface is a
15-pin female Thick Ethernet connector with a standard locking slide
clip. This connector is an Attachment Unit Interface (AUI) interface
that meets the 10BASE5 specification. The pin assignments for this
connector are the same as those on the MAU port and are listed in
the Table 2-3.
2. BNC (Thin Net) Interface — The BNC connector is an IEEE 802.3
Ethernet specification connector used for Thin Ethernet LAN
connection. This connector has built-in transceiver circuitry and
provides a direct connection to a ThinNet network.
3. Terminator Switch — This switch terminates the Ethernet connection.
In the ON position, the BNC connection is terminated. The switch is
ON when it points towards the word “TERM” on the back panel.
When the switch is OFF, the connection is not terminated. The switch
is OFF when it points away from the word “TERM” on the back panel.
NOTE
If you are using a BNC “T” adapter and two sections of coaxial cable
to terminate your Ethernet connection, the “TERM” switch must be OFF.
4. Media Attachment Unit (MAU) Connector — This is a 15-pin male
Ethernet transceiver connector. This connector has built-in transceiver
circuitry and provides a direct-connect (DCE) to a workstation DTE port.
The pin assignments for this connector are the same as those on the DTE
port and are listed in Table 2-2.
11
CHAPTER 2: Introduction
Figure 2-3. RISC Bridge/E Expansion Card Components.
Table 2-3. Port Pin Assignments for the DTE/MAU.
Contact Circuit Use DTE MAU
3 DO-A Data Out Circuit A Out In
10 DO-B Data Out Circuit B Out In
11 DO-S Data Out Circuit Shield Out In
5 DI-A Data In Circuit A In Out
12 DI-B Data In Circuit B In Out
4 DI-S Data In Circuit Shield In Out
8 CO-S Control Out Circuit Shield
2 CI-A Control In Circuit A In Out
9 CI-B Control In Circuit B In Out
1 CI-S Control In Circuit Shield In Out
6 VC Voltage Common Out In
13 VP Voltage Plus Out In
14 VS Voltage Shield Out In
Shell PG Protective Ground
(Conductive shell)
1
2
3
4
12
RISC ROUTER EXPANDABLE
3.0 Installation
This chapter describes the installation of the RISC Router Expandable.
Information included in this chapter is listed below:
• Unpacking Instructions
• Mounting Instructions
• Network Cabling
• Network Installation
NOTE
Cables and transceivers are not provided with the RISC Router
Expandable.
3.1 Unpacking Instructions
Your RISC Router Expandable Package includes the following:
• RISC Router Expandable
• AC Power Cord
• Manual
Follow these steps to unpack the RISC Router Expandable:
1. Remove the foam insert from the RISC Router Expandable carton.
Set it aside and save it.
2. Remove the RISC Router Expandable and place it on a clean, flat surface.
3. Read the remainder of this installation chapter before you power up the
unit.
13
CHAPTER 3: Installation
3.2 Mounting Instructions
3.2.1 M
OUNTING IN ARACK
You will need an 1⁄4-inch nut driver to install the RISC Router Expandable
in a rack. Follow these steps:
1. Remove the bezel (front panel) from the front of the RISC Router
Expandable. The bezel is held by four threaded ball studs. Pry the bezel
off with your hands and set it aside.
2. Remove the four threaded ball studs from the front panel using the nut
driver. Turn the nut driver counterclockwise.
3. Rotate the mounting bracket from the front panel so that the cut-outs
are facing the outside of the RISC Router Expandable.
4. Re-install the four threaded ball studs and tighten them.
5. Re-install the front bezel by pressing it onto the ball studs.
6. The RISC Router Expandable is ready to be mounted in a standard
19-inch rack.
NOTE
The RISC Router Expandable is compatible with any standard 19-inch
component rack. However, the rack-mount brackets are not sufficient to
support the unit. You must have support rails or a shelf installed in your
rack to fully support the RISC Router Expandable.

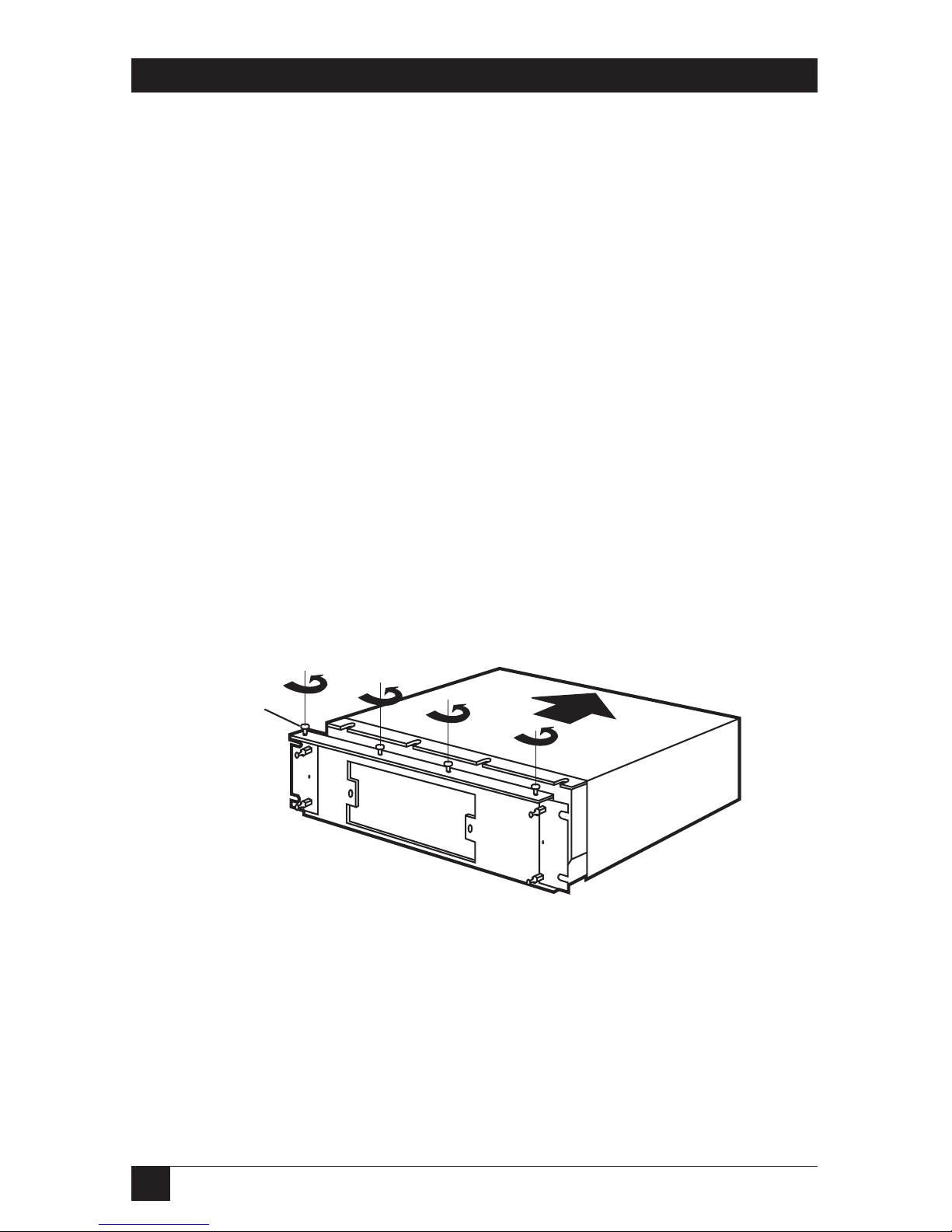

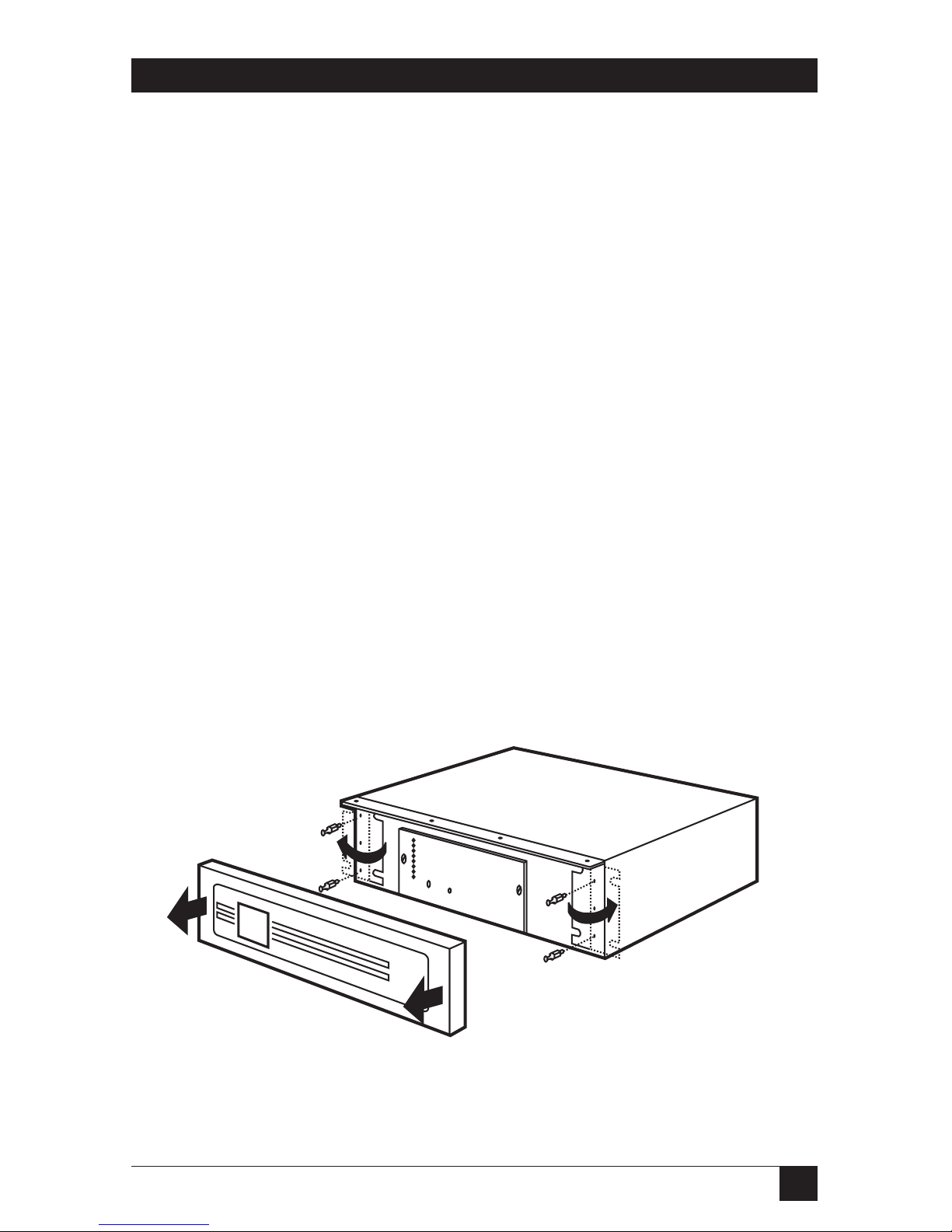

Figure 3-1. Preparing the RISC Router Expandable
for Rack Mounting.
14
RISC ROUTER EXPANDABLE
3.2.2 T
ABLEMOUNTING
Follow these steps to table-mount your RISC Router Expandable:
1. Set your RISC Router Expandable on a safe, clean, static-free surface.
2. Make sure that the vents and fans are not blocked. Do not place
anything on top of the RISC Router Expandable.
3. Be sure a grounded (three-prong) plug is available. Do not use an
extension cord.
3.3. Network Cables
This section describes the network cables that connect to the RISC Router
Expandable interfaces.
3.3.1 DTE (AUI) I
NTERFACE
The male connector and cable shown in Figure 3-2 connects to the female
DTE interface of the RISC Router Expandable. This connector is identified
by the two round posts that secure the connector. The cable must conform
to the IEEE 802.3 specification, and the AUI electrical and hardware
specification. See Table 2-3 for the pin assignments.

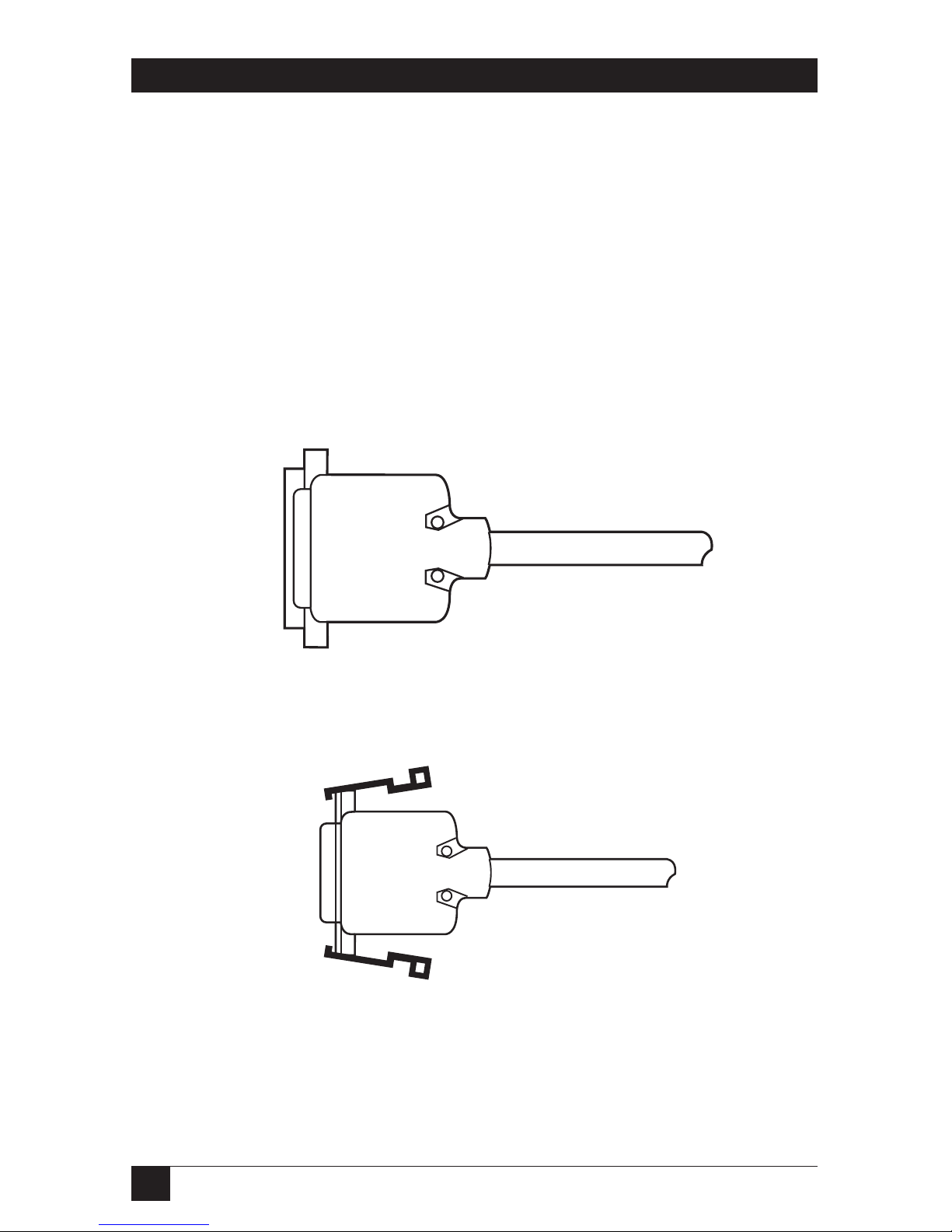

Figure 3-2. DTE Interface Cable (Male).
15
CHAPTER 3: Installation
The female connector and cable, shown in Figure 3-3, connects to the male
MAU interface of the RISC Router Expandable. This cable is identified by
the locking slide clip. This connector must conform to the IEEE 802.3
specification, and the AUI electrical and hardware specification.
See Table 2-3 for the pin assignments.
3.3.2 T
HINNET
(BNC) I
NTERFACE
The ThinNet connector and cable shown in Figure 3-4 connects to the
ThinNet interface on the RISC Router Expandable. The connector is the
male end and is identified by the rotating lock mechanism. The connector
and cable must conform to the IEEE 802.3 10BASE-2 specification.

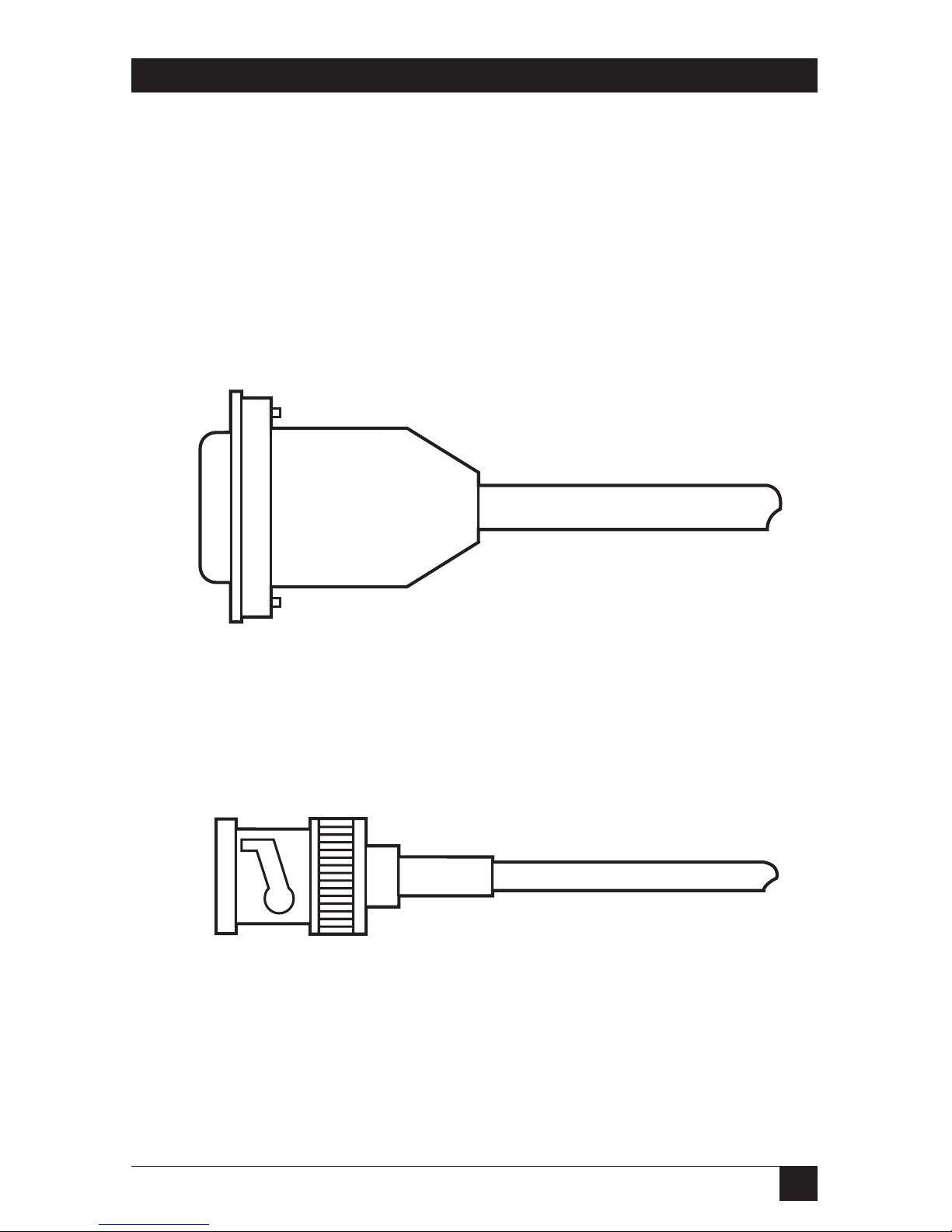

Figure 3-3. MAU Interface Cable (Female).
Figure 3-4. ThinNet (BNC) Interface Cable (Male).
16
RISC ROUTER EXPANDABLE
3.3.3 RS-232 I
NTERFACE
The female RS-232 connector and cable, shown in Figure 3-5, connects to the
male RS-232 connector on the RISC Router Expandable. The connector must
conform to the RS-232 EIA specification. See Table 2-2 for pin assignments.
3.3.4 RS-449 I
NTERFACE
The Wide Area Network port on the RISC Router Expandable is configured
to support RS-449 communications. The RS-449 WAN connector and cable,
shown in Figure 3-6, connects to the RS-449 WAN connector on the RISC
Router Expandable. This connector has a spring clip on each side that must
be pinched for the two connectors to attach. This port can be configured to
support RS-232, EIA-530, and V.35 communications. See Table 2-1 for the pin
assignments.

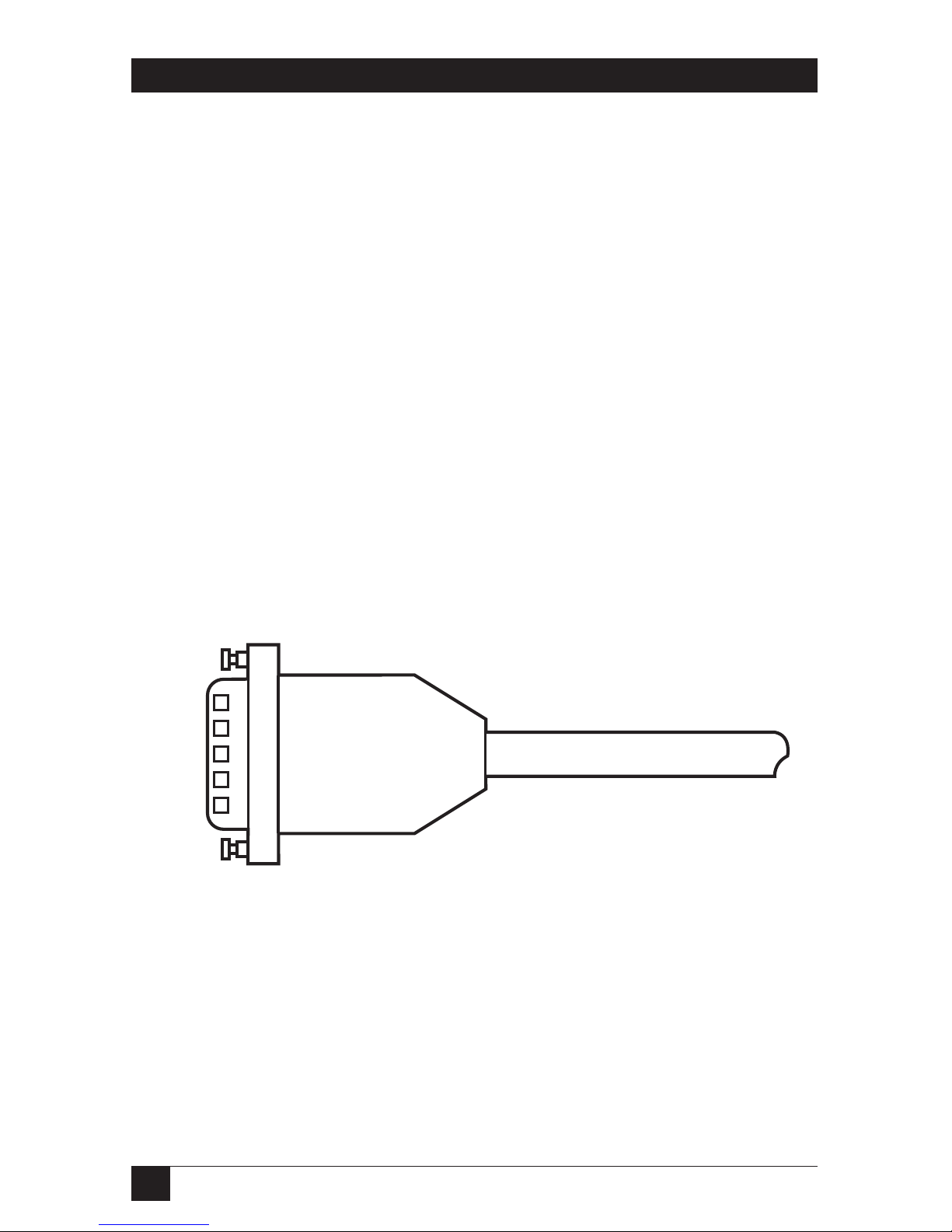

Figure 3-5. RS-232 Connector and Cable (Female).
Figure 3-6. RS-449 (WAN) Connector and Cable.
17
CHAPTER 3: Installation
3.4 Network Installation
Determine the configuration of your network and the type of interfaces your
users require. The installation procedures are based on the type of interface.
Refer to the appropriate section for the type of interface ou are using. The
RISC Router Expandable automatically configures to the type of interface.
CAUTION
Be sure to remove the power cord from the back of the RISC Router
Expandable before you install any cables.
3.4.1 C
ONNECTING AN
RS-232 T
ERMINAL TO THECONTROL PORT
To view the network management software of the RISC Router Expandable,
you must attach a VT100 compatible ASCII terminal to the RS-232 port.
The software provides the user interface to all the configurable parameters
of the RISC Router Expandable. Set your terminal to match the following
RS-232 interface defaults: 9600 baud, one stop bit, no parity.
1. Locate theRS-232 interface on the lower-left-hand corner of the
RISC Router Expandable. The connector is a 25-pin male connector
(Figure 3-7).
2. Attach a 25-pin female RS-232 connector to the male interface
on the back panel of the RISC Router Expandable.
3. Secure the locking screws.
Figure 3-7. RS-232 Connection.
RS-232 Interface
DTE (AUI) Interface
18
RISC ROUTER EXPANDABLE
3.4.2 DTE (AUI) C
ONNECTION
The DTE (AUI) interface is the top connector of a the RISC Bridge/E
Expansion Card (see Figure 3-7). This interface is a 10BASE5 Thick Ethernet
Attachment Unit Interface (AUI).
Follow these steps to make the DTE connection:
1. Attach a male DTE connector to the female DTE interface on the RISC
Router Expandable.
2. Slide the locking clip on the RISC Router Expandable interface.
3.4.3 BNC C
ONNECTION
The BNC interface is the center connector of a single-port RISC Bridge/E
Expansion Card (see Figure 3-8). This interface is a 10BASE2 Thin Ethernet
connector. The BNC interface has a built-in terminator. The terminator
switch terminates the BNC segment.
1. Attach a male BNC connector to the female BNC interface on the RISC
Router Expandable.
2. Twist the locking barrel on the male connector clockwise to secure
the connection to the interface.
3. Locate the terminator on the RISC Bridge/E Expansion Card.
It is located directly below the BNC interface.
4. Set the terminator according to your network:
ON if the BNC segment ends with your RISC Router Expandable. The
switch must point towards the word “Term” on the RISC Bridge/E
Expansion Card mounting bracket.
OFF if the BNC segment does not end with your RISC Router Expandable.
The switch must point away from the word “Term” on the RISC Bridge/E
Expansion Card mounting bracket.
19
CHAPTER 3: Installation
Figure 3-8. BNC Connection.
3.4.4 MAU C
ONNECTION
The MAU interface is the bottom connector of a RISC Bridge/E Expansion
Card (see Figure 3-8). This interface is a 10BASE5 connector that has a
built-in transceiver for a direct-connect to a workstation.
1. Attach a female AUI connector to th MAU interface on the RISC Router
Expandable.
2. Slide the locking clip on the AUI connector to secure the connection.
RS-232 Interface
BNC Interface
BNC Terminator
20
RISC ROUTER EXPANDABLE
3.4.5 W
IDE-AREANETWORKCONNECTION
The Wide-Area Network (WAN) interfaces are located in the left-hand
center of the back panel of the RISC Router Expandable. Each interface
is configurable for RS-449, RS-232, EIA-530, or V.35. Each interace has
jumper settings for the interface type. Follow these steps:
1. Remove the cover of the RISC Router Expandable. Refer to Chapter 4.
2. Locate the jumpers on the motherboard. See Figure 3-9.

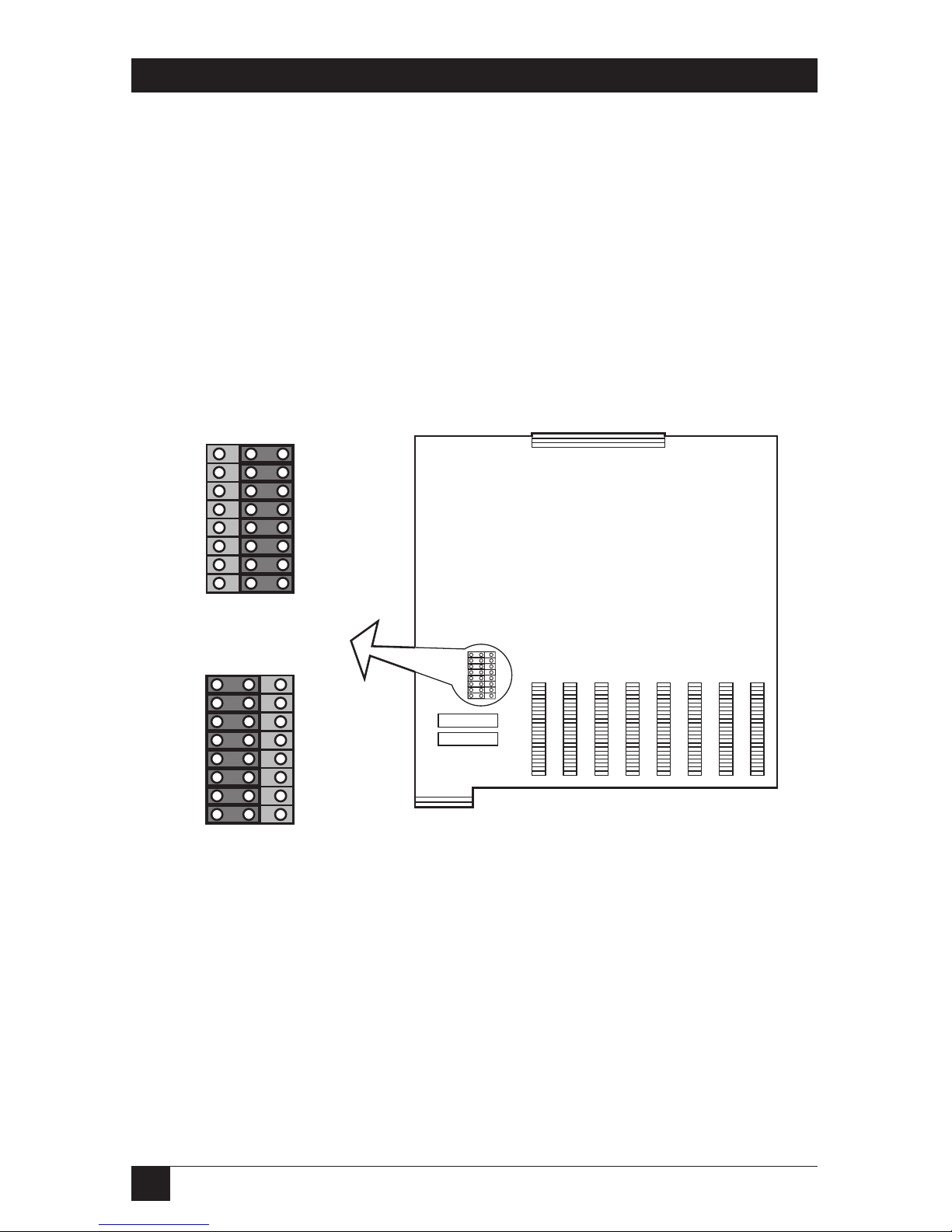

Figure 3-9. Jumper Settings on the Motherboard.
Front of LR5000
PROM Card
Expansion Cards Slots (8)
WAN Ports
Back of LR5000
W1
W2
W3
W4
W5
W6
W7
W8
RS-422/RS-232
Jumper Setting
RS-422
Jumper Setting
W1
W2
W3
W4
W5
W6
W7
W8
21
CHAPTER 3: Installation
WAN Connection Jumpers
There is one jumper block for the both WAN ports, but you set each port
independently. WAN port 1 is set by moving the jumpers on pins W5 through
W8. WAN port 2 is set by moving the jumpers on pins W1 through W4. Refer
to the illustrations below. The jumpers are made up of eight rows of three
pins each. You change the setting by moving the jumper position on the pins.
The “W” numbers appear upside-down on the motherboard.
• WAN Port 1 (RS-422) — jumpers on pins W5, W6, W7, and W8 are set to
the two pins to the right.
• WAN Port 1 (RS-423/232) — jumpers on pins W5, W6, W7, and W8 are
set to the two pins on the left.
• WAN Port 2 (RS-422) —jumpers on pins W1, W2, W3, and W4 are set to
the two pins on the right.
• WAN Port 2 (RS-422/232) — jumpers on pins W1, W2, W3, and W4 are
set to the pins on the left.

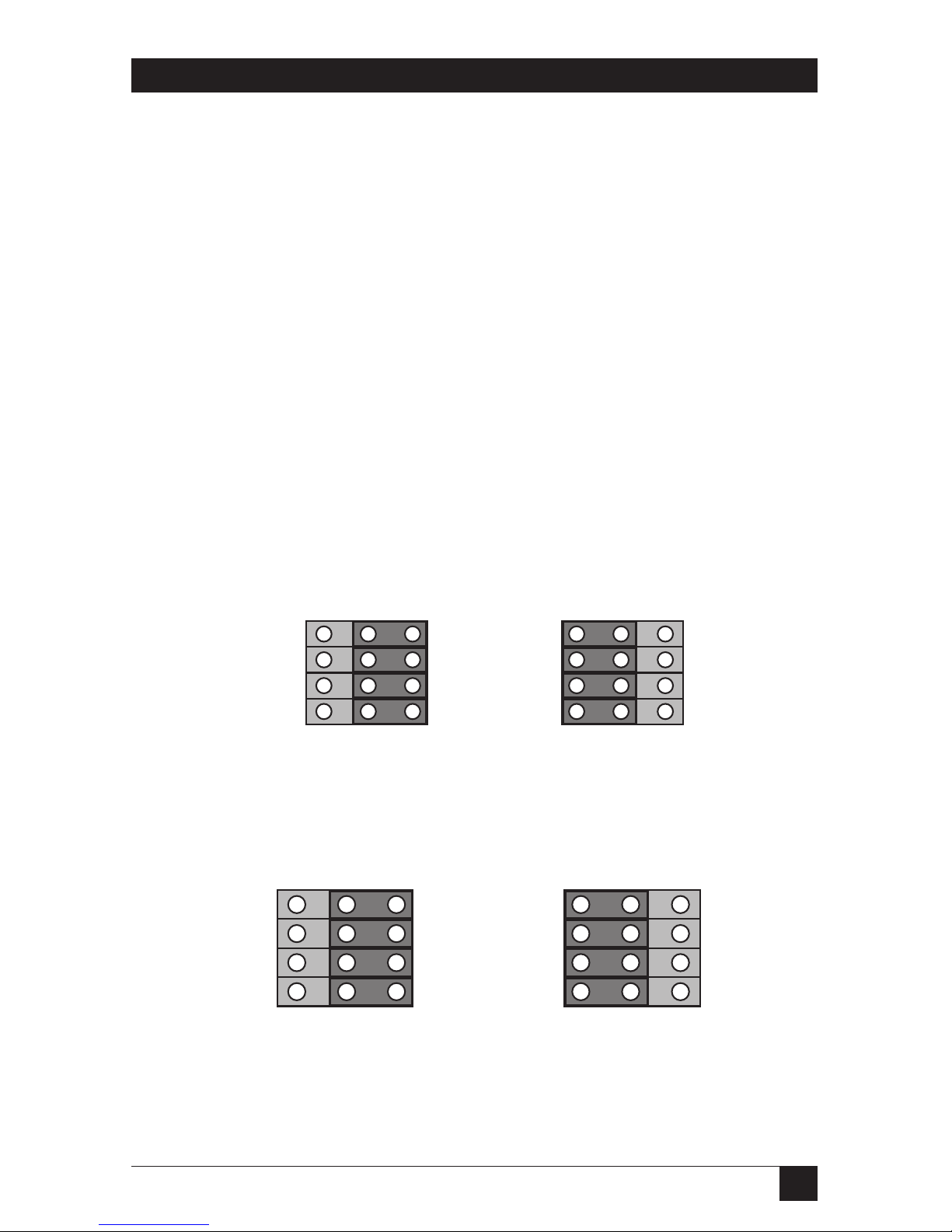

Figure 3-10. Jumpers on WAN Port 1.
Figure 3-11. Jumpers on WAN Port 2.
RS-422
W1
W2
W3
W4
RS-423/RS-232
W1
W2
W3
W4
RS-422
W5
W6
W7
W8
RS-423/RS-232
W5
W6
W7
W8
22
RISC ROUTER EXPANDABLE
WAN Connectors
The WAN ports are initially configured for RS-449 and are compatible
with the RS-422/423 electrical standard.
1. Locate the two WAN interfaces on the back panel of the RISC Router
Expandable. The interfaces are labeled “WAN #1” and “WAN #2.”
2. Connect a 37-pin female RS-449 connector to either WAN interface.
The connector has clamps on each side that must be pinched to
attach to the interface.
Figure 3-12. WAN Port Location on the RISC Router Expandable.
WAN #2
WAN #2
WAN #1
23
CHAPTER 3: Installation
WAN V.35 Connection
The RISC Router Expandable supports a V.35-compatible connection on
the WAN interface. You must use a specially configured cable that attaches
between the DB37 interface on the RISC Router Expandable and a V.35
M-block connector on the V.35 device.
3.5 AC Connection
After you have installed the network cables, attach the AC plug to the RISC
Router Expandable. Follow these steps:
1. Attach the AC plug to the back of the RISC Router Expandable. Be sure
the power is OFF and the other end of the power cable is unplugged
from the wall socket. Refer to Section 2.3 for the location of the AC plug.
Chapter 1 lists the power requirements.
2. Plug the AC power cord into a wall socket rated for 120 VAC.
3. Power on the RISC Router Expandable. Refer to the software manuals
for instructions on the resident software.
24
RISC ROUTER EXPANADABLE
4.0 Upgrades
This chapter describes how to install additional expansion cards and PROM
card updates in the RISC Router Expandable.
4.1 PROM Card Installation
The removable PROM card may be replaced to accomodate revised firmware
of the RISC Router Expandable.
WARNING
Be sure to disconnect the power cord from the back panel of the RISC
Router Expandable. High voltage may be present when you remove the
front bezel.
CAUTION
Be sure to secure proper grounding for the RISC Router Expandable
when you install a PROM card. Electrostatic discharge can destroy the
card.
1. Power down your RISC Router Expandable.
2. Remove the power cord from the back panel of the unit.
3. Remove the front bezel from the RISC Router Expandable by prying
the edges of the bezel with your fingers and pulling it forward.

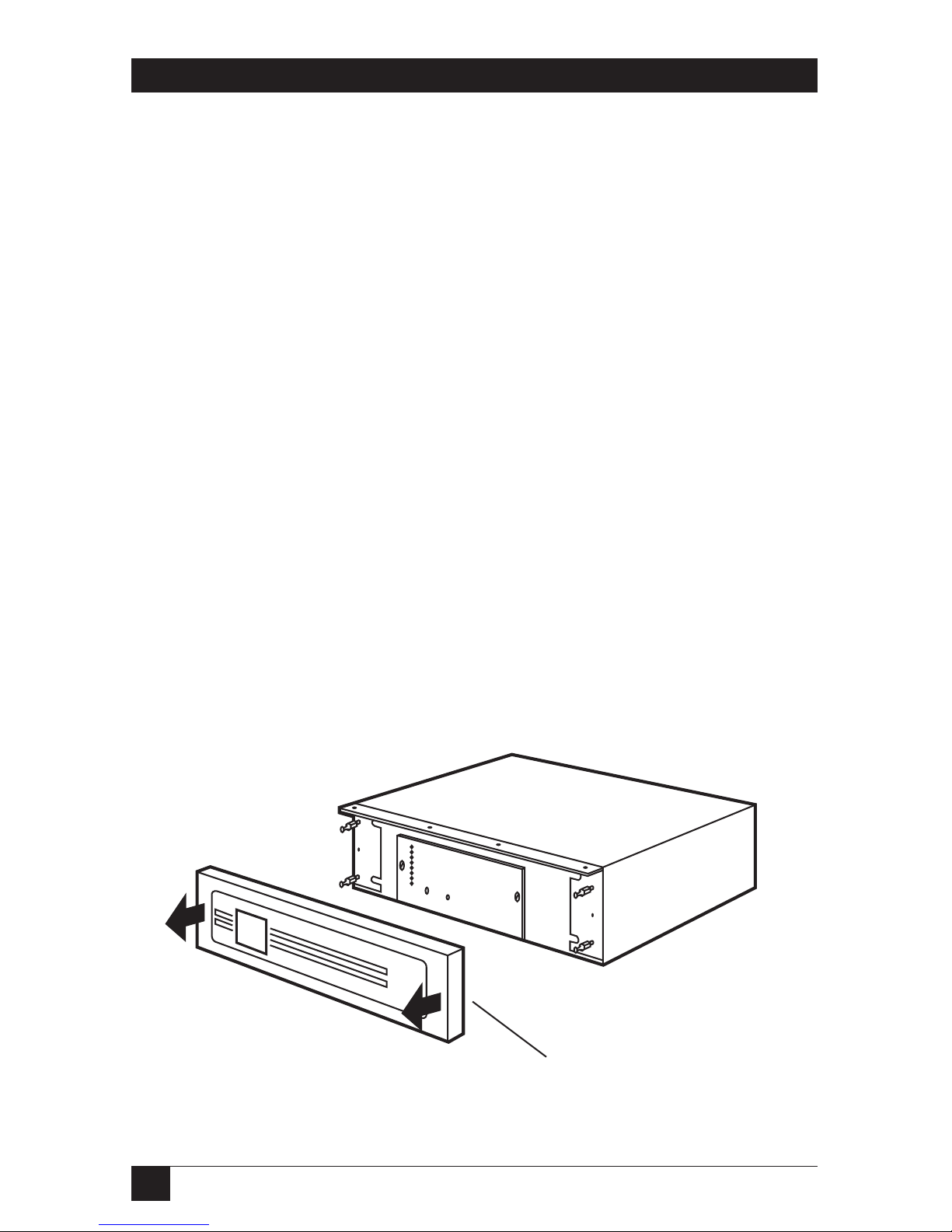

Figure 4-1. Removing the Bezel.
Bezel
25
CHAPTER 4: Upgrades
4. Remove the two screws on the front of the PROM Card. The screws are
quarter-turn locking screws and are permanently attached to the PROM
card. Do not remove them.
5. Grasp the old PROM card holding plate by the edges and pull it forward.
6. Press the new PROM card firmly onto the motherboard. The connector,
which is at the bottom of the PROM card, connects with the gold contacts
on the motherboard.
7. Secure the new PROM card. Hold the back of the RISC Router
Expandable and press the PROM card until it is completely seated.
8. Turn the quarter-turn locking screws counter-clockwise to secure
the PROM card.
9. Re-install the bezel by pressing it back onto the four ball-studs
on the front panel of the RISC Router Expandable.
10. Plu the power cord into the back panel and power on the
RISC Router Expandable.

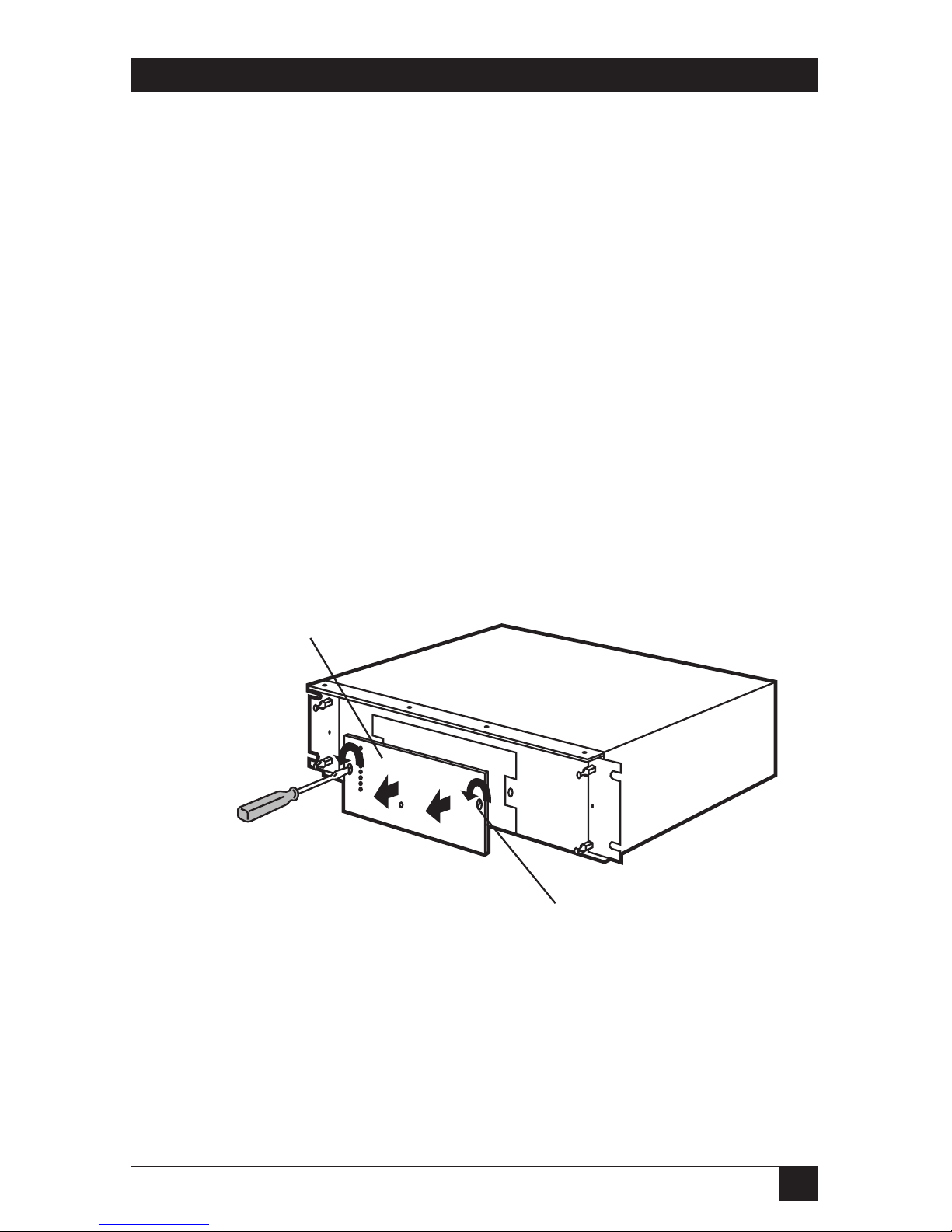

Figure 4-2. Removing the PROM Card.
PROM Card
(with protective plate)
Quarter-turn
Locking Screws (2)
26
RISC ROUTER EXPANADABLE
4.2 Expansion Card Installation
The RISC Bridge/E Expansion Card is a three-port expansion card with one
AUI, one BNC, and one MAU port. The card supports one interface at a time.
WARNING
Be sure to disconnect the power-cord from the RISC Router Expandable.
High voltage may be present when you remove the front bezel.
CAUTION
Be sure to secure proper grounding for the RISC Router Expandable
when you install a PROM card. Electrostatic discharge can destroy the
card.
1. Power down the RISC Router Expandable and remove the power
cord from the back panel of the unit.
2. Remove the front bezel from the RISC Router Expandable.
See Figure 4-3.
3. Loosen the four cover-mount screws on top of the cover
with a 1⁄4-inch nut driver.
Figure 4-3. Removing the Cover.
Cover-mount
Screws (4)
27
CHAPTER 4: Upgrades
4. Slide the top cover toward the back of the unit and remove it.
5. Lift the card-holder bracket from the top of the Ethernet cards and
place it toward the back of the unit. See Figure 4-4.
6. Loosen the thumbscrew (counter-clockwise) on the bottom of the
expansion filler plate.
NOTE
You may need a flat-blade screwdriver to loosen thumbscrews.
7. Remove the filler plate from the next available slot. Each unoccupied slot
in RISC Router Expandable has a protective filler plate that must be
removed before you install an expansion card. See Figure 4-5.

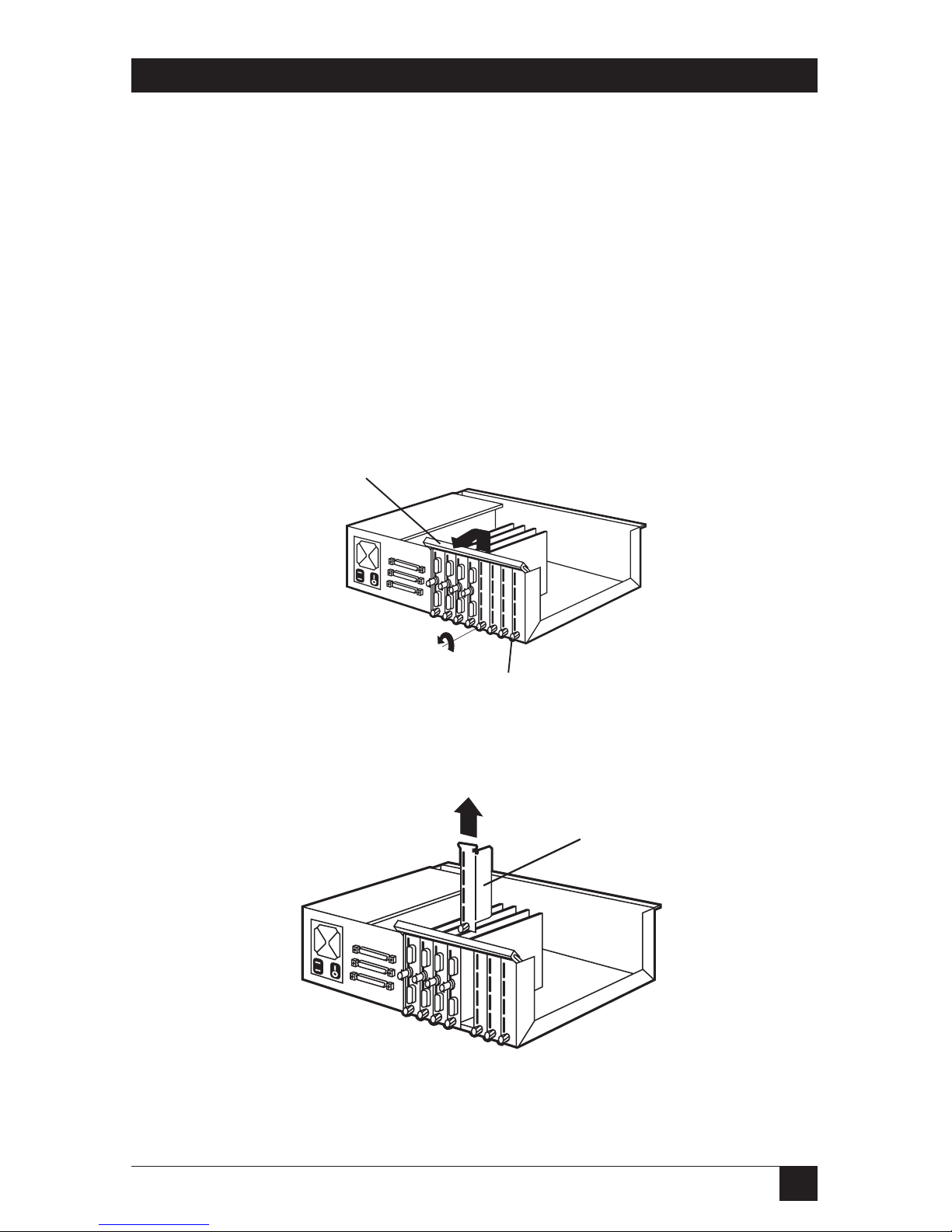

Figure 4-4. Card-Holder Bracket.
Figure 4-5. Removing a Filler Bracket.
Filler Plate
Thumbscrew
Card-holder
Bracket
28
RISC ROUTER EXPANADABLE
8. Install the expansion card in the next available slot on the motherboard.
Press firmly on the board until it is properly seated.
9. Tighten the thumbscrew (clockwise) on the bottom of the expansion
card.
10. Secure the card-holder bracket.
11. Slide the top cover back onto the unit and secure the four cover-mount
screws.

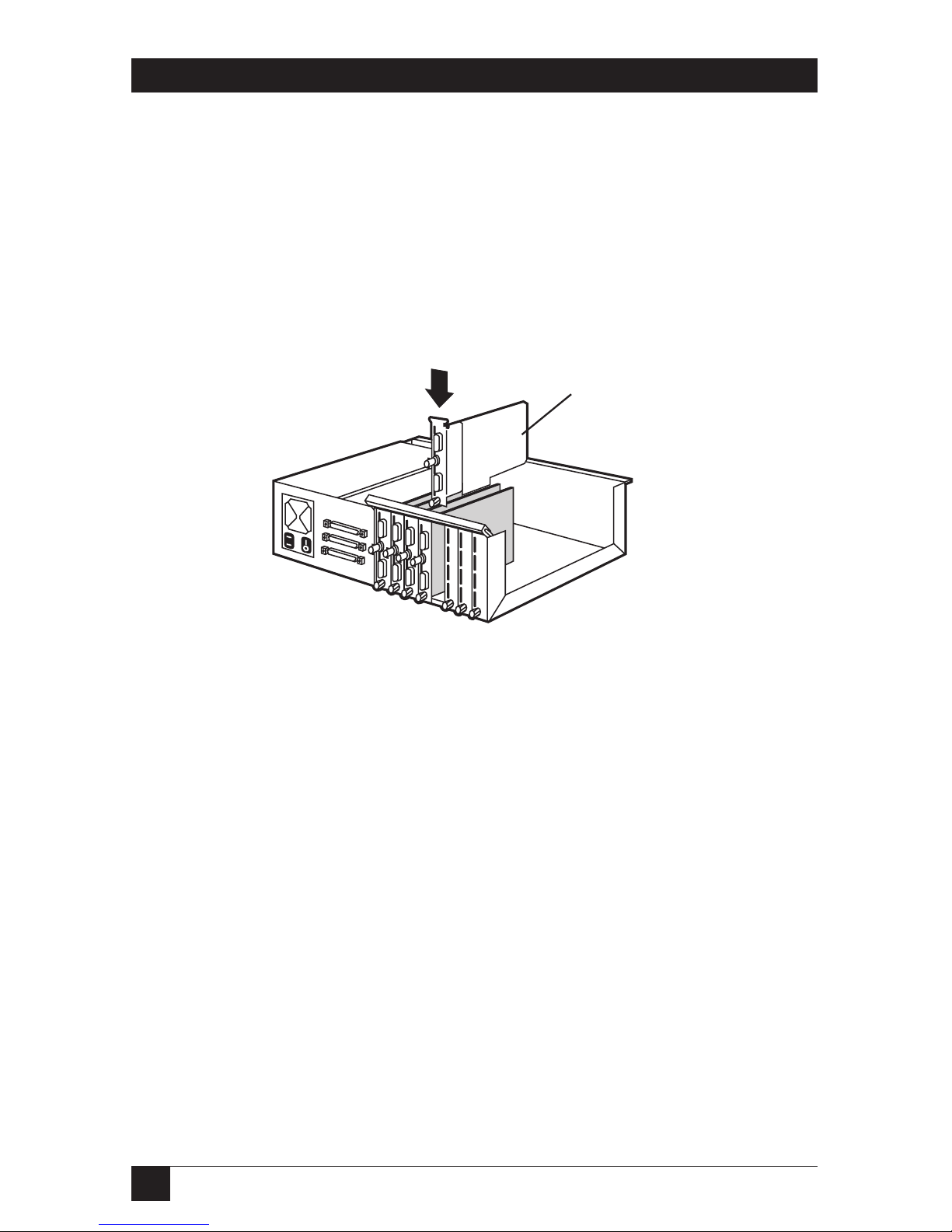

Figure 4-6. Installing the Expansion Card.
Expansion Card
29
CHAPTER 5: Troubleshooting
5.0 Troubleshooting
This chapter explains basic steps to take in the event of a problem with the
installation or operation of the RISC Router Expandable. If your problem is
not solved after these steps refer to the RISC Router Network Control Guide.
5.1 Troubleshooting Steps
Check for the problems with your RISC Router Expandable.
a. With the power down, be sure the three-pronged plug is properly
connected to the AC DC port of the RISC Router Expandable.
b. Verify that the BNC (ThinNet—blue cable), AUI (Thick Ethernet—thick
orange cable), or MAU cable is attached to the appropriate connector
on the RISC Router Expandable for LAN.
c. Verify that the WAN cable is attached tp the WAN connector onthe
back panel of the RISC Router Expandable for WAN Operation.
d. Verify that the WAN jumpers are correctly configured for the interface
you are using on the WAN port of the RISC Router Expandable.
e. Is the FAULT LED on?
f. (BNC only) Check the terminator switches on the back panel of the RISC
Router Expandable.
Check for problems with your network.
a. Verify that the interconnecting network cables meet the IEEE standard
for cabling and Ethernet LAN and WAN.
b. Verify the cable connection to other computers in the the network.
In a network using Thin Ethernet (BNC) cabling, check all systems
that are daisy-chained to the system your are troubleshooting.
c. Determine whether or not your system is the only one in the network
with a problem.
If none of the steps listed above solves your problem, see the RISC Router
Network Control Guide or call your supplier.
1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746
© Copyright 1993. Black Box Corporation. All rights reserved.
Loading...
