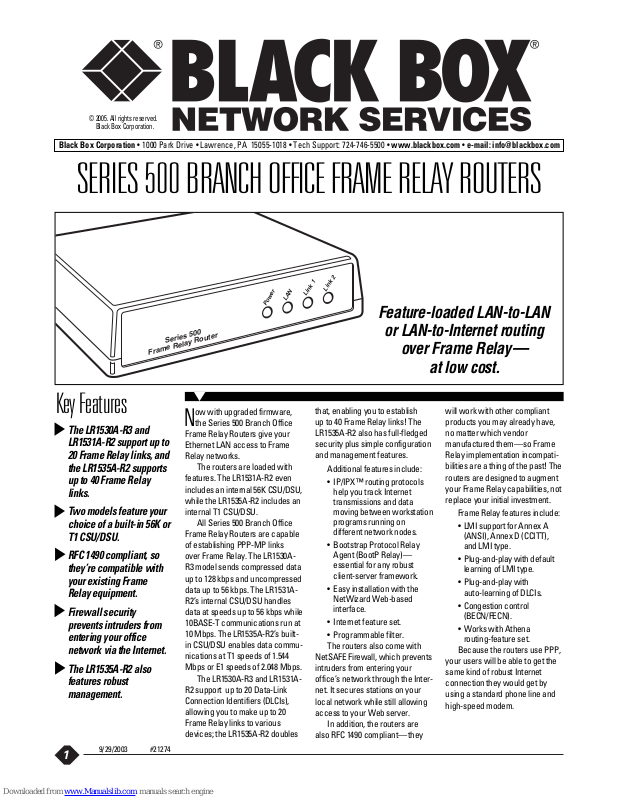

Page 1
1
Black Box Corporation • 1000 Park Drive • Lawrence, PA 15055-1018 • Tech Support: 724-746-5500 • www.blackbox.com • e-mail: info@blackbox.com
© 2005. All rights reserved.
Black Box Corporation.
9/29/2003 #21274
The LR1530A-R3 and
LR1531A-R2 support up to
20 Frame Relay links, and
the LR1535A-R2 supports
up to 40 Frame Relay
links.
Two models feature your
choice of a built-in 56K or
T1 CSU/DSU.
RFC 1490 compliant, so
they’re compatible with
your existing Frame
Relay equipment.
Firewall security
prevents intruders from
entering your office
network via the Internet.
The LR1535A-R2 also
features robust
management.
N
ow with upgraded firmware,
the Series 500 Branch Office
Frame Relay Routers give your
Ethernet LAN access to Frame
Relay networks.
The routers are loaded with
features. The LR1531A-R2 even
includes an internal 56K CSU/DSU,
while the LR1535A-R2 includes an
internal T1 CSU/DSU.
All Series 500 Branch Office
Frame Relay Routers are capable
of establishing PPP-MP links
over Frame Relay. The LR1530AR3 model sends compressed data
up to 128 kbps and uncompressed
data up to 56 kbps. The LR1531AR2’s internal CSU/DSU handles
data at speeds up to 56 kbps while
10BASE-T communications run at
10 Mbps. The LR1535A-R2’s builtin CSU/DSU enables data communications at T1 speeds of 1.544
Mbps or E1 speeds of 2.048 Mbps.
The LR1530A-R3 and LR1531AR2 support up to 20 Data-Link
Connection Identifiers (DLCIs),
allowing you to make up to 20
Frame Relay links to various
devices; the LR1535A-R2 doubles
Link 2
Link 1
LAN
Power
Series 500
Frame Relay Router
Feature-loaded LAN-to-LAN
or LAN-to-Internet routing
over Frame Relay—
at low cost.
Key Features
SERIES 500 BRANCH OFFICE FRAME RELAY ROUTERS
that, enabling you to establish
up to 40 Frame Relay links! The
LR1535A-R2 also has full-fledged
security plus simple configuration
and management features.
Additional features include:
• IP/IPX™ routing protocols
help you track Internet
transmissions and data
moving between workstation
programs running on
different network nodes.
• Bootstrap Protocol Relay
Agent (BootP Relay)—
essential for any robust
client-server framework.
• Easy installation with the
NetWizard Web-based
interface.
• Internet feature set.
• Programmable filter.
The routers also come with
NetSAFE Firewall, which prevents
intruders from entering your
office’s network through the Internet. It secures stations on your
local network while still allowing
access to your Web server.
In addition, the routers are
also RFC 1490 compliant— they
will work with other compliant
products you may already have,
no matter which vendor
manufactured them— so Frame
Relay implementation incompatibilities are a thing of the past! The
routers are designed to augment
your Frame Relay capabilities, not
replace your initial investment.
Frame Relay features include:
• LMI support for Annex A
(ANSI), Annex D (CCITT),
and LMI type.
• Plug-and-play with default
learning of LMI type.
• Plug-and-play with
auto-learning of DLCIs.
• Congestion control
(BECN/FECN).
• Works with Athena
routing-feature set.
Because the routers use PPP,
your users will be able to get the
same kind of robust Internet
connection they would get by
using a standard phone line and
high-speed modem.
Page 2
2
Management:
LR1535A-R2: LSNMPV2, WEB II,
Bridged MIB, Enterprise MIB,
Telnet, console port
Speed (Maximum):
LR1530A-R3:
With compression: 128 kbps;
Without compression: 56 kbps;
LR1531A-R2:
Ethernet: 2.048 Mbps;
Leased line: 56 kbps;
LR1535A-R2:
E1: 2.048 Mbps;
T1: 1.544 Mbps
Interface: LR1530A-R3:
LAN: 10BASE-T MDI and
MDI-X ports;
WAN: DB25 F;
LR1531A-R2: LAN: 10BASE-T
MDI and MDI-X ports;
WAN: V.35;
LR1535A-R2: LAN 10BASE-T
MDI and MDI-X ports;
WAN: T1/E1
Connectors: LR1530A-R3:
LAN: RJ-45; WAN: DB25 F;
LR1531A-R2: LAN: RJ-45;
WAN: RJ-45;
LR1535A-R2: LAN: RJ-45;
WAN: RJ-48
Indicators: (4) Front-mounted LEDs:
Power, LAN, Link 1, Link 2
Temperature Tolerance:
35 to 122°F (2 to 50°C)
Humidity Tolerance: 20 to 80%,
noncondensing
Altitude (Maximum): 10,000 ft.
(3048 m)
Power:
From wallmount power supply:
Input: 115 VAC, 60 Hz
(230-VAC, 50-Hz version
also available);
Output: 12 VDC, 1 amp
Size: 1.6"H x 6.1"W x 4.3"D
(4.1 x 15.5 x 10.9 cm)
Weight: 0.7 lb. (0.3 kg)
Specifications

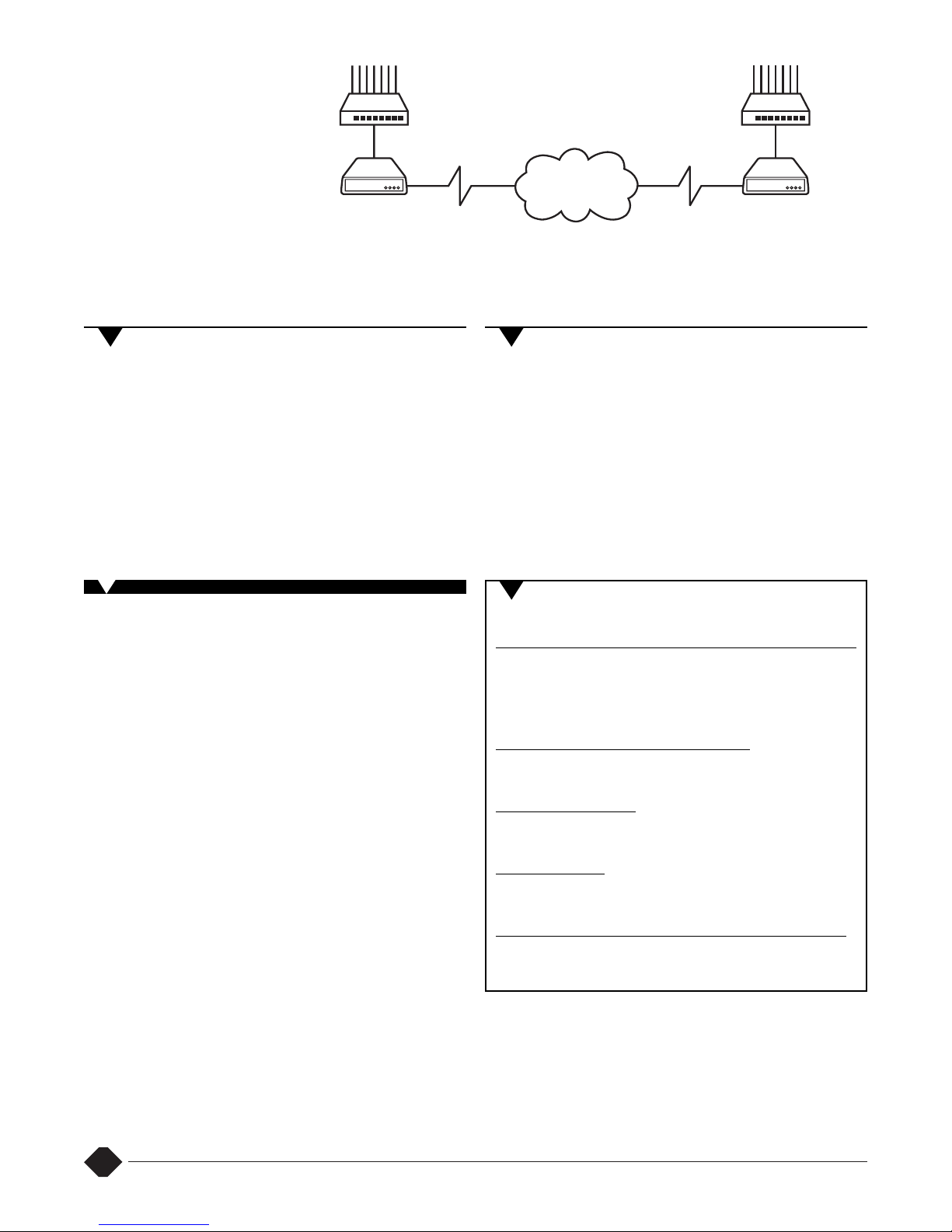

With a pair
of LR1530A-R3
Series 500 Routers,
Ethernet over
Frame Relay
is simple.
10BASE-T
Hub
10BASE-T
Hub
Frame
Relay
Series 500 Branch
Office Frame
Relay Router
(LR1530A-R3)
Series 500 Branch
Office Frame
Relay Router
(LR1530A-R3)
• (1) Series 500 Branch Office Frame Relay Router
• (1) External 120-VAC/12-VDC wallmount, 2-prong transformer
(mini RCA center post)
• (1) CD-ROM containing software and user’s manual
• (1) Flat-satin RJ-45 cable
• (1) RJ-45/DB9F console adapter (console is DTE)
What’s Included
Ordering Information
ITEM CODE
Series 500 Branch Office Frame Relay Routers
Base Model.......................................................LR1530A-R3
56K CSU/DSU Model ......................................LR1531A-R2
T1 CSU/DSU Model.........................................LR1535A-R2
For RS-232 and RS-530/RS-422, order…
RS-232 Cable, DB25 Male/DB25 Male,
2-m (6.5-ft.).....................................................EHC2625-MM
For V
.11/X.21, order…
X.21 Cable, DB25 Male/DB15 Male,
2-m (6.5-ft.).................................................EHC2625-15MM
For V
.35, order…
V.35 Cable, DB25 Male/34-Pin M-Block Male,
2-m (6.5-ft.) ....................................................EHC530C-MM
For optimum performance and a 20% savings, order…
CAT5 100-MHz Patch Cable, 4-Pair, Straight-Pinned,
PVC, Beige, 10-ft. (3-m).............................EVMSL05-0010
Bring greater savings to your company with the Series 500 Branch
Office Frame Relay Routers. They enable you to make 20 or 40 Frame
Relay links, which will save you a bundle of money!
Typical Application
