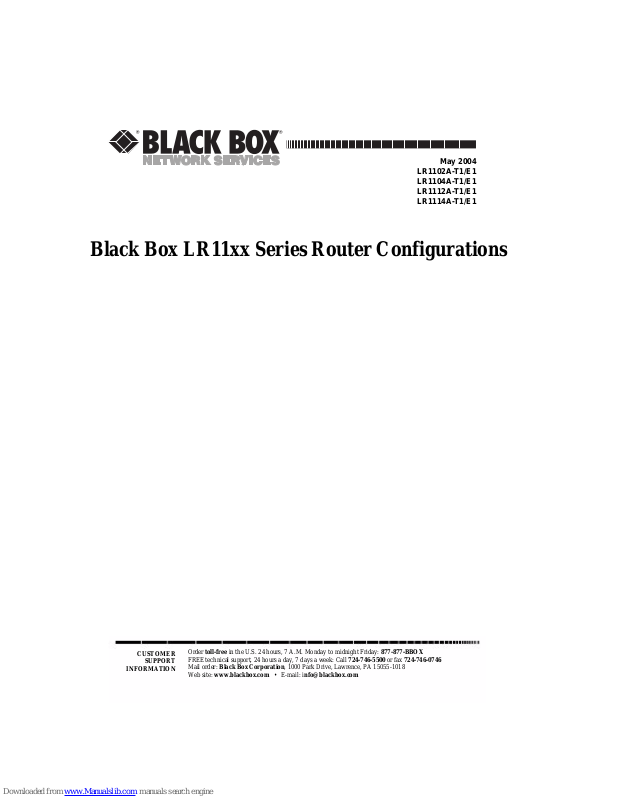

Black Box LR1102A-T1, LR1102A-E1, LR1104A-T1, LR1104A-E1, LR1112A-T1 User Manual

...

Black Box LR11xx Series Router Configurations

CUSTOMER

SUPPORT

INFORMATION

Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com

May 2004 LR1102A-T1/E1 LR1104A-T1/E1 LR1112A-T1/E1 LR1114A-T1/E1

Black Box LR11xx Series Router Configurations Guide

FEDERAL COMMUNICATIONS COMMISSION

AND

CANADIAN DEPARTMENT OF COMMUNICATIONS

RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipme nt is operated in a commercial environment . Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equip ment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Depar tm e nt of Com m un i c at ion s .

Le présent appareil numérique n’émet pas de bruits radioélectriqu es dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des Communications du Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.

3. Todas las adve rtencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, e tc.

6. El aparato eléctrico debe ser usado únic amente con carritos o pedestales que sean recomendados por el f a bricante.

7. El aparato eléctrico debe ser mo ntado a la pared o al techo sólo como sea recomendado por el fabricante.

8. Servicio—El usuario no deb e intentar dar servic io al equipo eléctric o más allá a lo descrito en las instrucciones de operació n. Todo otro servicio deberá ser referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación, no se debe colocar en libreros o gabinetes que impida n el flujo de aire por los or ificios de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros aparatos (incluyendo amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de pode r sól o del tipo descrito en el instructivo de operación, o como se indique en el aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.

Black Box LR11xx Series Router Configurations Guide

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación.

18. Servicio por pers onal calificado de berá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; o

B: Objectos han caído o líquido ha sido derramado dentro del aparato ; o

C: El aparato ha sido expuesto a la llu via ; o

D: El aparato parece no operar normalmente o muestra un cambio en su desem-

peño; o

E: El aparato ha sido tira do o su cubierta ha sido dañada.

Contents

DHCP RELAY........................................................................................13

DHCP Relay ......................................................................................13

Feature Overview ...........................................................................13

Functionality ..................................................................................13

BOOTP Requests ............................. ...... ........................................13

BOOTP Replies ..............................................................................14

Using DHCP Relay with NAT ................................ .......................14

Command Line Interface ...............................................................14

Enabling DHCP Relay ...................................................................14

Disabling DHCP Relay ............................... ...... .............................15

Configuring the Gateway Address field when NAT is enabled .....15

Displaying DHCP Configuration ...................................................15

Displaying Statistics ......................................................................15

DHCP Limitations .........................................................................16

ONFIGURING INTERNET GROUP MANAGEMENT PROTOCOL ...........17

IGMP Configuration ..........................................................................17

IGMP Commands ..........................................................................18

IGMP Configuration Examples .....................................................1 8

Example 1 .......................................................................................18

Example 2 .......................................................................................18

Example 3 .......................................................................................18

Example 4 .......................................................................................18

Example 5 .......................................................................................19

Example 6 .......................................................................................19

Example 7 .......................................................................................19

Example 8 .......................................................................................19

Example 9 .......................................................................................19

Example 10 .....................................................................................19

Example 11 .....................................................................................19

Example 12 .....................................................................................19

Example 13 .....................................................................................19

ILTERING IP TRAFFIC.........................................................................21

IP Packet Filter Lists ...................................... ...... .............................21

Example1 .......................................................................................21

Configure the Black Box LR1104A. ..............................................21

Example 2 ......................................................................................22

Configure the Black Box LR1104A ...............................................22

Example 3 ......................................................................................22

Configure the Black Box LR1104A ...............................................22

ONFIGURING SECURITY......................................................................2 3

IPSec Configurations .........................................................................23

Example 1: Managing the Black Box LR1104A Securely Over

an IPSec Tunnel .................................................................................24

Example 2: Single Proposal: Tunnel Mode Between Two Black

Black Box LR11xx Series Router Configurations Guide

Box Security Gateways .....................................................................28

Example 3: Multiple IPSec Proposals: Tunnel Mode Between

Two Black Box Security Gateways .................................................. 33

Example 4: IPSec remote access to corporate LAN using user

group method .................................................................................... 35

Example 5: IPSec remote access to corporate LAN using mode

configuration method ........................................................................ 40

IPS

EC SPECIFICATIONS ........................................................................ 47

IPSec Appendix ..................................................................................47

Black Box IKE and IPSec Defaults .............................................. 48

IKE Defaults .................................................................................. 48

IPSec Defaults ...............................................................................48

ORWARDING IP TRAFFIC.................................................................... 51

IP Multiplexing ..................... ..... ................................................... ....51

Packet Forwarding Modes ............................. ................................ 51

Proxy ARP and Packet Forwarding .............................................. 51

Addressing in IP Multiplexing Networks ..................................... 52

Single Subnet ................................................................................ 53

Split Subnet ...................................................................................53

Secondary Addressing – POP Only .............................................. 54

Secondary Addressing – 30 Bit ..................................................... 54

Secondary Addressing – 29 Bit ..................................................... 55

Pros and Cons of Different IP Addressing Schemes ..................... 55

Routing Considerations for IP Multiplexing ................................. 55

IP M

ULTIPLEXING HDLC CONFIGURATIONS .................................... 57

Connecting a Black Box Router to a Router/CSU via HDLC .......... 57

Configure the Black Box LR1104A at Site 2 ................................58

IP M

ULTIPLEXING PPP AND MLPPP CONFIGURATIONS.................. 59

Configuring Multiple PPP and MLPPP Bundles .............................. 59

Configure the Black Box LR1104A at the Main Site ...................61

ONFIGURING PPP, MLPPP, AND HDLC........................................... 63

Layer Two Configurations: PPP, MLPPP, and HDLC .....................63

MLPPP Configuration ................................................................... 64

Configure the Black Box LR1114A System at Site 1 ...................64

PPP and MLPPP Configuration .................................................... 64

Configure the Black Box LR1104A System at the Main Site ....... 64

HDLC Configuration ....................................................................64

Configure the Black Box LR1104A System at the Main Site ....... 64

ONFIGURING FIREWALLS................................................................... 65

Firewalls ............................................................................................ 65

Firewall Configuration Examples ..................................................... 66

Basic Firewall Configuration ........................................................ 66

Stopping DoS Attacks ...................................................................73

Packet Reassembly ........................................................................ 74

NAT Configurations ......................................................................... 74

Contents

NAT Configuration Examples ...........................................................74

Dynamic NAT (many to many) .....................................................75

Static NAT (one to one) ................................................................. 7 6

Port Address Translation (Many to one) ........................................77

ULTIPATH MULTICAST CONFIGURATIONS .......................................79

Multipath Multicast ...........................................................................79

Multipath Commands ........................................................................80

Multipath Examples .......................................................................80

ONFIGURING NAT...............................................................................81

Network Address Translation ............................................................81

Dynamic NAT ................................................................................81

Static NAT .....................................................................................81

Configuration for Figure 1 .............................................................82

Configuration for Figure 2 .............................................................83

Reverse NAT ................................................................................. 8 3

Configuration for Figure 3 .............................................................84

NAT C

ONFIGURATION EXAMPLES.......................................................85

NAT Configurations ..........................................................................85

NAT Configuration Examples ...........................................................85

Dynamic NAT (many to many) .....................................................85

Static NAT (one to one) ................................................................. 8 7

Port Address Translation (Many to one) ........................................88

Method:1 – Specifying NAT address with the policy command ...88

Method:2 – Attaching nat pool to the policy .................................88

EMOTE ACCESS VPNS ........................................................................89

Secure Remote Access Using IPSec VPN ........................................89

Access Methods .................................................................................89

Remote Access: User Group ..........................................................89

Remote Access: Mode Configuration ............................................90

Configuration Examples ....................................................................90

IPSec Remote Access User Group Method – Single Proposal,

Pre-shared Key Authentication .........................................................90

IPSec Remote Access Mode Configuration Group Method .............92

ETWORKING WITH ROUTING INFORMATION PROTOCOL.................95

Routing Information Protocol ...........................................................95

Configuring RIP for Ethernet 0 and WAN 1 Interfaces ................95

Displaying RIP Configuration .......................................................9 5

Displaying All Configured RIP Interfaces .....................................95

ONFIGURING STATIC ROUTES............................................................97

Static Routing Configuration .............................................................97

Configure the Router at Site “A” ...................................................98

Configure the Router at site “B” ....................................................98

ONFIGURING OPEN SHORTEST PATH FIRST ROUTING.....................99

OSPF Routing Protocol .....................................................................99

Black Box LR11xx Series Router Configurations Guide

Configuring the host name ............................................................ 99

Configuring interface ethernet 0 ...................................................99

Configuring interface bundle Dallas ............................................. 99

Configuring ospf ........................................................................... 100

Configuring ospf interface parameters .......................................... 100

Displaying neighbors ....................................................................100

Displaying ospf routes ................................................................... 100

Displaying IP routes ...................................................................... 100

ONFIGURING GENERIC ROUTING ENCAPSULATION......................... 101

Configuring GRE .............................................................................. 101

Installing Licenses ............................................................................ 101

GRE Configuration Examples .......................................................... 102

Configuring Site to Site Tunnel ....................................................103

Configuring GRE Site to Site with IPSec .........................................105

Configuring GRE Site to Site with IPSec and OSPF ........................ 106

ONFIGURING OSPF AND FRAME RELAY..........................................107

OSPF - Frame Relay ......................................................................... 107

Configuring the host name ............................................................ 108

Configuring interface ethernet 0 ...................................................108

Configuring interface bundle Dallas ............................................. 108

Configuring OSPF .........................................................................108

Configuring interface Dallas parameters ...................................... 108

Configuring interface ethernet 0 parameters ................................. 108

Displaying OSPF parameters ........................................................ 108

ONFIGURING PROTOCOL INDEPENDENT MULT ICASTING ROUTING 109

PIM Configuration ....................................................... ..................... 109

PIM Commands ................................. ...........................................109

PIM Configuration Examples .................................. ...... ..... .......... 112

MTRACE CONFIGURATION....................................................................117

Multicast Traceroute Facility ............................................................ 117

mtrace Command .......................................................................... 117

Restrictions .................................................................................... 117

mtrace Example .............................................................................118

ONFIGURING QUALITY OF SERVICE ROUTING................................. 119

Configuring QoS ...............................................................................119

Features ......................................................................................... 119

Definitions ..................................................................................... 120

Classification Types ......................................................................120

Create bundle AppTest .................................................................. 121

Create traffic classes ...................................................................... 121

Assign classification types ............................................................. 121

VLAN Identifiers .......................................................................... 121

Create bundle VLANtest ............................................................... 122

Create traffic classes and assign classifications ............................. 122

Bulk Statistics ................................................................................ 122

Configuring bulk statistics ............................................................. 123

Contents

VIRTUAL LAN TAGGING....................................................................... 1 25

Managing Traffic with VLAN Tagging ............................................125

Reston configuration: Black Box LR1104A ..................................126

Configure interface bundle balt1 ....................................................126

Configure interface balt1 pvc 100 ..................................................126

Configure interface bundle dc1 ......................................................126

Configure interface ethernet 0 ....................................................... .126

Configure ip routing .......................................................................127

DC configuration: Black Box LR1114A .......................................127

Configure interface ethernet 0 ....................................................... .127

Configure interface bundle mip .....................................................127

Configure ip routing .......................................................................127

ANAGING REDUNDANT CONNECTIONS..............................................129

Trunk Group/Failover ........................................................................129

Configuration Details .....................................................................129

Configure the Black Box LR1114A for Failover Operation ..........130

WAN I

NTERFACE CONFIGURATIONS ...................................................131

T1 Interface Configuration ................................................................131

Module Configuration ...................................................................131

T1 ...................................................................................................131

Bundle Configuration ....................................................................131

Fractional T1 ..................................................................................131

IRTUAL LAN FORWARDING...............................................................133

Managing VLAN Traffic ...................................................................133

POP configuration: Black Box LR1104A .....................................135

Configure mlppp bundle interface .................................................135

Configure interface ethernet 0 ....................................................... .135

Configure in-band vlan forwarding table .......................................135

Configure rate limiting for vlans ....................................................135

Bldg1 configuration: Black Box LR1114A ...................................135

Configure interface bundle uplink ................................................. 1 36

Configure inband VLAN forwarding table ....................................136

Configure rate limiting for VLANs ................................................ 1 36

Configure SNMP ............................................................................136

UTLILINK FRAME RELAY ..................................................................137

Multilink Frame Relay FRF.15 and FRF.16 .....................................137

Features ..........................................................................................137

# Configure Ethernet interface .......................................................138

# Configure CVC1 .........................................................................138

# Congfigure CVC2 .......................................................................138

# Configure CVC3 .........................................................................138

#Configure AVC ............................................................................. 1 38

ONFIGURING FRAME RELAY AND MULTILINK FRAME RELAY ....... 1 39

Layer Two Configurations FR and MFR ..........................................139

FR Configuration ...........................................................................140

Configure the HSSI Bundle at Site 1 .............................................140

Configure the Clear Channel Bundle on the LR1104A .................141

MFR Configuration ................................................. .......................141

Black Box LR11xx Series Router Configurations Guide

Configure the LR1104A LR1104A at Site 1 ................................. 141

Configure the LR1104A ................................................................ 141

Configure the LR1104A LR1114A at Site 2 ................................. 142

Configure the LR1104A ................................................................ 142

DHCP R

ELAY

1.1DHCP Relay

This application describes the functionality of the DHCP relay feature and includes CLI command examples.

1.1.1 Feature Overview

Black Box DHCP relay feature eliminates the need for a DHCP server on every LAN, because DHCP requests can be relayed to a single remote DHCP server. Black Box’s implementation of DHCP relay is based on RFC 1532. BOOTP/DHCP messages are relayed (vs. forwarded) between the server and client.

Figure 1 DHCP Relay Overview

1.1.2 Functionality

The DHCP relay feature uses BOOTP requests and replies to negotiate packet delivery between the DHCP client and server.

1.1.2.1 BOOTP Requests

BOOTP requests are messages from client to server. Request messages include DHCP DISCOVER, DHCP REQUEST, DHCP RELEASE, etc. The relay agent modifies the packet header by adding relay information to the DHCP gateway address (giaddr) field. The server replies to the gateway address specified in the packet’s giaddr field.

LAN

WAN

Tasman 1400 DHCP Relay Agent

Tasman 6300

DHCP Serve

LR1104A

LR1114A

Black Box LR11xx Series Router Configurations Guide

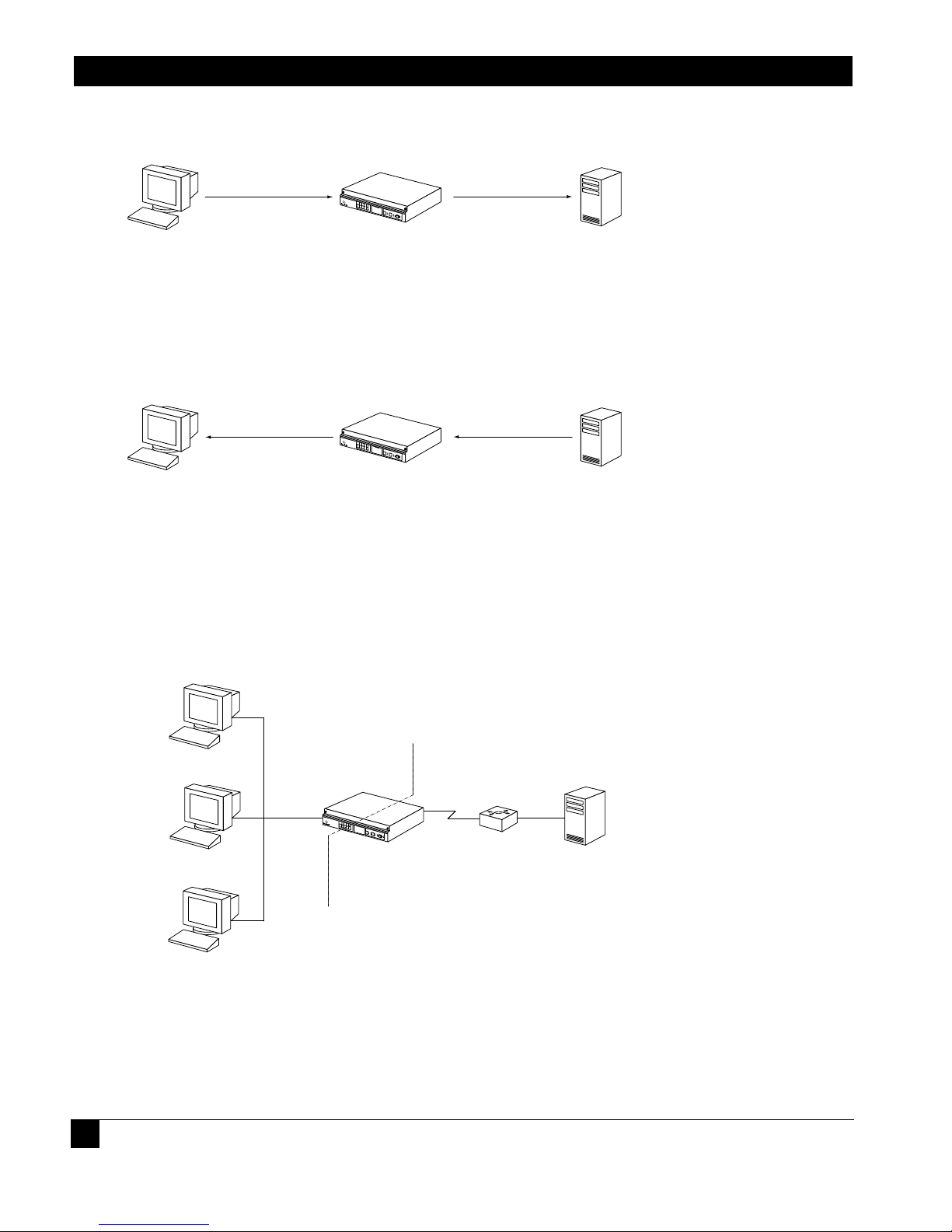

Figure 2 BOOTP Requests

1.1.2.2 BOOTP Replies

BOOTP replies are messages from the server to the client. Reply messages include DHCP OFFER, DHCP ACK, DHCP NAK, etc. The relay agent looks up the MAC address and either sends the packet to the client or broadcasts it on the LAN.

Figure 3 BOOTP Replies

1.1.3 Using DHCP Relay with NAT

When NAT is enabled, the DHCP server may discard packets because the giaddr does not match the source of the packet. Additionally, it may not know how to route the packet back to the client. See Figure 4. The solution is that the gateway address (giaddr) field needs to have IP add ress 192. 168.2 0.1 (in this ex ample). The DHCP serv er config urati on shoul d be able to give 10.1.1.x addresses for packets from 192.168.20.1. However, there may be a limitation that the DHCP server does not allow configuration using IP addresses from a different subnet, although this is mentioned in the RFC.

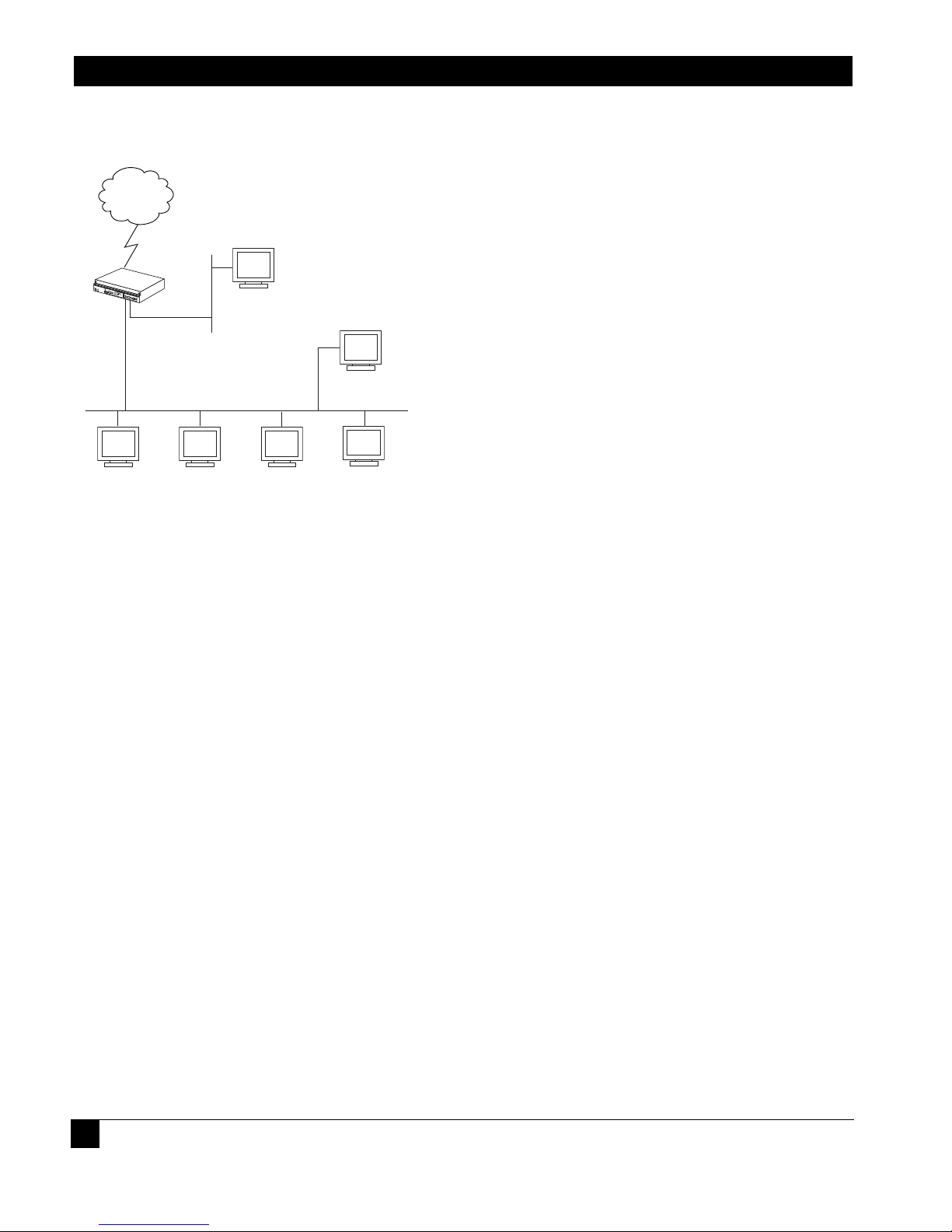

Figure 4 A Typical Scenario

1.1.4 Command Line Interface

The following are examples of command strings relevant to DHCP relay:

1.1.4.1 Enabling DHCP Relay

Broadcast BOOTREQUEST

Unicast BOOTREQUEST

Tasman 1400

DHCP Relay Agent

DHCP Client DHCP Serve

Unicast/Broadcast

Unicast

Tasman 1400

DHCP Relay Agent

DHCP Client DHCP Serve

BOOTREPLY

Tasman 1400

DHCP Relay Agent

DHCP Client

DHCP Serve

DHCP Client

Router

PRIVATE PUBLIC

192.168.20.1

10.1.1.1

0.1.1.x

etwork

Network Address Translation

DHCP Relay

Blackbox> configure terminal Blackbox/configure> interface ethernet 0 Blackbox/configure/interface/ethernet 0> dhcp server_address 20.1.1.1

1.1.4.2 Disabling DHCP Relay

Blackbox/configure/interface/ethernet 0> no dhcp server_address 20.1.1.1

1.1.4.3 Configuring the Gateway Address field when NAT is enabled

Blackbox/configure/interface/ethernet 0> dhcp gateway_address 192.168.20.1

1.1.5 Displaying DHCP Configuration

The following screen captures show the displayed results of issuing show commands relevant to DHCP relay, with and without gateway addresses configur ed.

Figure 5 show dhcp_relay Command

Figure 6 show dhcp_relay Command

1.1.6 Displaying Statistics

> show dhcp_relay

DHCP RELAY CONFIGURATION

--------------------------Ethernet 0: Disabled Ethernet 1: Enabled: DHCP Server 10.1.1.1

> show dhcp_relay

DHCP RELAY CONFIGURATION

--------------------------Ethernet 0: Disabled Ethernet 1: Enabled: DHCP Server 10.1.1.1 (Gateway Address: 192.168.20.1)

Black Box LR11xx Series Router Configurations Guide

Figure 7 Displaying Ethernet Interface Statistics

1.1.7 DHCP Limitations

There are limitations when using DHCP relay on a Black Box system. Only one DHCP server can be specified per interface. DHCP can be enabled only on Ethernet interfaces (not on bundles). And last, DHCP can be enabled in IP routing (static and dynamic) mode, but not in IP Mux mode.

> show interface ethernet 1

ethernet 1 ipaddr 192.168.120.1 netmask 255.255.255.0 description status down, operationally down configured auto speed mode actual speed 100 mode half_duplex mtu 1500

ethernet1 (unit number 1) Type: ETHERNET (802.3) Flags: (0x807c203) UP, MULTICAST-ROUTE Internet Address: 192.168.120.1 Internet Netmask: 255.255.255.0 Internet Broadcast: 192.168.120.255 Maximum Transfer Unit: 1500 bytes Mac Address: 00:00:23:00:60:01

port counters since last boot/clear Bytes Rx 0 Bytes Tx 0

Packets Rx 0 Packets Tx 0

Runts Rx 0 Collisions 0

Babbels Rx 0 Late Collisions 0

Err Packets Rx 0 Up/Down States (Phys) 0

Up/Down States (Admin) 2

port counters for the last five minutes Bytes Rx 0 Bytes Tx 0

Packets Rx 0 Packets Tx 0

Runts Rx 0 Collisions 0

Babbels Rx 0 Late Collisions 0

ONFIGURING INTERNET

ROUP

ANAGEMENT

ROTOCOL

2.1IGMP Configuration

Internet Group Management Protocol (IGMP) is enabled on hosts and routers that want to receive multicast traffic. IGMP informs locally-attached routers of their multicast group memberships. Hosts inform routers of the groups of which they are members by multicasting IGMP Group Membership Reports. When multicast routers listen for these reports, they can exchange group membership information with other multicast routers. This reporting system allows distribution trees to be formed to deliver multicast datagrams. The original version of IGMP was defined in RFC 1112, Host Extensions for IP Multicasting. Extensions to IGMP, known as IGMP version 2.

IGMPv2 improves performance and supports the following message types:

 IGMP Query: IGMP Query is sent by the router to know which groups have members on the attached network.  IGMP Reports: IGMP reports are sent as a response to the query by hosts to announce their group membership.

Reports can be sent “unsolicited” when the hosts come up.

 IGMP Leaves: IGMP Leaves are sent by the host when it relinquishes membership of a group.

The latest extension to the IGMP standard is Version 3, which includes interoperability with version 2 and version 1 hosts, also provides support for source filtering. Source filtering enables a multicast receiver host to signal to a router which groups it wants to receive multicast traffic from, and from which source(s) this traffic is expected. This membership information enables the router to forward traffic only from those sources from which receivers requested the traffic.

IGMPv3 supports applications that explicitly signal sources from which they want to receive traffic. With IGMPv3, receivers signal membership to a multicast host group in the following two modes:

 INCLUDE mode: In this mode, the receiver announces membership to a host group and provides a list of IP

addresses (the INCLUDE list) from which it wants to receive traffic.

 EXCLUDE mode: In this mode, the receiver announces membership to a host group and provides a list of IP

addresses (the EXCLUDE list) from which it does not want to receive traffic. This indicates that the host wants to receive traffic only from other sources whose IP addresses are not listed in the EXCLUDE list. To receive traffic from all sources, like in the case o f the In ternet S t an dard Multicast (ISM) s erv ice mod el, a h os t exp resses EXCLUDE mode membership with an empty EXCLUDE list.

IGMPv3 is used by the hosts to express their desire to be a part of the source-specific multicast (SSM) which is an emerging standard used by routers to direct multicast traffic to the host only if its is from a specific source.

Black Box LR11xx Series Router Configurations Guide

2.1.1 IGMP Commands

The IGMP commands are:

ip igmp ignore-v1-messages ignore-v2-messages last-member-query-count last-member-query-interval query-interval query-response-interval require-router-alert robustness send-router-alert startup-query-count startup-query-interval group filter version debug ip igmp debug ip igmp state debug ip igmp normal debug ip igmp packet query debug ip igmp packet report debug ip igmp packet leave show ip igmp groups show ip igmp interface clear ip igmp groups

2.1.2 IGMP Configuration Examples

Use the examples shown in this section to use IGMP in multicast configurations.

2.1.2.1 Exampl e 1

The following example enables IGMP.

Blackbox/configure> ip igmp

2.1.2.2 Exampl e 2

With the command line still in Interface Configuration Mode, the following example disables IGMP.

Blackbox/configure> no ip igmp

2.1.2.3 Exampl e 3

In the following example, the ignor e-v 1-messag es command is used to disable processing of IGMPv1 messages on interface ethernet 0.

Blackbox/configure/ip/igmp/interface ethernet0> ignore-v1-messages Blackbox/configure/ip/igmp/interface ethernet0> exit 3 Blackbox/configure>

2.1.2.4 Exampl e 4

In the following example, the ignore-v2-messages command disables processing of IGMPv1 messages on interface ethernet 0.

IGMP Configuration

Blackbox/configure/ip/igmp/interface ethernet0> ip igmp ignore-v2-messages Blackbox/configure/ip/igmp/interface ethernet0> exit 3 Blackbox/configure>

2.1.2.5 Example 5

The following example configures the Last Member Query Count to be 4 on ethernet 0.

Blackbox/configure/ip/igmp/interface ethernet0> last-member-query-count 4

2.1.2.6 Example 6

In the following example for interface ethernet 0, the Robustness is configured to be 4. The Last Member Query count is configured to be 5.

Blackbox/configure/ip/igmp/interface ethernet0> robustness 4 Blackbox/configure/ip/igmp/interface ethernet0> last-member-query-count 5 Blackbox/configure/ip/igmp/interface ethernet0> exit 3 Blackbox/configure>

2.1.2.7 Example 7

The following example configures ethernet 0 with the default Last Member Query Interval of 2000 milliseconds (20 seconds).

Blackbox/configure/ip/igmp/interface ethernet0> last-member-query-interval 2000

2.1.2.8 Example 8

The following example configures ethernet 0 with the default Query Interval to be 200 seconds.

Blackbox/configure/ip/igmp/interface ethernet0> query-interval 200

2.1.2.9 Example 9

The following example configures the default Query Response Interval to be 10 seconds (or 100 deciseconds) for ethernet 0.

Blackbox/configure/ip/igmp/interface ethernet0> query-response-time 100

2.1.2.10Example 10

The following example turns require-router-alert on for interface ethernet 0.

Blackbox/configure/ip/igmp/interface ethernet0> require-router-alert

2.1.2.11Example 11

The following example configures the default Robustness to be 3 for interface ethernet 0.

Blackbox/configure/ip/igmp/interface ethernet0> ip igmp robustness 3

2.1.2.12Example 12

The following example turns the send-router-alert option off for interface ethernet 1.

Blackbox/configure/ip/igmp/interface ethernet1> no send-router-alert

2.1.2.13Example 13

The following example configures IGMP version 2 to run on interface ethernet 0.

Blackbox/configure/ip/igmp/interface ethernet0> version 2 Blackbox/configure/ip/igmp/interface ethernet0> exit 3 Blackbox/configure>

Black Box LR11xx Series Router Configurations Guide

ILTERING

IP T

RAFFIC

3.1IP Packet Filter Lists

Black Box systems can be configured for IP traffic filtering capabilities. IP traffic filtering allows creation of rule sets that selectively block TCP/IP packets on a specified interface. Filters are applied independently to all interfaces: Ethernet, serial, or WAN, as well as independently to interface direction: IN (packets coming in to the Black Box system) or OUT (packets going out of the Black Box system).

IP packet filtering capability can be used to restrict access to the Black Box system from untrusted, external networks or from specific, internal networks. An example would be a filter that prohibits external users from establishing Telnet sessions to the Black Box system, and allows only specific internal users Telnet access to the system.

 At the end of every rule list is an implied “deny all traffic” statement. Therefore, all packets not explicitly permitted

by filtering rules, are denied. This effectively means that once you enter a “deny” statement in your filter list, you are implicitly denying all packets from crossing the interface. Therefore, it is important that each filter list contain at least one “permit” statement.

 The order in which you enter the filtering rules is important. As the Black Box system is evaluating each packet, the

Black Box OS tests the packet against each rule statement sequentially. After a match is found, no more rule statements are checked. For example, if you create a rule statement that explicitly permits all traffic, all traffic is passed since no further rules are checked.

 The Black Box OS permits easy re-ordering of filter commands through filter_list insert and delete commands.

3.1.1 Example1

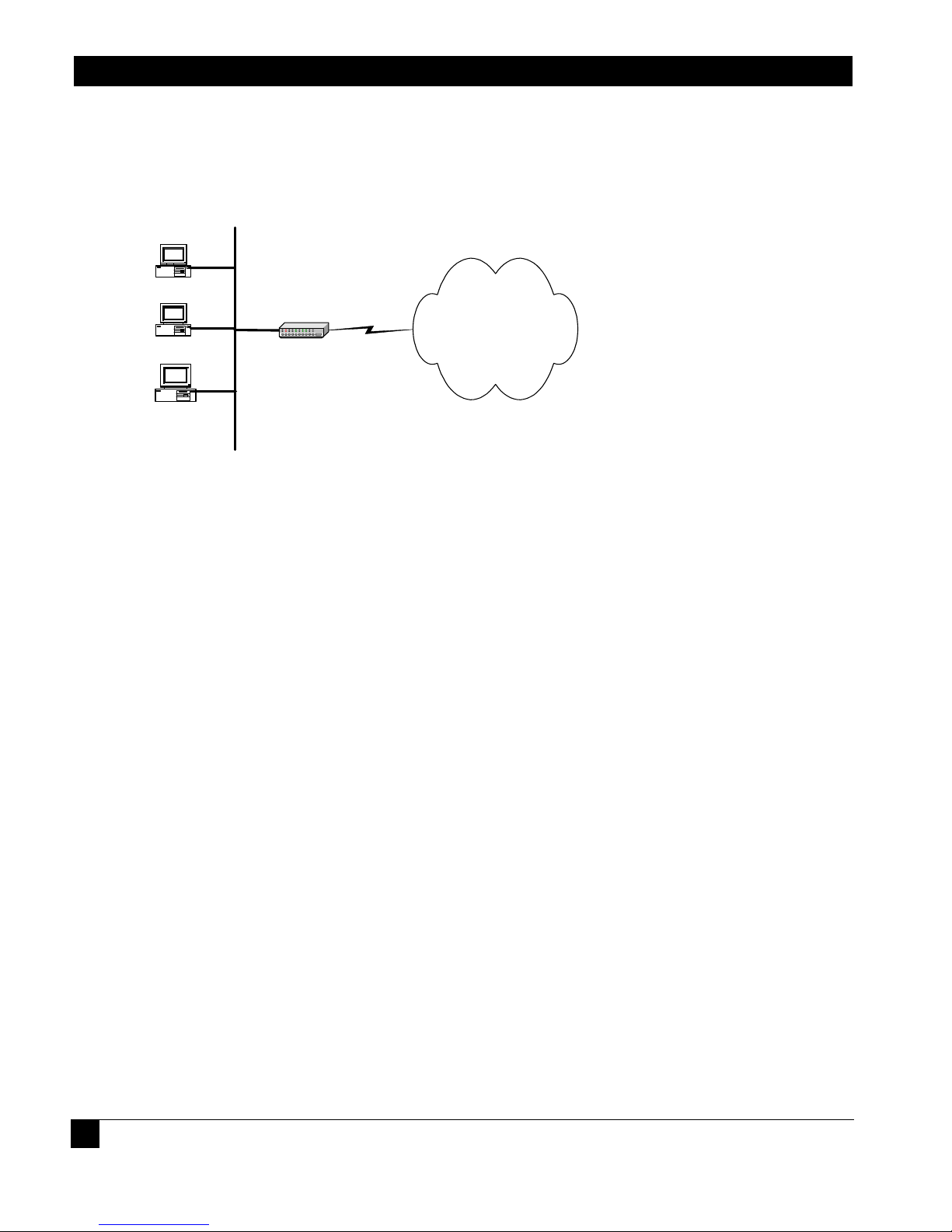

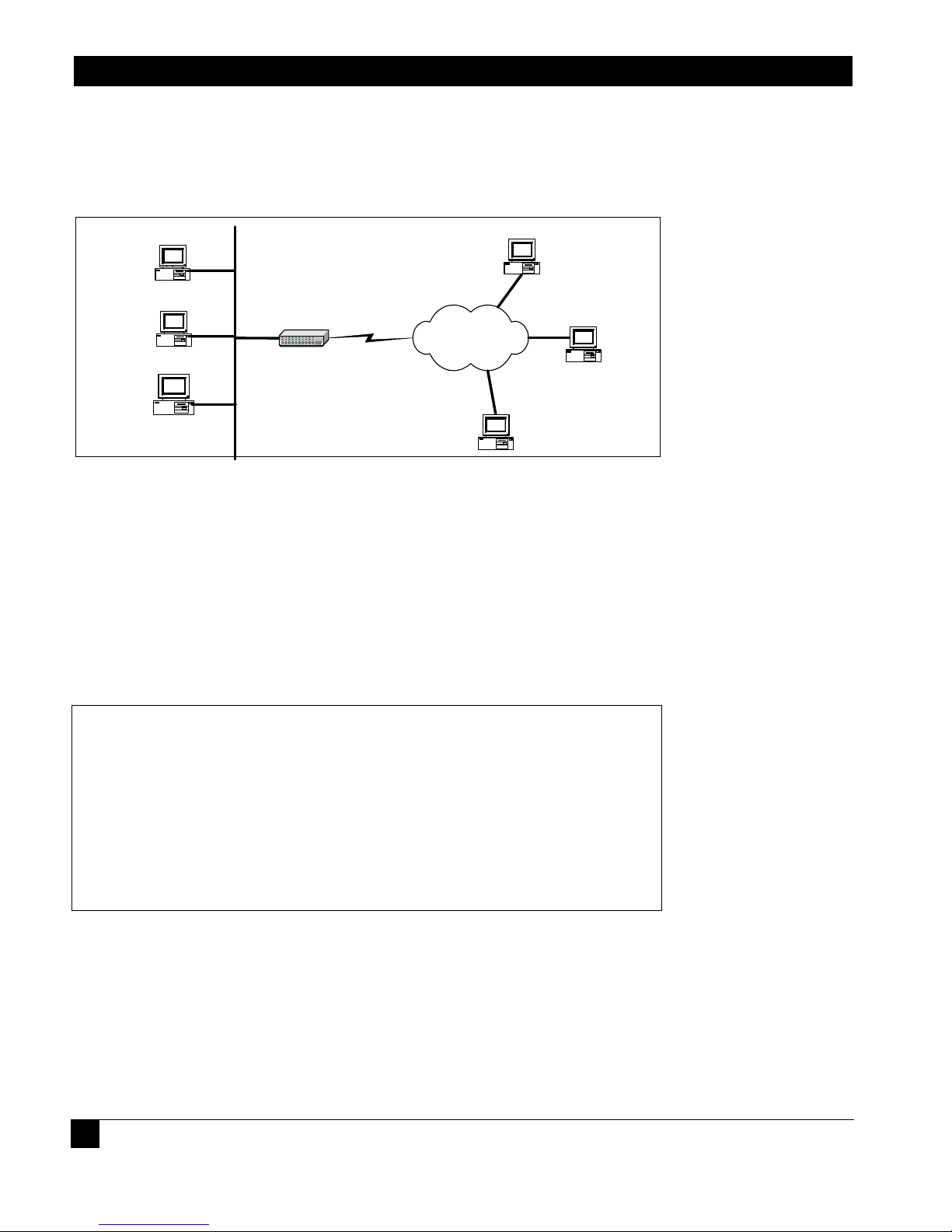

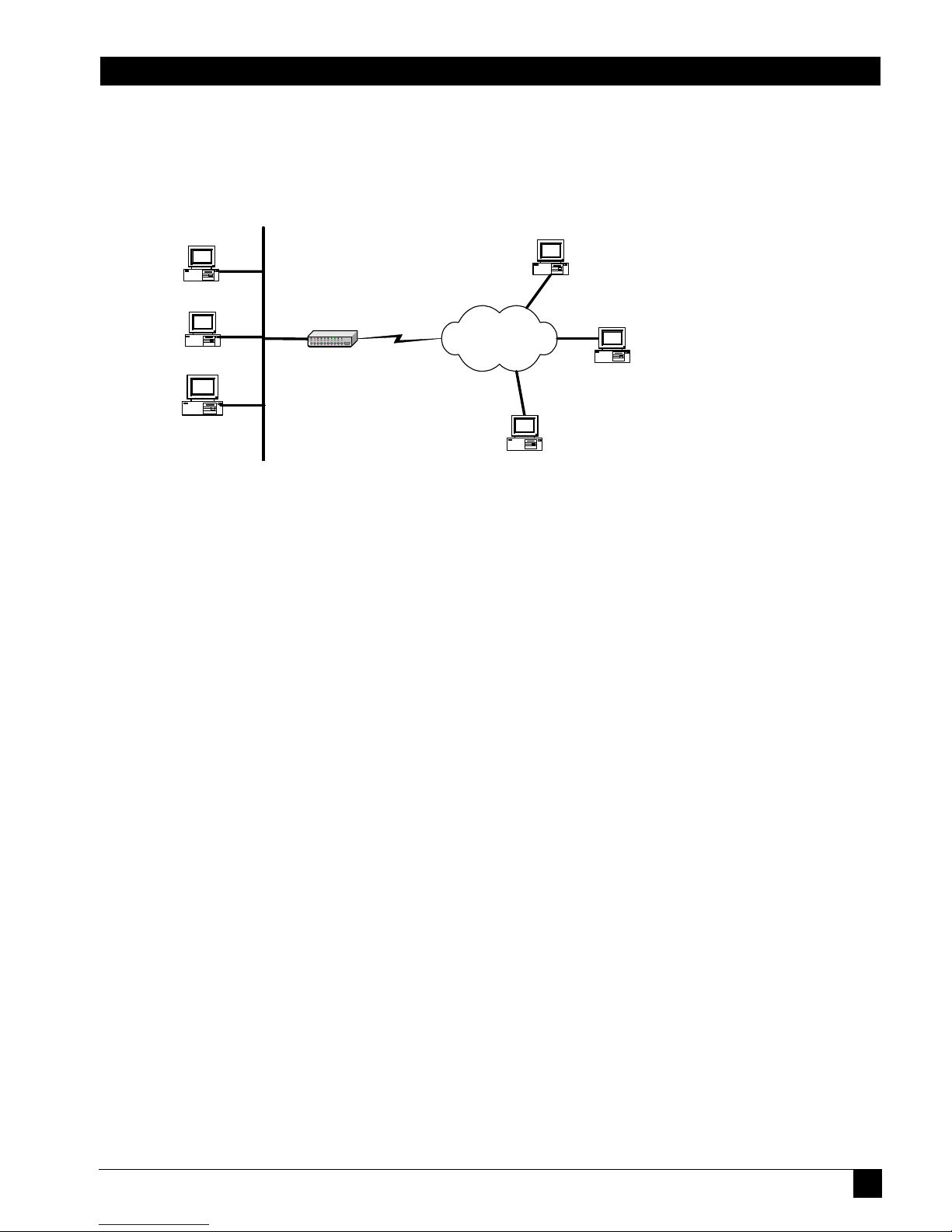

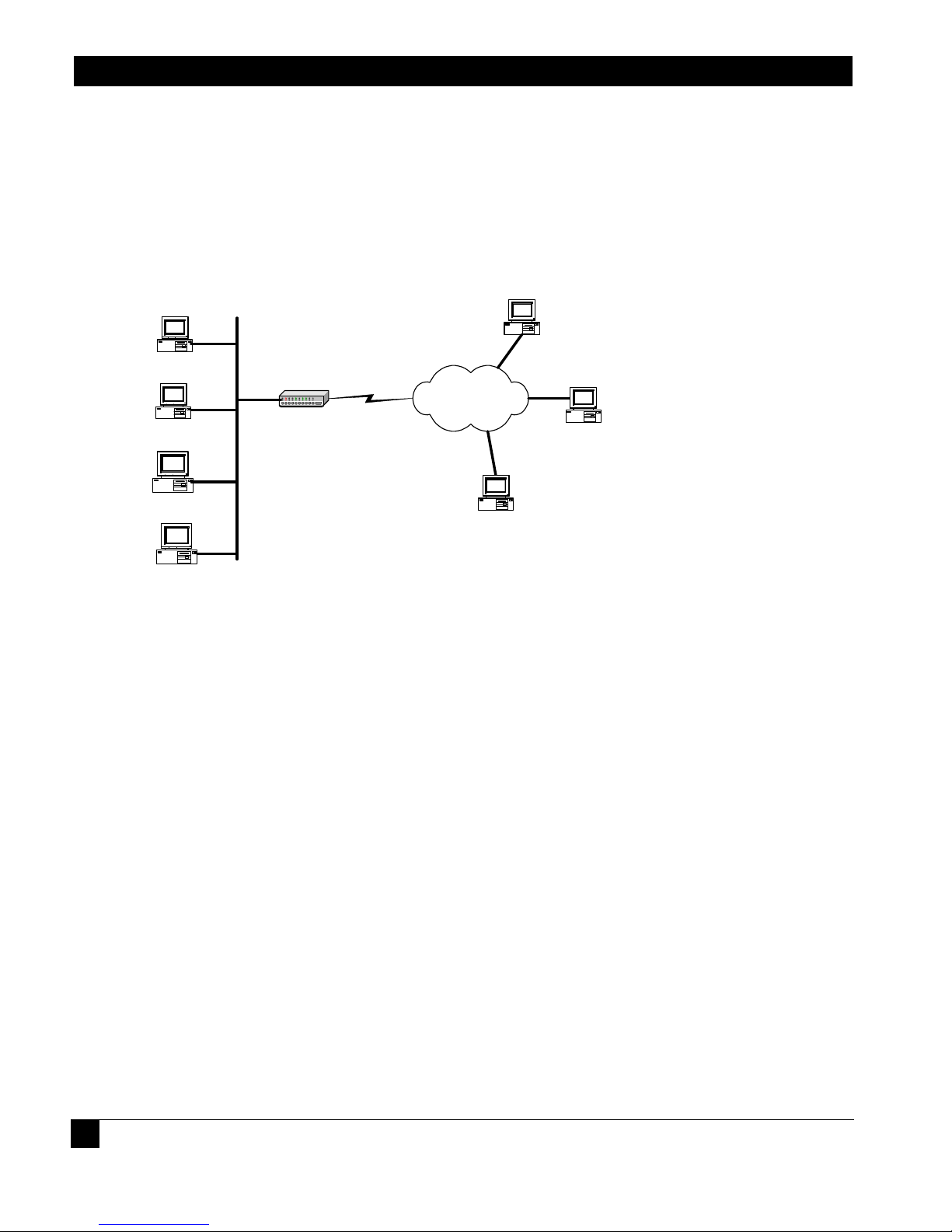

Consider a Black Box connected via a bundle “WAN1” (wan IP address 200.1.1.1) to an ISP, with Ethernet 0 (IP address 222.199.19.3) connected to the internal network. The network administrator wants to completely block Telnet access to the Black Box from all external networks as well as from all internal networks except 222.199.19.0/28. All other TCP/IP traffic, such as FTP, Ping, and HTTP, is to flow unrestricted through the Black Box system.

3.1.1.1 Configu re the Black Box LR1104A.

Blackbox> configure term Blackbox/configure> ip Blackbox/configure/ip> filter_list filtera (gives the list a name) Blackbox/configure/ip/filter_list> add deny tcp any 200.1.1.1 dport =23 Blackbox/configure/ip/filter_list> add permit tcp 222.199.19.0/28 222.199.19.3 dport =23 Blackbox/configure/ip/filter_list> add deny tcp any 222.199.19.3 dport =23 Blackbox/configure/ip/filter_list> add permit ip any any Blackbox/configure/ip/filter_list> exit

Black Box LR11xx Series Router Configurations Guide

Blackbox/configure/ip> apply_filter ether0 filtera in Blackbox/configure/ip> apply_filter WAN1 filtera in Blackbox/configure/ip> exit Blackbox/configure> exit Blackbox> save local

3.1.2 Exa mple 2

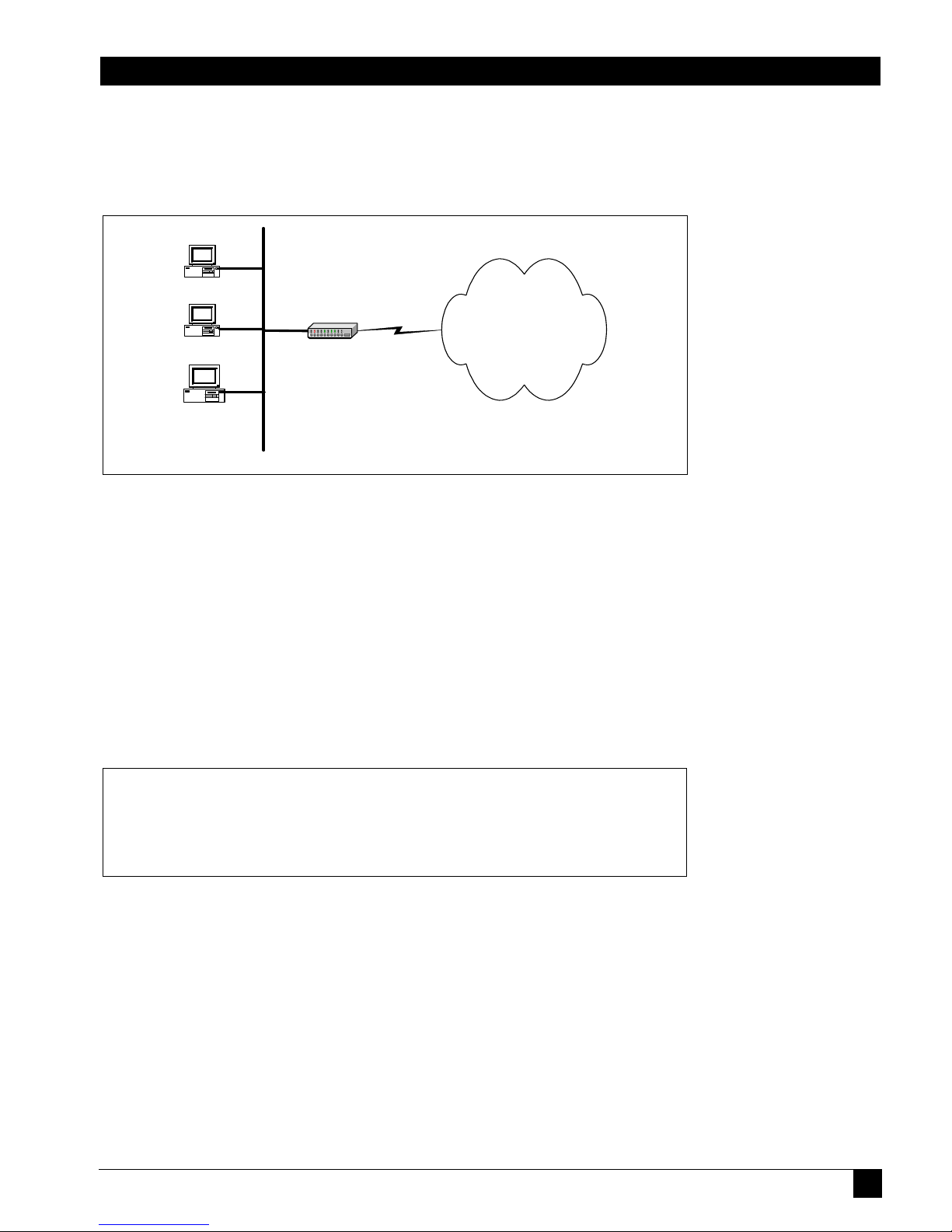

Consider the same network addressing as in example 1. The network administrator has a slightly different requirement - he wishes to permit FTP sessions from all networks to the internal FTP server (222.199.19.12), deny FTP sessions to all other addresses, and permit all other traffic to flow through the Black Box unit.

3.1.2.1 Config ure the Black Box LR1104A

Blackbox> configure terminal Blackbox/configure> ip Blackbox/configure/ip> filter_list filterb (gives the list a name) Blackbox/configure/ip/filter_list> add permit tcp any 222.199.19.12 dport =21 Blackbox/configure/ip/filter_list> add deny tcp any 222.199.19.0 dport =21 Blackbox/configure/ip/filter_list> add permit ip any any Blackbox/configure/ip/filter_list> exit

Blackbox/configure/ip> apply_filter WAN1 filterb in Blackbox/configure/ip> exit Blackbox/configure> exit Blackbox> save local

3.1.3 Exa mple 3

Example 3 focuses on a filter list where the network administrator is specifically denying all traffic from a specific external network (197.100.200.0/24) access through the Black Box unit.

3.1.3.1 Config ure the Black Box LR1104A

Blackbox> configure terminal Blackbox/configure> ip Blackbox/configure/ip> filter_list filterc (gives the list a name) Blackbox/configure/ip/filter_list> add deny ip 197.100.200.0/24 any Blackbox/configure/ip/filter_list> add permit ip any any Blackbox/configure/ip/filter_list> exit

Blackbox/configure/ip> apply_filter WAN1 filterc in Blackbox/configure/ip> exit Blackbox/configure> exit Blackbox> save local

ONFIGURING

ECURITY

4.1IPSec Configurations

This guide provides information and examples on how to configure IPSec. There are three licenses that control access to the features:

 Basic VPN Management (vpn_mgmt)—allows users to manage a remote Black Box router.  Firewall (firewall)—allows users to manage the firewall features. Also includes Basic VPN Management.  Advanced VPN and firewall (vpn_plus_firewall)—Allo ws users to manage remote LANs. Also includes

Basic VPN and Firewall licenses.

To see the licenses available in this release, enter:

To install the advanced VPN and firewall license and use all the security features available in this release, enter:

Blackbox/configure> system licenses ?

NAME licenses - Configure feature upgrade licenses

SYNTAX licenses license_type <cr>

DESCRIPTION license_type -- Specifies the type of feature upgrade license The parameter may have any of the following values: enable_1_port -- Enable 1 port enable_2_ports-- Enable 2 ports enable_3_ports-- Enable 3 ports enable_4_ports-- Enable 4 ports BGP4 -- BGP4 routing vpn_mgmt -- Enable VPN Mgmt License firewall -- Enable Firewall and VPN Mgmt License vpn_plus_firewall-- Enable Advance VPN and Firewall License

Black Box LR11xx Series Router Configurations Guide

4.2 Example 1: Managing the Black Box LR1104A Securely Over an IPSec Tunnel

The following example demonstrates how to manage a Black Box router through an IP security tunnel. Steps are presented for configuring the Black Box1 and Black Box2 routers to assist any host on the LAN side of Black Box-2 to manage the Black Box1 router through the IP security tunnel.

The security requirements are as follows:

 Phase 1: 3DES with SHA1  Phase 2: IPSec ESP with AES and HMAC-SHA1

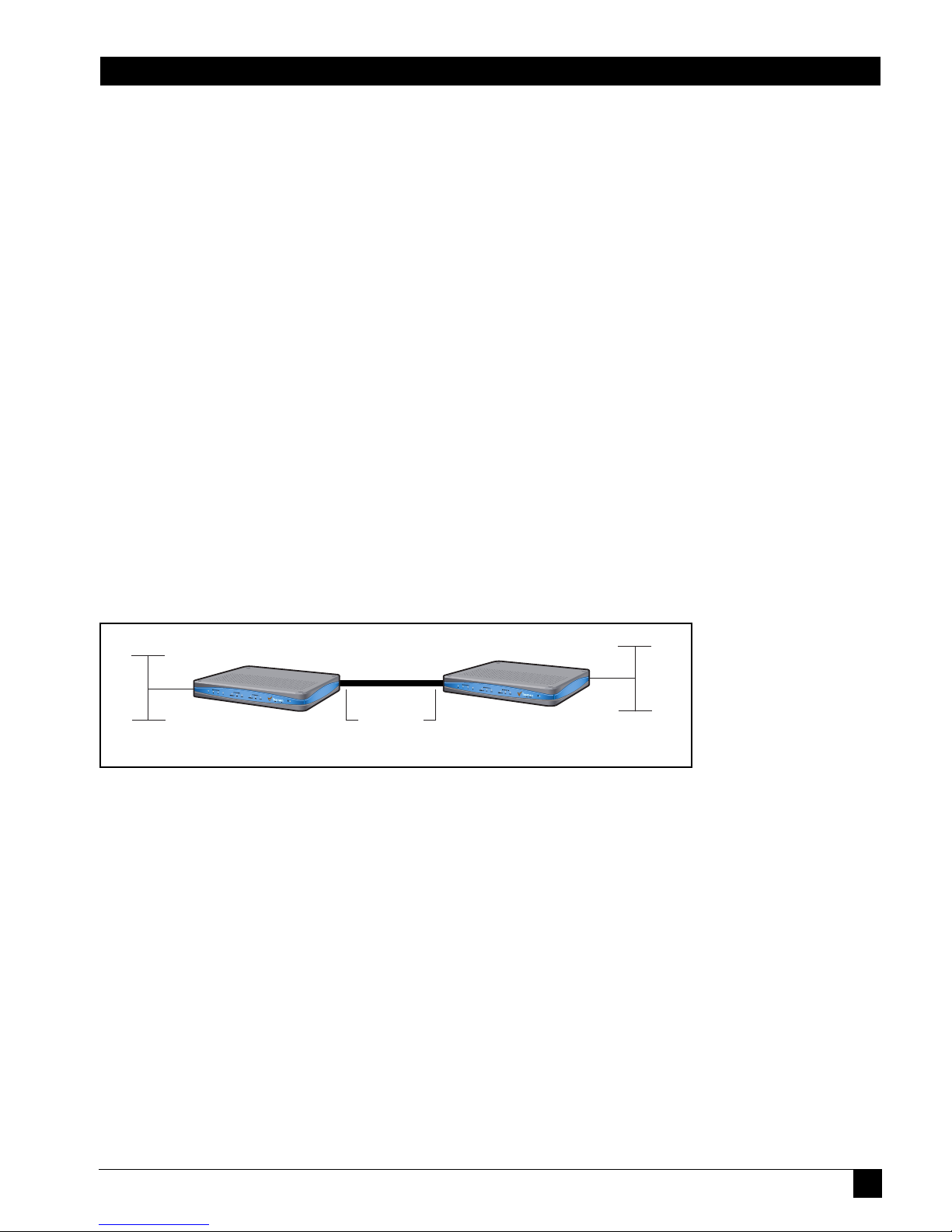

Figure 8 T unnel Mode Between Two Black Box Security Gateways - Multiple Proposals

Step 1: Configure a WAN bundle of network type untrusted

Black Box1/configure> interface bundle wan1

message: Configuring new bundle

Black Box1/configure/interface/bundle wan1> link t1 1 Black Box1/configure/interface/bundle wan1> encapsulation ppp Black Box1/configure/interface/bundle wan1> ip address 172.16.0.1 24 Black Box1/configure/interface/bundle wan1> crypto untrusted Black Box1/configure/interface/bundle wan1> exit

Step 2: Configure the Ethernet interface with trusted network type

Black Box1/configure> interface ethernet 0

message: Configuring existing Ethernet interface

Black Box1/configure interface/ethernet 0> ip address 10.0.1.1 24 Black Box1/configure/interface/ethernet 0> crypto trusted Black Box1/configure/interface/ethernet 0> exit

Step 3: Display the crypto interfaces

Blackbox/configure> system licenses vpn_plus_firewall Enter Security Upgrade License key: 024f3bc296b4ea7265

UNTRUSTED

TRUSTED

IPSec ESP

Tasman1

Tasman2

172.16.0.1

172.16.0.2

etwork

0.0.1.0/24

Network

10.0.2.0/2

Black Box 1

Black Box 2

Example 1: Managing the Black

Blackbox> show crypto interfaces

Interface Network Name Type

--------- ------wan1 Untrusted ethernet0 trusted

Blackbox>

Step 4: Add route to peer LAN

Black Box1/configure> ip route 10.0.2.0 24 wan1

Step 5: Configure IKE to the peer gateway

Black Box1/configure> crypto ike policy Black Box2 172.16.0.2 Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2> local-address 172.16.0.1

message: Default proposal created with priority1-des-sha1-pre_shared-g1.

message: Key String has to be configured by the user.

Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2> key secretkey Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2> proposal 1 Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2/proposal 1> encryption-algorithm 3des-cbc Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2/proposal 1> exit Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2> exit

Step 6: Display IKE policies

Blackbox> show crypto ike policy all

Policy Peer Mode Transform

------ ---- ---- --------Black Box 172.14.0.2 Main P1 pre-g1-3des-sha

Blackbox>

Step 7: Display IKE policies in detail

Displays the encryption algorithm, hash algorithm, authentication mode, and other details of the IKE policies.

Step 8: Configure the IPSec tunnel to the remote host

Black Box1/configure/crypto> ipsec policy Black Box2 172.16.0.2 Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2> match address 172.16.0.1 32

10.0.2.0 24

message: Default proposal created with priority1-esp-3des-sha1-tunnel and activated.

Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2> proposal 1 Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2/proposal 1> encryption-algorithm aes128-cbc Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2/proposal 1> exit Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2> exit

Step 9: Display IPSec policies

Displays the policy just added.

Step 10: Display IPSec policies in detail

Shows the details of the IPSec policies.

Black Box LR11xx Series Router Configurations Guide

Step 10.1: Configure firewall policies to allow IKE negotiation through untrusted interface (applicable onl y if firewall license is also

enabled)

Black Box1/configure> firewall internet Black Box1/configure/firewall internet> policy 1000 in service ike self Black Box1/configure/firewall internet/policy 1000 in> exit Black Box1/configure/firewall internet> exit

Step 10.2: Configure firewall policies to allow desired services through untrusted interface to manage the router (applicable only if

firewall license is also enabled)

Black Box1/configure> firewall internet Black Box1/configure/firewall internet> policy 1001 in service snmp self Black Box1/configure/firewall internet/policy 1001 in> exit Black Box1/configure/firewall internet> policy 1002 in service telnet self Black Box1/configure/firewall internet/policy 1002 in> exit Black Box1/configure/firewall internet> policy 1003 in protocol icmp self Black Box1/configure/firewall internet/policy 1003 in> exit Black Box1/configure/firewall internet> exit

Step 10.3: Display firewall policies in the internet map (applicable only if firewall license is enabled)

Black Box1> show firewall policy internet Advanced: S - Self Traffic, F - Ftp-Filter, H - Http-Filter, R - Rpc-Filter, N - Nat-Ip/Nat-Pool, L - Logging, E - Policy Enabled, M - Smtp-Filter

Pri Dir Source Addr Destination Addr Sport Dport Proto Action Advanced

--- --- ----------- ---------------- ----------------- ------ -------1000 in any any ike PERMIT SE 1001 in any any snmp PERMIT SE 1002 in any any telnet PERMIT SE 1003 in any any any any icmp PERMIT SE 1024 out any any any any any PERMIT SE

Step 10.4: Display firewall policies in the internet map in detail (applicable only if firewall license is enabled)

Example 1: Managing the Black

Black Box1> show firewall policy internet detail

Policy with Priority 1000 is enabled, Direction is inbound Action permit, Traffic is self Logging is disable Source Address is any, Dest Address is any Source Port is any, Service Name is ike Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Bytes In 0, Bytes Out 0

Policy with Priority 1001 is enabled, Direction is inbound Action permit, Traffic is self Logging is disable Source Address is any, Dest Address is any Source Port is any, Service Name is snmp Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Bytes In 0, Bytes Out 0

Policy with Priority 1002 is enabled, Direction is inbound Action permit, Traffic is self Logging is disable Source Address is any, Dest Address is any Source Port is any, Service Name is telnet Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Bytes In 0, Bytes Out 0

Policy with Priority 1003 is enabled, Direction is inbound Action permit, Traffic is self Logging is disable Source Address is any, Dest Address is any Source Port is any, Dest Port is any, Protocol is icmp Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Bytes In 0, Bytes Out 0 Policy with Priority 1024 is enabled, Direction is outbound Action permit, Traffic is self Logging is disable Source Address is any, Dest Address is any Source Port is any, Dest Port is any, any Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Bytes In 0, Bytes Out 0

Step 11 : Enable SNMP on the Black Box1 router

Black Box LR11xx Series Router Configurations Guide

Black Box1/configure/crypto/> exit Black Box1/configure> snmp Black Box1/configure/snmp> community public rw Black Box1/configure/snmp> exit

Step 12: Display SNMP communities

Blackbox>show snmp communities

Community = public, privileges=rw

Blackbox>

Step 13: Repeat step s 1 - 10 with sui table modif icatio ns on Black Bo x2 prior t o managing Black Box1 fr om Bla ck Box2’ s LAN side

Step 14: Test the IPSec tunnel for managing the Black Box1 router from a host on Black Box2’s LAN.

Step 15: When the SNMP manager starts managing Black Box1 from Black Box2’s LAN, display the IKE and IPSec SA tables using:

show crypto ike sa all show crypto ike sa all detail show crypto ipsec sa all show crypto ipsec sa all detail

4.3 Example 2: Single Proposal: Tunnel Mode Between Two Black Box Security Gateways

The following example demonstrates how to form an IP security tunnel to join two private networks: 10.0.1.0/24 and

10.0.2.0/24. The security requirements are as follows:

 Phase 1: 3DES with SHA1  Phase 2: IPSec ESP with AES (256-bit) and HMAC-SHA1

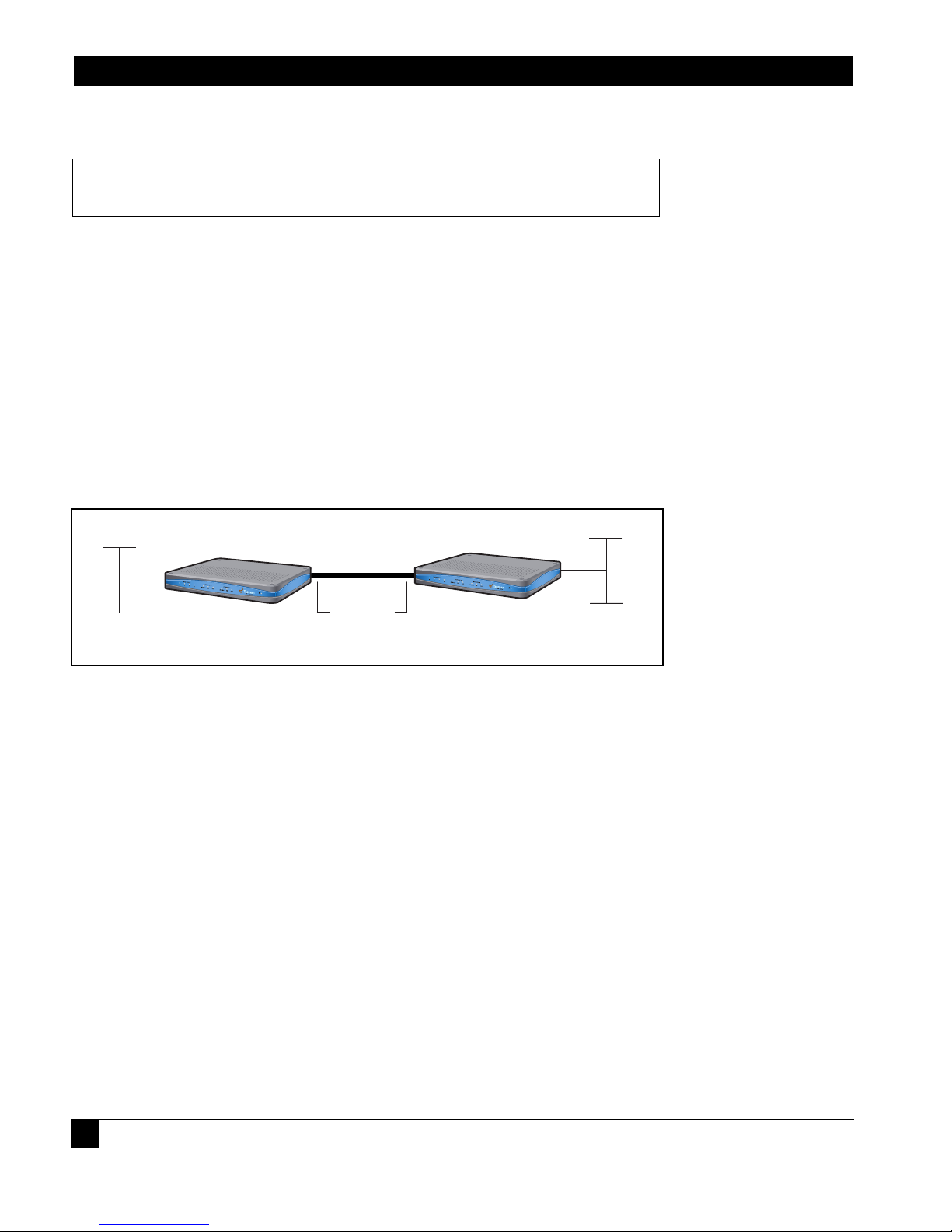

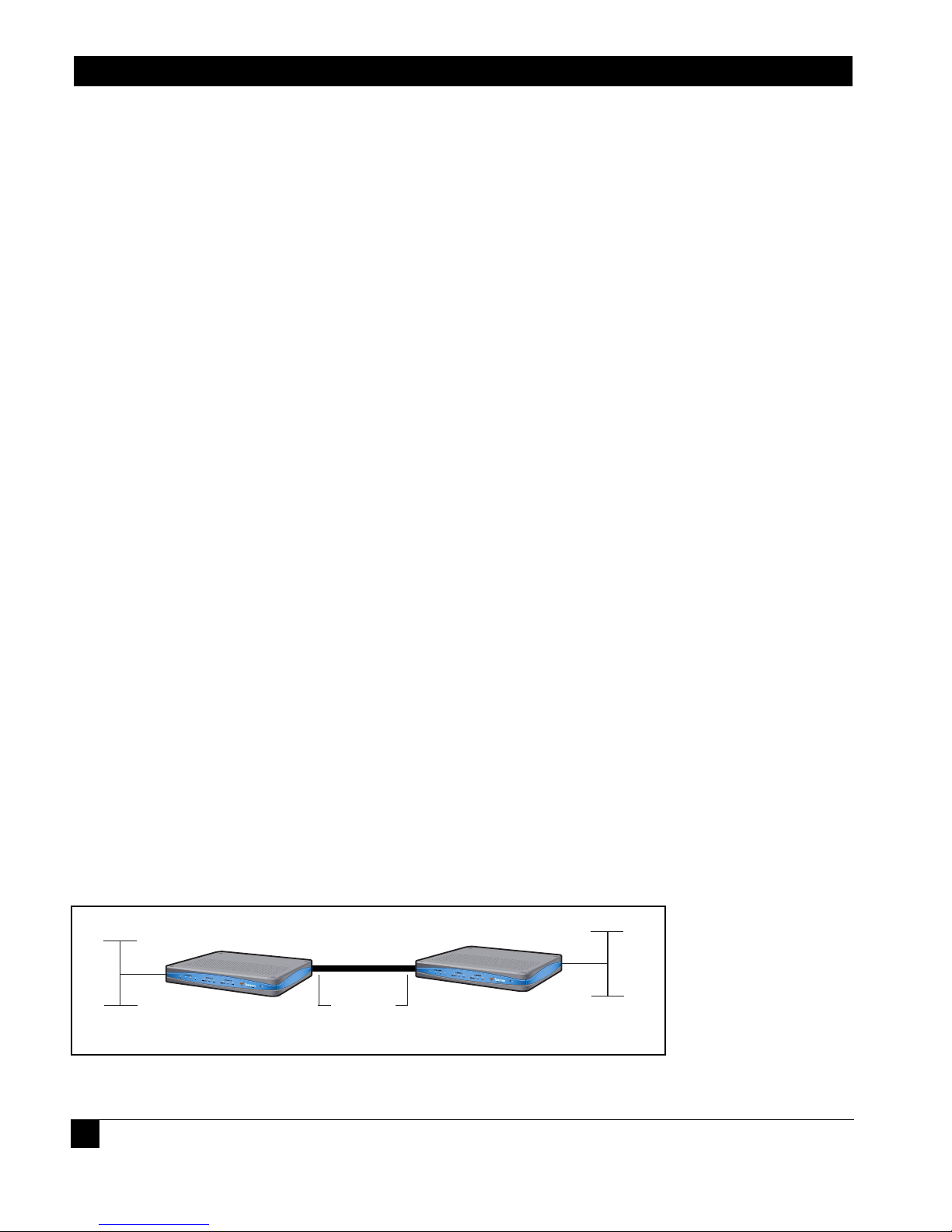

Figure 9 Tunnel Mode Between Two Black Box Security Gateways - Single Proposa ls

Step 1: Configure a WAN bundle of network type untrusted

UNTRUSTED

TRUSTED

IPSec ESP

Tasman1

Tasman2

172.16.0.1

172.16.0.2

etwork

0.0.1.0/24

Network

10.0.2.0/2

BlackBox 2

BlackBox 1

Example 2: Single Proposal: Tun-

Step 2: Configure the Ethernet interface with trusted network type

Black Box1/configure> interface ethernet 0

message: Configuring existing Ethernet interface

Black Box1/configure interface/ethernet 0> ip address 10.0.1.1 24 Black Box1/configure/interface/ethernet 0> crypto trusted Black Box1/configure/interface/ethernet 0> exit

Step 3: Display the crypto interfaces

Blackbox> show crypto interfaces

Interface Network Name Type

--------- ------wan1 Untrusted ethernet0 trusted

Blackbox>

Step 4: Add route to peer LAN

Black Box1/configure> ip route 10.0.2.0 24 wan1

Step 5: Configure IKE to the peer gateway

Black Box1/configure> crypto ike policy Black Box2 172.16.0.2 Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2> local-address 172.16.0.1

message: Default proposal created with priority1-des-sha1-pre_shared-g1.

message: Key String has to be configured by the user.

Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2> key secretkey Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2> proposal 1 Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2/proposal 1> encryption-algorithm 3des-cbc Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2> proposal 1> exit Black Box1/configure/crypto/ike/policy Black Box2 172.16.0.2> exit Black Box1/configure/crypto/exit Black Box1/configure>

Step 6: Display IKE policies

Blackbox> show crypto ike policy all

Policy Peer Mode Transform

------ ---- ---- --------Black Box 172.14.0.2 Main P1 pre-g1-3des-sha

Blackbox>

Step 7: Configure IPSec tunnel to the remote host

Black Box1/configure/crypto> ipsec policy Black Box2 172.16.0.2 Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2> match address 10.0.1.0 24

10.0.2.0 24

NOTE

Black Box LR11xx Series Router Configurations Guide

For IPSec only – wh en you cr eate an ou tbound tunnel, an inbo und tun nel is au tomatica lly created . The in bound tunnel applies the name that you provide for the outbound tunnel and adds the prefix “IN” to the name.

message: Default proposal created with priority1-esp-3des-sha1-tunnel and activated.

Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2> proposal 1 Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2/proposal 1> encryption-algorithm aes256-cbc Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2/proposal 1> exit Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2> exit

Step 8: Display IPSec policies

Using the show crypto ipsec policy all command.

Step 8.1: Configure firewall policies to allow IKE negotiation through untrusted interface (applicable only if firewall license is also

enabled)

Step 8.2: Display firewall policies in the internet map (applicable only if firewall license is enabled)

Black Box1> show firewall policy internet Advanced: S - Self Traffic, F - Ftp-Filter, H - Http-Filter, R - Rpc-Filter, N - Nat-Ip/Nat-Pool, L - Logging, E - Policy Enabled, M - Smtp-Filter

Pri Dir Source Addr Destination Addr Sport Dport Proto Action Advanced

--- --- ----------- ---------------- ----------------- ------ -------1000 in any any ike PERMIT SE 1024 out any any any any any PERMIT SE

Step 8.3: Display firewall policies in the internet map in detail (applicable only if firewall license is enabled)

Example 2: Single Proposal: Tun-

Black Box1> show firewall policy internet detail

Policy with Priority 1024 is enabled, Direction is outbound Action permit, Traffic is self Logging is disable Source Address is any, Dest Address is any Source Port is any, Dest Port is any, any Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Bytes In 0, Bytes Out 0

Step 8.4: Configure firewall policies to allow transit traffic from remote LAN to the local LAN (applicable only if firewall license is

also enabled)

Black Box1/configure> firewall corp Black Box1/configure/firewall corp> policy 1000 in address 10.0.2.0 24 10.0.1.0 24 Black Box1/configure/firewall corp/policy 1000 in> exit Black Box1/configure/firewall corp> exit

Step 8.5: Display firewall policies in the corp map (applicable only if firewall license is enabled)

Black Box1> show firewall policy corp

Advanced: S - Self Traffic, F - Ftp-Filter, H - Http-Filter, R - Rpc-Filter, N - Nat-Ip/Nat-Pool, L - Logging, E - Policy Enabled, M - Smtp-Filter

Pri Dir Source Addr Destination Addr Sport Dport Proto Action Advanced

--- --- ----------- ---------------- ----------------- ------ -------1000 in 10.0.2.0/24 10.0.1.0/24 any any any PERMIT E 1022 out any any any any any PERMIT SE 1023 in any any any any any PERMIT SE 1024 out any any any any any PERMIT E

Step 8.6: Display firewall policies in the corp map in detail (applicable only if firewall license is enabled)

Black Box LR11xx Series Router Configurations Guide

Black Box1> show firewall policy corp detail

Policy with Priority 1000 is enabled, Direction is inbound Action permit, Traffic is transit Logging is disable Source Address is 10.0.2.0/24, Dest Address is 10.0.1.0/24 Source Port is any, Dest Port is any, any Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Max-Connections 1024, Connection-Rate is disabled Policing is disabled, Bandwidth is disabled Bytes In 0, Bytes Out 0

Policy with Priority 1022 is enabled, Direction is outbound Action permit, Traffic is self Logging is disable Source Address is any, Dest Address is any Source Port is any, Dest Port is any, any Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Bytes In 0, Bytes Out 0

Policy with Priority 1023 is enabled, Direction is inbound Action permit, Traffic is self Logging is disable Source Address is any, Dest Address is any Source Port is any, Dest Port is any, any Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Bytes In 0, Bytes Out 0

Policy with Priority 1024 is enabled, Direction is outbound Action permit, Traffic is transit Logging is disable Source Address is any, Dest Address is any Source Port is any, Dest Port is any, any Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Max-Connections 1024, Connection-Rate is disabled Policing is disabled, Bandwidth is disabled Bytes In 11258, Bytes Out 5813

Step 9: Repeat steps 1 - 8 with suitable modifications on Black Box2 prior to passing traffic.

Step 10: Test the IPSec tunnel between Black Box1 and Black Box2 by passing traffic from the 10.0.1.0 to the 10.0.2.0 network

Example 3: Multiple IPSec Pro-

Step 11: After transit traffic is passed through the tunnel, display the IKE and IPSec SA tables.

Use the show crypto ike sa all and show crypto ipsec sa all commands.

4.4 Example 3: Multiple IPSec Proposals: Tunnel Mode Between Two Black Box Security Gateways

The following example demonstrates how a security gateway can use multiple ipsec (phase2) proposals to form an IP security tunnel to join two private networks: 10.0.1.0/24 and 10.0.2.0/24.

IKE Proposal offered by both Black Box1 and Black Box2:

 Phase 1: 3DES and SHA1

IPSec Proposals offered by Black Box1:

 Ph ase 2: Proposal1: IPSec ESP with DES and HMAC-SHA1  Ph ase 2: Proposal2: IPSec ESP with AES (256-bit) and HMAC-SHA1

IPSec Proposal offered by Black Box2:

 Ph ase 2: Proposal1: IPSec ESP with AES (256-bit) and HMAC-SHA1

In this example, the Black Box1 router offers two IPSec proposals to the peer while the Black Box2 router offers only one proposal. As a result of quick mode negotiation, the two routers are expected to converge on a mutually acceptable proposal, which is the proposal “IPSec ESP with AES (256-bit) and HMAC-SHA1” in this example.

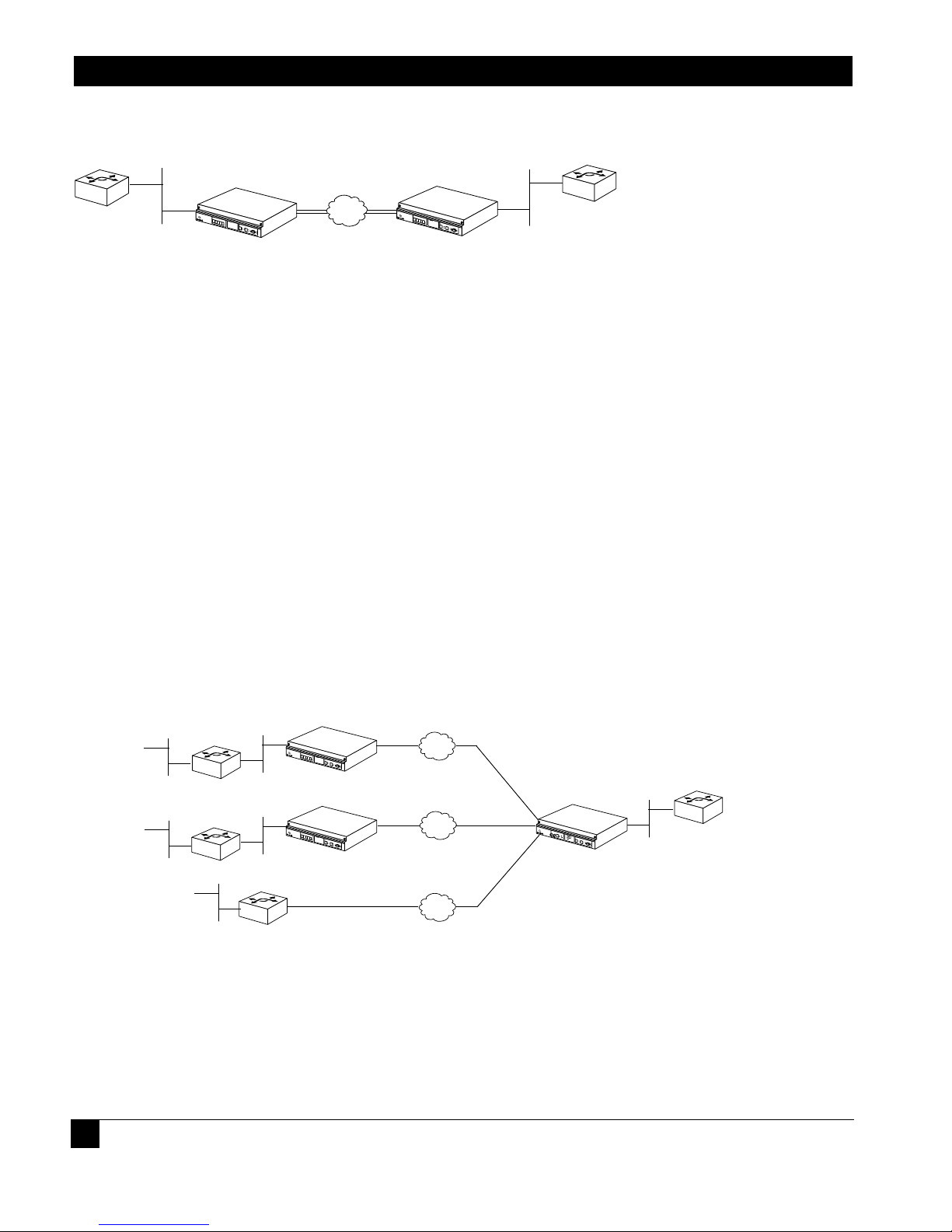

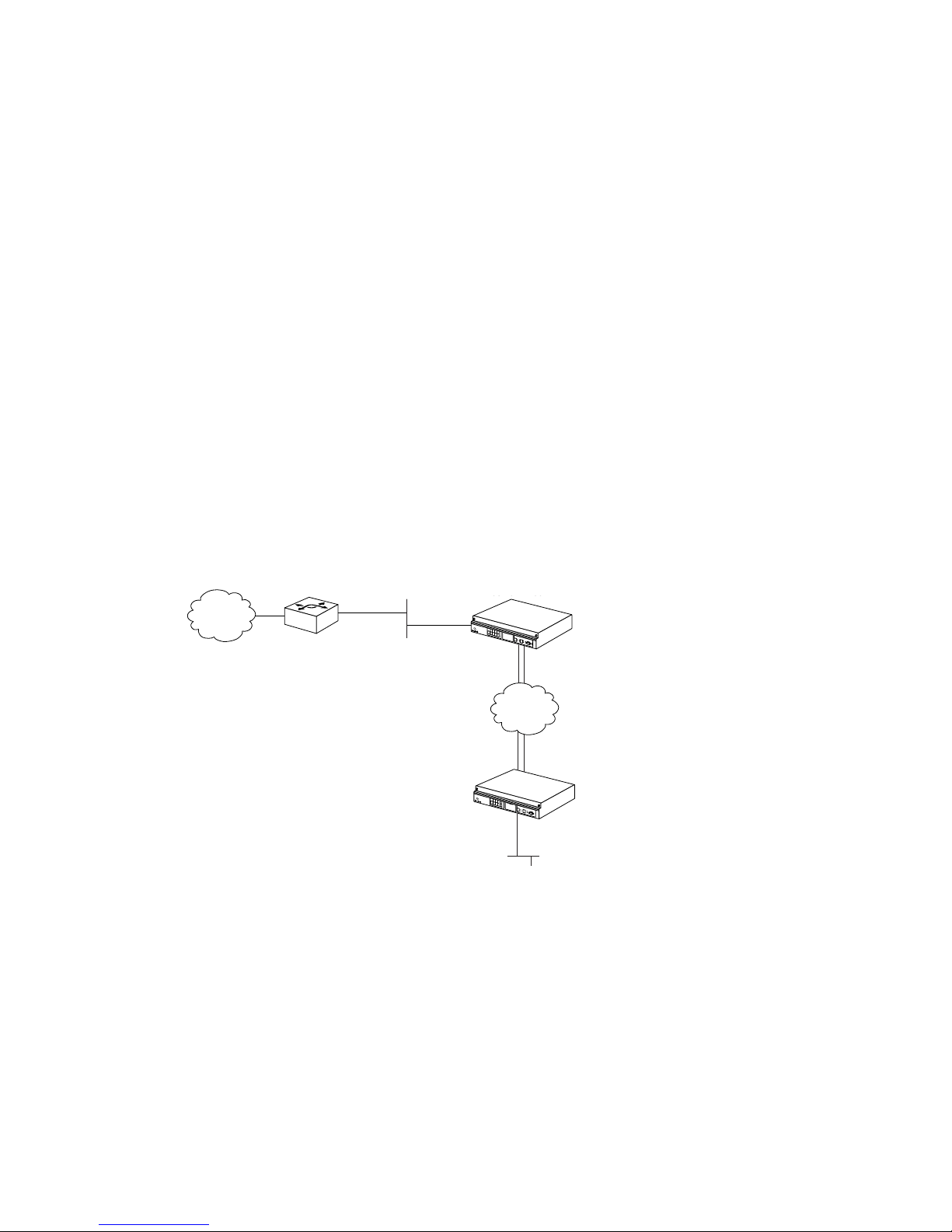

Figure 10 Tunnel Mode Between Two Black Box Security Gateways - Multiple Proposals

Step 1: Configure a WAN bundle of network type untrusted

Step 2: Configure the Ethernet interface with trusted network type

Black Box1/configure> interface ethernet 0

message: Configuring existing Ethernet interface

Black Box1/configure interface/ethernet 0> ip address 10.0.1.1 24 Black Box1/configure/interface/ethernet 0> crypto trusted Black Box1/configure/interface/ethernet 0> exit

Step 3: Display the crypto interfaces

UNTRUSTED

TRUSTED

IPSec ESP

Tasman1

Tasman2

172.16.0.1

172.16.0.2

etwork

0.0.1.0/24

Network

10.0.2.0/2

BlackBox 2

BlackBox 1

Black Box LR11xx Series Router Configurations Guide

Blackbox> show crypto interfaces

Interface Network Name Type

--------- ------wan1 Untrusted ethernet0 trusted

Blackbox>

Step 4: Add route to peer LAN

Black Box1/configure> ip route 10.0.2.0 24 wan1

Step 5: Configure IKE to the peer gateway

Black Box1/configure> crypto ike policy Black Box2 172.16.0.2 Black Box1/configure/crypto/ike/policy/Black Box2 172.16.0.2> local-address 172.16.0.1

message: Default proposal created with priority1-des-sha-pre_shared-g1.

message: Key String has to be configured by the user.

Step 6: Display IKE policies

Blackbox> show crypto ike policy all

Policy Peer Mode Transform

------ ---- ---- --------Black Box 172.14.0.2 Main P1 pre-g1-3des-sha

Blackbox>

Step 7: Configure IPSec tunnel to the remote host

Black Box1/configure>crypto ipsec policy Black Box2 172.16.0.2 Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2> match address 10.0.1.0 24

10.0.2.0 24

message: Default proposal created with priority1-esp-3des-sha1-tunnel and activated.

Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2> proposal 1 Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2/proposal 1> encryption-algorithm des-cbc Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2/proposal 1> exit Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2> proposal 2

message: Proposal added with priority2-esp-3des-sha1-tunnel.

Example 4: IPSec remote access

Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2/proposal 2> encryption_algorithm aes256-cbc Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2/proposal 2> exit Black Box1/configure/crypto/ipsec/policy Black Box2 172.16.0.2> exit Black Box1/configure/crypto> exit Black Box1/configure>

Step 8: Display the IPSec policies

Use the show crypto ipsec policy all command.

Step 9: Repeat steps 1 - 8 with suitable modifications on Black Box2 prior to passing bi-directional traffic.

Step 10: Test the IPSec tunnel between Black Box1 and Black Box2 by passing traffic from the 10.0.1.0 network to the

10.0.2.0 network

Step 11: After traffic is passed through the tunnel, display the IKE and IPSec SA tables.

Use the show crypto ike sa all and show crypto ipsec sa all commands.

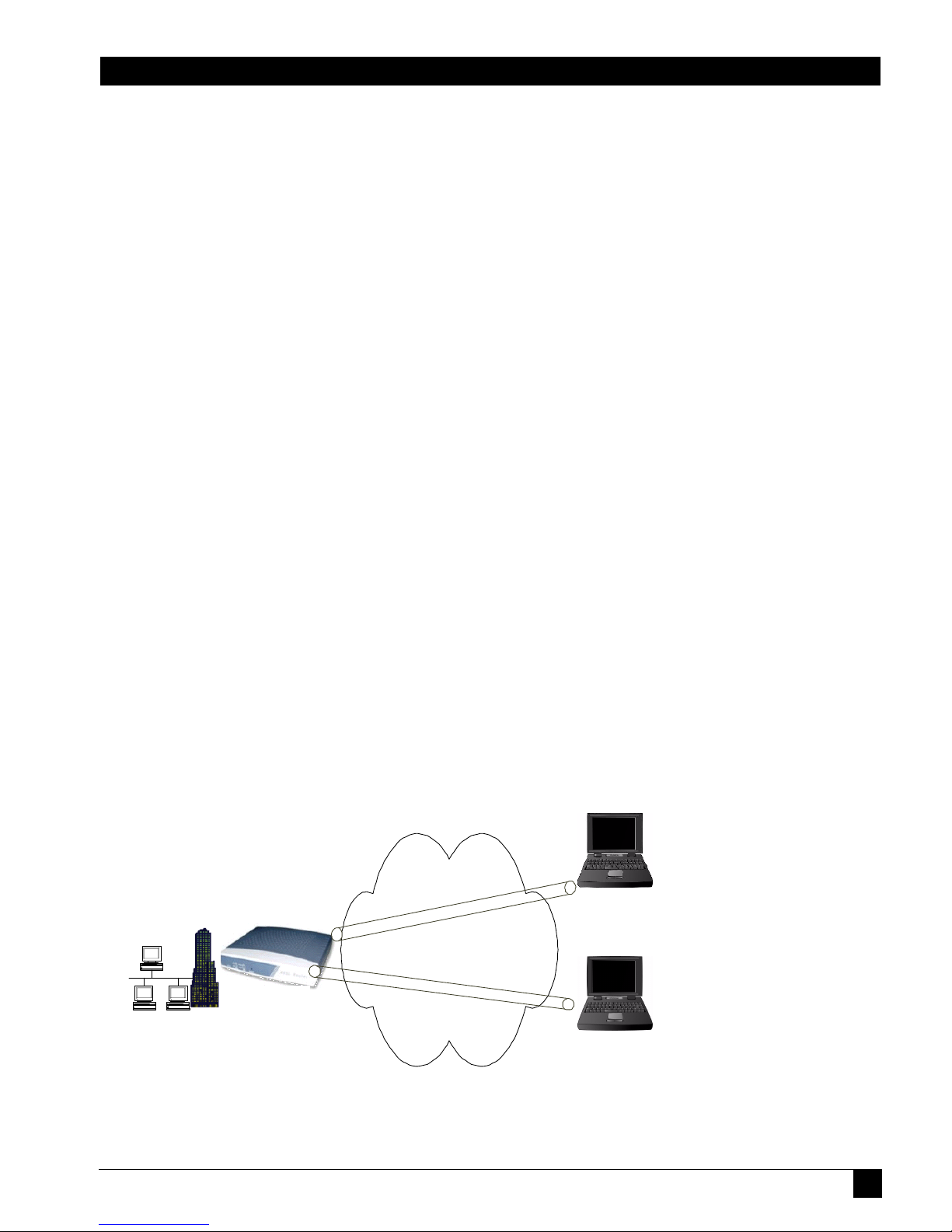

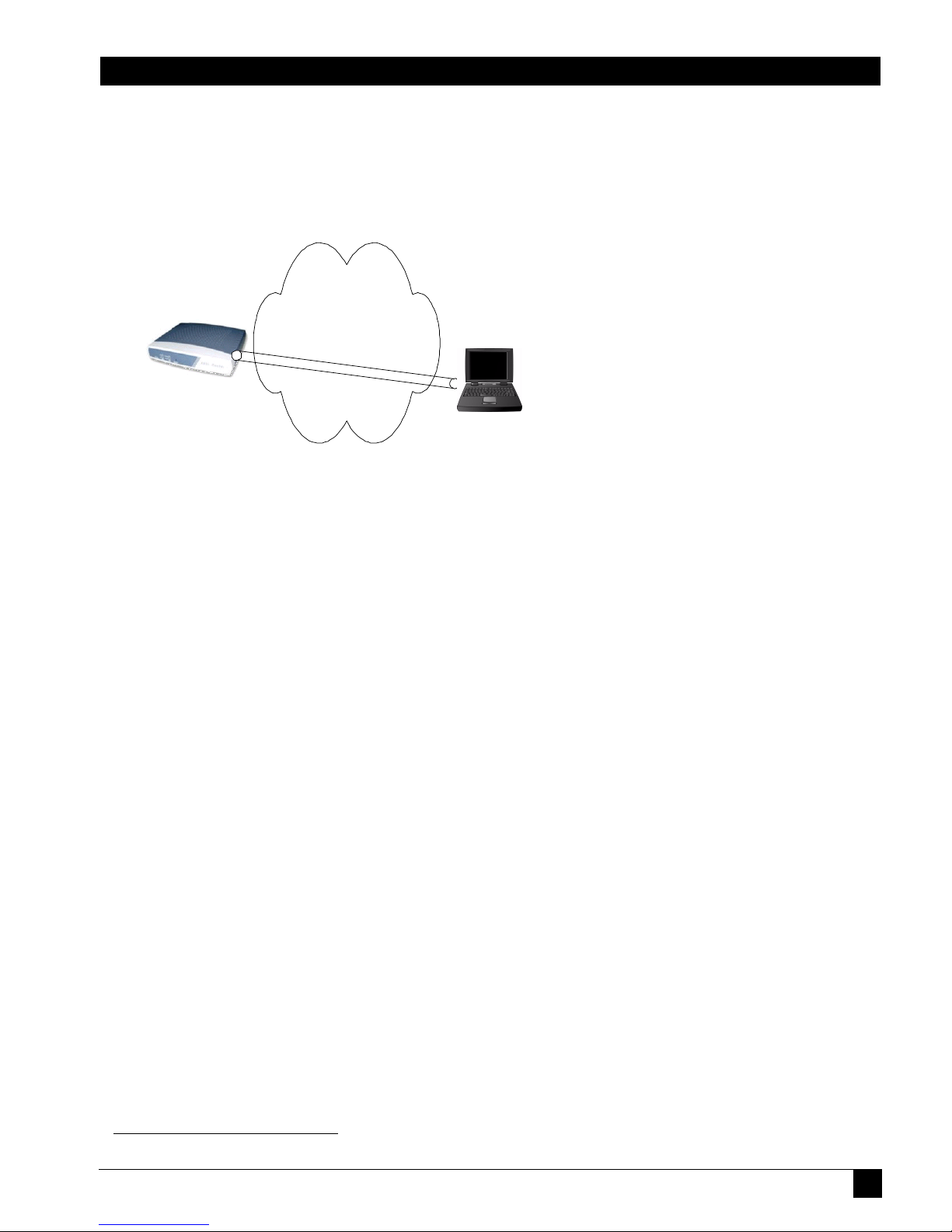

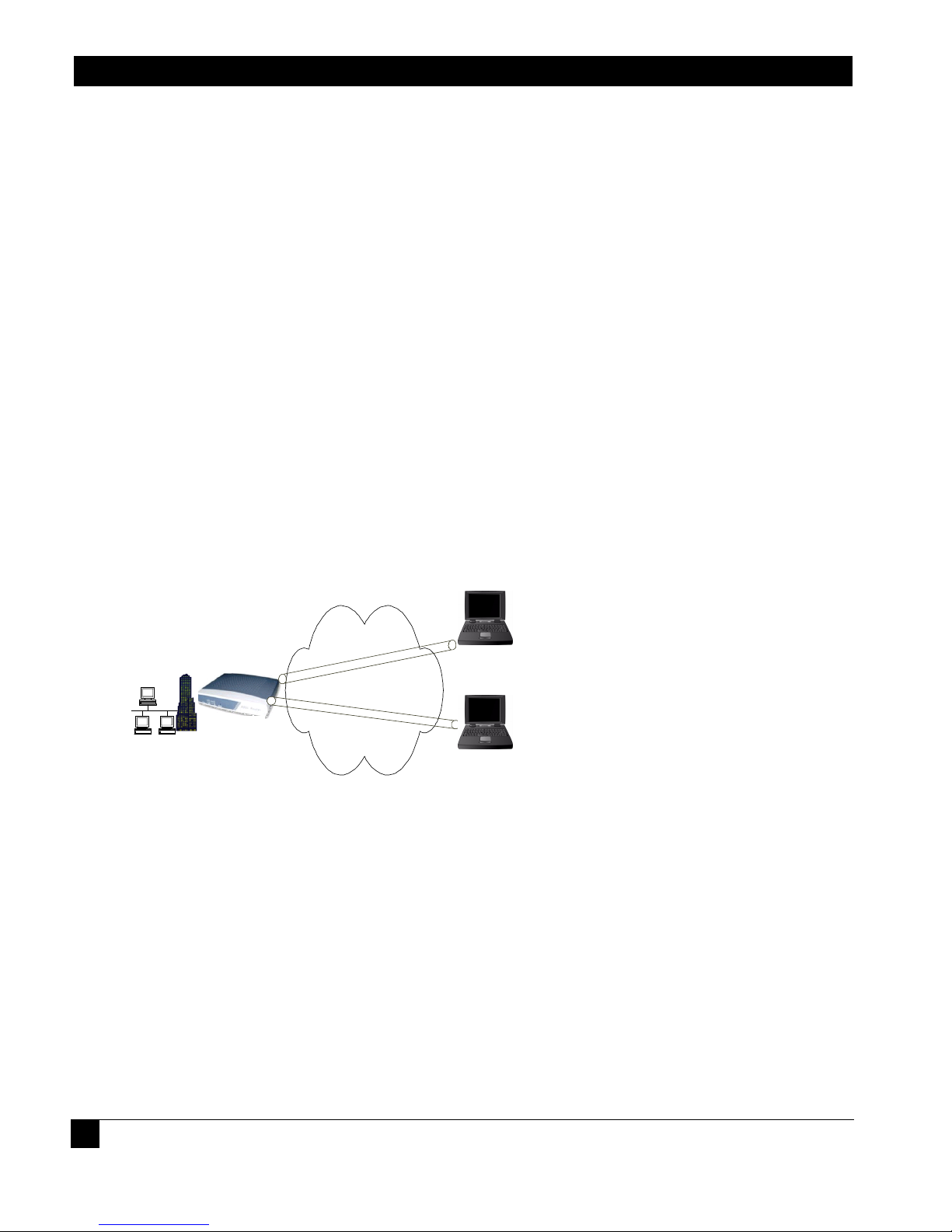

4.5 Example 4: IPSec remote access to corporate LAN using user group method

The following example demonstrates how to configure a Black Box router to be an IPSec VPN server using user group method with extended authentication (XAUTH) for remote VPN clients. The client could be any standard IPSec VPN client.

In this example, the client needs to access the corporate private network 10.0.1.0/24 through the VPN tunnel. The security requirements are as follows:

Phase 1: 3DES with SHA1, Xauth (Radius PAP) Phase 2: IPSec ESP tunnel with AES256 and HMAC-SHA1

Step 1: As in Step1 of Example 1

Tasman #1

VPN Ser ve r

172.16.0.1

Corporate

Headquarters

10.0.1.0/24

VPN Client 1

Local Address: D ynamic

Local ID :

david@tasmannetworks

com

VPN Client 2

Local Address: D ynamic

Local ID :

mike@tasmannetworks.

com

blackbox.com

blackbox 1

Black Box LR11xx Series Router Configurations Guide

Step 2: As in Step2 of Example 1

Step 3: As in Step3 of Example 1

Step 4: Configure dynamic IKE policy for a group of mobile users

Black Box1/configure> crypto Black Box1/configure/crypto> dynamic Black Box1/configure/crypto/dynamic> ike policy sales Black Box1/configure/crypto/dynamic/ike/policy sales> local-address 172.16.0.1 Black Box1/configure/crypto/dynamic/ike/policy sales> remote-id email-id david@BlackBox.com david

A new user david is added to the grou p sales . The defau lt propos al created wi th priori ty1-des -sha1-pr e_shared -g1 and t he Key String has to be configured by the user.

Black Box1/configure/crypto/dynamic/ike/policy sales> remote-id email-id mike@BlackBox.com New user mike is added to the group sales

Black Box1/configure/crypto/dynamic/ike/policy sales> key secretkeyforsalesusers Black Box1/configure/crypto/dynamic/ike/policy sales> proposal 1 Black Box1/configure/crypto/dynamic/ike/policy sales/proposal 1> encryption-algorithm 3des-cbc Black Box1/configure/crypto/dynamic/ike/policy sales/proposal 1> exit Black Box1/configure/crypto/dynamic/ike/policy sales> client authentication radius pap Black Box1/configure/crypto/dynamic/ike/policy sales> exit Black Box1/configure/crypto/dynamic>

Step 5: Display dynamic IKE policies

Black Box1> show crypto dynamic ike policy all

Policy Remote-id Mode Transform Address-Pool

------ --------- ---- --------- -----------sales U david@Blackbox... Aggressive P1 pre-g1-3des-sha1

Step 6: Display dynamic IKE policies in detail

Black Box1> show crypto dynamic ike policy all detail

Policy name sales, User group name sales Aggressive mode, Response Only, PFS is not enabled, Shared Key is ***** Client authentication is Radius(PAP) Local addr: 172.16.0.1, Local ident 172.16.0.1 (ip-address) Remote idents are david@Blackbox.com (email-id), mike@Blackbox.com ( email-id)

Proposal of priority 1 Encryption algorithm: 3des Hash Algorithm: sha1 Authentication Mode: pre-shared-key DH Group: group1 Lifetime in seconds: 86400

Lifetime in kilobytes: unlimited

Step 7: Configure dynamic IPSec policy for a group of mobile users

Example 4: IPSec remote access

Black Box1/configure/crypto/dynamic> ipsec policy sales

Black Box1/configure/crypto/dynamic/ipsec/policy sales> match address 10.0.1.0 24 Default proposal created with priority1-esp-3des-sha1-tunnel and activated.

Black Box1/configure/crypto/dynamic/ipsec/policy sales> proposal 1 Black Box1/configure/crypto/dynamic/ipsec/policy sales/proposal 1> encryption-algorithm aes256-cbc Black Box1/configure/crypto/dynamic/ipsec/policy sales/proposal 1> exit Black Box1/configure/crypto/dynamic/ipsec/policy sales> exit Black Box1/configure/crypto/dynamic>

Step 8: Display dynamic IPSec policies

Black Box1> show crypto dynamic ipsec policy all

Policy Match Proto Transform

------ ----- ----- --------sales S 10.0.1.0/24/any Any P1 esp-aes-sha1-tunl D any/any/any INsales S any/any/any Any P1 esp-aes-sha1-tunl

D 10.0.1.0/24/any

Step 9: Display dynamic IPSec policies in detail

Black Box LR11xx Series Router Configurations Guide

Black Box1> show crypto dynamic ipsec policy all detail

Policy sales is enabled, User group name sales Direction is outbound, Action is Apply Key Management is Automatic PFS Group is disabled Match Address: Protocol is Any Source ip address (ip/mask/port): (10.0.1.0/255.255.255.0/any) Destination ip address (ip/mask/port): (any/any/any)

Proposal of priority 1 Protocol: esp Mode: tunnel Encryption Algorithm: aes256(key length=256 bits) Hash Algorithm: sha1 Lifetime in seconds: 3600 Lifetime in Kilobytes: 4608000

Policy INsales is enabled, User group name sales Direction is inbound, Action is Apply Key Management is Automatic PFS Group is disabled Match Address: Protocol is Any Source ip address (ip/mask/port): (any/any/any) Destination ip address (ip/mask/port): (10.0.1.0/255.255.255.0/any)

Proposal of priority 1 Protocol: esp Mode: tunnel Encryption Algorithm: aes256(key length=256 bits) Hash Algorithm: sha1 Lifetime in seconds: 3600

Lifetime in Kilobytes: 4608000

Step 10: Configure radius server (applicable only if client authentication is configured in dynamic IKE policy)

Black Box1/configure> aaa Black Box1/configure/aaa> radius Black Box1/configure/aaa/radius> primary_server 172.168.2.1 Primary Radius server configured. Black Box1/configure/aaa/radius> secondary_server 192.168.2.1 Secondary Radius server configured. Black Box1/configure/aaa/radius> exit Black Box1/configure/aaa> exit

Step 11 : Configure firewall policies to allow IKE negotiation through untrusted interface (applicable only if firewall license is also

enabled)

Example 4: IPSec remote access

Step 12: Display firewall policies in the internet map (applicable only if firewall license is enabled)

Black Box1> show firewall policy internet Advanced: S - Self Traffic, F - Ftp-Filter, H - Http-Filter, R - Rpc-Filter, N - Nat-Ip/Nat-Pool, L - Logging, E - Policy Enabled, M - Smtp-Filter

Pri Dir Source Addr Destination Addr Sport Dport Proto Action Advanced

--- --- ----------- ---------------- ----------------- ------ -------1000 in any any ike PERMIT SE 1024 out any any any any any PERMIT SE

Step 13: Display firewall policies in the internet map in detail (applicable only if firewall license is enabled)

Black Box1> show firewall policy internet detail

Bytes In 0, Bytes Out 0

Step 14: Config ure firewall policies for a group of mobile use rs to allow access to the loc a l LAN (appli cable on ly if fire wa ll license is

enabled)

Black Box1/configure/firewall corp> Black Box1/configure/firewall corp> policy 1000 in user-group sales address any any 10.0.1.0 24 Black Box1/configure/firewall corp/policy 1000 in >exit Black Box1/configure/firewall corp>

Step 15: Display firewall policies in the corp map (applicable only if firewall license is enabled)

Black Box LR11xx Series Router Configurations Guide

Black Box1> show firewall policy corp Advanced: S - Self Traffic, F - Ftp-Filter, H - Http-Filter, R - Rpc-Filter, N - Nat-Ip/Nat-Pool, L - Logging, E - Policy Enabled, M - Smtp-Filter

Pri Dir Source Addr Destination Addr Sport Dport Proto Action Advanced

--- --- ----------- ---------------- ----------------- ------ -------1000 in any 10.0.1.0/24 any any any PERMIT E 1022 out any any any any any PERMIT SE 1023 in any any any any any PERMIT SE

1024 out any any any any any PERMIT E

Step 16: Display firewall policies in the corp map in detail (applicable only if firewall license is enabled)

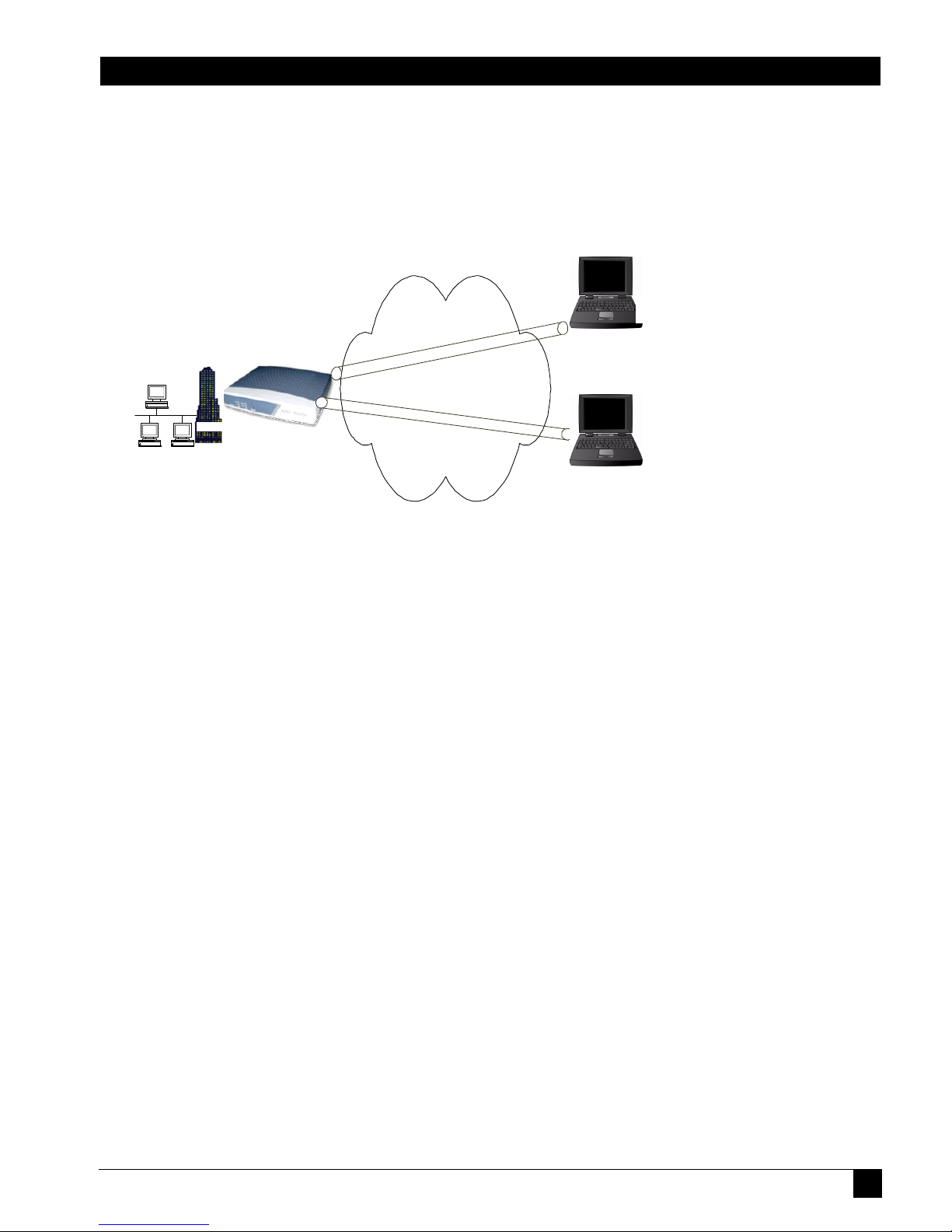

4.1Example 5: IPSec remote access to corporate LAN using mode configuration method

The following example demonstrates how to configure a Black Box router to be an IPSec VPN server using mode-configuration method. The client could be any standard mode configuration enabled IPSec VPN client.

In this example, the client needs to access the corporate private network 10.0 .1. 0/24 through the VPN tunnel. The server has a pool of ip addresses from 20.1.1.100 through 20.1.1.150 to be allocated for mode configuration enabled VPN clients. The assigned IP address will be used by the VPN client as the source address in the inner IP header. The outer IP header will carry the dynamic IP address assigned by the Internet Service Provider as the source address. The security requirements are as follows:

Phase 1: 3DES with SHA1, Mode Configuration Phase 2: IPSec ESP tunnel with AES256 and HMAC-SHA1

Example 5: IPSec remote access

Step 1: As in Step1 of Example 1

Step 2: As in Step2 of Example 1

Step 3: As in Step3 of Example 1

Step 4: Configure dynamic IKE policy for a group of mobile users

Black Box1/configure> crypto Black Box1/configure/crypto> dynamic Black Box1/configure/crypto/dynamic> ike policy sales modecfg-group Black Box1/configure/crypto/dynamic/ike/policy sales> local-address 192.168.55.52

Black Box1/configure/crypto/dynamic/ike/policy sales> remote-id email david@Blackbox.com

The default proposal is created with priority1-des-sha1-pre_ shared-g1, the Key Stri ng has to be conf igured by the u ser , and the default IPSec proposal 'sales' added with priority1-3des-sha1-tunnel.

Black Box1/configure/crypto/dynamic/ike/policy sales> remote-id email mike@Blackbox.com Black Box1/configure/crypto/dynamic/ike/policy sales> key secretkeyforsales Black Box1/configure/crypto/dynamic/ike/policy sales> proposal 1 Black Box1/configure/crypto/dynamic/ike/policy sales/proposal 1> encryption-algorithm 3des-cbc Black Box1/configure/crypto/dynamic/ike/policy sales/proposal 1> exit Black Box1/configure/crypto/dynamic/ike/policy sales> client configuration Black Box1/configure/crypto/dynamic/ike/policy sales/client/configuration> addresspool 1 20.1.1.100 20.1.1.150 Black Box1/configure/crypto/dynamic/ike/policy sales/client/configuration> exit Black Box1/configure/crypto/dynamic/ike/policy sales> exit Black Box1/configure/crypto/dynamic> exit

Step 5: Display dynamic IKE policies

Tasman #1 VPN Ser v e r

172.16.0.1

Mode Config IP

Pool:

10.0.1.100-

10.0.1.150

Corporate

Headquarters

10.0.1.0/24

VPN Client 1

Local Outer A ddress:

Dynamic

Local Inner Assigned

Address: 10. 0. 1. 100/ 32

Local ID:

david@tasmannetworks.

com

VPN Client 2

Local Outer Address:

Dynamic

Local Inner A s si gned

Address: 10 . 0. 1.101/32

Local ID:

mike@tasmannetworks.

com

Black Box 1

blackbox.com

Black Box LR11xx Series Router Configurations Guide

Black Box1> show crypto dynamic ike policy all

Policy Remote-id Mode Transform Address-Pool

------ --------- ---- --------- -----------sales U david@BlackBox... Aggressive P1 pre-g1-3des-sha1 1 S 20.1.1.100

E20.1.1.150

Step 6: Display dynamic IKE policies in detail

Black Box1> show crypto dynamic ike policy all detail

Policy name sales, Modeconfig group Aggressive mode, Response Only, PFS is not enabled, Shared Key is ***** Local addr: 192.168.55.52, Local ident 192.168.55.52 (ip-address) Remote idents are david@Blackbox.com (email-id), mike@Blackbox.com (email-id) Address Pool: Pool# 1: 20.1.1.100 to 20.1.1.150

Proposal of priority 1 Encryption algorithm: 3des Hash Algorithm: sha1 Authentication Mode: pre-shared-key DH Group: group1 Lifetime in seconds: 86400 Lifetime in kilobytes: unlimited

Step 7: Configure dynamic IPSec policy for a group of mobile users

Black Box1/configure/crypto> Black Box1/configure/crypto> dynamic Black Box1/configure/crypto/dynamic> ipsec policy sales modecfg-group Black Box1/configure/crypto/dynamic/ipsec/policy sales> match address 10.0.1.0 24 Black Box1/configure/crypto/dynamic/ipsec/policy sales> proposal 1 Black Box1/configure/crypto/dynamic/ipsec/policy sales/proposal 1> encryption-algorithm aes256-cbc Black Box1/configure/crypto/dynamic/ipsec/policy sales/proposal 1> exit Black Box1/configure/crypto/dynamic/ipsec/policy sales> exit Black Box1/configure/crypto/dynamic> exit

Step 8: Display dynamic IPSec policies

Black Box1> show crypto dynamic ipsec policy all

Policy Match Proto Transform

------ ----- ----- --------sales S 10.0.1.0/24/any Any P1 esp-aes-sha1-tunl D any/any/any

Step 9: Display dynamic IPSec policies in detail

Example 5: IPSec remote access

Black Box1> show crypto dynamic ipsec policy all detail

Policy sales is enabled, Modeconfig Group Action is Apply Key Management is Automatic PFS Group is disabled Match Address: Protocol is Any Source ip address (ip/mask/port): (10.0.1.0/255.255.255.0/any) Destination ip address (ip/mask/port): (any/any/any)

Proposal of priority 1 Protocol: esp Mode: Tunnel Encryption Algorithm: aes256(key length=256 bits) Hash Algorithm: sha1 Lifetime in seconds: 3600 Lifetime in Kilobytes: 4608000

Step 10: Configure firewall policies to allow IKE negotiation through untrusted interface (applicable only if firewall license is also

enabled)

Step 11: Display firewall policies in the internet map (applicable only if firewall license is enabled)

Black Box1> show firewall policy internet Advanced: S - Self Traffic, F - Ftp-Filter, H - Http-Filter, R - Rpc-Filter, N - Nat-Ip/Nat-Pool, L - Logging, E - Policy Enabled, M - Smtp-Filter

Pri Dir Source Addr Destination Addr Sport Dport Proto Action Advanced

--- --- ----------- ---------------- ----------------- ------ -------1000 in any any ike PERMIT SE 1024 out any any any any any PERMIT SE

Step 12: Display firewall policies in the internet map in detail (applicable only if firewall license is enabled)

Black Box LR11xx Series Router Configurations Guide

Black Box1> show firewall policy internet detail

Step 13: Configure firewall policies for a group of mo bile use r s to allow access to the loca l LAN (appl ic abl e only if firewall license is

enabled)

Black Box1/configure> firewall corp Black Box1/configure/firewall corp> policy 1000 in address 20.1.1.100 20.1.1.150

10.0.1.0 24 Black Box1/configure/firewall corp/policy 1000 in >exit

Step 14: Display firewall policies in the corp map (applicable only if firewall license is enabled)

Black Box1> show firewall policy corp Advanced: S - Self Traffic, F - Ftp-Filter, H - Http-Filter, R - Rpc-Filter, N - Nat-Ip/Nat-Pool, L - Logging, E - Policy Enabled, M - Smtp-Filter

Pri Dir Source Addr Destination Addr Sport Dport Proto Action Advanced

--- --- ----------- ---------------- ----------------- ------ -------1000 in 20.1.1.100 10.0.1.0/24 any any any PERMIT E

20.1.1.150 1022 out any any any any any PERMIT SE 1023 in any any any any any PERMIT SE 1024 out any any any any any PERMIT E

Step 15: Display firewall policies in the corp map in detail (applicable only if firewall license is enabled)

Example 5: IPSec remote access

Black Box1> show firewall policy corp detail

Policy with Priority 1000 is enabled, Direction is inbound Action permit, Traffic is transit Logging is disable Source Address is 20.1.1.100-20.1.1.150, Dest Address is 10.0.1.0/24 Source Port is any, Dest Port is any, any Schedule is disabled, Ftp-Filter is disabled Smtp-Filter is disabled, Http-Filter is disabled Rpc-Filter is disabled, Nat is disabled Max-Connections 1024, Connection-Rate is disabled Policing is disabled, Bandwidth is disabled Bytes In 0, Bytes Out 0

Black Box LR11xx Series Router Configurations Guide

IPS

PECIFICATIONS

5.1IPSec Appendix

This appendix provides information about IPSec supported protocols and modes, encryption algorithms and block sizes, and Black Box IPSec and IKE default values.

IPSec Supported Protocols and Algorithms

The following tables provid e supported protocol and algorithm information.

Table 1 IPSec Protocols Support

Table 2 Encryption Algorithms

Table 3 Authentication Algorithms

Supported Security Protocols

Mode

ESP Tunnel

Transport

AH Tunnel

Transport

Encryption Algorithms for ESP Block Size

Data Encryption Standa r d (DES) 56-bits Triple Data Encryption Standard (3DES) 168-bits Advanced Encryption Standard (AES-128) 128-bits Advanced Encryption Standard (AES-192) 192-bits Advanced Encryption Standard (AES-256) 256-bits Null Encryption

Authentication Algorithms for AH/ESP

Hash Size

HMAC-MD5-96 96-bits

Black Box LR11xx Series Router Configurations Guide

Table 4 Diffie-Hellman Groups

5.1.1 Black Box IKE and IPSec Defaults

To minimize configuration required by the user, default IKE and IPSec values have been implemented in Black Box’s encryption scheme.

5.1.1.1 IKE Default s

The following table lists IKE defaults. When the user creates an IKE policy specifying an IKE peer, an IKE proposal with priority 1 is automatically created. However, to make the IKE policy fully functional, the user must enter a pre-shared key.

Figure 11 IKE Default Values

5.1.1.2 IPSec Defaults

The following table lists IPSec defaults. When the user creates an IPSec policy and provides the match address, an IPSec proposal with priority 1 is automatically created. When an outbo und po licy is s pecified, an i nbou nd poli cy is automatically created.

HMAC-HSHA1-96 96-bits

Diffie-Hellman Groups for Authentication

Key Size

Group 1 768-bits Group 2 1024-bits

Parameter Name Black Box Default

Value

Mode Main mode Perfect forward secrecy Disabled Hash algorithm SHA1 Encryption algorithm DES Authentication method PreShared DH Group Group 1 Lifetime 86400 seconds Response type Initiator and responder

IPSec Appendix

Figure 12 IPSec Default Values

Parameter Name Black Box Default

Value

Key management type Automatic Hash algorithm SAH1 Encryption algorithm 3DES Protocol ESP Mode Tunnel Lifetime 3600 seconds Direction Out Position in SPD where policy added End Perfect forward secrecy Disabled

Black Box LR11xx Series Router Configurations Guide

ORWARDING

IP T

RAFFIC

6.1IP Multiplexing

IP Multiplexing is a method for the transparent forwarding of IP packets between LAN and WAN interfaces. LAN to WAN forwarding is accomplished through a Proxy ARP process. A Black Box system maps a unique MAC address to each WAN link then responds with this MAC address when a device on the LAN broadcasts an ARP request for a remote device. These MAC addresses serve as “tags” for forwarding packets received on the LAN. WAN to LAN and W AN to WAN forwarding is based on configure d forw ard i ng entr ie s.

IP Multiplexing differs from bridging and switching in that it does not flood traffic or perform address learning. IP Multiplexing devices differ from routers in that they do not appear as a router hop, and they cannot be specified as a default router/gateway on a LAN.

6.1.1 Packet Forwarding Modes

There are two modes for WAN to LAN and WAN to WAN packet forwarding

 IP Routes – Forwarding based on routing statements, both specific and default.  Source Forwarding – Forwards all traffic arriving on a specified WAN bundle to a specified device on the LAN.

The following table provides information about applications and a suggested forwarding mode for each.

Table 5 Applications and Suggested Forwarding Modes

6.1.2 Proxy ARP and Packet Forwarding

In the simple network example below, router 1, router 2, and both Black Box Ethernets are on a single 29-bit IP subnet. Consider the sequence that occurs when router 1 pings router 2.

Application Suggested Forwarding Mode

Forwarding traffic from different WAN links to separate routers on the LAN

Source Forwarding

Forwarding all WAN traffic to a single router on the LAN Default IPMux Routes Forwarding to both LAN and WAN router Specific IPMux Routes

Black Box LR11xx Series Router Configurations Guide

Figure 13 Proxy ARP and Packet Forwarding

1 Router 1 broadcasts an ARP request for 200.1.1.1. 2 Black Box 1 recognizes that router 200.1.1.1 is reachable via its WAN interface, based on a configured IP

route.

3 Black Box 1 Proxy ARPs, responding with the MAC address mapped to bundle WAN1. 4 Router 1 unicasts the ping echo request to that MAC address. 5 Black Box 1 forwards the echo request for 200.1.1.1 through the WAN1 bundle. 6 Black Box 2 receives a packet on WAN2 and forwards it to directly connected router 2. 7 The echo reply from router 2 to router 1 is returned in the same manner.

6.1.3 Addressing in IP Multiplexing Networks

IP addressing in an IP Multiplexing design must take into account the fact that the router on the LAN must see the remote router as residing on the same LAN or IP network. There are a number of addressing schemes that can fulfill this requirement, including:

 Single subnet  Split subnet  Secondary addressing

Consider the following network, consisting of three remote sites. Two remote sites utilize Black Box equipment, while the third is a simple router/dsu combination. Five IP addressing sche m e s ar e provid ed below, all refer to the following network.

Figure 14 Addressing in IP Multiplexing Networks

Tasman 1 e0: 200.1.1.3/29

Tasman 2 e0: 200.1.1.2/29

wan

outer 1

0: 200.1.1.4/29

Router 2 e0: 200.1.1.1/2

Black Box 1

Black Box 2

Router 1

Router 2

POP Rout

Router/DSU

POP Tasman

Tasman 1

Tasman 2

wan 1

wan 2

wan 3

Black Box 1

Black Box 2

IP Multiplexing

6.1.4 Single Subnet

The emphasis in the single subnet approach is that all seven devices have interfaces in a single 28-bit subnet 192.1.1.0 / 28. The WAN addressing utilizes reserved address space.

Table 6 Single Subnet Addressing

6.1.5 Spl it Subnet

This is similar to the single subnet scheme in that all four routers are in the same 28-bit subnet, but the Black Box products are on smaller, 30-bit subnets.

Table 7 Split Subnet Addressing

POP Router e0: 192.1.1.1/28 POP Black Box e0:

wan1: wan2: wan3:

192.1.1.2/28

10.1.1.1/30

10.1.1.5/30

10.1.1.9/30

Black Box 1 e0:

wan1:

192.1.1.3/28

10.1.1.2/30 Router 1 e0: 192.1.1.4/28 Black Box 2 e0:

wan1:

192.1.1.5/28

10.1.1.6/30 Router 2 e0: 192.1.1.6/28 Router/DSU s0: 192.1.1.7/28

POP Router e0: 192.1.1.1/28 POP Black Box e0:

wan1: wan2: wan3:

192.1.1.2/30

10.1.1.1/30

10.1.1.5/30

10.1.1.9/30 Black Box 1 e0:

wan1:

192.1.1.5/30

10.1.1.2/30 Router 1 e0: 192.1.1.6/28 Black Box 2 e0:

wan1:

192.1.1.9/30

10.1.1.6/30 Router 2 e0: 192.1.1.10/28 Router/DSU s0: 192.1.1.14/28

Black Box LR11xx Series Router Configurations Guide

6.1.6 Secondary Addressing – POP Only

Secondary addressing approaches rely on configuring the POP router with a secondary Ethernet address for each remote site. The POP-only approach uses secondary addresses at the POP while the remote router utilizes only a primary address.

Table 8 POP Only Secondary Addressing

6.1.7 Sec onda ry Addre ss ing – 30 Bit

This approach relies on configuring the POP router with a secondary Ethernet address for each remote site. The remote router is also configured with a secondary address in that same subnet. The 30-bit approach uses reserved addresses for bundle addressing. The router primary and the directly connected Black Box reside in a different 30-bit subnet.

Table 9 30-Bit Secondary Addressing

POP Router e0: 200.1.1.1/30 primary

199.1.1.1/29 second ary

199.1.1.9/29 second ary

199.1.1.17/29 seco nd ar y

POP Black Box e0:

wan1: wan2: wan3:

200.1.1.2/30

10.1.1.1/24

10.1.2.1/24

10.1.3.1/24

Black Box 1 e0:

wan1:

199.1.1.2/29

10.1.1.2/24 Router 1 e0: 199.1.1.3/29 Black Box 2 e0:

wan1:

199.1.1.10/29

10.1.2.2/24 Router 2 e0: 199.1.1.11/29 Router/DSU s0: 199.1.1.18/29

POP Router e0: 200.1.1.1/30 primary

199.1.1.1/30 second ary

199.1.1.5/30 second ary

199.1.1.9/30 second ary POP Black Box e0:

wan1: wan2: wan3:

200.1.1.1/30

10.1.1.1/30

10.1.1.5/30

10.1.1.9/30 Black Box 1 e0:

wan1:

201.1.1.2/30

10.1.1.2/30 Router 1 e0: 201.1.1.1/30 primary

199.1.1.2/30 second ary Black Box 2 e0:

wan1:

202.1.1.2/30

10.1.1.6/30 Router 2 e0: 202.1.1.1/30 primary

199.1.1.6/30 second ary Router/DSU s0: 199.1.1.10/30

IP Multiplexing

6.1.8 Secondary Addressing – 29 Bit

This approach utilizes a 29-bit subnet for each remote connection. Within each 29-bit subnet is the POP router secondary, the Black Box WAN addressing, and the remote router secondary.

6.1.9 Pros and Cons of Different IP Addressing Schemes

The following table provides information about addressing scheme pros and cons.

Table 10 Addressing Schemes: Pros and Cons

6.1.10 Routing Considerations for IP Multiplexing

 RI P / RIP2 / IGRP –Turn off split horizons to enable routing updates through secondary addresses, if used.  EIGRP – Updates are sourced only from primary addresses, although routers will listen to updates arriving on primary and

secondary.

 OSPF – For Cisco and other routers, routing updates are sourced and detected only on primary addresses, therefore

secondary addressing schemes are not usable.

 BGP4 – Routing updates are fully functional over primary and secondary addresses.

POP Router e0: 200.1.1.1/30 primary

199.1.1.1/29 secondary

199.1.1.9/29 secondary

199.1.1.17/29 secondary

POP Black Box e0:

wan1: wan2: wan3:

200.1.1.2/30

199.1.1.2/29

199.1.1.10/29

199.1.1.18/29

Black Box 1 e0:

wan

201.1.1.2/30

199.1.1.3/29

Router 1 e0: 201.1.1.1/30 primary

199.1.1.4/29 secondary

Black Box 2 e0:

wan1:

202.1.1.2/30

199.1.1.11/29

Router 2 e0: 202.1.1.1/30 primary

199.1.1.12/29 secondary

Router/DSU s0: 199.1.1.19/29

Approach Pros Cons

Single Subne t Minimizes consumption of IP

address space

POP Black Box requires two route stat ements per remote connect ion.

Split Subnet Less routes required in Black

Box

Consumes 29-bit subnet per remote site.

Secondary Addressing Easily Scalable Consumes 29-or 30-bit subnet per remote. Not

transparent to certain routing protocols.

Black Box LR11xx Series Router Configurations Guide

IP M

ULTIPLEXING

HDLC

ONFIGURATIONS

7.1Connecting a Black Box Router to a Router/CSU via HDLC

The following diagram details a single T1 connection between a Black Box and a remote router/CSU combination. Secondary IP addressing is used for IP multiplexing.

Figure 15 IP Multiplexing Application

The two sites communicate over a si ngle T1 channel. The Site 2 WAN bundle, named “T oSite1”, con sists of a singl e T1 channel coming in via a CT3 circuit. Site 1 router's default route is directed to the Site 2 router: 0.0.0.0/0 10.1.1.1

The Site 2 router is configured with: primary ethernet address: 129.1.1.1/24, secondary ethernet addr on the WAN subnet: 10.1.1.1/24, and route to the Site 1 router: 192.5.75.0/24 10.1.1.3.

92.5.75.0/24

192.5.75.1/24

Router/ T1 CSU

10.1.1.3/24 T1

CT3

Tasman 6300

10.1.1.2/24

Telco

Router

SITE 1

SITE 2

129.1.1.2/24

Primary: 129.1.1.1/24 Secondary: 10.1.1.1/24

LR1104A

Configuration Guide

7.1.1 Configure the Black Box LR1104A at Site 2

Site2-LR1104A> configure term Site2-LR1104A/configure> interface ethernet 0 Site2-LR1104A/configure/interface/ethernet> ip addr 129.1.1.2 255.255.255.0 Site2-LR1104A/configure/interface/ethernet> exit

Site2-LR1104A/configure> interface bundle toSite1 Site2-LR1104A/configure/interface/bundle> link ct3 1 1 Site2-LR1104A/configure/interface/bundle> encap hdlc Site2-LR1104A/configure/interface/bundle> ip addr 10.1.1.2 255.255.255.0 Site2-LR1104A/configure/interface/bundle> ipmux source_forwarding 129.1.1.1 Site2-LR1104A/configure/interface/bundle> exit

IP M

ULTIPLEXING

PPP

AND

MLPPP

ONFIGURATIONS

8.1Configuring Multiple PPP and MLPPP Bundles

The following figure shows a Black Box LR1104A at the main site communicating with three remote sites. Site 1 utilizes a Black Box LR1114A communicating over a 4 x T1 WAN bundle. Site 2 utilizes a Black Box LR1114A communicating over a 2 x T1 WAN bundle. Site 3 utilizes a router/T1 CSU combination to communicate over a single T1.

This example focuses on the main site Black Box LR1104A - refer to other configuration examples for details on remote site configurations. Secondary IP addressing is used for IP multiplexing in this example.

Black Box LR11xx Series Router Configurations Guide

Figure 16 IP Multiplexing Application

The main site Black Box LR1104A is configured with three WAN bundles. Each bundle ha s a u nique name and an IP address from a unique WAN subnet associated with it. The main site router is configured with the following IP routes: To Site 1 201.1.1.0/24 10.1.1.1, To Site 2 202.1.1.0/24 10.1.2.1, and To Site 3 203.1.1.0/24 10.1.3.1.

Router

Router / T1 CSU

Router

MAIN SITE

SITE 1

SITE 2

SITE 3

CT3

Tasman 6300

Tasman 1400

203.1.1.1/24

10.1.2.2/24

Telco

201.1.1.1/24: Primary

10.1.1.1/24: Secondary

201.1.1.2/24

10.1.1.2/24

202.1.1.1/24: Primary

10.1.2.1/24: Secondary

10.1.3.1/24

200.1.1.2/24 Primary: 200.1.1.1/24

Secondary: 10.1.1.4/2

Secondary: 10.1.2.4/2

Secondary: 10.1.3.4/2

Bundle: To Site 1: 10.1.1.3/24: 4 x T1 Bundle: To Site 2: 10.1.2.3/24: 2 x T1 Bundle: To Site 3: 10.1.3.3/24: 1 x T1

4 x T1

2 x T1

LR1114A

LR1104A

Configuring Multiple PPP and

8.1.1 Configure the Black Box LR1104A at the Main Site

MainLR1104A/configure> interface ethernet 0 MainLR1104A/configure/interface/ethernet> ip addr 200.1.1.2 255.255.255.0 MainLR1104A/configure/interface/ethernet> exit

MainLR1104A/configure> module ct3 1 MainLR1104A/configure/module/ct3> t1 1-4 esf b8zs line gen_det description "4 x T1 to Site 1" MainLR1104A/configure/module/ct3>exit MainLR1104A/configure> interface bundle toSite1 MainLR1104A/configure/interface/bundle> link ct3 1 1-4 MainLR1104A/configure/interface/bundle> encap ppp MainLR1104A/configure/interface/bundle> ip addr 10.1.1.3 255.255.255.0 MainLR1104A/configure/interface/bundle> ipmux source_forwarding 200.1.1.1 MainLR1104A/configure/interface/bundle> exit

MainLR1104A/configure> module ct3 1 MainLR1104A/configure/module/ct3> t1 5-6 esf b8zs line gen_det description "2 x T1 to Site 2" MainLR1104A/configure/module/ct3>exit MainLR1104A/configure> interface bundle toSite2 MainLR1104A/configure/interface/bundle> link ct3 1 5-6 MainLR1104A/configure/interface/bundle> encap ppp MainLR1104A/configure/interface/bundle> ip addr 10.1.2.3 255.255.255.0 MainLR1104A/configure/interface/bundle> ipmux source_forwarding 200.1.1.1 MainLR1104A/configure/interface/bundle> exit

MainLR1104A/configure> module ct3 1 MainLR1104A/configure/module/ct3> t1 7 esf b8zs line gen_det description "T1 to Site 3" MainLR1104A/configure/module/ct3> exit MainLR1104A/configure> interface bundle toSite3 MainLR1104A/configure/interface/bundle> link ct3 1 7 MainLR1104A/configure/interface/bundle> encap ppp MainLR1104A/configure/interface/bundle> ip addr 10.1.3.3 255.255.255.0 MainLR1104A/configure/interface/bundle> ipmux source_forwarding 200.1.1.1 MainLR1104A/configure/interface/bundle> exit

Black Box LR11xx Series Router Configurations Guide

ONFIGURING

PPP, MLPPP,

AND

HDLC

9.1Layer Two Configurations: PPP, MLPPP, and HDLC

Black Box systems may be co nfigu red for a variety of Layer 2 protocols. Th i s d ocum ent outlines High-level Data Link Control (HDLC), Point to Point Protocol (PPP), and Multilink PPP (MLPPP) configurations. Other Black Box documents outline Frame Relay and Multilink Frame Relay configuration.

Black Box LR1104A systems are often used at POPs to aggregate data for WAN transmission. The following figure details PPP and multilink PPP connections from two CPE sites to a main site.

Figure 17 PPP/MLPPP Application

Site 1 uses a Black Box LR1114A system to establish a 6 Mbps MLPPP connection (four T1 lines) to the main site. In this example, MLPPP segmentation is configured lower than the default setting of 512 bytes, and the differential delay tolerance is tighter than the default 128 milliseconds.

Site 2 connects to the main site over a single T1 link with PPP encapsulation. The LR1104A system PPP parameters (i.e., the maximum transmit and receive byte sizes) are adjusted to comply with the Site 1 router configuration.

Tasman 1400

Tasman 6300

SITE 1

ITE 2

WAN

Router/DSU

CT3

4 x T1 (MLPPP)

LR1114A

LR1104A

Black Box LR11xx Series Router Configurations Guide

9.1.1 MLPPP Configuration

9.1.1.1 Configure the Black Box LR1114 A Syst e m at Sit e 1

Blackbox> configure term Blackbox/configure> interface bundle ToMain Blackbox/configure/interface/bundle> link t1 1-4

NOTE

MLPPP is not explicitly configured via the encapsulation command. Instead, multilink PPP is automatically invoked when a bundle with PPP encapsulation has two or more T1 links.

Blackbox/configure/interface/bundle> encap ppp Blackbox/configure/interface/bundle> mlppp seg_threshold LR1114A differential_delay

Blackbox/configure/interface/bundle> ip addr 192.168.1.2 255.255.255.0 Blackbox/configure/interface/bundle> exit

9.1.2 PPP and MLPPP Configuration

9.1.2.1 Configure the Black Box LR1104A System at the Main Site

Blackbox/configure> interface bundle ToSite1 Blackbox/configure/interface/bundle> link ct3 1 5-8 Blackbox/configure/interface/bundle> encap ppp Blackbox/configure/interface/bundle> mlppp seg_threshold LR1114A differential_delay

Blackbox/configure/interface/bundle> ip addr 192.168.1.1 255.255.255.0 Blackbox/configure/interface/bundle> exit

Blackbox/configure> interface bundle ToSite2 Blackbox/configure/interface/bundle> link ct3 1 9 Blackbox/configure/interface/bundle> encap ppp Blackbox/configure/interface/bundle> ppp mtu 100-250-1000 mru 100-250-1000 Blackbox/configure/interface/bundle> ip addr 192.168.2.1 255.255.255.0 Blackbox/configure/interface/bundle> exit

9.1.3 HDLC Configuration

HDLC encapsulation may be substituted for PPP between the main site and site 2

9.1.3.1 Configure the Black Box LR1104A System at the Main Site

Blackbox/configure> interface bundle ToSite2 Blackbox/configure/interface/bundle> link ct3 1 9 Blackbox/configure/interface/bundle> encap hdlc Blackbox/configure/interface/bundle> hdlc keepalive 20 Blackbox/configure/interface/bundle> ip addr 192.168.2.1 255.255.255.0 Blackbox/configure/interface/bundle> exit

NOTE

In the above command sequence, the HDLC keepalive time interval was changed from its default setting of 10 seconds to 20

seconds

ONFIGURING

IREWALLS

10.1Firewalls

Configuring firewalls allows administrato rs to adapt network protection policies to meet ever-changing hacker and intruder threats. Just as virus protection software requires updates to protect against the latest intrusion attacks, firewalls must be updated. In this release of Black Box software, administrators are able to filter traffic on specific ports, protect against Denial of Services attacks, enable IP packet reassembly, and so forth.

There are three licenses that control access to the features:

Basic VPN and Firewall licenses.

To see the licenses available in this release, enter:

To install the advanced VPN and firewall license and use all the security features available in this release, enter:

Blackbox/configure> system licenses ?

NAME licenses - Configure feature upgrade licenses

SYNTAX licenses license_type <cr>

Black Box LR11xx Series Router Configurations Guide

10.2 Firewall Configuration Examples

10.2.1 Basic Firewall Configuration

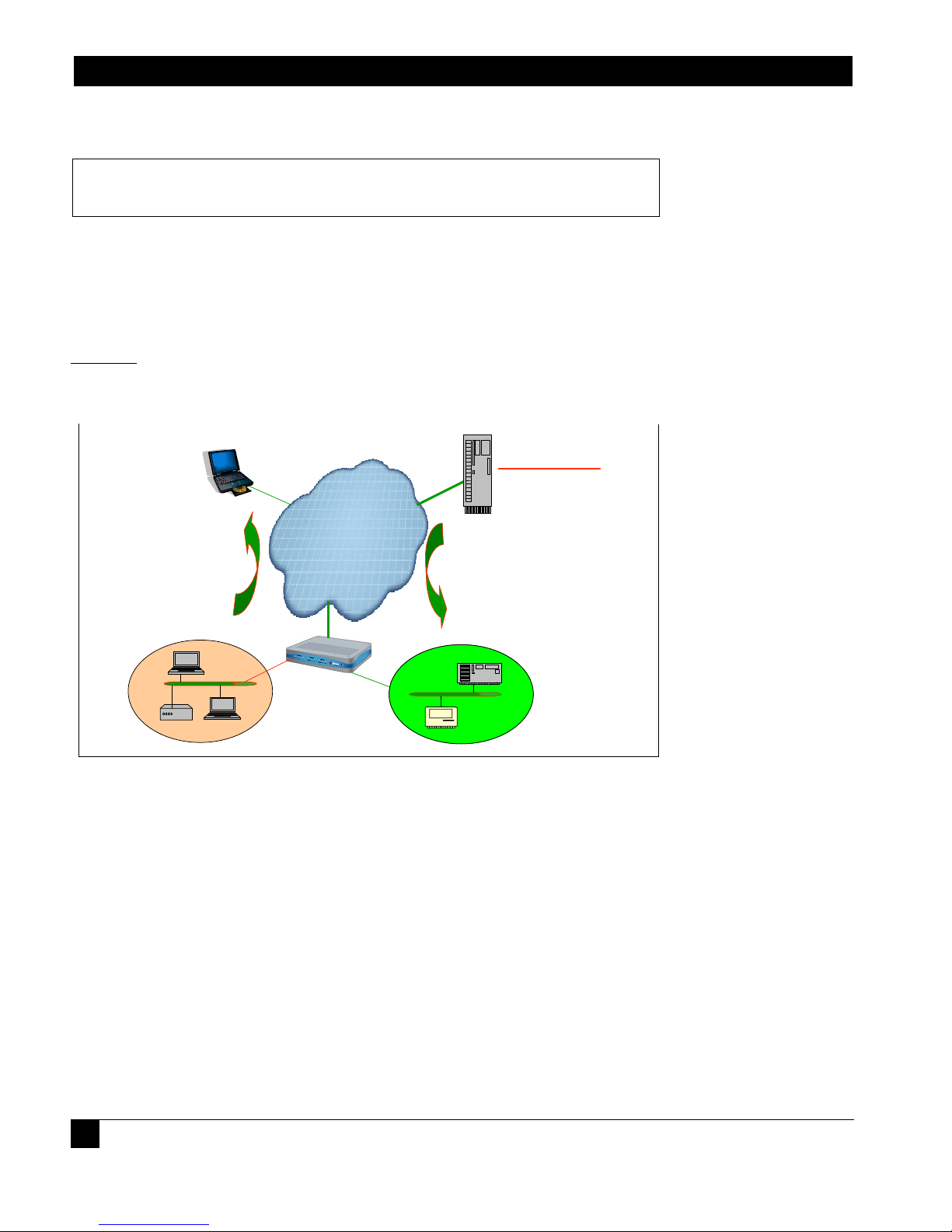

Figure 18 illustrates the basic elements of a firewall. Refer to this illustration in the configuration example below.

Figure 18 Basic Firewall Configuration

A typical and basic firewall implementation is one which protects traffic to and from a network, a server farm, and the Internet. In this example, the firewall features in the Black Box router will protect the CORP network and the server farm in the DMZ from unauthorized access from the Internet.

To create this basic three-armed firewall configuration, complete these steps:

Step 1:Configure the Ethernet interfaces and the WAN interf aces with IP addresses:

Blackbox/configure> system licenses vpn_plus_firewall Enter Security Upgrade License key: 024f3bc296b4ea7265

Internet

DMZ

Remote

User

www.yahoo.com

Web server

Forward PAT

CORP

Reverse NAT

10.2.1.0/24

10.3.1.0/24

FTP Server

Firewall Configuration Ex-

Step 2: Create the security zones CORP and DMZ and attach interfaces:

Step 3: Verify th at the interfaces are attached to the security zones:

Step 4: Create policies for Security Zone CORP that:

 Allow all outgoing traffic (with firewall policy priority 1024)  Deny all incoming traffic (with firewall policy priority 1021)  Create an object of type http-filter to block java traffic  Modify policy 1024 to pat all outgoing traffic using public IP 193.168.94.220  Modify policy 1024 to add a java HTTP filter.

Blackbox/configure> interface ethernet 0 Configuring existing Ethernet interface Blackbox/configure/interface/ethernet 0> ip address 10.2.1.1 24 Blackbox/configure/interface/ethernet 0> exit Blackbox/configure> interface ethernet 1

Configuring existing Ethernet interface Blackbox/configure/interface/ethernet 1> ip address 10.3.1.1 24 Blackbox/configure/interface/ethernet 1> exit Blackbox/configure> interface bundle wan Blackbox/configure/interface/bundle wan> link t1 1 Blackbox/configure/interface/bundle wan> encapsulation p Blackbox/configure/interface/bundle wan> ip address 193.168.94.220 24 Blackbox/configure/interface/bundle wan> exit

Blackbox/configure> firewall corp Blackbox/configure/firewall corp> interface ethernet0 Blackbox/configure/firewall corp> exit

Blackbox/configure> firewall dmz Blackbox/configure/firewall dmz> interface ethernet1 Blackbox/configure/firewall dmz> exit

Blackbox/configure> firewall internet Blackbox/configure/firewall internet> interface wan Blackbox/configure/firewall internet> exit 2

Blackbox/configure> show firewall interface all

Interface Map Name

--------- -------ethernet0 corp ethernet1 dmz wan internet

Black Box LR11xx Series Router Configurations Guide

Step 5: Verify the firewall policy for Security Zone CORP:

Step 6: Ve rify that the HTTP filter object in Security Zone CORP is created as configured.

Step 7: Create policies for Security Zone DMZ that:

 Create an object of type nat-pool with private IP address of FTP server  Create an object of type ftp-filter to deny put and mkdir commands  Create a firewall policy to allow inbound traffic to FTP server public IP address (193.168.94.221) of priority 100  Modify policy 100 to add NAT pool object to translate incoming traffic for FTP server from public IP to private IP.  Modify policy 100 to add an FTP filter.

Blackbox/configure> Blackbox/configure/firewall corp> Blackbox/configure/firewall corp> Blackbox/configure/firewall corp> policy 1024 out Blackbox/configure/firewall corp/policy 1024 out> exit Blackbox/configure/firewall corp> policy 1021 in deny Blackbox/configure/firewall corp/policy 1021 in> exit Blackbox/configure/firewall corp> object Blackbox/configure/firewall corp/object> http-filter javadeny deny *.java Blackbox/configure/firewall corp/object> exit Blackbox/configure/firewall corp> policy 1024 out nat-ip

193.168.94.220 Blackbox/configure/firewall corp/policy 1024 out> apply-object http-filter javadeny Blackbox/configure/firewall corp/policy 1024 out> exit

Blackbox/configure> show firewall policy corp Advanced: S - Self Traffic, F - Ftp-Filter, H - Http-Filter, R - Rpc-Filter, N - Nat-Ip/Nat-Pool, L - Logging, E - Policy Enabled, M - Smtp-Filter

Pri Dir Source Addr Destination Addr Sport Dport Proto Action Advanced

--- --- ----------- ---------------- ----------------- ------ -------1021 in any any any any any DENY E 1022 out any any any any any PERMIT SE 1023 in any any any any any PERMIT SE 1024 out any any any any any PERMIT HNE

Blackbox/configure> show firewall object http-filter corp Object Name Action Log File Extensions

----------- ------ --- --------------javadeny deny no *.java Blackbox/configure>

Firewall Configuration Ex-

Step 8:Verify the firewall polic y for S ecurity Zone DMZ

Step 9: Verify th at the FTP filter objects for Security Zone DMZ are created as configured:

Step 10: Create a default route out of the WAN

Step 11:Verify the system config uration by displaying the running configuration.

Blackbox/configure> firewall dmz Blackbox/configure/firewall dmz> object Blackbox/configure/firewall dmz/object> ftp-filter putdeny deny put mkdir Blackbox/configure/firewall dmz/object> nat-pool ftpsrvr static

10.3.1.100 Blackbox/configure/firewall dmz/object> exit Blackbox/configure/firewall dmz> policy 100 in address any any

193.168.94.221 32 Blackbox/configure/firewall dmz/policy 100 in> apply-object nat-pool ftpsrvr Blackbox/configure/firewall dmz/policy 100 in> apply-object ftp-filter putdeny Blackbox/configure/firewall dmz/policy 100 in> exit Blackbox/configure/firewall dmz> exit

Blackbox/configure> show firewall policy dmz Advanced: S - Self Traffic, F - Ftp-Filter, H - Http-Filter, R - Rpc-Filter, N - Nat-Ip/Nat-Pool, L - Logging, E - Policy Enabled, M - Smtp-Filter

Pri Dir Source Addr Destination Addr Sport Dport Proto Action Advanced

--- --- ----------- ---------------- ----------------- ------ -------100 in any 193.168.94.221/32 any any any PERMIT FNE 1022 out any any any any any PERMIT SE 1023 in any any any any any PERMIT SE 1024 out any any any any any PERMIT E

Blackbox/configure> show firewall object ftp-filter dmz Object Name Action Log Commands

----------- ------ --- -------putdeny deny no put mkdir Blackbox/configure>

Blackbox/configure> ip route 0.0.0.0 0 wan Blackbox/configure>

Black Box LR11xx Series Router Configurations Guide

Blackbox/configure> show configuration running Please wait... (up to a minute)

terminal exit terminal qos exit qos module t1 1 alarms thresholds exit thresholds exit alarms linemode exit linemode exit t1 module t1 2 alarms thresholds exit thresholds exit alarms linemode exit linemode exit t1 module t1 3 alarms thresholds exit thresholds exit alarms linemode exit linemode exit t1 module t1 4 alarms thresholds exit thresholds exit alarms linemode exit linemode exit t1 aaa tacacs retries 2 time_out 5 server_port 49 exit tacacs radius exit radius exit aaa interface ethernet 0 ip address 10.2.1.1 255.255.255.0 ip multicast mode ospfrip2 exit multicast mtu 4000 icmp exit icmp

Firewall Configuration Ex-

qos exit qos vrrp_mode 0 aaa exit aaa crypto trusted exit ethernet interface ethernet 1 ip address 10.3.1.1 255.255.255.0 ip multicast mode ospfrip2 exit multicast mtu 4000 icmp exit icmp qos exit qos vrrp_mode 0 aaa exit aaa crypto trusted exit ethernet interface bundle wan link t1 1 encapsulation ppp ip address 193.168.94.220 255.255.255.0 ip multicast ospfrip2 red exit red icmp exit icmp qos exit qos aaa exit aaa crypto untrusted exit bundle interface console aaa exit aaa exit console snmp system_id Black Box enable_trap exit enable_trap exit snmp hostname Black Box log utc telnet_banner exit telnet_banner event exit event system logging no console syslog host_ipaddr 193.168.94.35 exit syslog exit logging ip load_balance per_flow

Black Box LR11xx Series Router Configurations Guide

multicast exit multicast route 0.0.0.0 0.0.0.0 wan 1 exit ip policy community_list exit community_list crypto exit crypto firewall global exit firewall firewall internet interface wan policy 1024 out self exit policy exit firewall firewall corp interface ethernet0 object http-filter javadeny deny *.java exit object policy 1021 in deny exit policy policy 1022 out self exit policy policy 1023 in self exit policy policy 1024 out nat-ip 193.168.94.220 apply-object http-filter javadeny exit policy exit firewall firewall dmz interface ethernet1 object nat-pool ftpsrvr static 10.3.1.100 10.3.1.100 ftp-filter putdeny deny put mkdir exit object policy 100 in address any any 193.168.94.221 32 apply-object ftp-filter putdeny apply-object nat-pool ftpsrvr exit policy policy 1022 out self exit policy policy 1023 in self exit policy policy 1024 out exit policy exit firewall Blackbox/configure>

Firewall Configuration Ex-

10.2.1 Stopping DoS Attacks

The following commands show how to configure the firewall to defend against Denial of Service (DoS) attacks. Black Box provides protection against FTP bounce, ICMP error checks, IP sequence number checks, unaligned timestamps, MIME flooding, source routing checks, SYN flooding, and WIN nuke attacks. To configure the firewall for protection against all of these attacks, enter:

Blackbox> config term Blackbox/configure> firewall global Blackbox/configure/firewall global> dos-protect Blackbox/configure/firewall global/dos-protect> enable-all Blackbox/configure/firewall global/dos-protect> exit 2 Blackbox/configure>

Black Box LR11xx Series Router Configurations Guide

10.2.2 Packet Reassembly

To configure the firewall to perform IP reassembly of oversized packets that have been fragmented, enter:

10.3 NAT Configurations

Network Address Translation (NAT) was defined to serve two purposes:

 Allowed LAN administrators to create secure, private, non-routable IP networks behind firewalls  Stretched the number of available IP addresses by allowing LANs to use one public (real) IP address as the gateway

with a very large pool of NAT addresses behind it.

In the most common NAT application (which is to provide secure networking behind a firewall), the device (Black Box system) that connects the user LAN to the Internet will have two IP addresses:

 A private IP address on the LAN side for the RFC 1918 address range  A public address, routable over the Internet, on the WAN side

Consider a PC on the LAN sending a packet destined for some.server.com. The source IP address and port are in the packet together with the destination IP address and port. When the packet arrives at the Black Box system it will be de-encapsulated, modified, and re-encapsulated. The re-encap sulated packet sent by the Black Box s ystem destined f or the Inter net contains the Black Box system’s public IP address, a source port allocated from its list of available ports, and the same destination IP address and port number generated by the PC. The Black Box system also adds an entry into a table it keeps, which maps the internal address and source port number that the PC generated against the port number it allocated to this session. Therefore, when some.server.com sends a reply packet to the PC, the Black Box system can quickly determine how it needs to re-write the packet before transmitting it back on to the LAN.

Dynamic NAT is used when packets destined for the Internet are transported from a LAN using the public source IP address assigned to the local router. Dynamic NAT performs this task well, but it does not permit pr oviding services to the Internet from inside a LAN which requires the use of static NAT. Static NAT also requires a public address from the upstream service provider . Ind ividual PCs within a LAN are assigned RFC 1918 res erved IP addresses to enable access to other PCs within the LAN. The Black Box system is configured with static mapping, which maps the internal RFC 1918 IP addresses for each PC to the appropriate public IP address. When traffic is sent to the public address listed in the static map ping, the Black Box system forwards the packets to the correct PC within the LAN, according to the mapping relationship established.

10.4 NAT Configuration Examples

Blackbox> config term Blackbox/configure> firewall global Blackbox/configure/firewall global> ip-reassembly Blackbox/configure/firewall global/ip-reassembly> fragment-count 100 Blackbox/configure/firewall global/ip-reassembly> fragment-size 56 Blackbox/configure/firewall global/ip-reassembly> packet-size 2048 Blackbox/configure/firewall global/ip-reassembly> timeout 20

NAT Configuration Examples

10.4.1 Dynamic NAT (many to many)

In dynamic (many-to-many) NA T type, multiple source IP addresses in the corporate network will be mapped to multiple NAT IP addresses (not necessarily of equal number). For a set of local IP address from 10.1.1.1 to 10.1.1.4 there will be a set of NAT IP address from 60.1.1.1 to 60.1.1.2. In case of many-to-many NAT, only IP address translation takes place, i.e., if a packet travels from 10.1.1.1 to yahoo.com, Black Box-Firewall only substitutes the source address in the IP header with one of the NAT IP address and the source port will be the same as the original. If traffic emanates from the same client to any other server, the same NAT IP address is assigned. The advantage is that the NAT IP addresses are utilized in a better and optimum manner dynamically.

If a NAT IP address cannot be allocated dynamically at the connection creation time, the packet would be dropped.

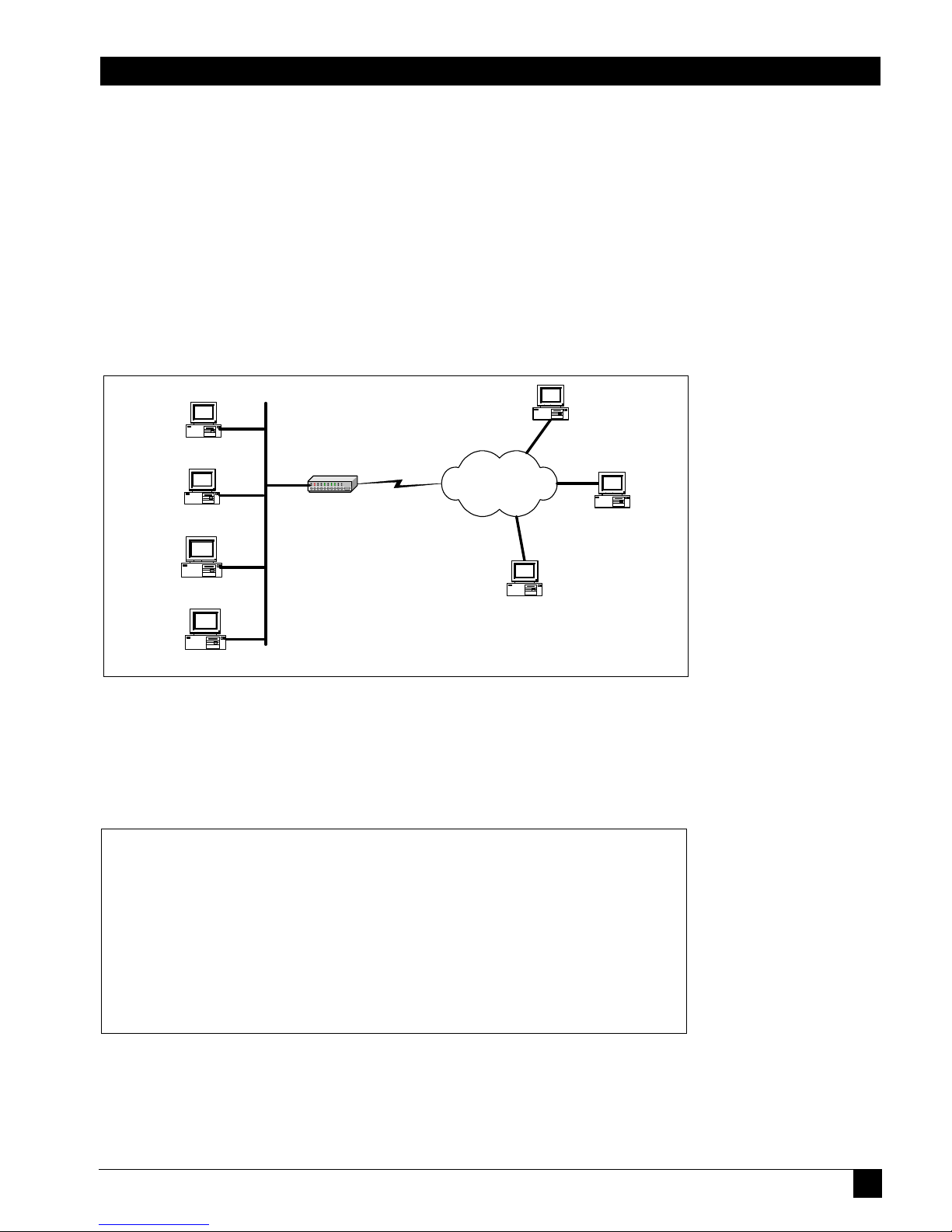

Figure 19 Dynamic NAT

The dynamic NAT configuration shown in Figure 19 includes:

 Pri v ate network address es :10.1 . 1.1 —10.1 .1.4  Public (NAT) IP address range: 60.1 .1.1—60.1. 1.2

To create NAT pool with type dynamic, specify the IP address and the NAT ending IP address.Then add a policy with the source IP address range, and attach the NAT pool to the policy.

60.1.1.1-60.1.1.2

OPAL

10.1.1.3

10.1.1.2

10.1.1.1

INTERNET

10.1.1.4

Blackbox/configure> firewall corp Blackbox/configure/firewall corp> object Blackbox/configure/firewall corp/object> nat-pool addresspoolDyna dynamic 60.1.1.1 60.1.1.2

Blackbox/configure/firewall corp/object> exit

Blackbox/configure/firewall corp> policy 8 out address 10.1.1.1

10.1.1.4 any any Blackbox/configure/firewall corp/policy 8 out> apply-object nat-pool addresspoolDyna Blackbox/configure/firewall corp/policy 8 out> exit 2 Blackbox/configure>

Black Box LR11xx Series Router Configurations Guide

10.4.2 Static NAT (one to one)

Figure 20 Static NAT

In static (one-to-one) NAT type, for each IP address in the corporate network, one NAT IP address will be used. For example, for the three IP addresses from 10.1.1.1 to 10.1. 1.3 , there is a set of three N AT IP address from 50.1.1.1 to 50. 1.1.3. In case of one-to-one NAT, only IP address translation takes place, that is, if a packet travels from 10.1.1.1 to yahoo.com, the Black Box-Firewall only substitutes the source address in the IP head er with the NAT IP address. The source port will be the same as the original.

The static NAT configuration shown in Figure 20 includes:

 Private network address:10.1.1.1—10.1.1.3  Public (NAT) IP address range: 50.1.1.1—50.1.1.3

To create NAT pool with type static, specify the IP address and the ending NAT IP address. Add a policy with source IP address range and attach NAT pool to the policy.

50.1.1.1-50.1.1.3

OPAL

10.1.1.3

10.1.1.2

10.1.1.1

INTERNET

Blackbox/configure> firewall corp Blackbox/configure/firewall corp object Blackbox/configure/firewall corp/object> nat-pool addresspoolStat static 50.1.1.1 50.1.1.3

Blackbox/configure/firewall corp/object> exit

Blackbox/configure/firewall corp> policy 7 out address 10.1.1.1

10.1.1.3 any any Blackbox/configure/firewall corp/policy 7 out> apply-object nat-pool addresspoolStat Blackbox/configure/firewall corp/policy 7 out> exit 2 Blackbox/configure>

NAT Configuration Examples

10.4.3Port Address Translation (Many to one)

Figure 21 Mapping Multiple NAT Addresses to One Public IP Address

NAT allows multiple IP addresses to be mapped to one address. There are two methods to configure Por t Addr ess T r anslation (PAT) on the Black Box gateway. In the first method, specify the

IP address to the

nat-ip parameter in the policy command. In the second method, create a pool of type PAT and then

attach it to the policy. In PAT, multiple hosts can share the same IP address. The PAT configuration shown in Figure 21 includes:

 Private network address: 10.1.1.1—10.1.1.3  PAT address: 50.1.1.5

Method:1 – Specifying NAT address with the policy command

To configure this method of PAT, add the policy with the source IP address range, then specify the nat-ip address in the

policy command:

Method:2 – Attaching nat pool to the policy

To configure the second type of NAT, create a NAT pool with type pat and specify the IP address. Then add the policy with the source IP address range. Finally, attach the NAT pool to the policy.

OPAL

50.1.1.5

INTERN ET

10.1.1.3

10.1.1.2

10.1.1.1

Blackbox/configure> firewall corp Blackbox/configure/firewall corp> policy 2 out address 10.1.1.1

10.1.1.3 any any nat-ip 50.1.1.5 Blackbox/configure/firewall corp/policy 2 out>

exit 2

Blackbox/configure>

Black Box LR11xx Series Router Configurations Guide

10.1.1.3 any any Blackbox/configure/firewall corp/policy 2 out> apply-object nat-pool addresspoolPat Blackbox/configure/firewall corp/policy 2 out> exit 2 Blackbox/configure>

ULTIPATH

ULTICAST

ONFIGURATIONS

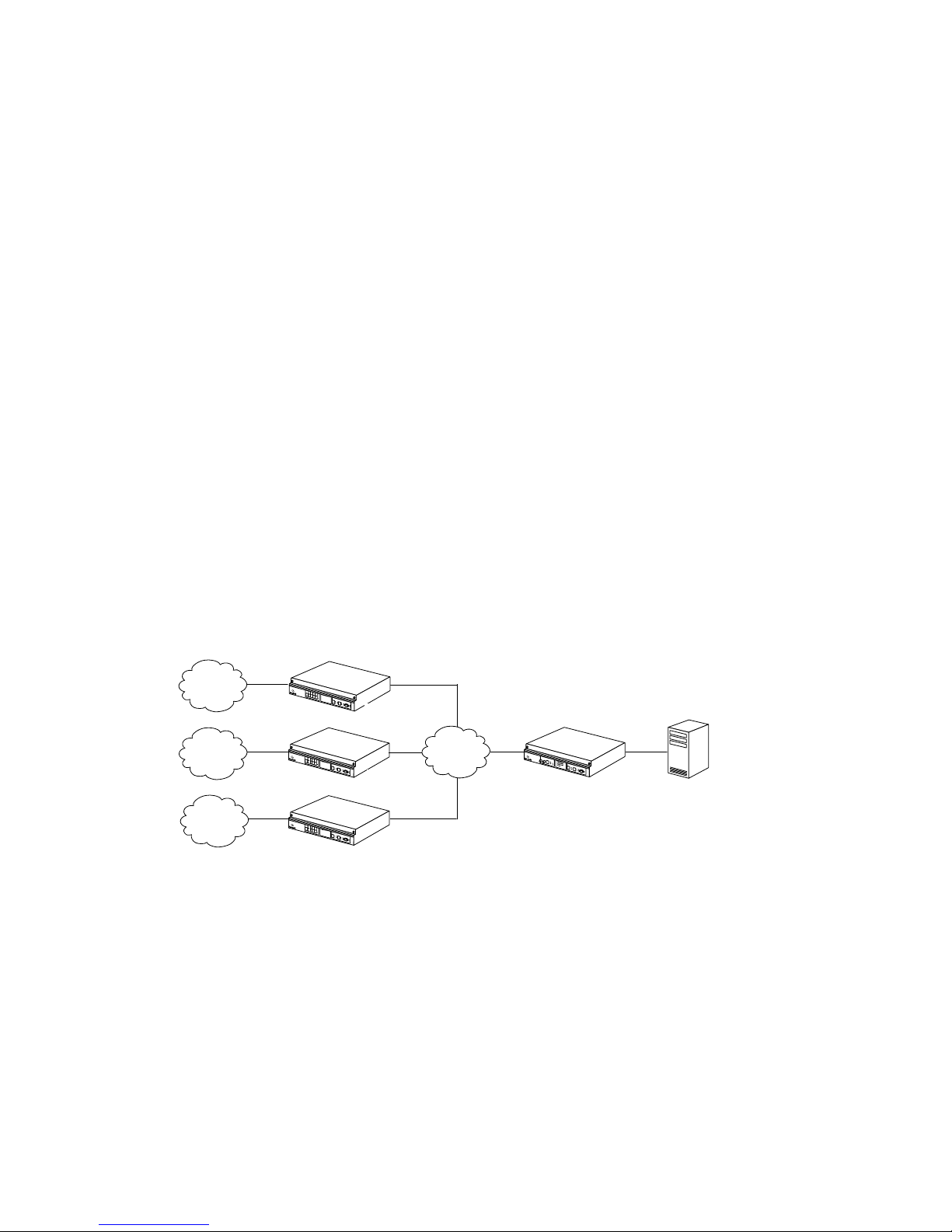

11.1Multipath Multicast

The multicast multipath feature allows load balancing on multicast traffic across equal cost paths. Equal cost multipath routing is useful when multiple equal cost routes to the same destination exist. These routes can be discovered and be used to provide load balancing among redundant paths. Commonly used methods for multipath forwarding are Round-Robin and Random. While these methods do provide a form of load balancing, but variable path MTUs, variable latencies, and debugging can limit the effectiveness of these methods.

The following methods have been developed to deal with th e load balancing limit ations of the R ound-Robin and Random methods:

 Modulo-N Hash —T o sel ect a next -hop f rom the l ist of N next-hops , the r outer perf orms a mo dulo -N hash over

the packet header fields that identify a flow.”

 Hash-Threshold—The router first selects a key by performing a hash over the packet header fields that identify

the flow . The N next-h ops have been assigned un ique regions in the hash functions output space. By comparing the hash value against region boundaries the router can determine which region the hash value belongs to and thus which next-hop to use.

 H ighe st Ra ndom W e ight (HRW)—The router computes a key f or each next-hop by performin g a hash over the

packet header fields that identify the flow, as well as over the address of the next-hop. The router then chooses the next-hop with the highest resulting key value.

The Round-Robin and Random methods are disruptive by design (that is, if there is no change to the set of next-hops, the path a flow takes changes every time). Modulo-N, Hash Threshold, and HRW are not disruptive.

RFC 2991 recommends to use HRW method to select the next-hop for multicast packet forwarding. or this reason, Black Box-only scenarios apply the HRW method as the default. This is similar to the Cisco Systems IPv6 multicas t multipath implementation.

Black Box LR11xx Series Router Configurations Guide

11.2Multipath Commands

The following table lists the multipath commands:

When multipath is disabled, Black Box selects the nexthop address with lowest ip address. For equal cost routes the nexthops are stored in the increasing (ascending) order of IP address. show ip rpf command displays the selected path, based on the configured multipath method and the nexthops of the best rout e to the IP address p a ssed.

11.2.1Multipath Examples

The following examples illustrate how the multicast commands are used:

The following command enables compatibility between the Black Box router and equipment running Cisco IOS.

Blackbox/configure/ip/multicast> multipath mode cisco Blackbox/configure/ip/multicast>

The following command enables HRW compatibility.

Blackbox/configure/ip/multicast> multipath Blackbox/configure/ip/multicast>

The followi ng example shows how to see the re ve rse path forwa r ding informati on for the RP at 201.1.1.99:

Blackbox> show ip rpf 201.1.1.99

Task Command

Enabling HRW method Blackbox/configure/ip/multicast> multipath Enabling Cisco method Blackbox/configure/ip/multicast> multipath cisco Disabling Multipath Blackbox/configure/ip/multicast> no multipath

Blackbox/configure/ip/multicast> no multipath cisco

Display RPF selection Blackbox>show ip rpf <addr>

<addr> - source or RP address

ONFIGURING

NAT

12.1Network Address Translation

Network Address Translation (RFC 163 1) i s com mon ly k nown as N AT. This application discuss es NAT and provides a technical explanation and configuration examples.

Features:

 Dynamic Address/Port Translation  Static Address/Port Translation  Forward and Reverse NAT  Non-Translated Address Pass Through

In the most common NAT application, the device (Black Box system) that connects the user LAN to the Internet will have two IP addresses:

 A private IP address on the LAN side for the RFC 1918 address range  A public address, routable over the Internet, on the WAN si de

Consider a PC on the LAN sending a packet destined for some.server.com. The source IP address and port are in the packet together with the destination IP address and port. When the packet arrives at the Black Box system it will b e de-encapsulated, modified, and re-encapsulated. Th e re-en caps ulated pa cket sen t by th e Black Box system des tined fo r the Internet contains the Black Box system’s public IP address, a source port allocated from its list of available ports, and the same destination IP address and port number generated by the PC. The Black Box system also adds an entry into a table it keeps, which maps the internal address and source port number that the PC generated against the port number it allocated to this session. Therefore, when some.server.com sends a reply packet to the PC, the Black Box system can quickly determine how it needs to re-write the packet before transmitting it back on to the LAN.

12.1.1 Dynamic NAT

12.1.2 Static NAT

Static NAT also requires a public address from the upstream service provider. Individual PCs within a LAN are assigned RFC 1918 reserved IP addresses to enable access to other PCs within the LAN. The Black Box system is configured with static mapping, which maps the internal RFC 1918 IP addresses for each PC to the appropriate public IP address. Then when traffic is sent to the public address listed in the static mapping, the Black Box system forwards the packets to the correct PC within the LAN, according to the mapping relationship established.

Black Box LR11xx Series Router Configurations Guide

Figure 22 illustrates dynamic and static NAT. The static translation between 192.168.1.6 and 100.1.1.6 automatically matches the port addresses, thus a request destined for 100.1.1.6 tcp port 25 is translated to

192.168.1.6 tcp port 25 and so on.

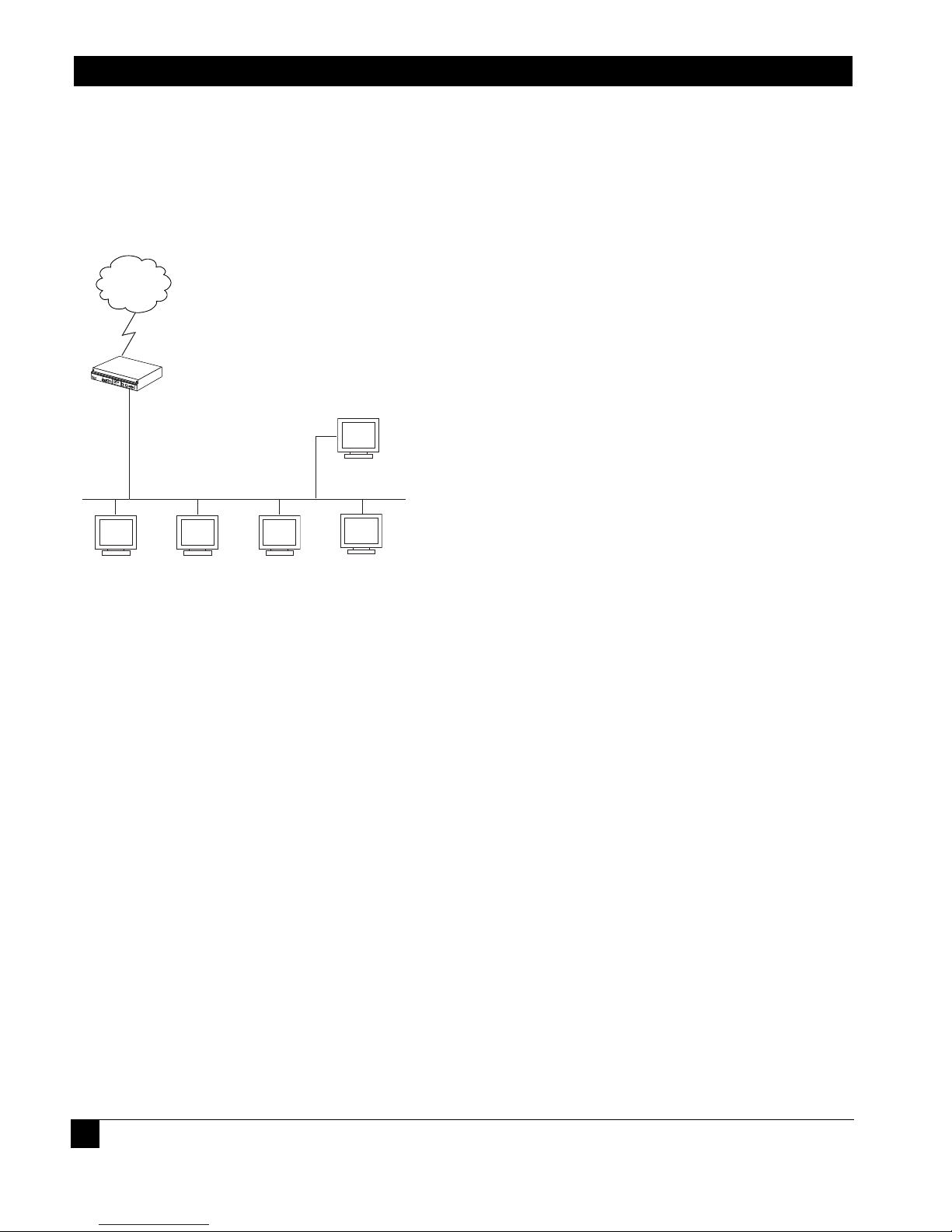

Figure 22 Dynamic and Static NAT

12.1.3Configuration for Figure 1

Blackbox> configure terminal Blackbox/configure> interface bundle Trenton Blackbox/configure/interface/bundle Trenton> nat Blackbox/configure/interface/bundle Trenton/nat> enable dynamic Blackbox/configure/interface/bundle Trenton/nat> enable static Blackbox/configure/interface/bundle Trenton/nat> address 192.168.1.6 100.1.1.6

Internet

Workstation

192.168.1.1/24

Workstation

192.168.1.2/24

Workstation

192.168.1.3/24

Workstation

192.168.1.5/24

FTP, SMTP, HTTP Serve

192.168.1.6/24

10/100 BaseT Ethernet

100.1.1.1/29

192.168.1.254/24

Network Address Translation

Figure 23 provides an example of st atic po rt map ping. TC P por t 81 of the web server at private address 192.168.1.6 is mapped to the same TCP port of the public address.

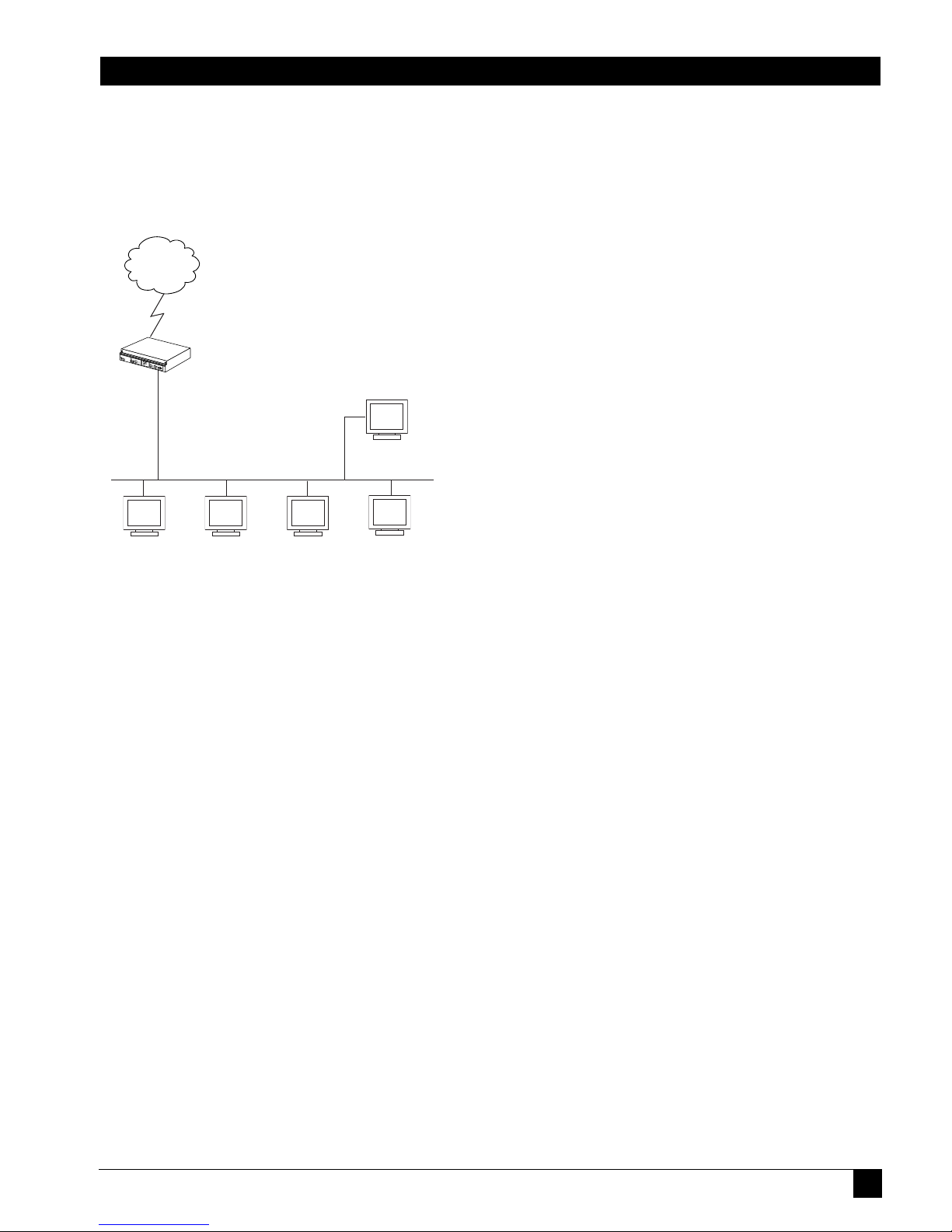

Figure 23 Mapping Ports

12.1.4Configuration for Figure 2

12.1.5Reverse NAT

Reverse NAT could be used in a situation where one LAN is using private RFC 1918 IP addresses and a second LAN is using “real” Internet routable IP addresses. Figure 24 illustrates how reverse NAT would be applied.

Internet

Workstation

192.168.1.1/24

Workstation

192.168.1.2/24

Workstation

192.168.1.3/24

Workstation

192.168.1.5/24

FTP, SMTP, HTTP Server

192.168.1.6/24

10/100 BaseT Ethernet

100.1.1.1/29

192.168.1.254/24

www server is runnin

on TCP port 81

Black Box LR11xx Series Router Configurations Guide

Figure 24 Reverse NAT

12.1.6 Configuration for Figure 3

Blackbox> configure terminal Blackbox/configure> interface ethernet 0 Blackbox/configure/interface/ethernet0> nat Blackbox/configure/interface/ethernet0/nat> reverse Blackbox/configure/interface/ethernet0/nat> ip 100.1.1.1 Blackbox/configure/interface/ethernet0/nat> enable dynamic Blackbox/configure/interface/ethernet0/nat> enable static Blackbox/configure/interface/ethernet0/nat> port tcp 100.1.1.6 25 192.168.1.6 25 Blackbox/configure/interface/ethernet0/nat> port tcp 100.1.1.6 81 192.168.1.6 81 Blackbox/configure/interface/ethernet0/nat> port tcp 100.1.1.6 21 192.168.1.6 21

Internet

Workstation

192.168.1.1/24

Workstation

192.168.1.2/24

Workstation

192.168.1.3/24

Workstation

192.168.1.5/24

FTP, SMTP, HTTP Server

192.168.1.6/24

10/100 BaseT Ethernet

100.1.1.1/29

www server is runnin

on TCP port 81

Ethernet 1

199.7.3.2/24

Ethernet 0

192.168.1.254/24

FTP, SMTP, HTTP Server

199.7.3.2/24

NAT C

ONFIGURATION

XAMPLES

13.1 NAT Configurations

Network Address Translation (NAT) was defined to serve two purposes:

 Allo wed LAN adm ini str a tors to create secure, private, non-routable IP networks behind firewalls  Stretched the number of available IP address es b y allowing LANs to use on e public (real) IP address as the gateway

with a very large pool of NAT addresses behind it. In the most common NAT application (which is to provide secu re network ing behi nd a fire wall), th e device (Bl ack Box system) that connects the user LAN to the Internet will have two IP addresses:

 A private IP address on the LAN side for the RFC 1918 address range  A public address, routable over the Internet, on the WAN si de

Consider a PC on the LAN sending a packet destined for some.server.com. The source IP address and port are in the packet together with the destination IP address and port. When the packet arrives at the Black Box system it will b e de-encapsulated, modified, and re-encapsulated. Th e re-en caps ulated pa cket sen t by th e Black Box system des tined fo r the Internet contains the Black Box system’s public IP address, a source port allocated from its list of available ports, and the same destination IP address and port number generated by the PC. The Black Box system also adds an entry into a table it keeps, which maps the internal address and source port number that the PC generated against the port number it allocated to this session. Therefore, when some.server.com sends a reply packet to the PC, the Black Box system can quickly determine how it needs to re-write the packet before transmitting it back on to the LAN.

Dynamic NAT is used when packets destined for the Internet are transported from a LAN using the public source IP address assigned to the local router. Dynamic NAT performs this task well, but it does not permit providing services to the Internet from inside a LAN which requires the use of static NAT. Static NAT also requires a public address from the upstream service provider . Ind ividual PCs within a LAN are assigned RFC 1918 reserved IP add resses to enab le acces s to other PCs within the LAN. The Black Box system is configured with static mapping, which maps the internal RFC 1918 IP addresses for each PC to the appropriate public IP address. When traffic is sent to the public address listed in the static mapping, the Black Box system forwards the packets to the correct PC within the LAN, according to the mapping re l ationship es tablished.

13.1 NAT Configuration Examples

13.1.1Dynamic NAT (many to many)

Black Box LR11xx Series Router Configurations Guide

translation takes place, i.e., if a packet travels from 10.1.1.1 to yahoo.com, Black Box-Firewall only substitutes the source address in the IP header with one of the NAT IP address and the source port will be the same as the original. If traffic emanates from the same client to any other server, the same NAT IP address is assigned. The advantage is that the NAT IP addresses are utilized in a better and optimum manner dynamically.

If a NAT IP address cannot be allocated dynamically at the connection creation time, the packet would be dropped.

Figure 25 Dynamic NAT

The dynamic NAT configuration shown in Figure 25 includes:

 Private network addresses:10.1.1.1—10.1.1.4  Public (NAT) IP address range: 60.1.1.1—60.1.1.2

To create NAT pool with type dynamic, specify the IP address and the NAT ending IP address.Then add a policy with the source IP address range, and attach the NAT pool to the policy.

Blackbox/configure> firewall corp Blackbox/configure/firewall corp> object Blackbox/configure/firewall corp/object> nat-pool addresspoolDyna dynamic

60.1.1.1 60.1.1.2

Blackbox/configure/firewall corp/object> exit

Blackbox/configure/firewall corp> policy 8 out address 10.1.1.1 10.1.1.4 any any Blackbox/configure/firewall corp/policy 8 out> apply-object nat-pool

addresspoolDyna

Blackbox/configure/firewall corp/policy 8 out> exit 2 Blackbox/configure>

60.1.1.1-60.1.1.2

OPAL

10.1.1.3

10.1.1.2

10.1.1.1

INTERNET

10.1.1.4

NAT Configuration Examples

13.1.2Static NAT (one to one)

Figure 26 Static NAT

In static (one-to-one) NAT type, for each IP address in the corporate network, one NAT IP address will be used. For example, for the three IP addresses from 10.1.1. 1 to 10 .1. 1.3, th ere is a set of t h ree NAT IP address from 50.1.1.1 t o 50.1 .1.3 . In case of one-to-one NAT, only IP address translation takes place, that is, if a packet travels from 10.1.1.1 to yahoo.com, the Black Box-Firewall only substitutes the source address in the IP header with the NA T IP address. The source port will be the same as the original.

The static NAT configuration shown in Figure 26 includes:

 Private network address:10.1.1.1—10.1.1.3  Public (NAT) IP address range: 50.1.1.1—50. 1.1.3

To create NAT pool with type static, specify the IP address and the ending NAT IP address. Add a policy with source IP address range and attach NAT pool to the policy.

Blackbox/configure> firewall corp Blackbox/configure/firewall corp object Blackbox/configure/firewall corp/object> nat-pool addresspoolStat static 50.1.1.1

50.1.1.3

Blackbox/configure/firewall corp/object> exit

Blackbox/configure/firewall corp> policy 7 out address 10.1.1.1 10.1.1.3 any any Blackbox/configure/firewall corp/policy 7 out> apply-object nat-pool addresspoolStat Blackbox/configure/firewall corp/policy 7 out> exit 2 Blackbox/configure>

50.1.1.1-50.1.1.3

OPAL

10.1.1.3

10.1.1.2

10.1.1.1

INTERNET

Black Box LR11xx Series Router Configurations Guide

13.1.3Port Address Translation (Many to one)

Figure 27 Mapping Multiple NAT Addresses to One Public IP Address

NAT allows multiple IP addresses to be mapped to one address. There are two methods to configure Port Address T r anslation (PAT) on the Black Box gateway. In the first method, specify the

IP address to the

nat-ip parameter in the policy command. In the second method, create a pool of type PAT and then

attach it to the policy. In PAT, multiple hosts can share the same IP address. The PAT configuration shown in Figure 27 includes:

 Private network address: 10.1.1.1—10.1.1.3  PAT address: 50.1.1.5

Method:1 – Specifying NAT addr ess with the policy command

To configure this method of PAT, add the policy with the source IP address range, then specify the nat-ip address in the

policy command.

Blackbox/configure> firewall corp Blackbox/configure/firewall corp> policy 2 out address 10.1.1.1 10.1.1.3 any any nat-ip

50.1.1.5

Blackbox/configure/firewall corp/policy 2 out>

exit 2

Blackbox/configure>

Method:2 – Attaching nat pool to the policy

To configure the second type of NAT, create a NAT pool with type pat and specify the IP address. Then add the policy with the source IP address range. Finally, attach the NAT pool to the policy.

Blackbox/configure> firewall corp Blackbox/configure/firewall corp> object Blackbox/configure/firewall corp/object> nat-pool addresspoolPat pat 50.1.1.5 Blackbox/configure/firewall corp/object> exit Blackbox/configure/firewall corp> policy 2 out address 10.1.1.1 10.1.1.3 any any Blackbox/configure/firewall corp/policy 2 out> apply-object nat-pool addresspoolPat Blackbox/configure/firewall corp/policy 2 out> exit 2 Blackbox/configure>

OPAL

50.1.1.5

INTERN ET

10.1.1.3

10.1.1.2

10.1.1.1

EMOTE

CCESS

VPN

14.1 Secure Remo te Access Using IPSec VPN

The corporate network no longer has a clearly defined perimeter inside secure building and locked equipment closets. Increasingly, companies have a need to provide remote access to their corporate resources for the employees on the move.

Traditionally, remote users could access the corporate LAN through dial-up and ISDN lines which were terminated in the corporate remote access servers. However, these point-to-point connection technologies do not scale well to the growing number of remote users and the corresponding increase in the infrastructure investments and maintenance costs.

A solution to meeting the needs of increasing numbers of remote users and for controlling access costs is to provide remote access through the Internet using firewalls and a Virtual Private Network (VPN). Internet Protocol Security (IPSec) keeps the connection safe from unauthorized users.

In a typical IPSec remote access scenario, the mobile user has connectivity to Internet and an IPSec VPN client loaded on their PC. The remote user connects to the Internet through their Internet service provider and then init iates a VPN connection to the IPSec security gateway (the VPN server) of the corporate office, which is typically an always-on Internet connection.

One of the main limitations in providing remote access is the typical r emote u ser con nects with a d ynamically assigned IP address provided by the ISP. IPSec uses the IP address of users as an index to apply the Internet Key Exchange (IKE) and IPSec policies to be used for negotiation with each peer. When the VPN client has a dynamic IP address, the VPN server cannot access the policies based on the IP address of the client. Instead, the VPN server uses the identity of the VPN client to access the policies.

14.2 Access Methods

Black Box supports two types of IPSec remote access using VPNs.

14.2.1 Remote Access: User Group

One of the methods to achieve IPSec remote access in Black Box is the user group method. In this method, the administrator creates an IKE policy for a logical group of users such as a department in an organization. Each user in the group is identified with unique information that is uniquely configured in the IKE policy . Also, an IPSec template is attached to the user group.

Once the VPN user is authenticated using IKE, the users dynamically-assigned IP address is added to the destination address field in the IPSec template attached to the user group. The VPN user now has the required IPSec policy that allows access through the gateway to the corporate LAN.

Black Box LR11xx Series Router Configurations Guide

14.2.2 Remote Access: Mode Configuration

The other method to achieve IPSec remote access in Black Box is the mode configuration method. This method makes the VPN client an extension of the LAN being accessed by the VPN client. The remote client

appears as a network accessing some resource behind the VPN server. The VPN client is allocated a private IP address by the VPN server and the client uses this a s the source IP address

in the inner IP header in tunnel mode. In tunnel mode, at each IKE end point, the IP traffic to be protected is completely encapsulated with another IP

packet. In this, the inner IP header remains the same as seen in the original traffic to be protected. In the outer IP header, the source and destination addresses are the addresses of the tunnel end points.

Ty pically, for a remote user, the source addres s of the outer IP header is the dynamic public IP address prov ided by the ISP. When mode configuration is enabled, the source address of the inner IP header is the private address allocated by the VPN server to the VPN client.

As in the case of user group method, the administrator creates an IKE policy for a logical group of users such as a department in an organization. The identity information used to identify each user uniquely is configured in the IKE policy. Th e I KE po licy is attach ed to a mode configuration record. The mode conf iguration r ecord co ntains an IPSec policy template to be used for creati ng dynamic IP Sec policy. Also, the record contains one or more pools of private IP addresses to be used for allocating the addresses to the VPN clients. Besides the private IP address, the VPN server can also provide WINS and DNS server addresses.

Upon successful IKE authentication of a VPN client, the server checks whether th e IKE policy used to au thenticate the VPN client is enabled for mode configuration. If so, the server allocates a private IP address from one of the IP pools in the mode configuration record to the VPN client. The destination address field in the IPSec template attached to the user group is filled in with the private IP address allocated to the VPN client and this is installed as an IPSec policy.

14.3 Configuration Examples

The following examples illustrate configurations for creating secure remote VPN access to:

 An individual SNMP user managing the gateway (user group method)  Th e corp orate LAN fo r multiple users (mode configuration method)

14.4 IPSec Remote Access User Group Method – Single Proposal, Pre-shared Key Authentication

The following example demonstrat es how to manage th e Black Box gateway from a s ecure VPN managemen t host. An application would look like a hos t in a remote site is interested in managi ng Black Box router us ing SNMP. But the remote host is interested in doing securely. The SNMP response that is generated in Black Box router for a request from the management host is called self-generated traffic.

The Black Box gateway provides a map called

Self for self-generated traffic. This map is created automatically

when the gateway comes up. The security requirements for the management tunnel are:

 3 DES with SHA1,Pre-shared key authentication, XAuth  IPSec ESP with AES128 and HMAC-SHA1

IPSec Remote Access User

Figure 28 User Group Remote Access Configuration

To create the user group configuration enter:

Blackbox>configure term Blackbox/configure>interface bundle wan Blackbox/configure/interface/bundle wan>link t1 1-2 Blackbox/configure/interface/bundle wan>ip address 172.16.0.1 32

Blackbox/configure/interface/bundle wan>crypto internet

To configure the IKE policy for negotiating with the remote VPN client needing access (note that the IKE and IPSec policies for management (self) tunnel need to be defined in the “Self” map):

Blackbox/configure>crypto Self Blackbox/configure/crypto>dynamic Blackbox/configure/crypto/dynamic>ike policy admin user-group

Blackbox/configure/crypto/dynamic/ike/policy admin>local-address 172.16.0.1

Blackbox/configure/crypto/dynamic/ike/policy admin>remote-id email-id sampledata Black Boxuser

Blackbox/configure/crypto/dynamic/ike/policy admin>key pskforadminuser

Blackbox/configure/crypto/dynamic/ike/policy admin>proposal 1

Blackbox/configure/crypto/dynamic/ike/policy admin/proposal 1>encryption-algorithm 3des-cbc

Blackbox/configure/crypto/dynamic/ike/policy admin/proposal 1>client authentication radius

To configure the IPSec policy for negotiating with VPN client needing access to the security gateway.

Blackbox/configure/crypto/dynamic>ipsec policy admin user-group Blackbox/configure/crypto/dynamic/ipsec/policy admin>match address 172.16.0.1 32 Blackbox/configure/crypto/dynamic/ipsec/policy admin> proposal 1 Blackbox/configure/crypto/dynamic/ipsec/policy admin/proposal 1>encryption-algorithm

aes128-cbc

1. error message saying Bundle is not yet encapped.

Tasman #1

VPN Server

172.16.0.1

VPN Client 2

Local O ut er Address:

Dynamic

Local ID:

admin@tasmannetworks

.com

Black Box

blackbox.com

Black Box LR11xx Series Router Configurations Guide

14.5 IPSec Remote Access Mode Configuration Group

Method

The following example demonstrates how to configure a Black Box router to be an IPSec VPN server using mode-configuration method. The client could be any standard mode config enabled IPSec VPN client.

In this example, the client needs to access the corporate private network 10.0 .1. 0/24 through the VPN tunnel. The server has a pool of IP addresses from 20 .1.1.100 thr ough 20.1.1 .150 to be allocated fo r mode config enab led VPN clients. The assigned IP address is used by the VPN client as the source address in the inner IP header. The outer IP header will carry the dynamic IP address assigned by the Internet Service Provider as the source address. The security requirements are as follows:

3DES with SHA1, Mode Config IPSec ESP tunnel with AES256 and HMAC-SHA1

Figure 29 Configuration Mode Remote Access Configuration

To configure the VPN gateway:

Blackbox>configure term Blackbox/configure>interface ethernet 1 Blackbox/configure/interface/ethernet 1>ip address 10.0.1.1 24 Blackbox/configure/interface/ethernet 1>crypto corp

Blackbox/configure> interface bundle wan Blackbox/configure/interface/bundle wan>link t1 1-2 Blackbox/configure/interface/bundle wan>ip address 172.16.0.1 32

Blackbox/configure/interface/bundle wan>crypto internet

Tasman #1

VPN Server

172.16.0.1

Mode Config IP

Pool:

10.0.1.100-

10.0.1.150

Corporate

Headquarters

10.0.1.0/24

VPN Client 1

Local Outer Address:

Dynamic

Local In ner Assigned

Address: 10.0.1.100/32

Local ID:

david@tasmannetworks.

com

VPN Client 2

Local Outer Address:

Dynamic

Local In ner Assigned

Address: 10.0.1.101/ 32

Local ID:

mike@tasmannetworks.

com

david@blackbox.com

mike@blackbox.com

Black box 1

IPSec Remote Access Mode Con-

To configure the IKE policy for negotiating with VPN clients needing access to the corporate private network 10.0.1.0.

Blackbox/configure>crypto corp Blackbox/configure/crypto>dynamic Blackbox/configure/crypto/dynamic>ike policy IDCsales modecfg-group

Blackbox/configure/crypto/dynamic/ike/policy IDCsales>modeconfig-group Blackbox/configure/crypto/dynamic/ike/policy IDCsales>local-address 172.16.0.1 To configure the user name (optional) for remote-id: Blackbox/configure/crypto/dynamic/ike/policy IDCsales>remote-id email-id sampledata

david@Blackbox.com Blackbox/configure/crypto/dynamic/ike/policy IDCsales>remote-id email-id sampledata

mike@Blackbox.com

Blackbox/configure/crypto/dynamic/ike/policy IDCsales>key pskforsalesusers Blackbox/configure/crypto/dynamic/ike/policy IDCsales>proposal 1 Blackbox/configure/crypto/dynamic/ike/policy IDCsales>encryption-algorithm 3des-cbc Blackbox/configure/crypto/dynamic/ike/policy IDCsales>exit Blackbox/configure/crypto/dynamic>client configuration # configure address pool for modecfg client address-pool 1 20.1.1.100 20.1.1.150

To configure the IPSec policy for negotiating with VPN clients needing access to the corporate private network 10.0.1.0.

Blackbox/configure/crypto/dynamic>ipsec policy IDCsales Blackbox/configure/crypto/dynamic/ipsec/policy IDCSales>match address 10.0.1.0 24 Blackbox/configure/crypto/dynamic/ipsec/policy IDCSales>proposal 1 Blackbox/configure/crypto/dynamic/ipsec/policy IDCSales/proposal 1>encryption-algorithm

aes256-cbc

1. Bundle must be encapsulated first steps TBC.

Black Box LR11xx Series Router Configurations Guide

ETWORKING

WITH

OUTING

NFORMATION

ROTOCOL

15.1Routing Informat ion Protocol

15.1.1Configuring RIP for Ethernet 0 and WAN 1 Interfaces

LR1114A> configure terminal LR1114A/configure> router rip LR1114A/configure/router rip> interface ethernet0 LR1114A/configure/router rip/interface ethernet0> exit LR1114A/configure/router rip> interface wan1 LR1114A/configure/router rip> exit

15.1.2Displaying RIP Configuration

Execute show ip rip global to display RIP configuration information

Figure 30 show ip rip global Command

15.1.3Displaying All Configured RIP Interfaces

Execute show ip rip interface all to display information about all configured RIP interfaces.

> show ip rip global Router RIP is enabled Mode: RIP 2 Distance: 100 Default Metric: 1 Timers: Update: 30 seconds Holddown: 120 seconds Flush: 180 seconds

Black Box LR11xx Series Router Configurations Guide

Figure 31 show ip rip interface all Command

> show ip rip interface all RIP is configured for interface <ethernet0> Mode: RIP 2 Metric: 5 Authentication: None Split Horizon: Poison Routers : None Interface state: Broadcast Multicast Active

ONFIGURING

TATIC

OUTES

16.1 Static Routing Configuration

All Black Box systems support IP routing utilizing static routes. The following diagram shows a remote Black B ox “A” connected over an MLPPP bundle to the main Black Box “B”. Black Box B in turn routes to the customer router.

Figure 32 IP Routing

The customer router Ethernet 0 IP address is 200.1.1.1 255.255.255.0, and the IP route is 198.1.1.0 255.255.255.0

200.1.1.2 2.

Internet

200.1.1.1/24 E0

2 x T1 MLPPP Bundle "WAN1

10.1.1.1/30

198.1.1.1/24

10.1.1.2/30

200.1.1.2/24

Tasman 1400 "B"

Tasman 1400 "A

WAN

LR1114A

Black Box LR11xx Series Router Configurations Guide

16.1.1Configure the Router at Site “A”

Blackbox> configure term Blackbox/configure> interface ethernet 0 Blackbox/configure/interface/ethernet> ip addr 198.1.1.1 255.255.255.0 Blackbox/configure/interface/ethernet> exit

Blackbox/configure> interface bundle wan1 Blackbox/configure/interface/bundle> link t1 1-2 Blackbox/configure/interface/bundle> encap ppp Blackbox/configure/interface/bundle> ip addr 10.1.1.1 255.255.255.252 Blackbox/configure/interface/bundle> exit

Blackbox/configure> ip routing Blackbox/configure> ip route 0.0.0.0 0.0.0.0 10.1.1.2 1

16.1.2Configure the Router at site “B”

Blackbox> configure term Blackbox/configure> interface ethernet 0 Blackbox/configure/interface/ethernet> ip addr 200.1.1.2 255.255.255.0 Blackbox/configure/interface/ethernet> exit

Blackbox/configure> interface bundle wan 1 Blackbox/configure/interface/bundle> link t1 1-2 Blackbox/configure/interface/bundle> encapp ppp Blackbox/configure/interface/bundle> ip addr 10.1.1.2 255.255.255.252 Blackbox/configure/interface/bundle> exit

Blackbox/configure> ip routing Blackbox/configure> ip route 198.1.1.0 255.255.255.0 10.1.1.1 1 Blackbox/configure> ip route 0.0.0.0 0.0.0.0 200.1.1.1 1 Blackbox/configure> exit

ONFIGURING

PEN

HORTEST

ATH

IRST

OUTING

17.1 OSPF Routing Protocol

The following example shows a Black Box LR1114A connected to a router over a single T1 link. IP addresses 10.10.10.0,

20.20.20.0, and 30.30.30.0 are assigned to area 760.

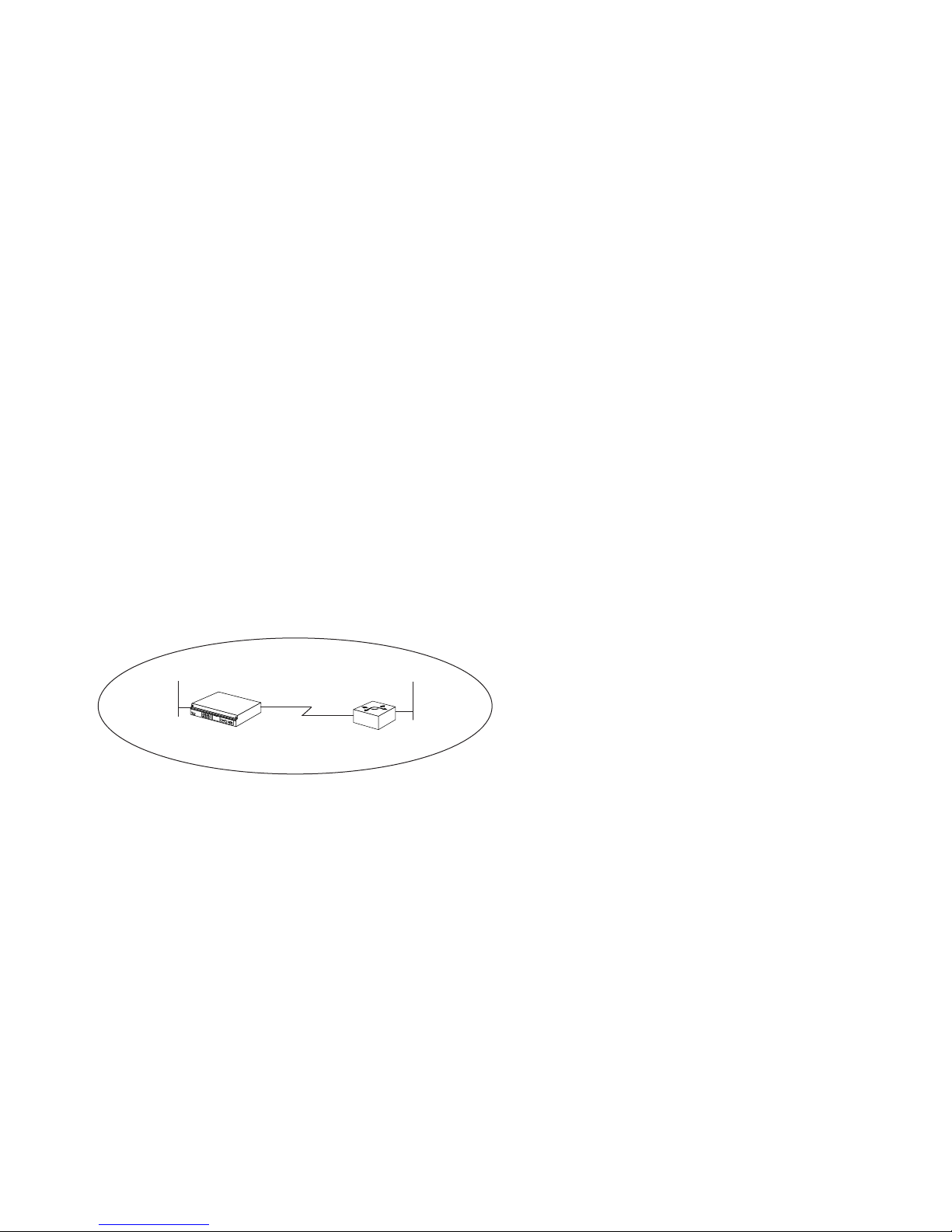

Figure 33 Configuring OSPF Between a Black Box LR1114A System and a Router

17.1.1Configuring the host name

Blackbox> configure terminal Blackbox/configure> hostname LR1114A

17.1.2Configuring interface ethernet 0

LR1114A/configure> interface ethernet 0 LR1114A/configure/interface/ethernet 0> ip address 10.10.10.1 24 LR1114A/configure/interface/ethernet 0> exit

17.1.3Configuring interface bundle Dallas

LR1114A/configure> interface bundle Dallas LR1114A/configure/interface/bundle Dallas> link t1 1 LR1114A/configure/interface/bundle Dallas> encapsulation ppp LR1114A/configure/interface/bundle Dallas> ip address 20.20.20.1 24 LR1114A/configure/interface/bundle Dallas> exit

Tiara 1400

Router

20.20.20.0/24

30.30.30.0/2410.10.10.0/24

Area 760

.1 T1 PPP

LR1114A

Black Box LR11xx Series Router Configurations Guide

100

17.1.4Configuring ospf

LR1114A/configure> router routerid 10.10.10.1 LR1114A/configure> router ospf LR1114A/configure/router/ospf> area 760 LR1114A/configure/router/ospf/area 760> exit

17.1.5Configuring ospf interface parameters

LR1114A/configure/router/ospf> interface Dallas area_id 760 LR1114A/configure/router/ospf/interface Dallas> exit LR1114A/configure/router/ospf> interface ethernet0 area_id 760 LR1114A/configure/router/ospf/interface ethernet0> exit 3

17.1.6Displaying neighbors

Note that “display” and “show” can be used interchangeably in the CLI tree hierarchy. Execute show ip ospf neighbor list on the Black Box LR1114A to display the neighbor information. In this example, the

state is in FULL adjacency with the router.

Figure 34 show ip ospf neighbor list Command

17.1.7Displaying ospf routes

Execute show ip ospf routes on the Black Box LR1114A to display the OSPF routes learned from neighbors. The following display sho ws t h e route 30.30.30.0/24, which was l earn e d through OSPF from the router adver tis ements .

Figure 35 show ip ospf routes Command

The metric shows a value of 2. By default, Black Box assigns a cost value of 1 to all interfaces. The cost can be changed by entering it under the appropriate interface in the OSPF command tree structure. For example:

LR1114A/configure> router ospf LR1114A/configure/router/ospf> interface Dallas area_id 760 LR1114A/configure/router/ospf/interface/Dallas> cost 10 LR1114A/configure/router/ospf/interface/Dallas> exit 3

This would change the cost of bundle link Dallas from default (1) to 10. If the interf ace is already configured , then entering area_id 760 is optional.

17.1.8Displaying IP routes

Execute show ip routes to display all the active routes in the routing table.

LR1114A> show ip ospf neighbor list

Neighbor ID PRI State Dead Time Address Interface

----------- --- ----- --------- ------- ---------

30.30.30.1 1 FULL/ - 00:00:30 20.20.20.2 TMan1

LR1114A> show ip ospf routes

OSFP ROUTE TABLE

Codes: A - OSPF intra area IA - OSPF inter area, E1 - OSPF external type 1, E2 - OSPF external type 2

Destination Gateway Interface Protocol Type Metric Preference

----------- ------- --------- -------- ---- ------

----------

ONFIGURING

ENERIC

OUTING

NCAPSULATION

18.1 Configuring GRE

Generic Routing Encapsulation (GRE) is a standards-based (RFC1701, RFC2784) tunneling protocol that can encapsulate a wide variety of protocol packet types inside IP tunnels, creating a virtual point-to-point link between routers at remote points over an IP network. A tunnel is a logical interface that provides a way to en capsulate passenger packets inside a transport protocol. By connecting multiprotocol subnetwor ks in a sing le- pro tocol b ackbone environment, IP tunneling using GRE allows network expansion across a single-protocol backbone environment.

IPSec and GRE complement each other well, while IPSec provides a secure method of transporting data across the internet GRE provides the capability to transport routing protocols (for example: OSPF) that use broadcast and multicast.

18.2 Installing Licenses

There are three licenses that control access to the features:

Basic VPN and Firewall licenses. Use this license to access the GRE features in this release.

To see the licenses available in this release, enter:

Black Box LR11xx Series Router Configurations Guide

102

To install the advanced VPN and firewall license and use all the security features available in this release, enter:

18.3 GRE Configuration Examples

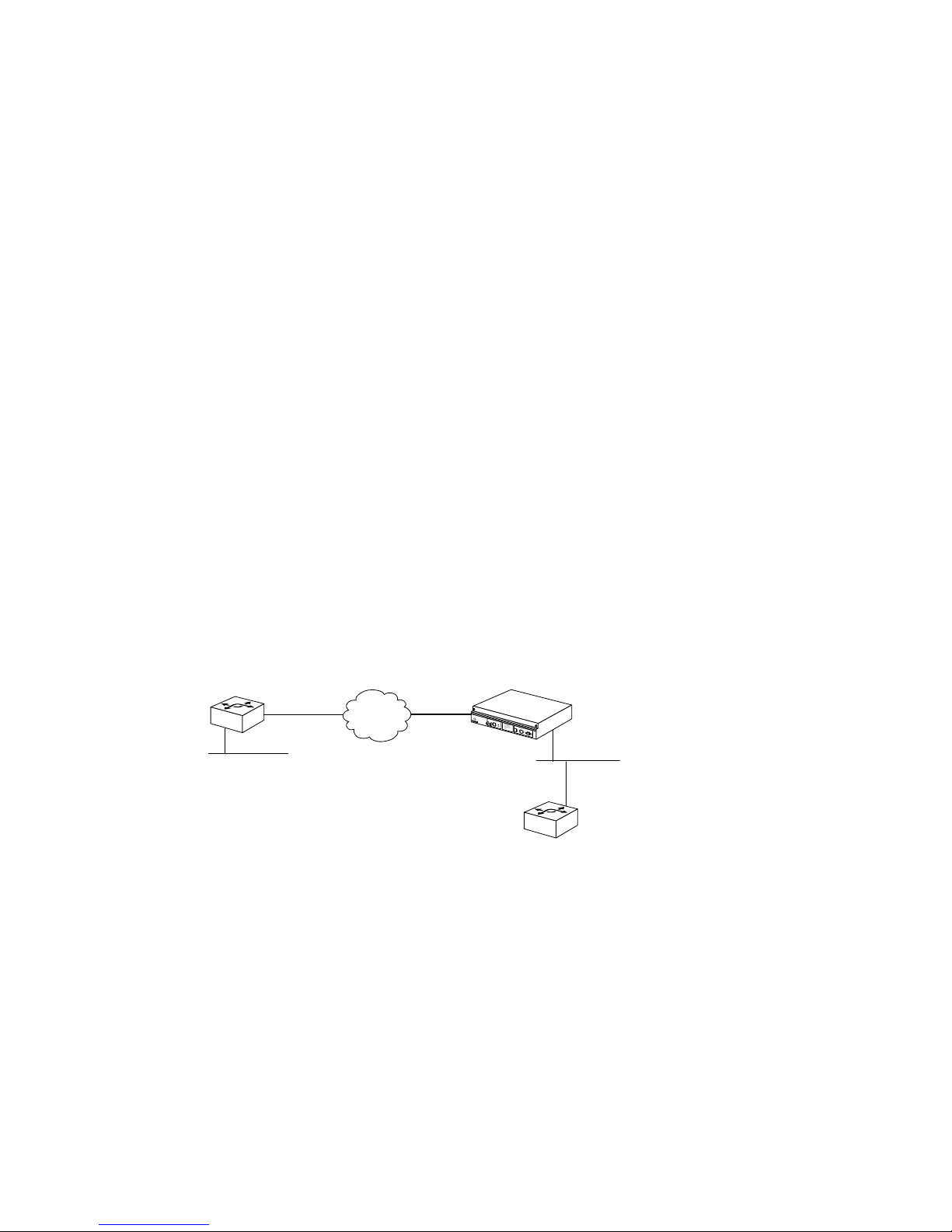

This example explains how to configure a basic GRE tunnel as shown in Figure36.

Blackbox/configure> system licenses ?

NAME licenses - Configure feature upgrade licenses

SYNTAX licenses license_type <cr>

Blackbox/configure> system licenses vpn_plus_firewall Enter Security Upgrade License key: 024f3bc296b4ea7265
