Page 1
STEP X - Name of Step
24/7 TECHNICA L SUPPORT AT 877.877.2269 OR V ISIT BLACKBOX.COM
LPH1006A-R2
GB POE+
SWITCH
QUICK START GUIDE
Page 2
LPH1006A-R2
10/100/1000T
3
4
1
2
5
PW1 PW2 Fault
6
1000M 100M
PoE
P5 P6
100/1000X
6
5

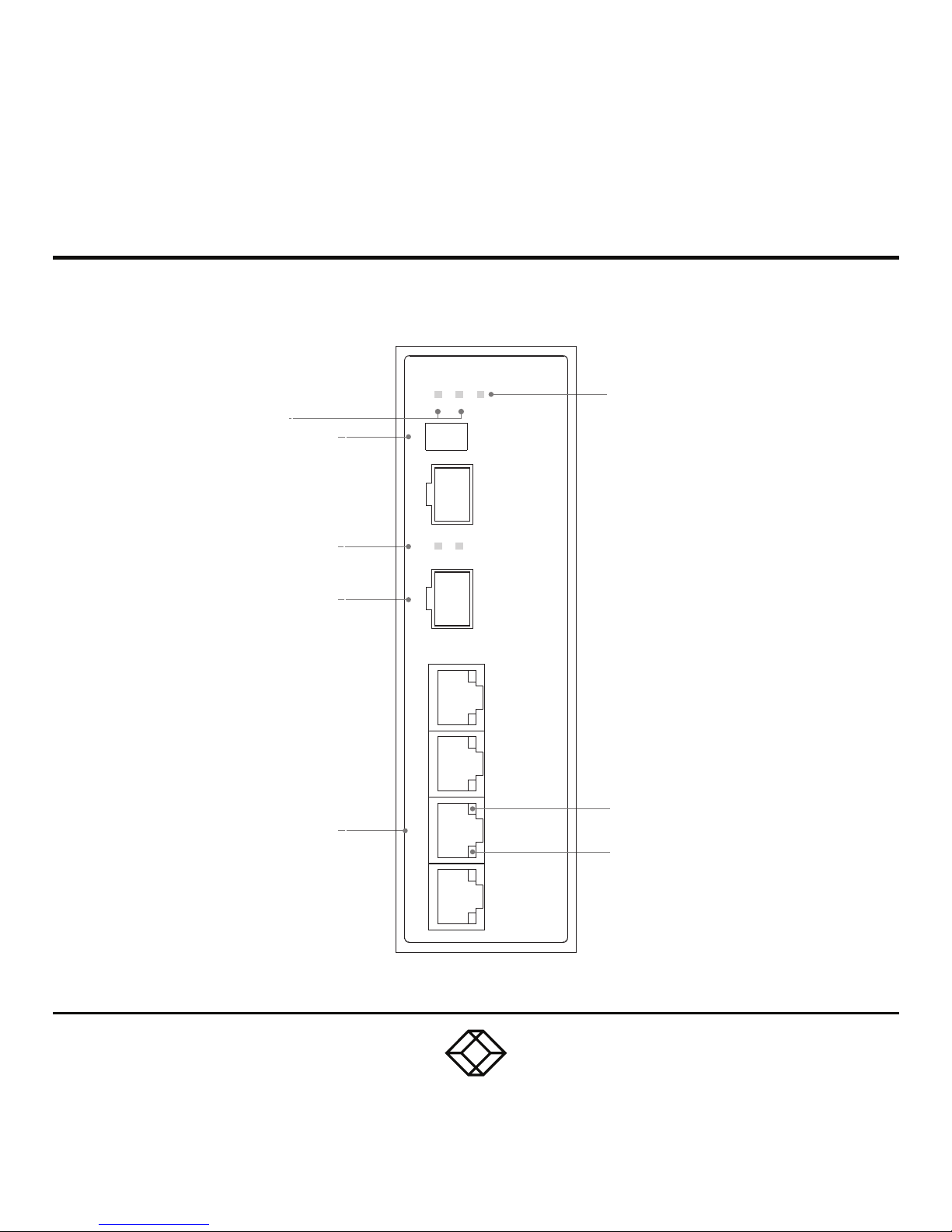

STEP 1 - Overview
DIP switch select
Power Fault LED
Power LEDs
Green Link/Act
Green PoE power injected
Gigabit LAN Port
SFP Link/Act LED
100/1000BASE-X SFP port
Page 3
STEP 1 (CONTINUED) - Overview
TABLE 1. COMPONENTS ON THE SWITCH
COMPONENT DESCRIPTION
(2) Power LEDs (green) Lights when PWR1 or PWR2 to the switch is on
DIP Switch Select Choose 1000 M or 100 M for Port 5 or 6
(2) SFP Link/Act. LEDs Lights when Port 5 or Port 6 is running at 1000 M
(2) 100/1000BASE-X SFP Ports Houses SFP module (see Table on the next page)
(4) Gigabit LAN Ports (RJ-45) Link to 10-/100-/1000-Mbps Ethernet devices
(1) Power Fault LED (amber) Indicates PWR1 or PWR2 failure
(4) Link/Act. LEDs (green/amber) Green for 1000 Mbps; Amber for 10/100 Mbps
(4) Power Injected LEDs (green) Lights when PoE power is injected
Page 4
STEP 2 - Install the SFPs
TABLE 2. COMPATIBLE SFPS
SF P PART N UMBER DESCRIPTION
LFP401 SFP, 155-Mbps Fiber with Extended Diagnostics, 850-nm MM, LC, 2 km
LFP402 SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm MM, LC, 2 km
LFP403 SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm SM, Plus, LC, 30 km
LFP404 SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm SM, Plus, LC, 60 km
LFP411 SFP, 1.25-Gbps Fiber with Extended Diagnostics, 850-nm MM, LC, 300 m
LFP412 SFP, 1.25-Gbps Fiber with Extended Diagnostics, 1310-nm MM, LC, 2 km
LFP413 SFP, 1.25-Gbps Fiber with Extended Diagnostics, 1310-nm SM, LC, 10 km
LFP414 SFP, 1.25-Gbps Fiber with Extended Diagnostics, 1310-nm SM, LC, 30 km
LFP416 SFP with SGMII Interface, 1.25-Gbps Copper with Ext. Diag., 10/100/1000BASE-T
INSTALL THE SFPS
Install two of the SFPs listed in the table below
into the empty SFP cages on the switch.
Page 5
STEP 3 - Set the DIP switches
TABLE 3. DIP SWITCH SETTINGS
DIP 1 DIP 2 DESCRIPTION
OFF OFF Power failure relay alarm disabled
ON OFF PWR 1 failure relay alarm enabled
OFF ON PWR 2 failure relay alarm enabled
ON ON PWR 1 or PWR 2 failure, relay alarm enabled
DIP SWITCHES
Locate the DIP switches on the top of the
Industrial Ethernet PoE+ Switch and set them
according to Table 3 below.
Page 6

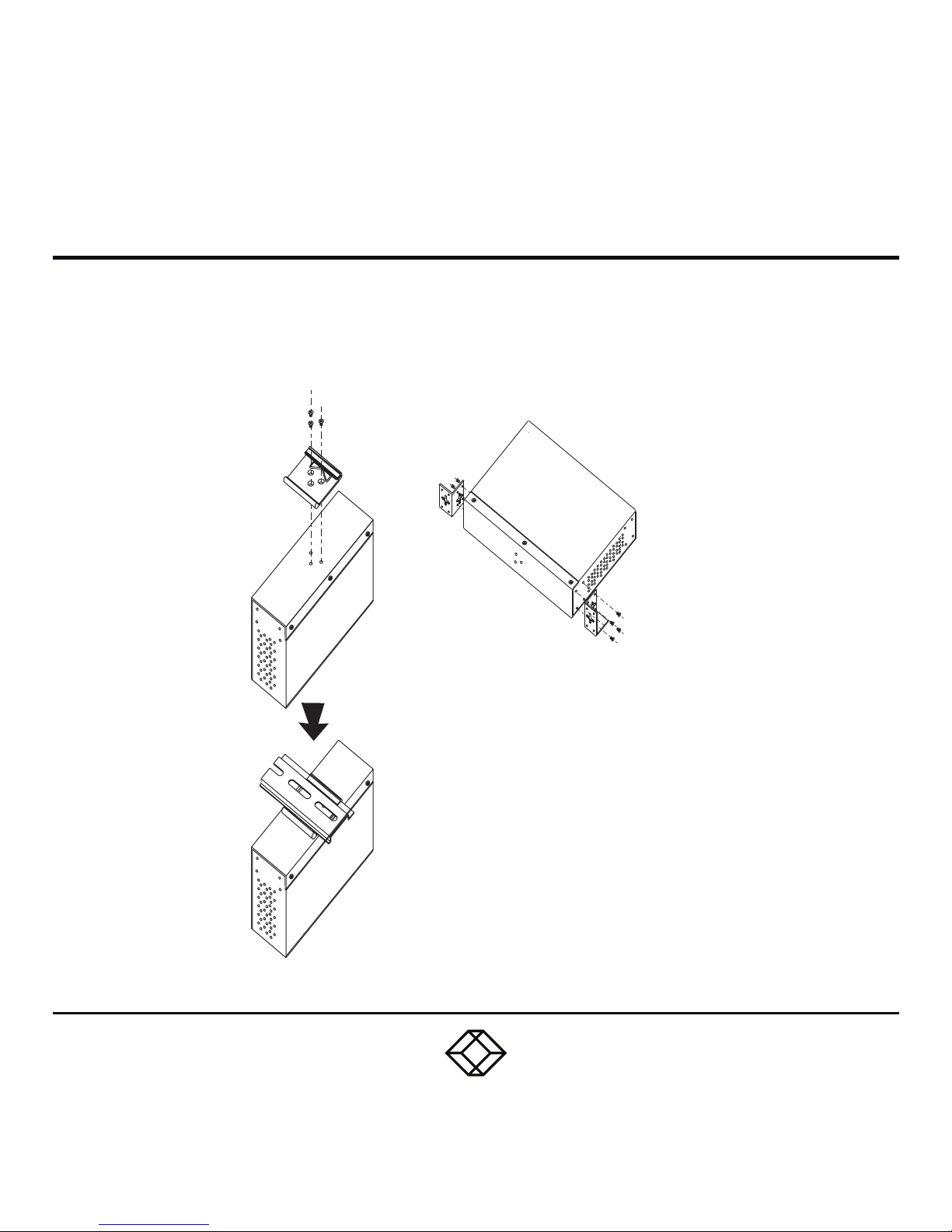

STEP 4 - Install the switch on a DIN rail or wall
DIN rail
installation
Wallmount
installation
Page 7

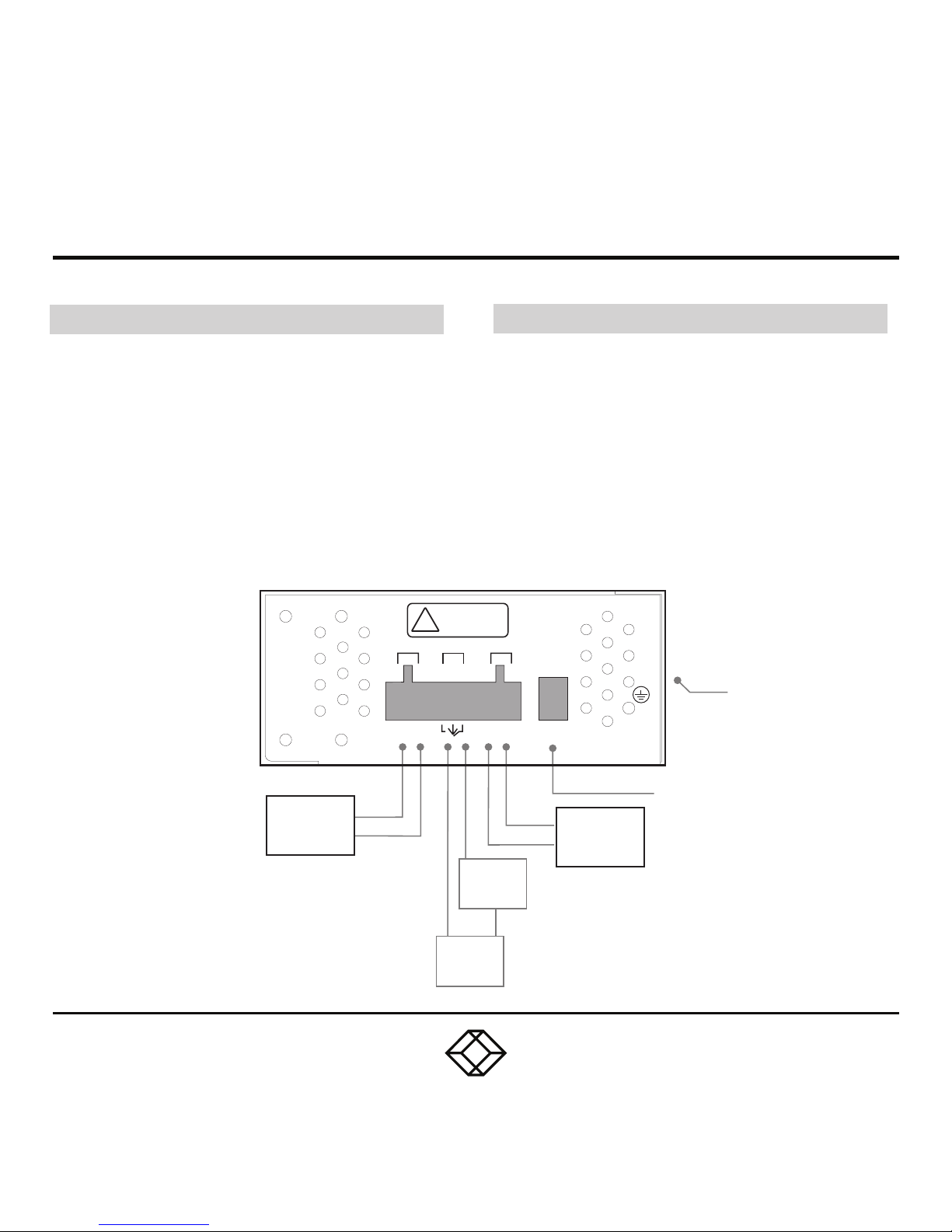

STEP 5 - Connect power and network devices
CONNECT POWER
Connect the power to the switch as shown
in the diagram below
.
PWR-1PWR-2
V2- V2+ V1- V1+
1A@24V
Check Polarity First.
炰
G
Frame
Ground
DIP switch select
for Power Alarm
Relay Output
Warning
Device
V+
V-
Power
Supply
12–5 7 V DC
Power
Supply
12–5 7 VDC
Power
Supply
Power
Supply
12–5 7 V DC
V+
V-
CONNECT NETWORK DEVICES
1.
Connect your devices using standard UTP/STP
cable, single-mode fiber cable, or multimode
fiber cable with RJ-45 or LC connectors to the
switch.
2. The corresponding RJ-45 or SFP LED will light if
the Ethernet connection is linked successfully.
3. The Link/Act LED will blink while the switch
transfers data.
Page 8
STEP X - Name of Step
COPYRIGHT 2017 BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
