STEP X - Name of Step

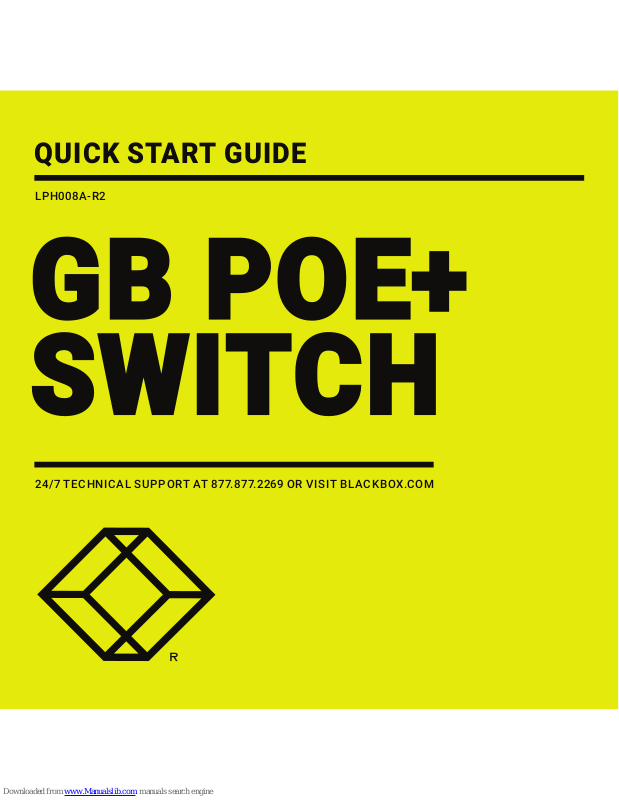

24/7 TECHNICA L SUPPORT AT 877.877.2269 OR V ISIT BLACKBOX.COM
LPH008A-R2
GB POE+
SWITCH
QUICK START GUIDE
Page 2
STEP 1 - Set the DIP switches
TABLE 1. DIP SWITCH SETTINGS
DIP SWITCH NUMBER DESCRIPTION POSITION
1 Power 2 failed warning
ON: Enabled
OFF: Disabled
2 Power 1 failed warning
ON: Enabled
OFF: Disabled
OPTIONAL: DOWNLOAD USER MANUAL
For product specifications and regulatory
information, refer to the User Manual. You can
download this document from our web site.
1. Go to www.blackbox.com
2. Enter the part number (LPH008A-R2)
in the search box.
3. Click on the product in the “Product Results”
page.
4. Click on the “Support” tab on the product
page, and select the document you wish to
download.
If you have any trouble accessing the Black Box
site to download the manual, you can contact
our Technical Support at 877-877-2269
or info@blackbox.com
DIP SWITCHES
Locate the DIP switches on the top of the
Giganit PoE+ Switch and set them according to
Table 1 below.
Page 3
STEP 2 - Install the switch on a DIN rail or wall
DIN rail
installation
Wallmount
installation
Page 4
STEP 3 - Connect the power
PWR-1PWR-2
V2- V2+ V1- V1+
1A@24V
Check Polarity First.
炰
G
Frame
Ground
DIP switch select for
Power Alarm Relay Output
Warning
Device
Power
Supply
V+
V-
V-
V+
Power
Supply
12–57 VDC
Power
Supply
12–57 VDC
Page 5
STEP 4 - Connect the network devices
CO NNE CT TH E NETWORK DEVICES
1.
Connect your devices using standard UTP/STP
cable with RJ-45 connectors to the switch.
2. The corresponding RJ-45 LED will light if the
Ethernet connection is linked
successfully.
3. The Link/Act LED will blink while the switch
transfers data.
TABLE 2. LEDS AND CONNECTORS ON THE SWITCH
LED OR CONNECTOR DESCRIPTION
(2) Power LEDs (green) Lights when PWR1 or PWR2 to the switch is on
(1) Power Fault LED (amber) Indicates PWR1 or PWR2 failure
(8) Link/Act. LEDs (green/amber) Green for 1000 Mbps; Amber for 10/100 Mbps
(8) Power Injected LEDs (green) Lights when PoE power is injected
(8) Gigabit LAN Ports (RJ-45) Link to 10-/100-/1000-Mbps Ethernet devices
P1 P2 Fault
3
4
1
2
7
8
5
6
Power 2 LED
Power Fault
LED
Power 1
LED
Green Link/Act
Green PoE power
injected
Gigabit LAN
Port
Page 6
STEP X - Name of Step
COPYRIGHT 2017 BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
