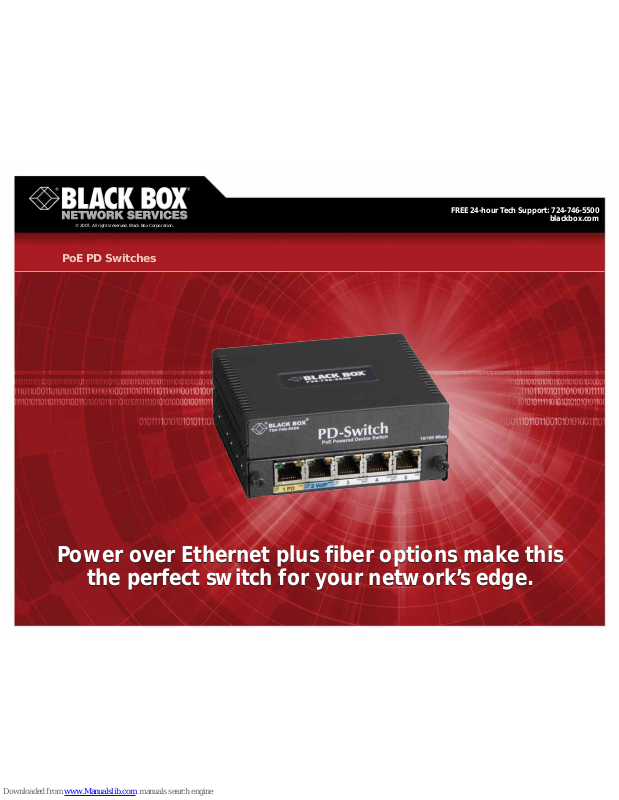

Page 1
Power over Ethernet plus fiber options make this
the perfect switch for your network’s edge.
Power over Ethernet plus fiber options make this
the perfect switch for your network’s edge.

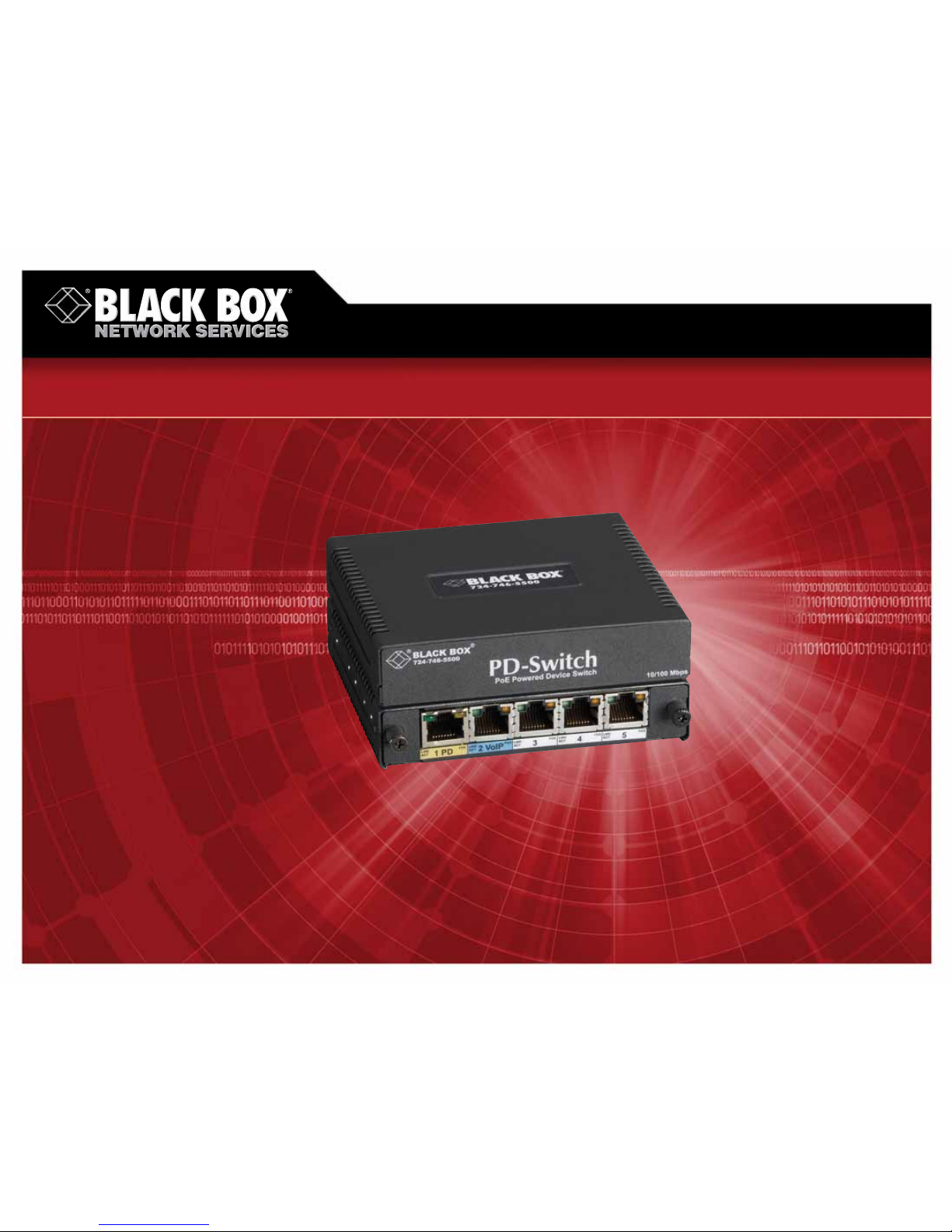

PoE PD Switches
© 2007. All rights reserved. Black Box Corporation.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
Page 2
2 of 3
7/10/2007
#26592
724-746-5500 blackbox.com
FEA TURES
• Use fiber ports to extend your network
up to 100 kilometers (62.1 miles).
• Use copper ports to increase network
port density.
• Single-strand fiber models transmit
and receive on a single fiber, enabling
you to maximize use of your fiber
infrastructure.
• All copper ports are autosensing
10-/100-Mbps Ethernet with MDI/MDI-X.
• One port supports PoE.
• Feature a VoIP port for high-priority
VoIP packets.
• DiffServ/TOS IP packet prioritization
on all ports for QoS prioritization.
• Fiber ports provide notification of link
loss at the far end of the fiber.
• Include broadcast storm protection.
• Support 1916-byte packet size.
Double the distance
of your copper links.
OVERVIEW
PoE PD Switches are perfect for your network’s edge.
Unlike most PoE switches which are PSEs that provide power
to PoE devices, these switches are PDs and receive their power
from a PSE. Because their power is delivered over the UTP
Ethernet cable, they don’t need a separate power outlet,
saving you money on installation costs. These switches are an
easy way to extend the range of your Ethernet network and
increase port density.
Powered by Ethernet
PoE PD Switches receive their power from any PoE PSE
device across CAT5 or higher UTP cable. Because they’re
powered by the same cable that provides their Ethernet
connection, installation is simplified and you don’t need to
worry about having power outlets at remote locations.
A wide range of port options
These nimble switches are available with copper ports only
or with copper ports plus a fiber uplink. There is even a model
with an SFP port which enables you to use SFPs for greater
flexibility on the fiber link. One copper port on each switch
supports PoE.
Use models with fiber ports to add long-distance fiber
links—up to 100 km—to your network. Single-strand fiber
models enable you to send and receive over a single fiber
strand, so you get more use from your fiber infrastructure.
One port on each switch is a high-priority VoIP port which
ensures that voice packets get through first.
A full-featured switch
PoE PD Switches provide the features you’re looking for.
All copper ports are dual-speed, autosensing 10-/100-Mbps
ports. MDI/MDI-X means you never need to worry about
having a crossover cable.
Broadcast storm protection (message rate filtering)
prevents network downtime by shutting down ports if
broadcast or multicast traffic exceeds its threshold.
DiffServ on all ports provides quality of service (QoS)
prioritization so crucial network traffic gets through first.
Link Loss on all fiber ports notifies you if the fiber link fails.

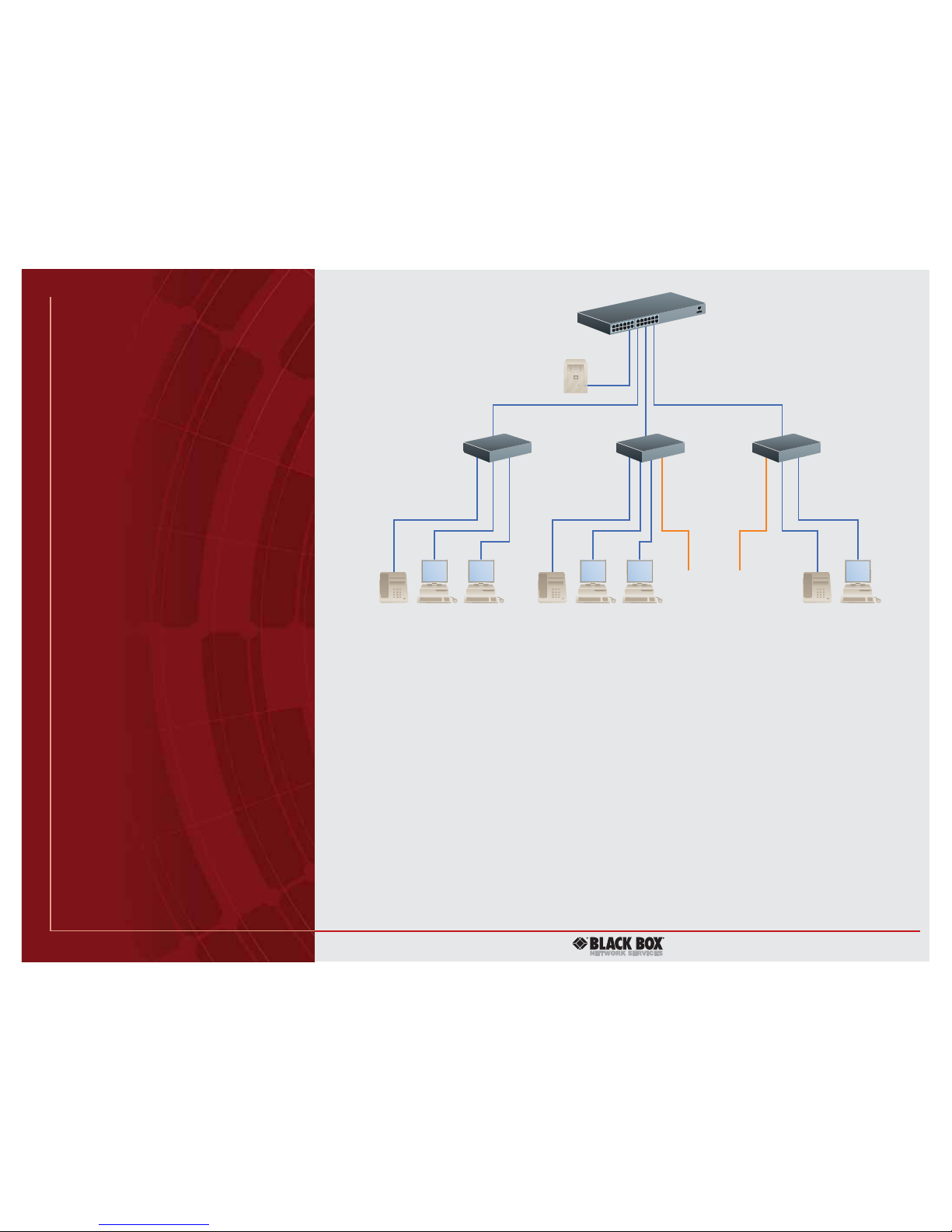

PoE PD Switch
(LPD100A)
PoE PD Switch
(LPD106A)
PoE PD Switch
(LPD106A)
VoIP phone VoIP phone VoIP phone
To other
campus
building
To other
campus
building
PowerDsine
™
6500 Series
PoE Midspan Power Injector
(PD-6512/AC/)
UPS
PCs PCs PC
100 meters
CAT5e cable carrying
data only
100 meters
CAT5e cable carrying
data plus power
100 meters
CAT5e cable carrying
data plus power
100 meters
CAT5e cable carrying
data plus power
Single-mode
fiber optic
cable
Single-mode
fiber optic
cable
Page 3
3 of 3
7/10/2007
#26592
724-746-5500 blackbox.com

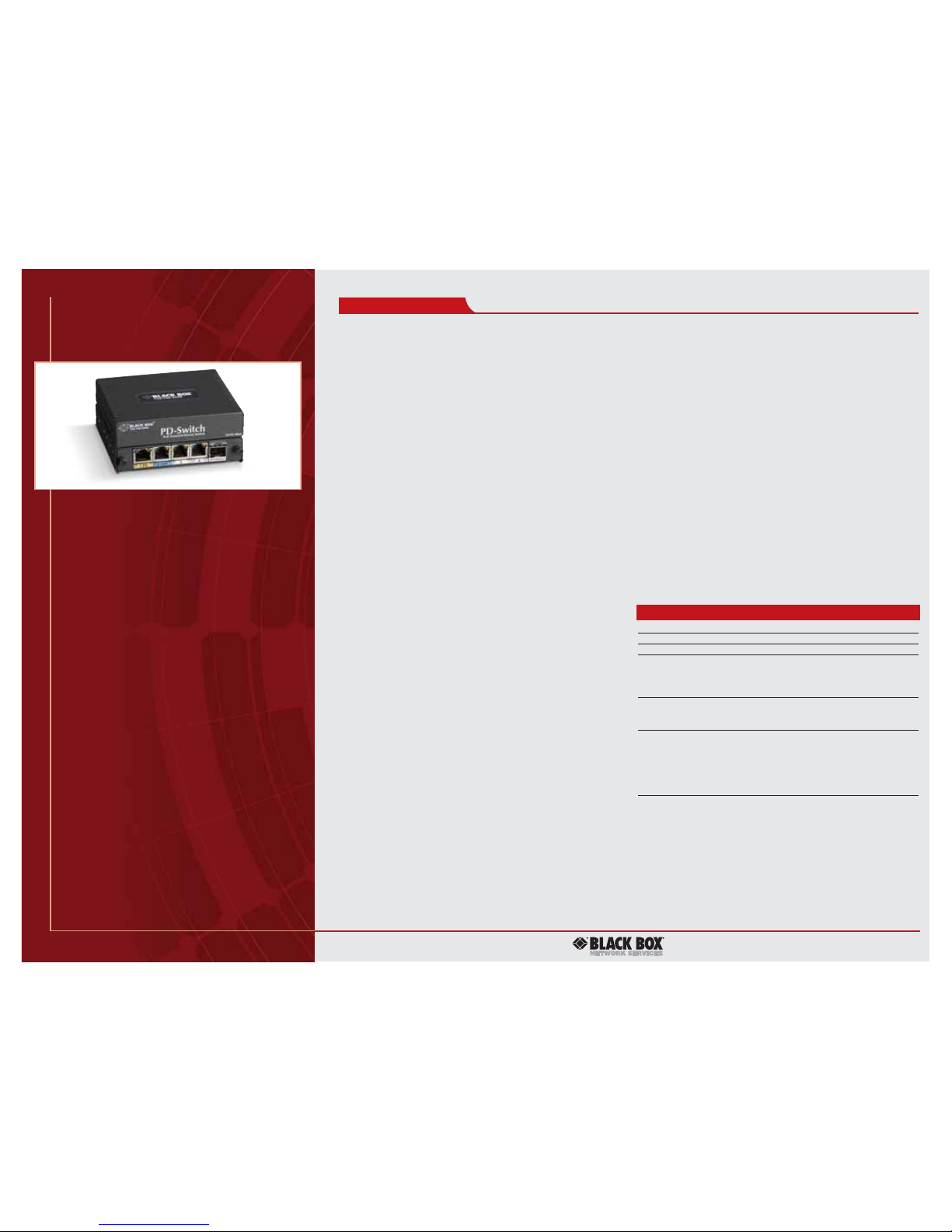

TECH SPECS
Standards — IEEE 802.3x, IEEE 802.3u, IEEE 802.3af
CE Approval — Yes
Environmental — Operating temperature: 32 to 122°F (0 to 50°C);
Storage temperature: -13 to +158°F (-25 to +70°C);
Humidity: 5% to 90% noncondensing
Power — Inline PoE Power injector
Size — 1.6"H x 4.8"W x 7.3"D (4.1 x 12.2 x 18.5 cm)
Weight — 1.8 lb. (0.8 kg)
Item Code
PoE PD Switches
(5) 10/100BASE-T LPD100A
(4) 10/100BASE-T plus (1) SFP Slot LPD101A
(3) 10/100BASE-T plus
(1) 100BASE-SX, Multimode, 850-nm
300 m, ST LPD102A
300 m, SC LPD103A
(3) 10/100BASE-T plus (1) 100BASE-SX, Multimode, 1300-nm
2 km, ST
®
LPD104A
2 km, SC LPD105A
(3) 10/100BASE-T plus (1) 100BASE-SX, Single-Mode 1310-nm
40 km, ST LPD106A
40 km, SC LPD107A
80 km, ST LPD108A
80 km, SC LPD109A
100 km, SC LPD110A
(3) 10/100BASE-T plus
(1) Single-Strand 100BASE-FX, Single-Mode
20 km, SC (Order one of each.)
1310-nm TX/1550-nm RX LPD111A
1550-nm TX/1310-nm RX LPD112A
40 km, SC (Order one of each.)
1310-nm TX/1550-nm RX LPD113A
1550-nm TX/1310-nm RX LPD114A
60 km, SC (Order one of each.)
1310-nm TX/1550-nm RX LPD115A
1550-nm TX/1310-nm RX LPD116A
The seemingly universal network connection, twisted-pair
Ethernet cable, has another role to play, providing electrical
power to low-wattage electrical devices. Power over Ethernet
(PoE) was ratified by the Institute of Electrical and Electronic
Engineers (IEEE) in June 2000 as the 802.3af-2003 standard.
It defines the specifications for low-level power delivery—
roughly 13 watts at 48 VDC—over twisted-pair Ethernet cable
to PoE-enabled devices such as IP telephones, wireless access
points, Web cameras, and audio speakers.
The way it works is simple. Ethernet cable that meets CAT5
(or better) standards consists of four twisted pairs of cable,
and PoE sends power over these pairs to PoE-enabled devices.
In one method, two wire pairs are used to transmit data, and
the remaining two pairs are used for power. In the other
method, power and data are sent over the same pair.
When the same pair is used for both power and data, the
power and data transmissions don’t interfere with each other .
Because electricity and data function at opposite ends of the
frequency spectrum, they can travel over the same cable.
Electricity has a low frequency of 60 Hz or less, and data
transmissions have frequencies that can range from 10 million
to 100 million Hz.
There are two types of devices involved in PoE configurations: Power Sourcing Equipment (PSE) and Powered Devices
(PD).
PSEs, which include end-span and mid-span devices,
provide power to PDs over the Ethernet cable. An end-span
device is often a PoE-enabled network switch that’s designed
to supply power directly to the cable from each port. The
setup would look something like this:
A mid-span device is inserted between a non-PoE device
and the network, and it supplies power from that juncture.
Here is a rough schematic of that setup:
Power injectors, a third type of PSE, supply power to a
specific point on the network while the other network
segments remain without power.
PDs are pieces of equipment like switches, surveillance
cameras, sensors, wireless access points, and any other
devices that operate on PoE.
Technically Speaking
LPD101A
TYPICAL APPLICA TIONS
• Use one set of twisted-pair wires for both data and power.
• Save money by eliminating the need to run electrical
wiring.
• Quickly set up a temporary workgroup.
• If your LAN is protected from power failure by a UPS, the
PoE PD Switches connected to your LAN are also protected
from power failure.
• Use the switch increase the range of your copper network
by enabling you to add up to another 100 meters of UTP
cabling.
