Page 1
Save on infrastructure and power
up to four devices with PoE.
Save on infrastructure and power
up to four devices with PoE.

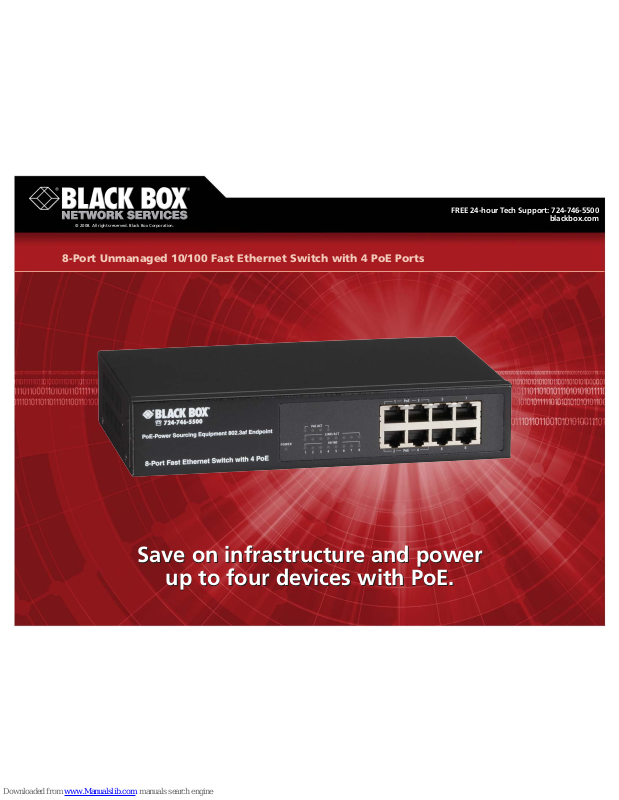

8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports
© 2008. All rights reserved. Black Box Corporation.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
Page 2
2 of 3
7/29/2008
#26952
724-746-5500 blackbox.com
FEATURES
• Power end-devices directly through
LAN cables.
• Works with wireless access points, VoIP
phones, security cameras, and more.
• Centralize power distribution and
backup without the need to increase
infrastructure.
• Auto detection of powered devices and
consumption levels.
• Supports 10-/100-Mbps autodetect halfand full-duplex.
• Supports TP interface auto MDI/MDI-X
function for auto TX/RX swap.
• Smart feature for PD on/off, PD
detection, power level, PD status, and
power feeding priority.
• Supports 802.3x flow control pause
packet for full duplex.

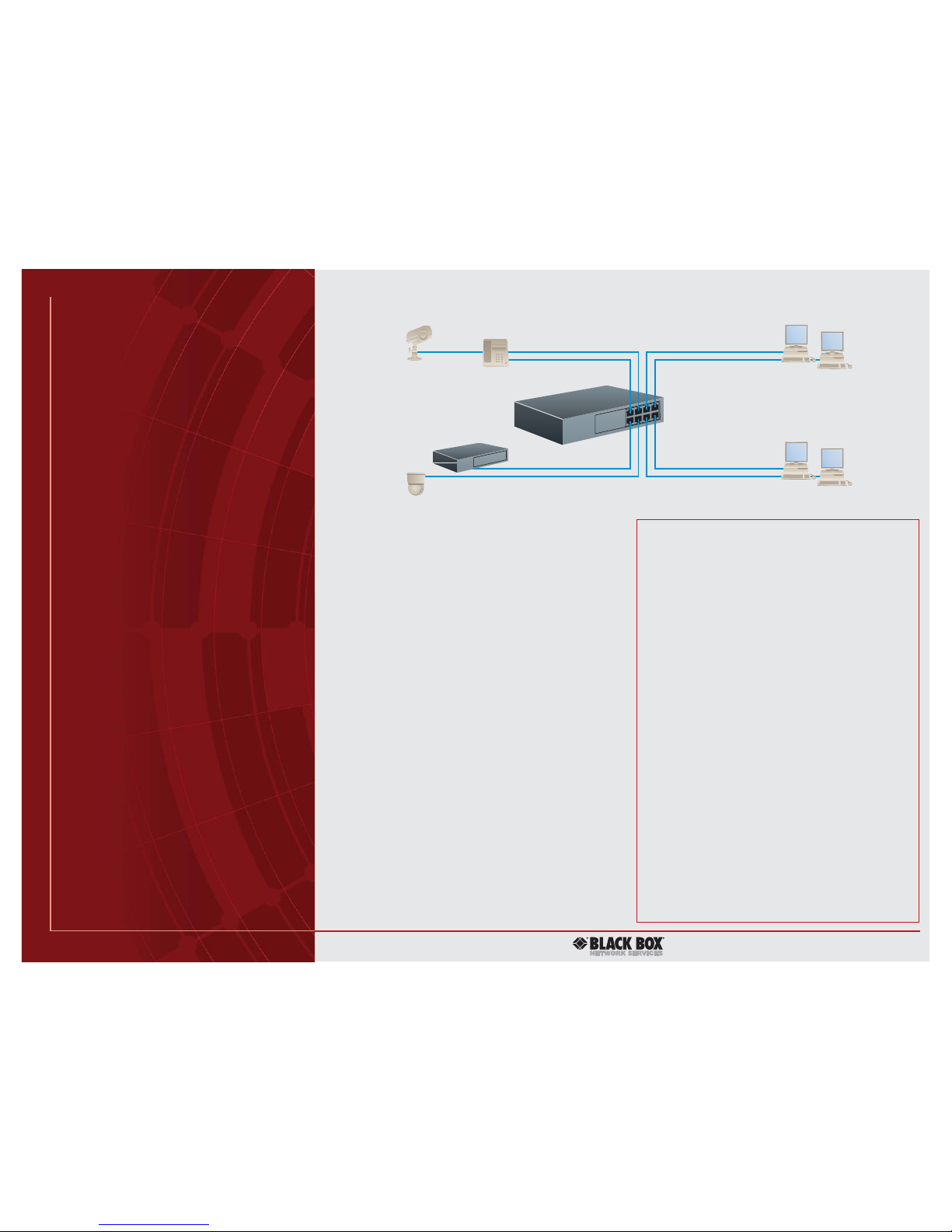

Link four PCs to four PoE devices.
OVERVIEW
The 8-Port Unmanaged 10/100 Fast Ethernet Switch with
4 PoE Ports conforms to IEEE 802.3 10BASE-T, IEEE 802.3u
100BASE-TX, and IEEE 802.3x flow control standards.
It enables you to power LAN devices through LAN cables.
Use the switch with wireless access points, VoIP phones,
security, and other devices.
You get central power distribution and backup. And, the
switch automatically detects powered devices and power
consumption levels.
Connect 10-/100-Mbps half- and full-duplex devices to the
switch. It supports 802.3x flow control pause packet for fullduplex.
The switch has auto MDI/MDI-X to automatically swap
TX/RX. Plus, it features PD on/off, PD detection, PD status, and
power feeding priority.
8-Port Unmanaged Switch
4 10/100 Ports and 4 PoE
Ports (LPB208A)
Network security
camera
PCs
PCs
Wireless access point
PoE PD Switch
(LPD100A)
VoIP phone
TECH SPECS
Forwarding Rate — 10 Mbps: 14,880 pps;
100 Mbps: 148,800 pps
Operating Environment — Temperature: 32 to 104° F (0 to 40° C);
Humidity: 5 to 90%
Standards — IEEE 802.3, IEEE802.3u, IEEE 802.3x
Switching Method — Store and forward
CE Approval — Yes
Indicators — LEDs: Power, Link/Act, Speed, PoE activity
Size — 1.7"H x 8.7"W x 5.1"D (4.4 x 22 x 13.1 cm)
Weight — 2.2 lb. (1 kg)
Recognize any of these situations?
• You wait more than 30 minutes to get through
to a vendor’s tech support.
• The so-called “tech” can’t help you or gives you
the wrong answer.
• You don’t have a purchase order number and the
tech refuses to help you.
• It’s 9 p. m. and you need help, but your vendor’s
tech support line is closed.
According to a survey by Data Communications
magazine, 90% of network managers surveyed say
that getting the technical support they need is extremely
important when choosing a vendor. But even though
network managers pay anywhere from 10 to 20% of their
overall purchase price for a basic service and support
contract, the technical support and service they receive
falls far short of their expectations— and certainly isn’t
worth what they paid.
At Black Box, we guarantee the best value and the
best support. You can even consult our Technical Support
Experts before you buy if you need help selecting just
the right component for your application.
Don’t waste time and money— call Black Box today.
Why Buy From Black Box?
Exceptional Value. Exceptional
Tech Support. Period.
Page 3
3 of 3
7/29/2008
#26952
724-746-5500 blackbox.com
Item Code
8-Port Unmanaged 10/100 Fast Ethernet Switch
with 4 PoE Ports LPB208A
POWER OVER ETHERNET (POE).
What is PoE?
The seemingly universal network connection, twisted-pair
Ethernet cable, has another role to play—providing electrical
power to low-wattage electrical devices. Power over Ethernet
(PoE) was ratified by the Institute of Electrical and Electronic
Engineers (IEEE) in June 2000 as the 802.3af-2003 standard. It
defines the specifications for low-level power delivery—
roughly 13 watts at 48 VDC—over twisted-pair Ethernet cable
to PoE-enabled devices such as IP telephones, wireless access
points, Web cameras, and audio speakers.
How does PoE work?
The way it works is simple. Ethernet cable that meets CAT5
(or better) standards consists of four twisted pairs of cable,
and PoE sends power over these pairs to PoE-enabled devices.
In one method, two wire pairs are used to transmit data, and
the remaining two pairs are used for power. In the other
method, power and data are sent over the same pair.
When the same pair is used for both power and data, the
power and data transmissions don’t interfere with each other.
Because electricity and data function at opposite ends of the
frequency spectrum, they can travel over the same cable.
Electricity has a low frequency of 60 Hz or less, and data
transmissions have frequencies that can range from 10 million
to 100 million Hz.
Basic structure.
There are two types of devices involved in PoE configurations: Power Sourcing Equipment (PSE) and Powered Devices
(PD).
PSEs, which include end-span and mid-span devices,
provide power to PDs over the Ethernet cable. An end-span
device is often a PoE-enabled network switch that’s designed
to supply power directly to the cable from each port. The
setup would look something like this:
End-span device → Ethernet with power
A mid-span device is inserted between a non-PoE device
and the network, and it supplies power from that juncture.
Here is a rough schematic of that setup:
Non-PoE switch → Ethernet without PoE → Mid-span
device → Ethernet with power
Power injectors, a third type of PSE, supply power to a
specific point on the network while the other network
segments remain without power.
PDs are pieces of equipment like surveillance cameras,
sensors, wireless access points, and any other devices that
operate on PoE.
Technically Speaking
Caption

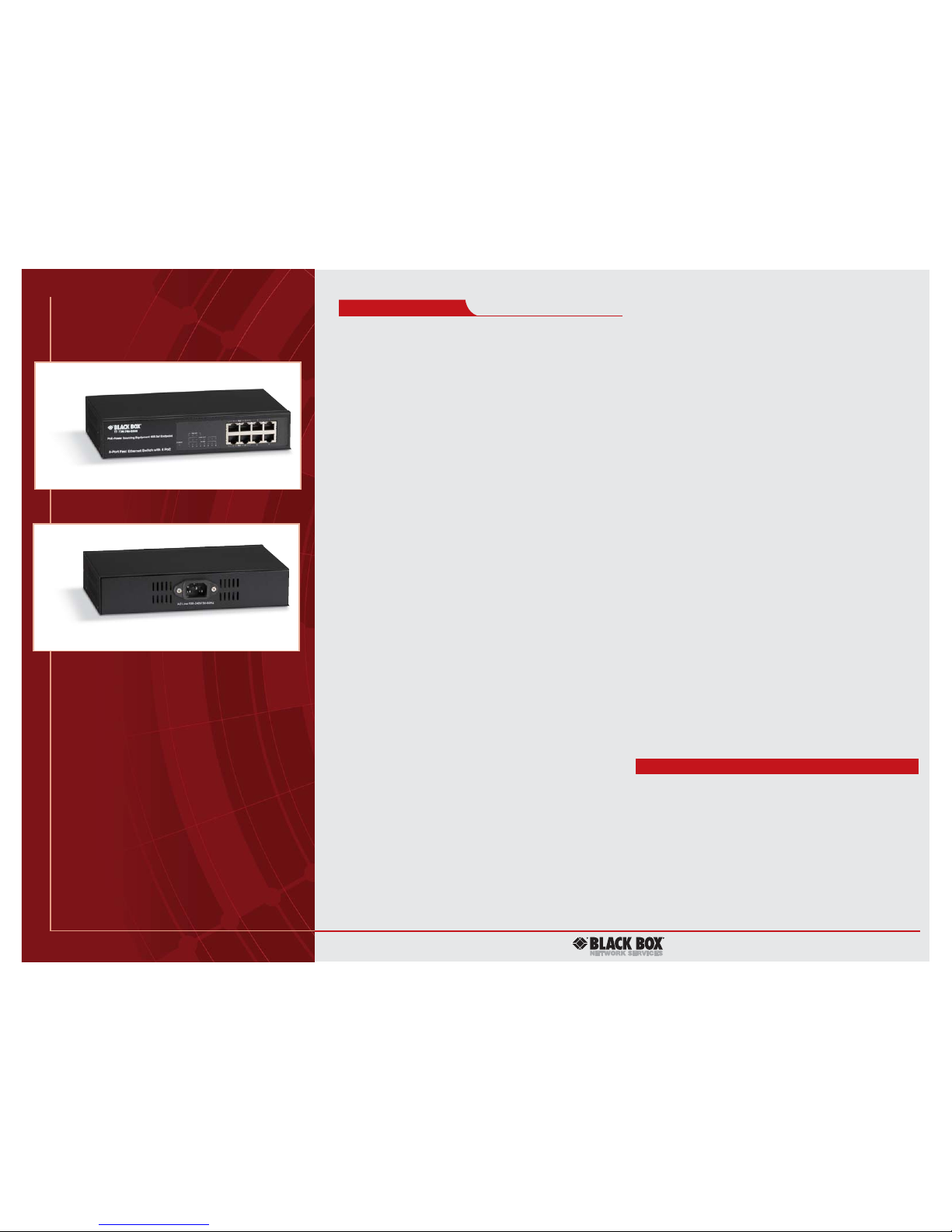

Front view: LPB208A
Rear view: LPB208A
PoE applications and benefits.
• Use one set of twisted-pair wires for both data and lowwattage appliances.
• In addition to the applications noted above, PoE also works
well for video surveillance, building management, retail
video kiosks, smart signs, vending machines, and retail
point-of-information systems.
• Save money by eliminating the need to run electrical
wiring.
• Easily move an appliance with minimal disruption.
• If your LAN is protected from power failure by a UPS, the
PoE devices connected to your LAN are also protected from
power failure.
