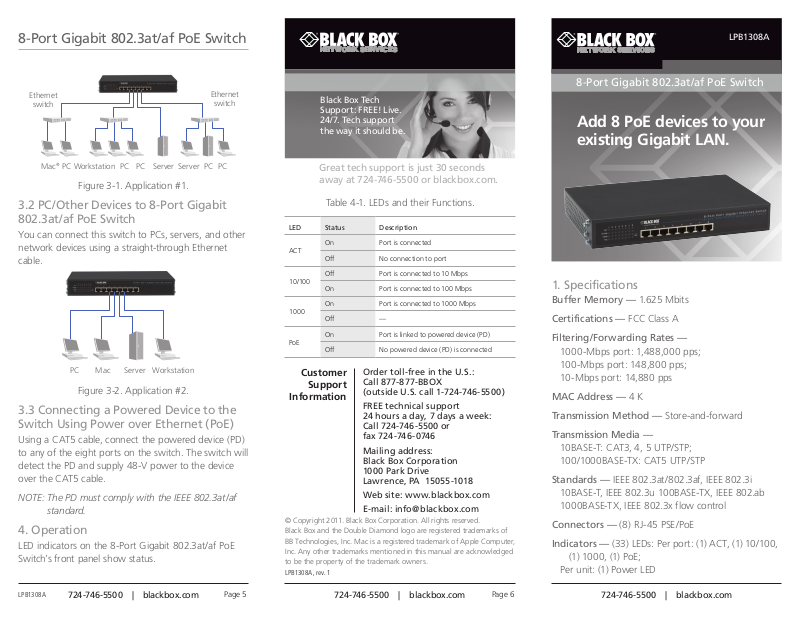

Black Box LPB1308A User Manual

8-Port Gigabit 802.3at/af PoE Switch

Ethernet

switch

Ethernet

switch

Black Box Tech
Support: FREE! Live.
24 / 7. Tech support
the way it should be.

LPB1308A

8-Port Gigabit 802.3at/af PoE Switch

Add 8 PoE devices to your
existing Gigabit LAN.

Mac® PC Workstation PC PC Server Server PC PC

Figure 3-1. Application #1.

3.2 PC/Other Devices to 8-Port Gigabit

802.3at/af PoE Switch

You can connect this switch to PCs, servers, and other
network devices using a straight-through Ethernet
cable.

PC Mac Server Workstation

Figure 3-2. Application #2.

3.3 Connecting a Powered Device to the
Switch Using Power over Ethernet (PoE)

Using a CAT5 cable, connect the powered device (PD)
to any of the eight ports on the switch. The switch will
detect the PD and supply 48-V power to the device
over the CAT5 cable.

NOTE: The PD must comply with the IEEE 802.3at/af

standard.

4. Operation

LED indicators on the 8-Port Gigabit 802.3at/af PoE
Switch’s front panel show status.

Great tech support is just 30 seconds
away at 724-746-5500 or blackbox.com.

Table 4-1. LEDs and their Functions.

LED Status Description

ACT

10/100

1000

PoE

Information

© Copyright 2011. Black Box Corporation. All rights reser ved.
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc. Mac is a registered trademark of Apple Computer,
Inc. Any other trademarks mentioned in this manual are acknowledged
to be the property of the trademark owners.

LPB1308A , rev. 1

On Port is connected

Off No connection to port

Off Port is connected to 10 Mbps

On Port is connected to 100 Mbps

On Port is connected to 1000 Mbps

Off —

On Port is linked to powered device (PD)

Off No powered device (PD) is connected

Customer

Support

Order toll-free in the U.S.:
Call 877-877-BBOX
(outside U.S. call 1-724-746-5500)

FREE technical support
24 hours a day, 7 days a week:
Call 724-746-5500 or
fax [phone]

Mailing address:
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055-1018

Web site: www.blackbox.com

E-mail: [e-mail]

1. Specifications

Buffer Memory — 1.625 Mbits

Certifications — FCC Class A

Filtering/Forwarding Rates —
1000-Mbps port: 1,488,000 pps;

100-Mbps port: 148,800 pps;
10-Mbps port: 14,880 pps

MAC Address — 4 K

Transmission Method — Store-and-forward

Transmission Media —

10BASE-T: CAT3, 4, 5 UTP/STP;
100/1000BASE-TX: CAT5 UTP/STP

Standards — IEEE 802.3at /802.3af, IEEE 802.3i
10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.ab
1000BASE-TX, IEEE 802.3x flow control

Connectors — (8) RJ-45 PSE/PoE

Indicators — (33) LEDs: Per port: (1) ACT, (1) 10/100,

(1) 1000, (1) PoE;
Per unit: (1) Power LED

LP B130 8A

Page 5 Page 6

724-746-5500 | blackbox.com724-746-5500 | blackbox.com 724-746-5500 | blackbox.com

8-Port Gigabit 802.3at/af PoE Switch 8-Port Gigabit 802.3at/af PoE Switch8-Port Gigabit 802.3at/af PoE Switch

Temperature Tolerance — Operating: +32 to

+131° F (0 to +55° C);
Storage: -4 to + 194° F (-20 to +90° C)

Relative Humidity — 10 to 90%, noncondensing

Power — Input: 100–240 VAC/50-60 Hz;

Output: 48 VDC per port, (8) ports at full 30 W
output supported;
Consumption: 250 watts (maximum)

Size — 1.8”H x 7.3”W x 11”D (4.5 x 18.5 x 28 cm)

Shipping Weight — 5.1 lb. (2.3 kg)

2. Overview

2.1 Introduction

This switch provides eight 10-/100-/1000-Mbps ports.
It was designed for easy installation and high
performance in an environment where traffic is on the
network and the number of users increases
continuously.

The switch installs where space is limited and provides
smooth network migration and easy upgrade to
network capacity. It can be rackmounted in a 19”
cabinet or rack.

2.2 What’s Included

Your package should contain the following items.
If anything is missing or damaged, contact Black Box
Technical Support at 724-746-5500 or
[e-mail].

• (1) 8-Port 802.3at/af PoE Gigabit Ethernet Switch

• (1) power cord

• (1) rackmount kit: (2) brackets, (2) screws

2.3 Features

• Each port autonegotiates between 10, 100, and

1000 Mbps.

• All eight ports support PSE/PoE.

• Supports up to 30 W maximum power for each

PSE/PoE port.

• Mounts in a 19” rack.

• Auto-learns network configurations.

• Auto-detects full-/half-duplex modes for any port.

• Offers dedicated full-duplex 2000-Mbps bandwidth.

• Store-and-forward switching methods.

• IEEE 802.3x flow control for full-duplex and back-

pressure flow control for half-duplex operation.

• Non-blocking and non-head-of-line blocking full

wire-speed forwarding.

• Auto-MDI/MDI-X function for any port.

• Smart plug-and-play.

2.4 Hardware Description

Figures 2-1 and 2-2 show the switch’s front and back
panels. Table 2-1 describes its components.

2

4

5

3

1

Figure 2-1. Front panel.

6 7

Figure 2-2. Back panel.

Table 2-1. Components.

Number Component Description

1 (8) RJ- 45 connectors Link to 10 /100 /1000 Ethernet devices

2 (8) ACT LEDs

3 (8) PoE LEDs

4 (8 ) 10/100 LEDs

5 (8) 1000 LEDs

6 Power LED Lights when power to the unit is on

7 3-prong receptacle Links to 100–240 VAC power cord

Lights when port is connected; flashes
when data is transmitting or receiving.

Lights when port is linked to power
device; Off when no power device is
connected.

Off when port is connected to
10 Mbps; On when ports is
connected to 100 Mbps

On when port is connected to
1000 Mbps

3. Installation

3.1 Switch/Hub to 8-Port Gigabit 802.3at/af
PoE Switch

This switch provides automatic crossover detection for
any port so it’s simple to uplink to another switch
without using a crossover cable.

• This user’s manual

LP B130 8A LP B130 8ALP B130 8A
